some problems after installing the sierra on GA-Z170MX-Gaming 5

62 posts in this topic

Recommended Posts

Hello everyone

I bought my hackintosh new parts
Motherboard: GA-Z170MX-Gaming 5 ver1.0 F20 bios
Memories: HX424C15FBK4 / 64
Processor: I7-6700K 4GHZ 8MB
GPU: intel 530

I have successfully installed the system 10.12.3
After I installed the 100 Series Audio
And ALC1150 and sound works

Then I installed the AtherosE22000Ethernet (the latest version)
I did restart, and network card work


Now the problem with an internal graphics card 530
xxxxxxxxxxxxxxxxxxxxxxxx

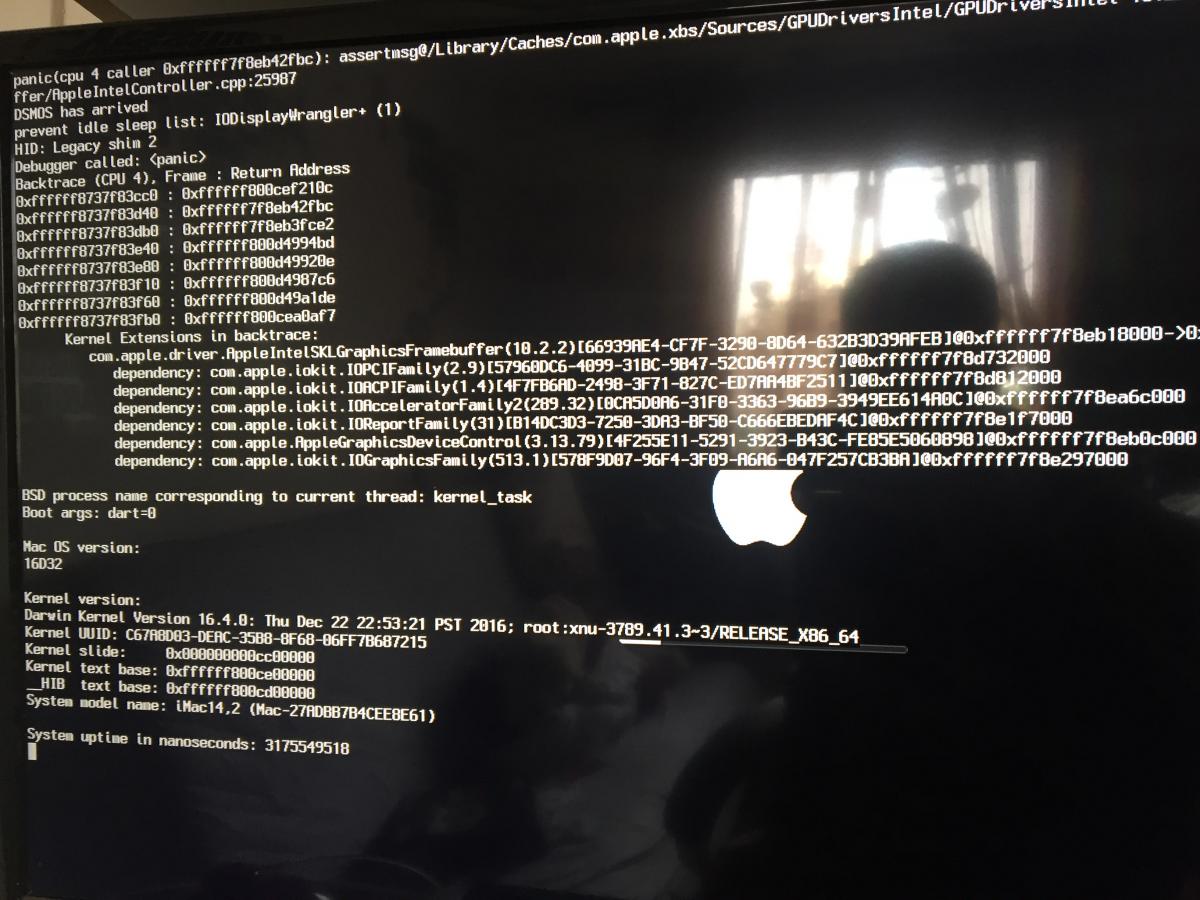

I did restart and check the situation, and it makes infinite restart

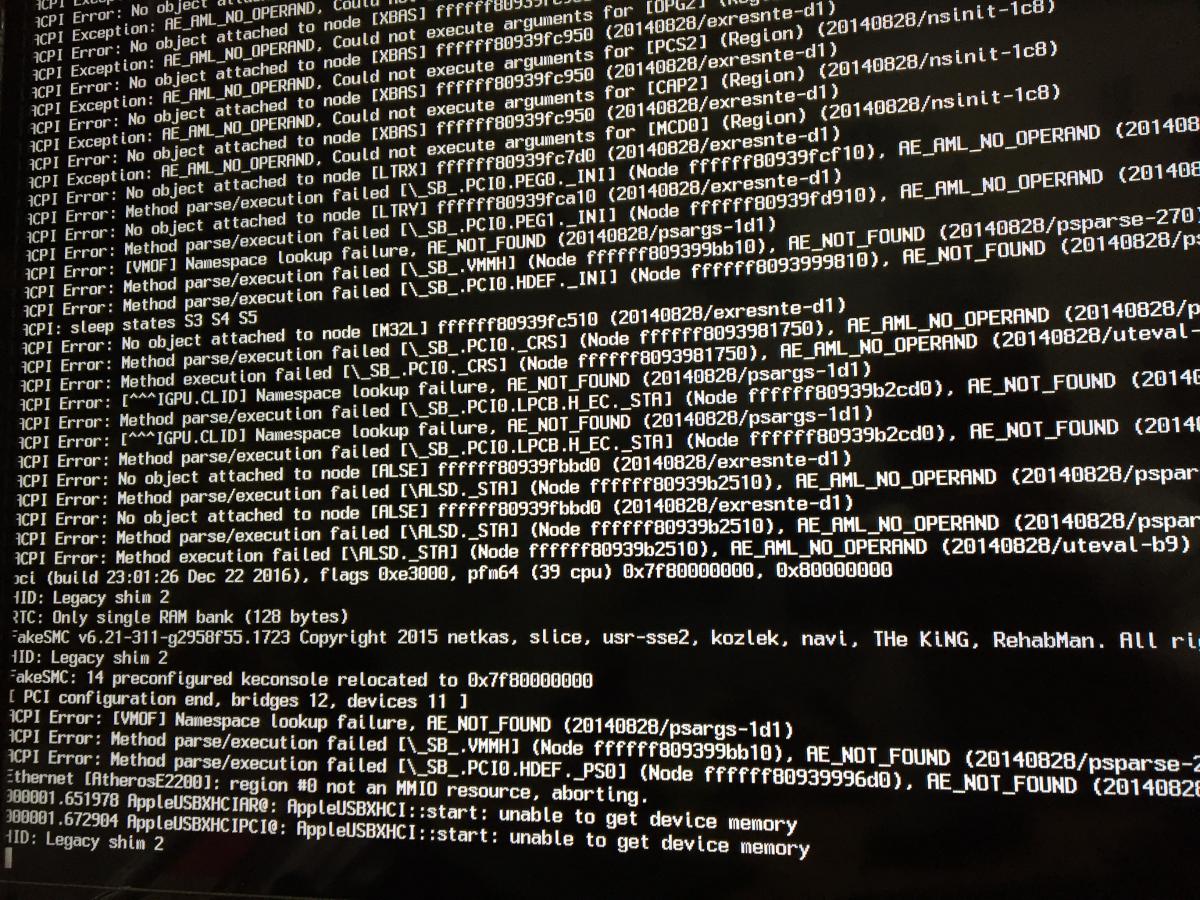

I I've included a picture




What am I doing wrong?


Even I uploaded the file config.plist


Thanks in advance

config.plist.zip

Edited by carlo_67
The tool tony are not and should not be supported here, please Regulation

Share this post


Link to post
Share on other sites
Advertisement

You can either raise the DVMT value in the UEFI BIOS settings to at least 64MB or you can use the minStolenSize patch and see if that gets around it. Here's your config.plist with that patch added for 10.12.x:

config.plist.zip

Share this post


Link to post
Share on other sites
Hello nawcom and MaLd0n

Thank you very much for your response



I was a default of DVMT Pre-Allocated have 32MB

I changed it to 1024M

It works in part



I upload my files

Please check them if everything is OK







Thanks in advance



VMR’s iMac.ioreg.zip

Send me VMR’s iMac.zip

Share this post


Link to post
Share on other sites
Hello MaLd0n
Thank you very much for your response


I replaced the full Clover folder

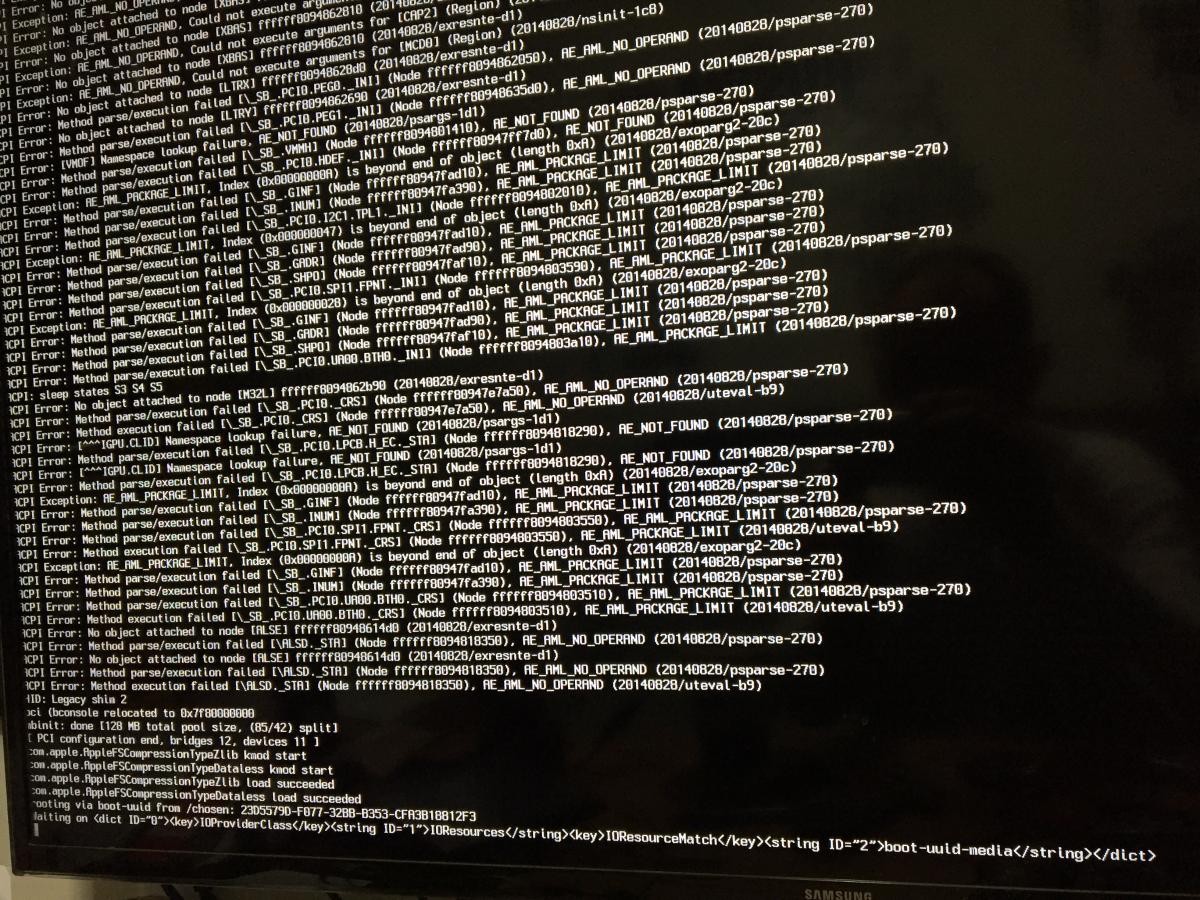

Now there is another problem

What's wrong?

Thanks in advance

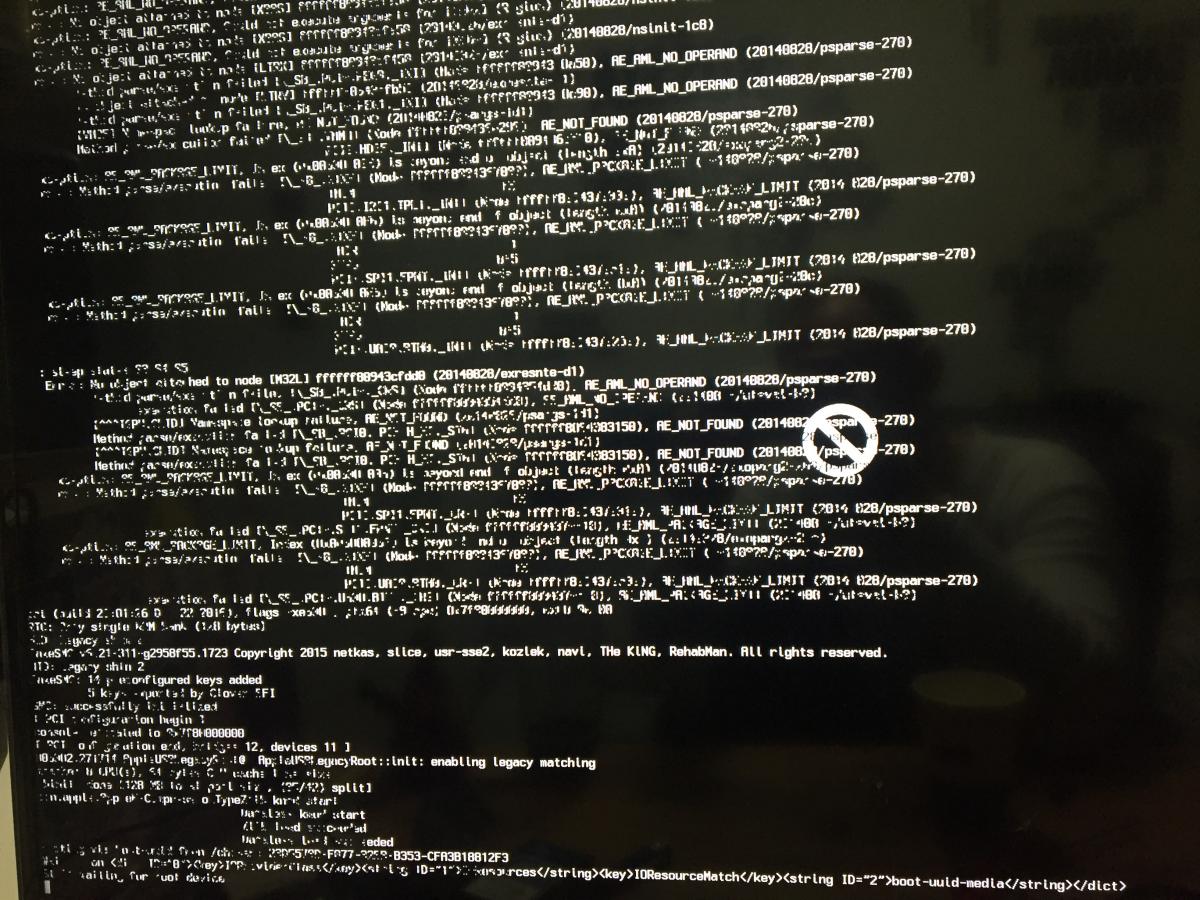

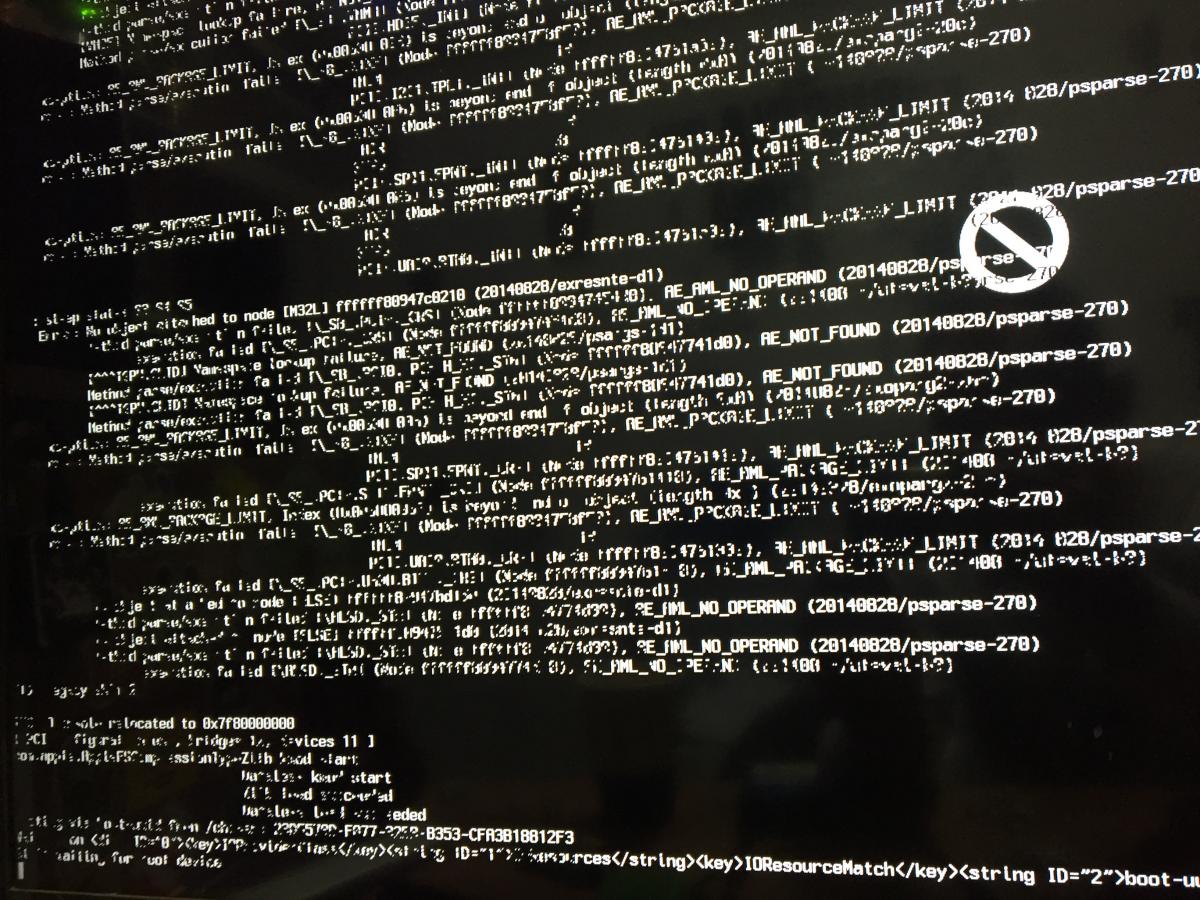

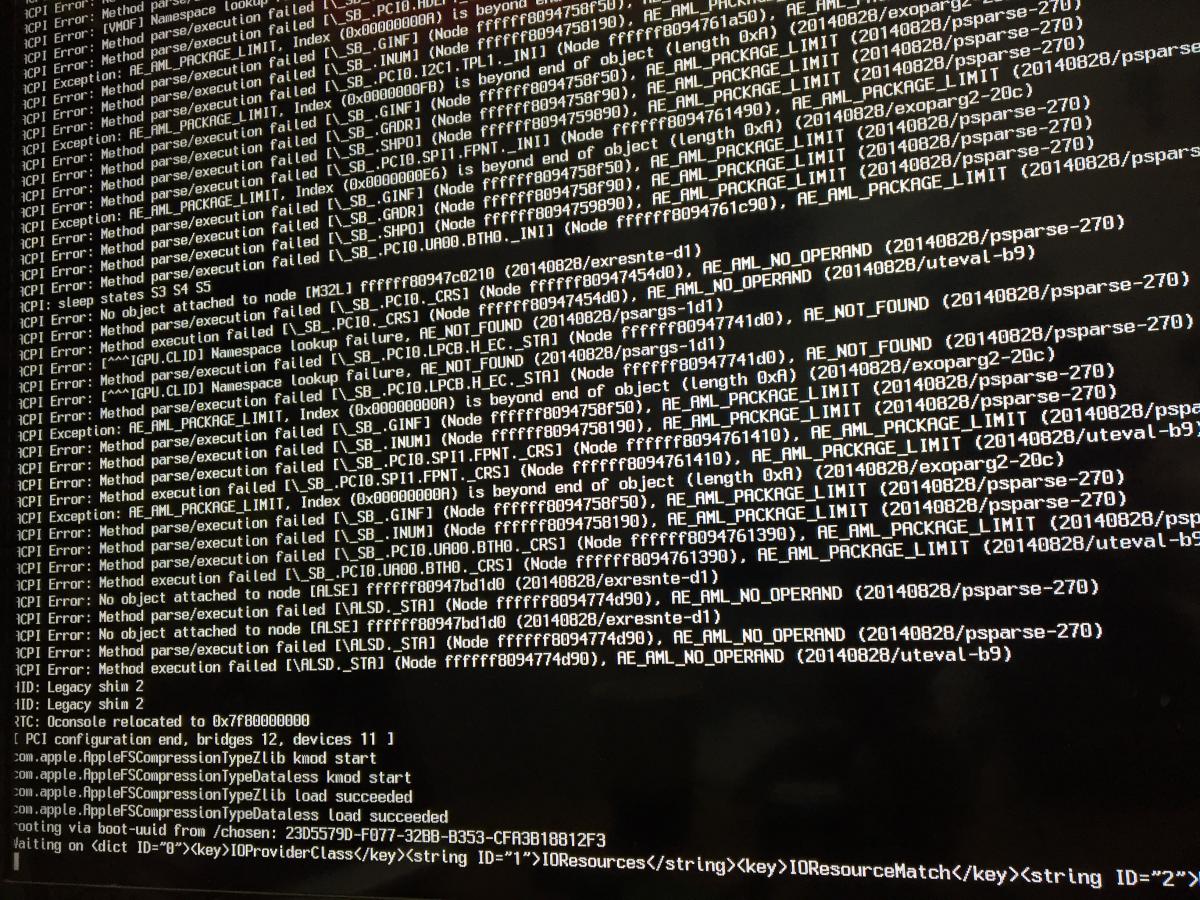

After I changed the DVMT Pre-Allocated to 64MB from 1024MB
These results







Share this post


Link to post
Share on other sites
Hello MaLd0n

Thank you very much for your response



I deleted the usbinjectall in Clover/Kext/10.12

And still the same problem







Thanks in advance







Share this post


Link to post
Share on other sites
Hello MaLd0n

Thank you very much for your response



Same problem after replacing DSDT file and Fakesmc



I'm desperate, I do not know what my problem



Thanks in advance

Share this post


Link to post
Share on other sites
I tried to replace config.plist and run Olarila.command

My result from this Olarila.command





Waiting for I/O Kit to quiesce.
kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext realtekALC.kext
kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext FakeSMC_LPCSensors.kext
kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext FakeSMC_CPUSensors.kext
kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext FakeSMC_ACPISensors.kext
kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext FakeSMC.kext
kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext AtherosE2200Ethernet.kext
kext-dev-mode allowing invalid signature -67013 0xFFFFFFFFFFFEFA3B for kext AppleMobileDevice.kext
KernelCache ID: 5205485C2EEC00FA4305DD237FDDB7F6
Created prelinked kernel "/System/Library/PrelinkedKernels/prelinkedkernel"
Created prelinked kernel using "/System/Library/Kernels/kernel"
Symlink "/System/Library/Caches/com.apple.kext.caches/Startup/kernelcache" -> "/System/Library/PrelinkedKernels/prelinkedkernel"
symlink("/System/Library/PrelinkedKernels/prelinkedkernel", "/System/Library/Caches/com.apple.kext.caches/Startup/kernelcache") failed 17 (File exists) <createPrelinkedKernel 2795>
Directory caches updated for /System/Library/Extensions.
Directory caches updated for /Library/Extensions.
logout
Saving session...
...copying shared history...
...saving history...truncating history files...
...completed.

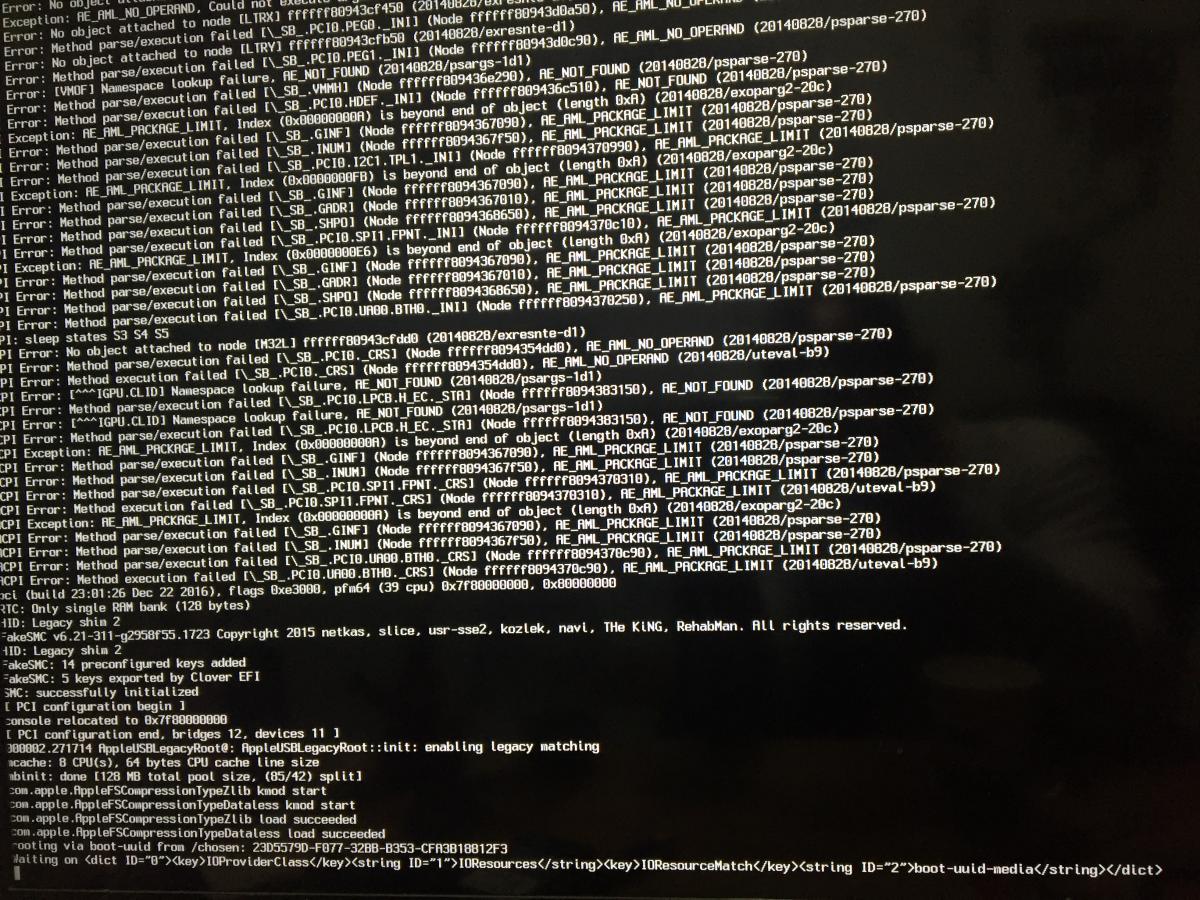

And still the same problem :(



Thanks in advance

Share this post


Link to post
Share on other sites

remove realtekALC.kext, FakeSMC_LPCSensors.kext, FakeSMC_CPUSensors.kext, FakeSMC_ACPISensors.kext, FakeSMC.kext



My Clover folder is for UEFI mode, only, dont have drivers for legacy

see, use this for install clover

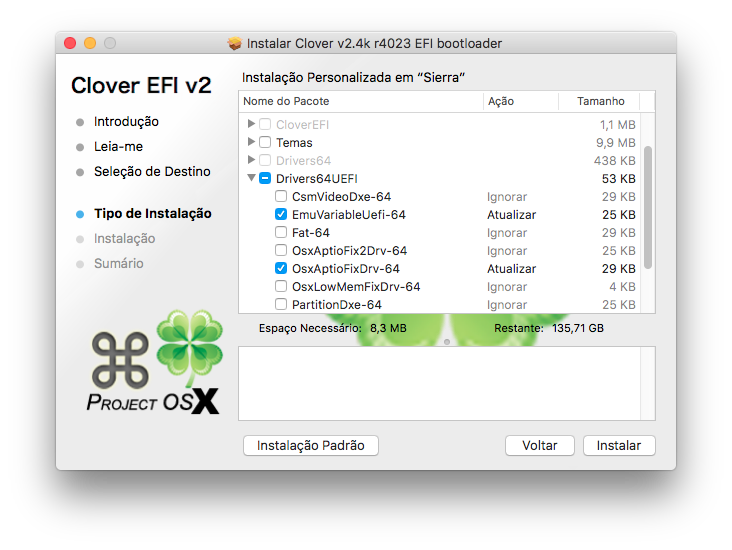

DaNiEl 2017-03-01 às 16.21.00.png

and

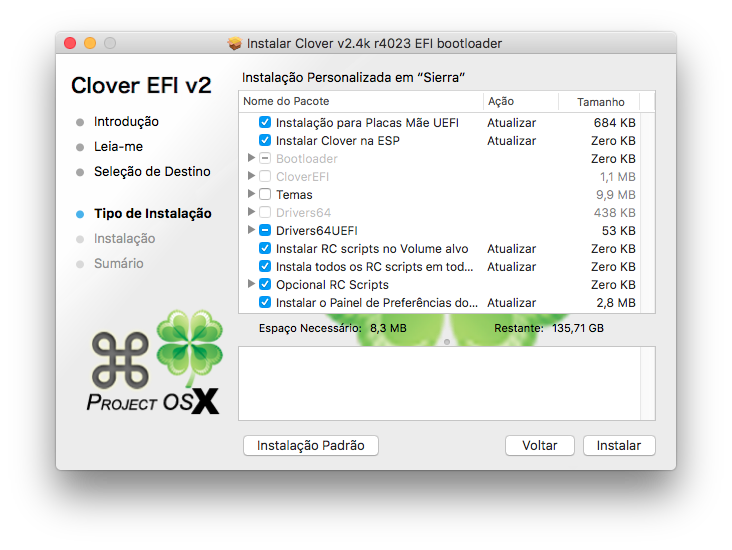

DaNiEl 2017-03-01 às 16.21.11.png

emuvariable for F20 bios



after it replace with Clover folder

CLOVER.zip



if u have install in legacy mode, try a fresh install, use UEFI mode

Share this post


Link to post
Share on other sites
The truth I do not have these files realtekALC.kext, FakeSMC_LPCSensors.kext, FakeSMC_CPUSensors.kext, FakeSMC_ACPISensors.kext, FakeSMC.kext in s / l / e

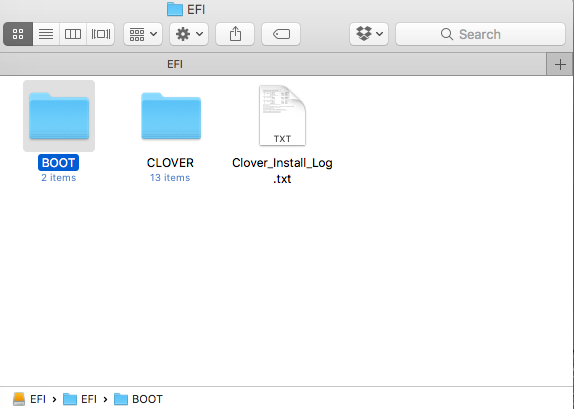

I have attached a photo



I installed my system as UEFI mode





I need to install the clover on the main partition? Or on EFI partition?

I just do not see EFI partition on clover install



Thanks in advance


Share this post


Link to post
Share on other sites
Yes, my system is installed as UEFI mode



My question is where to install the clover?

To the main partition?

To (Mackintosh HD)?



Thanks in advance

Share this post


Link to post
Share on other sites
Thank you very much for answering



I installed the clover like you said

after i replace with Clover folder you send



And still the same problem

Maybe because I have 64GB of memory?

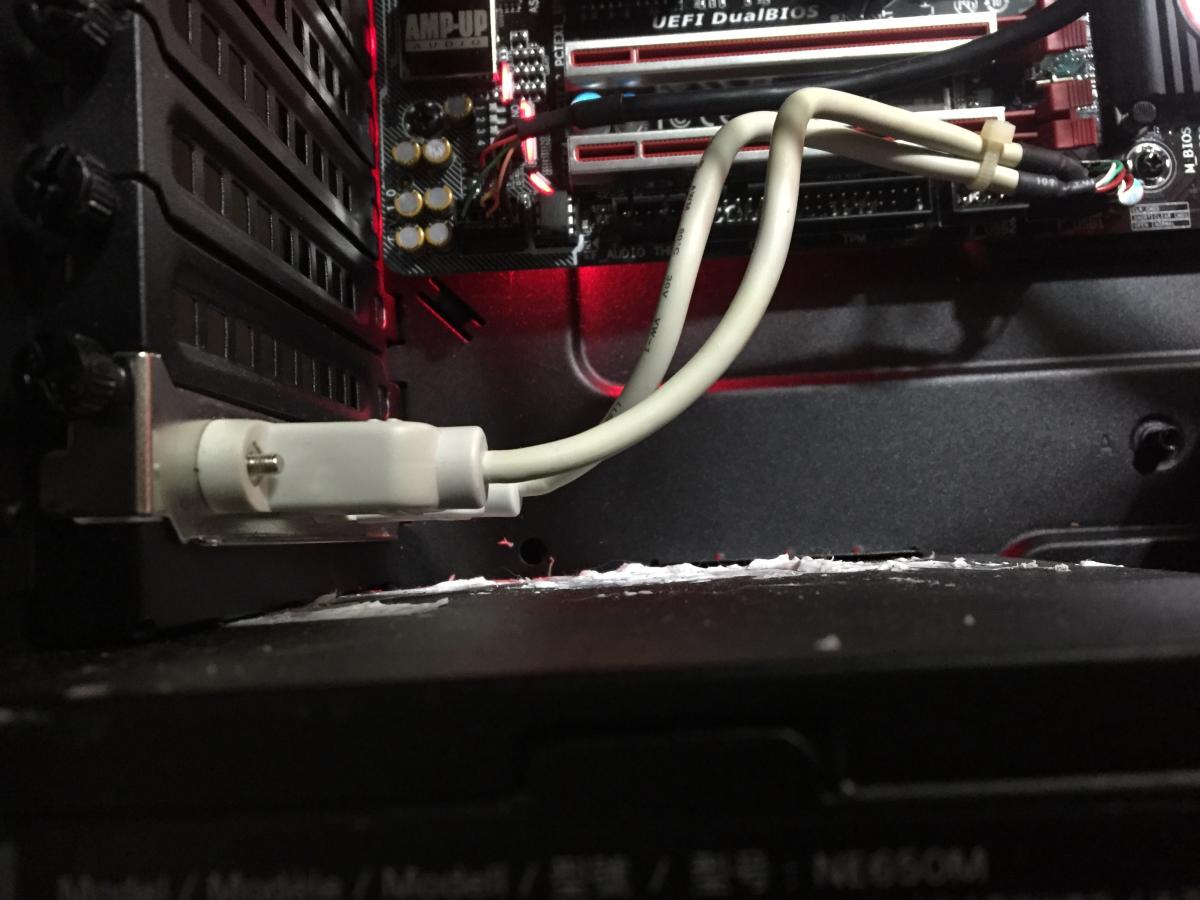

Or maybe because I plugged this thing as a picture (USB2 splitter)






Thanks in advance

Share this post


Link to post
Share on other sites
Thank you very much for answering



I am sad today, does not work for me

Still the same problem



I still have hope that it will work?





Thanks in advance







Share this post


Link to post
Share on other sites
