URBANsUNITED Posted February 24, 2017 Author Share Posted February 24, 2017 Battery und Sound is working now But sleep only for every 2nd lid close What I do: Start laptop, log in, wait Close the lid for sleep, wait, after ca.20sec. I hear clicker sound like keep pressing a button open lid The screen dimmed completely, have to raise brightness manually Back on desktop close the lid ca. 15 sec. later laptop is in sleep mode open lid laptop wakes, screen back with original brightness How to find the reason? New files attached Thanks URBANsUNITED andis MacBookPro.zip Send me andis MacBook Air.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 24, 2017 Share Posted February 24, 2017 DSDT.LID 01.zip Link to comment Share on other sites More sharing options...
URBANsUNITED Posted February 24, 2017 Author Share Posted February 24, 2017 no difference :/ 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 24, 2017 Share Posted February 24, 2017 man, remove the intelbacklit kext and test it only for test Link to comment Share on other sites More sharing options...
URBANsUNITED Posted February 24, 2017 Author Share Posted February 24, 2017 man, remove the intelbacklit kext and test it only for test Nope, no difference. Still the same Tried 3 DSDT in all combinations. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 24, 2017 Share Posted February 24, 2017 try it and send me new ioreg after reboot DSDT.LID 04.zip Link to comment Share on other sites More sharing options...
URBANsUNITED Posted February 24, 2017 Author Share Posted February 24, 2017 Just recognized something... Didn't close the lid, wanted to set the sleep mode by the dropdown menu (apple logo) screen gone black and 20 sec. later it pops up in fully brightness back to desktop. So, it has nothing to do with the lid. It's a general sleep issue... Link to comment Share on other sites More sharing options...
MaLd0n Posted February 24, 2017 Share Posted February 24, 2017 run in terminal log show --style syslog | fgrep "Wake reason" and pmset -g assertions Link to comment Share on other sites More sharing options...
URBANsUNITED Posted February 24, 2017 Author Share Posted February 24, 2017 andis-Air:~ andi$ log show --style syslog | fgrep "Wake reason" 2017-02-22 23:51:29.490681+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: power-button (User) 2017-02-22 23:51:29.490683+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: power-button (User) 2017-02-23 19:58:59.553185+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: power-button (User) 2017-02-23 19:58:59.553187+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: power-button (User) 2017-02-23 20:51:09.244178+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: power-button (User) 2017-02-23 20:51:09.244180+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: power-button (User) 2017-02-24 16:06:22.004504+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: power-button (User) 2017-02-24 16:06:22.004505+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: power-button (User) 2017-02-24 16:25:01.277972+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: power-button (User) 2017-02-24 16:25:01.277973+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: power-button (User) 2017-02-24 16:36:37.252393+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: power-button (User) 2017-02-24 16:36:37.252394+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: power-button (User) 2017-02-24 17:56:16.192594+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: power-button (User) 2017-02-24 17:56:16.192596+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: power-button (User) 2017-02-24 18:15:20.268292+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: power-button (User) 2017-02-24 18:15:20.268293+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: power-button (User) 2017-02-24 18:16:48.661094+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: power-button (User) 2017-02-24 18:16:48.661095+0100 localhost kernel[0]: (AppleACPIPlatform) Wake reason: power-button (User) andis-Air:~ andi$ pmset -g assertions 2017-02-24 18:19:04 +0100 Assertion status system-wide: BackgroundTask 0 ApplePushServiceTask 0 UserIsActive 1 PreventUserIdleDisplaySleep 0 PreventSystemSleep 0 ExternalMedia 0 PreventUserIdleSystemSleep 0 NetworkClientActive 0 Listed by owning process: pid 97(hidd): [0x0000000d0009802b] 00:05:03 UserIsActive named: "com.apple.iohideventsystem.queue.tickle.4294968136.17" Timeout will fire in 178 secs Action=TimeoutActionRelease Kernel Assertions: 0x4=USB id=504 level=255 0x4=USB mod=01.01.70, 01:00 description=com.apple.usb.externaldevice.14700000 owner=BCM20702A0 id=505 level=255 0x4=USB mod=01.01.70, 01:00 description=com.apple.usb.externaldevice.14600000 owner=HP HD Camera Idle sleep preventers: IODisplayWrangler andis-Air:~ andi$ Idle sleep preventers: IODisplayWrangler ?? Link to comment Share on other sites More sharing options...
MaLd0n Posted February 24, 2017 Share Posted February 24, 2017 extract all SSDTs for me extract and put file in /usr/bin (hide folder) RehabMan-patchmatic-2016-0312.zip run it after extract.command.zip generate folder in ur desktop Link to comment Share on other sites More sharing options...
URBANsUNITED Posted February 25, 2017 Author Share Posted February 25, 2017 Hi! busy day... Here are the files. Hope I did it right... Cheers URBANsUNITED patchmatic.zip extract.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 25, 2017 Share Posted February 25, 2017 DSDT.PWRB.zip ioreg after reboot Link to comment Share on other sites More sharing options...
URBANsUNITED Posted February 25, 2017 Author Share Posted February 25, 2017 andis MacBookPro.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 25, 2017 Share Posted February 25, 2017 dont work? i dont have more ideas the cosmetics in about thismac/pci is ok? Link to comment Share on other sites More sharing options...
URBANsUNITED Posted February 25, 2017 Author Share Posted February 25, 2017 Several new issues: Sleep by lid doesn't work now completely Every second boot, the screen dims to black while booting and can't bright up again. have to shut down Screen dims while switching from verbose to desktop, where the Apple logo pops up and the bar fills Is this still necessary? SSDT-IGPU.aml used ssdtPRGen.sh to create my SSDT - ok? Maybe I'll do a fresh install... the cosmetics in about thismac/pci is ok? Yeah, like that!!! Link to comment Share on other sites More sharing options...

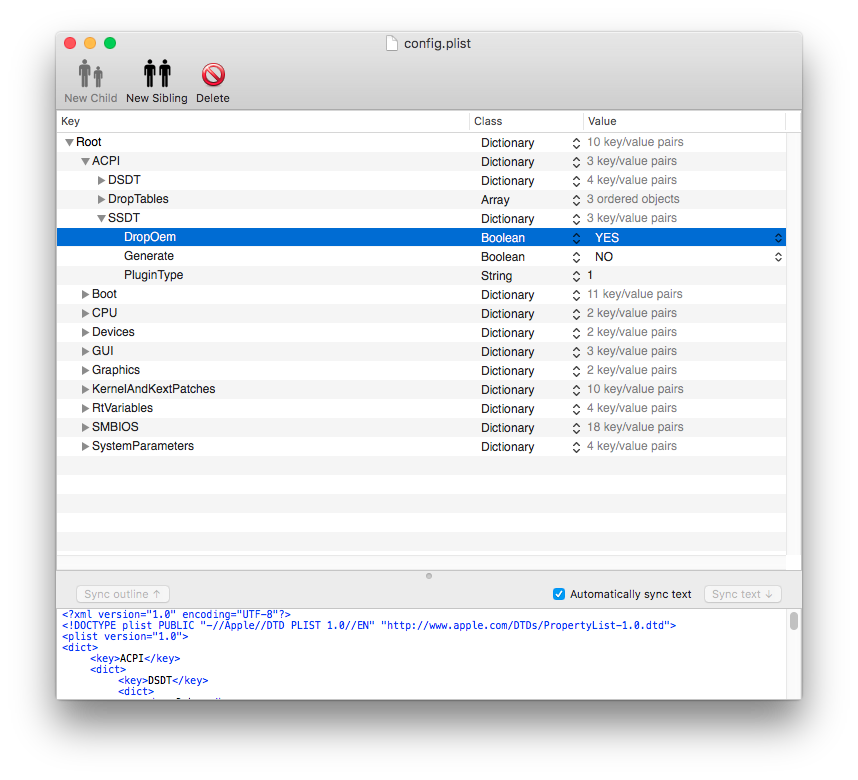

MaLd0n Posted February 25, 2017 Share Posted February 25, 2017 try drop all SSDT u can disable/enable it in clover boot, press "O" Link to comment Share on other sites More sharing options...
URBANsUNITED Posted February 26, 2017 Author Share Posted February 26, 2017 I am sorry for this mess!!! Drop all oem SSDT system can't boot = Panic! PLease note the ACPI errors Boot without Drop OEM SSDT = successful boot BUT please note the ACPI error PEG0 PCI0 center of screen Link to comment Share on other sites More sharing options...
MaLd0n Posted February 26, 2017 Share Posted February 26, 2017 it's common in sierra, ACPI errors - it is common to see these in 10.12 with this new version of AppleACPIPlatform.kext. Older versions of OS X didn't do checks like this. AE_NOT_FOUND means the referred ACPI Entity is missing Link to comment Share on other sites More sharing options...
MaLd0n Posted February 26, 2017 Share Posted February 26, 2017 to drop all SSDTs, u need some ssdt http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=220832 Link to comment Share on other sites More sharing options...
clemsyn Posted January 9, 2020 Share Posted January 9, 2020 (edited) error Edited January 9, 2020 by clemsyn Link to comment Share on other sites More sharing options...
