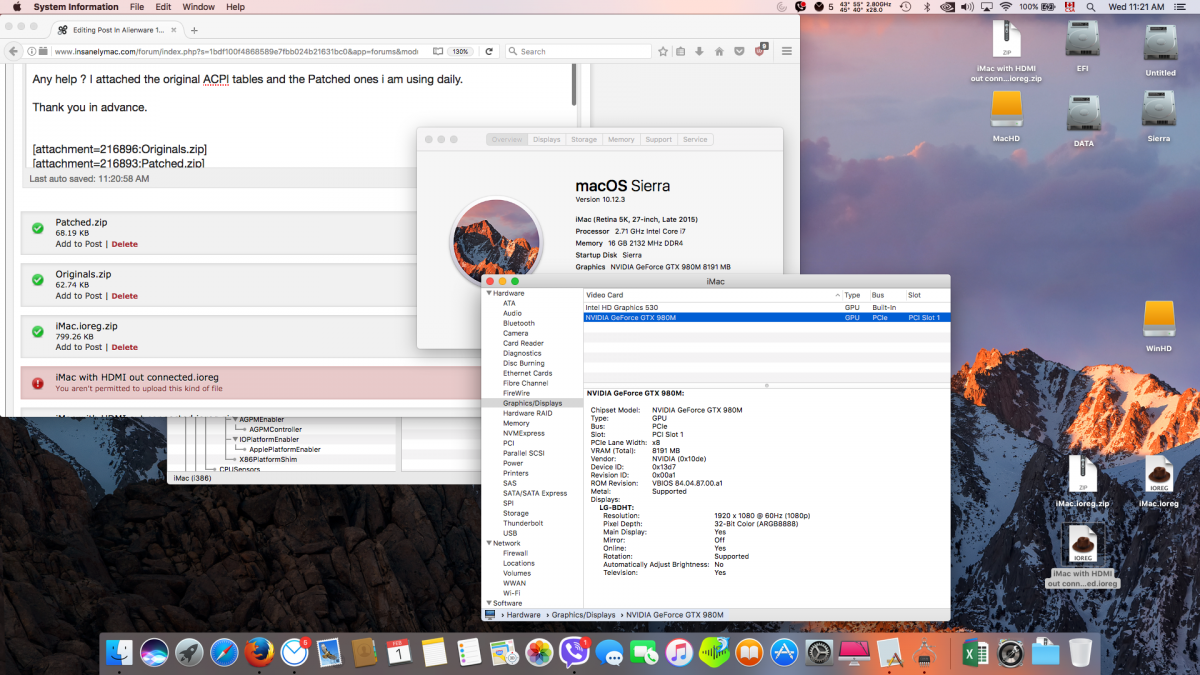

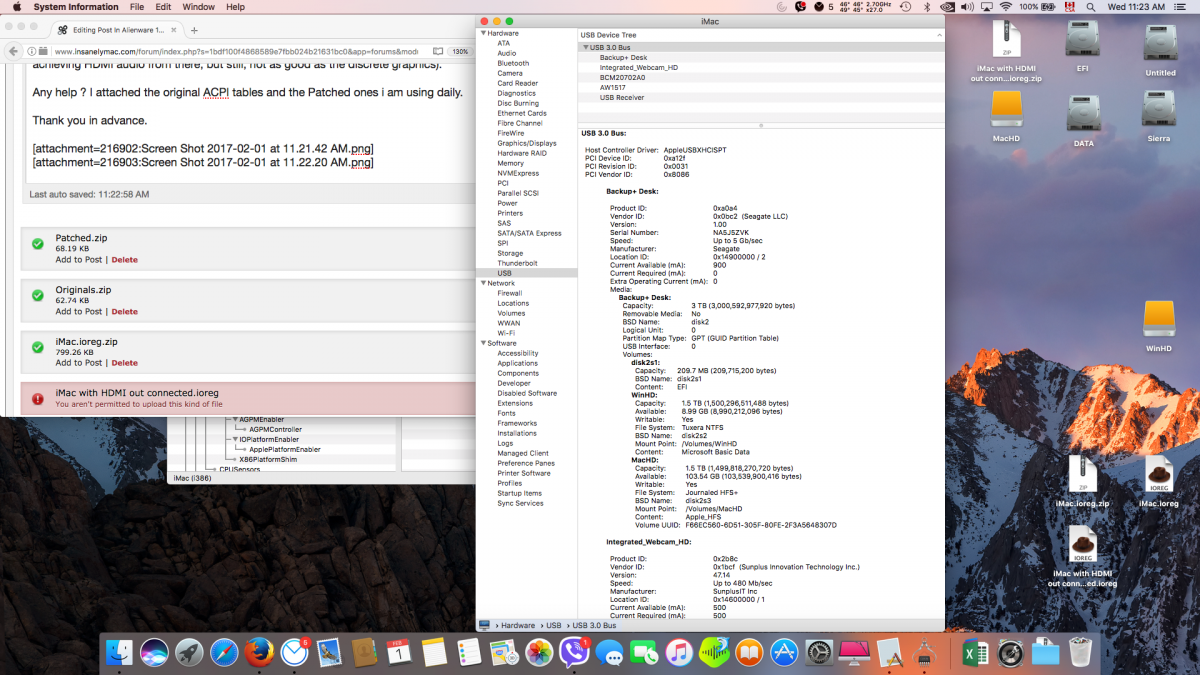

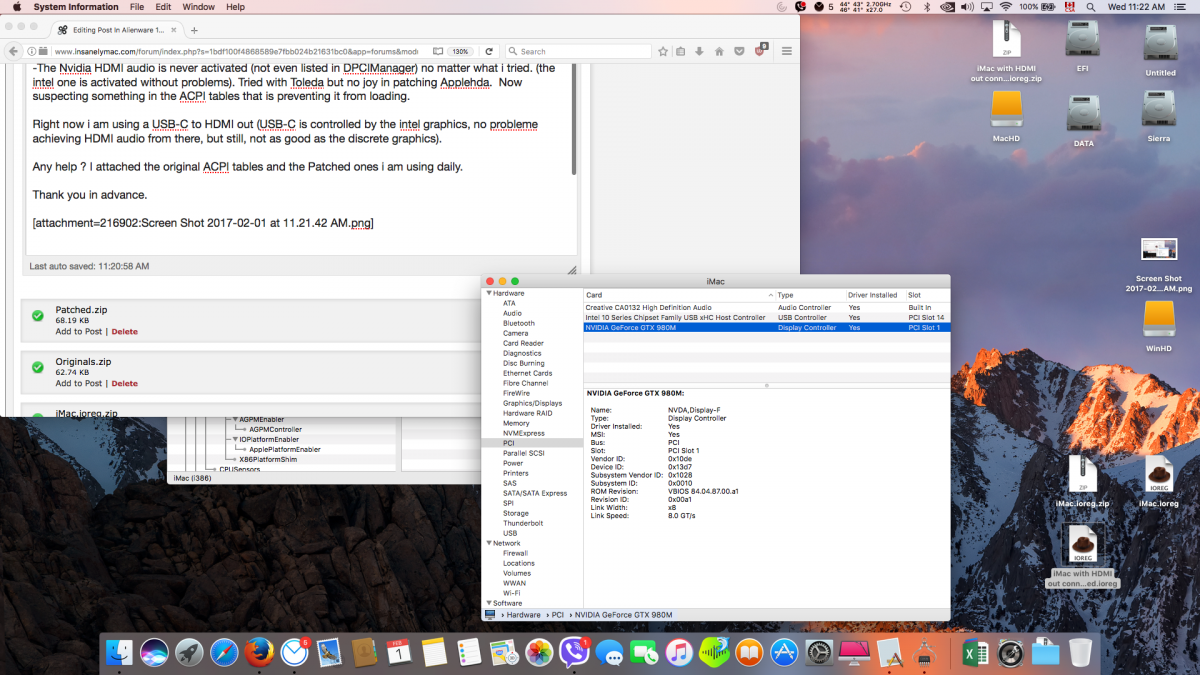

slayer2333 Posted February 1, 2017 Share Posted February 1, 2017 Hi, So far i was able to correct most errors in my ACPI tables and Sierra is working properly. However i still have 2 issues: -I already fixed immediate wake from sleep using Skylake patch for GPE = 0x6D but now i cannot get the laptop to wake from sleep using a remote usb mouse/keyboard. -The Nvidia HDMI audio is never activated (not even listed in DPCIManager) no matter what i tried. (the intel one is activated without problems). Tried with Toleda but no joy in patching Applehda. Now suspecting something in the ACPI tables that is preventing it from loading. Right now i am using a USB-C to HDMI out (USB-C is controlled by the intel graphics, no probleme achieving HDMI audio from there, but still, not as good as the discrete graphics). Any help ? I attached the original ACPI tables and the Patched ones i am using daily. Also attached IOREG with USB-C attached and HDMI audio working (iMac.ioreg.zip) and the next IOREG is with HDMI video out connected. Thank you in advance. Originals.zip Patched.zip iMac.ioreg.zip iMac with HDMI out connected.ioreg.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 2, 2017 Share Posted February 2, 2017 if u remove _PRW methods, yes, u dont wake from usb, no more. u need fix it without remove _pwr but in many cases is a long way, many tests and read Pasta Sem Título.zip 1 Link to comment Share on other sites More sharing options...
Allan Posted February 2, 2017 Share Posted February 2, 2017 You has full QE/CI with 980M? 1 Link to comment Share on other sites More sharing options...
slayer2333 Posted February 2, 2017 Author Share Posted February 2, 2017 if u remove _PRW methods, yes, u dont wake from usb, no more. u need fix it without remove _pwr but in many cases is a long way, many tests and read Pasta Sem Título.zip Thanks Maldon, i did first boot with your file and all good so far but still no HDMI audio codec shown or detected (in Ioreg i am seeing both the intel HDMI audio and Nvidia as Onboard-1, probably because of the HDMIAudio.kext. I will try to change the intel one to Onboard-2 and see how it goes). As for sleep, i got the immediate wake problem, checked for the reason and it seems to be the Glan device. I will remove its _PRW method and see if it solves the problem (or if it just hides more potential devices causing wake). You has full QE/CI with 980M? I think so, but is there any specific apps that can confirm that on Sierra (back when i had a Fermi card i think that launching Chest game would prove that but not sure). 2 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 2, 2017 Share Posted February 2, 2017 Thanks Maldon, i did first boot with your file and all good so far but still no HDMI audio codec shown or detected (in Ioreg i am seeing both the intel HDMI audio and Nvidia as Onboard-1, probably because of the HDMIAudio.kext. I will try to change the intel one to Onboard-2 and see how it goes). As for sleep, i got the immediate wake problem, checked for the reason and it seems to be the Glan device. I will remove its _PRW method and see if it solves the problem (or if it just hides more potential devices causing wake). I think so, but is there any specific apps that can confirm that on Sierra (back when i had a Fermi card i think that launching Chest game would prove that but not sure). good, put ur patches and solve missing. if u remove only in glan, is good. try wake up with usb. Link to comment Share on other sites More sharing options...

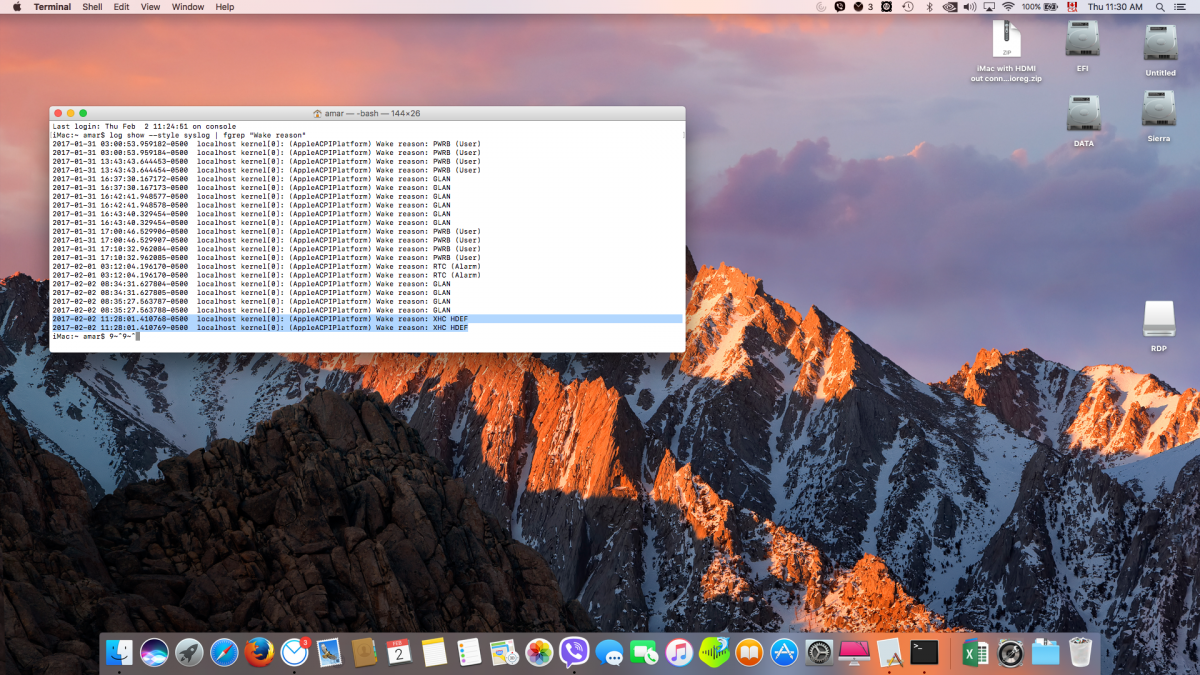

slayer2333 Posted February 2, 2017 Author Share Posted February 2, 2017 good, put ur patches and solve missing. if u remove only in glan, is good. try wake up with usb. The unwanted showed up XHC and HDEF Link to comment Share on other sites More sharing options...
