soldeh Posted October 28, 2016 Share Posted October 28, 2016 Hi guys, I've been trying to get mavericks (10.9.5) to run properly on my system for a few days now, and still got a few problems. After installing with Clover ethernet and audio didn't work. The vram of HD 4600 was only 6 mb. So far I got this working: - Sitecom WLA-2100: http://www.osx86.net/files/file/4460-all-in-one-kext-for-realtek-chip-wireless-usb-adapters/ - Onboard audio: https://github.com/toleda/audio_CloverALC - Ethernet: http://www.insanelymac.com/forum/files/file/88-realtekrtl8111-binary/ (havn't tested the connection yet, but at least it's showing up in network preferences now) This isn't working (properly) - Intel HD 4600 I only got 6 MB VRAM, have to use Fake ID 0x80860516 for IntelGFX in Clover Configurator in order to boot. - App Store Can't log in (Your device or computer could not be verified.) I would upload my config.plist so people can look into it but apparently I'm not permitted to do that. I did however attached a bootlog. All help on making my system run properly will be highly appreciated. Cheers bootlog.log.txt Quote Link to comment https://www.insanelymac.com/forum/topic/317319-ga-b85m-d3h-haswell-i7-4790-intel-hd-4600/ Share on other sites More sharing options...
artur_pt Posted October 28, 2016 Share Posted October 28, 2016 hello have u try inject this in clover ? <key>ig-platform-id</key> <string>0x0d220003</string> the store ethernet must be in en0 maybe is not the case .. check that good hack 1 Quote Link to comment https://www.insanelymac.com/forum/topic/317319-ga-b85m-d3h-haswell-i7-4790-intel-hd-4600/#findComment-2308180 Share on other sites More sharing options...

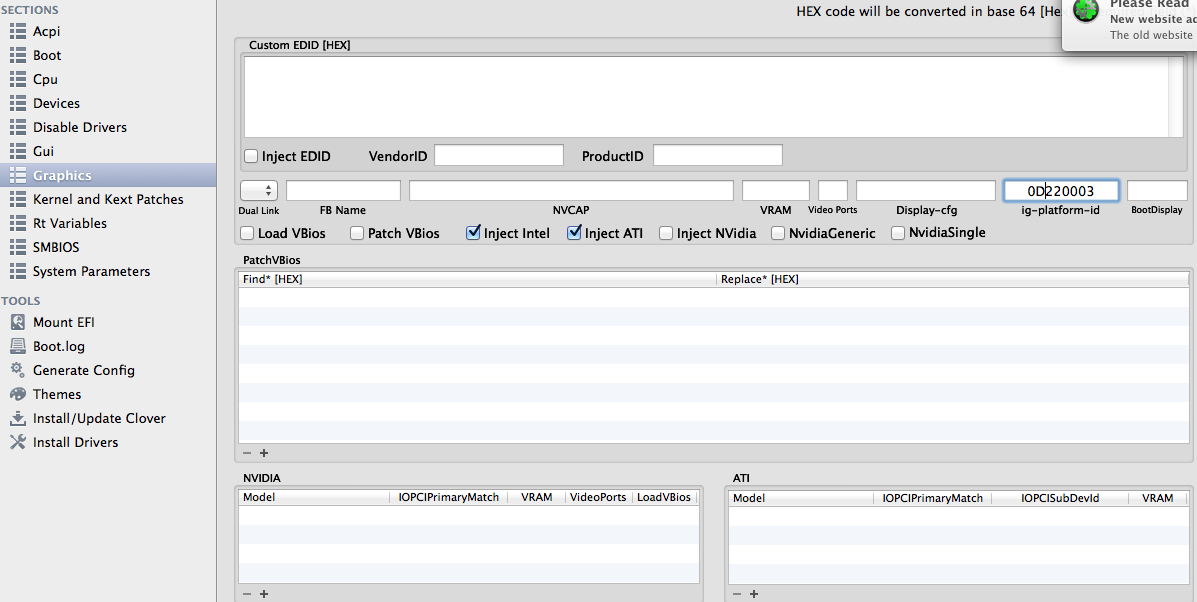

soldeh Posted October 28, 2016 Author Share Posted October 28, 2016 Thnx Artur! App store is working now.. 'ig-platform-id' was '0D220003' in clover configurator. Put '0x' in front of it but doesn't seem to make any difference; can't boot without fakeID, and with it there's only 6 MB VRAM Quote Link to comment https://www.insanelymac.com/forum/topic/317319-ga-b85m-d3h-haswell-i7-4790-intel-hd-4600/#findComment-2308434 Share on other sites More sharing options...
artur_pt Posted October 28, 2016 Share Posted October 28, 2016 hello have u try this .. must use the 2 kext fakepciid FakePCIID_Intel_HD_Graphics https://bitbucket.org/RehabMan/os-x-fake-pci-id read about .. and try it good hack 1 Quote Link to comment https://www.insanelymac.com/forum/topic/317319-ga-b85m-d3h-haswell-i7-4790-intel-hd-4600/#findComment-2308534 Share on other sites More sharing options...
soldeh Posted October 29, 2016 Author Share Posted October 29, 2016 Thnx I will try that and post an update on how it went. A thing i don't understand is the following: I had mavericks installed on this system, and Intel HD4600 worked (1536 MB VRAM). I reinstalled because I messed up the SMBIOS and didn't know I could boot with a config.plist from an USB with clover installed. After reinstalling the graphics still worked for a couple of days, but after a few days the VRAM suddenly was 6 MB. I didn't make any changes before the VRAM changed. This morning I recovered the system from a point before I messed up the SMBIOS, but still the VRAM is only 6MB. Is that because time machine doesn't do anything with the EFI partition? By the way.. shouldn't HD 4600 work out of the box? Quote Link to comment https://www.insanelymac.com/forum/topic/317319-ga-b85m-d3h-haswell-i7-4790-intel-hd-4600/#findComment-2309053 Share on other sites More sharing options...
asdesoso Posted October 29, 2016 Share Posted October 29, 2016 Your monitor is connected via VGA? If it is connected via VGA you won´t get QE/CI, you will need to connect monitor via HDMI, then you need only to inject intel in clover. My board is also the same for you, and the graphics also. Best regards. 1 Quote Link to comment https://www.insanelymac.com/forum/topic/317319-ga-b85m-d3h-haswell-i7-4790-intel-hd-4600/#findComment-2309070 Share on other sites More sharing options...
soldeh Posted October 29, 2016 Author Share Posted October 29, 2016 hello have u try inject this in clover ? <key>ig-platform-id</key> <string>0x0d220003</string> the store ethernet must be in en0 maybe is not the case .. check that good hack I installed the kexts, but I don't know what else to change.. the only thing I understand is that the fake-id should be put to 0x80860412? Your monitor is connected via VGA? If it is connected via VGA you won´t get QE/CI, you will need to connect monitor via HDMI, then you need only to inject intel in clover. My board is also the same for you, and the graphics also. Best regards. My monitor is connected with DVI. When I use inject intel without fake-id the mavericks won't boot.. Quote Link to comment https://www.insanelymac.com/forum/topic/317319-ga-b85m-d3h-haswell-i7-4790-intel-hd-4600/#findComment-2309091 Share on other sites More sharing options...
artur_pt Posted October 29, 2016 Share Posted October 29, 2016 hello u should update the system .. to el capo .. minimum and u will have better support for the graphics good hack Quote Link to comment https://www.insanelymac.com/forum/topic/317319-ga-b85m-d3h-haswell-i7-4790-intel-hd-4600/#findComment-2309098 Share on other sites More sharing options...
