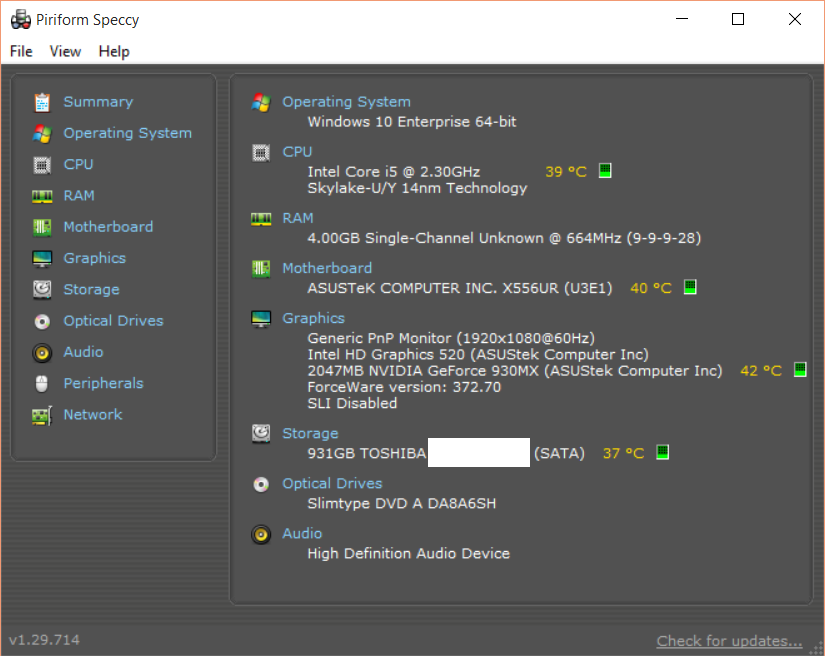

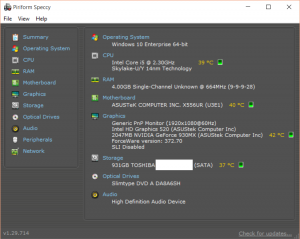

matrixer_x1 Posted September 7, 2016 Share Posted September 7, 2016 Hi, Im trying to install OSX 10.11 on my skylake ASUS Laptop with the following configuration The Boot Goes till the apple logo then reboots.. I have tried the following nv_disable=1 ,kernelpm patch,kernel lapic patch and injecting intel graphics in the config.plist file... This is my full config.plist file Im stuck here... can someone please help me <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>#DisableDrivers</key> <array> <string>CsmVideoDxe</string> <string>VBoxExt4</string> </array> <key>ACPI</key> <dict> <key>#DropMCFG</key> <false/> <key>#PatchAPIC</key> <false/> <key>#ResetAddress</key> <string>0x64</string> <key>#ResetValue</key> <string>0xFE</string> <key>#SortedOrder</key> <array> <string>SSDT-3.aml</string> <string>SSDT-1.aml</string> <string>SSDT-2.aml</string> </array> <key>#smartUPS</key> <false/> <key>DSDT</key> <dict> <key>#DropOEM_DSM</key> <dict> <key>ATI</key> <true/> <key>Firewire</key> <true/> <key>HDA</key> <true/> <key>HDMI</key> <true/> <key>IDE</key> <true/> <key>IntelGFX</key> <true/> <key>LAN</key> <true/> <key>LPC</key> <false/> <key>NVidia</key> <true/> <key>SATA</key> <true/> <key>SmBUS</key> <false/> <key>USB</key> <true/> <key>WIFI</key> <true/> </dict> <key>#Patches</key> <array> <dict> <key>Comment</key> <string>Remove battery device from desktop</string> <key>Find</key> <data> W4IeQkFUMQhfSElEDEHQDAoIX1VJRAEUCF9T VEEApAA= </data> <key>Replace</key> <data> </data> </dict> <dict> <key>Comment</key> <string>Add _SUN property for GIGE</string> <key>Find</key> <data> UFhTWAhfQURSAAhfUFJXEgYC </data> <key>Replace</key> <data> UFhTWAhfQURSAAhfU1VOCgQIX1BSVxIGAg== </data> </dict> <dict> <key>Comment</key> <string>Rename GFX0 to IGPU</string> <key>Find</key> <data> R0ZYMA== </data> <key>Replace</key> <data> SUdQVQ== </data> </dict> <dict> <key>Comment</key> <string>Rename HDEF to AZAL</string> <key>Find</key> <data> SERFRg== </data> <key>Replace</key> <data> QVpBTA== </data> </dict> </array> <key>#Rtc8Allowed</key> <false/> <key>#SuspendOverride</key> <false/> <key>Debug</key> <false/> <key>Fixes</key> <dict> <key>AddDTGP_0001</key> <true/> <key>AddHDMI_8000000</key> <true/> <key>AddIMEI_80000</key> <false/> <key>AddMCHC_0008</key> <false/> <key>AddPNLF_1000000</key> <true/> <key>DeleteUnused_400000</key> <true/> <key>FIX_ACST_4000000</key> <true/> <key>FIX_ADP1_800000</key> <true/> <key>FIX_INTELGFX_100000</key> <false/> <key>FIX_RTC_20000</key> <true/> <key>FIX_S3D_2000000</key> <true/> <key>FIX_TMR_40000</key> <true/> <key>FIX_WAK_200000</key> <true/> <key>FakeLPC_0020</key> <false/> <key>FixAirport_4000</key> <true/> <key>FixDarwin_0002</key> <true/> <key>FixDisplay_0100</key> <true/> <key>FixFirewire_0800</key> <true/> <key>FixHDA_8000</key> <true/> <key>FixHPET_0010</key> <true/> <key>FixIDE_0200</key> <false/> <key>FixIPIC_0040</key> <true/> <key>FixLAN_2000</key> <true/> <key>FixRegions_10000000</key> <true/> <key>FixSATA_0400</key> <false/> <key>FixSBUS_0080</key> <true/> <key>FixShutdown_0004</key> <true/> <key>FixUSB_1000</key> <true/> <key>NewWay_80000000</key> <true/> </dict> <key>Name</key> <string>DSDT.aml</string> <key>ReuseFFFF</key> <false/> </dict> <key>DropTables</key> <array> <dict> <key>Signature</key> <string>DMAR</string> </dict> <dict> <key>Signature</key> <string>SSDT</string> <key>TableId</key> <string>CpuPm</string> </dict> <dict> <key>#Length</key> <integer>720</integer> <key>Signature</key> <string>SSDT</string> <key>TableId</key> <string>Cpu0Ist</string> </dict> </array> <key>HaltEnabler</key> <true/> <key>SSDT</key> <dict> <key>#C3Latency</key> <string>0x03E7</string> <key>#DoubleFirstState</key> <true/> <key>#DropOem</key> <true/> <key>#EnableC2</key> <false/> <key>#EnableC4</key> <false/> <key>#EnableC6</key> <true/> <key>#EnableC7</key> <false/> <key>#MaxMultiplier</key> <integer>12</integer> <key>#MinMultiplier</key> <integer>8</integer> <key>#PLimitDict</key> <integer>1</integer> <key>#PluginType</key> <integer>0</integer> <key>#UnderVoltStep</key> <integer>1</integer> <key>#UseSystemIO</key> <false/> <key>Generate</key> <dict> <key>CStates</key> <true/> <key>PStates</key> <true/> </dict> </dict> </dict> <key>Boot</key> <dict> <key>#Arguments</key> <string>-v arch=x86_64 slide=0 darkwake=0</string> <key>#LegacyBiosDefaultEntry</key> <integer>0</integer> <key>#XMPDetection</key> <string>-1</string> <key>Arguments</key> <string>kext-dev-mode=1 rootless=0</string> <key>Debug</key> <false/> <key>DefaultLoader</key> <string>boot.efi</string> <key>DefaultVolume</key> <string>LastBootedVolume</string> <key>Fast</key> <false/> <key>Legacy</key> <string>PBR</string> <key>NeverHibernate</key> <false/> <key>Timeout</key> <integer>5</integer> </dict> <key>CPU</key> <dict> <key>#BusSpeedkHz</key> <integer>133330</integer> <key>#FrequencyMHz</key> <integer>3140</integer> <key>#QPI</key> <integer>4800</integer> <key>#SavingMode</key> <integer>7</integer> <key>#Type</key> <string>0x0201</string> </dict> <key>Devices</key> <dict> <key>#AddProperties</key> <array> <dict> <key>Device</key> <string>NVidia</string> <key>Key</key> <string>AAPL,HasPanel</string> <key>Value</key> <data> AQAAAA== </data> </dict> <dict> <key>Device</key> <string>NVidia</string> <key>Key</key> <string>AAPL,Haslid</string> <key>Value</key> <data> AQAAAA== </data> </dict> </array> <key>#ForceHPET</key> <false/> <key>#InjectString</key> <false/> <key>#Properties</key> <string>7a00000001000000010000006e0000000200000002010c00d041030a0000000001010600001b7fff040028000000500069006e0043006f006e00660069006700750072006100740069006f006e00730000000800000001080100180000006c00610079006f00750074002d00690064000000080000000c000000</string> <key>Audio</key> <dict> <key>#Inject</key> <string>0x0887</string> <key>ResetHDA</key> <true/> </dict> <key>FakeID</key> <dict> <key>#ATI</key> <string>0x67501002</string> <key>#IMEI</key> <string>0x1e208086</string> <key>#IntelGFX</key> <string>0x01268086</string> <key>#LAN</key> <string>0x100E8086</string> <key>#NVidia</key> <string>0x11de10de</string> <key>#SATA</key> <string>0x25628086</string> <key>#WIFI</key> <string>0x431214e4</string> <key>#XHCI</key> <string>0x0</string> </dict> <key>NoDefaultProperties</key> <false/> <key>USB</key> <dict> <key>AddClockID</key> <true/> <key>FixOwnership</key> <true/> <key>HighCurrent</key> <false/> <key>Inject</key> <true/> </dict> <key>UseIntelHDMI</key> <false/> </dict> <key>GUI</key> <dict> <key>#ConsoleMode</key> <string>0</string> <key>#Custom</key> <dict> <key>Entries</key> <array> <dict> <key>AddArguments</key> <string>-v</string> <key>Arguments</key> <string>Kernel=mach_kernel</string> <key>Disabled</key> <true/> <key>Hidden</key> <false/> <key>Hotkey</key> <string>M</string> <key>InjectKexts</key> <false/> <key>NoCaches</key> <false/> <key>Path</key> <string>\EFI\BOOT\BOOTX64.efi</string> <key>Title</key> <string>MyCustomEntry</string> <key>Type</key> <string>OSXRecovery</string> <key>Volume</key> <string>D68F1885-571C-4441-8DD5-F14803EFEF54</string> </dict> <dict> <key>Hidden</key> <false/> <key>InjectKexts</key> <false/> <key>NoCaches</key> <false/> <key>SubEntries</key> <array> <dict> <key>AddArguments</key> <string>-v</string> <key>Title</key> <string>Boot OS X 10.8.5 (12F36) Mountain Lion in Verbose Mode</string> </dict> </array> <key>Title</key> <string>OS X 10.8.5 (12F36) Mountain Lion</string> <key>Type</key> <string>OSX</string> <key>Volume</key> <string>454794AC-760D-46E8-8F77-D6EB23D2FD32</string> </dict> </array> <key>Legacy</key> <array> <dict> <key>Disabled</key> <true/> <key>Hidden</key> <false/> <key>Hotkey</key> <string>L</string> <key>Title</key> <string>MyLegacyEntry</string> <key>Type</key> <string>Windows</string> <key>Volume</key> <string>89433CD3-21F2-4D3C-95FC-722C48066D3A</string> </dict> </array> <key>Tool</key> <array> <dict> <key>Arguments</key> <string>-b</string> <key>Disabled</key> <false/> <key>Hidden</key> <false/> <key>Hotkey</key> <string>S</string> <key>Path</key> <string>\EFI\CLOVER\TOOLS\Shell64-v1.efi</string> <key>Title</key> <string>MyCustomShell</string> <key>Volume</key> <string>D68F1885-571C-4441-8DD5-F14803EFEF54</string> </dict> </array> </dict> <key>#CustomIcons</key> <false/> <key>#Hide</key> <array> <string>Windows</string> <string>BOOTX64.EFI</string> </array> <key>#Language</key> <string>ru:0</string> <key>#Mouse</key> <dict> <key>DoubleClick</key> <integer>500</integer> <key>Enabled</key> <true/> <key>Mirror</key> <false/> <key>Speed</key> <integer>2</integer> </dict> <key>#Scan</key> <dict> <key>Entries</key> <true/> <key>Legacy</key> <false/> <key>Tool</key> <true/> </dict> <key>#TextOnly</key> <false/> <key>ScreenResolution</key> <string>1280x1024</string> <key>Theme</key> <string>applestyle</string> </dict> <key>Graphics</key> <dict> <key>#Connectors</key> <array/> <key>#CustomEDID</key> <data> AP///////wAyDADfAAAAAAASAQOAIRV4CunVmVlTjigmUFQAAAABAQEBAQEB AQEBAQEBAQEB3iGgcFCEHzAgIFYAS88QAAAY3iGgcFCEHzAgIFYAS88QAAAA AAAA/gBXNjU3RwAxNTRXUDEKAAAA/gAjMz1IZYSq/wIBCiAgAJo= </data> <key>#DualLink</key> <integer>0</integer> <key>#FBName</key> <string>Makakakakala</string> <key>Inject</key> <dict> <key>ATI</key> <false/> <key>Intel</key> <false/> <key>NVidia</key> <false/> </dict> <key>#InjectEDID</key> <true/> <key>#LoadVBios</key> <false/> <key>#NVCAP</key> <string>04000000000003000C0000000000000A00000000</string> <key>#NvidiaGeneric</key> <true/> <key>#NvidiaSingle</key> <false/> <key>#PatchVBios</key> <false/> <key>#PatchVBiosBytes</key> <array> <dict> <key>Find</key> <data> gAeoAqAF </data> <key>Replace</key> <data> gAeoAjgE </data> </dict> </array> <key>#VRAM</key> <integer>1024</integer> <key>#VideoPorts</key> <integer>2</integer> <key>#display-cfg</key> <string>03010300FFFF0001</string> <key>ig-platform-id</key> <string>0x19120000</string> </dict> <key>KernelAndKextPatches</key> <dict> <key>#ATIConnectorsController</key> <string>6000</string> <key>#ATIConnectorsData</key> <string>000400000403000000010000210302040400000014020000000100000000040310000000100000000001000000000001</string> <key>#ATIConnectorsPatch</key> <string>040000001402000000010000000004040004000004030000000100001102010500000000000000000000000000000000</string> <key>#FakeCPUID</key> <string>0x010676</string> <key>#KextsToPatch</key> <array> <dict> <key>Find</key> <data> SGVhZHBob25lcwA= </data> <key>Name</key> <string>VoodooHDA</string> <key>Replace</key> <data> VGVsZXBob25lcwA= </data> </dict> <dict> <key>Comment</key> <string>Patch_to_not_load_this_driver</string> <key>Find</key> <string>0x04020000</string> <key>InfoPlistPatch</key> <true/> <key>Name</key> <string>AppleHDAController</string> <key>Replace</key> <string>0x44220000</string> </dict> <dict> <key>Find</key> <data> RXh0ZXJuYWw= </data> <key>Name</key> <string>AppleAHCIPort</string> <key>Replace</key> <data> SW50ZXJuYWw= </data> </dict> <dict> <key>Comment</key> <string>TRIM function for non-Apple SSDs</string> <key>Find</key> <data> QVBQTEUgU1NEAA== </data> <key>Name</key> <string>IOAHCIBlockStorage</string> <key>Replace</key> <data> AAAAAAAAAAAAAA== </data> </dict> <dict> <key>Comment</key> <string>Second Stage patch 1</string> <key>Find</key> <data> hcB0XUg= </data> <key>Name</key> <string>IOGraphicsFamily</string> <key>Replace</key> <data> McB0W0g= </data> </dict> <dict> <key>Comment</key> <string>Second Stage patch 2</string> <key>Find</key> <data> QYjE6wM= </data> <key>Name</key> <string>IOGraphicsFamily</string> <key>Replace</key> <data> QYjE6yM= </data> </dict> </array> <key>AppleRTC</key> <true/> <key>AsusAICPUPM</key> <false/> <key>Debug</key> <false/> <key>KernelCpu</key> <false/> <key>KernelHaswellE</key> <false/> <key>KernelLapic</key> <false/> <key>KernelPm</key> <false/> </dict> <key>RtVariables</key> <dict> <key>BooterConfig</key> <string>0x28</string> <key>CsrActiveConfig</key> <string>0x67</string> <key>MLB</key> <string>C02032109R5DC771H</string> <key>ROM</key> <string>UseMacAddr0</string> </dict> <key>SMBIOS</key> <dict> <key>#BiosReleaseDate</key> <string>05/03/10</string> <key>#BiosVendor</key> <string>Apple Inc.</string> <key>#BiosVersion</key> <string>MB11.88Z.0061.B03.0809221748</string> <key>#Board-ID</key> <string>Mac-F4208CC8</string> <key>#BoardManufacturer</key> <string>Apple Inc.</string> <key>#BoardSerialNumber</key> <string>C02032101R5DC771H</string> <key>#BoardType</key> <integer>10</integer> <key>#BoardVersion</key> <string>Proto1</string> <key>#ChassisAssetTag</key> <string>LatitudeD420</string> <key>#ChassisManufacturer</key> <string>Apple Inc.</string> <key>#ChassisType</key> <integer>16</integer> <key>#Family</key> <string>MacBook</string> <key>#FirmwareFeatures</key> <string>0xC0001403</string> <key>#LocationInChassis</key> <string>MLB</string> <key>#Memory</key> <dict> <key>Channels</key> <integer>2</integer> <key>Modules</key> <array> <dict> <key>Frequency</key> <integer>1333</integer> <key>Part</key> <string>C0001403</string> <key>Serial</key> <string>00001001</string> <key>Size</key> <integer>4096</integer> <key>Slot</key> <integer>0</integer> <key>Type</key> <string>DDR3</string> <key>Vendor</key> <string>Kingston</string> </dict> <dict> <key>Frequency</key> <integer>1333</integer> <key>Part</key> <string>C0001404</string> <key>Serial</key> <string>00001002</string> <key>Size</key> <integer>4096</integer> <key>Slot</key> <integer>2</integer> <key>Type</key> <string>DDR3</string> <key>Vendor</key> <string>Kingston</string> </dict> </array> <key>SlotCount</key> <integer>4</integer> </dict> <key>#Mobile</key> <true/> <key>#ProductName</key> <string>MacBook1,1</string> <key>#SerialNumber</key> <string>4H629LYAU9C</string> <key>#Slots</key> <array> <dict> <key>Device</key> <string>ATI</string> <key>ID</key> <integer>1</integer> <key>Name</key> <string>PCIe Slot 0</string> <key>Type</key> <integer>16</integer> </dict> <dict> <key>Device</key> <string>WIFI</string> <key>ID</key> <integer>0</integer> <key>Name</key> <string>Airport</string> <key>Type</key> <integer>1</integer> </dict> </array> <key>#SmUUID</key> <string>00000000-0000-1000-8000-010203040506</string> <key>#Trust</key> <true/> <key>#Version</key> <string>1.0</string> <key>Manufacturer</key> <string>Apple Inc.</string> </dict> <key>SystemParameters</key> <dict> <key>#BacklightLevel</key> <string>0x0501</string> <key>#CustomUUID</key> <string>511CE201-1000-4000-9999-010203040506</string> <key>InjectKexts</key> <string>Detect</string> <key>InjectSystemID</key> <true/> </dict> </dict> </plist> Link to comment https://www.insanelymac.com/forum/topic/314968-installing-osx-1011-on-asus-skylake-laptop/ Share on other sites More sharing options...
artur_pt Posted September 7, 2016 Share Posted September 7, 2016 hello all that key in config with # are out from config .. (comment) are u sure need all that dsdt fix enable ? skylake_config.plist.zip good hack Link to comment https://www.insanelymac.com/forum/topic/314968-installing-osx-1011-on-asus-skylake-laptop/#findComment-2274711 Share on other sites More sharing options...

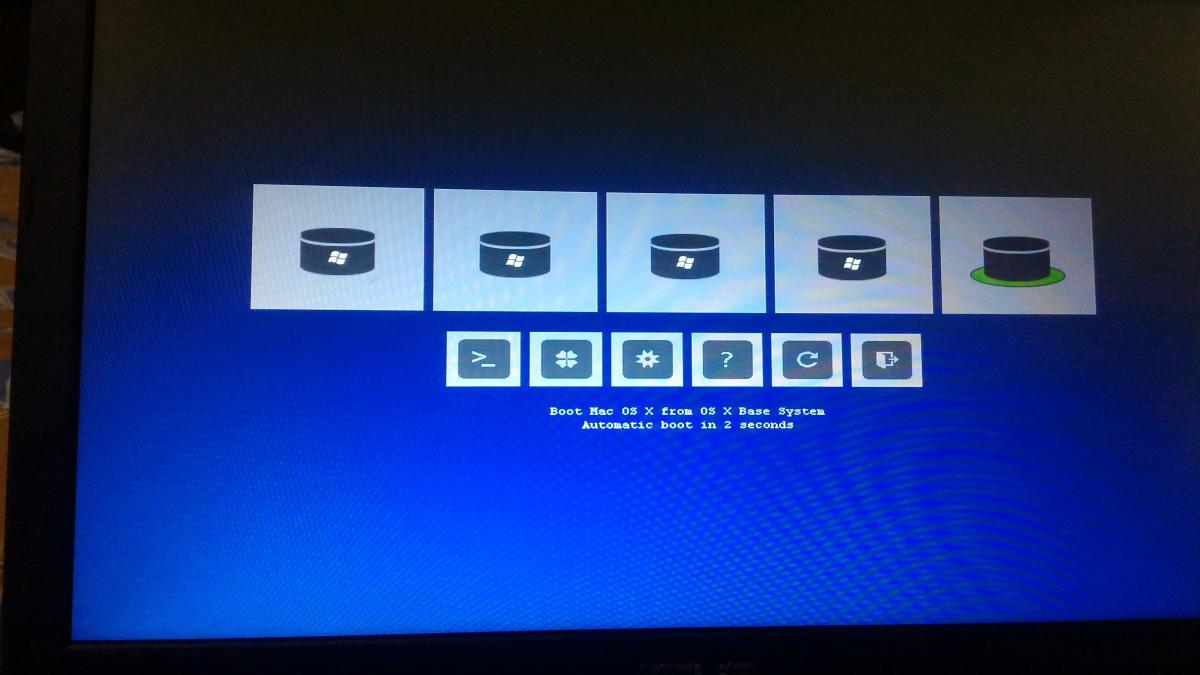

matrixer_x1 Posted September 7, 2016 Author Share Posted September 7, 2016 hello all that key in config with # are out from config .. (comment) are u sure need all that dsdt fix enable ? skylake_config.plist.zip good hack Thanks a lot for your reply.I tried with your plist file .. but it does not work..The clover boorloader theming is gone and the same reboot issue after the apple logo.Please help Link to comment https://www.insanelymac.com/forum/topic/314968-installing-osx-1011-on-asus-skylake-laptop/#findComment-2274871 Share on other sites More sharing options...
nawcom Posted September 7, 2016 Share Posted September 7, 2016 KernelPm is still disabled in the config.plist. Be sure and enable that as well Link to comment https://www.insanelymac.com/forum/topic/314968-installing-osx-1011-on-asus-skylake-laptop/#findComment-2274949 Share on other sites More sharing options...
matrixer_x1 Posted September 8, 2016 Author Share Posted September 8, 2016 KernelPm is still disabled in the config.plist. Be sure and enable that as well Hi, I tried enabling it in the binaries patching menu.. still the reboot issue. Link to comment https://www.insanelymac.com/forum/topic/314968-installing-osx-1011-on-asus-skylake-laptop/#findComment-2275242 Share on other sites More sharing options...
nawcom Posted September 8, 2016 Share Posted September 8, 2016 Try this also you keep disappearing from chat whenever i get back to my computer and am about to try and help. just bad luck i suppose hehe config.plist.zip Link to comment https://www.insanelymac.com/forum/topic/314968-installing-osx-1011-on-asus-skylake-laptop/#findComment-2275254 Share on other sites More sharing options...
matrixer_x1 Posted September 8, 2016 Author Share Posted September 8, 2016 Try this also you keep disappearing from chat whenever i get back to my computer and am about to try and help. just bad luck i suppose hehe Thanks for your help..I tried with the plist file you provided.It does not work... the theming is also not coming.I tried adding the nv_disable=1 flag... also not working. Yeah... when im on chat there is no one online who can help What should i do now? Link to comment https://www.insanelymac.com/forum/topic/314968-installing-osx-1011-on-asus-skylake-laptop/#findComment-2275323 Share on other sites More sharing options...
