Having issues installing 10.11.6 w/ Clover

AJbxfinest24

By AJbxfinest24,
in OSx86 10.11 (El Capitan)

 Share
18 posts in this topic

Recommended Posts

AJbxfinest24
AJbxfinest24
Posted
Posted (edited)

Hi,

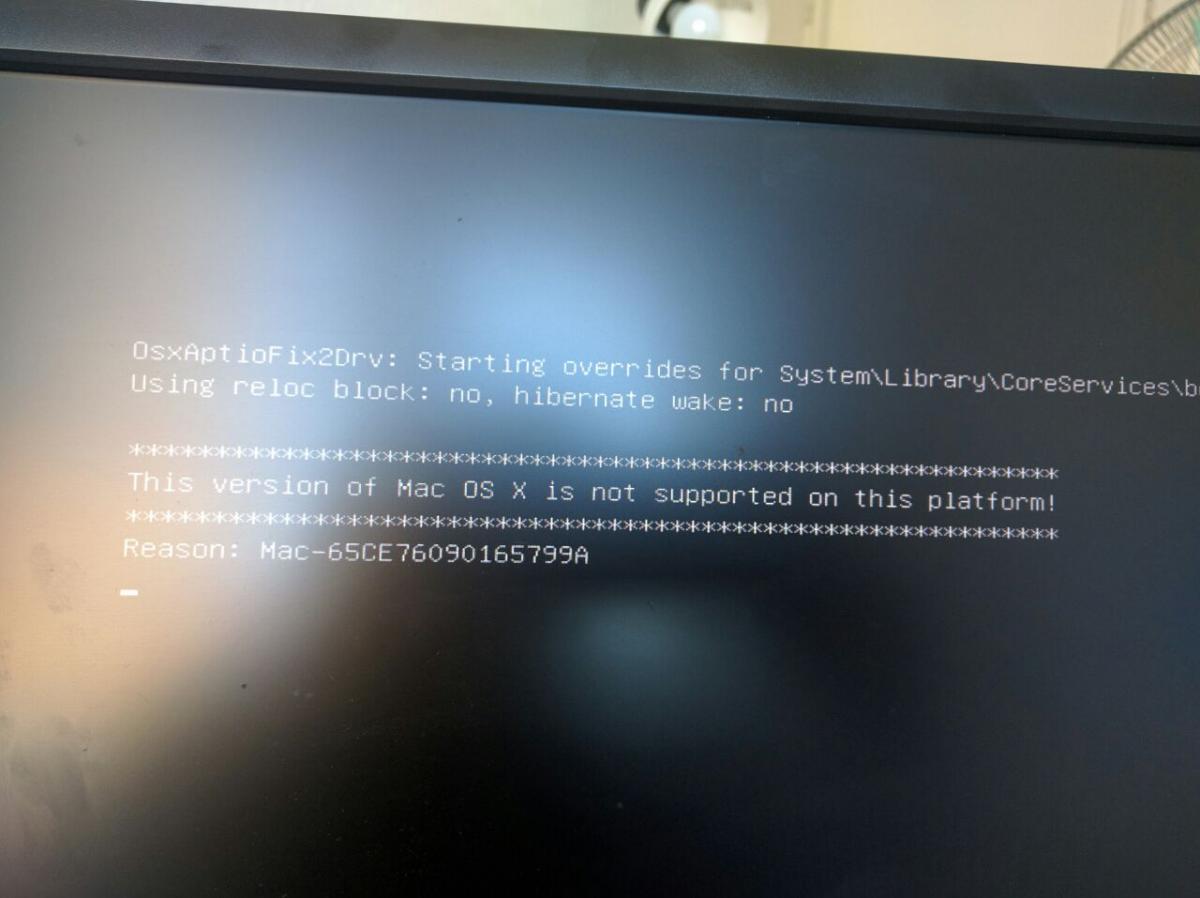

I am a new user and recently finished building my new hack. I am trying to install El Capitan 10.11.6 but when installing from the usb i get errors. Would someone be able to assist? I've been browsing the forums and tried a lot of things but i am getting no where. Any help would be appreciated. My hardware specs is in my signature.



Also here is my config file



<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>ACPI</key>
<dict>
<key>DSDT</key>
<dict>
<key>Debug</key>
<false/>
<key>DropOEM_DSM</key>
<false/>
<key>Patches</key>
<array>
<dict>
<key>Comment</key>
<string>Rename HECI to IMEI</string>
<key>Disabled</key>
<false/>
<key>Find</key>
<data>
SEVDSQ==
</data>
<key>Replace</key>
<data>
SU1FSQ==
</data>
</dict>
<dict>
<key>Comment</key>
<string>Rename _OSI to XOSI</string>
<key>Disabled</key>
<false/>
<key>Find</key>
<data>
X09TSQ==
</data>
<key>Replace</key>
<data>
WE9TSQ==
</data>
</dict>
<dict>
<key>Comment</key>
<string>Rename HDAS to HDEF</string>
<key>Disabled</key>
<false/>
<key>Find</key>
<data>
SERBUw==
</data>
<key>Replace</key>
<data>
SERFRg==
</data>
</dict>
</array>
<key>ReuseFFFF</key>
<false/>
</dict>
<key>SSDT</key>
<dict>
<key>DropOem</key>
<false/>
<key>Generate</key>
<true/>
</dict>
</dict>
<key>Boot</key>
<dict>
<key>Arguments</key>
<string>dart=0 uia_exclude=HS01;HS02;SS03;SS04;SS05;SS06;SS07;SS08;SS09;SS10;USR1;USR2</string>
<key>Debug</key>
<false/>
<key>DefaultVolume</key>
<string>LastBootedVolume</string>
<key>Secure</key>
<false/>
<key>Timeout</key>
<integer>5</integer>
<key>XMPDetection</key>
<string>Yes</string>
</dict>
<key>CPU</key>
<dict>
<key>UseARTFrequency</key>
<false/>
</dict>
<key>Devices</key>
<dict>
<key>Audio</key>
<dict>
<key>Inject</key>
<string>1</string>
</dict>
<key>USB</key>
<dict>
<key>FixOwnership</key>
<true/>
<key>Inject</key>
<false/>
</dict>
</dict>
<key>GUI</key>
<dict>
<key>Mouse</key>
<dict>
<key>DoubleClick</key>
<integer>500</integer>
<key>Enabled</key>
<false/>
<key>Mirror</key>
<false/>
<key>Speed</key>
<integer>8</integer>
</dict>
<key>Scan</key>
<true/>
</dict>
<key>Graphics</key>
<dict>
<key>Inject</key>
<dict>
<key>ATI</key>
<false/>
<key>Intel</key>
<false/>
<key>NVidia</key>
<false/>
</dict>
<key>NvidiaSingle</key>
<false/>
</dict>
<key>KernelAndKextPatches</key>
<dict>
<key>AppleRTC</key>
<true/>
<key>AsusAICPUPM</key>
<false/>
<key>Debug</key>
<false/>
<key>KernelCpu</key>
<false/>
<key>KernelHaswellE</key>
<false/>
<key>KernelLapic</key>
<false/>
<key>KernelPm</key>
<false/>
<key>KextsToPatch</key>
<array>
<dict>
<key>Comment</key>
<string>Boot Glitch</string>
<key>Disabled</key>
<false/>
<key>Find</key>
<data>
AQAAdRc=
</data>
<key>Name</key>
<string>IOGraphicsFamily</string>
<key>Replace</key>
<data>
AQAA6xc=
</data>
</dict>
</array>
</dict>
<key>SMBIOS</key>
<dict>
<key>BiosReleaseDate</key>
<string>09/22/2015</string>
<key>BiosVendor</key>
<string>Apple Inc.</string>
<key>BiosVersion</key>
<string>IM171.88Z.0105.B00.1509221819</string>
<key>Board-ID</key>
<string>Mac-65CE76090165799A</string>
<key>BoardManufacturer</key>
<string>Apple Inc.</string>
<key>BoardType</key>
<integer>10</integer>
<key>BoardVersion</key>
<string>iMac17,1</string>
<key>ChassisAssetTag</key>
<string></string>
<key>ChassisManufacturer</key>
<string>Apple Inc.</string>
<key>ChassisType</key>
<string>13</string>
<key>Family</key>
<string>iMac</string>
<key>LocationInChassis</key>
<string>Part Component</string>
<key>Manufacturer</key>
<string>Apple Inc.</string>
<key>ProductName</key>
<string>iMac17,1</string>
<key>SerialNumber</key>
<string>C02QXXXXGG7L</string>
<key>Trust</key>
<false/>
<key>Version</key>
<string>1.0</string>
</dict>
<key>SystemParameters</key>
<dict>
<key>InjectKexts</key>
<string>Yes</string>
<key>InjectSystemID</key>
<true/>
</dict>
</dict>
</plist>


Edited by Allan
Spoiler tag added
ITNerd24
ITNerd24
Posted
Posted

Hello there!



Could you please upload your EFI so we can have a look at it. It would be easier to debug the problem if you could do that.



Regards,

Dwarfy

Hi Dwarfy,



Sure see link below.hank you for responding and looking into it. If this is not the right file let me know and i try to get what you need.



https://www.dropbox.com/s/0xzrxltm775dxk9/EFI.zip?dl=0

Dwarfy
Dwarfy
Posted
Posted

Hi there,



I have modified your EFI, try this EFI I just uploaded with this post.

Also, I suggest you upgrade your UEFI fw. .



I'm in the chat if you need more help.



Regards,



Dwarfy

EFI- ITNerd24 - AJbxfinest24.zip

AJbxfinest24
AJbxfinest24
Posted
  • Author
Posted

Hi there,



I have modified your EFI, try this EFI I just uploaded with this post.

Also, I suggest you upgrade your UEFI fw. .



I'm in the chat if you need more help.



Regards,



Dwarfy



Hi Dwarfy,

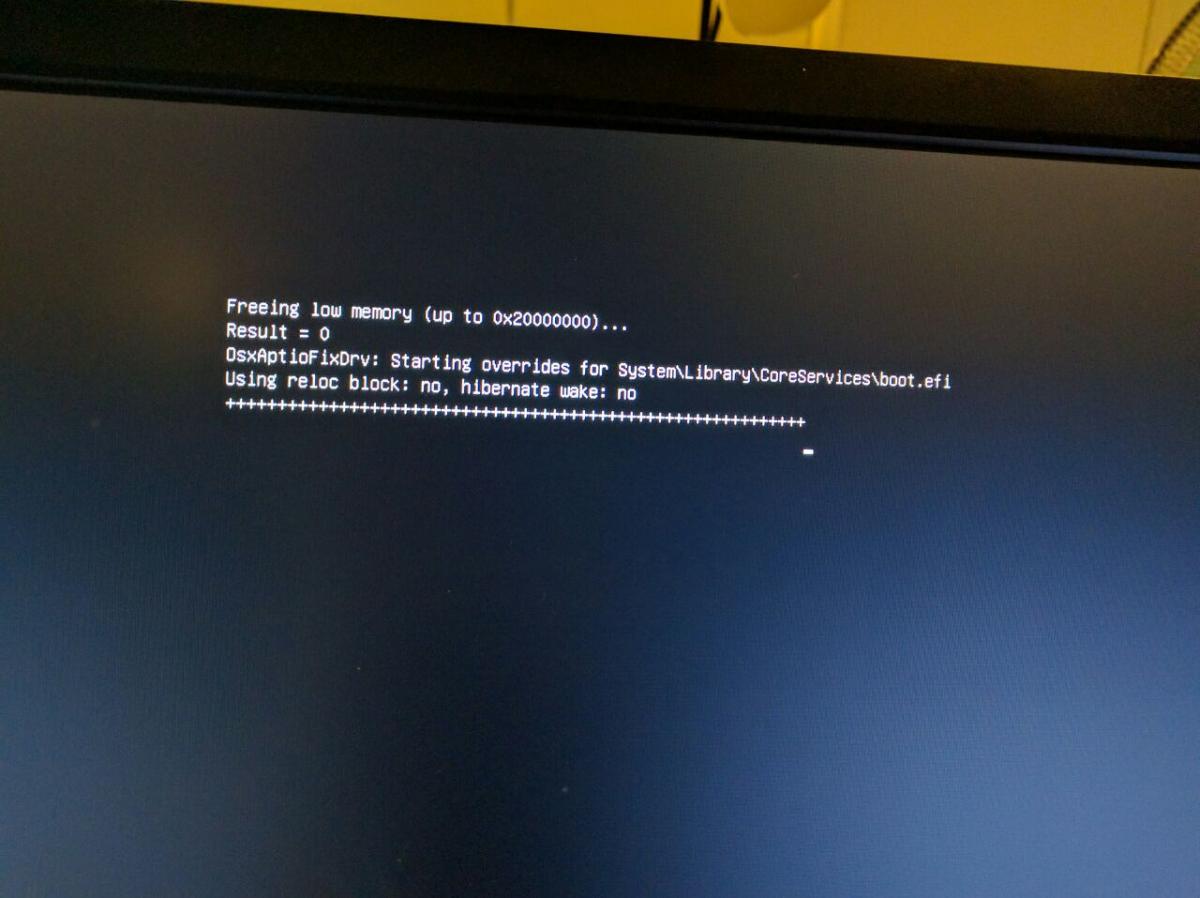

Thank you for looking into this further. I copied the files over but is running into this error now. I will join the chat and hopefully we'll narrow down the problem.


AJbxfinest24
AJbxfinest24
Posted
  • Author
Posted

Hi Dwarfy,



That seems to be the main problem i run into. I've tried before using different aptio files.



I have the latest bios from Asus Deluxe II



Version 0801

Description X99-DELUXE II BIOS 0801
Improve system stability File Size 7.01 MBytesupdate 2016/06/30 Download from Global
Dwarfy
Dwarfy
Posted
Posted



Hi Dwarfy,



That seems to be the main problem i run into. I've tried before using different aptio files.



I have the latest bios from Asus Deluxe II



Version 0801

Description X99-DELUXE II BIOS 0801

Improve system stability

File Size 7.01 MBytesupdate 2016/06/30 Download from Global







The best way would be to revert UEFI/BIOS, that might get rid of the  Aptio problem.

AJbxfinest24
AJbxfinest24
Posted
  • Author
Posted

The best way would be to revert UEFI/BIOS, that might get rid of the  Aptio problem.



Hi Dwarfy,



I reverted the bios back to 0601 but i am still getting the same error with aptio



Version 0601

Description

X99-DELUXE II BIOS 0601

Improve system stability

File Size

6.99 MBytes

update



2016/05/26

Download from

Global

AJbxfinest24
AJbxfinest24
Posted
  • Author
Posted

Hi Dwarfy,



the freeing low memory no longer appears. But now it's just  two lines



OsxAptioFixDrv: Starting overrides for System\Library\CoreServices\boot.efi

Using relic block: no, hibernate wake: no

++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

AJbxfinest24
AJbxfinest24
Posted
  • Author
Posted

Ok, did you try the first EFI I sent with the BIOS/UEFI you reverted to?



Didn't try that one yet. I'll give that a shot.



If related to SIP, you can try this option with latest rev of Clover until installation finish / able to reach the desktop.



Thank you cecekpawon. I'll try that suggestions well.



Unfortunately i won't be home tonight due to work to test both suggestions. I will be able to try both suggestions tomorrow night and I will reply back with my findings. Thank you both for helping with this and i'll keep you posted.

Dwarfy
Dwarfy
Posted
Posted

Mem Map issues are very common with x99. Could also be related to that Broadwell-E is new. I don't know.

But as far as I know, Aptio problems can only be fixed with BIOS/UEFI upgrade or the revert to an earlier version(s). Of course Aptio and memfix drivers can also help.
