Micky1979

Build_Clover.command, another Script to build standard Clover (or customized)

2,126 posts in this topic

Recommended Posts




Hi, building Pandora's Box I need to compile Clover from source so I've created a script to do that following Clover devs advices.



Well, Build_Clover.command can easily build a standard Clover, but also permit you to define macros that are not available on the standard package.

So following Slice intruction here you can create a new package containing legacy boot file with all the macro you need by selecting them:

===============================================================================
BUILD boot7 with additional macros
                          <----------------------------------------------------
	 1) USE_APPLE_HFSPLUS_DRIVER
	 2) USE_BIOS_BLOCKIO
	 3) NO_GRUB_DRIVERS
	 4) DISABLE_UDMA_SUPPORT
	 5) ENABLE_VBIOS_PATCH_CLOVEREFI
	 6) DISABLE_USB_SUPPORT
	 7) ENABLE_PS2MOUSE_LEGACYBOOT
	 8) DEBUG_ON_SERIAL_PORT
	 9) DISABLE_LTO
	 10) ENABLE_SECURE_BOOT
	 11) USE_ION
	 12) DISABLE_USB_MASS_STORAGE
	 13) ENABLE_USB_OHCI
	 14) ENABLE_USB_XHCI
ONLY_SATA_0 added!
actual macros defined: -D REAL_NVRAM -D NO_GRUB_DRIVERS_EMBEDDED -D ONLY_SATA_0

That affect boot7 only,
enter you choice or press "b" to build:

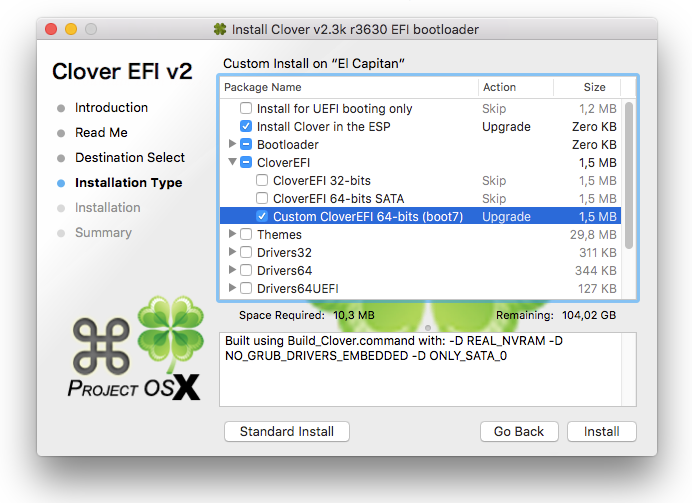

Result:

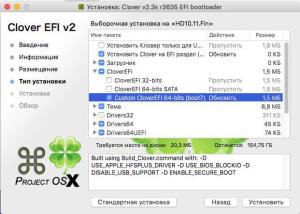

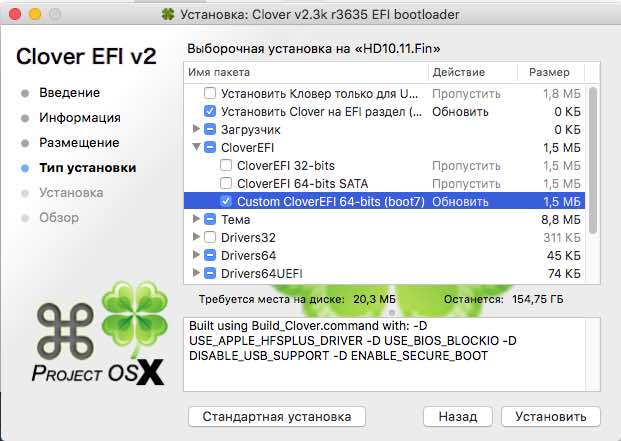

also the package is customized to remind you what you have done!  B)







Push here to Download

Share this post


Link to post
Share on other sites
Advertisement

Explanation of the available options:



 1) add "buildclover" symlink to /usr/local/bin

(idea of @STLVNUB)
With this option you can link Build_Clover.command in /usr/local/bin/buildclover, so that you can simply type "buildclover" in Terminal to run the script.
Build_Clover.command Should be placed in a writable path to allow the script to be updated.
Notes that if you move the script it will no longer works or if you run another copy of Build_Clover.command, this one, will ask you to update the symlink.



 2) update Build_Clover.command

This option appears only when an update for Build_Clover.command is available. Mostly because a new edk2 revision is available from Slice (and you should really use that), but also for bug fixes or new functionalities for the script.

 3) update Clover only (no building)



Cause the script to call svn update with --accept tf on both edk2 and Clover.

After that Clover is the latest revision available, edk2 instead is the one defined by "EDK2_REV" variable. "EDK2_REV" is updated as soon as Slice sync with a new revision of edk2 and you should not edit it unless Build_Clover.command is momentarily outdated.
Notice that if edk2 is already at the specified revision It will not be updated until a new version is specified.



 4) update Clover + force edk2 update (no building)

As for the previous option, but this one causes edk2 to be updated again. Why?

You may encounter errors updating the source such lost of Internet connectivity, a reset by peers or conflicts between passing from an old revision to a new one.
If a conflict happened, Build_Clover.command try to call svn resolve on the problematic package or on Clover too.



 5) run my script on the source

This option allow you to add a pre or post action to the script. For me build the directory tree I need for Clover included in Pandora's Box. For you does nothing unless you edit the script adding code or a path to your script.



 6) build existing revision (no update, for testing only)

This option is for testing only and You Should Not Use it unless you are coding something:

in fact this option is really fast (the real purpose) building Clover and allow you to see if your code (maybe a patch diff?) compile fine. What prevent to be a good method to build Clover Is that this way Version.h is not updated (this causes modules that includes it to not be rebuilted) and so the "build" info string in the boot log will be false and not accurate (cosmetic only). For this reason is not reccomended to share or use Clover compiled this way (though that anyway it have 100% of the functionality).



 7) build existing revision for release (no update, standard build)

Proper way to build Clover:
-fr option is passed to ebuild.sh everytime is called that cause Version.h to be overwritten with all correct  build infos (right revision, right arguments passed to ebuild.sh etc.).
Also make clean is called on CloverPackage directory to clean old stuff and have all builted from scratch.

Troubleshooting
If you encounter errors this way is due to the fact that something goes wrong with the actual source, so don't panic and run:
update Clover + force edk2 update (no building)

.. if that is not enough consider to re download the entire project, but consider also to wait for a new commit appear since Clover is under steady development and some little problems get solved by itself.

Also consider that you can find stable release here.







 8) build existing revision with custom macros enabled







following instruction by Slice here (please read), you can now build Clover with the macros:

===============================================================================
BUILD boot3 and boot7 with additional macros
<----------------------------------------------------
     1) USE_APPLE_HFSPLUS_DRIVER
     2) USE_BIOS_BLOCKIO
     3) DISABLE_USB_SUPPORT
     4) NO_GRUB_DRIVERS
     5) NO_GRUB_DRIVERS_EMBEDDED
     6) ONLY_SATA_0
     7) DISABLE_UDMA_SUPPORT
     8) ENABLE_VBIOS_PATCH_CLOVEREFI
     9) ENABLE_PS2MOUSE_LEGACYBOOT
     10) DEBUG_ON_SERIAL_PORT
     11) ENABLE_SECURE_BOOT
     12) USE_ION
     13) DISABLE_USB_MASS_STORAGE
     14) ENABLE_USB_OHCI
     15) ENABLE_USB_XHCI
     16) REAL_NVRAM
     17) CHECK_FLAGS

actual macros defined: no one

enter you choice or press "b" to build:
?



.. and all arguments will be passed to ebuild.sh to compile Clover with your needed.



Clover is builted with -fr option for a good result.







 9) info and limitations about this script

this option show info about this script, like what you should expect and what you should not expect  by this script.
Also containing info on supported OSes and more.
You should read those info directly by the actual script because changes may be apported.





 *10) enter Developers mode (only for devs)

Developers mode is a simply method that only "cd" to the source w/o installing, downloading or update anything.
Also require that you have everything in place, like a good nasm, mtoc, gettext etc. (and off course edk2 and Clover) only using what is already defined by tools_def.txt by default.
If you are not a dev, please don't use this option and switch back to the main manu that cause Build_Clover.command to install dependencies for you.



 1) build with ./ebuild.sh -nb

      no boot files (don't build already builted bootsectors)

 2) build with ./ebuild.sh --module=rEFIt_UEFI/refit.inf

      use refit.inf to build Clover

 3) build binaries (boot6 and 7)

     build Clover w/o -fr option (faster, but Version.h is not updated)

 4) build binaries with FORCEREBUILD (boot6 and 7)

     build Clover with -fr option *(slower, but modules which include a new updated Version.h get automatically rebuilted)

 5) build pkg

     build the package only (using existing Clover)

 6) build iso

     build the iso image only (using existing Clover)

 7) build pkg+iso

     build the package + iso image (using existing Clover)

 9) build all for Release

     build every things (*Clover with -fr + package and iso image)

 9) Back to Main Menu

     exit developers mode back to normal mode.



 10) Exit

     exit the script.





 11) Exit

exit the script that is actually in a loop

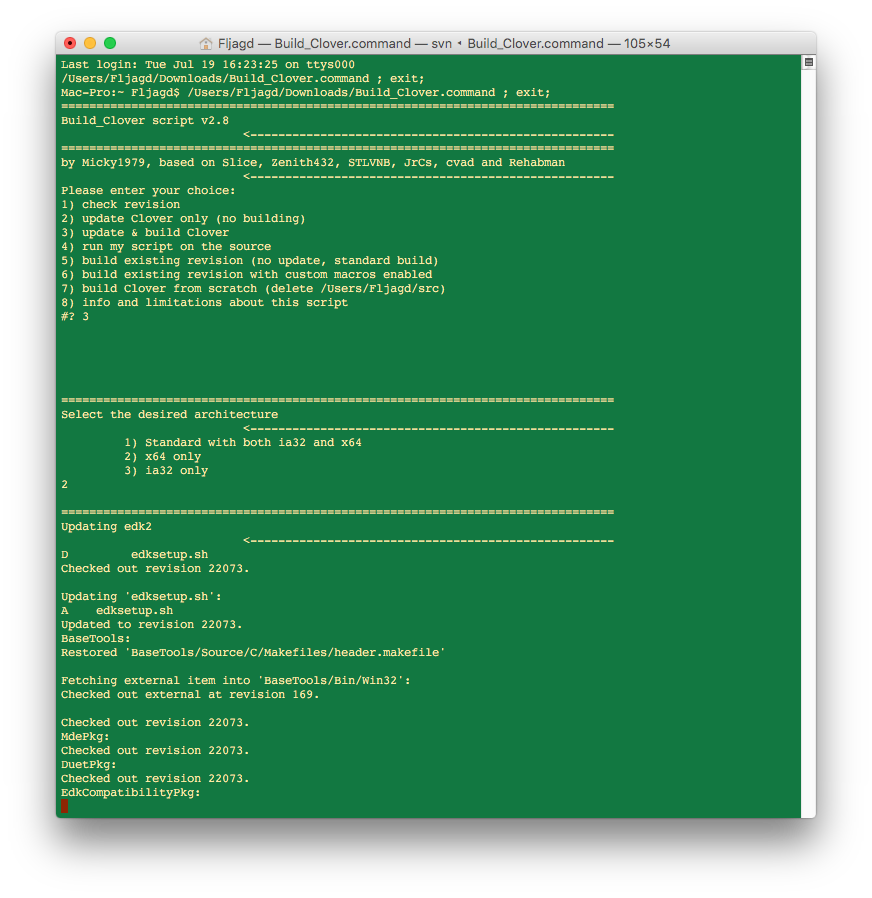

Selecting the architecture





Idea of @Riley Freeman of building only necessary architecture so that if your Mobo only supports 32 bit bios/UEFi you can build only the 32 bit parts. As well for 64 bit.



===============================================================================

Select the desired architecture

                          <----------------------------------------------------

1) Standard x64 only

2) ia32 and x64 (ia32 is deprecated)

3) ia32 only (deprecated)

4) Back to Main Menu

5) Exit

?



To build a standard package (with both architectures) use option 1.







Clover source in a specific subfolder you like (instead of being in the Home directory)





(idea of RehabMan)



# MODE="S" src is ~/src

# MODE="R" src created where this script is located (use only if the path has no blank spaces in the middle)

MODE="S"

---> src in home folder as usual





# MODE="S" src is ~/src

# MODE="R" src created where this script is located (use only if the path has no blank spaces in the middle)

MODE="R"

---> src in any sub folder (src is created where the script is located. Make a folder, copy the script inside and run it). Require no empty spaces in the path, anyway a check will prevent this!







Supported OS

macOS X, Ubuntu 16.04 + and Debian Jessie 8.6 + (read)



Note:

the package (.pkg) can only be builted in macOS X  since linux use other tecnologies.





Improvements:





Experimental, upgrade the working copy. (Introduced in 4.0.3) by Needy

svn: E155036: Please see the 'svn upgrade' command
Error: You need to upgrade the working copy first.
Would you like to upgrade the working copy in the /Users/[USER]/src/edk2/?
y
Upgraded 'src/edk2'
Upgraded 'src/edk2/BaseTools/Bin/Win32'
svn: E155036: Please see the 'svn upgrade' command
Error: You need to upgrade the working copy first.
Would you like to upgrade the working copy in the /Users/[USER]/src/edk2/Clover/?
y
Upgraded 'src/edk2/Clover'
Remote revision: 3758 Local revision: 3580svn: E155036: Please see the 'svn upgrade' command
Error: You need to upgrade the working copy first.
Would you like to upgrade the working copy in the /Users/[USER]/src/edk2/?
n
You may encounter errors!
Something went wrong while getting the remote revision, check your internet connection!
Something went wrong while getting the local revision!

Ok, we are able to downgrade Clover to a specified revision since v4.2.5!

Step 1, change ekd2 to a supported revision (at this moment is 23550):

# Preferences:
EDK2_REV="23447"   # or any revision supported by Slice (otherwise no claim please)


Step 2, change Clover to the desired revision (atm 3960):

SUGGESTED_CLOVER_REV="3952" # empty by default

launch the script using option:


3) update Clover + force edk2 update (no building)


... will call svn resolve if needed, plus clean BaseTools causing it to be rebuilted!

WARNING: too old revision of Clover maybe incompatible with the current script, and off course you should use a revision of Clover compatible with the specified revision of edk2, otherwise will not work!





See full changelog

Edited by Micky1979

Share this post


Link to post
Share on other sites
That affect boot7 only

i applied -D NO_GRUB_DRIVERS_EMBEDDED in boot6 manually and it worked. any downside on why it has to be in boot7 only?



Also, i don't see -D USE_APPLE_HFSPLUS_DRIVER in the list.

Share this post


Link to post
Share on other sites

@Mickey1979

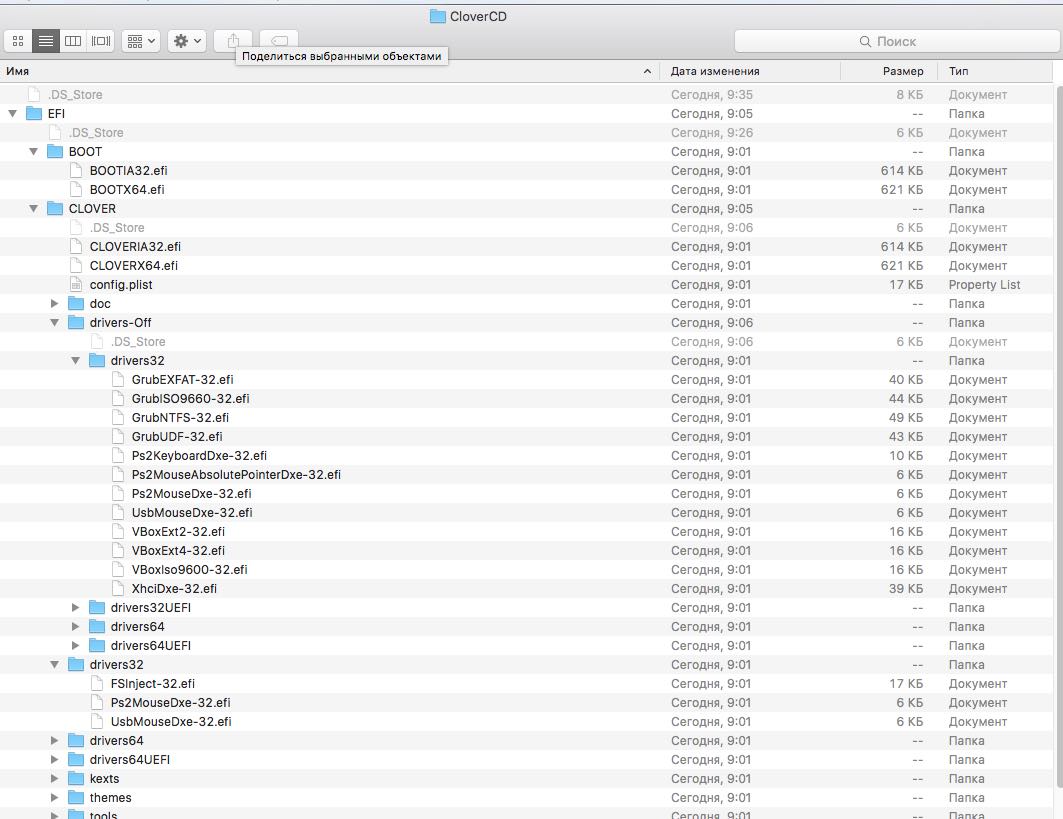

First fresh run: Getting multiple "command not found" at the end?

drwxr-xr-x  13 Mike  staff       442 Jul 14 12:13 .
drwxr-xr-x  14 Mike  staff       476 Jul 14 12:13 ..
drwxr-xr-x   5 Mike  staff       170 Jul 14 12:13 CloverCD
drwxr-xr-x   4 Mike  staff       136 Jul 14 12:13 CloverISO-3619
-rw-r--r--   1 Mike  staff   6367733 Jul 14 12:13 CloverISO-3619.tar.lzma
-rw-r--r--@  1 Mike  staff  27842456 Jul 14 12:13 Clover_v2.3k_r3619.pkg
-rw-r--r--   1 Mike  staff        68 Jul 14 12:13 Clover_v2.3k_r3619.pkg.md5
-rw-r--r--   1 Mike  staff  27780057 Jul 14 12:13 Clover_v2.3k_r3619.zip
drwxr-xr-x   3 Mike  staff       102 Jul 14 12:12 Resources
drwxr-xr-x   7 Mike  staff       238 Jul 14 12:13 build
drwxr-xr-x   4 Mike  staff       136 Jul 14 12:13 i386
drwxr-xr-x   3 Mike  staff       102 Jul 14 12:13 package
drwxr-xr-x   7 Mike  staff       238 Jul 14 12:13 utils
===============================================================================
Done
                          <----------------------------------------------------
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem32.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ZeroMem.S
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem16.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem.nasm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/CopyMem.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ScanMem32.S
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ScanMem8.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem32.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ZeroMem.S
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem16.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem.nasm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/CopyMem.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ScanMem32.S
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ScanMem8.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem32.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ZeroMem.S
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem16.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem.nasm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/CopyMem.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ScanMem32.S
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ScanMem8.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem32.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ZeroMem.S
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem16.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem.nasm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/CopyMem.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ScanMem32.S
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ScanMem8.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem32.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ZeroMem.S
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem16.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem.nasm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/CopyMem.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ScanMem32.S
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ScanMem8.asm
-bash: A: command not found

2nd run: building pkg skipped due to NO_GRUB_EMBEDDED?

Generating BootSectors
make: Nothing to be done for `all'.
Done!
Build Package/iso skipped because of NO_GRUB_DRIVERS/_EMBEDDED!
===============================================================================
Done
                          <----------------------------------------------------
DADS:~ Mike$

Share this post


Link to post
Share on other sites

i applied -D NO_GRUB_DRIVERS_EMBEDDED in boot6 manually and it worked. any downside on why it has to be in boot7 only?



Also, i don't see -D USE_APPLE_HFSPLUS_DRIVER in the list.

Why compile two bootloader with same functionality? I mean, you need only one boot file.

boot6 = standard

boot7 = boot6 with all macros defined that you need. Simply.



About "USE_APPLE_HFSPLUS_DRIVER" I forgot to add it :P



@Mickey1979



First fresh run: Getting multiple "command not found" at the end?

drwxr-xr-x  13 Mike  staff       442 Jul 14 12:13 .
drwxr-xr-x  14 Mike  staff       476 Jul 14 12:13 ..
drwxr-xr-x   5 Mike  staff       170 Jul 14 12:13 CloverCD
drwxr-xr-x   4 Mike  staff       136 Jul 14 12:13 CloverISO-3619
-rw-r--r--   1 Mike  staff   6367733 Jul 14 12:13 CloverISO-3619.tar.lzma
-rw-r--r--@  1 Mike  staff  27842456 Jul 14 12:13 Clover_v2.3k_r3619.pkg
-rw-r--r--   1 Mike  staff        68 Jul 14 12:13 Clover_v2.3k_r3619.pkg.md5
-rw-r--r--   1 Mike  staff  27780057 Jul 14 12:13 Clover_v2.3k_r3619.zip
drwxr-xr-x   3 Mike  staff       102 Jul 14 12:12 Resources
drwxr-xr-x   7 Mike  staff       238 Jul 14 12:13 build
drwxr-xr-x   4 Mike  staff       136 Jul 14 12:13 i386
drwxr-xr-x   3 Mike  staff       102 Jul 14 12:13 package
drwxr-xr-x   7 Mike  staff       238 Jul 14 12:13 utils
===============================================================================
Done
                          <----------------------------------------------------
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem32.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ZeroMem.S
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem16.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem.nasm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/CopyMem.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ScanMem32.S
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ScanMem8.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem32.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ZeroMem.S
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem16.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem.nasm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/CopyMem.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ScanMem32.S
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ScanMem8.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem32.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ZeroMem.S
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem16.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem.nasm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/CopyMem.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ScanMem32.S
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ScanMem8.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem32.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ZeroMem.S
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem16.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem.nasm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/CopyMem.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ScanMem32.S
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ScanMem8.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem32.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ZeroMem.S
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem16.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/SetMem.nasm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/CopyMem.asm
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ScanMem32.S
-bash: A: command not found
HTPC:~ Mike$ A    MdePkg/Library/BaseMemoryLibOptPei/Ia32/ScanMem8.asm
-bash: A: command not found

2nd run: building pkg skipped due to NO_GRUB_EMBEDDED?

Generating BootSectors
make: Nothing to be done for `all'.
Done!
Build Package/iso skipped because of NO_GRUB_DRIVERS/_EMBEDDED!
===============================================================================
Done
                          <----------------------------------------------------
DADS:~ Mike$

As I said the path should not include blank spaces, why fail (I guess). Will be corrected.

About NO_GRUB_DRIVERS_EMBEDDED, we have to check if the buildpkg.sh script can add all new drivers generated for the legacy options. I guess you need generated drivers not embedded in the boot file and the boot file with no embedded drivers, so the pkg is not generated (I thought you want that since enabling all other macros have no problem generating the pkg).

Finally You know that the boot file where you have applied your choices is boot7 (is a script, and has no brain, so I decide that boot7 will the boot file compiled with your preferences).

Usually in the generated pkg boot7 is the one that report the choice "use Bios block IO", but you will know that your compilation is different.. simply no? ^_^



I'll move these posts in a new topic later..

Edited by Micky1979
added a blank spaces check for MODE=R

Share this post


Link to post
Share on other sites

attachicon.gifBuild_Clover_S.command.zip

---> src in home folder as usual





attachicon.gifBuild_Clover_R.command.zip (Rehabman idea)

---> src in any sub folder (src is created where the script are located. Make a folder, copy the script inside and run it). Require no empty spaces in the path (ATM).



Note: the two script are the same but with standard/custom path commented as required



NEW:





following instruction by Slice here, you can now build Clover with the macros you like choosing option 6

Please enter your choice:
1) check revision
2) update & build Clover
3) update Clover only (no building)
4) run my script on the source
5) build existing revision (no update, standard build)
6) build existing revision with custom macros enabled (affect boot7 only)
7) build Clover from scratch (delete /Users/Micky1979/src)

...you can define all macros you need:

===============================================================================
BUILD boot7 with additional macros
                          <----------------------------------------------------
	 1) USE_BIOS_BLOCKIO
	 2) NO_GRUB_DRIVERS
	 3) NO_GRUB_DRIVERS_EMBEDDED
	 4) ONLY_SATA_0
	 5) DISABLE_UDMA_SUPPORT
	 6) ENABLE_VBIOS_PATCH_CLOVEREFI
	 7) DISABLE_USB_SUPPORT
	 8) ENABLE_PS2MOUSE_LEGACYBOOT
	 9) DEBUG_ON_SERIAL_PORT
	 10) ENABLE_SECURE_BOOT
	 11) USE_ION
	 12) DISABLE_USB_MASS_STORAGE
	 13) ENABLE_USB_OHCI
	 14) ENABLE_USB_XHCI
	 15) REAL_NVRAM

actual macros defined:
no one

That affect boot7 only,
enter you choice or press "b" to build:

after selecting some macros will be like that:





===============================================================================
BUILD boot7 with additional macros
                          <----------------------------------------------------
	 1) NO_GRUB_DRIVERS
	 2) NO_GRUB_DRIVERS_EMBEDDED
	 3) ONLY_SATA_0
	 4) DISABLE_UDMA_SUPPORT
	 5) ENABLE_VBIOS_PATCH_CLOVEREFI
	 6) ENABLE_PS2MOUSE_LEGACYBOOT
	 7) DEBUG_ON_SERIAL_PORT
	 8) ENABLE_SECURE_BOOT
	 9) USE_ION
	 10) DISABLE_USB_MASS_STORAGE
	 11) ENABLE_USB_OHCI
	 12) ENABLE_USB_XHCI

actual macros defined:
-D USE_BIOS_BLOCKIO -D DISABLE_USB_SUPPORT -D REAL_NVRAM

That affect boot7 only,
enter you choice or press "b" to build:







.. you will see all arguments that will be added directly in Terminal, macros already chosed no longer in the array  :D



If you like, will be available in the Download section, please test



PS delete the src folder to automatically redownload a fresh Clover the first time (you will see options later)... since I don't know what you done before (or by someone else script).

     Compatible with my old version of this script, now renamed Build_Clover.







Thank you - it works fine here.  :thumbsup_anim:




Share this post


Link to post
Share on other sites

I know :D , also solved the white space characters in the path for the next revision of this script. Going to move all these posts elsewhere..

EDIT

Build_Clover.sh can handle white spaces in paths, Clover's scripts can't. Leaving this opportunity: user must choose a path w/o blank space in the middle.

Edited by Micky1979
added a blank spaces check for MODE=R

Share this post


Link to post
Share on other sites



@Mickey1979

Generating BootSectors
make: Nothing to be done for `all'.
Done!
Build Package/iso skipped because of NO_GRUB_DRIVERS/_EMBEDDED!
===============================================================================
Done
                          <----------------------------------------------------
DADS:~ Mike$

v2.5 at first post is corrected to build with all macros enabled, also the package will show you changes you applied!

Share this post


Link to post
Share on other sites

You want the same for ia32 ..boot3?

If you mean this I can do that for the next update



EDIT

I saw your edit now, so yes the architecture can be selected adding a switch

Share this post


Link to post
Share on other sites

I'm not too familiar with Clover build options, but I got it to work as I like by commenting out the boot7 and Clover IA32 entries in the build section. I only need 64-bit UEFI from Clover.



I guess some extra options for the build phase would do it.

Share this post


Link to post
Share on other sites

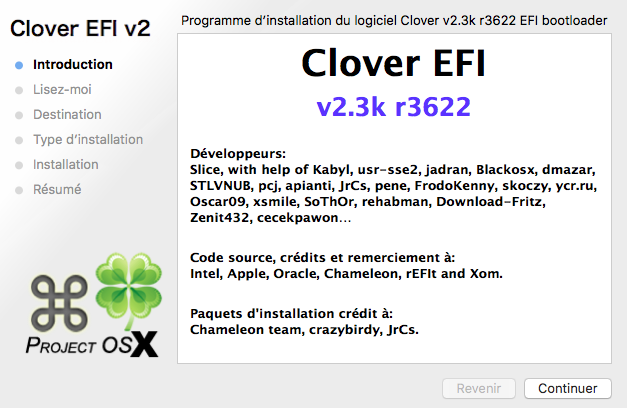

Yes It easy to automate. The resulting package, btw, is showing you boot3 (+ drivers 32 bit)/boot7 options?


Ok, next release will produce selected architecture, and the package will show/contains only drivers/booter for it

Share this post


Link to post
Share on other sites

There is one nuance.

I installed boot7.












In the boot-log I see a loading boot7.







0:176  0:003  BV new mode: 5 1280x1024
0:320  0:143   SetMode pref 5 (5) = Success
0:384  0:064  Found supported controller for BiosBlockIO class=010601
0:384  0:000  Int13Extensions: INT 13 41 DL=80 : CF=0 BX=AA55 CX=0001
0:384  0:000  GetDriveParameters: INT 13 48 DL=80 : CF=0 AH=00
0:384  0:000  BlockSize = 512  LastBlock = 976773167
0:387  0:002  Int13Extensions: INT 13 41 DL=F2 : CF=0 BX=AA55 CX=0005
0:387  0:000  GetDriveParameters: INT 13 48 DL=F2 : CF=0 AH=00
0:387  0:000  BlockSize = 2048  LastBlock = -1
0:795  0:408
0:795  0:000  Now is 16.7.2016,  17:12:20 (GMT)
0:795  0:000  Starting Clover rev 3635 on CLOVER EFI
0:795  0:000  Build with: [Args: ./ebuildBorg.sh -D USE_APPLE_HFSPLUS_DRIVER -D USE_BIOS_BLOCKIO -D DISABLE_USB_SUPPORT -D ENABLE_SECURE_BOOT -t XCODE5 | Command: build -D USE_BIOS_BLOCKIO -D DISABLE_USB_SUPPORT -D ENABLE_SECURE_BOOT -D USE_LOW_EBDA -p Clover/Clover.dsc -a X64 -b RELEASE -t XCODE5 -n 9 | OS: 10.11.6 | XCODE: 7.3.1]

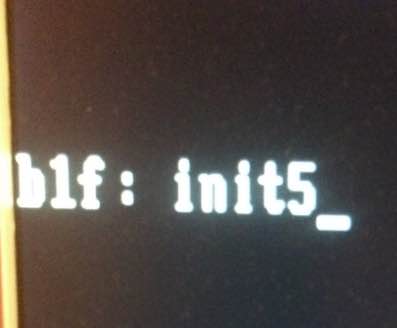

But on screen I see










Share this post


Link to post
Share on other sites

@droples that is a message printed by boot1f32 (or its "alt" variant) and not by boot3/6/7, I can't see nothing wrong with it (otherwise you will see "b1f: error"). What do you mean?


New v2.6 available:



What's New in Version 2.6

  • v2.6: you can now build Clover's package for the selected architecture (32-bit only, 64-bit only or both)
  • v2.6: You can define macros also for 32-bit builds



PS Option 8) show info about the script functionalities and its limitation.

Share this post


Link to post
Share on other sites

Thanks for the new version Micky. The architecture option worked for building a x64 version.



Thanks. Also this way it's very fast  :yes:

Share this post


Link to post
Share on other sites

In v2.8 I've removed commented/unused stuff, also removed uneeded fix in latest Clover source. You may need to remove:

~/src/edk2/BaseTools/Source/C/Makefiles/header.makefile

and update Clover (file will be restored). This only in case of failure on "unknown -Wno-shift-negative-value warning option". That was unknown for older Xcode versions, but apparently edk2 devs has removed it.

Share this post


Link to post
Share on other sites

In v2.8 I've removed commented/unused stuff, also removed uneeded fix in latest Clover source. You may need to remove:

~/src/edk2/BaseTools/Source/C/Makefiles/header.makefile

and update Clover (file will be restored). This only in case of failure on "unknown -Wno-shift-negative-value warning option". That was unknown for older Xcode versions, but apparently edk2 devs has removed it.

Good


Share this post


Link to post
Share on other sites

hello micky1979.



i test your script. but no lucky



here is log



[sLINK] BdsDxe

[CC] loader

clang: error: unable to execute command: Illegal instruction: 4

clang: error: linker command failed due to signal (use -v to see invocation)

make: *** [/users/Supreme/src/edk2/Build/Clover/RELEASE_XCODE5/X64/Clover/OsxAptioFixDrv/OsxAptioFixDrv/DEBUG/OsxAptioFixDrv.dll] Error 254





build.py...

 : error 7000: Failed to execute command

make tbuild [/users/Supreme/src/edk2/Build/Clover/RELEASE_XCODE5/X64/Clover/OsxAptioFixDrv/OsxAptioFixDrv]





build.py...

 : error 7000: Failed to execute command

make tbuild [/users/Supreme/src/edk2/Build/Clover/RELEASE_XCODE5/X64/Clover/rEFIt_UEFI/refit]





build.py...

 : error F002: Failed to build module

/Users/Supreme/src/edk2/Clover/OsxAptioFixDrv/OsxAptioFixDrv.inf [X64, XCODE5, RELEASE]



- Failed -

Build end time: 23:01:22, Aug.12 2016

Build total time: 00:00:53



Supreme-Mac-Pro:~ Supreme$





i use latest clover r3695.

Share this post


Link to post
Share on other sites

Hi Sherlock (Supreme? wow  ), this is the log updating Clover and edk2 without building it using the script in the Download section:

===============================================================================
Build_Clover script v2.8
                          <----------------------------------------------------
===============================================================================
by Micky1979, based on Slice, Zenith432, STLVNB, JrCs, cvad and Rehabman
                          <----------------------------------------------------
Please enter your choice:
1) check revision
2) update Clover only (no building)
3) update & build Clover
4) run my script on the source
5) build existing revision (no update, standard build)
6) build existing revision with custom macros enabled
7) build Clover from scratch (delete /Users/Micky1979/src)
8) info and limitations about this script
#? 2

===============================================================================
Updating edk2
                          <----------------------------------------------------
D         edksetup.sh
Checked out revision 22367.

Updating 'edksetup.sh':
A    edksetup.sh
Updated to revision 22367.
BaseTools:
UU   BaseTools/Conf/build_rule.template
UU   BaseTools/Conf/tools_def.template
U    BaseTools/Source/Python/UPT/Library/String.py
U    BaseTools/Source/C/VfrCompile/VfrFormPkg.cpp

Fetching external item into 'BaseTools/Bin/Win32':
U    BaseTools/Bin/Win32/VfrCompile.exe
U    BaseTools/Bin/Win32/Readme.txt
U    BaseTools/Bin/Win32/UPT.exe
Checked out external at revision 177.

Checked out revision 22367.
MdePkg:
U    MdePkg/Include/Arm/ProcessorBind.h
U    MdePkg/Include/Protocol/HiiImageEx.h
U    MdePkg/Library/BaseLib/FilePaths.c
Checked out revision 22367.
DuetPkg:
Checked out revision 22367.
EdkCompatibilityPkg:
Checked out revision 22367.
IntelFrameworkModulePkg:
Checked out revision 22367.
IntelFrameworkPkg:
Checked out revision 22367.
MdeModulePkg:
U    MdeModulePkg/Universal/SetupBrowserDxe/Setup.c
U    MdeModulePkg/Universal/SetupBrowserDxe/IfrParse.c
U    MdeModulePkg/Universal/DriverSampleDxe/DriverSample.c
U    MdeModulePkg/Universal/HiiDatabaseDxe/HiiDatabase.h
U    MdeModulePkg/Universal/HiiDatabaseDxe/ConfigRouting.c
Checked out revision 22367.
OvmfPkg:
Checked out revision 22367.
PcAtChipsetPkg:
U    PcAtChipsetPkg/Library/AcpiTimerLib/BaseAcpiTimerLib.c
U    PcAtChipsetPkg/Library/AcpiTimerLib/AcpiTimerLib.c
U    PcAtChipsetPkg/Library/AcpiTimerLib/DxeAcpiTimerLib.c
Checked out revision 22367.
ShellPkg:
C    ShellPkg/Application/Shell/FileHandleWrappers.c
G    ShellPkg/Application/Shell/ShellProtocol.c
G    ShellPkg/Library/UefiShellLevel2CommandsLib/Ls.c
UU   ShellPkg/Library/UefiShellTftpCommandLib/Tftp.c
GU   ShellPkg/Library/UefiShellCommandLib/ConsistMapping.c
Checked out revision 22367.
UefiCpuPkg:
Checked out revision 22367.

===============================================================================
Updating Clover
                          <----------------------------------------------------
Updating '.':
U    Clover.dsc
U    Xcode/Clover/Clover.xcodeproj/project.pbxproj
U    rEFIt_UEFI/libeg/image.c
U    rEFIt_UEFI/libeg/libscreen.c
U    rEFIt_UEFI/Platform/Settings.c
U    rEFIt_UEFI/Platform/nvidia.c
U    rEFIt_UEFI/Platform/ati.c
U    rEFIt_UEFI/Platform/FixBiosDsdt.c
U    rEFIt_UEFI/Platform/smbios.c
U    rEFIt_UEFI/Platform/Nvram.c
U    rEFIt_UEFI/Platform/AcpiPatcher.c
U    rEFIt_UEFI/Platform/Platform.h
U    rEFIt_UEFI/Platform/device_inject.c
U    rEFIt_UEFI/refit/screen.c
U    rEFIt_UEFI/refit/main.c
U    rEFIt_UEFI/refit/menu.c
U    rEFIt_UEFI/refit/lib.c
U    rEFIt_UEFI/refit/lib.h
U    rEFIt_UEFI/refit/icns.c
Updated to revision 3695.
===============================================================================
Apply Edk2 patches
                          <----------------------------------------------------
===============================================================================
Done, to build Clover re-run this script!
                          <----------------------------------------------------

And this is the succesfully compilation log done some seconds ago:

Last login: Fri Aug 12 16:09:34 on ttys001
Micky1979s-MBP:~ Micky1979$ /Volumes/DATI/Downloads/Build_Clover.command
===============================================================================
Build_Clover script v2.8
                          <----------------------------------------------------
===============================================================================
by Micky1979, based on Slice, Zenith432, STLVNB, JrCs, cvad and Rehabman
                          <----------------------------------------------------
Please enter your choice:
1) check revision
2) update Clover only (no building)
3) update & build Clover
4) run my script on the source
5) build existing revision (no update, standard build)
6) build existing revision with custom macros enabled
7) build Clover from scratch (delete /Users/Micky1979/src)
8) info and limitations about this script
#? 5






===============================================================================
Select the desired architecture
                          <----------------------------------------------------
	 1) Standard with both ia32 and x64
	 2) x64 only
	 3) ia32 only
1
===============================================================================
BUILDTOOL is XCODE5
                          <----------------------------------------------------

===============================================================================
NASM version 2.12.02rc1 compiled on May 19 2016
                          <----------------------------------------------------
===============================================================================
gettext (GNU gettext-runtime) 0.19.7
Copyright (C) 1995-1997, 2000-2007 Free Software Foundation, Inc.
License GPLv3+: GNU GPL version 3 or later <http://gnu.org/licenses/gpl.html>
This is free software: you are free to change and redistribute it.
There is NO WARRANTY, to the extent permitted by law.
Written by Ulrich Drepper.
                          <----------------------------------------------------
===============================================================================
boot6
                          <----------------------------------------------------
TOOLCHAIN_DIR: /Users/Micky1979/src/opt/local
Initializing workspace
Loading previous configuration from /Users/Micky1979/src/edk2/Conf/BuildEnv.sh
WORKSPACE: /Users/Micky1979/src/edk2
EDK_TOOLS_PATH: /Users/Micky1979/src/edk2/BaseTools
CONF_PATH: /Users/Micky1979/src/edk2/Conf

Running edk2 build for CloverX64 using the command:
build  -D USE_LOW_EBDA -p Clover/Clover.dsc  -a X64 -b RELEASE -t XCODE5 -n 5

Build environment: Darwin-15.6.0-x86_64-i386-64bit
Build start time: 16:12:16, Aug.12 2016

WORKSPACE        = /Users/Micky1979/src/edk2
ECP_SOURCE       = /Users/Micky1979/src/edk2/EdkCompatibilityPkg
EDK_SOURCE       = /Users/Micky1979/src/edk2/EdkCompatibilityPkg
EFI_SOURCE       = /Users/Micky1979/src/edk2/EdkCompatibilityPkg
EDK_TOOLS_PATH   = /Users/Micky1979/src/edk2/BaseTools


Architecture(s)  = X64
Build target     = RELEASE
Toolchain        = XCODE5

Active Platform          = /Users/Micky1979/src/edk2/Clover/Clover.dsc
Flash Image Definition   = /Users/Micky1979/src/edk2/Clover/Clover.fdf

Processing meta-data ............ done!
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePcdLibNull/BasePcdLibNull.inf [X64]
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseDebugLibNull/BaseDebugLibNull.inf [X64]
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseMemoryLib/BaseMemoryLib.inf [X64]
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseLib/BaseLib.inf [X64]
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePrintLib/BasePrintLib.inf [X64]
[CC] SetMem
[CC] DebugLib
[CC] CheckSum
[CC] ScanMem64Wrapper
[CC] SwitchStack
[CC] ScanMem32Wrapper
[CC] SwapBytes64
[CC] ScanMem16Wrapper
[CC] PcdLib
[CC] SwapBytes32
[CC] ScanMem8Wrapper
[CC] SwapBytes16
[CC] ZeroMemWrapper
[CC] LongJump
[CC] CompareMemWrapper
[CC] SetJump
[CC] SetMem64Wrapper
[CC] SetMem32Wrapper
[CC] RShiftU64
[CC] SetMem16Wrapper
[CC] RRotU64
[CC] SetMemWrapper
[CC] RRotU32
[CC] CopyMemWrapper
[CC] MultU64x64
[CC] MultU64x32
[CC] PrintLibInternal
[CC] MemLibGeneric
[CC] MultS64x64
[CC] PrintLib
[CC] ModU64x32
[CC] MemLibGuid
[CC] LShiftU64
[CC] CopyMem
[CC] LRotU64
[CC] LRotU32
[CC] LowBitSet64
[CC] LowBitSet32
[CC] HighBitSet64
[CC] HighBitSet32
[CC] GetPowerOfTwo64
[CC] GetPowerOfTwo32
[CC] DivU64x64Remainder
[CC] DivU64x32Remainder
[CC] DivU64x32
[CC] DivS64x64Remainder
[CC] ARShiftU64
[CC] BitField
[CC] CpuDeadLoop
[CC] Cpu
[CC] LinkedList
[CC] SafeString
[SLINK] BasePcdLibNull
[SLINK] BaseDebugLibNull
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseReportStatusCodeLibNull/BaseReportStatusCodeLibNull.inf [X64]
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseIoLibIntrinsic/BaseIoLibIntrinsic.inf [X64]
[CC] String
[CC] BaseReportStatusCodeLib
[CC] FilePaths
[SLINK] BaseReportStatusCodeLibNull
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/DxeCoreMemoryAllocationLib/DxeCoreMemoryAllocationLib.inf [X64]
[CC] IoLibMmioBuffer
[CC] IoHighLevel
[CC] MemoryAllocationLib
[CC] IoLibGcc
[CC] IoLib
[SLINK] BasePrintLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxeCoreEntryPoint/DxeCoreEntryPoint.inf [X64]
[SLINK] BaseIoLibIntrinsic
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiRuntimeServicesTableLib/UefiRuntimeServicesTableLib.inf [X64]
[CC] DxeCoreMemoryProfileLibNull
[SLINK] DxeCoreMemoryAllocationLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiDevicePathLib/UefiDevicePathLib.inf [X64]
[NASM] Thunk16
[CC] Non-existing
[SLINK] BaseMemoryLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiBootServicesTableLib/UefiBootServicesTableLib.inf [X64]
[CC] Math64
[CC] UefiRuntimeServicesTableLib
[SLINK] UefiRuntimeServicesTableLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePeCoffExtraActionLibNull/BasePeCoffExtraActionLibNull.inf [X64]
[CC] Unaligned
[CC] DxeCoreEntryPoint
[SLINK] DxeCoreEntryPoint
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxeCoreHobLib/DxeCoreHobLib.inf [X64]
[CC] X86WriteIdtr
[CC] PeCoffExtraActionLib
[SLINK] PeCoffExtraActionLibNull
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiLib/UefiLib.inf [X64]
[CC] UefiBootServicesTableLib
[CC] X86WriteGdtr
[SLINK] UefiBootServicesTableLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseCacheMaintenanceLib/BaseCacheMaintenanceLib.inf [X64]
[CC] X86Thunk
[CC] X86ReadIdtr
[CC] X86Cache
[CC] DevicePathUtilities
[CC] HobLib
[SLINK] BaseCacheMaintenanceLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseUefiDecompressLib/BaseUefiDecompressLib.inf [X64]
[CC] X86ReadGdtr
[SLINK] DxeCoreHobLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePerformanceLibNull/BasePerformanceLibNull.inf [X64]
[CC] X86Msr
[CC] PerformanceLib
[CC] X86GetInterruptState
[CC] UefiLibPrint
[SLINK] BasePerformanceLibNull
Building ... /Users/Micky1979/src/edk2/Clover/Library/VBoxPeCoffLib/VBoxPeCoffLib.inf [X64]
[CC] X86FxSave
[CC] X86FxRestore
[CC] UefiNotTiano
[CC] X86EnablePaging64
[CC] BaseUefiDecompressLib
[CC] X86EnablePaging32
[SLINK] BaseUefiDecompressLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePeCoffGetEntryPointLib/BasePeCoffGetEntryPointLib.inf [X64]
[CC] X86DisablePaging64
[CC] UefiDriverModel
[CC] X86DisablePaging32
[CC] PeCoffGetEntryPoint
[SLINK] BasePeCoffGetEntryPointLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxeExtractGuidedSectionLib/DxeExtractGuidedSectionLib.inf [X64]
[CC] GccInline
[CC] DevicePathToText
[CC] BasePeCoff
[CC] PeCoffLoaderEx
[SLINK] VBoxPeCoffLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/DuetTimerLib/DuetTimerLib.inf [X64]
[CC] Console
[CC] DxeExtractGuidedSectionLib
[SLINK] DxeExtractGuidedSectionLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxeServicesLib/DxeServicesLib.inf [X64]
[CC] X86TimerLib
[SLINK] DuetTimerLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/DebugAgentLibNull/DebugAgentLibNull.inf [X64]
[CC] UefiLib
[CC] DebugAgentLibNull
[CC] DxeServicesLib
[SLINK] UefiLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/CpuExceptionHandlerLibNull/CpuExceptionHandlerLibNull.inf [X64]
[SLINK] DxeServicesLib
[SLINK] DebugAgentLibNull
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiMemoryAllocationLib/UefiMemoryAllocationLib.inf [X64]
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxeHobLib/DxeHobLib.inf [X64]
[CC] CpuExceptionHandlerLibNull
[SLINK] CpuExceptionHandlerLibNull
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiDriverEntryPoint/UefiDriverEntryPoint.inf [X64]
[CC] MemoryAllocationLib
[SLINK] UefiMemoryAllocationLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiRuntimeLib/UefiRuntimeLib.inf [X64]
[CC] HobLib
[CC] DriverEntryPoint
[SLINK] DxeHobLib
[SLINK] UefiDriverEntryPoint
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/VarCheckLib/VarCheckLib.inf [X64]
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseSynchronizationLib/BaseSynchronizationLib.inf [X64]
[CC] RuntimeLib
[CC] InternalGetSpinLockProperties
[SLINK] UefiRuntimeLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxeServicesTableLib/DxeServicesTableLib.inf [X64]
[CC] GccInline
[CC] VarCheckLib
[SLINK] VarCheckLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/TpmMeasurementLibNull/TpmMeasurementLibNull.inf [X64]
[CC] SynchronizationGcc
[SLINK] BaseSynchronizationLib
[CC] DxeServicesTableLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/AuthVariableLibNull/AuthVariableLibNull.inf [X64]
[SLINK] DxeServicesTableLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/VarCheckUefiLib/VarCheckUefiLib.inf [X64]
[CC] TpmMeasurementLibNull
[SLINK] TpmMeasurementLibNull
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/DxeCapsuleLibNull/DxeCapsuleLibNull.inf [X64]
[CC] AuthVariableLibNull
[SLINK] AuthVariableLibNull
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/DxeSecurityManagementLib/DxeSecurityManagementLib.inf [X64]
[CC] DevicePathFromText
[CC] DxeCapsuleLibNull
[SLINK] DxeCapsuleLibNull
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxePcdLib/DxePcdLib.inf [X64]
[CC] VarCheckUefiLibNullClass
[SLINK] VarCheckUefiLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/UefiHiiServicesLib/UefiHiiServicesLib.inf [X64]
[CC] UefiDevicePathLib
[CC] DxeSecurityManagementLib
[SLINK] UefiDevicePathLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/UefiHiiLib/UefiHiiLib.inf [X64]
[SLINK] DxeSecurityManagementLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/CustomizedDisplayLib/CustomizedDisplayLib.inf [X64]
[CC] UefiHiiServicesLib
[SLINK] UefiHiiServicesLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/LzmaCustomDecompressLib/LzmaCustomDecompressLib.inf [X64]
[CC] DxePcdLib
[SLINK] DxePcdLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/GenericBdsLib/GenericBdsLib.inf [X64]
[CC] LzmaDecompress
[CC] CustomizedDisplayLib
[CC] DevicePath
[CC] CustomizedDisplayLibInternal
[CC] LzFind
[CC] AutoGen
[SLINK] CustomizedDisplayLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/OsxBdsPlatformLib/PlatformBds.inf [X64]
[CC] HiiLib
[CC] HiiString
[CC] Performance
[CC] HiiLanguage
[SLINK] UefiHiiLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePciCf8Lib/BasePciCf8Lib.inf [X64]
[CC] BdsPlatform
[CC] PciCf8Lib
[SLINK] BasePciCf8Lib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePciLibCf8/BasePciLibCf8.inf [X64]
[CC] PciLib
[CC] PlatformData
[CC] BdsConnect
[SLINK] BasePciLibCf8
[SLINK] DuetBds
Building ... /Users/Micky1979/src/edk2/UefiCpuPkg/Library/BaseXApicLib/BaseXApicLib.inf [X64]
Building ... /Users/Micky1979/src/edk2/PcAtChipsetPkg/Library/BaseIoApicLib/BaseIoApicLib.inf [X64]
[ASM] SwitchStack
[CC] LzmaDec
[CC] BaseXApicLib
[CC] GuidedSectionExtraction
[CC] IoApicLib
[SLINK] BaseXApicLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/MemLogLibDefault/MemLogLibDefault.inf [X64]
[SLINK] LzmaDecompressLib
[SLINK] BaseIoApicLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/VideoBiosPatchLib/VideoBiosPatchLib.inf [X64]
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiScsiLib/UefiScsiLib.inf [X64]
[CC] MemLogLib
[CC] VideoBiosPatchLib
[SLINK] MemLogLibDefault
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiUsbLib/UefiUsbLib.inf [X64]
[ASM] SetJump
[CC] UefiScsiLib
[SLINK] UefiScsiLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/UefiSortLib/UefiSortLib.inf [X64]
[CC] Hid
[CC] BdsMisc
[CC] UefiSortLib
[CC] UsbDxeLib
[SLINK] UefiSortLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiFileHandleLib/UefiFileHandleLib.inf [X64]
[SLINK] UefiUsbLib
[CC] 915resolution
[ASM] LongJump
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiApplicationEntryPoint/UefiApplicationEntryPoint.inf [X64]
[CC] ApplicationEntryPoint
[SLINK] UefiApplicationEntryPoint
Building ... /Users/Micky1979/src/edk2/ShellPkg/Library/UefiShellLib/UefiShellLib.inf [X64]
[CC] edid
[SLINK] VideoBiosPatchLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiMemoryLib/UefiMemoryLib.inf [X64]
[CC] UefiFileHandleLib
[ASM] EnableDisableInterrupts
[SLINK] UefiFileHandleLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/OpensslLib/OpensslLibNull.inf [X64]
[CC] ScanMem64Wrapper
[CC] OpensslLibNull
warning: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning for library: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/X64/Clover/Library/OpensslLib/OpensslLibNull/OUTPUT/OpensslLib.lib the table of contents is empty (no object file members in the library define global symbols)
[SLINK] OpensslLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/DxeNetLib/DxeNetLib.inf [X64]
[CC] ScanMem32Wrapper
[CC] ScanMem16Wrapper
[ASM] DisablePaging64
[CC] ScanMem8Wrapper
[CC] BdsConsole
[CC] ZeroMemWrapper
[ASM] CpuId
[CC] CompareMemWrapper
[CC] SetMem64Wrapper
[CC] UefiShellLib
[CC] DxeNetLib
[CC] SetMem32Wrapper
[SLINK] UefiShellLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseCpuLib/BaseCpuLib.inf [X64]
[ASM] CpuIdEx
[CC] SetMem16Wrapper
[CC] SetMemWrapper
[CC] CopyMemWrapper
[ASM] CpuSleep
[ASM] EnableCache
[CC] MemLibGeneric
[CC] MemLibGuid
[ASM] CpuFlushTlb
[CC] NetBuffer
[SLINK] BaseCpuLib
[SLINK] DxeNetLib
[CC] MemLib
[ASM] DisableCache
[SLINK] UefiMemoryLib
[ASM] RdRand
[CC] ChkStkGcc
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (LongJump.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/X64/MdePkg/Library/BaseLib/BaseLib/OUTPUT/X64/LongJump.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/X64/MdePkg/Library/BaseLib/BaseLib/OUTPUT/LongJump.obj (due to use of basename, truncation, blank padding or duplicate input files)
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (SetJump.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/X64/MdePkg/Library/BaseLib/BaseLib/OUTPUT/SetJump.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/X64/MdePkg/Library/BaseLib/BaseLib/OUTPUT/X64/SetJump.obj (due to use of basename, truncation, blank padding or duplicate input files)
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (SwitchStack.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/X64/MdePkg/Library/BaseLib/BaseLib/OUTPUT/SwitchStack.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/X64/MdePkg/Library/BaseLib/BaseLib/OUTPUT/X64/SwitchStack.obj (due to use of basename, truncation, blank padding or duplicate input files)
[SLINK] BaseLib
Building ... /Users/Micky1979/src/edk2/Clover/OsxDxeIpl/DxeIpl.inf [X64]
Building ... /Users/Micky1979/src/edk2/Clover/OsxDxeCore/DxeMain.inf [X64]
[CC] BdsBoot
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/PCD/Dxe/Pcd.inf [X64]
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/WatchdogTimerDxe/WatchdogTimer.inf [X64]
[CC] String
[CC] DxeInit
[CC] WatchdogTimer
[CC] AutoGen
[SLINK] GenericBdsLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Core/RuntimeDxe/RuntimeDxe.inf [X64]
[CC] AutoGen
[CC] Pcd
[SLINK] WatchdogTimer
[CC] Crc32
[CC] CoreSectionExtraction
[CC] LegacyTable
[CC] Runtime
[CC] AutoGen
[SLINK] RuntimeDxe
[CC] HobGeneration
[CC] Service
[CC] AutoGen
[CC] Debug
[SLINK] PcdDxe
[CC] Image
[CC] EnterDxeCore
[CC] DebugImageInfo
[DLINK1] WatchdogTimer
[MTOC] WatchdogTimer
[CC] Paging
[GENFW] WatchdogTimer
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/MonotonicCounterRuntimeDxe/MonotonicCounterRuntimeDxe.inf [X64]
[CC] Stall
[CC] AutoGen
[SLINK] DxeIpl
[CC] MonotonicCounter
[CC] SetWatchdogTimer
[CC] AutoGen
[DLINK1] RuntimeDxe
[MTOC] RuntimeDxe
[SLINK] MonotonicCounterRuntimeDxe
[GENFW] RuntimeDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Variable/EmuRuntimeDxe/EmuVariableRuntimeDxe.inf [X64]
[CC] InstallConfigurationTable
[DLINK1] DxeIpl
[MTOC] DxeIpl
[CC] InitVariable
[CC] Library
[GENFW] DxeIpl
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/FaultTolerantWriteDxe/FaultTolerantWriteDxe.inf [X64]
[DLINK1] MonotonicCounterRuntimeDxe
[MTOC] MonotonicCounterRuntimeDxe
[GENFW] MonotonicCounterRuntimeDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Variable/RuntimeDxe/VariableRuntimeDxe.inf [X64]
[CC] Reclaim
[CC] FtwMisc
[CC] DriverSupport
[CC] EmuVariable
[CC] AutoGen
[SLINK] EmuVariableRuntimeDxe
[CC] Notify
[CC] UpdateWorkingBlock
[DLINK1] PcdDxe
[MTOC] PcdDxe
[CC] FaultTolerantWrite
[CC] Locate
[GENFW] PcdDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/CapsuleRuntimeDxe/CapsuleRuntimeDxe.inf [X64]
[CC] FaultTolerantWriteDxe
[CC] AutoGen
[CC] CapsuleService
[SLINK] FaultTolerantWriteDxe
[CC] Handle
[CC] SaveLongModeContext
[CC] AutoGen
[SLINK] CapsuleRuntimeDxe
[CC] Variable
[DLINK1] FaultTolerantWriteDxe
[CC] VariableDxe
[MTOC] FaultTolerantWriteDxe
[CC] Gcd
[GENFW] FaultTolerantWriteDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/MemoryTest/NullMemoryTestDxe/NullMemoryTestDxe.inf [X64]
[DLINK1] EmuVariableRuntimeDxe
[MTOC] EmuVariableRuntimeDxe
[GENFW] EmuVariableRuntimeDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/SecurityStubDxe/SecurityStubDxe.inf [X64]
[CC] Measurement
[CC] NullMemoryTest
[CC] SecurityStub
[CC] TcgMorLockDxe
[CC] AutoGen
[DLINK1] CapsuleRuntimeDxe
[SLINK] NullMemoryTestDxe
[MTOC] CapsuleRuntimeDxe
[CC] Pool
[CC] AutoGen
[GENFW] CapsuleRuntimeDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Console/ConPlatformDxe/ConPlatformDxe.inf [X64]
[SLINK] SecurityStubDxe
[CC] VarCheck
[CC] ComponentName
[CC] VariableExLib
[CC] ConPlatform
[CC] AutoGen
[SLINK] VariableRuntimeDxe
[CC] Page
[CC] AutoGen
[DLINK1] SecurityStubDxe
[MTOC] SecurityStubDxe
[SLINK] ConPlatformDxe
[DLINK1] NullMemoryTestDxe
[GENFW] SecurityStubDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Console/ConSplitterDxe/ConSplitterDxe.inf [X64]
[MTOC] NullMemoryTestDxe
[GENFW] NullMemoryTestDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/HiiDatabaseDxe/HiiDatabaseDxe.inf [X64]
[CC] MemData
[CC] ConSplitterGraphics
[CC] HiiDatabaseEntry
[CC] FwVolBlock
[CC] ComponentName
[CC] FwVolWrite
[CC] Image
[CC] FwVolRead
[DLINK1] ConPlatformDxe
[MTOC] ConPlatformDxe
[GENFW] ConPlatformDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/SetupBrowserDxe/SetupBrowserDxe.inf [X64]
[CC] FwVolAttrib
[CC] Ffs
[CC] ConSplitter
[CC] AutoGen
[CC] FwVol
[SLINK] ConSplitterDxe
[CC] Tpl
[CC] Timer
[CC] ConfigRouting
[CC] Event
[CC] Setup
[CC] Dependency
[CC] String
[DLINK1] VariableRuntimeDxe
[MTOC] VariableRuntimeDxe
[GENFW] VariableRuntimeDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/DisplayEngineDxe/DisplayEngineDxe.inf [X64]
[CC] Dispatcher
[CC] IfrParse
[CC] DxeProtocolNotify
[CC] Database
[CC] DxeMain
[CC] AutoGen
[SLINK] DxeCore
[DLINK1] ConSplitterDxe
[MTOC] ConSplitterDxe
[GENFW] ConSplitterDxe
Building ... /Users/Micky1979/src/edk2/Clover/GraphicsConsoleDxe/GraphicsConsoleDxe.inf [X64]
[CC] ComponentName
[CC] Font
[CC] Expression
[CC] LaffStd
[CC] FormDisplay
[CC] GraphicsConsole
[CC] Presentation
[CC] ConfigKeywordHandler
[CC] AutoGen
[SLINK] GraphicsConsoleDxe
[CC] ProcessOptions
[CC] AutoGen
[CC] AutoGen
[SLINK] SetupBrowser
[SLINK] HiiDatabase
[CC] InputHandler
[CC] AutoGen
[SLINK] DisplayEngine
[DLINK1] GraphicsConsoleDxe
[MTOC] GraphicsConsoleDxe
[GENFW] GraphicsConsoleDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/DevicePathDxe/DevicePathDxe.inf [X64]
[CC] DevicePath
[CC] AutoGen
[SLINK] DevicePathDxe
[DLINK1] DxeCore
[MTOC] DxeCore
[GENFW] DxeCore
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/SmbiosDxe/SmbiosDxe.inf [X64]
[DLINK1] DevicePathDxe
[MTOC] DevicePathDxe
[GENFW] DevicePathDxe
Building ... /Users/Micky1979/src/edk2/DuetPkg/SmbiosGenDxe/SmbiosGen.inf [X64]
[CC] SmbiosDxe
[CC] SmbiosGen
[CC] AutoGen
[SLINK] SmbiosDxe
[CC] AutoGen
[SLINK] SmbiosGenDxe
[DLINK1] DisplayEngine
[MTOC] DisplayEngine
[DLINK1] SmbiosDxe
[DLINK1] SmbiosGenDxe
[MTOC] SmbiosDxe
[MTOC] SmbiosGenDxe
[GENFW] DisplayEngine
Building ... /Users/Micky1979/src/edk2/Clover/OsxEfiLdr/EfiLdr.inf [X64]
[GENFW] SmbiosDxe
[GENFW] SmbiosGenDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/EbcDxe/EbcDxe.inf [X64]
Building ... /Users/Micky1979/src/edk2/Clover/UefiCpuPkg/CpuIo2Dxe/CpuIo2Dxe.inf [X64]
[CC] EfiLoader
[CC] CpuIo2Dxe
[CC] Debug
[CC] AutoGen
[SLINK] CpuIo2Dxe
[CC] PeLoader
[CC] EbcExecute
[CC] Support
[CC] EbcInt
[DLINK1] CpuIo2Dxe
[MTOC] CpuIo2Dxe
[CC] AutoGen
[DLINK1] SetupBrowser
[GENFW] CpuIo2Dxe
Building ... /Users/Micky1979/src/edk2/Clover/CpuDxe/Cpu.inf [X64]
[SLINK] EfiLoader
[MTOC] SetupBrowser
[GENFW] SetupBrowser
Building ... /Users/Micky1979/src/edk2/PcAtChipsetPkg/8259InterruptControllerDxe/8259.inf [X64]
[CC] EbcSupport
[CC] 8259
[CC] AutoGen
[SLINK] Legacy8259
[ASM] EbcLowLevel
[NASM] CpuInterrupt
[CC] AutoGen
[SLINK] EbcDxe
[DLINK1] Legacy8259
[MTOC] Legacy8259
[GENFW] Legacy8259
Building ... /Users/Micky1979/src/edk2/Clover/AcpiReset/Reset.inf [X64]
[CC] Cpu
[CC] AutoGen
[SLINK] Cpu
[CC] Reset
[CC] AutoGen
[SLINK] AcpiReset
[DLINK1] Cpu
[MTOC] Cpu
[DLINK1] EfiLoader
[MTOC] EfiLoader
[DLINK1] EbcDxe
[GENFW] Cpu
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Metronome/Metronome.inf [X64]
[MTOC] EbcDxe
[GENFW] EfiLoader
Building ... /Users/Micky1979/src/edk2/Clover/PcatRealTimeClockRuntimeDxe/PcatRealTimeClockRuntimeDxe.inf [X64]
[GENFW] EbcDxe
[DLINK1] AcpiReset
Building ... /Users/Micky1979/src/edk2/PcAtChipsetPkg/8254TimerDxe/8254Timer.inf [X64]
[MTOC] AcpiReset
[GENFW] AcpiReset
Building ... /Users/Micky1979/src/edk2/PcAtChipsetPkg/HpetTimerDxe/HpetTimerDxe.inf [X64]
[CC] Metronome
[CC] PcRtcEntry
[CC] Timer
[CC] AutoGen
[SLINK] Metronome
[CC] AutoGen
[SLINK] Timer
[CC] HpetTimer
[DLINK1] HiiDatabase
[MTOC] HiiDatabase
[CC] AutoGen
[SLINK] HpetTimerDxe
[GENFW] HiiDatabase
Building ... /Users/Micky1979/src/edk2/Clover/PciRootBridgeDxe/PciRootBridge.inf [X64]
[CC] PcRtc
[CC] AutoGen
[DLINK1] Timer
[SLINK] PcRtc
[MTOC] Timer
[GENFW] Timer
Building ... /Users/Micky1979/src/edk2/Clover/OsxPciBusNoEnumerationDxe/PciBusNoEnumeration.inf [X64]
[CC] PcatPciRootBridge
[DLINK1] Metronome
[MTOC] Metronome
[CC] PciPowerManagement
[GENFW] Metronome
[CC] PcatPciRootBridgeDevicePath
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Bus/Pci/NvmExpressDxe/NvmExpressDxe.inf [X64]
[DLINK1] HpetTimerDxe
[MTOC] HpetTimerDxe
[GENFW] HpetTimerDxe
Building ... /Users/Micky1979/src/edk2/IntelFrameworkModulePkg/Universal/DataHubDxe/DataHubDxe.inf [X64]
[CC] PciRomTable
[CC] PcatPciRootBridgeIo
[CC] PciDriverOverride
[CC] NvmExpressBlockIo
[CC] DataHub
[CC] DeviceIo
[CC] ComponentName
[CC] AutoGen
[SLINK] DataHubDxe
[CC] PciOptionRomSupport
[CC] PcatIo
[CC] AutoGen
[CC] PciEnumerator
[SLINK] PcatPciRootBridge
[DLINK1] PcRtc
[MTOC] PcRtc
[CC] NvmExpress
[GENFW] PcRtc
Building ... /Users/Micky1979/src/edk2/Clover/DriverOverride/DriverOverride.inf [X64]
[CC] NvmExpressDiskInfo
[CC] PciEnumeratorSupport
[CC] DriverOverride
[CC] AutoGen
[CC] NvmExpressHci
[SLINK] DriverOverride
[CC] PciCommand
[DLINK1] DataHubDxe
[MTOC] DataHubDxe
[GENFW] DataHubDxe
Building ... /Users/Micky1979/src/edk2/Clover/VBoxFsDxe/VBoxHfs.inf [X64]
[CC] ComponentName
[CC] NvmExpressPassthru
[CC] AutoGen
[CC] PciDeviceSupport
[SLINK] NvmExpressDxe
[DLINK1] DriverOverride
[MTOC] DriverOverride
[CC] PciBus
[GENFW] DriverOverride
Building ... /Users/Micky1979/src/edk2/Clover/VBoxFsDxe/VBoxIso9660.inf [X64]
[CC] fsw_hfs
[CC] PciIo
[CC] fsw_iso9660
[CC] fsw_core
[CC] AutoGen
[SLINK] PciBusNoEnumerationDxe
[CC] fsw_efi_lib
[DLINK1] PcatPciRootBridge
[MTOC] PcatPciRootBridge
[CC] fsw_core
[GENFW] PcatPciRootBridge
Building ... /Users/Micky1979/src/edk2/Clover/VBoxFsDxe/VBoxExt2.inf [X64]
[CC] fsw_efi
[CC] fsw_efi_lib
[CC] fsw_ext2
[CC] fsw_efi
[CC] fsw_lib
[CC] fsw_core
[CC] AutoGen
[SLINK] VBoxHfs
[CC] fsw_efi_lib
[CC] fsw_lib
[CC] AutoGen
[SLINK] VBoxIso9600
[CC] fsw_efi
[CC] fsw_lib
[CC] AutoGen
[SLINK] VBoxExt2
[DLINK1] NvmExpressDxe
[MTOC] NvmExpressDxe
[GENFW] NvmExpressDxe
Building ... /Users/Micky1979/src/edk2/Clover/VBoxFsDxe/VBoxExt4.inf [X64]
[DLINK1] PciBusNoEnumerationDxe
[MTOC] PciBusNoEnumerationDxe
[GENFW] PciBusNoEnumerationDxe
Building ... /Users/Micky1979/src/edk2/Clover/VBoxFsDxe/VBoxReiserFS.inf [X64]
[CC] fsw_ext4
[CC] fsw_reiserfs
[CC] fsw_core
[CC] fsw_core
[CC] fsw_efi_lib
[CC] fsw_efi_lib
[DLINK1] VBoxIso9600
[MTOC] VBoxIso9600
[CC] fsw_efi
[GENFW] VBoxIso9600
Building ... /Users/Micky1979/src/edk2/Clover/FatPkg/EnhancedFatDxe/Fat.inf [X64]
[CC] fsw_efi
[CC] DirectoryCache
[DLINK1] VBoxHfs
[MTOC] VBoxHfs
[CC] DiskCache
[CC] fsw_lib
[GENFW] VBoxHfs
Building ... /Users/Micky1979/src/edk2/Clover/GrubFS/src/EXFAT.inf [X64]
[CC] AutoGen
[SLINK] VBoxExt4
[CC] FileName
[CC] fsw_lib
[CC] Hash
[CC] driver
[CC] AutoGen
[SLINK] VBoxReiserFS
[DLINK1] VBoxExt2
[MTOC] VBoxExt2
[GENFW] VBoxExt2
Building ... /Users/Micky1979/src/edk2/Clover/GrubFS/src/HFSPLUS.inf [X64]
[CC] file
[CC] DirectoryManage
[CC] grub_driver
[CC] driver
[CC] ComponentName
[CC] grub_file
[CC] ReadWrite
[CC] file
[CC] OpenVolume
[CC] grub_driver
[CC] grub
[CC] Open
[CC] logging
[CC] grub_file
[CC] missing
[CC] Misc
[CC] grub
[CC] path
[CC] Init
[CC] logging
[CC] utf8
[CC] Info
[CC] missing
[CC] device
[CC] FileSpace
[CC] path
[CC] err
[CC] Flush
[CC] utf8
[CC] Fat
[CC] Delete
[DLINK1] VBoxExt4
[MTOC] VBoxExt4
[CC] misc
[GENFW] VBoxExt4
[CC] Data
Building ... /Users/Micky1979/src/edk2/Clover/GrubFS/src/ISO9660.inf [X64]
[CC] list
[CC] UnicodeCollation
[DLINK1] VBoxReiserFS
[MTOC] VBoxReiserFS
[GENFW] VBoxReiserFS
Building ... /Users/Micky1979/src/edk2/Clover/GrubFS/src/NTFS.inf [X64]
[CC] AutoGen
[CC] driver
[SLINK] Fat
[CC] fshelp
[CC] driver
[CC] file
[CC] grub_driver
[CC] file
[CC] exfat
[CC] grub_driver
[CC] grub_file
[CC] AutoGen
[SLINK] GrubEXFAT
[CC] grub
[CC] grub_file
[CC] logging
[CC] gzio
[CC] grub
[CC] missing
[CC] logging
[CC] device
[CC] path
[CC] missing
[CC] err
[CC] path
[CC] utf8
[CC] utf8
[CC] device
[CC] misc
[CC] err
[CC] device
[CC] list
[CC] err
[CC] fshelp
[CC] misc
[CC] list
[CC] hfspluscomp
[CC] misc
[CC] list
[CC] fshelp
[CC] fshelp
[DLINK1] Fat
[MTOC] Fat
[CC] hfsplus
[GENFW] Fat
Building ... /Users/Micky1979/src/edk2/Clover/GrubFS/src/UDF.inf [X64]
[CC] AutoGen
[SLINK] GrubHFSPLUS
[CC] ntfscomp
[CC] driver
[CC] iso9660
[CC] AutoGen
[SLINK] GrubISO9660
[CC] file
[CC] grub_driver
[CC] ntfs
[CC] AutoGen
[CC] grub_file
[SLINK] GrubNTFS
[DLINK1] GrubEXFAT
[CC] grub
[MTOC] GrubEXFAT
[GENFW] GrubEXFAT
Building ... /Users/Micky1979/src/edk2/IntelFrameworkModulePkg/Bus/Pci/VgaMiniPortDxe/VgaMiniPortDxe.inf [X64]
[CC] logging
[CC] ComponentName
[CC] missing
[CC] path
[CC] VgaMiniPort
[CC] AutoGen
[SLINK] VgaMiniPort
[CC] utf8
[CC] device
[CC] err
[DLINK1] VgaMiniPort
[MTOC] VgaMiniPort
[GENFW] VgaMiniPort
Building ... /Users/Micky1979/src/edk2/Clover/BiosVideo/BiosVideo.inf [X64]
[CC] misc
[CC] list
[CC] fshelp
[CC] BiosVideoNew
[CC] udf
[CC] ComponentName
[CC] AutoGen
[SLINK] GrubUDF
[CC] LegacyBiosThunk
[CC] AutoGen
[SLINK] BiosVideo
[DLINK1] GrubISO9660
[MTOC] GrubISO9660
[GENFW] GrubISO9660
Building ... /Users/Micky1979/src/edk2/Clover/LegacyBios/VideoDxe/VideoDxe.inf [X64]
[DLINK1] GrubHFSPLUS
[MTOC] GrubHFSPLUS
[GENFW] GrubHFSPLUS
Building ... /Users/Micky1979/src/edk2/Clover/SataControllerDxe/SataControllerDxe.inf [X64]
[DLINK1] GrubNTFS
[MTOC] GrubNTFS
[CC] ComponentName
[GENFW] GrubNTFS
Building ... /Users/Micky1979/src/edk2/Clover/AtaAtapi/AtaAtapiPassThru.inf [X64]
[CC] SataController
[CC] AutoGen
[CC] BiosVideo
[SLINK] SataController
[CC] AtaAtapiPassThru
[CC] ComponentName
[CC] AutoGen
[SLINK] CsmVideoDxe
[CC] AhciMode
[DLINK1] SataController
[MTOC] SataController
[GENFW] SataController
Building ... /Users/Micky1979/src/edk2/Clover/AtaBus/AtaBusDxe.inf [X64]
[CC] IdeMode
[DLINK1] BiosVideo
[MTOC] BiosVideo
[CC] AtaBus
[GENFW] BiosVideo
Building ... /Users/Micky1979/src/edk2/Clover/DVDBus/ScsiBusDxe.inf [X64]
[CC] ComponentName
[CC] ComponentName
[CC] AutoGen
[CC] AtaPassThruExecute
[SLINK] AtaAtapiPassThruDxe
[CC] ComponentName
[CC] ScsiBus
[CC] AutoGen
[SLINK] AtaBusDxe
[CC] AutoGen
[SLINK] ScsiBus
[DLINK1] GrubUDF
[MTOC] GrubUDF
[GENFW] GrubUDF
Building ... /Users/Micky1979/src/edk2/Clover/DVDDisk/ScsiDiskDxe.inf [X64]
[CC] ComponentName
[DLINK1] ScsiBus
[MTOC] ScsiBus
[CC] ScsiDisk
[GENFW] ScsiBus
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Bus/Pci/UhciDxe/UhciDxe.inf [X64]
[DLINK1] CsmVideoDxe
[MTOC] CsmVideoDxe
[CC] AutoGen
[GENFW] CsmVideoDxe
Building ... /Users/Micky1979/src/edk2/Clover/OhciDxe/OhciDxe.inf [X64]
[SLINK] ScsiDisk
[DLINK1] AtaBusDxe
[MTOC] AtaBusDxe
[CC] UhciSched
[GENFW] AtaBusDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Bus/Pci/EhciDxe/EhciDxe.inf [X64]
[CC] UhciDebug
[CC] EhciUrb
[CC] UhciQueue
[CC] Ohci
[CC] UhciReg
[CC] UsbHcMem
[CC] OhciSched
[CC] UsbHcMem
[CC] OhciReg
[CC] EhciSched
[CC] EhciDebug
[CC] Uhci
[CC] OhciUrb
[DLINK1] AtaAtapiPassThruDxe
[MTOC] AtaAtapiPassThruDxe
[CC] ComponentName
[GENFW] AtaAtapiPassThruDxe
[CC] EhciReg
Building ... /Users/Micky1979/src/edk2/Clover/Patches_for_EDK2/XhciDxe/XhciDxe.inf [X64]
[CC] OhciDebug
[CC] AutoGen
[SLINK] UhciDxe
[CC] ComponentName
[CC] ComponentName
[CC] UsbHcMem
[CC] Ehci
[CC] AutoGen
[CC] Xhci
[CC] AutoGen
[SLINK] OhciDxe
[SLINK] EhciDxe
[DLINK1] ScsiDisk
[MTOC] ScsiDisk
[GENFW] ScsiDisk
Building ... /Users/Micky1979/src/edk2/Clover/Patches_for_EDK2/UsbBusDxe/UsbBusDxe.inf [X64]
[CC] XhciReg
[CC] UsbDesc
[CC] UsbEnumer
[CC] UsbBus
[DLINK1] UhciDxe
[MTOC] UhciDxe
[GENFW] UhciDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Bus/Usb/UsbKbDxe/UsbKbDxe.inf [X64]
[CC] XhciSched
[CC] UsbHub
[CC] ComponentName
[CC] EfiKey
[CC] UsbHcMem
[CC] ComponentName
[CC] UsbUtility
[DLINK1] EhciDxe
[MTOC] EhciDxe
[CC] AutoGen
[CC] AutoGen
[GENFW] EhciDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Bus/Usb/UsbMassStorageDxe/UsbMassStorageDxe.inf [X64]
[SLINK] XhciDxe
[SLINK] UsbBusDxe
[CC] KeyBoard
[CC] UsbMassBot
[CC] ComponentName
[CC] ComponentName
[CC] AutoGen
[DLINK1] OhciDxe
[SLINK] UsbKbDxe
[MTOC] OhciDxe
[GENFW] OhciDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Bus/Usb/UsbMouseDxe/UsbMouseDxe.inf [X64]
[CC] UsbMassImpl
[CC] ComponentName
[CC] UsbMassBoot
[CC] MouseHid
[CC] UsbMassCbi
[CC] UsbMouse
[CC] UsbMassDiskInfo
[CC] AutoGen
[CC] AutoGen
[SLINK] UsbMouseDxe
[SLINK] UsbMassStorageDxe
[DLINK1] UsbKbDxe
[MTOC] UsbKbDxe
[GENFW] UsbKbDxe
Building ... /Users/Micky1979/src/edk2/PcAtChipsetPkg/IsaAcpiDxe/IsaAcpi.inf [X64]
[DLINK1] UsbBusDxe
[MTOC] UsbBusDxe
[GENFW] UsbBusDxe
Building ... /Users/Micky1979/src/edk2/IntelFrameworkModulePkg/Bus/Isa/IsaBusDxe/IsaBusDxe.inf [X64]
[CC] PcatIsaAcpi
[DLINK1] UsbMouseDxe
[MTOC] UsbMouseDxe
[CC] ComponentName
[GENFW] UsbMouseDxe
Building ... /Users/Micky1979/src/edk2/IntelFrameworkModulePkg/Bus/Isa/Ps2KeyboardDxe/Ps2keyboardDxe.inf [X64]
[CC] IsaAcpi
[CC] ComponentName
[CC] ComponentName
[CC] IsaIo
[CC] AutoGen
[SLINK] IsaAcpi
[CC] IsaBus
[CC] AutoGen
[CC] Ps2KbdCtrller
[SLINK] IsaBusDxe
[CC] Ps2KbdTextIn
[DLINK1] UsbMassStorageDxe
[MTOC] UsbMassStorageDxe
[GENFW] UsbMassStorageDxe
Building ... /Users/Micky1979/src/edk2/IntelFrameworkModulePkg/Bus/Isa/Ps2MouseAbsolutePointerDxe/Ps2MouseAbsolutePointerDxe.inf [X64]
[CC] Ps2Keyboard
[CC] ComponentName
[CC] AutoGen
[SLINK] Ps2KeyboardDxe
[DLINK1] IsaAcpi
[MTOC] IsaAcpi
[GENFW] IsaAcpi
Building ... /Users/Micky1979/src/edk2/Clover/Ps2MouseDxe/Ps2MouseDxe.inf [X64]
[CC] CommPs2
[DLINK1] IsaBusDxe
[MTOC] IsaBusDxe
[CC] ComponentName
[CC] Ps2MouseAbsolutePointer
[GENFW] IsaBusDxe
Building ... /Users/Micky1979/src/edk2/Clover/OsxAcpiTableDxe/AcpiTableDxe.inf [X64]
[CC] AutoGen
[SLINK] Ps2MouseAbsolutePointerDxe
[CC] CommPs2
[CC] Ps2Mouse
[CC] AutoGen
[DLINK1] XhciDxe
[MTOC] XhciDxe
[SLINK] Ps2MouseDxe
[CC] AcpiTableProtocol
[GENFW] XhciDxe
Building ... /Users/Micky1979/src/edk2/Clover/OsxAcpiPlatformDxe/AcpiPlatformDxe.inf [X64]
[CC] AcpiTable
[CC] AutoGen
[CC] AcpiPlatform
[SLINK] AcpiTableDxe
[DLINK1] Ps2KeyboardDxe
[MTOC] Ps2KeyboardDxe
[CC] AutoGen
[SLINK] AcpiPlatform
[GENFW] Ps2KeyboardDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Disk/DiskIoDxe/DiskIoDxe.inf [X64]
[DLINK1] Ps2MouseAbsolutePointerDxe
[MTOC] Ps2MouseAbsolutePointerDxe
[CC] ComponentName
[GENFW] Ps2MouseAbsolutePointerDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Disk/UnicodeCollation/EnglishDxe/EnglishDxe.inf [X64]
[CC] UnicodeCollationEng
[CC] DiskIo
[DLINK1] Ps2MouseDxe
[MTOC] Ps2MouseDxe
[CC] AutoGen
[CC] AutoGen
[SLINK] EnglishDxe
[GENFW] Ps2MouseDxe
Building ... /Users/Micky1979/src/edk2/Clover/PartitionDxe/PartitionDxe.inf [X64]
[SLINK] DiskIoDxe
[CC] ComponentName
[DLINK1] AcpiPlatform
[DLINK1] EnglishDxe
[MTOC] AcpiPlatform
[MTOC] EnglishDxe
[CC] Mbr
[GENFW] AcpiPlatform
Building ... /Users/Micky1979/src/edk2/Clover/BiosKeyboard/KeyboardDxe.inf [X64]
[GENFW] EnglishDxe
Building ... /Users/Micky1979/src/edk2/Clover/LegacyBios/Region2Dxe/LegacyRegion2Dxe.inf [X64]
[CC] Gpt
[CC] ComponentName
[DLINK1] AcpiTableDxe
[MTOC] AcpiTableDxe
[CC] ElTorito
[CC] LegacyRegion2
[GENFW] AcpiTableDxe
Building ... /Users/Micky1979/src/edk2/Clover/FSInject/FSInject.inf [X64]
[CC] AutoGen
[CC] Apple
[SLINK] LegacyRegion2Dxe
[DLINK1] DiskIoDxe
[MTOC] DiskIoDxe
[CC] Partition
[GENFW] DiskIoDxe
Building ... /Users/Micky1979/src/edk2/Clover/MsgLog/MsgLog.inf [X64]
[CC] BiosKeyboard
[CC] FSInject
[CC] AutoGen
[SLINK] PartitionDxe
[CC] MsgLog
[CC] LegacyBiosThunk
[CC] Test
[CC] AutoGen
[SLINK] MsgLog
[CC] AutoGen
[CC] AutoGen
[SLINK] KeyboardDxe
[SLINK] FSInject
[DLINK1] MsgLog
[MTOC] MsgLog
[GENFW] MsgLog
Building ... /Users/Micky1979/src/edk2/Clover/DumpUefiCalls/DumpUefiCalls.inf [X64]
[DLINK1] LegacyRegion2Dxe
[MTOC] LegacyRegion2Dxe
[GENFW] LegacyRegion2Dxe
Building ... /Users/Micky1979/src/edk2/Clover/OsxFatBinaryDrv/OsxFatBinaryDrv.inf [X64]
[CC] DumpUefiCalls
[CC] OsxFatBinaryDrv
[DLINK1] KeyboardDxe
[CC] AutoGen
[MTOC] KeyboardDxe
[CC] Lib
[SLINK] OsxFatBinaryDrv
[GENFW] KeyboardDxe
Building ... /Users/Micky1979/src/edk2/Clover/EmuVariableUefi/EmuVariableRuntimeDxe.inf [X64]
[CC] BootServices
[CC] InitVariable
[CC] RuntimeServices
[DLINK1] FSInject
[MTOC] FSInject
[GENFW] FSInject
Building ... /Users/Micky1979/src/edk2/Clover/AppleImageCodec/AppleImageCodec.inf [X64]
[CC] Log
[DLINK1] OsxFatBinaryDrv
[MTOC] OsxFatBinaryDrv
[CC] EmuVariable
[GENFW] OsxFatBinaryDrv
Building ... /Users/Micky1979/src/edk2/Clover/bdmesg_efi/bdmesg.inf [X64]
[CC] AppleImageCodec
[CC] MemLog
[CC] AutoGen
[SLINK] EmuVariableUefi
[CC] bdmesg
[DLINK1] PartitionDxe
[MTOC] PartitionDxe
[CC] FileLib
[CC] AutoGen
[SLINK] bdmesg
[GENFW] PartitionDxe
Building ... /Users/Micky1979/src/edk2/Clover/rEFIt_UEFI/refit.inf [X64]
[CC] DataHub
[CC] Fs
[CC] AutoGen
[SLINK] DumpUefiCalls
[CC] BdsConnect
[CC] picopng
[CC] AutoGen
[SLINK] AppleImageCodec
[DLINK1] EmuVariableUefi
[MTOC] EmuVariableUefi
[GENFW] EmuVariableUefi
Building ... /Users/Micky1979/src/edk2/Clover/OsxAptioFixDrv/OsxAptioFixDrv.inf [X64]
[DLINK1] bdmesg
[MTOC] bdmesg
[GENFW] bdmesg
Building ... /Users/Micky1979/src/edk2/Clover/OsxAptioFixDrv/OsxAptioFix2Drv.inf [X64]
[CC] main
[CC] OsxAptioFixDrv
[CC] OsxAptioFix2Drv
[CC] BootFixes
[CC] BootFixes
[CC] DecodedKernelCheck
[CC] icns
[DLINK1] DumpUefiCalls
[CC] BootArgs
[CC] DecodedKernelCheck
[MTOC] DumpUefiCalls
[GENFW] DumpUefiCalls
Building ... /Users/Micky1979/src/edk2/Clover/OsxLowMemFixDrv/OsxLowMemFixDrv.inf [X64]
[CC] BootArgs
[CC] VMem
[CC] OsxLowMemFixDrv
[CC] VMem
[CC] Lib
[CC] Lib
[CC] Lib
[CC] AutoGen
[CC] device_tree
[SLINK] OsxLowMemFixDrv
[CC] NVRAMDebug
[CC] device_tree
[CC] Mach-O
[CC] NVRAMDebug
[CC] Mach-O
[CC] lib
[DLINK1] OsxLowMemFixDrv
[MTOC] OsxLowMemFixDrv
[GENFW] OsxLowMemFixDrv
Building ... /Users/Micky1979/src/edk2/Clover/OsxBdsDxe/BdsDxe.inf [X64]
[NASM] AsmFuncsX64
[CC] AutoGen
[SLINK] OsxAptioFixDrv
[NASM] AsmFuncsX64
[CC] HwErrRecSupport
[CC] AutoGen
[DLINK1] AppleImageCodec
[VFR] BdsDxe
[SLINK] OsxAptioFix2Drv
[MTOC] AppleImageCodec
[GENFW] AppleImageCodec
[CC] DeviceManagerVfr
[VFR] BdsDxe
[CC] DriverHealthVfr
[CC] DeviceManager
[VFR] BdsDxe
[DLINK1] OsxAptioFix2Drv
[CC] BootManagerVfr
[MTOC] OsxAptioFix2Drv
[DLINK1] OsxAptioFixDrv
[MTOC] OsxAptioFixDrv
[GENFW] OsxAptioFix2Drv
[GENFW] OsxAptioFixDrv
[CC] BootManager
[CC] menu
[VFR] BdsDxe
[CC] FE
[CC] FileExplorer
[CC] screen
[CC] BootMaint
[CC] BBSsupport
[CC] IO
[CC] UpdatePage
[CC] common
[CC] Variable
[CC] legacy
[CC] Data
[CC] BootOption
[CC] BmLib
[VFR] BdsDxe
[CC] loader
[CC] Bm
[CC] tool
[CC] secureboot
[CC] Hotkey
[CC] securehash
[CC] securemenu
[CC] MemoryTest
[CC] securevars
[CC] Capsules
[CC] bootscreen
[CC] String
[CC] Language
[VFR] BdsDxe
[CC] lockedgraphics
[CC] FrontPageVfr
[CC] BmLib
[CC] FrontPage
[CC] BdsEntry
[CC] image
[CC] AutoGen
[SLINK] BdsDxe
[CC] load_bmp
[CC] load_icns
[CC] libscreen
[CC] lodepng
[DLINK1] BdsDxe
[MTOC] BdsDxe
[GENFW] BdsDxe
[CC] text
[CC] AcpiPatcher
[CC] AmlGenerator
[CC] ati
[CC] BootLog
[CC] BootOptions
[CC] Console
[CC] cpu
[CC] DataHubCpu
[CC] device_inject
[CC] device_tree
[CC] Edid
[CC] Events
[CC] gma
[CC] guid
[CC] Injectors
[CC] LegacyBiosThunk
[CC] LegacyBoot
[CC] nvidia
[CC] picopng
[CC] platformdata
[CC] plist
[CC] Pointer
[CC] Settings
[CC] smbios
[CC] spd
[CC] string
[CC] StateGenerator
[CC] usbfix
[CC] b64cdecode
[CC] FixBiosDsdt
[CC] kernel_patcher
[CC] kext_patcher
[CC] kext_inject
[CC] Nvram
[CC] card_vlist
[CC] PlatformDriverOverride
[CC] Hibernate
[CC] Net
[CC] AutoGen
[SLINK] CLOVERX64
[DLINK1] CLOVERX64
[MTOC] CLOVERX64
[GENFW] CLOVERX64

Generating DUETEFIMAINFVX64 FV
########################################
########################################
########################################
####################
GUID cross reference file can be found at /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/FV/Guid.xref

FV Space Information
DUETEFIMAINFVX64 [35%Full] 2752512 total, 986072 used, 1766440 free

- Done -
Build end time: 16:13:51, Aug.12 2016
Build total time: 00:01:35

Compressing DUETEFIMainFv.FV ...
Encoding
Compressing DxeCore.efi ...
Encoding
Compressing DxeIpl.efi ...
Encoding
Generate Loader Image ...
Created /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/FV/Efildr64
879+0 records in
879+0 records out
450048 bytes transferred in 0.003689 secs (121995613 bytes/sec)
Copy CloverEFI:
  -> boot6
  -> BOOTX64.efi
  -> CLOVERX64.efi
Copy Mandatory drivers:
  -> FSInject-64.efi
  -> FSInject-64.efi
  -> OsxFatBinaryDrv-64.efi
  -> VBoxHfs-64.efi
Copy Optional drivers:
  -> NvmExpressDxe-64.efi
  -> Ps2MouseDxe-64.efi
  -> UsbMouseDxe-64.efi
  -> VBoxExt2-64.efi
  -> VBoxExt4-64.efi
  -> VBoxIso9600-64.efi
  -> XhciDxe-64.efi
  -> GrubEXFAT-64.efi
  -> GrubISO9660-64.efi
  -> GrubNTFS-64.efi
  -> GrubUDF-64.efi
  -> CsmVideoDxe-64.efi
  -> DataHubDxe-64.efi
  -> EmuVariableUefi-64.efi
  -> OsxAptioFix2Drv-64.efi
  -> OsxAptioFixDrv-64.efi
  -> OsxLowMemFixDrv-64.efi
  -> PartitionDxe-64.efi
Copy Applications:
  -> bdmesg.efi
Done!

Generating BootSectors
make: Nothing to be done for `all'.
Done!
===============================================================================
boot7
                          <----------------------------------------------------
TOOLCHAIN_DIR: /Users/Micky1979/src/opt/local
Initializing workspace
Loading previous configuration from /Users/Micky1979/src/edk2/Conf/BuildEnv.sh
WORKSPACE: /Users/Micky1979/src/edk2
EDK_TOOLS_PATH: /Users/Micky1979/src/edk2/BaseTools
CONF_PATH: /Users/Micky1979/src/edk2/Conf

Running edk2 build for CloverX64 using the command:
build  -D USE_BIOS_BLOCKIO -D DISABLE_USB_SUPPORT -D USE_LOW_EBDA -p Clover/Clover.dsc  -a X64 -b RELEASE -t XCODE5 -n 5

Build environment: Darwin-15.6.0-x86_64-i386-64bit
Build start time: 16:13:53, Aug.12 2016

WORKSPACE        = /Users/Micky1979/src/edk2
ECP_SOURCE       = /Users/Micky1979/src/edk2/EdkCompatibilityPkg
EDK_SOURCE       = /Users/Micky1979/src/edk2/EdkCompatibilityPkg
EFI_SOURCE       = /Users/Micky1979/src/edk2/EdkCompatibilityPkg
EDK_TOOLS_PATH   = /Users/Micky1979/src/edk2/BaseTools


Architecture(s)  = X64
Build target     = RELEASE
Toolchain        = XCODE5

Active Platform          = /Users/Micky1979/src/edk2/Clover/Clover.dsc
Flash Image Definition   = /Users/Micky1979/src/edk2/Clover/Clover.fdf

Processing meta-data .......... done!
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePcdLibNull/BasePcdLibNull.inf [X64]
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseDebugLibNull/BaseDebugLibNull.inf [X64]
[CC] PcdLib
[SLINK] BasePcdLibNull
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseMemoryLib/BaseMemoryLib.inf [X64]
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseLib/BaseLib.inf [X64]
[CC] DebugLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePrintLib/BasePrintLib.inf [X64]
[SLINK] BaseDebugLibNull
[CC] SetMem
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseReportStatusCodeLibNull/BaseReportStatusCodeLibNull.inf [X64]
[CC] ScanMem64Wrapper
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseIoLibIntrinsic/BaseIoLibIntrinsic.inf [X64]
[CC] ScanMem32Wrapper
[CC] ScanMem16Wrapper
[CC] ScanMem8Wrapper
[CC] IoLibMmioBuffer
[CC] ZeroMemWrapper
[CC] BaseReportStatusCodeLib
[SLINK] BaseReportStatusCodeLibNull
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/DxeCoreMemoryAllocationLib/DxeCoreMemoryAllocationLib.inf [X64]
[CC] CompareMemWrapper
[CC] SetMem64Wrapper
[CC] SetMem32Wrapper
[CC] IoHighLevel
[CC] SetMem16Wrapper
[CC] IoLibGcc
[CC] SetMemWrapper
[CC] IoLib
[CC] CopyMemWrapper
[SLINK] BaseIoLibIntrinsic
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxeCoreEntryPoint/DxeCoreEntryPoint.inf [X64]
[CC] MemoryAllocationLib
[CC] MemLibGeneric
[CC] DxeCoreMemoryProfileLibNull
[SLINK] DxeCoreMemoryAllocationLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiRuntimeServicesTableLib/UefiRuntimeServicesTableLib.inf [X64]
[CC] MemLibGuid
[CC] DxeCoreEntryPoint
[SLINK] DxeCoreEntryPoint
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiDevicePathLib/UefiDevicePathLib.inf [X64]
[CC] CopyMem
[SLINK] BaseMemoryLib
[CC] PrintLibInternal
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiBootServicesTableLib/UefiBootServicesTableLib.inf [X64]
[CC] CheckSum
[CC] SwitchStack
[CC] SwapBytes64
[CC] SwapBytes32
[CC] SwapBytes16
[CC] LongJump
[CC] SetJump
[CC] RShiftU64
[CC] RRotU64
[CC] RRotU32
[CC] MultU64x64
[CC] MultU64x32
[CC] MultS64x64
[CC] ModU64x32
[CC] LShiftU64
[CC] LRotU64
[CC] LRotU32
[CC] UefiRuntimeServicesTableLib
[CC] PrintLib
[SLINK] UefiRuntimeServicesTableLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePeCoffExtraActionLibNull/BasePeCoffExtraActionLibNull.inf [X64]
[SLINK] BasePrintLib
[CC] LowBitSet64
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxeCoreHobLib/DxeCoreHobLib.inf [X64]
[CC] PeCoffExtraActionLib
[CC] UefiBootServicesTableLib
[CC] LowBitSet32
[SLINK] PeCoffExtraActionLibNull
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiLib/UefiLib.inf [X64]
[SLINK] UefiBootServicesTableLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseCacheMaintenanceLib/BaseCacheMaintenanceLib.inf [X64]
[CC] HighBitSet64
[CC] HighBitSet32
[CC] X86Cache
[CC] GetPowerOfTwo64
[SLINK] BaseCacheMaintenanceLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseUefiDecompressLib/BaseUefiDecompressLib.inf [X64]
[CC] HobLib
[SLINK] DxeCoreHobLib
[CC] GetPowerOfTwo32
[CC] DevicePathUtilities
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePerformanceLibNull/BasePerformanceLibNull.inf [X64]
[CC] DivU64x64Remainder
[CC] PerformanceLib
[CC] DivU64x32Remainder
[SLINK] BasePerformanceLibNull
Building ... /Users/Micky1979/src/edk2/Clover/Library/VBoxPeCoffLib/VBoxPeCoffLib.inf [X64]
[CC] UefiLibPrint
[CC] DivU64x32
[CC] DivS64x64Remainder
[CC] ARShiftU64
[CC] UefiNotTiano
[CC] BaseUefiDecompressLib
[SLINK] BaseUefiDecompressLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePeCoffGetEntryPointLib/BasePeCoffGetEntryPointLib.inf [X64]
[CC] BitField
[CC] CpuDeadLoop
[CC] PeCoffGetEntryPoint
[CC] UefiDriverModel
[SLINK] BasePeCoffGetEntryPointLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxeExtractGuidedSectionLib/DxeExtractGuidedSectionLib.inf [X64]
[CC] Cpu
[CC] BasePeCoff
[CC] LinkedList
[CC] PeCoffLoaderEx
[SLINK] VBoxPeCoffLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/DuetTimerLib/DuetTimerLib.inf [X64]
[CC] DevicePathToText
[CC] DxeExtractGuidedSectionLib
[CC] Console
[SLINK] DxeExtractGuidedSectionLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxeServicesLib/DxeServicesLib.inf [X64]
[CC] X86TimerLib
[SLINK] DuetTimerLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/DebugAgentLibNull/DebugAgentLibNull.inf [X64]
[CC] SafeString
[CC] DebugAgentLibNull
[CC] DxeServicesLib
[SLINK] DebugAgentLibNull
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/CpuExceptionHandlerLibNull/CpuExceptionHandlerLibNull.inf [X64]
[SLINK] DxeServicesLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiMemoryAllocationLib/UefiMemoryAllocationLib.inf [X64]
[CC] UefiLib
[SLINK] UefiLib
[CC] CpuExceptionHandlerLibNull
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxeHobLib/DxeHobLib.inf [X64]
[SLINK] CpuExceptionHandlerLibNull
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiDriverEntryPoint/UefiDriverEntryPoint.inf [X64]
[CC] String
[CC] MemoryAllocationLib
[SLINK] UefiMemoryAllocationLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiRuntimeLib/UefiRuntimeLib.inf [X64]
[CC] DriverEntryPoint
[CC] FilePaths
[SLINK] UefiDriverEntryPoint
[CC] HobLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/VarCheckLib/VarCheckLib.inf [X64]
[SLINK] DxeHobLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseSynchronizationLib/BaseSynchronizationLib.inf [X64]
[CC] InternalGetSpinLockProperties
[CC] GccInline
[CC] RuntimeLib
[SLINK] UefiRuntimeLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxeServicesTableLib/DxeServicesTableLib.inf [X64]
[CC] VarCheckLib
[CC] SynchronizationGcc
[SLINK] VarCheckLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/TpmMeasurementLibNull/TpmMeasurementLibNull.inf [X64]
[SLINK] BaseSynchronizationLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/AuthVariableLibNull/AuthVariableLibNull.inf [X64]
[CC] DxeServicesTableLib
[SLINK] DxeServicesTableLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/VarCheckUefiLib/VarCheckUefiLib.inf [X64]
[NASM] Thunk16
[CC] TpmMeasurementLibNull
[CC] Non-existing
[SLINK] TpmMeasurementLibNull
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/DxeCapsuleLibNull/DxeCapsuleLibNull.inf [X64]
[CC] AuthVariableLibNull
[SLINK] AuthVariableLibNull
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/DxeSecurityManagementLib/DxeSecurityManagementLib.inf [X64]
[CC] Math64
[CC] Unaligned
[CC] DxeCapsuleLibNull
[SLINK] DxeCapsuleLibNull
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxePcdLib/DxePcdLib.inf [X64]
[CC] X86WriteIdtr
[CC] DxeSecurityManagementLib
[CC] X86WriteGdtr
[SLINK] DxeSecurityManagementLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/UefiHiiServicesLib/UefiHiiServicesLib.inf [X64]
[CC] VarCheckUefiLibNullClass
[SLINK] VarCheckUefiLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/UefiHiiLib/UefiHiiLib.inf [X64]
[CC] X86Thunk
[CC] X86ReadIdtr
[CC] UefiHiiServicesLib
[CC] X86ReadGdtr
[SLINK] UefiHiiServicesLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/CustomizedDisplayLib/CustomizedDisplayLib.inf [X64]
[CC] DevicePathFromText
[CC] X86Msr
[CC] X86GetInterruptState
[CC] DxePcdLib
[CC] UefiDevicePathLib
[SLINK] DxePcdLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/LzmaCustomDecompressLib/LzmaCustomDecompressLib.inf [X64]
[SLINK] UefiDevicePathLib
[CC] X86FxSave
Building ... /Users/Micky1979/src/edk2/Clover/Library/GenericBdsLib/GenericBdsLib.inf [X64]
[CC] X86FxRestore
[CC] X86EnablePaging64
[CC] LzmaDecompress
[CC] X86EnablePaging32
[CC] X86DisablePaging64
[CC] CustomizedDisplayLib
[CC] DevicePath
[CC] X86DisablePaging32
[CC] GccInline
[CC] Performance
[CC] CustomizedDisplayLibInternal
[CC] AutoGen
[SLINK] CustomizedDisplayLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/OsxBdsPlatformLib/PlatformBds.inf [X64]
[ASM] SwitchStack
[CC] LzFind
[CC] HiiLib
[CC] HiiString
[CC] BdsConnect
[ASM] SetJump
[CC] HiiLanguage
[SLINK] UefiHiiLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePciCf8Lib/BasePciCf8Lib.inf [X64]
[CC] BdsPlatform
[CC] PciCf8Lib
[SLINK] BasePciCf8Lib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePciLibCf8/BasePciLibCf8.inf [X64]
[CC] PlatformData
[SLINK] DuetBds
[ASM] LongJump
Building ... /Users/Micky1979/src/edk2/UefiCpuPkg/Library/BaseXApicLib/BaseXApicLib.inf [X64]
[CC] PciLib
[SLINK] BasePciLibCf8
Building ... /Users/Micky1979/src/edk2/PcAtChipsetPkg/Library/BaseIoApicLib/BaseIoApicLib.inf [X64]
[CC] BaseXApicLib
[SLINK] BaseXApicLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/MemLogLibDefault/MemLogLibDefault.inf [X64]
[CC] IoApicLib
[SLINK] BaseIoApicLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/VideoBiosPatchLib/VideoBiosPatchLib.inf [X64]
[ASM] EnableDisableInterrupts
[CC] MemLogLib
[CC] LzmaDec
[SLINK] MemLogLibDefault
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiUsbLib/UefiUsbLib.inf [X64]
[CC] VideoBiosPatchLib
[CC] BdsMisc
[CC] GuidedSectionExtraction
[SLINK] LzmaDecompressLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/UefiSortLib/UefiSortLib.inf [X64]
[CC] Hid
[CC] UefiSortLib
[SLINK] UefiSortLib
[ASM] DisablePaging64
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiFileHandleLib/UefiFileHandleLib.inf [X64]
[CC] UsbDxeLib
[SLINK] UefiUsbLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiApplicationEntryPoint/UefiApplicationEntryPoint.inf [X64]
[CC] 915resolution
[CC] ApplicationEntryPoint
[SLINK] UefiApplicationEntryPoint
Building ... /Users/Micky1979/src/edk2/ShellPkg/Library/UefiShellLib/UefiShellLib.inf [X64]
[CC] UefiFileHandleLib
[ASM] CpuId
[SLINK] UefiFileHandleLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiMemoryLib/UefiMemoryLib.inf [X64]
[CC] edid
[SLINK] VideoBiosPatchLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/OpensslLib/OpensslLibNull.inf [X64]
[CC] ScanMem64Wrapper
[CC] OpensslLibNull
warning: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning for library: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/X64/Clover/Library/OpensslLib/OpensslLibNull/OUTPUT/OpensslLib.lib the table of contents is empty (no object file members in the library define global symbols)
[SLINK] OpensslLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/DxeNetLib/DxeNetLib.inf [X64]
[CC] ScanMem32Wrapper
[CC] BdsConsole
[ASM] CpuIdEx
[CC] ScanMem16Wrapper
[CC] ScanMem8Wrapper
[CC] ZeroMemWrapper
[ASM] EnableCache
[CC] CompareMemWrapper
[CC] SetMem64Wrapper
[CC] UefiShellLib
[SLINK] UefiShellLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseCpuLib/BaseCpuLib.inf [X64]
[CC] DxeNetLib
[ASM] DisableCache
[CC] SetMem32Wrapper
[CC] SetMem16Wrapper
[CC] SetMemWrapper
[ASM] RdRand
[ASM] CpuSleep
[CC] CopyMemWrapper
[CC] ChkStkGcc
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (LongJump.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/X64/MdePkg/Library/BaseLib/BaseLib/OUTPUT/X64/LongJump.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/X64/MdePkg/Library/BaseLib/BaseLib/OUTPUT/LongJump.obj (due to use of basename, truncation, blank padding or duplicate input files)
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (SetJump.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/X64/MdePkg/Library/BaseLib/BaseLib/OUTPUT/SetJump.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/X64/MdePkg/Library/BaseLib/BaseLib/OUTPUT/X64/SetJump.obj (due to use of basename, truncation, blank padding or duplicate input files)
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (SwitchStack.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/X64/MdePkg/Library/BaseLib/BaseLib/OUTPUT/SwitchStack.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/X64/MdePkg/Library/BaseLib/BaseLib/OUTPUT/X64/SwitchStack.obj (due to use of basename, truncation, blank padding or duplicate input files)
[SLINK] BaseLib
Building ... /Users/Micky1979/src/edk2/Clover/OsxDxeIpl/DxeIpl.inf [X64]
[CC] MemLibGeneric
[CC] MemLibGuid
[CC] NetBuffer
[ASM] CpuFlushTlb
[SLINK] DxeNetLib
Building ... /Users/Micky1979/src/edk2/Clover/OsxDxeCore/DxeMain.inf [X64]
[SLINK] BaseCpuLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/PCD/Dxe/Pcd.inf [X64]
[CC] MemLib
[CC] DxeInit
[SLINK] UefiMemoryLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/WatchdogTimerDxe/WatchdogTimer.inf [X64]
[CC] WatchdogTimer
[CC] Pcd
[CC] AutoGen
[CC] CoreSectionExtraction
[SLINK] WatchdogTimer
[CC] LegacyTable
[CC] HobGeneration
[DLINK1] WatchdogTimer
[MTOC] WatchdogTimer
[GENFW] WatchdogTimer
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Core/RuntimeDxe/RuntimeDxe.inf [X64]
[CC] Service
[CC] Debug
[CC] Image
[CC] AutoGen
[CC] EnterDxeCore
[SLINK] PcdDxe
[CC] Crc32
[CC] BdsBoot
[CC] DebugImageInfo
[CC] String
[CC] Runtime
[CC] Paging
[CC] AutoGen
[SLINK] GenericBdsLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/MonotonicCounterRuntimeDxe/MonotonicCounterRuntimeDxe.inf [X64]
[CC] Stall
[CC] AutoGen
[SLINK] RuntimeDxe
[CC] AutoGen
[SLINK] DxeIpl
[CC] MonotonicCounter
[CC] SetWatchdogTimer
[CC] AutoGen
[SLINK] MonotonicCounterRuntimeDxe
[CC] InstallConfigurationTable
[DLINK1] DxeIpl
[MTOC] DxeIpl
[GENFW] DxeIpl
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Variable/EmuRuntimeDxe/EmuVariableRuntimeDxe.inf [X64]
[CC] Library
[DLINK1] MonotonicCounterRuntimeDxe
[MTOC] MonotonicCounterRuntimeDxe
[CC] InitVariable
[GENFW] MonotonicCounterRuntimeDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/FaultTolerantWriteDxe/FaultTolerantWriteDxe.inf [X64]
[DLINK1] RuntimeDxe
[MTOC] RuntimeDxe
[GENFW] RuntimeDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Variable/RuntimeDxe/VariableRuntimeDxe.inf [X64]
[CC] DriverSupport
[CC] Reclaim
[CC] EmuVariable
[CC] FtwMisc
[CC] AutoGen
[CC] Notify
[SLINK] EmuVariableRuntimeDxe
[CC] UpdateWorkingBlock
[DLINK1] PcdDxe
[CC] Locate
[MTOC] PcdDxe
[CC] FaultTolerantWrite
[GENFW] PcdDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/CapsuleRuntimeDxe/CapsuleRuntimeDxe.inf [X64]
[CC] FaultTolerantWriteDxe
[CC] CapsuleService
[CC] AutoGen
[SLINK] FaultTolerantWriteDxe
[CC] Handle
[CC] SaveLongModeContext
[CC] AutoGen
[SLINK] CapsuleRuntimeDxe
[CC] Variable
[CC] Gcd
[DLINK1] FaultTolerantWriteDxe
[MTOC] FaultTolerantWriteDxe
[CC] VariableDxe
[DLINK1] EmuVariableRuntimeDxe
[GENFW] FaultTolerantWriteDxe
[MTOC] EmuVariableRuntimeDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/MemoryTest/NullMemoryTestDxe/NullMemoryTestDxe.inf [X64]
[GENFW] EmuVariableRuntimeDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/SecurityStubDxe/SecurityStubDxe.inf [X64]
[CC] Measurement
[CC] NullMemoryTest
[CC] SecurityStub
[CC] Pool
[CC] TcgMorLockDxe
[CC] AutoGen
[SLINK] NullMemoryTestDxe
[CC] AutoGen
[SLINK] SecurityStubDxe
[DLINK1] CapsuleRuntimeDxe
[MTOC] CapsuleRuntimeDxe
[CC] VarCheck
[GENFW] CapsuleRuntimeDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Console/ConPlatformDxe/ConPlatformDxe.inf [X64]
[CC] VariableExLib
[CC] ComponentName
[CC] AutoGen
[SLINK] VariableRuntimeDxe
[CC] Page
[CC] ConPlatform
[DLINK1] NullMemoryTestDxe
[MTOC] NullMemoryTestDxe
[DLINK1] SecurityStubDxe
[MTOC] SecurityStubDxe
[GENFW] NullMemoryTestDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Console/ConSplitterDxe/ConSplitterDxe.inf [X64]
[CC] AutoGen
[GENFW] SecurityStubDxe
[CC] MemData
[SLINK] ConPlatformDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/HiiDatabaseDxe/HiiDatabaseDxe.inf [X64]
[CC] HiiDatabaseEntry
[CC] ConSplitterGraphics
[CC] FwVolBlock
[CC] ComponentName
[CC] FwVolWrite
[CC] FwVolRead
[CC] Image
[DLINK1] ConPlatformDxe
[MTOC] ConPlatformDxe
[GENFW] ConPlatformDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/SetupBrowserDxe/SetupBrowserDxe.inf [X64]
[CC] FwVolAttrib
[CC] Ffs
[CC] ConSplitter
[CC] AutoGen
[CC] FwVol
[SLINK] ConSplitterDxe
[CC] Tpl
[CC] Timer
[CC] ConfigRouting
[CC] Event
[CC] Setup
[CC] Dependency
[CC] String
[DLINK1] VariableRuntimeDxe
[MTOC] VariableRuntimeDxe
[GENFW] VariableRuntimeDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/DisplayEngineDxe/DisplayEngineDxe.inf [X64]
[CC] Dispatcher
[CC] IfrParse
[CC] DxeProtocolNotify
[CC] Database
[CC] DxeMain
[CC] AutoGen
[SLINK] DxeCore
[DLINK1] ConSplitterDxe
[MTOC] ConSplitterDxe
[GENFW] ConSplitterDxe
Building ... /Users/Micky1979/src/edk2/Clover/GraphicsConsoleDxe/GraphicsConsoleDxe.inf [X64]
[CC] Font
[CC] ComponentName
[CC] Expression
[CC] LaffStd
[CC] FormDisplay
[CC] GraphicsConsole
[CC] ProcessOptions
[CC] Presentation
[CC] ConfigKeywordHandler
[CC] AutoGen
[SLINK] GraphicsConsoleDxe
[CC] AutoGen
[CC] AutoGen
[SLINK] SetupBrowser
[SLINK] HiiDatabase
[CC] InputHandler
[CC] AutoGen
[SLINK] DisplayEngine
[DLINK1] GraphicsConsoleDxe
[MTOC] GraphicsConsoleDxe
[GENFW] GraphicsConsoleDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/DevicePathDxe/DevicePathDxe.inf [X64]
[CC] DevicePath
[CC] AutoGen
[SLINK] DevicePathDxe
[DLINK1] DxeCore
[MTOC] DxeCore
[DLINK1] DevicePathDxe
[GENFW] DxeCore
[MTOC] DevicePathDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/SmbiosDxe/SmbiosDxe.inf [X64]
[GENFW] DevicePathDxe
Building ... /Users/Micky1979/src/edk2/DuetPkg/SmbiosGenDxe/SmbiosGen.inf [X64]
[CC] SmbiosGen
[CC] SmbiosDxe
[CC] AutoGen
[CC] AutoGen
[SLINK] SmbiosGenDxe
[SLINK] SmbiosDxe
[DLINK1] SmbiosGenDxe
[MTOC] SmbiosGenDxe
[DLINK1] DisplayEngine
[DLINK1] SmbiosDxe
[GENFW] SmbiosGenDxe
Building ... /Users/Micky1979/src/edk2/Clover/OsxEfiLdr/EfiLdr.inf [X64]
[MTOC] DisplayEngine
[MTOC] SmbiosDxe
[GENFW] DisplayEngine
[GENFW] SmbiosDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/EbcDxe/EbcDxe.inf [X64]
Building ... /Users/Micky1979/src/edk2/Clover/UefiCpuPkg/CpuIo2Dxe/CpuIo2Dxe.inf [X64]
[CC] EfiLoader
[CC] Debug
[CC] CpuIo2Dxe
[CC] AutoGen
[SLINK] CpuIo2Dxe
[CC] PeLoader
[CC] EbcExecute
[CC] Support
[DLINK1] SetupBrowser
[MTOC] SetupBrowser
[GENFW] SetupBrowser
Building ... /Users/Micky1979/src/edk2/Clover/CpuDxe/Cpu.inf [X64]
[CC] EbcInt
[CC] AutoGen
[SLINK] EfiLoader
[DLINK1] CpuIo2Dxe
[MTOC] CpuIo2Dxe
[CC] EbcSupport
[GENFW] CpuIo2Dxe
Building ... /Users/Micky1979/src/edk2/PcAtChipsetPkg/8259InterruptControllerDxe/8259.inf [X64]
[CC] 8259
[CC] AutoGen
[ASM] EbcLowLevel
[SLINK] Legacy8259
[NASM] CpuInterrupt
[CC] AutoGen
[SLINK] EbcDxe
[DLINK1] Legacy8259
[CC] Cpu
[MTOC] Legacy8259
[GENFW] Legacy8259
Building ... /Users/Micky1979/src/edk2/Clover/AcpiReset/Reset.inf [X64]
[CC] AutoGen
[SLINK] Cpu
[CC] Reset
[CC] AutoGen
[SLINK] AcpiReset
[DLINK1] EbcDxe
[DLINK1] Cpu
[DLINK1] EfiLoader
[MTOC] EbcDxe
[MTOC] Cpu
[MTOC] EfiLoader
[GENFW] EbcDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Metronome/Metronome.inf [X64]
[GENFW] Cpu
[GENFW] EfiLoader
Building ... /Users/Micky1979/src/edk2/Clover/PcatRealTimeClockRuntimeDxe/PcatRealTimeClockRuntimeDxe.inf [X64]
Building ... /Users/Micky1979/src/edk2/PcAtChipsetPkg/8254TimerDxe/8254Timer.inf [X64]
[DLINK1] AcpiReset
[MTOC] AcpiReset
[CC] Metronome
[GENFW] AcpiReset
Building ... /Users/Micky1979/src/edk2/PcAtChipsetPkg/HpetTimerDxe/HpetTimerDxe.inf [X64]
[CC] PcRtcEntry
[CC] Timer
[CC] AutoGen
[SLINK] Metronome
[DLINK1] HiiDatabase
[MTOC] HiiDatabase
[CC] AutoGen
[SLINK] Timer
[GENFW] HiiDatabase
Building ... /Users/Micky1979/src/edk2/Clover/PciRootBridgeDxe/PciRootBridge.inf [X64]
[CC] HpetTimer
[CC] PcRtc
[CC] AutoGen
[SLINK] HpetTimerDxe
[CC] AutoGen
[DLINK1] Timer
[SLINK] PcRtc
[MTOC] Timer
[GENFW] Timer
Building ... /Users/Micky1979/src/edk2/Clover/OsxPciBusNoEnumerationDxe/PciBusNoEnumeration.inf [X64]
[CC] PcatPciRootBridge
[DLINK1] Metronome
[MTOC] Metronome
[CC] PcatPciRootBridgeDevicePath
[GENFW] Metronome
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Bus/Pci/NvmExpressDxe/NvmExpressDxe.inf [X64]
[CC] PciPowerManagement
[CC] PcatPciRootBridgeIo
[CC] PciRomTable
[CC] NvmExpressBlockIo
[DLINK1] HpetTimerDxe
[MTOC] HpetTimerDxe
[CC] PciDriverOverride
[GENFW] HpetTimerDxe
Building ... /Users/Micky1979/src/edk2/IntelFrameworkModulePkg/Universal/DataHubDxe/DataHubDxe.inf [X64]
[CC] DeviceIo
[CC] ComponentName
[CC] PcatIo
[CC] PciOptionRomSupport
[CC] DataHub
[CC] AutoGen
[CC] NvmExpress
[CC] AutoGen
[SLINK] PcatPciRootBridge
[SLINK] DataHubDxe
[CC] PciEnumerator
[CC] NvmExpressDiskInfo
[DLINK1] PcRtc
[MTOC] PcRtc
[GENFW] PcRtc
Building ... /Users/Micky1979/src/edk2/Clover/DriverOverride/DriverOverride.inf [X64]
[CC] PciEnumeratorSupport
[CC] NvmExpressHci
[CC] DriverOverride
[CC] PciCommand
[CC] NvmExpressPassthru
[CC] AutoGen
[SLINK] DriverOverride
[CC] ComponentName
[CC] AutoGen
[DLINK1] DataHubDxe
[SLINK] NvmExpressDxe
[MTOC] DataHubDxe
[GENFW] DataHubDxe
Building ... /Users/Micky1979/src/edk2/Clover/VBoxFsDxe/VBoxHfs.inf [X64]
[CC] PciDeviceSupport
[CC] PciBus
[DLINK1] DriverOverride
[MTOC] DriverOverride
[GENFW] DriverOverride
Building ... /Users/Micky1979/src/edk2/Clover/VBoxFsDxe/VBoxIso9660.inf [X64]
[CC] fsw_hfs
[CC] PciIo
[CC] AutoGen
[SLINK] PciBusNoEnumerationDxe
[CC] fsw_iso9660
[DLINK1] PcatPciRootBridge
[MTOC] PcatPciRootBridge
[GENFW] PcatPciRootBridge
[CC] fsw_core
Building ... /Users/Micky1979/src/edk2/Clover/VBoxFsDxe/VBoxExt2.inf [X64]
[CC] fsw_efi_lib
[CC] fsw_core
[CC] fsw_ext2
[CC] fsw_efi_lib
[CC] fsw_efi
[CC] fsw_core
[CC] fsw_efi
[CC] fsw_efi_lib
[CC] fsw_lib
[CC] AutoGen
[SLINK] VBoxHfs
[CC] fsw_efi
[CC] fsw_lib
[CC] AutoGen
[SLINK] VBoxIso9600
[CC] fsw_lib
[CC] AutoGen
[SLINK] VBoxExt2
[DLINK1] NvmExpressDxe
[MTOC] NvmExpressDxe
[GENFW] NvmExpressDxe
Building ... /Users/Micky1979/src/edk2/Clover/VBoxFsDxe/VBoxExt4.inf [X64]
[DLINK1] PciBusNoEnumerationDxe
[MTOC] PciBusNoEnumerationDxe
[CC] fsw_ext4
[GENFW] PciBusNoEnumerationDxe
Building ... /Users/Micky1979/src/edk2/Clover/VBoxFsDxe/VBoxReiserFS.inf [X64]
[CC] fsw_core
[CC] fsw_reiserfs
[CC] fsw_efi_lib
[CC] fsw_core
[CC] fsw_efi
[CC] fsw_efi_lib
[DLINK1] VBoxIso9600
[MTOC] VBoxIso9600
[GENFW] VBoxIso9600
Building ... /Users/Micky1979/src/edk2/Clover/FatPkg/EnhancedFatDxe/Fat.inf [X64]
[CC] fsw_lib
[CC] fsw_efi
[CC] AutoGen
[CC] DirectoryCache
[DLINK1] VBoxExt2
[SLINK] VBoxExt4
[MTOC] VBoxExt2
[GENFW] VBoxExt2
Building ... /Users/Micky1979/src/edk2/Clover/GrubFS/src/EXFAT.inf [X64]
[DLINK1] VBoxHfs
[MTOC] VBoxHfs
[CC] DiskCache
[GENFW] VBoxHfs
Building ... /Users/Micky1979/src/edk2/Clover/GrubFS/src/HFSPLUS.inf [X64]
[CC] driver
[CC] FileName
[CC] driver
[CC] fsw_lib
[CC] Hash
[CC] AutoGen
[CC] file
[SLINK] VBoxReiserFS
[CC] file
[CC] grub_driver
[CC] grub_driver
[CC] DirectoryManage
[CC] grub_file
[CC] ComponentName
[CC] grub_file
[CC] grub
[CC] ReadWrite
[CC] OpenVolume
[CC] logging
[CC] grub
[CC] missing
[CC] Open
[CC] logging
[CC] path
[CC] missing
[CC] Misc
[CC] path
[CC] utf8
[CC] Init
[CC] utf8
[CC] Info
[CC] device
[CC] err
[DLINK1] VBoxExt4
[CC] FileSpace
[MTOC] VBoxExt4
[GENFW] VBoxExt4
Building ... /Users/Micky1979/src/edk2/Clover/GrubFS/src/ISO9660.inf [X64]
[CC] Flush
[CC] misc
[CC] driver
[CC] Fat
[CC] list
[CC] Delete
[CC] Data
[CC] file
[DLINK1] VBoxReiserFS
[MTOC] VBoxReiserFS
[CC] fshelp
[CC] UnicodeCollation
[GENFW] VBoxReiserFS
Building ... /Users/Micky1979/src/edk2/Clover/GrubFS/src/NTFS.inf [X64]
[CC] grub_driver
[CC] AutoGen
[SLINK] Fat
[CC] grub_file
[CC] driver
[CC] grub
[CC] file
[CC] exfat
[CC] logging
[CC] AutoGen
[CC] grub_driver
[SLINK] GrubEXFAT
[CC] gzio
[CC] missing
[CC] path
[CC] grub_file
[CC] device
[CC] err
[CC] utf8
[CC] grub
[CC] logging
[CC] device
[CC] err
[CC] missing
[CC] misc
[CC] path
[CC] list
[CC] utf8
[CC] fshelp
[CC] misc
[CC] list
[CC] device
[CC] hfspluscomp
[CC] err
[CC] fshelp
[CC] misc
[CC] hfsplus
[CC] list
[CC] AutoGen
[CC] iso9660
[SLINK] GrubHFSPLUS
[CC] AutoGen
[CC] fshelp
[SLINK] GrubISO9660
[DLINK1] Fat
[MTOC] Fat
[GENFW] Fat
Building ... /Users/Micky1979/src/edk2/Clover/GrubFS/src/UDF.inf [X64]
[CC] ntfscomp
[CC] driver
[CC] file
[CC] ntfs
[CC] grub_driver
[CC] AutoGen
[SLINK] GrubNTFS
[DLINK1] GrubEXFAT
[MTOC] GrubEXFAT
[GENFW] GrubEXFAT
Building ... /Users/Micky1979/src/edk2/IntelFrameworkModulePkg/Bus/Pci/VgaMiniPortDxe/VgaMiniPortDxe.inf [X64]
[CC] grub_file
[CC] ComponentName
[CC] grub
[CC] VgaMiniPort
[CC] logging
[CC] AutoGen
[CC] missing
[SLINK] VgaMiniPort
[CC] path
[CC] utf8
[DLINK1] VgaMiniPort
[MTOC] VgaMiniPort
[CC] device
[GENFW] VgaMiniPort
Building ... /Users/Micky1979/src/edk2/Clover/BiosVideo/BiosVideo.inf [X64]
[CC] err
[CC] misc
[CC] list
[CC] fshelp
[CC] BiosVideoNew
[CC] ComponentName
[DLINK1] GrubISO9660
[MTOC] GrubISO9660
[GENFW] GrubISO9660
Building ... /Users/Micky1979/src/edk2/Clover/LegacyBios/VideoDxe/VideoDxe.inf [X64]
[CC] LegacyBiosThunk
[CC] udf
[CC] AutoGen
[CC] AutoGen
[SLINK] BiosVideo
[SLINK] GrubUDF
[DLINK1] GrubHFSPLUS
[MTOC] GrubHFSPLUS
[GENFW] GrubHFSPLUS
Building ... /Users/Micky1979/src/edk2/Clover/LegacyBios/BlockIoDxe/BlockIoDxe.inf [X64]
[CC] BiosVideo
[DLINK1] GrubNTFS
[MTOC] GrubNTFS
[CC] BiosBlkIo
[GENFW] GrubNTFS
[CC] ComponentName
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Bus/Pci/UhciDxe/UhciDxe.inf [X64]
[CC] AutoGen
[SLINK] CsmVideoDxe
[CC] UhciSched
[CC] UhciDebug
[CC] BiosInt13
[CC] UhciQueue
[CC] ComponentName
[CC] UhciReg
[CC] LegacyBiosThunk
[CC] AutoGen
[SLINK] BiosBlockIoDxe
[CC] UsbHcMem
[DLINK1] BiosVideo
[MTOC] BiosVideo
[GENFW] BiosVideo
Building ... /Users/Micky1979/src/edk2/Clover/OhciDxe/OhciDxe.inf [X64]
[CC] Uhci
[CC] ComponentName
[CC] AutoGen
[SLINK] UhciDxe
[CC] Ohci
[CC] OhciSched
[DLINK1] GrubUDF
[MTOC] GrubUDF
[GENFW] GrubUDF
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Bus/Pci/EhciDxe/EhciDxe.inf [X64]
[DLINK1] CsmVideoDxe
[CC] OhciReg
[MTOC] CsmVideoDxe
[GENFW] CsmVideoDxe
Building ... /Users/Micky1979/src/edk2/Clover/Patches_for_EDK2/XhciDxe/XhciDxe.inf [X64]
[CC] EhciUrb
[CC] OhciUrb
[CC] UsbHcMem
[CC] OhciDebug
[CC] Xhci
[CC] ComponentName
[CC] EhciSched
[DLINK1] UhciDxe
[MTOC] UhciDxe
[CC] XhciReg
[CC] UsbHcMem
[CC] EhciDebug
[GENFW] UhciDxe
Building ... /Users/Micky1979/src/edk2/Clover/Patches_for_EDK2/UsbBusDxe/UsbBusDxe.inf [X64]
[CC] AutoGen
[SLINK] OhciDxe
[CC] EhciReg
[DLINK1] BiosBlockIoDxe
[MTOC] BiosBlockIoDxe
[CC] ComponentName
[CC] UsbDesc
[GENFW] BiosBlockIoDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Bus/Usb/UsbKbDxe/UsbKbDxe.inf [X64]
[CC] UsbEnumer
[CC] EfiKey
[CC] Ehci
[CC] AutoGen
[SLINK] EhciDxe
[CC] UsbBus
[CC] KeyBoard
[CC] UsbHub
[CC] ComponentName
[CC] XhciSched
[CC] ComponentName
[CC] AutoGen
[SLINK] UsbKbDxe
[CC] UsbHcMem
[CC] UsbUtility
[CC] AutoGen
[CC] ComponentName
[SLINK] UsbBusDxe
[CC] AutoGen
[SLINK] XhciDxe
[DLINK1] OhciDxe
[MTOC] OhciDxe
[GENFW] OhciDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Bus/Usb/UsbMassStorageDxe/UsbMassStorageDxe.inf [X64]
[DLINK1] EhciDxe
[MTOC] EhciDxe
[DLINK1] UsbKbDxe
[GENFW] EhciDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Bus/Usb/UsbMouseDxe/UsbMouseDxe.inf [X64]
[MTOC] UsbKbDxe
[GENFW] UsbKbDxe
Building ... /Users/Micky1979/src/edk2/PcAtChipsetPkg/IsaAcpiDxe/IsaAcpi.inf [X64]
[CC] UsbMassBot
[CC] ComponentName
[CC] ComponentName
[CC] PcatIsaAcpi
[CC] MouseHid
[CC] UsbMassImpl
[CC] IsaAcpi
[CC] UsbMouse
[CC] ComponentName
[CC] UsbMassBoot
[CC] AutoGen
[SLINK] UsbMouseDxe
[CC] AutoGen
[SLINK] IsaAcpi
[CC] UsbMassCbi
[DLINK1] UsbBusDxe
[MTOC] UsbBusDxe
[CC] UsbMassDiskInfo
[GENFW] UsbBusDxe
Building ... /Users/Micky1979/src/edk2/IntelFrameworkModulePkg/Bus/Isa/IsaBusDxe/IsaBusDxe.inf [X64]
[CC] AutoGen
[SLINK] UsbMassStorageDxe
[CC] ComponentName
[CC] IsaIo
[DLINK1] IsaAcpi
[MTOC] IsaAcpi
[DLINK1] UsbMouseDxe
[MTOC] UsbMouseDxe
[GENFW] IsaAcpi
Building ... /Users/Micky1979/src/edk2/IntelFrameworkModulePkg/Bus/Isa/Ps2KeyboardDxe/Ps2keyboardDxe.inf [X64]
[CC] IsaBus
[GENFW] UsbMouseDxe
Building ... /Users/Micky1979/src/edk2/IntelFrameworkModulePkg/Bus/Isa/Ps2MouseAbsolutePointerDxe/Ps2MouseAbsolutePointerDxe.inf [X64]
[CC] AutoGen
[SLINK] IsaBusDxe
[CC] ComponentName
[CC] ComponentName
[CC] CommPs2
[CC] Ps2KbdCtrller
[CC] Ps2MouseAbsolutePointer
[CC] Ps2KbdTextIn
[CC] AutoGen
[SLINK] Ps2MouseAbsolutePointerDxe
[CC] Ps2Keyboard
[DLINK1] IsaBusDxe
[MTOC] IsaBusDxe
[DLINK1] UsbMassStorageDxe
[MTOC] UsbMassStorageDxe
[GENFW] IsaBusDxe
Building ... /Users/Micky1979/src/edk2/Clover/Ps2MouseDxe/Ps2MouseDxe.inf [X64]
[GENFW] UsbMassStorageDxe
[CC] AutoGen
Building ... /Users/Micky1979/src/edk2/Clover/OsxAcpiTableDxe/AcpiTableDxe.inf [X64]
[SLINK] Ps2KeyboardDxe
[CC] ComponentName
[CC] CommPs2
[DLINK1] XhciDxe
[MTOC] XhciDxe
[CC] AcpiTableProtocol
[GENFW] XhciDxe
Building ... /Users/Micky1979/src/edk2/Clover/OsxAcpiPlatformDxe/AcpiPlatformDxe.inf [X64]
[CC] Ps2Mouse
[CC] AcpiTable
[DLINK1] Ps2MouseAbsolutePointerDxe
[MTOC] Ps2MouseAbsolutePointerDxe
[CC] AutoGen
[SLINK] Ps2MouseDxe
[GENFW] Ps2MouseAbsolutePointerDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Disk/DiskIoDxe/DiskIoDxe.inf [X64]
[CC] AutoGen
[CC] AcpiPlatform
[SLINK] AcpiTableDxe
[CC] ComponentName
[CC] AutoGen
[SLINK] AcpiPlatform
[CC] DiskIo
[CC] AutoGen
[SLINK] DiskIoDxe
[DLINK1] Ps2KeyboardDxe
[MTOC] Ps2KeyboardDxe
[GENFW] Ps2KeyboardDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Disk/UnicodeCollation/EnglishDxe/EnglishDxe.inf [X64]
[DLINK1] Ps2MouseDxe
[MTOC] Ps2MouseDxe
[CC] UnicodeCollationEng
[GENFW] Ps2MouseDxe
Building ... /Users/Micky1979/src/edk2/Clover/PartitionDxe/PartitionDxe.inf [X64]
[CC] AutoGen
[DLINK1] AcpiPlatform
[SLINK] EnglishDxe
[MTOC] AcpiPlatform
[GENFW] AcpiPlatform
Building ... /Users/Micky1979/src/edk2/Clover/BiosKeyboard/KeyboardDxe.inf [X64]
[CC] ComponentName
[CC] ComponentName
[CC] Mbr
[DLINK1] AcpiTableDxe
[MTOC] AcpiTableDxe
[GENFW] AcpiTableDxe
Building ... /Users/Micky1979/src/edk2/Clover/LegacyBios/Region2Dxe/LegacyRegion2Dxe.inf [X64]
[DLINK1] EnglishDxe
[MTOC] EnglishDxe
[DLINK1] DiskIoDxe
[MTOC] DiskIoDxe
[GENFW] EnglishDxe
Building ... /Users/Micky1979/src/edk2/Clover/FSInject/FSInject.inf [X64]
[CC] Gpt
[GENFW] DiskIoDxe
Building ... /Users/Micky1979/src/edk2/Clover/MsgLog/MsgLog.inf [X64]
[CC] ElTorito
[CC] MsgLog
[CC] LegacyRegion2
[CC] AutoGen
[CC] Apple
[SLINK] MsgLog
[CC] AutoGen
[SLINK] LegacyRegion2Dxe
[CC] BiosKeyboard
[CC] FSInject
[CC] LegacyBiosThunk
[CC] Partition
[CC] AutoGen
[CC] Test
[SLINK] KeyboardDxe
[CC] AutoGen
[SLINK] PartitionDxe
[CC] AutoGen
[DLINK1] MsgLog
[MTOC] MsgLog
[SLINK] FSInject
[GENFW] MsgLog
Building ... /Users/Micky1979/src/edk2/Clover/DumpUefiCalls/DumpUefiCalls.inf [X64]
[CC] DumpUefiCalls
[CC] Lib
[DLINK1] LegacyRegion2Dxe
[MTOC] LegacyRegion2Dxe
[GENFW] LegacyRegion2Dxe
Building ... /Users/Micky1979/src/edk2/Clover/OsxFatBinaryDrv/OsxFatBinaryDrv.inf [X64]
[CC] BootServices
[DLINK1] KeyboardDxe
[CC] OsxFatBinaryDrv
[MTOC] KeyboardDxe
[CC] RuntimeServices
[GENFW] KeyboardDxe
Building ... /Users/Micky1979/src/edk2/Clover/EmuVariableUefi/EmuVariableRuntimeDxe.inf [X64]
[CC] AutoGen
[SLINK] OsxFatBinaryDrv
[CC] Log
[CC] MemLog
[CC] InitVariable
[CC] FileLib
[DLINK1] FSInject
[MTOC] FSInject
[CC] DataHub
[CC] EmuVariable
[GENFW] FSInject
Building ... /Users/Micky1979/src/edk2/Clover/AppleImageCodec/AppleImageCodec.inf [X64]
[DLINK1] OsxFatBinaryDrv
[MTOC] OsxFatBinaryDrv
[CC] AutoGen
[SLINK] EmuVariableUefi
[GENFW] OsxFatBinaryDrv
Building ... /Users/Micky1979/src/edk2/Clover/bdmesg_efi/bdmesg.inf [X64]
[CC] Fs
[CC] AppleImageCodec
[CC] AutoGen
[CC] bdmesg
[SLINK] DumpUefiCalls
[DLINK1] PartitionDxe
[MTOC] PartitionDxe
[CC] AutoGen
[SLINK] bdmesg
[GENFW] PartitionDxe
Building ... /Users/Micky1979/src/edk2/Clover/OsxBdsDxe/BdsDxe.inf [X64]
[CC] HwErrRecSupport
[VFR] BdsDxe
[CC] DeviceManagerVfr
[VFR] BdsDxe
[CC] DriverHealthVfr
[CC] picopng
[CC] DeviceManager
[CC] AutoGen
[SLINK] AppleImageCodec
[VFR] BdsDxe
[DLINK1] EmuVariableUefi
[MTOC] EmuVariableUefi
[GENFW] EmuVariableUefi
Building ... /Users/Micky1979/src/edk2/Clover/rEFIt_UEFI/refit.inf [X64]
[CC] BootManagerVfr
[DLINK1] bdmesg
[MTOC] bdmesg
[GENFW] bdmesg
Building ... /Users/Micky1979/src/edk2/Clover/OsxAptioFixDrv/OsxAptioFixDrv.inf [X64]
[DLINK1] DumpUefiCalls
[CC] BootManager
[MTOC] DumpUefiCalls
[VFR] BdsDxe
[GENFW] DumpUefiCalls
Building ... /Users/Micky1979/src/edk2/Clover/OsxAptioFixDrv/OsxAptioFix2Drv.inf [X64]
[CC] OsxAptioFixDrv
[CC] FE
[CC] OsxAptioFix2Drv
[CC] BootFixes
[CC] FileExplorer
[CC] DecodedKernelCheck
[CC] BootFixes
[CC] BdsConnect
[CC] BootArgs
[CC] DecodedKernelCheck
[CC] BootMaint
[CC] BootArgs
[CC] VMem
[CC] VMem
[CC] Lib
[CC] BBSsupport
[CC] Lib
[CC] device_tree
[CC] NVRAMDebug
[CC] device_tree
[CC] Mach-O
[CC] UpdatePage
[CC] NVRAMDebug
[CC] Mach-O
[CC] main
[CC] Variable
[NASM] AsmFuncsX64
[CC] AutoGen
[DLINK1] AppleImageCodec
[SLINK] OsxAptioFixDrv
[MTOC] AppleImageCodec
[NASM] AsmFuncsX64
[CC] Data
[GENFW] AppleImageCodec
Building ... /Users/Micky1979/src/edk2/Clover/OsxLowMemFixDrv/OsxLowMemFixDrv.inf [X64]
[CC] AutoGen
[SLINK] OsxAptioFix2Drv
[CC] OsxLowMemFixDrv
[CC] icns
[CC] Lib
[CC] AutoGen
[SLINK] OsxLowMemFixDrv
[CC] BootOption
[CC] BmLib
[VFR] BdsDxe
[CC] Bm
[DLINK1] OsxLowMemFixDrv
[MTOC] OsxLowMemFixDrv
[GENFW] OsxLowMemFixDrv
[CC] lib
[DLINK1] OsxAptioFix2Drv
[CC] Hotkey
[MTOC] OsxAptioFix2Drv
[GENFW] OsxAptioFix2Drv
[DLINK1] OsxAptioFixDrv
[MTOC] OsxAptioFixDrv
[GENFW] OsxAptioFixDrv
[CC] MemoryTest
[CC] Capsules
[CC] String
[CC] Language
[VFR] BdsDxe
[CC] FrontPageVfr
[CC] menu
[CC] FrontPage
[CC] BdsEntry
[CC] screen
[CC] AutoGen
[SLINK] BdsDxe
[CC] IO
[CC] common
[CC] legacy
[CC] loader
[CC] tool
[CC] secureboot
[CC] securehash
[CC] securemenu
[CC] securevars
[CC] bootscreen
[CC] lockedgraphics
[CC] BmLib
[CC] image
[CC] load_bmp
[DLINK1] BdsDxe
[MTOC] BdsDxe
[GENFW] BdsDxe
[CC] load_icns
[CC] libscreen
[CC] lodepng
[CC] text
[CC] AcpiPatcher
[CC] AmlGenerator
[CC] ati
[CC] BootLog
[CC] BootOptions
[CC] Console
[CC] cpu
[CC] DataHubCpu
[CC] device_inject
[CC] device_tree
[CC] Edid
[CC] Events
[CC] gma
[CC] guid
[CC] Injectors
[CC] LegacyBiosThunk
[CC] LegacyBoot
[CC] nvidia
[CC] picopng
[CC] platformdata
[CC] plist
[CC] Pointer
[CC] Settings
[CC] smbios
[CC] spd
[CC] string
[CC] StateGenerator
[CC] usbfix
[CC] b64cdecode
[CC] FixBiosDsdt
[CC] kernel_patcher
[CC] kext_patcher
[CC] kext_inject
[CC] Nvram
[CC] card_vlist
[CC] PlatformDriverOverride
[CC] Hibernate
[CC] Net
[CC] AutoGen
[SLINK] CLOVERX64
[DLINK1] CLOVERX64
[MTOC] CLOVERX64
[GENFW] CLOVERX64

Generating DUETEFIMAINFVX64 FV
########################################
########################################
############
GUID cross reference file can be found at /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/FV/Guid.xref

FV Space Information
DUETEFIMAINFVX64 [30%Full] 2752512 total, 846304 used, 1906208 free

- Done -
Build end time: 16:15:23, Aug.12 2016
Build total time: 00:01:30

Compressing DUETEFIMainFv.FV ...
Encoding
Compressing DxeCore.efi ...
Encoding
Compressing DxeIpl.efi ...
Encoding
Generate Loader Image ...
Created /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/FV/Efildr64
879+0 records in
879+0 records out
450048 bytes transferred in 0.003853 secs (116802062 bytes/sec)
Copy CloverEFI:
  -> boot6
  -> BOOTX64.efi
  -> CLOVERX64.efi
Copy Mandatory drivers:
  -> FSInject-64.efi
  -> FSInject-64.efi
  -> OsxFatBinaryDrv-64.efi
  -> VBoxHfs-64.efi
Copy Optional drivers:
  -> NvmExpressDxe-64.efi
  -> Ps2MouseDxe-64.efi
  -> UsbMouseDxe-64.efi
  -> VBoxExt2-64.efi
  -> VBoxExt4-64.efi
  -> VBoxIso9600-64.efi
  -> XhciDxe-64.efi
  -> GrubEXFAT-64.efi
  -> GrubISO9660-64.efi
  -> GrubNTFS-64.efi
  -> GrubUDF-64.efi
  -> CsmVideoDxe-64.efi
  -> DataHubDxe-64.efi
  -> EmuVariableUefi-64.efi
  -> OsxAptioFix2Drv-64.efi
  -> OsxAptioFixDrv-64.efi
  -> OsxLowMemFixDrv-64.efi
  -> PartitionDxe-64.efi
Copy Applications:
  -> bdmesg.efi
Done!

Generating BootSectors
make: Nothing to be done for `all'.
Done!
===============================================================================
boot3
                          <----------------------------------------------------
TOOLCHAIN_DIR: /Users/Micky1979/src/opt/local
Initializing workspace
Loading previous configuration from /Users/Micky1979/src/edk2/Conf/BuildEnv.sh
WORKSPACE: /Users/Micky1979/src/edk2
EDK_TOOLS_PATH: /Users/Micky1979/src/edk2/BaseTools
CONF_PATH: /Users/Micky1979/src/edk2/Conf

Running edk2 build for CloverIA32 using the command:
build  -D USE_LOW_EBDA -p Clover/Clover.dsc  -a IA32 -b RELEASE -t XCODE5 -n 5

Build environment: Darwin-15.6.0-x86_64-i386-64bit
Build start time: 16:15:25, Aug.12 2016

WORKSPACE        = /Users/Micky1979/src/edk2
ECP_SOURCE       = /Users/Micky1979/src/edk2/EdkCompatibilityPkg
EDK_SOURCE       = /Users/Micky1979/src/edk2/EdkCompatibilityPkg
EFI_SOURCE       = /Users/Micky1979/src/edk2/EdkCompatibilityPkg
EDK_TOOLS_PATH   = /Users/Micky1979/src/edk2/BaseTools


Architecture(s)  = IA32
Build target     = RELEASE
Toolchain        = XCODE5

Active Platform          = /Users/Micky1979/src/edk2/Clover/Clover.dsc
Flash Image Definition   = /Users/Micky1979/src/edk2/Clover/Clover.fdf

Processing meta-data ........... done!
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePcdLibNull/BasePcdLibNull.inf [IA32]
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseDebugLibNull/BaseDebugLibNull.inf [IA32]
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseMemoryLib/BaseMemoryLib.inf [IA32]
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseLib/BaseLib.inf [IA32]
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePrintLib/BasePrintLib.inf [IA32]
[CC] DebugLib
[SLINK] BaseDebugLibNull
[CC] PcdLib
[CC] SetMem
[SLINK] BasePcdLibNull
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseReportStatusCodeLibNull/BaseReportStatusCodeLibNull.inf [IA32]
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseIoLibIntrinsic/BaseIoLibIntrinsic.inf [IA32]
[CC] ScanMem64Wrapper
[CC] ScanMem32Wrapper
[CC] IoLibMmioBuffer
[CC] CheckSum
[CC] ScanMem16Wrapper
[CC] SwitchStack
[CC] BaseReportStatusCodeLib
[CC] ScanMem8Wrapper
[SLINK] BaseReportStatusCodeLibNull
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/DxeCoreMemoryAllocationLib/DxeCoreMemoryAllocationLib.inf [IA32]
[CC] ZeroMemWrapper
[CC] SwapBytes64
[CC] IoHighLevel
[CC] SwapBytes32
[CC] CompareMemWrapper
[CC] IoLibGcc
[CC] SetMem64Wrapper
[CC] SwapBytes16
[CC] SetMem32Wrapper
[CC] LongJump
[CC] IoLib
[SLINK] BaseIoLibIntrinsic
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxeCoreEntryPoint/DxeCoreEntryPoint.inf [IA32]
[CC] SetMem16Wrapper
[CC] SetJump
[CC] SetMemWrapper
[CC] RShiftU64
[CC] RRotU64
[CC] CopyMemWrapper
[CC] MemoryAllocationLib
[CC] RRotU32
[CC] DxeCoreEntryPoint
[SLINK] DxeCoreEntryPoint
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiRuntimeServicesTableLib/UefiRuntimeServicesTableLib.inf [IA32]
[CC] MemLibGeneric
[CC] DxeCoreMemoryProfileLibNull
[CC] MultU64x64
[SLINK] DxeCoreMemoryAllocationLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiDevicePathLib/UefiDevicePathLib.inf [IA32]
[CC] MemLibGuid
[CC] MultU64x32
[CC] UefiRuntimeServicesTableLib
[CC] CopyMem
[CC] MultS64x64
[SLINK] UefiRuntimeServicesTableLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiBootServicesTableLib/UefiBootServicesTableLib.inf [IA32]
[SLINK] BaseMemoryLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePeCoffExtraActionLibNull/BasePeCoffExtraActionLibNull.inf [IA32]
[CC] PrintLibInternal
[CC] ModU64x32
[CC] LShiftU64
[CC] PrintLib
[CC] PeCoffExtraActionLib
[SLINK] PeCoffExtraActionLibNull
[SLINK] BasePrintLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxeCoreHobLib/DxeCoreHobLib.inf [IA32]
[CC] LRotU64
[CC] UefiBootServicesTableLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiLib/UefiLib.inf [IA32]
[SLINK] UefiBootServicesTableLib
[CC] LRotU32
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseCacheMaintenanceLib/BaseCacheMaintenanceLib.inf [IA32]
[CC] LowBitSet64
[CC] X86Cache
[CC] LowBitSet32
[CC] DevicePathUtilities
[SLINK] BaseCacheMaintenanceLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseUefiDecompressLib/BaseUefiDecompressLib.inf [IA32]
[CC] HobLib
[CC] HighBitSet64
[SLINK] DxeCoreHobLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePerformanceLibNull/BasePerformanceLibNull.inf [IA32]
[CC] HighBitSet32
[CC] PerformanceLib
[CC] GetPowerOfTwo64
[CC] UefiLibPrint
[SLINK] BasePerformanceLibNull
Building ... /Users/Micky1979/src/edk2/Clover/Library/VBoxPeCoffLib/VBoxPeCoffLib.inf [IA32]
[CC] GetPowerOfTwo32
[CC] DivU64x64Remainder
[CC] UefiNotTiano
[CC] BaseUefiDecompressLib
[SLINK] BaseUefiDecompressLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePeCoffGetEntryPointLib/BasePeCoffGetEntryPointLib.inf [IA32]
[CC] DivU64x32Remainder
[CC] DivU64x32
[CC] PeCoffGetEntryPoint
[CC] DivS64x64Remainder
[SLINK] BasePeCoffGetEntryPointLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxeExtractGuidedSectionLib/DxeExtractGuidedSectionLib.inf [IA32]
[CC] UefiDriverModel
[CC] ARShiftU64
[CC] BitField
[CC] DxeExtractGuidedSectionLib
[CC] CpuDeadLoop
[CC] BasePeCoff
[SLINK] DxeExtractGuidedSectionLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/DuetTimerLib/DuetTimerLib.inf [IA32]
[CC] DevicePathToText
[CC] Console
[CC] PeCoffLoaderEx
[CC] Cpu
[SLINK] VBoxPeCoffLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxeServicesLib/DxeServicesLib.inf [IA32]
[CC] LinkedList
[CC] X86TimerLib
[SLINK] DuetTimerLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/DebugAgentLibNull/DebugAgentLibNull.inf [IA32]
[CC] DxeServicesLib
[CC] SafeString
[SLINK] DxeServicesLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/CpuExceptionHandlerLibNull/CpuExceptionHandlerLibNull.inf [IA32]
[CC] DebugAgentLibNull
[CC] UefiLib
[SLINK] DebugAgentLibNull
[SLINK] UefiLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiMemoryAllocationLib/UefiMemoryAllocationLib.inf [IA32]
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxeHobLib/DxeHobLib.inf [IA32]
[CC] CpuExceptionHandlerLibNull
[SLINK] CpuExceptionHandlerLibNull
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiDriverEntryPoint/UefiDriverEntryPoint.inf [IA32]
[CC] MemoryAllocationLib
[CC] HobLib
[SLINK] UefiMemoryAllocationLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiRuntimeLib/UefiRuntimeLib.inf [IA32]
[CC] DriverEntryPoint
[CC] String
[SLINK] UefiDriverEntryPoint
[SLINK] DxeHobLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/VarCheckLib/VarCheckLib.inf [IA32]
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BaseSynchronizationLib/BaseSynchronizationLib.inf [IA32]
[CC] FilePaths
[CC] InternalGetSpinLockProperties
[CC] RuntimeLib
[CC] GccInline
[CC] GccInline
[SLINK] UefiRuntimeLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxeServicesTableLib/DxeServicesTableLib.inf [IA32]
[CC] SynchronizationGcc
[SLINK] BaseSynchronizationLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/TpmMeasurementLibNull/TpmMeasurementLibNull.inf [IA32]
[CC] VarCheckLib
[SLINK] VarCheckLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/AuthVariableLibNull/AuthVariableLibNull.inf [IA32]
[CC] DxeServicesTableLib
[SLINK] DxeServicesTableLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/VarCheckUefiLib/VarCheckUefiLib.inf [IA32]
[CC] TpmMeasurementLibNull
[SLINK] TpmMeasurementLibNull
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/DxeCapsuleLibNull/DxeCapsuleLibNull.inf [IA32]
[CC] AuthVariableLibNull
[SLINK] AuthVariableLibNull
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/DxeSecurityManagementLib/DxeSecurityManagementLib.inf [IA32]
[CC] DxeCapsuleLibNull
[SLINK] DxeCapsuleLibNull
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/DxePcdLib/DxePcdLib.inf [IA32]
[NASM] Thunk16
[CC] DxeSecurityManagementLib
[CC] VarCheckUefiLibNullClass
[SLINK] VarCheckUefiLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/UefiHiiServicesLib/UefiHiiServicesLib.inf [IA32]
[SLINK] DxeSecurityManagementLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/UefiHiiLib/UefiHiiLib.inf [IA32]
[CC] UefiHiiServicesLib
[CC] DevicePathFromText
[SLINK] UefiHiiServicesLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/CustomizedDisplayLib/CustomizedDisplayLib.inf [IA32]
[CC] DxePcdLib
[SLINK] DxePcdLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/LzmaCustomDecompressLib/LzmaCustomDecompressLib.inf [IA32]
[ASM] EnableDisableInterrupts
[CC] UefiDevicePathLib
[SLINK] UefiDevicePathLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/GenericBdsLib/GenericBdsLib.inf [IA32]
[CC] LzmaDecompress
[CC] CustomizedDisplayLib
[CC] DevicePath
[ASM] EnablePaging64
[CC] CustomizedDisplayLibInternal
[CC] Performance
[ASM] DisablePaging32
[CC] LzFind
[CC] AutoGen
[SLINK] CustomizedDisplayLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/OsxBdsPlatformLib/PlatformBds.inf [IA32]
[CC] HiiLib
[ASM] EnablePaging32
[CC] HiiString
[CC] BdsConnect
[CC] HiiLanguage
[SLINK] UefiHiiLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePciCf8Lib/BasePciCf8Lib.inf [IA32]
[CC] BdsPlatform
[ASM] Mwait
[CC] PciCf8Lib
[SLINK] BasePciCf8Lib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/BasePciLibCf8/BasePciLibCf8.inf [IA32]
[CC] PlatformData
[SLINK] DuetBds
Building ... /Users/Micky1979/src/edk2/UefiCpuPkg/Library/BaseXApicLib/BaseXApicLib.inf [IA32]
[CC] PciLib
[CC] LzmaDec
[SLINK] BasePciLibCf8
Building ... /Users/Micky1979/src/edk2/PcAtChipsetPkg/Library/BaseIoApicLib/BaseIoApicLib.inf [IA32]
[ASM] Monitor
[CC] GuidedSectionExtraction
[CC] IoApicLib
[SLINK] LzmaDecompressLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/MemLogLibDefault/MemLogLibDefault.inf [IA32]
[SLINK] BaseIoApicLib
[CC] BaseXApicLib
Building ... /Users/Micky1979/src/edk2/Clover/Library/VideoBiosPatchLib/VideoBiosPatchLib.inf [IA32]
[SLINK] BaseXApicLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiScsiLib/UefiScsiLib.inf [IA32]
[CC] MemLogLib
[SLINK] MemLogLibDefault
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiUsbLib/UefiUsbLib.inf [IA32]
[CC] VideoBiosPatchLib
[CC] BdsMisc
[ASM] CpuIdEx
[CC] Hid
[CC] UefiScsiLib
[SLINK] UefiScsiLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/UefiSortLib/UefiSortLib.inf [IA32]
[CC] UsbDxeLib
[CC] 915resolution
[SLINK] UefiUsbLib
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiFileHandleLib/UefiFileHandleLib.inf [IA32]
[ASM] CpuId
[CC] UefiSortLib
[SLINK] UefiSortLib
[CC] edid
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiApplicationEntryPoint/UefiApplicationEntryPoint.inf [IA32]
[SLINK] VideoBiosPatchLib
Building ... /Users/Micky1979/src/edk2/ShellPkg/Library/UefiShellLib/UefiShellLib.inf [IA32]
[CC] ApplicationEntryPoint
[CC] UefiFileHandleLib
[SLINK] UefiApplicationEntryPoint
Building ... /Users/Micky1979/src/edk2/MdePkg/Library/UefiMemoryLib/UefiMemoryLib.inf [IA32]
[SLINK] UefiFileHandleLib
[ASM] LongJump
Building ... /Users/Micky1979/src/edk2/Clover/Library/OpensslLib/OpensslLibNull.inf [IA32]
[CC] ScanMem64Wrapper
[CC] OpensslLibNull
warning: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning for library: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/Clover/Library/OpensslLib/OpensslLibNull/OUTPUT/OpensslLib.lib the table of contents is empty (no object file members in the library define global symbols)
[SLINK] OpensslLib
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Library/DxeNetLib/DxeNetLib.inf [IA32]
[CC] BdsConsole
[CC] ScanMem32Wrapper
[CC] ScanMem16Wrapper
[ASM] SetJump
[CC] ScanMem8Wrapper
[CC] ZeroMemWrapper
[ASM] SwapBytes64
[CC] CompareMemWrapper
[CC] UefiShellLib
[CC] SetMem64Wrapper
[SLINK] UefiShellLib
[CC] DxeNetLib
[CC] SetMem32Wrapper
[ASM] DivU64x64Remainder
[CC] SetMem16Wrapper
[CC] SetMemWrapper
[CC] NetBuffer
[SLINK] DxeNetLib
[ASM] DivU64x32Remainder
[CC] CopyMemWrapper
[CC] MemLibGeneric
[CC] MemLibGuid
[ASM] ModU64x32
[CC] BdsBoot
[CC] MemLib
[SLINK] UefiMemoryLib
[CC] String
[ASM] DivU64x32
[CC] AutoGen
[SLINK] GenericBdsLib
[ASM] MultU64x64
[ASM] MultU64x32
[ASM] RRotU64
[ASM] LRotU64
[ASM] ARShiftU64
[ASM] RShiftU64
[ASM] LShiftU64
[ASM] EnableCache
[ASM] DisableCache
[ASM] RdRand
[CC] DivS64x64Remainder
[ASM] InternalSwitchStack
[CC] Non-existing
[CC] Unaligned
[CC] X86WriteIdtr
[CC] X86WriteGdtr
[CC] X86Thunk
[CC] X86ReadIdtr
[CC] X86ReadGdtr
[CC] X86Msr
[CC] X86GetInterruptState
[CC] X86FxSave
[CC] X86FxRestore
[CC] X86EnablePaging64
[CC] X86EnablePaging32
[CC] X86DisablePaging64
[CC] X86DisablePaging32
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (ARShiftU64.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/Ia32/ARShiftU64.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/ARShiftU64.obj (due to use of basename, truncation, blank padding or duplicate input files)
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (DivS64x64Remainder.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/Ia32/DivS64x64Remainder.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/DivS64x64Remainder.obj (due to use of basename, truncation, blank padding or duplicate input files)
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (DivU64x32.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/Ia32/DivU64x32.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/DivU64x32.obj (due to use of basename, truncation, blank padding or duplicate input files)
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (DivU64x32Remainder.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/Ia32/DivU64x32Remainder.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/DivU64x32Remainder.obj (due to use of basename, truncation, blank padding or duplicate input files)
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (DivU64x64Remainder.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/DivU64x64Remainder.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/Ia32/DivU64x64Remainder.obj (due to use of basename, truncation, blank padding or duplicate input files)
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (LRotU64.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/LRotU64.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/Ia32/LRotU64.obj (due to use of basename, truncation, blank padding or duplicate input files)
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (LShiftU64.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/LShiftU64.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/Ia32/LShiftU64.obj (due to use of basename, truncation, blank padding or duplicate input files)
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (LongJump.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/Ia32/LongJump.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/LongJump.obj (due to use of basename, truncation, blank padding or duplicate input files)
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (ModU64x32.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/ModU64x32.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/Ia32/ModU64x32.obj (due to use of basename, truncation, blank padding or duplicate input files)
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (MultU64x32.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/MultU64x32.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/Ia32/MultU64x32.obj (due to use of basename, truncation, blank padding or duplicate input files)
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (MultU64x64.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/Ia32/MultU64x64.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/MultU64x64.obj (due to use of basename, truncation, blank padding or duplicate input files)
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (RRotU64.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/Ia32/RRotU64.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/RRotU64.obj (due to use of basename, truncation, blank padding or duplicate input files)
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (RShiftU64.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/RShiftU64.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/Ia32/RShiftU64.obj (due to use of basename, truncation, blank padding or duplicate input files)
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (SetJump.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/SetJump.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/Ia32/SetJump.obj (due to use of basename, truncation, blank padding or duplicate input files)
/Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/libtool: warning same member name (SwapBytes64.obj) in output file used for input files: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/Ia32/SwapBytes64.obj and: /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/IA32/MdePkg/Library/BaseLib/BaseLib/OUTPUT/SwapBytes64.obj (due to use of basename, truncation, blank padding or duplicate input files)
[SLINK] BaseLib
Building ... /Users/Micky1979/src/edk2/Clover/OsxDxeIpl/DxeIpl.inf [IA32]
Building ... /Users/Micky1979/src/edk2/Clover/OsxDxeCore/DxeMain.inf [IA32]
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/PCD/Dxe/Pcd.inf [IA32]
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/WatchdogTimerDxe/WatchdogTimer.inf [IA32]
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Core/RuntimeDxe/RuntimeDxe.inf [IA32]
[CC] DxeInit
[CC] WatchdogTimer
[CC] Crc32
[CC] AutoGen
[SLINK] WatchdogTimer
[CC] Pcd
[CC] Runtime
[DLINK1] WatchdogTimer
[MTOC] WatchdogTimer
[CC] CoreSectionExtraction
[GENFW] WatchdogTimer
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/MonotonicCounterRuntimeDxe/MonotonicCounterRuntimeDxe.inf [IA32]
[CC] AutoGen
[SLINK] RuntimeDxe
[CC] LegacyTable
[CC] MonotonicCounter
[CC] AutoGen
[CC] HobGeneration
[DLINK1] RuntimeDxe
[SLINK] MonotonicCounterRuntimeDxe
[MTOC] RuntimeDxe
[GENFW] RuntimeDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Variable/EmuRuntimeDxe/EmuVariableRuntimeDxe.inf [IA32]
[CC] Service
[DLINK1] MonotonicCounterRuntimeDxe
[MTOC] MonotonicCounterRuntimeDxe
[GENFW] MonotonicCounterRuntimeDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/FaultTolerantWriteDxe/FaultTolerantWriteDxe.inf [IA32]
[CC] Debug
[CC] AutoGen
[SLINK] PcdDxe
[CC] InitVariable
[CC] Image
[CC] EnterDxeCore
[CC] DebugImageInfo
[CC] Paging
[CC] FtwMisc
[CC] Stall
[CC] AutoGen
[CC] EmuVariable
[SLINK] DxeIpl
[DLINK1] DxeIpl
[CC] UpdateWorkingBlock
[CC] AutoGen
[MTOC] DxeIpl
[SLINK] EmuVariableRuntimeDxe
[CC] SetWatchdogTimer
[GENFW] DxeIpl
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Variable/RuntimeDxe/VariableRuntimeDxe.inf [IA32]
[CC] InstallConfigurationTable
[CC] FaultTolerantWrite
[CC] Reclaim
[CC] FaultTolerantWriteDxe
[CC] Library
[CC] AutoGen
[SLINK] FaultTolerantWriteDxe
[DLINK1] EmuVariableRuntimeDxe
[DLINK1] PcdDxe
[MTOC] EmuVariableRuntimeDxe
[CC] DriverSupport
[MTOC] PcdDxe
[DLINK1] FaultTolerantWriteDxe
[MTOC] FaultTolerantWriteDxe
[GENFW] PcdDxe
[GENFW] EmuVariableRuntimeDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/CapsuleRuntimeDxe/CapsuleRuntimeDxe.inf [IA32]
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/MemoryTest/NullMemoryTestDxe/NullMemoryTestDxe.inf [IA32]
[GENFW] FaultTolerantWriteDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/SecurityStubDxe/SecurityStubDxe.inf [IA32]
[CC] Notify
[CC] NullMemoryTest
[CC] CapsuleService
[CC] SecurityStub
[CC] AutoGen
[CC] SaveLongModeContext
[SLINK] NullMemoryTestDxe
[CC] AutoGen
[SLINK] SecurityStubDxe
[CC] Locate
[CC] AutoGen
[SLINK] CapsuleRuntimeDxe
[DLINK1] NullMemoryTestDxe
[MTOC] NullMemoryTestDxe
[GENFW] NullMemoryTestDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Console/ConPlatformDxe/ConPlatformDxe.inf [IA32]
[DLINK1] CapsuleRuntimeDxe
[MTOC] CapsuleRuntimeDxe
[DLINK1] SecurityStubDxe
[GENFW] CapsuleRuntimeDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Console/ConSplitterDxe/ConSplitterDxe.inf [IA32]
[MTOC] SecurityStubDxe
[CC] Variable
[CC] ComponentName
[GENFW] SecurityStubDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/HiiDatabaseDxe/HiiDatabaseDxe.inf [IA32]
[CC] VariableDxe
[CC] Handle
[CC] ConSplitterGraphics
[CC] ConPlatform
[CC] HiiDatabaseEntry
[CC] AutoGen
[SLINK] ConPlatformDxe
[CC] ComponentName
[CC] Measurement
[CC] TcgMorLockDxe
[CC] VarCheck
[CC] Image
[CC] Gcd
[CC] VariableExLib
[DLINK1] ConPlatformDxe
[MTOC] ConPlatformDxe
[CC] AutoGen
[SLINK] VariableRuntimeDxe
[GENFW] ConPlatformDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/SetupBrowserDxe/SetupBrowserDxe.inf [IA32]
[CC] Pool
[CC] ConSplitter
[CC] Page
[CC] AutoGen
[SLINK] ConSplitterDxe
[CC] MemData
[CC] FwVolBlock
[CC] FwVolWrite
[CC] ConfigRouting
[CC] FwVolRead
[CC] Setup
[CC] FwVolAttrib
[CC] String
[CC] Ffs
[DLINK1] ConSplitterDxe
[CC] FwVol
[MTOC] ConSplitterDxe
[GENFW] ConSplitterDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/DisplayEngineDxe/DisplayEngineDxe.inf [IA32]
[CC] IfrParse
[CC] Tpl
[CC] Database
[CC] Timer
[DLINK1] VariableRuntimeDxe
[MTOC] VariableRuntimeDxe
[GENFW] VariableRuntimeDxe
Building ... /Users/Micky1979/src/edk2/Clover/GraphicsConsoleDxe/GraphicsConsoleDxe.inf [IA32]
[CC] Event
[CC] ComponentName
[CC] Dependency
[CC] LaffStd
[CC] Font
[CC] Expression
[CC] Dispatcher
[CC] GraphicsConsole
[CC] DxeProtocolNotify
[CC] AutoGen
[SLINK] GraphicsConsoleDxe
[CC] FormDisplay
[CC] DxeMain
[CC] ConfigKeywordHandler
[CC] AutoGen
[CC] Presentation
[SLINK] DxeCore
[CC] AutoGen
[CC] AutoGen
[SLINK] HiiDatabase
[SLINK] SetupBrowser
[CC] ProcessOptions
[DLINK1] GraphicsConsoleDxe
[MTOC] GraphicsConsoleDxe
[GENFW] GraphicsConsoleDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/DevicePathDxe/DevicePathDxe.inf [IA32]
[CC] DevicePath
[CC] InputHandler
[CC] AutoGen
[CC] AutoGen
[SLINK] DevicePathDxe
[SLINK] DisplayEngine
[DLINK1] DevicePathDxe
[MTOC] DevicePathDxe
[GENFW] DevicePathDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/SmbiosDxe/SmbiosDxe.inf [IA32]
[CC] SmbiosDxe
[CC] AutoGen
[SLINK] SmbiosDxe
[DLINK1] SmbiosDxe
[MTOC] SmbiosDxe
[DLINK1] DxeCore
[MTOC] DxeCore
[GENFW] SmbiosDxe
Building ... /Users/Micky1979/src/edk2/DuetPkg/SmbiosGenDxe/SmbiosGen.inf [IA32]
[GENFW] DxeCore
Building ... /Users/Micky1979/src/edk2/Clover/OsxEfiLdr/EfiLdr.inf [IA32]
[CC] EfiLoader
[CC] SmbiosGen
[DLINK1] DisplayEngine
[MTOC] DisplayEngine
[CC] Debug
[GENFW] DisplayEngine
Building ... /Users/Micky1979/src/edk2/Clover/OsxBdsDxe/BdsDxe.inf [IA32]
[CC] AutoGen
[SLINK] SmbiosGenDxe
[CC] PeLoader
[CC] HwErrRecSupport
[CC] Support
[VFR] BdsDxe
[CC] AutoGen
[SLINK] EfiLoader
[CC] DeviceManagerVfr
[VFR] BdsDxe
[DLINK1] SmbiosGenDxe
[MTOC] SmbiosGenDxe
[CC] DriverHealthVfr
[GENFW] SmbiosGenDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/EbcDxe/EbcDxe.inf [IA32]
[DLINK1] SetupBrowser
[MTOC] SetupBrowser
[CC] DeviceManager
[GENFW] SetupBrowser
Building ... /Users/Micky1979/src/edk2/Clover/UefiCpuPkg/CpuIo2Dxe/CpuIo2Dxe.inf [IA32]
[CC] EbcExecute
[VFR] BdsDxe
[CC] BootManagerVfr
[CC] CpuIo2Dxe
[CC] EbcInt
[CC] AutoGen
[SLINK] CpuIo2Dxe
[CC] BootManager
[CC] EbcSupport
[VFR] BdsDxe
[DLINK1] CpuIo2Dxe
[MTOC] CpuIo2Dxe
[CC] FE
[GENFW] CpuIo2Dxe
Building ... /Users/Micky1979/src/edk2/Clover/CpuDxe/Cpu.inf [IA32]
[DLINK1] EfiLoader
[MTOC] EfiLoader
[GENFW] EfiLoader
Building ... /Users/Micky1979/src/edk2/PcAtChipsetPkg/8259InterruptControllerDxe/8259.inf [IA32]
[ASM] EbcLowLevel
[CC] FileExplorer
[CC] AutoGen
[SLINK] EbcDxe
[CC] 8259
[CC] AutoGen
[SLINK] Legacy8259
[NASM] CpuInterrupt
[DLINK1] Legacy8259
[MTOC] Legacy8259
[CC] BootMaint
[GENFW] Legacy8259
Building ... /Users/Micky1979/src/edk2/Clover/AcpiReset/Reset.inf [IA32]
[CC] Cpu
[CC] BBSsupport
[CC] Reset
[DLINK1] HiiDatabase
[MTOC] HiiDatabase
[CC] AutoGen
[GENFW] HiiDatabase
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Metronome/Metronome.inf [IA32]
[SLINK] Cpu
[CC] AutoGen
[SLINK] AcpiReset
[CC] Metronome
[DLINK1] AcpiReset
[CC] UpdatePage
[MTOC] AcpiReset
[CC] AutoGen
[SLINK] Metronome
[GENFW] AcpiReset
Building ... /Users/Micky1979/src/edk2/Clover/PcatRealTimeClockRuntimeDxe/PcatRealTimeClockRuntimeDxe.inf [IA32]
[DLINK1] Cpu
[DLINK1] EbcDxe
[MTOC] Cpu
[MTOC] EbcDxe
[GENFW] Cpu
Building ... /Users/Micky1979/src/edk2/PcAtChipsetPkg/8254TimerDxe/8254Timer.inf [IA32]
[GENFW] EbcDxe
Building ... /Users/Micky1979/src/edk2/PcAtChipsetPkg/HpetTimerDxe/HpetTimerDxe.inf [IA32]
[DLINK1] Metronome
[MTOC] Metronome
[CC] PcRtcEntry
[GENFW] Metronome
Building ... /Users/Micky1979/src/edk2/Clover/PciRootBridgeDxe/PciRootBridge.inf [IA32]
[CC] Timer
[CC] Variable
[CC] AutoGen
[CC] HpetTimer
[SLINK] Timer
[CC] Data
[DLINK1] Timer
[CC] PcRtc
[CC] AutoGen
[MTOC] Timer
[SLINK] HpetTimerDxe
[GENFW] Timer
Building ... /Users/Micky1979/src/edk2/Clover/OsxPciBusNoEnumerationDxe/PciBusNoEnumeration.inf [IA32]
[CC] AutoGen
[SLINK] PcRtc
[CC] PcatPciRootBridge
[CC] PciPowerManagement
[DLINK1] HpetTimerDxe
[MTOC] HpetTimerDxe
[CC] PcatPciRootBridgeDevicePath
[GENFW] HpetTimerDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Bus/Pci/NvmExpressDxe/NvmExpressDxe.inf [IA32]
[CC] PciRomTable
[CC] BootOption
[CC] PcatPciRootBridgeIo
[CC] PciDriverOverride
[CC] BmLib
[CC] NvmExpressBlockIo
[CC] DeviceIo
[DLINK1] PcRtc
[MTOC] PcRtc
[VFR] BdsDxe
[CC] PciOptionRomSupport
[GENFW] PcRtc
Building ... /Users/Micky1979/src/edk2/IntelFrameworkModulePkg/Universal/DataHubDxe/DataHubDxe.inf [IA32]
[CC] Bm
[CC] ComponentName
[CC] PciEnumerator
[CC] PcatIo
[CC] DataHub
[CC] AutoGen
[SLINK] PcatPciRootBridge
[CC] AutoGen
[SLINK] DataHubDxe
[CC] NvmExpress
[CC] PciEnumeratorSupport
[CC] Hotkey
[CC] NvmExpressDiskInfo
[CC] PciCommand
[DLINK1] DataHubDxe
[MTOC] DataHubDxe
[GENFW] DataHubDxe
Building ... /Users/Micky1979/src/edk2/Clover/DriverOverride/DriverOverride.inf [IA32]
[CC] MemoryTest
[CC] ComponentName
[CC] NvmExpressHci
[CC] DriverOverride
[CC] AutoGen
[CC] Capsules
[SLINK] DriverOverride
[CC] PciDeviceSupport
[DLINK1] DriverOverride
[MTOC] DriverOverride
[CC] NvmExpressPassthru
[CC] PciBus
[CC] String
[GENFW] DriverOverride
Building ... /Users/Micky1979/src/edk2/Clover/VBoxFsDxe/VBoxHfs.inf [IA32]
[CC] AutoGen
[SLINK] NvmExpressDxe
[CC] Language
[VFR] BdsDxe
[CC] PciIo
[CC] FrontPageVfr
[CC] AutoGen
[SLINK] PciBusNoEnumerationDxe
[CC] fsw_hfs
[DLINK1] PcatPciRootBridge
[MTOC] PcatPciRootBridge
[GENFW] PcatPciRootBridge
Building ... /Users/Micky1979/src/edk2/Clover/VBoxFsDxe/VBoxIso9660.inf [IA32]
[CC] fsw_core
[CC] FrontPage
[CC] fsw_efi_lib
[CC] fsw_iso9660
[CC] BdsEntry
[CC] fsw_efi
[CC] fsw_core
[CC] AutoGen
[SLINK] BdsDxe
[CC] fsw_efi_lib
[CC] fsw_lib
[CC] AutoGen
[CC] fsw_efi
[SLINK] VBoxHfs
[CC] fsw_lib
[DLINK1] NvmExpressDxe
[DLINK1] PciBusNoEnumerationDxe
[MTOC] NvmExpressDxe
[MTOC] PciBusNoEnumerationDxe
[GENFW] NvmExpressDxe
Building ... /Users/Micky1979/src/edk2/Clover/VBoxFsDxe/VBoxExt2.inf [IA32]
[CC] AutoGen
[GENFW] PciBusNoEnumerationDxe
Building ... /Users/Micky1979/src/edk2/Clover/VBoxFsDxe/VBoxExt4.inf [IA32]
[SLINK] VBoxIso9600
[CC] fsw_ext2
[CC] fsw_ext4
[CC] fsw_core
[CC] fsw_core
[CC] fsw_efi_lib
[CC] fsw_efi_lib
[CC] fsw_efi
[CC] fsw_efi
[CC] fsw_lib
[DLINK1] VBoxIso9600
[MTOC] VBoxIso9600
[GENFW] VBoxIso9600
Building ... /Users/Micky1979/src/edk2/Clover/VBoxFsDxe/VBoxReiserFS.inf [IA32]
[DLINK1] VBoxHfs
[MTOC] VBoxHfs
[CC] AutoGen
[CC] fsw_lib
[GENFW] VBoxHfs
Building ... /Users/Micky1979/src/edk2/Clover/FatPkg/EnhancedFatDxe/Fat.inf [IA32]
[SLINK] VBoxExt2
[CC] AutoGen
[SLINK] VBoxExt4
[CC] DirectoryCache
[CC] fsw_reiserfs
[CC] DiskCache
[CC] FileName
[CC] fsw_core
[CC] Hash
[CC] fsw_efi_lib
[CC] DirectoryManage
[CC] fsw_efi
[CC] ComponentName
[CC] ReadWrite
[DLINK1] VBoxExt2
[MTOC] VBoxExt2
[GENFW] VBoxExt2
Building ... /Users/Micky1979/src/edk2/Clover/GrubFS/src/EXFAT.inf [IA32]
[DLINK1] VBoxExt4
[CC] fsw_lib
[MTOC] VBoxExt4
[CC] OpenVolume
[GENFW] VBoxExt4
Building ... /Users/Micky1979/src/edk2/Clover/GrubFS/src/HFSPLUS.inf [IA32]
[CC] AutoGen
[SLINK] VBoxReiserFS
[CC] Open
[CC] driver
[CC] driver
[CC] Misc
[CC] Init
[CC] file
[CC] file
[CC] grub_driver
[CC] Info
[CC] grub_driver
[CC] FileSpace
[CC] grub_file
[CC] grub_file
[CC] Flush
[CC] grub
[CC] grub
[CC] Fat
[CC] logging
[CC] logging
[CC] Delete
[CC] missing
[CC] missing
[CC] Data
[CC] path
[CC] path
[CC] UnicodeCollation
[CC] utf8
[CC] utf8
[CC] AutoGen
[SLINK] Fat
[DLINK1] VBoxReiserFS
[CC] device
[MTOC] VBoxReiserFS
[GENFW] VBoxReiserFS
Building ... /Users/Micky1979/src/edk2/Clover/GrubFS/src/ISO9660.inf [IA32]
[CC] err
[CC] driver
[CC] misc
[CC] file
[CC] list
[CC] grub_driver
[CC] fshelp
[CC] grub_file
[CC] gzio
[CC] grub
[CC] exfat
[CC] device
[CC] logging
[CC] AutoGen
[SLINK] GrubEXFAT
[CC] err
[CC] missing
[CC] path
[CC] utf8
[CC] misc
[DLINK1] BdsDxe
[MTOC] BdsDxe
[CC] list
[CC] device
[GENFW] BdsDxe
Building ... /Users/Micky1979/src/edk2/Clover/GrubFS/src/NTFS.inf [IA32]
[DLINK1] Fat
[MTOC] Fat
[GENFW] Fat
Building ... /Users/Micky1979/src/edk2/Clover/GrubFS/src/UDF.inf [IA32]
[CC] err
[CC] fshelp
[CC] driver
[CC] driver
[CC] hfspluscomp
[CC] file
[CC] file
[CC] misc
[CC] grub_driver
[CC] list
[CC] grub_driver
[CC] grub_file
[CC] fshelp
[CC] grub_file
[CC] hfsplus
[CC] AutoGen
[CC] grub
[SLINK] GrubHFSPLUS
[CC] grub
[CC] logging
[CC] logging
[CC] missing
[CC] missing
[CC] path
[CC] iso9660
[CC] path
[CC] AutoGen
[SLINK] GrubISO9660
[CC] utf8
[CC] utf8
[CC] device
[CC] device
[CC] err
[CC] err
[DLINK1] GrubEXFAT
[MTOC] GrubEXFAT
[CC] misc
[CC] misc
[GENFW] GrubEXFAT
Building ... /Users/Micky1979/src/edk2/IntelFrameworkModulePkg/Bus/Pci/VgaMiniPortDxe/VgaMiniPortDxe.inf [IA32]
[CC] list
[CC] list
[CC] ComponentName
[CC] fshelp
[CC] fshelp
[CC] VgaMiniPort
[CC] AutoGen
[SLINK] VgaMiniPort
[CC] ntfscomp
[DLINK1] VgaMiniPort
[MTOC] VgaMiniPort
[CC] udf
[GENFW] VgaMiniPort
Building ... /Users/Micky1979/src/edk2/Clover/BiosVideo/BiosVideo.inf [IA32]
[CC] AutoGen
[SLINK] GrubUDF
[CC] ntfs
[CC] AutoGen
[SLINK] GrubNTFS
[CC] BiosVideoNew
[CC] ComponentName
[CC] LegacyBiosThunk
[CC] AutoGen
[SLINK] BiosVideo
[DLINK1] GrubISO9660
[MTOC] GrubISO9660
[GENFW] GrubISO9660
Building ... /Users/Micky1979/src/edk2/Clover/LegacyBios/VideoDxe/VideoDxe.inf [IA32]
[DLINK1] GrubHFSPLUS
[MTOC] GrubHFSPLUS
[GENFW] GrubHFSPLUS
Building ... /Users/Micky1979/src/edk2/Clover/SataControllerDxe/SataControllerDxe.inf [IA32]
[CC] ComponentName
[CC] SataController
[CC] AutoGen
[SLINK] SataController
[CC] BiosVideo
[CC] ComponentName
[DLINK1] SataController
[MTOC] SataController
[CC] AutoGen
[SLINK] CsmVideoDxe
[GENFW] SataController
Building ... /Users/Micky1979/src/edk2/Clover/AtaAtapi/AtaAtapiPassThru.inf [IA32]
[DLINK1] GrubUDF
[MTOC] GrubUDF
[GENFW] GrubUDF
Building ... /Users/Micky1979/src/edk2/Clover/AtaBus/AtaBusDxe.inf [IA32]
[CC] AtaAtapiPassThru
[CC] AtaBus
[DLINK1] BiosVideo
[MTOC] BiosVideo
[GENFW] BiosVideo
Building ... /Users/Micky1979/src/edk2/Clover/DVDBus/ScsiBusDxe.inf [IA32]
[CC] AtaPassThruExecute
[CC] ComponentName
[CC] ComponentName
[CC] AhciMode
[CC] AutoGen
[SLINK] AtaBusDxe
[CC] ScsiBus
[DLINK1] GrubNTFS
[MTOC] GrubNTFS
[CC] AutoGen
[SLINK] ScsiBus
[GENFW] GrubNTFS
Building ... /Users/Micky1979/src/edk2/Clover/DVDDisk/ScsiDiskDxe.inf [IA32]
[CC] ComponentName
[CC] IdeMode
[CC] ComponentName
[CC] AutoGen
[DLINK1] ScsiBus
[MTOC] ScsiBus
[SLINK] AtaAtapiPassThruDxe
[GENFW] ScsiBus
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Bus/Pci/UhciDxe/UhciDxe.inf [IA32]
[CC] ScsiDisk
[CC] AutoGen
[DLINK1] CsmVideoDxe
[SLINK] ScsiDisk
[MTOC] CsmVideoDxe
[GENFW] CsmVideoDxe
Building ... /Users/Micky1979/src/edk2/Clover/OhciDxe/OhciDxe.inf [IA32]
[DLINK1] AtaBusDxe
[MTOC] AtaBusDxe
[GENFW] AtaBusDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Bus/Pci/EhciDxe/EhciDxe.inf [IA32]
[CC] UhciSched
[CC] UhciDebug
[CC] EhciUrb
[CC] UhciQueue
[CC] Ohci
[CC] UsbHcMem
[CC] UhciReg
[CC] OhciSched
[CC] UsbHcMem
[CC] EhciSched
[CC] EhciDebug
[CC] OhciReg
[CC] Uhci
[CC] EhciReg
[CC] OhciUrb
[CC] ComponentName
[CC] ComponentName
[CC] AutoGen
[CC] OhciDebug
[SLINK] UhciDxe
[DLINK1] ScsiDisk
[MTOC] ScsiDisk
[GENFW] ScsiDisk
Building ... /Users/Micky1979/src/edk2/Clover/Patches_for_EDK2/XhciDxe/XhciDxe.inf [IA32]
[CC] ComponentName
[CC] Ehci
[CC] UsbHcMem
[CC] AutoGen
[CC] AutoGen
[SLINK] EhciDxe
[SLINK] OhciDxe
[CC] Xhci
[CC] XhciReg
[DLINK1] AtaAtapiPassThruDxe
[MTOC] AtaAtapiPassThruDxe
[GENFW] AtaAtapiPassThruDxe
Building ... /Users/Micky1979/src/edk2/Clover/Patches_for_EDK2/UsbBusDxe/UsbBusDxe.inf [IA32]
[DLINK1] UhciDxe
[MTOC] UhciDxe
[GENFW] UhciDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Bus/Usb/UsbKbDxe/UsbKbDxe.inf [IA32]
[CC] UsbDesc
[CC] EfiKey
[CC] UsbEnumer
[DLINK1] EhciDxe
[MTOC] EhciDxe
[GENFW] EhciDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Bus/Usb/UsbMassStorageDxe/UsbMassStorageDxe.inf [IA32]
[CC] KeyBoard
[CC] UsbBus
[CC] ComponentName
[CC] XhciSched
[CC] UsbMassBot
[CC] AutoGen
[SLINK] UsbKbDxe
[CC] ComponentName
[CC] UsbHub
[DLINK1] OhciDxe
[CC] ComponentName
[MTOC] OhciDxe
[CC] UsbHcMem
[GENFW] OhciDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Bus/Usb/UsbMouseDxe/UsbMouseDxe.inf [IA32]
[CC] ComponentName
[CC] UsbMassImpl
[CC] ComponentName
[CC] AutoGen
[CC] UsbUtility
[SLINK] XhciDxe
[CC] AutoGen
[CC] MouseHid
[SLINK] UsbBusDxe
[CC] UsbMassBoot
[CC] UsbMassCbi
[CC] UsbMouse
[CC] AutoGen
[CC] UsbMassDiskInfo
[SLINK] UsbMouseDxe
[CC] AutoGen
[SLINK] UsbMassStorageDxe
[DLINK1] UsbKbDxe
[MTOC] UsbKbDxe
[GENFW] UsbKbDxe
Building ... /Users/Micky1979/src/edk2/PcAtChipsetPkg/IsaAcpiDxe/IsaAcpi.inf [IA32]
[DLINK1] UsbMouseDxe
[MTOC] UsbMouseDxe
[GENFW] UsbMouseDxe
Building ... /Users/Micky1979/src/edk2/IntelFrameworkModulePkg/Bus/Isa/IsaBusDxe/IsaBusDxe.inf [IA32]
[CC] PcatIsaAcpi
[CC] ComponentName
[CC] IsaAcpi
[CC] ComponentName
[CC] IsaIo
[DLINK1] UsbBusDxe
[CC] AutoGen
[MTOC] UsbBusDxe
[SLINK] IsaAcpi
[GENFW] UsbBusDxe
Building ... /Users/Micky1979/src/edk2/IntelFrameworkModulePkg/Bus/Isa/Ps2KeyboardDxe/Ps2keyboardDxe.inf [IA32]
[CC] IsaBus
[DLINK1] UsbMassStorageDxe
[CC] AutoGen
[MTOC] UsbMassStorageDxe
[SLINK] IsaBusDxe
[GENFW] UsbMassStorageDxe
Building ... /Users/Micky1979/src/edk2/IntelFrameworkModulePkg/Bus/Isa/Ps2MouseAbsolutePointerDxe/Ps2MouseAbsolutePointerDxe.inf [IA32]
[CC] ComponentName
[CC] ComponentName
[DLINK1] IsaAcpi
[MTOC] IsaAcpi
[GENFW] IsaAcpi
Building ... /Users/Micky1979/src/edk2/Clover/Ps2MouseDxe/Ps2MouseDxe.inf [IA32]
[CC] Ps2KbdCtrller
[CC] CommPs2
[CC] ComponentName
[CC] Ps2KbdTextIn
[CC] Ps2MouseAbsolutePointer
[DLINK1] IsaBusDxe
[MTOC] IsaBusDxe
[GENFW] IsaBusDxe
Building ... /Users/Micky1979/src/edk2/Clover/OsxAcpiTableDxe/AcpiTableDxe.inf [IA32]
[CC] AutoGen
[CC] Ps2Keyboard
[SLINK] Ps2MouseAbsolutePointerDxe
[CC] CommPs2
[CC] AutoGen
[SLINK] Ps2KeyboardDxe
[CC] Ps2Mouse
[CC] AutoGen
[SLINK] Ps2MouseDxe
[CC] AcpiTableProtocol
[DLINK1] Ps2MouseAbsolutePointerDxe
[MTOC] Ps2MouseAbsolutePointerDxe
[GENFW] Ps2MouseAbsolutePointerDxe
Building ... /Users/Micky1979/src/edk2/Clover/OsxAcpiPlatformDxe/AcpiPlatformDxe.inf [IA32]
[CC] AcpiTable
[CC] AutoGen
[SLINK] AcpiTableDxe
[CC] AcpiPlatform
[DLINK1] Ps2MouseDxe
[MTOC] Ps2MouseDxe
[DLINK1] XhciDxe
[GENFW] Ps2MouseDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Disk/DiskIoDxe/DiskIoDxe.inf [IA32]
[CC] AutoGen
[MTOC] XhciDxe
[SLINK] AcpiPlatform
[DLINK1] Ps2KeyboardDxe
[GENFW] XhciDxe
[MTOC] Ps2KeyboardDxe
Building ... /Users/Micky1979/src/edk2/MdeModulePkg/Universal/Disk/UnicodeCollation/EnglishDxe/EnglishDxe.inf [IA32]
[GENFW] Ps2KeyboardDxe
Building ... /Users/Micky1979/src/edk2/Clover/PartitionDxe/PartitionDxe.inf [IA32]
[CC] ComponentName
[CC] UnicodeCollationEng
[CC] ComponentName
[CC] AutoGen
[SLINK] EnglishDxe
[CC] DiskIo
[CC] Mbr
[CC] AutoGen
[DLINK1] EnglishDxe
[MTOC] EnglishDxe
[SLINK] DiskIoDxe
[DLINK1] AcpiPlatform
[MTOC] AcpiPlatform
[GENFW] EnglishDxe
Building ... /Users/Micky1979/src/edk2/Clover/BiosKeyboard/KeyboardDxe.inf [IA32]
[DLINK1] AcpiTableDxe
[MTOC] AcpiTableDxe
[GENFW] AcpiPlatform
Building ... /Users/Micky1979/src/edk2/Clover/LegacyBios/Region2Dxe/LegacyRegion2Dxe.inf [IA32]
[GENFW] AcpiTableDxe
Building ... /Users/Micky1979/src/edk2/Clover/FSInject/FSInject.inf [IA32]
[CC] Gpt
[CC] ComponentName
[CC] LegacyRegion2
[CC] ElTorito
[CC] AutoGen
[CC] Apple
[SLINK] LegacyRegion2Dxe
[CC] FSInject
[DLINK1] DiskIoDxe
[MTOC] DiskIoDxe
[GENFW] DiskIoDxe
Building ... /Users/Micky1979/src/edk2/Clover/MsgLog/MsgLog.inf [IA32]
[CC] Test
[CC] BiosKeyboard
[CC] Partition
[CC] AutoGen
[SLINK] FSInject
[CC] MsgLog
[CC] AutoGen
[SLINK] PartitionDxe
[CC] AutoGen
[CC] LegacyBiosThunk
[SLINK] MsgLog
[CC] AutoGen
[DLINK1] MsgLog
[MTOC] MsgLog
[SLINK] KeyboardDxe
[GENFW] MsgLog
Building ... /Users/Micky1979/src/edk2/Clover/DumpUefiCalls/DumpUefiCalls.inf [IA32]
[CC] DumpUefiCalls
[DLINK1] LegacyRegion2Dxe
[MTOC] LegacyRegion2Dxe
[GENFW] LegacyRegion2Dxe
Building ... /Users/Micky1979/src/edk2/Clover/OsxFatBinaryDrv/OsxFatBinaryDrv.inf [IA32]
[DLINK1] KeyboardDxe
[MTOC] KeyboardDxe
[CC] Lib
[CC] OsxFatBinaryDrv
[GENFW] KeyboardDxe
Building ... /Users/Micky1979/src/edk2/Clover/EmuVariableUefi/EmuVariableRuntimeDxe.inf [IA32]
[CC] AutoGen
[SLINK] OsxFatBinaryDrv
[CC] BootServices
[CC] InitVariable
[CC] RuntimeServices
[DLINK1] FSInject
[MTOC] FSInject
[GENFW] FSInject
Building ... /Users/Micky1979/src/edk2/Clover/AppleImageCodec/AppleImageCodec.inf [IA32]
[DLINK1] OsxFatBinaryDrv
[MTOC] OsxFatBinaryDrv
[CC] Log
[GENFW] OsxFatBinaryDrv
Building ... /Users/Micky1979/src/edk2/Clover/bdmesg_efi/bdmesg.inf [IA32]
[CC] AppleImageCodec
[CC] MemLog
[CC] EmuVariable
[CC] bdmesg
[CC] AutoGen
[SLINK] EmuVariableUefi
[CC] FileLib
[CC] AutoGen
[SLINK] bdmesg
[CC] DataHub
[DLINK1] PartitionDxe
[MTOC] PartitionDxe
[GENFW] PartitionDxe
Building ... /Users/Micky1979/src/edk2/Clover/rEFIt_UEFI/refit.inf [IA32]
[CC] Fs
[CC] AutoGen
[SLINK] DumpUefiCalls
[CC] BdsConnect
[CC] picopng
[CC] AutoGen
[SLINK] AppleImageCodec
[DLINK1] EmuVariableUefi
[MTOC] EmuVariableUefi
[GENFW] EmuVariableUefi
[DLINK1] bdmesg
[MTOC] bdmesg
[GENFW] bdmesg
[DLINK1] DumpUefiCalls
[MTOC] DumpUefiCalls
[CC] main
[GENFW] DumpUefiCalls
[DLINK1] AppleImageCodec
[MTOC] AppleImageCodec
[GENFW] AppleImageCodec
[CC] icns
[CC] lib
[CC] menu
[CC] screen
[CC] IO
[CC] common
[CC] legacy
[CC] loader
[CC] tool
[CC] secureboot
[CC] securehash
[CC] securemenu
[CC] securevars
[CC] bootscreen
[CC] lockedgraphics
[CC] BmLib
[CC] image
[CC] load_bmp
[CC] load_icns
[CC] libscreen
[CC] lodepng
[CC] text
[CC] AcpiPatcher
[CC] AmlGenerator
[CC] ati
[CC] BootLog
[CC] BootOptions
[CC] Console
[CC] cpu
[CC] DataHubCpu
[CC] device_inject
[CC] device_tree
[CC] Edid
[CC] Events
[CC] gma
[CC] guid
[CC] Injectors
[CC] LegacyBiosThunk
[CC] LegacyBoot
[CC] nvidia
[CC] picopng
[CC] platformdata
[CC] plist
[CC] Pointer
[CC] Settings
[CC] smbios
[CC] spd
[CC] string
[CC] StateGenerator
[CC] usbfix
[CC] b64cdecode
[CC] FixBiosDsdt
[CC] kernel_patcher
[CC] kext_patcher
[CC] kext_inject
[CC] Nvram
[CC] card_vlist
[CC] PlatformDriverOverride
[CC] Hibernate
[CC] Net
[CC] AutoGen
[SLINK] CLOVERIA32
[DLINK1] CLOVERIA32
[MTOC] CLOVERIA32
[GENFW] CLOVERIA32

Generating DUETEFIMAINFVIA32 FV
########################################
########################################
########################################
####################
GUID cross reference file can be found at /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/FV/Guid.xref

FV Space Information
DUETEFIMAINFVIA32 [32%Full] 2752512 total, 883280 used, 1869232 free

- Done -
Build end time: 16:16:53, Aug.12 2016
Build total time: 00:01:29

Compressing DUETEFIMainFv.FV ...
Encoding
Compressing DxeCore.efi ...
Encoding
Compressing DxeIpl.efi ...
Encoding
Generate Loader Image ...
Created /Users/Micky1979/src/edk2/Build/Clover/RELEASE_XCODE5/FV/Efildr32
  -> boot3
  -> BOOTIA32.efi
  -> CLOVERIA32.efi
Copy Mandatory drivers:
  -> FSInject-32.efi
  -> FSInject-32.efi
  -> OsxFatBinaryDrv-32.efi
  -> VBoxHfs-32.efi
Copy Optional drivers:
  -> VBoxIso9600-32.efi
  -> VBoxExt2-32.efi
  -> VBoxExt4-32.efi
  -> GrubEXFAT-32.efi
  -> GrubISO9660-32.efi
  -> GrubNTFS-32.efi
  -> GrubUDF-32.efi
  -> Ps2KeyboardDxe-32.efi
  -> Ps2MouseAbsolutePointerDxe-32.efi
  -> Ps2MouseDxe-32.efi
  -> UsbMouseDxe-32.efi
  -> XhciDxe-32.efi
Copy Applications:
  -> bdmesg-32.efi
Done!

Generating BootSectors
make: Nothing to be done for `all'.
Done!
===============================================================================
MAKE PKG
                          <----------------------------------------------------
rm -rf sym obj dst

========= Translating Resources ========
/Users/Micky1979/src/edk2/Clover/CloverPackage/package/../../../../opt/local
Updating 'en' strings file for CloverUpdater... done
Updating 'en' strings file for Clover Preference Panel... done
Updating strings file for Clover Preference Panel... done
Discard ../sym/Resources/Clover/Resources/sv.lproj/Welcome.html (0 of 10 strings; only 0% translated; need 80%).
Discard ../sym/Resources/Clover/Resources/sv.lproj/Description.html (0 of 26 strings; only 0% translated; need 80%).
Discard ../sym/Resources/Clover/Resources/sv.lproj/Conclusion.html (0 of 4 strings; only 0% translated; need 80%).
Discard ../sym/Resources/Clover/Resources/sv.lproj/Localizable.strings (0 of 116 strings; only 0% translated; need 74%).
Discard ../CloverUpdater/src/sv.lproj/CloverUpdater.strings (0 of 12 strings; only 0% translated; need 74%).
Discard ../CloverPrefpane/src/sv.lproj/CloverPrefpane.strings (0 of 39 strings; only 0% translated; need 74%).

Building CloverUpdater application...
[XCODE]
Building CloverPrefpane preference...
[XCODE]
================= Making all in fdisk440 =================
	[MKDIR] /Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440
	[CC32] auto.c
	[CC32] cmd.c
	[CC32] disk.c
	[CC32] fdisk.c
	[CC32] getrawpartition.c
	[CC32] mbr.c
	[CC32] misc.c
	[CC32] opendev.c
	[CC32] part.c
	[CC32] user.c
	[CC64] auto.c
	[CC64] cmd.c
	[CC64] disk.c
	[CC64] fdisk.c
	[CC64] getrawpartition.c
	[CC64] mbr.c
	[CC64] misc.c
	[CC64] opendev.c
	[CC64] part.c
	[CC64] user.c
	[LD32] fdisk440_32
ld: warning: ld: warning: ld: warning: object file (/Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440/auto.o32) was built for newer OSX version (10.11) than being linked (10.5)object file (/Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440/disk.o32) was built for newer OSX version (10.11) than being linked (10.5)object file (/Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440/cmd.o32) was built for newer OSX version (10.11) than being linked (10.5)


ld: warning: object file (/Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440/fdisk.o32) was built for newer OSX version (10.11) than being linked (10.5)
ld: warning: object file (/Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440/getrawpartition.o32) was built for newer OSX version (10.11) than being linked (10.5)
ld: warning: ld: warning: ld: warning: object file (/Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440/opendev.o32) was built for newer OSX version (10.11) than being linked (10.5)object file (/Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440/misc.o32) was built for newer OSX version (10.11) than being linked (10.5)object file (/Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440/mbr.o32) was built for newer OSX version (10.11) than being linked (10.5)


ld: warning: ld: warning: object file (/Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440/part.o32) was built for newer OSX version (10.11) than being linked (10.5)object file (/Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440/user.o32) was built for newer OSX version (10.11) than being linked (10.5)

	[LD64] fdisk440_64
ld: warning: ld: warning: object file (/Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440/cmd.o64) was built for newer OSX version (10.11) than being linked (10.5)object file (/Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440/auto.o64) was built for newer OSX version (10.11) than being linked (10.5)

ld: warning: object file (/Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440/disk.o64) was built for newer OSX version (10.11) than being linked (10.5)
ld: warning: object file (/Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440/fdisk.o64) was built for newer OSX version (10.11) than being linked (10.5)
ld: warning: object file (/Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440/getrawpartition.o64) was built for newer OSX version (10.11) than being linked (10.5)
ld: warning: object file (/Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440/mbr.o64) was built for newer OSX version (10.11) than being linked (10.5)
ld: warning: object file (/Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440/opendev.o64) was built for newer OSX version (10.11) than being linked (10.5)
ld: warning: object file (/Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440/part.o64) was built for newer OSX version (10.11) than being linked (10.5)
ld: warning: object file (/Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440/misc.o64) was built for newer OSX version (10.11) than being linked (10.5)
ld: warning: object file (/Users/Micky1979/src/edk2/Clover/CloverPackage/sym/build/fdisk440/user.o64) was built for newer OSX version (10.11) than being linked (10.5)
	[LIPO] /Users/Micky1979/src/edk2/Clover/CloverPackage/sym/utils/fdisk440
================= Making all in boot1-install =================
	[XCODE] boot1-install
================= Making all in partutil =================
	[XCODE] partutil
================= Making all in bdmesg =================
	[XCODE] bdmesg
================= Making all in clover-genconfig =================
	[XCODE] clover-genconfig

  ----------------------------------
  Building Clover Install Package
  ----------------------------------

====================== Preinstall ======================
	[BUILD] Pre
===================== Installation =====================
	[BUILD] UEFI.only
================== Target ESP ==========================
	[BUILD] Target.ESP
=================== BiosBoot ===========================
	[BUILD] BiosBoot
===================== Utils ============================
	[BUILD] Utils
===================== EFI folder =======================
	[BUILD] EFIFolder
===================== BootLoaders ======================
	[BUILD] AltBoot
	[BUILD] bootNo
	[BUILD] boot0af
	[BUILD] boot0ss
====================== CloverEFI =======================
	[BUILD] cloverEFI.32
	[BUILD] cloverEFI.64.sata
	[BUILD] cloverEFI.64.blockio2
======================== Themes ========================
	[BUILD] applestyle
	[BUILD] BGM
	[BUILD] black_green
	[BUILD] bluemac
	[BUILD] bootcamp
	[BUILD] chrome
	[BUILD] iclover
	[BUILD] magnifico
	[BUILD] metal
	[BUILD] orange
	[BUILD] os_box
	[BUILD] os_one
	[BUILD] Shield
	[BUILD] Space
	[BUILD] steampunkblack
	[BUILD] thinkpad
================= drivers32 mandatory ==================
	[BUILD] FSInject-32
===================== drivers32 ========================
	[BUILD] GrubEXFAT-32
	[BUILD] GrubISO9660-32
	[BUILD] GrubNTFS-32
	[BUILD] GrubUDF-32
	[BUILD] Ps2KeyboardDxe-32
	[BUILD] Ps2MouseAbsolutePointerDxe-32
	[BUILD] Ps2MouseDxe-32
	[BUILD] UsbMouseDxe-32
	[BUILD] VBoxExt2-32
	[BUILD] VBoxExt4-32
	[BUILD] VBoxIso9600-32
	[BUILD] XhciDxe-32
=============== drivers32 UEFI mandatory ===============
	[BUILD] FSInject-32.UEFI
	[BUILD] OsxFatBinaryDrv-32.UEFI
	[BUILD] VBoxHfs-32.UEFI
================= drivers64 mandatory ==================
	[BUILD] FSInject-64
===================== drivers64 ========================
	[BUILD] GrubEXFAT-64
	[BUILD] GrubISO9660-64
	[BUILD] GrubNTFS-64
	[BUILD] GrubUDF-64
	[BUILD] NvmExpressDxe-64
	[BUILD] Ps2MouseDxe-64
	[BUILD] UsbMouseDxe-64
	[BUILD] VBoxExt2-64
	[BUILD] VBoxExt4-64
	[BUILD] VBoxIso9600-64
	[BUILD] XhciDxe-64
=============== drivers64 UEFI mandatory ===============
	[BUILD] FSInject-64.UEFI
	[BUILD] OsxFatBinaryDrv-64.UEFI
	[BUILD] VBoxHfs-64.UEFI
=================== drivers64 UEFI =====================
	[BUILD] CsmVideoDxe-64
	[BUILD] DataHubDxe-64
	[BUILD] EmuVariableUefi-64
	[BUILD] OsxAptioFix2Drv-64
	[BUILD] OsxAptioFixDrv-64
	[BUILD] OsxLowMemFixDrv-64
	[BUILD] PartitionDxe-64
===================== RC Scripts =======================
	[BUILD] rc.scripts.on.target
	[BUILD] rc.scripts.on.all.volumes
	[BUILD] rc.scripts.core
================= Optional RC Scripts ==================
	[BUILD] disable_sleep_proxy_client
==================== Clover Prefpane ===================
	[BUILD] CloverPrefpane
================= Post =================
	[BUILD] Post

 --------------------------
 Building process complete!
 --------------------------

 Build info.
 ===========
  Package name: Clover_v2.3k_r3695.pkg
  MD5:          0fc4eea82896de4b7f09b794ccf53205
  Version:      v2.3k
  Stage:        v2.3k
  Date/Time:    2016-08-12 16:15:25
  Built by:     Micky1979
  Copyright     2012-2016

  adding: Clover_v2.3k_r3695.pkg (deflated 0%)
  adding: Clover_v2.3k_r3695.pkg.md5 (stored 0%)
total 111560
drwxr-xr-x   9 Micky1979  staff       306 Aug 12 16:17 .
drwxr-xr-x  14 Micky1979  staff       476 Aug 12 16:17 ..
-rw-r--r--@  1 Micky1979  staff  28395764 Aug 12 16:17 Clover_v2.3k_r3695.pkg
-rw-r--r--   1 Micky1979  staff        68 Aug 12 16:17 Clover_v2.3k_r3695.pkg.md5
-rw-r--r--   1 Micky1979  staff  28333053 Aug 12 16:17 Clover_v2.3k_r3695.zip
drwxr-xr-x   3 Micky1979  staff       102 Aug 12 16:16 Resources
drwxr-xr-x   7 Micky1979  staff       238 Aug 12 16:17 build
drwxr-xr-x   3 Micky1979  staff       102 Aug 12 16:17 package
drwxr-xr-x   7 Micky1979  staff       238 Aug 12 16:17 utils
===============================================================================
MAKE ISO
                          <----------------------------------------------------
================= Making all in fdisk440 =================
make[2]: Nothing to be done for `all'.
================= Making all in boot1-install =================
make[2]: Nothing to be done for `all'.
================= Making all in partutil =================
make[2]: Nothing to be done for `all'.
================= Making all in bdmesg =================
make[2]: Nothing to be done for `all'.
================= Making all in clover-genconfig =================
make[2]: Nothing to be done for `all'.
====================== Creating cdboot =====================
Update cdboot with boot file size info
===================== Creating cdboot32 ====================
Update cdboot32 with boot file size info
======================= Creating ISO =======================
[RM] /Users/Micky1979/src/edk2/Clover/CloverPackage/sym/CloverCD
[MKDIR] /Users/Micky1979/src/edk2/Clover/CloverPackage/sym/CloverCD/usr/standalone/i386
[MKDIR] /Users/Micky1979/src/edk2/Clover/CloverPackage/sym/CloverCD/EFI/BOOT
[MKDIR] /Users/Micky1979/src/edk2/Clover/CloverPackage/sym/CloverCD/EFI/CLOVER/themes/
[MKDIR] /Users/Micky1979/src/edk2/Clover/CloverPackage/sym/CloverCD/usr/bin
[MKDIR] /Users/Micky1979/src/edk2/Clover/CloverPackage/sym/CloverCD/usr/local/bin
[MKDIR] /Users/Micky1979/src/edk2/Clover/CloverPackage/sym/CloverCD/Library/Application Support/Clover
[MKDIR] /Users/Micky1979/src/edk2/Clover/CloverPackage/sym/CloverCD/Library/PreferencePanes
[CP] cdboot
[CP] cdboot32
[CP] metal
[CP] BOOTX64
[CP] CLOVERX64
[CP] BOOTIA32
[CP] CLOVERIA32
[CP] drivers64
[CP] kexts and OEM
[CP] tools
[CP] doc
[CP] drivers32
[CP] drivers-off
[CP] boot
[HDIUTIL] /Users/Micky1979/src/edk2/Clover/CloverPackage/sym/Clover-v2.3k-3695-X64.iso
[HDIUTIL] /Users/Micky1979/src/edk2/Clover/CloverPackage/sym/Clover-v2.3k-3695-IA32.iso
[TAR] CloverISO-3695
a .
a ./Clover-v2.3k-3695-IA32.iso
a ./Clover-v2.3k-3695-X64.iso
[LZMA] CloverISO-3695
total 124160
drwxr-xr-x  14 Micky1979  staff       476 Aug 12 16:17 .
drwxr-xr-x  14 Micky1979  staff       476 Aug 12 16:17 ..
-rw-r--r--@  1 Micky1979  staff      6148 Aug 12 16:17 .DS_Store
drwxr-xr-x   5 Micky1979  staff       170 Aug 12 16:17 CloverCD
drwxr-xr-x   4 Micky1979  staff       136 Aug 12 16:17 CloverISO-3695
-rw-r--r--   1 Micky1979  staff   6439272 Aug 12 16:17 CloverISO-3695.tar.lzma
-rw-r--r--@  1 Micky1979  staff  28395764 Aug 12 16:17 Clover_v2.3k_r3695.pkg
-rw-r--r--   1 Micky1979  staff        68 Aug 12 16:17 Clover_v2.3k_r3695.pkg.md5
-rw-r--r--   1 Micky1979  staff  28333053 Aug 12 16:17 Clover_v2.3k_r3695.zip
drwxr-xr-x   3 Micky1979  staff       102 Aug 12 16:16 Resources
drwxr-xr-x   7 Micky1979  staff       238 Aug 12 16:17 build
drwxr-xr-x   4 Micky1979  staff       136 Aug 12 16:17 i386
drwxr-xr-x   3 Micky1979  staff       102 Aug 12 16:17 package
drwxr-xr-x   7 Micky1979  staff       238 Aug 12 16:17 utils
===============================================================================
Done
                          <----------------------------------------------------
Micky1979s-MBP:~ Micky1979$

Be sure that no errors happened during the update using the option 2):

2) update Clover only (no building)

and look for conflictual file or timeout errors during the update...if any

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By MaLd0n
      ---TUTORIAL---

      https://olarila.com/forum/viewtopic.php?f=50&t=8685

      --Original Post--

      https://olarila.com/forum/viewtopic.php?f=97&t=11237

      --Bios/UEFI Settings--

      *Update bios/uefi to F7+*
      1- Go to M.I.T./Advanced Frequency Settings tab

      Extreme Memory Profile (X.M.P.) - Profile 1

      2- Go to BIOS tab

      CSM Support - Disabled

      3- Go to Peripherals/Thunderbolt(TM) Configuration tab

      Security Level - No Security
      Thunderbolt USB Support - Enabled
      GPIO3 Force Pwr - Enabled

      4- Go to Chipset tab

      Internal Graphics - Enable

      ---CLOVER FOLDER---
      *Use this folder with FULL DSDT PATCHED
      EFI CLOVER Z390 DESIGNARE.zip

      ---OPENCORE FOLDER---
      *Use this folder with FULL DSDT PATCHED
      EFI OPENCORE Z390 DESIGNARE.zip

      ---DSDT patch requests is here---

      https://olarila.com/forum/viewtopic.php?f=19&t=1131

      ---HARDWARE---

      --MOBO

      GIGABYTE Z390 DESIGNARE
      -Link
      https://www.amazon.com/Z390-DESIGNARE-Gigabyte-Thunderbolt-Motherboard/dp/B07K8RJZRG/ref=sr_1_1?keywords=Z390+DESIGNARE&qid=1565492390&s=electronics&sr=1-1

      --PROCESSOR

      Intel Core i9-9900K
      -Link
      https://www.amazon.com/Intel-i9-9900K-Desktop-Processor-Unlocked/dp/B005404P9I/ref=sr_1_1_sspa?keywords=Intel+Core+i9-9900K&qid=1553358099&s=gateway&sr=8-1-spons&psc=1

      --COOLER

      CORSAIR H100i RGB PLATINUM AIO Liquid CPU Cooler
      -Link
      https://www.amazon.com/CORSAIR-H100i-PLATINUM-Liquid-Cooler/dp/B07JWB5BSN/ref=sr_1_4?keywords=WATER+COOLER+CPU&qid=1565492509&s=gateway&sr=8-4

      --MEMORY

      Corsair CMW32GX4M2C3200C16 Vengeance RGB PRO 32GB (2x16GB) DDR4 3200 (PC4-25600)
      -Link
      https://www.amazon.com/Corsair-CMW32GX4M2C3200C16-Vengeance-PC4-25600-Desktop/dp/B07GTG2T7L/ref=sr_1_15?keywords=memory+ddr4+32&qid=1553358238&s=gateway&sr=8-15

      --GPU

      MSI RX Vega 64 AIR Boost 8G OC
      -Link
      https://www.amazon.com/MSI-RX-64-AIR-8G/dp/B07DH7S1X1/ref=sr_1_2?keywords=vega+64+gigabyte&qid=1565492819&s=electronics&sr=1-2

      --SSD

      Samsung 970 EVO 1TB SSD (MZ-V7E1T0BW) NVMe M.2 V-NAND
      -Link
      https://www.amazon.com/Samsung-970-EVO-1TB-MZ-V7E1T0BW/dp/B07BN217QG/ref=sr_1_1?keywords=s+samsung+970+evo+1tb&qid=1565493002&s=electronics&sr=1-1

      --POWER SUPPLY

      EVGA Supernova 1000 P2 80+ Platinum, 1000W ECO Mode Fully Modular
      -Link
      https://www.amazon.com/EVGA-Supernova-Platinum-Crossfire-220-P2-1000-XR/dp/B00EKJQM5E/ref=sr_1_3?keywords=power+supply+1000w&qid=1565493196&s=gateway&sr=8-3

      --WIRELESS

      TP-Link Archer T9E
      -Link
      https://www.amazon.com/TP-Link-Archer-T9E-Beamforming-Technology/dp/B00TQEX7AQ/ref=sr_1_1?keywords=TP-Link+Archer+T9E&qid=1553358397&s=gateway&sr=8-1

      --CASE

      Thermaltake Core P5 Tempered Glass Black Edition ATX Open Frame Panoramic Viewing
      -Link
      https://www.amazon.com/Thermaltake-Tempered-Panoramic-Certified-CA-1E7-00M1WN-03/dp/B01N4IGVSC/ref=sr_1_2?keywords=Thermaltake+Core+P5&qid=1565493567&s=gateway&sr=8-2

      --DSDT Patches--
      -FIX ACPI ERRORS -FIX OEM SSDTs to AVOID ERRORS AND WARNINGS -REMOVE UNUSED SCOPES / DEVICES -HIGH PRECISION EVENT TIMER -SATA -DMAC -REMOVE PROBLEMATIC AND UNUSED DEVICES -FIX K.P in REBOOT -SLPB -DARWIN / WINDOWS 2015 -XHCI -PLUGIN TYPE -HDAS to HDEF -HDEF -REAL TIME CLOCK -ARTC -IRQs -SBUS -BUS1 -MCHC -ALS0 -SHUTDOWN -LAN -FWHD -USBX -PMCR -PPMC -XSPI -CNVW -GMM -IMEI -EC -PNLF -ARPT -GFX0 -NVME -DTGP -ACQUIRE MUT0 0XFFFF -MUTEX MUT0 0x00 -EXTERNAL REFERENCES -UNKNOWNOBJ -HDMI / HDAU -FULL RENAMED DEVICES ---SCREENSHOTs---




















      -Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!
      Thanks to KGP for SSDT Thunderbolt
      Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad, Sampath007, onemanosx, erroruser, Jenny David, Olarila Facebook Community, Hackintosh Facebook Community and many others!
      We're all here to have fun and learn from each other!
    • By kylon
      Cloud Clover Editor is an open source application that allows you to manage various Hackintosh Bootloaders configs everywhere.

      Open Cloud Clover Editor

      Cloud Clover Editor Wiki
      Cloud Clover Editor Sources


      Features
      Supports Clover EFI, Ozmosis, Chameleon, OpenCore GUI and Text Editor Mode CCE Bank Mobile friendly
      Officially supported browsers
      Chrome 42+ Microsoft Edge 14+ Firefox 39+ Safari 10+ Opera 29+ Opera Mobile 12+ Chrome for Android 75+ Firefox for Android 67+

      Credits
      mackie100 - took some ideas from his app Clover EFI dev team Eric Slivka - new serial number Virtual1 - new serial number cecekpawon - PHP 5.3.3 patch, , help with the ACPI Loader Mode flag and more Micky1979 - Clover flying editor  (Discontinued) crusher. - Help with the ACPI Loader Mode flag Download-Fritz - Help with the ACPI Loader Mode flag Pavo - Ozmosis fields and values stehor - Ozmosis fields and values Sherlocks - General help and support gujiangjiang - General help and support
      Please let me know if i forgot you!
    • By gengik84
      Ciro82==>>Thanks
      Uno dei tre Requisiti:
      Hack funzionante Mac vero Macchina virtuale Impostazioni Bios per il boot:
      Cercate una voce  del tipo “Sata Mode”e settatela  in AHCI
      Secure Boot: disabilitare o altri sistemi operativi
      CSM: UEFI o LEGACY, oppure a secondo del tipo di installazione
      VT-x / VT-d disable
      *Nota: Secure boot e csm valido solo per bios UEFI
      Materiale Occorrente
      "OS X (Versione App.Store)”
      USB 8GB  *nota: nel caso di usb superiori dovrà essere partizionata, in modo da avere una partizione su cui "lavoreremo,di questa dimensione
      ShowAllfiles
      kext Wizard
      Bootloader Clover_2.3k_r xxx:                   http: //sourceforge.n.../cloverefiboot/
      Clover Configurator:                                    http: //mackie100proj...a.org/download/
      FakeSmc.kext:                                            https://github.com/kozlek/HWSensors/releases
      In allegato,a fondo pagina troverete un "pacchetto" contenente : ShowAllfiles, Kext Wizard, FakeSmc.kext:
      App alternative:
      ESP Mounter Pro: per montare la partizione EFI
      Vi illustrerò tre metodi per creare la usb, ma sono ben distinti… quindi usatene soltanto uno
      Metodo 1: “Install Mac_OS_X.command” Metodo 2: “Create Install Media di Apple” Metodo 3:  Metodo Manuale Alla fine delle preparazione dell’installer, tutti i metodi necessitano l’installazione del Bootloader Clover sulla a vostra USB.
      “CONDIZIONI OBBLIGATORIE”
      PUNTO 1: che la vostra usb sia stata preventivamente nominata USB (caratteri maiuscoli) Tabella di partizione GUID e la formattazione in  Mac esteso Journaled.
      PUNTO 2: che l’installer di OSX si trovi in Applicazioni
      Utility Disco
      Selezionate la pendrive, andate su “partizione”, selezionate “1 partizione”, impostate Mac OS esteso journaled e date il nome USB, poi in basso cliccate su opzioni e scegliete Tabella partizione (GUID), poi “applica”.
      Immagine
      Riporto nuovamente l’operazione sopra citata adoperando dal nuovo Utility Disco introdotto su El Capitan.
      Rimane ovviamente invariato nome della usb in ==>> USB (maiuscolo), la formattazione in Mac esteso Journaled e sia la mappa partizione in GUID
      Da utility disco selezionate la usb, cliccate su inizializza.
      dal menù a tendina scegliete la relative impostazioni
      Immagine
      Procedura effettua da High Sierra è la stessa della precedente, l'unica attenzione e operazione da aggiungere in primis  è cliccare nel menù a tendina in alto sulla sinistra di utility disco e selezionare "mostra tutti i dispositivi"
      Immagine

      =====================
        METODO 1: "Install_Mac_OS_X.Command" Lo script che trovate allegato in fondo alla guida permette la creazione dell’installer in maniera automatica
      Include la possibilità di scelta di tre versioni di osx
      Yosemite El Capitan Sierra Il risultato finale è come quello del metodo "manuale" descritto nella guida, per cui l'installazione avverrà in un solo passaggio, non in due come con il metodo createinstallmedia.
      Offre inoltre la possibilità di inserire un kernel patchato, utile, per esempio, per chi usa AMD.
      Rimane invariato il nome dato alla usb in USB, mappa partizione e tipo di formattazione
      Se la vostra usb non sarà rinominata nel modo corretto, verrete avvisati dal terminale, quindi non dovrete far altro che apportare la relativa modifica e rilanciare nuovamente lo script
      Esempio
      ===========================
      Metodo 2
      L'intento è quello di usare la procedura fornitaci direttamente da Apple, "createinstallmedia", introdotta  con Mavericks.
      Tale metodo prevede l’uso del terminale che via via se ne sta perdendo il “valore e l’uso”
      Inizialmente per i neofiti potrà sembrare problematico ma alla fine non è così.
      Durante il post installazione alcune operazioni ne richiedono l’ uso.
      Perciò mi sono chiesto perchè, qualora uno volesse, non far conoscere da subito un po’ questo “strumento”???
      Per favorirvi vi ho allegato i comandi già  “pronti”, i quali li potrete copiare ed incollare sul terminale.
      A questo punto aprite il terminale, copiate ed incollate il comando sottostante e premete invio, digitate la vostra password e premete nuovamente invio.
      Comando per creare USB con Yosemite:
      sudo /Applications/Install\ OS\ X\ Yosemite.app/Contents/Resources/createinstallmedia --volume /Volumes/USB --applicationpath /Applications/Install\ OS\ X\ Yosemite.app --nointeraction
      Comando per creare USB con El Capitan
      sudo /Applications/Install\ OS\ X\ El\ Capitan.app/Contents/Resources/createinstallmedia --volume /Volumes/USB --applicationpath /Applications/Install\ OS\ X\ El\ Capitan.app --nointeraction Comando per creare USB con Sierra
      sudo /Applications/Install\ macOS\ Sierra.app/Contents/Resources/createinstallmedia --volume /Volumes/USB --applicationpath /Applications/Install\ macOS\ Sierra.app/ --nointeraction Per creare USB con Hight Sierra o Mojave usate --> C_I_M (aggiornato per 10.14)

      Funziona con il drag & drop sul terminale, in questo caso non vi è necessità che la usb sia nominata in un determinato modo ed essendo basato su create install media ovviamente funziona da 10.9 a 10.14....
      BENE…IL PROCESSO DI CREAZIONE E’ INIZIATO…
      AVREMO CIRCA 20/30 MINUTI DI TEMPO LIBERO A CUI DEDICARSI A CIO’ CHE VOGLIAMO………………………………………..
      COLGO L’OCCASIONE PER FARVI NOTARE LA VELOCITA’ E LA SICUREZZA DI QUESTO METODO
      CONFRONTATE QUESTO CON IL TERZO METODO E NOTERETE CHE CON UN SOLO PASSAGGIO, OSSIA IL COMANDO DATO AL TERMINALE, FACCIAMO IN UNA SINGOLA OPERAZIONE TUTTI I VARI STEP DESCRITTI SULL’ ALTRO METODO.
      DETTO QUESTO, MOLTO IMPORTANTE E’ SOTTOLINEARE CHE COSI’ FACENDO EVITEREMO ERRORI  DI DISTRAZIONE RIGUARDO AI PASSAGGI O FRAINTENDIMENTI.
      Immagine
      Potete adesso passare ad installare il bootloader Clover sulla vostra usb.
      *NOTA*:
      Avendo usato questo metodo l'installazione si dividerà in due fasi, perciò dopo il primo riavvio e necessario far partire nuovamente l'installer, selezionare lo stesso disco senza formattarlo.
      Finita questa ulteriore fase , l'installazione sarà terminata
      =========================
      METODO "MANUALE"....  (lascio per futura memoria-Compatibile fino a 10.12)
      ==========================
      Bootloader
      **Nota:** Installazione in UEFI  dipenderà dalla scheda madre in vostro possesso, quindi se non supporta tale opzione , il bootloader dovrà essere installato in  modalità Legacy.
       Vi invito, qualora non sapeste questa informazione, a recarvi nel sito ufficiale del produttore e controllare le informazioni a riguardo
      Fatto questo dobbiamo installare  Clover sulla usb.
      A seconda del tipo di Bios o al tipo di installazione che vogliamo fare UEFI o Legacy avremo ovviamente configurazioni diverse in questa fase.
      Lanciate il pkg.
      Immagine


      Cambiate la destinazione di installazione ad USB oppure Install Mac_OS_X (a secondo del tipo di creazione eseguita)
      Successivamente clicchiamo su "Ad Hoc"
      Per Installazione UEFI
      Mettete i flag   : Installazione solo per avvio UEFI
                               : installare Clover nella ESP
                               : Driver64UEFI  AptioMemory --> (consigliato) ->  Link download
       Può essere solo aggiunto manualmente scaricando dal link sopra e collocandolo nella rispettiva cartella
       NOTA: in questo caso non selezionare nessun OsxAptioFixDRV durante l'installazione di clover oppure rimuovetelo                        successivamente.
                               : Driver64UEFI  ApfsDriverLoader --> (consigliato) --> sostituisce l'uso del driver apfs.efi
                               : Selezionate l'altri driver come da successiva immagine,

      *Nota: Altri driver che si possono usare  al suo posto  sono:
       informazioni

      Proseguite con l’installazione.
      Immagine
      ** Ricordate che avrete accesso a questa cartella dopo aver montato la partizione EFI**
      ===========================
      Per installazione Legacy
      Immagine
      ===========================
      Impostazione per config.plist:
      Con clover configurator “montate” la partizione EFI della usb.
      1) Per fare questo nel menù di sinistra, cliccate su “Mount EFI”
      2) individuate la partizione relativa alla vostra usb, a questo punto montiamo la relativa partizione EFI  selezionando l’apposito pulsante “Mount Partition”
      Immagine
      3) Successivamente cliccate su “Open Partition”.. recatevi in EFI/Clover ed aprite il config.plist
      4) Sezione ACPI: Disabilitate tutti i fix sia del menù 1 che del menù 2
      Immagine
      5) Sezione BOOT: Sole se si sta installando Yosemite mettete il flag su kext-dev-mode=1
      Immagine
      6) Sezione RT Variables: Se si sta installando El Capitan oppure Sierra, aggiungere i valori: BooterConfig= 0x28, CsrActiveConfig= 0x67
      Immagine
      7) Sezione System Parameters: Su inject kext mettete YES
      Immagine
      ===========================
      Nota: Su El Capitan, è stato introdotto SIP (System Integrity Protection)
      Info:
      ===========================
      Recatevi in EFI/Clover/kext/10.x
      X= alla versione di osx che state installando. Per esempio se installerete Yosemite dovrete recarvi nella cartella 10.10, con El Capitan in 10.11….ecc
      Se non ci fosse tale cartella, createla e nominatela voi a “modo”.
      Copiatevi all’interno FakeSmc.kext
      *Nota se venite già da altre vostre configurazioni, oltre kext sopra citato ,potete mettere gli altri necessari per il vostro hardware
      Stessa cosa se avete DSDT e/o SSDT potete copiarli in EFI/Clover/Acpi/Patched
      Immagine

      Per High Sierra:
      Scaricare il driver apfs.efi a fine guida, collocarlo:
          --> EFI/clover/Driver64UEFI se stiamo usando UEFI
      --> EFI/Clover/Driver64 se stiamo usando Legacy

      Per chi volesse continuare ad usare HFS vi rimando a questo post:
        Come installare High Sierra in HFS direttamente dalla usb
      Utenti Laptop:  Nel 99% è obbligatorio disattivare la grafica discreta Nvidia/Amd per installare questo nuovo osx
                                     Quindi aggiungete --> SSDT-Disable_DGPU.aml.zip
                                     in EFI/Clover/acpi/Patched della usb
      --------------------------------------------------------------------
      Per Mojave:
      Scaricare il driver apfs.efi per 10.14 a fine guida, collocarlo:
          --> EFI/clover/Driver64UEFI se stiamo usando UEFI
      --> EFI/Clover/Driver64 se stiamo usando Legacy
      Versione di clover non antecedente a V_4015
      Volete usare HFS?
      E' possibile fare un installazione diretta su altro disco o partizione, nel caso può essere usato anche per effettuare aggiornamenti...
      nel caso guardate...
       Mojave in HFS
       Oppure direttamente da usb

      Fatto questo avrete la vostra USB bootable per installare OSX.
      ………Non scordatevi Fakesmc.kext da mettere nella relativa cartella…. senza il quale non farete mai il Boot......
      *NOTA: se usato il terminale per la creazione della usb, l'installazione si dividerà in due fasi, perciò dopo il primo riavvio e necessario far partire nuovamente l'installer, selezionare lo stesso disco senza formattarlo.
      Finita questa ulteriore fase , l'installazione sarà terminata
      **NOTA** Se avete processori Broadwell,Skylake o Kabylake...usate FakeSmc.kext e relativi sensors che trovate all'interno del secondo pacchetto.. (potete usarlo anche sui precedenti senza problemi, essendo una versione più aggiornata ha ulteriore supporto per le cpu più recenti)
      Update: Fakesmc e sensors versione 6.26
      Post installazione... post #2
       Buon Hack…..
      Aggiornamento:Install_Mac_OS_X.command.zip (compatibile da 10.10 a 10.12)
      le info le trovate a questo post
      Ringrazio @Ciro82 che mi ha aiutato nel preparare questa guida.
      Pacchetto.zip
      Pacchetto-2.zip
      Pacchetto-Fake+Sensors 6.26.1440.zip
      C_I_M.zip













    • By Alesss
      Good morning,

      I've the following pieces of hardware:
      - i7 6700K
      - GTX 1080
      - Asus Z170 Deluxe
      - NVME hard drives

      Yesterday I've successfully completed a High Sierra installation (I can't migrate to Mojave due to missing NVIDIA web drivers) but the system (even though it works correctly) seems to show a kernel panic at every shutdown/reboot.

      Please find the RunMe.app report attached.

      A couple of notes:
      - I've installed the audio kexts through the acidanthera AppleALC procedure
      - I've generated the SSDT with pikessdt script
      - Nvidia web drivers have been installed with the vulgo/webdriver.sh script that requires the WhateverGreen and the ngfxcompat=1 boot argument
      - AirportBrcmFixup.kext, BrcmFirmwareRepo.kext and BrcmPatchRAM2.kext have been used to unlock the full potential of the integrated Wi-Fi card
      - I've tried to clean nvram and motherboard CMOS with no avail
      - I've tried to update Clover to the latest version but it always results in an unbootable system

      It's a pity because everything seems to work correctly (USB ports, graphics, Wifi card, Continuity and so on. I haven't tried sleep but I don't use it anyway ) but this crash is fairly annoying.

      Thank you very much,
      Alesss

      Send me Ales-iMac.zip
    • By Pentothal.Z
      Hello all,
      I have a working hackintosh....ok.....but it takes a lot to boot and according to the boot.log there are a few problems.
      One of them is a black screen that stays on for a long time.
      I would like to ask anyone in this community some help to fine tune my machine.
      Boot.log and config.plist attached


      Any help would be appreciated.
      bootlog.txt
      config.plist
×
