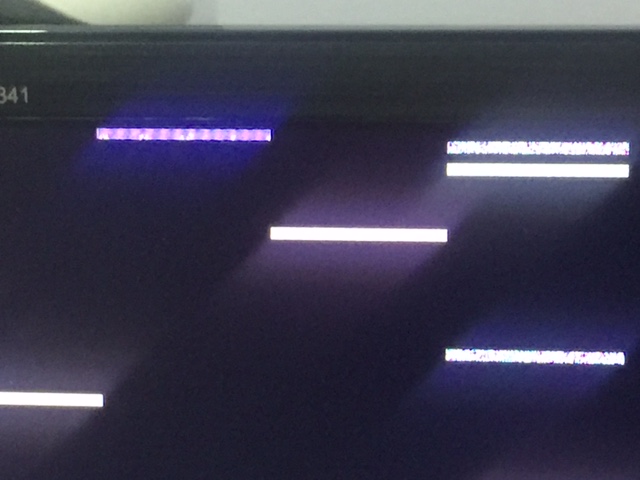

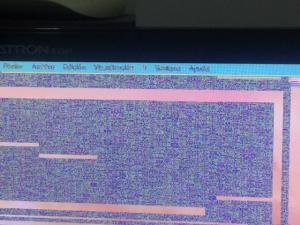

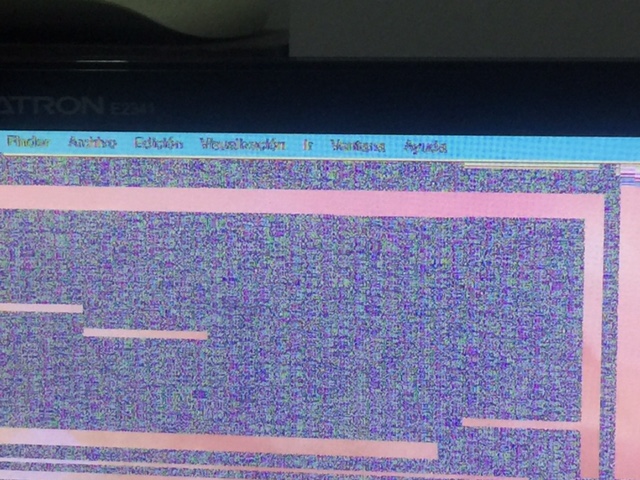

Java Lava Posted June 15, 2016 Share Posted June 15, 2016 Hello everyone I have troubles with the graphic card onboard Intel HD4600, i have the QE/CI working but the signal shows glitches, attached screenshoots The configuration is CPU: i5 4440Motherboard: GA-Z87-D3H rev1.0BIOS version: F8Graphic card: Onboard Intel HD4600 - Discrete nVidia GTX 650Bootloader: Clover 2k3 rev3556OSX: Yosemite 10.10.5SMBIOS: 14,2 If somebody want/can help me i leave you attached my config.plist and IOReg file, if you needs more files let me know please Blas's config.plist.zip Blas’s iMac.ioreg.zip I attempted apply several fixes but without luck Edit frame buffers from Toleda’s guide: No luckApply the Kexts FakeID …. : No luckTry several SMBIOS: No luckInjection way DSDT and SSDT: no luckTry with previous versions of Azul and HD5000 kexts: No Luck Somebody have more ideas? Greetings Link to comment https://www.insanelymac.com/forum/topic/312566-glitches-with-the-hd4600/ Share on other sites More sharing options...
Java Lava Posted June 16, 2016 Author Share Posted June 16, 2016 no help? Greetings Link to comment https://www.insanelymac.com/forum/topic/312566-glitches-with-the-hd4600/#findComment-2243827 Share on other sites More sharing options...
fermolino Posted July 10, 2016 Share Posted July 10, 2016 no help? Greetings Up! Did you managed this? Link to comment https://www.insanelymac.com/forum/topic/312566-glitches-with-the-hd4600/#findComment-2250619 Share on other sites More sharing options...
Java Lava Posted July 11, 2016 Author Share Posted July 11, 2016 Hello fermolino Sadly no Greetings Link to comment https://www.insanelymac.com/forum/topic/312566-glitches-with-the-hd4600/#findComment-2250972 Share on other sites More sharing options...
frnic Posted July 11, 2016 Share Posted July 11, 2016 Try changing your ScreenResolution to 1024x768 in the clover config.plist. It worked in my case with a HD5500 card. One of the issues causing this seems to be the BIOS is not able to handle the higher resolution prior to the Intel Driver being loaded. By setting the screen resolution lower the BIOS starts up correctly and then later when the Intel driver is loaded the resolution will change to the higher settings. Was the fix for me after many days researching and trying things. 1 Link to comment https://www.insanelymac.com/forum/topic/312566-glitches-with-the-hd4600/#findComment-2251017 Share on other sites More sharing options...
Java Lava Posted July 14, 2016 Author Share Posted July 14, 2016 Thanks frank, For see if i am understanding, in my config.plisti need make the change in GUI ---> ScreenResolution ... right? i will attempt and back with the report Link to comment https://www.insanelymac.com/forum/topic/312566-glitches-with-the-hd4600/#findComment-2252701 Share on other sites More sharing options...
fermolino Posted July 15, 2016 Share Posted July 15, 2016 Try changing your ScreenResolution to 1024x768 in the clover config.plist. It worked in my case with a HD5500 card. One of the issues causing this seems to be the BIOS is not able to handle the higher resolution prior to the Intel Driver being loaded. By setting the screen resolution lower the BIOS starts up correctly and then later when the Intel driver is loaded the resolution will change to the higher settings. Was the fix for me after many days researching and trying things. It doesn't work to me. How did you done this? Link to comment https://www.insanelymac.com/forum/topic/312566-glitches-with-the-hd4600/#findComment-2253157 Share on other sites More sharing options...
DuongTHVN Posted August 8, 2016 Share Posted August 8, 2016 try + 1 lever for DVMT pre-allocated ( mean if current DVMT pre-allocated 32MB then change to DVMT pre-allocated 64, bla bla) Link to comment https://www.insanelymac.com/forum/topic/312566-glitches-with-the-hd4600/#findComment-2263132 Share on other sites More sharing options...
