Success Hackintosh OS X El Capitan 10.11.4 Beta Build 15E27e at HP Pavilion 15-AC169TX

Andres ZeroCross

13 posts in this topic

Recommended Posts

Specification :
Processor : Intel Core i5 5200
RAM : 8GB PC12800 DDR3L (Use 1 Slot)
HDD : 1TB Hitachi
Optical Drive : DVD/RW
VGA : Intel HD Graphics 5500 + AMD RADEON R5 M330 2GB
Display : 15.6" Internal Display LED
Sound : Realtek ALC282

Tools and Softwares
1. USB FlashDrive with 8GB
2. "Install OS X El Capitan.app" from AppStore, i downloaded 10.11.2 version
3. Use CreateInstallMedia method
4. Clover R3330
5. UEFI Mode

Special Problem :
1. We can't unlock DVMT Pre-Allocation memory with Shell Command, there is error notification about "can't change value with EFI" so just use PATCH Binary for "AppleIntelBDWGraphicsFramebuffer" with Clover.

What's working
1. Shutdown, Restart and Good Sleep
2. Close LID for Sleep and Open LID for Wake
3. Working Ethernet
4. Working iMessage (I used "ROM" and "MLB" of Real Mac :hysterical: )

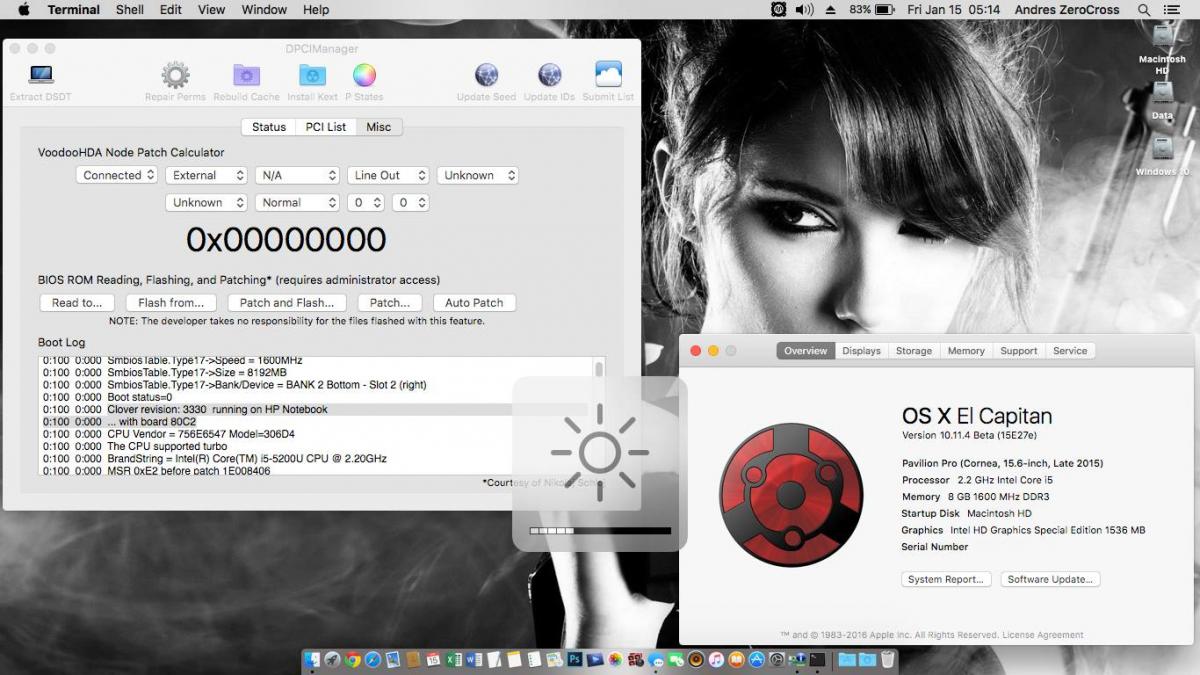

5. FN Brightness Fix, Check this

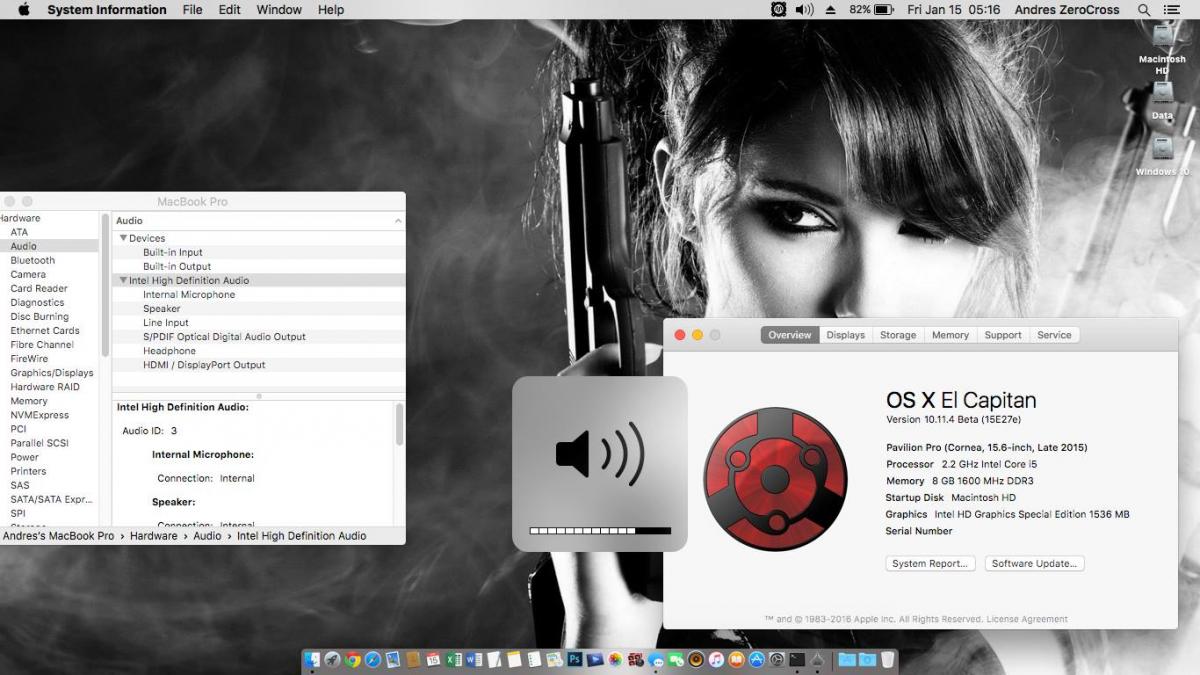

6. Sound via AppleHDA Patching (All Working,, Input dan output)
7. Battery Indicator

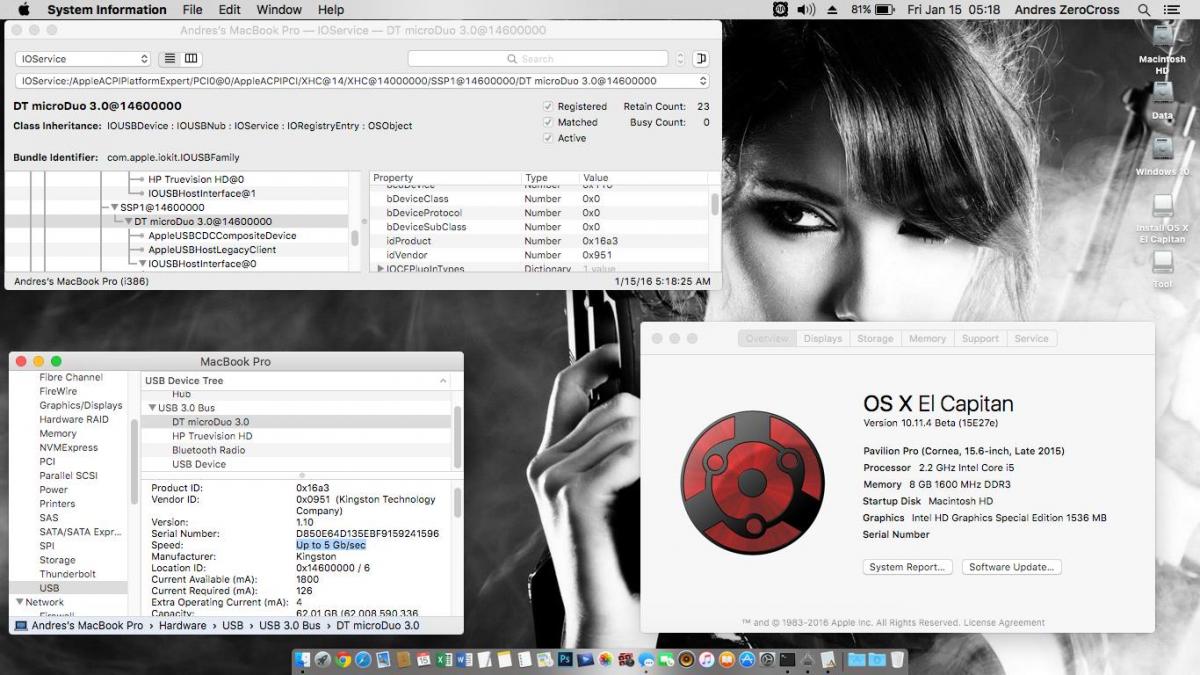

8. Super Speed USB 3.0 (5Gb/s) and all of USB Port

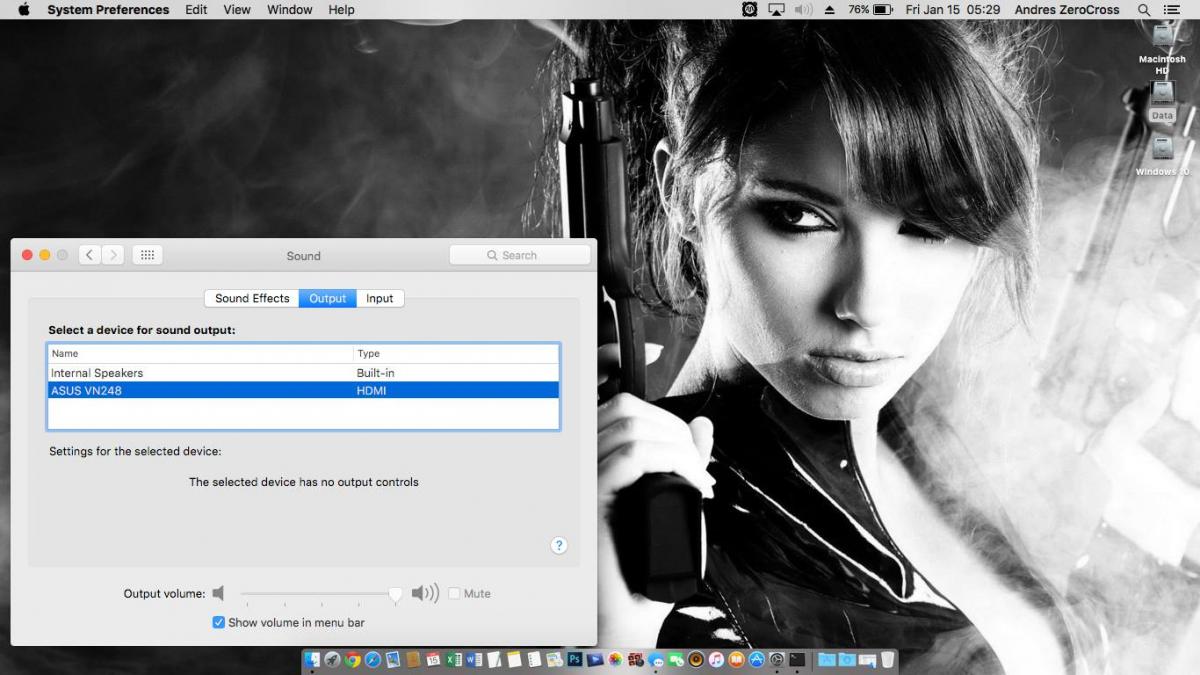

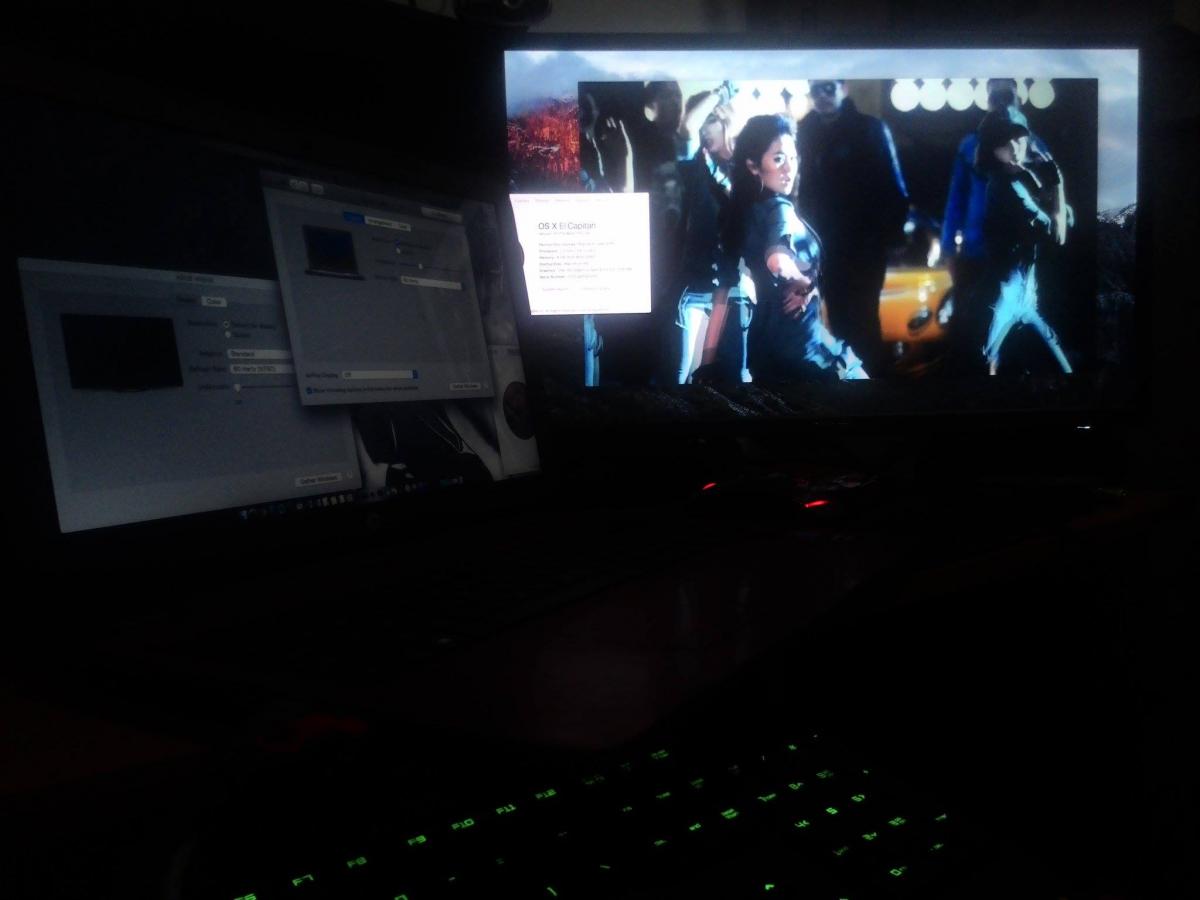

9. HDMI Audio and HDMI Output
10. Webcam Camera

1. Format your USB to HFS+ and GPT Format then open terminal and use this command "sudo /Applications/Install\ OS\ X\ El\ Capitan.app/Contents/Resources/createinstallmedia --volume /Volumes/Untitled --applicationpath /Applications/Install\ OS\ X\ El\ Capitan.app —no-interaction"
2. After that Install Clover R3330 and choose
- Install for UEFI booting Only
- Install Clover in the ESP
- Select theme (i choose "Shield" theme")
- For Drivers64UEFI (DataHubDxe-64, EmuVariableUefi-64, OsxAptioFixDrv-64, PartitonDxe-64)
then install
3. Open Config.plist at your EFI Partition of USB Installer (EFI/Clover/) with Clover Configurator and select this
- ACPI (FixHPET, AddDTGP, FixUSB, Fix Darwin, FixIPIC, NewWay, FixRegions, FIX_RTC, FIX_TMR, DeleteUnused, AddPNLF, DropTables for DMAR&Cpu0Ist&CpuPm, Generate PStates, Generate Cstates), don't ask me why i choose this, because it work for my system for installing
- Boot (-v, dart=0 or DropDMAR, XMPDetection=Yes, PBR, NeverHibernate)
- Devices (Inject USB, AddClockID USB, FixOwnerShip USB, AFGLowPowerState and write "3" as LayoutID of Audio/HDEF)
- Graphics (Inject Intel), never write your ig-platform-id or you will face Kernel Panic about "AppleIntelBDWGraphicsFramebuffer.kext", we will write it later
- Kernel and Kext Patches (AppleRTC, Kernel LAPIC, KernelPm). We will set "KextsToPatch" later ;)
- Rt Variables (BooterConfig=0x28, CsrActiveConfig=0x67)
- SMBios, for this one i google it and look for "MacBookPro12,1". You won't found "MacBookPro12,1" with this tool :) or see my Config.plist at my attachment file. Don't forget to change serial
- System Parameters (InjectKexts=Detects, Inject System ID)
4. Just boot from your USB and make instalation like normal. (I make 3 partiton for my Harddrive. Partition1=Macintosh HD, Partition2=Windows, Partitio3=Data). Just install to Macintosh HD
5 After get to desktop screen i realize that there is Active CoreStorage at my Harddrive, so open terminal and use this command "diskutil corestorage revert disk1" then restart
6. Try to Install Clover R3330 to your Harddrive but with some adding at Clover Option Installer Menu
- Install RC scripts on target volume
- Install all RC Scripts on all other bootable volume
- Optional RC Scripts
- Install Clover Preference Pane
7. After that,, mount your EFI partition of USB Installer and Copy Clover Folder then paste it at EFI Folder of your harddrive (same directory as your USB Flashdrive)
8. Now open config.plist at your EFI/CLOVER/ on your harddrive with Clover Configurator and write this "kextToPatch" at "Kernel and Kext Patches"
- Name=AppleIntelBDWGraphicsFramebuffer, Find=4139C4763E, Replace=4139C4EB3E, Comment=Up to you :D
9. Now go to Graphics Section and write this value at "ig-platforms-id" 0x16260006

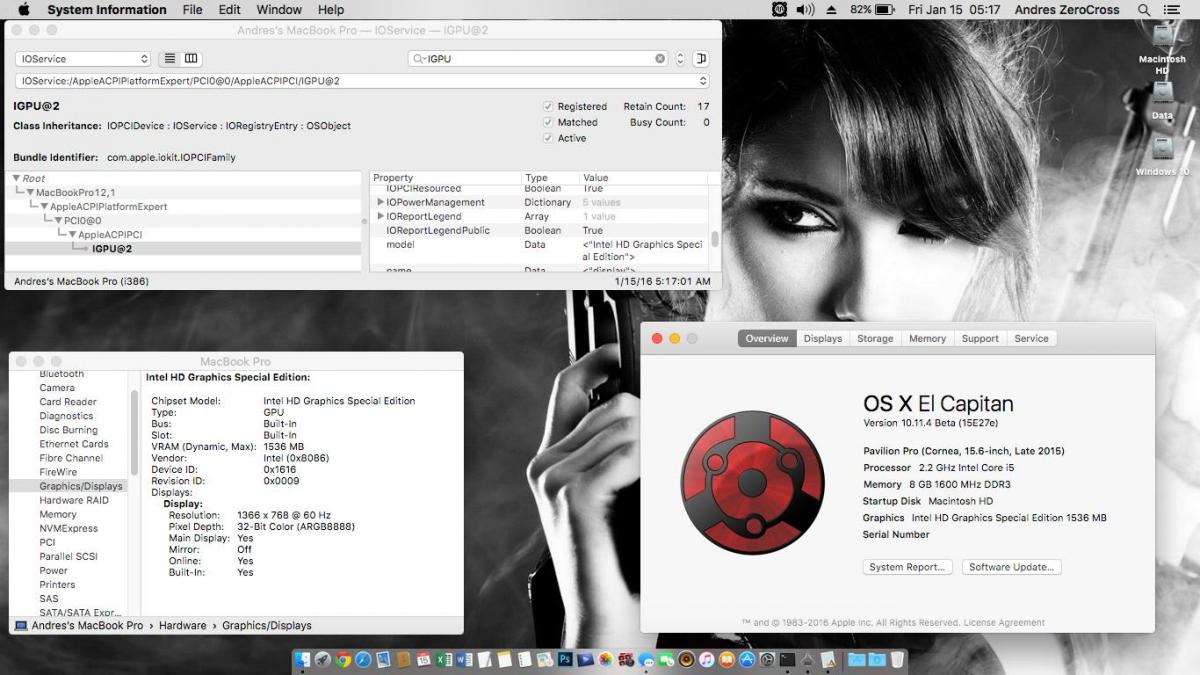

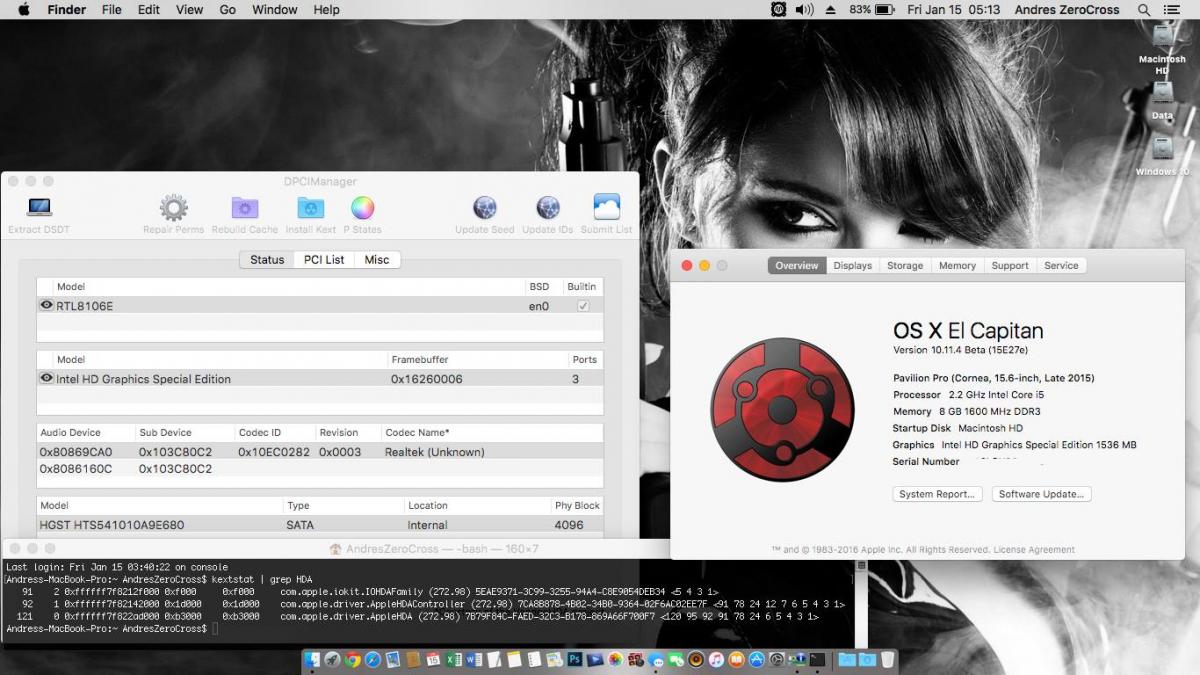

10. Reboot, and you will get QE/CI for Intel HD 5500 :thumbsup_anim::thumbsup_anim::thumbsup_anim:
11. For Audio, just need to use "AppleHDA Patcher" and select "Realtek ALC282 Ver2". Thanks to Micky1979 and Mirone. With their data i can use it for "Abxite Method" (patch XML to ZML, use info.plist injection, and binary patch for Clover)
12. Now you have good device running Hackintosh

Fix and Patches
1. Extract and edit your DSDT, Use rehabman repo for patch
2. For Full Working USB 2.0 and USB 3.0 (5Gb/s), i use rehabman USB Injection all with some modifications and change "EHC1 to EH01" and "EHC2 to EH02". See my USB Injection kext at "Clover/kexts/10.11". I attach it
3. To activate HDMI Audio then write this to KextToPatch of config.plist
- Name=AppleIntelBDWGraphicsFramebuffer, Find=02000001050B00000400000705000002040B00000400000705, Replace=02000001050B00000800000705000002040B00000400000705, Comment= Up To You ;)
4. To Fix Second Stage Glitch, then write this to KextToPatch at config.plist
- Name=IOGraphicsFamily, Find=0100007517, Replace=0100007417, Comment=Up to You
5. After install Windows with UEFI Mode then you will never boot to Clover GUI. We can't change Boot Entry via Shell Command or Bios Setup. There is no option for this. Solution is
- Boot with your USB Installer, then mount EFI Partition of Your Harddrive and go to "EFI/Microsoft/Boot" and change "bootmgfw.efi" to "bootmgfw-orig.efi".
- Then go to "EFI/CLOVER/" and Copy "CLOVERX64.efi" and paste at "EFI/Microsoft/Boot" then rename it to "bootmgfw.efi"
- Restart and you can boot in to CLOVER GUI again :thumbsup_anim::thumbsup_anim:

Special Note :
Just use my DSDT and all SSDT if you have got to desktop screen. Don't use my files at INSTALLING PART, or you will face "Kernel Panic" about "AppleIntelBDWGraphicsFramebuffer". Because i patch Ig-platform-id at my DSDT. You still can use kexts, SMBIOS Setting. I tick none at DSDT Fix at Config.plist because i have Patched DSDT. Do it with your own risk.

Sorry for my Bad English guys :)
