Too many random boot options available in bios boot options for Gigabyte z170x-UD5 after installation of Elcapitan 10.11.1

9 posts in this topic

Recommended Posts

I am dual booting windows and OSX Elcapitan 10.11.1 on my build with following

a) i5-6600

b ) gigabyte z170x-UD5, with modified f4 bios to disable the  IOAPIC

c) internal graphics HD530

d) 8gb Crucial ddr4 2133 mhz

e) windows (micron 1J1) and OSX (OCZ ARC 100) on 2 separate SSDs



Every time I reboot my computer whether windows or OSX there is a new boot option added to my BiOS. When there are too many boot options on the BiOS when I press F12 to boot from my USB it just resets and restarts the computer. I go into the bios and try to change the boot order to boot from USB, I am not allowed to do it.

what I tried:

a) I disabled the sata port connected to the OSX SSD. Then restarted the computer but my motherboard BIOS does not see the SSD and I cannot reenable the SSD without having to clear the CMOS.

b ) The only way to reset this  was to remove the OSX boot SSD and boot to BIOS and then shut the computer and reconnect the OSX SSD back.

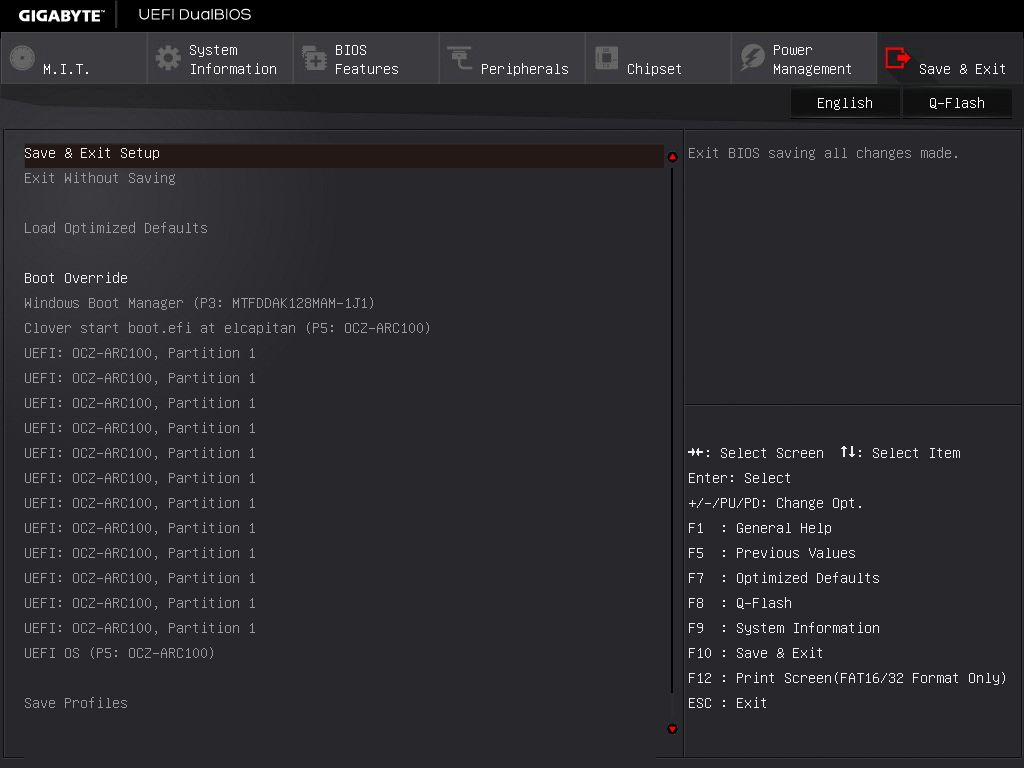

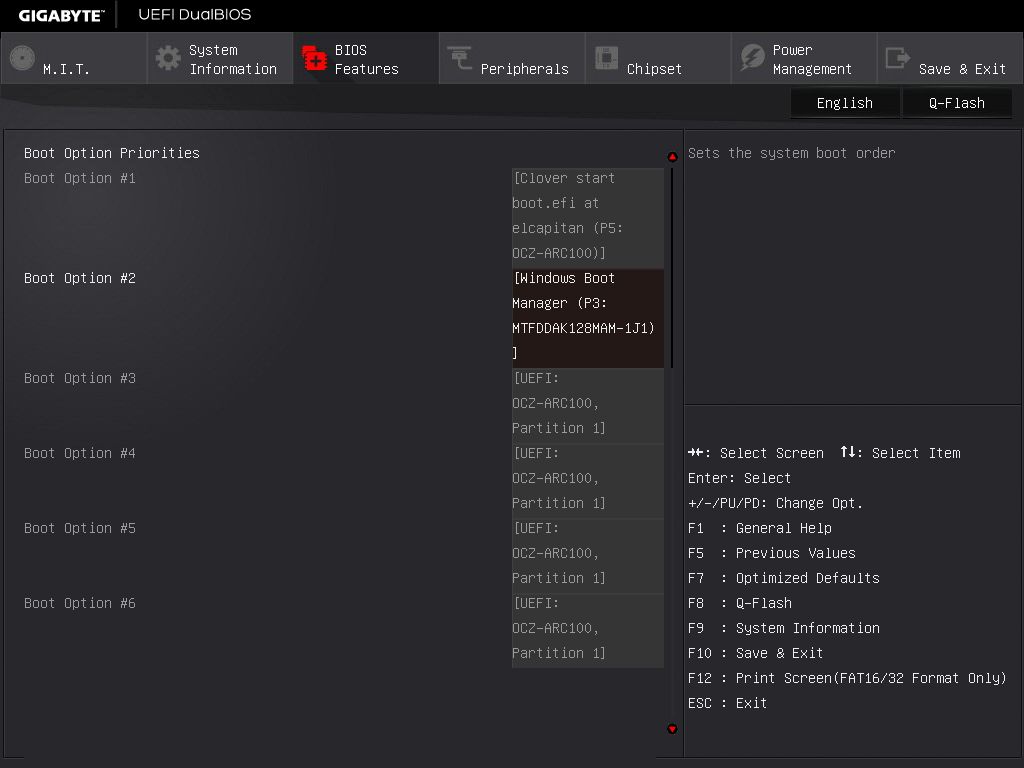

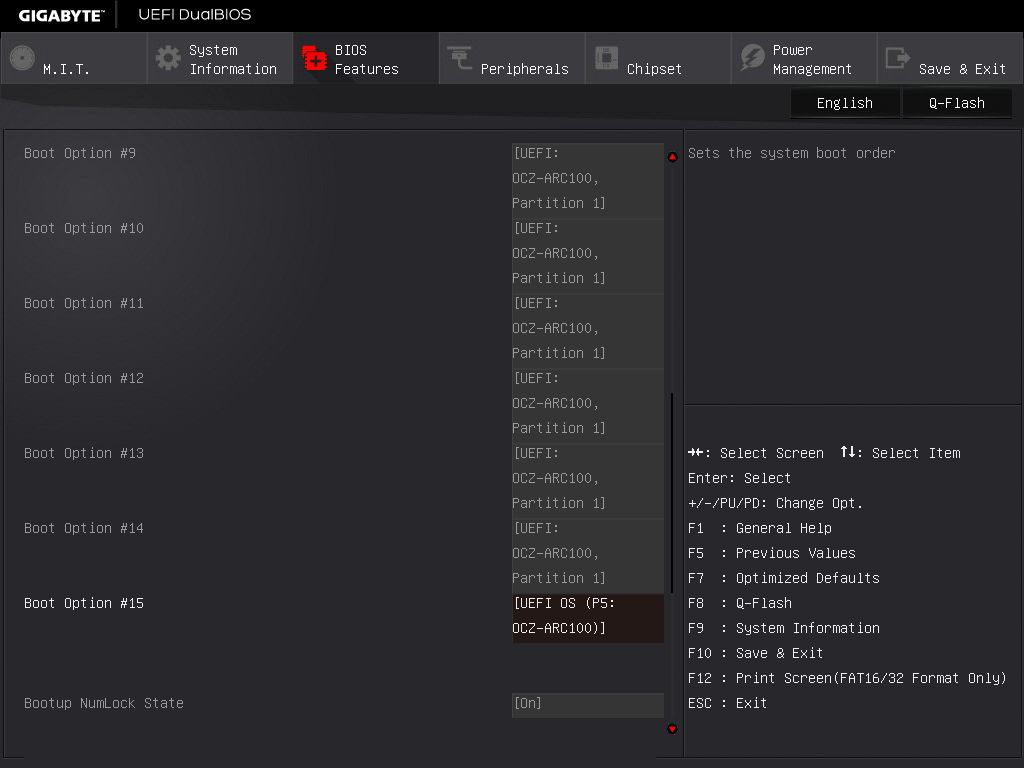

I could not find a solution to this online and am thinking this is related to clover bootloader. While not a terrible inconvenience, any help in solving this will be greatly appreciated. Screen shots of the bios are attached.




Share this post


Link to post
Share on other sites
Advertisement

On another note -- I'm assuming you have graphics acceleration with the HD530 and, if so, did you have to do anything in particular to get it functioning?  Thanks.

Share this post


Link to post
Share on other sites

On another note -- I'm assuming you have graphics acceleration with the HD530 and, if so, did you have to do anything in particular to get it functioning?  Thanks.

No i don't think i have graphics acceleration. This is my first build. I get some garbling of graphics when I use safari and when playing youtube at the top and the bottom. Contemplating getting a cheap NVDIA card to resolve this issue.

Share this post


Link to post
Share on other sites

No i don't think i have graphics acceleration. This is my first build. I get some garbling of graphics when I use safari and when playing youtube at the top and the bottom. Contemplating getting a cheap NVDIA card to resolve this issue.

Bummer, thanks for the info.

Share this post


Link to post
Share on other sites

I am getting the same thing on my UD5-TH board as well on my SM951.  There is an F3 firmware for that board that I am not sure if my machine has yet that I will try tomorrow and see.

I am on F4 and still doing the same thing.

Share this post


Link to post
Share on other sites

solved. This has already been discussed on the following thread. I found out about this thread from the other hackinstosh forum,where the guide is in a little more detailed format. Apparently too many boot options will eventually cause problems while booting



http://www.insanelymac.com/forum/topic/307457-getting-very-frustrated-disappearing-boot-options-uefi-os/



Thanks to trioset for figuring this out.



edit: alternatively use the easyuefi within the windows and delete all unnecessary options.

http://www.easyuefi.com/index-us.html



http://www.insanelymac.com/forum/topic/306429-guide-msi-h81m-motherboards-basics-of-a-computer-build-budget-hackintosh-builds-uefi-dualboot-os-x-el-capitan-wip/

Thanks to ghostraider for his guide.
