Clover Issues

zer0byte85 · October 6, 2014

Hi

Im installing Clover with Yosemite public beta 4 on a DP67BG motherboard

the first time i boot the memory is detected correctly if i check the system information everything is okay

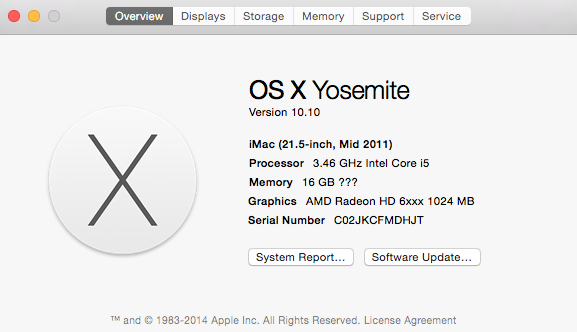

but after Reboot the memory Speed don't work and show just 16GB ??? on the System information windows

if i shutdown the computer and turn on again i get the memory speed correctly again...

i put trust on SMBIOS and XPMDetection on Yes

I'm using the last version of clover

Ideas?

my clover config

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">

<dict>

<dict>

<dict>

<key>Debug</key>

<key>DropOEM_DSM</key>

<key>Fixes</key>

<dict>

<key>AddDTGP_0001</key>

<true/>

<key>AddHDMI_8000000</key>

<true/>

<key>AddIMEI_80000</key>

<true/>

<key>AddPNLF_1000000</key>

<true/>

<key>DeleteUnused_400000</key>

<true/>

<true/>

<true/>

<true/>

<true/>

<key>FixDisplay_0100</key>

<true/>

<key>FixFirewire_0800</key>

<true/>

<key>FixHDA_8000</key>

<true/>

<key>FixHPET_0010</key>

<true/>

<key>FixIPIC_0040</key>

<true/>

<key>FixLAN_2000</key>

<true/>

<key>FixRegions_10000000</key>

<true/>

<key>FixShutdown_0004</key>

<true/>

<key>NewWay_80000000</key>

<true/>

</dict>

<key>ReuseFFFF</key>

</dict>

<key>DropTables</key>

<array>

<dict>

<key>Signature</key>

</dict>

<dict>

<key>Signature</key>

<key>TableId</key>

<string>CpuPm</string>

</dict>

<dict>

<key>Signature</key>

<key>TableId</key>

</dict>

</array>

<key>HaltEnabler</key>

<true/>

<dict>

<key>DropOem</key>

<true/>

<key>EnableC6</key>

<true/>

<key>Generate</key>

<dict>

<key>CStates</key>

<true/>

<key>PStates</key>

<true/>

</dict>

<dict>

<key>Arguments</key>

<key>DefaultVolume</key>

<key>Legacy</key>

<key>Secure</key>

<key>Timeout</key>

<key>XMPDetection</key>

</dict>

<key>Devices</key>

<dict>

<key>Audio</key>

<dict>

<key>Inject</key>

<string>Detect</string>

</dict>

<key>FakeID</key>

<dict>

<key>IntelGFX</key>

<key>NVidia</key>

</dict>

<dict>

<key>AddClockID</key>

<true/>

<key>FixOwnership</key>

<true/>

<key>Inject</key>

<true/>

</dict>

<key>DisableDrivers</key>

<array>

<string>Nothing</string>

</array>

<dict>

<array>

<string>BOOTX64.EFI</string>

<string>Windows</string>

</array>

<key>Language</key>

<key>Mouse</key>

<dict>

<key>Enabled</key>

<true/>

<key>Mirror</key>

<key>Speed</key>

</dict>

<dict>

<key>Entries</key>

<true/>

<key>Legacy</key>

<true/>

<true/>

</dict>

<key>Theme</key>

<string>applestyle</string>

</dict>

<key>Graphics</key>

<dict>

<key>Inject</key>

<dict>

<key>Intel</key>

<true/>

<key>NVidia</key>

</dict>

<key>KernelAndKextPatches</key>

<dict>

<key>AppleRTC</key>

<key>AsusAICPUPM</key>

<true/>

<key>KextsToPatch</key>

<array>

<dict>

<key>Comment</key>

<string>External icons patch</string>

<data>

RXh0ZXJuYWw=

</data>

<string>AppleAHCIPort</string>

<key>Replace</key>

<data>

SW50ZXJuYWw=

</data>

</dict>

</array>

</dict>

<key>SMBIOS</key>

<dict>

<key>BiosReleaseDate</key>

<key>BiosVendor</key>

<string>Apple Inc.</string>

<key>BiosVersion</key>

<key>Board-ID</key>

<key>BoardManufacturer</key>

<string>Apple Inc.</string>

<key>BoardType</key>

<key>ChassisAssetTag</key>

<string>iMac-Aluminum</string>

<key>ChassisManufacturer</key>

<string>Apple Inc.</string>

<key>ChassisType</key>

<key>Family</key>

<key>Manufacturer</key>

<string>Apple Inc.</string>

<key>Mobile</key>

<key>ProductName</key>

<key>SerialNumber</key>

<string>C02JKCFMDHJT</string>

<key>Trust</key>

<true/>

<key>Version</key>

</dict>

<key>SystemParameters</key>

<dict>

<key>InjectKexts</key>

<string>Detect</string>

<key>InjectSystemID</key>

<true/>

</dict>

</plist>

artur_pt · October 6, 2014

hello

u need all that dsdt fixes ? u read about .. or just enable it .. no sense ...

and should not trust ur smbios .. u trust it why ?

u should read about every key u enable or disable

http://clover-wiki.zetam.org/Configuration#Config.plist-structure

good hack

zer0byte85 · October 6, 2014

well i solve the issue of the memory speed and a issue that i had with system preferences mouse

i use MacPro 3,1 SMbios instead iMac 12,1

in MacPro 3,1 im loosing performance now the question is

what is the difference on MacPro3,1 and iMac 12,1 kext loading

thanks

Maniac10 · October 6, 2014

The memory issue is purely aesthetic, so I’d recommend you to go back to the iMac profile if it performed better and report the problem with a boot.log and config here or here.

zer0byte85 · October 7, 2014

another issue that i have using iMac profile is i can't open mouse preferences cuz crash i need to open like 2 or 3 times and open

i get this error

Process: System Preferences [305]

Path: /Applications/System Preferences.app/Contents/MacOS/System Preferences

Identifier: com.apple.systempreferences

Version: 14.0 (14.0)

Build Info: SystemPrefsApp-281000000000000~2

Code Type: X86-64 (Native)

Parent Process: ??? [1]

Responsible: System Preferences [305]

User ID: 501

Date/Time: 2014-10-07 13:22:25.584 -0500

OS Version: Mac OS X 10.10 (14A379b)

Report Version: 11

Anonymous UUID: 6DA41C9E-44EB-7D28-C747-EC570BECFD1B

Time Awake Since Boot: 210 seconds

Crashed Thread: 11 com.apple.coremedia.player.async

Exception Type: EXC_BAD_INSTRUCTION (SIGILL)

Exception Codes: 0x0000000000000001, 0x0000000000000000

Application Specific Information:

com.apple.preference.mouse v.14.0 (Mouse)

objc[305]: GC: forcing GC OFF because OBJC_DISABLE_GC is set

Maniac10 · October 7, 2014

No idea about that kp. Did you install some custom/older kext or related third party utility?

zer0byte85 · October 7, 2014

No kext just Ethernet ,

Solved with iMac 11,1 smbios

Still with Ram detection

Boot.log when detect the ram detection fail

0:100 0:100 MemLog inited, TSC freq: 3456418811

0:100 0:000

0:100 0:000 Now is 6.10.2014, 22:57:25 (GMT+2047)

0:100 0:000 Starting Clover rev 2939 on <null string> EFI

0:100 0:000 SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x8000,0x0)\HD(1,GPT,3A764DA9-F07F-48A0-BAD8-F55686962371,0x28,0x64000) @DCD75E18

0:100 0:000 SelfDirPath = \EFI\BOOT

0:116 0:016 UnicodeCollation Status=Success

0:116 0:000 Total Memory Slots Count = 4

0:116 0:000 Type 17 Index = 0

0:116 0:000 Ignoring insane frequency value 0MHz

0:116 0:000 SmbiosTable.Type17->Speed = 0

0:116 0:000 SmbiosTable.Type17->Size = 0

0:116 0:000 Type 17 Index = 1

0:116 0:000 Ignoring insane frequency value 0MHz

0:116 0:000 SmbiosTable.Type17->Speed = 0

0:116 0:000 SmbiosTable.Type17->Size = 0

0:116 0:000 Type 17 Index = 2

0:116 0:000 Ignoring insane frequency value 0MHz

0:116 0:000 SmbiosTable.Type17->Speed = 0

0:116 0:000 SmbiosTable.Type17->Size = 0

0:116 0:000 Type 17 Index = 3

0:116 0:000 Ignoring insane frequency value 0MHz

0:116 0:000 SmbiosTable.Type17->Speed = 0

0:116 0:000 SmbiosTable.Type17->Size = 0

0:116 0:000 Boot status=0

0:116 0:000 Clover revision: 2939 running on

0:116 0:000 ... with board DP67BG

0:116 0:000 Clover load options size = 0 bytes

0:147 0:030 Using OEM config.plist at path: EFI\CLOVER\config.plist

0:147 0:000 EFI\CLOVER\config.plist loaded: Success

0:153 0:006 Found theme applestyle

0:172 0:018 Found theme mlcamp

0:190 0:018 Found theme __MACOSX - no theme.plist

0:190 0:000 Loading early settings

0:190 0:000 timeout set to 5

0:190 0:000 Custom boot CUSTOM_BOOT_DISABLED (0x0)

0:190 0:000 KextsToPatch: 1 requested

0:190 0:000 KextToPatch 0: AppleAHCIPort (External icons patch) Kext bin patch, data len: 8

0:190 0:000 Default theme: applestyle

0:190 0:000 Hiding entries with string Windows

0:190 0:000 Hiding entries with string BOOTX64.EFI

0:190 0:000 LoadDrivers() start

0:190 0:000 Loading OsxAptioFixDrv-64.efi

0:197 0:006 Loading FSInject-64.efi

0:219 0:022 Loading OsxFatBinaryDrv-64.efi

0:225 0:006 Loading PartitionDxe-64.efi

0:231 0:006 - driver needs connecting

0:231 0:000 Loading HFSPlus.efi

0:232 0:000 - driver needs connecting

0:232 0:000 Loading EmuVariableUefi-64.efi

0:238 0:006 EmuVariableUefi Initialize: VariableCommonInitialize = Success, orig services stored, install gEmuVariableControlProtocolGuid = Success

0:239 0:001 2 drivers needs connecting ...

0:239 0:000 PlatformDriverOverrideProtocol not found. Installing ... Success

0:239 0:000 Partition driver loaded: CD disconnect Success

0:239 0:000 Searching for invalid DiskIo BY_DRIVER connects: not found, all ok

0:476 0:237 LoadDrivers() end

0:476 0:000 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent = Success, done

0:478 0:001 SetMaxResolution: found best mode 4: 1280x1024

1:952 1:474 Video mode change to mode #4: Success

1:952 0:000 - set

1:952 0:000 Console modes reported: 3, available modes:

1:952 0:000 Mode 1: 80x25

1:952 0:000 Mode 3: 100x31 (current mode)

1:952 0:000 SetScreenResolution: 1280x1024 - already set

2:184 0:231 reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x8000,0x0)\HD(1,GPT,3A764DA9-F07F-48A0-BAD8-F55686962371,0x28,0x64000)

2:184 0:000 new SelfHandle=DCD75E18

2:184 0:000 CPU Vendor = 756E6547 Model=206A7

2:184 0:000 The CPU supported turbo

2:184 0:000 BrandString = Intel® Core i5-2500 CPU @ 3.30GHz

2:184 0:000 MSR 0xE2 before patch 1E008403

2:184 0:000 MSR 0xE2 is locked, PM patches will be turned on

2:184 0:000 MSR 0xE4 00010414

2:184 0:000 MSR 0xCE 00001000_70012100

2:184 0:000 non-usable FLEX_RATIO = 92100

2:184 0:000 MSR 0x1B0 00000000

2:184 0:000 FSBFrequency=104MHz DMIvalue=105000kHz

2:184 0:000 Corrected FSBFrequency=105MHz

2:184 0:000 Vendor/Model/Stepping: 0x756E6547/0x2A/0x7

2:184 0:000 Family/ExtFamily: 0x6/0x0

2:184 0:000 MaxDiv/MinDiv: 33.0/16

2:184 0:000 Turbo: 34/35/36/37

2:184 0:000 Features: 0xBFEBFBFF

2:184 0:000 Threads: 4

2:184 0:000 Cores: 4

2:184 0:000 FSB: 105 MHz

2:184 0:000 CPU: 3458 MHz

2:184 0:000 TSC: 3458 MHz

2:184 0:000 PIS: 420 MHz

2:184 0:000 PCI (00|00:00.00) : 8086 0100 class=060000

2:184 0:000 PCI (00|00:01.00) : 8086 0101 class=060400

2:184 0:000 PCI (00|01:00.00) : 1002 6758 class=030000

2:184 0:000 Found Radeon model=AMD Radeon HD 6670 Series

2:184 0:000 PCI (00|01:00.01) : 1002 AA90 class=040300

2:184 0:000 PCI (00|00:16.00) : 8086 1C3A class=078000

2:184 0:000 PCI (00|00:19.00) : 8086 1503 class=020000

2:184 0:000 PCI (00|00:1A.00) : 8086 1C2D class=0C0320

2:184 0:000 PCI (00|00:1B.00) : 8086 1C20 class=040300

2:184 0:000 PCI (00|00:1C.00) : 8086 1C10 class=060400

2:184 0:000 PCI (00|00:1C.01) : 8086 1C12 class=060400

2:184 0:000 PCI (00|03:00.00) : 1033 0194 class=0C0330

2:184 0:000 PCI (00|00:1C.03) : 8086 1C16 class=060400

2:184 0:000 PCI (00|04:00.00) : 10E3 8113 class=060401

2:184 0:000 PCI (00|05:03.00) : 104C 8023 class=0C0010

2:184 0:000 PCI (00|00:1C.06) : 8086 1C1C class=060400

2:184 0:000 PCI (00|06:00.00) : 14E4 432B class=028000

2:184 0:000 PCI (00|00:1C.07) : 8086 1C1E class=060400

2:184 0:000 PCI (00|07:00.00) : 11AB 6121 class=01018F

2:184 0:000 PCI (00|00:1D.00) : 8086 1C26 class=0C0320

2:184 0:000 PCI (00|00:1F.00) : 8086 1C46 class=060100

2:184 0:000 PCI (00|00:1F.02) : 8086 1C02 class=010601

2:184 0:000 PCI (00|00:1F.03) : 8086 1C22 class=0C0500

2:184 0:000 PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF

2:184 0:000 ScanSPD() start

2:185 0:000 SMBus CmdReg: 0x3

2:185 0:000 Scanning SMBus [8086:1C22], mmio: 0xF0527004, ioport: 0x3000, hostc: 0x1

2:338 0:153 ScanSPD() end

2:339 0:000 Get Acpi Tables List from RSDT:

2:339 0:000 Found table: FACP BGP6710J len=244

2:339 0:000 Found table: APIC BGP6710J len=188

2:339 0:000 Found table: MCFG BGP6710J len=60

2:339 0:000 Found table: ASF! BGP6710J len=165

2:339 0:000 Found table: HPET BGP6710J len=56

2:339 0:000 Found table: SSDT SSDT PM len=30924

2:339 0:000 Found table: ASPT PerfTune len=52

2:339 0:000 Calibrated TSC frequency =3456418811 =3456MHz

2:339 0:000 Loading main settings

2:339 0:000 USB FixOwnership: true

2:339 0:000 Dropping 3 tables

2:339 0:000 Drop table 0 signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)

2:339 0:000 set table: 54445353, 74734930757043 to drop:

2:339 0:000 Drop table 1 signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)

2:339 0:000 set table: 54445353, 6D50757043 to drop:

2:339 0:000 Drop table 2 signature="DMAR" (52414D44)

2:339 0:000 set table: 52414D44, 0 to drop:

2:339 0:000 Config set Fixes will override FixMask mask!

2:339 0:000 final mask=84800000

2:339 0:000 Config set ResetAddr=0xCF9

2:339 0:000 Config calc ResetVal=0x6

2:339 0:000 Config set ResetVal=0x6

2:339 0:000 Config set ChassisType=0x6

2:339 0:000 Error in Second part of settings0: Not Found

2:339 0:000 Oem smbios.plist not found at path: EFI\CLOVER\smbios.plist

2:339 0:000 smbios.plist not found, not overriding config.plist

2:339 0:000 found 5 volumes with blockIO

2:339 0:000 0. Volume:

2:339 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x8000,0x0)

2:350 0:010 Result of bootcode detection: bootable <null string> (<null string>)

2:350 0:000 Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid>

2:350 0:000 1. Volume:

2:350 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x8000,0x0)\HD(1,GPT,3A764DA9-F07F-48A0-BAD8-F55686962371,0x28,0x64000)

2:356 0:006 Result of bootcode detection: bootable Clover (clover)

2:356 0:000 Volume 'EFI', LegacyOS 'Clover', LegacyIcon(s) 'clover', GUID = 3A764DA9-F07F-48A0-BAD8-F55686962371

2:356 0:000 This is SelfVolume !!

2:356 0:000 2. Volume:

2:356 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x8000,0x0)\HD(2,GPT,8134F2B2-1D1F-471F-8E75-9039B2B85D0A,0x64028,0x1BD8A540)

2:362 0:006 Result of bootcode detection: bootable <null string> (<null string>)

2:362 0:000 Volume 'SSD', LegacyOS '', LegacyIcon(s) '<null string>', GUID = 8134F2B2-1D1F-471F-8E75-9039B2B85D0A

2:362 0:000 3. Volume:

2:362 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x8000,0x0)\HD(3,GPT,3378DD12-A788-428F-BD5E-ADB513525C2B,0x1BDEE568,0x135F20)

2:368 0:006 Volume 'Recovery HD', LegacyOS '', LegacyIcon(s) '<null string>', GUID = 3378DD12-A788-428F-BD5E-ADB513525C2B

2:368 0:000 4. Volume:

2:368 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x8000,0x0)

2:368 0:000 found optical drive

2:368 0:000 Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid>

2:368 0:000 Searching volumes for latest nvram.plist ...

2:368 0:000 1. Volume 'EFI', GUID = 3A764DA9-F07F-48A0-BAD8-F55686962371 - no nvram.plist - skipping!

2:368 0:000 2. Volume 'SSD', GUID = 8134F2B2-1D1F-471F-8E75-9039B2B85D0A - no nvram.plist - skipping!

2:368 0:000 3. Volume 'Recovery HD', GUID = 3378DD12-A788-428F-BD5E-ADB513525C2B - no nvram.plist - skipping!

2:368 0:000 nvram.plist not found!

2:368 0:000 PutNvramPlistToRtVars: nvram.plist not found

2:368 0:000 Invalidating BuiltinIcons...

2:375 0:006 Using theme 'applestyle' (EFI\CLOVER\themes\applestyle)

2:399 0:024 font PTMono_10W.png loaded from themedir

2:399 0:000 Font loaded: ImageWidth=176 ImageHeight=288

2:399 0:000 Font 2 prepared WxH=11x18 CharWidth=10

2:399 0:000 Choosing theme applestyle

2:399 0:000 Custom entries start

2:399 0:000 Custom entries finish

2:399 0:000 Scanning loaders...

2:399 0:000 0: 'Whole Disc Boot' no file system

2:399 0:000 1: 'EFI'

2:517 0:117 hiding entry: \EFI\BOOT\BOOTX64.efi

2:517 0:000 2: 'SSD'

2:555 0:038 Check if volume Is Hibernated:

2:555 0:000 Check sleep image 'by signature':

2:599 0:043 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success

2:599 0:000 SleepImage name from pref: ImageVolume = 'SSD', ImageName = '\private\var\vm\sleepimage'

2:617 0:018 sleepimage not found -> Not Found

2:617 0:000 hibernated: no - sign

2:649 0:031 Loader entry created for 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x8000,0x0)\HD(2,GPT,8134F2B2-1D1F-471F-8E75-9039B2B85D0A,0x64028,0x1BD8A540)\System\Library\CoreServices\boot.efi'

3:468 0:819 3: 'Recovery HD'

3:500 0:031 Check if volume Is Hibernated:

3:500 0:000 Check sleep image 'by signature':

3:500 0:000 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Not Found

3:500 0:000 using default sleep image name = \private\var\vm\sleepimage

3:500 0:000 sleepimage not found -> Not Found

3:500 0:000 hibernated: no - sign

3:516 0:015 Loader entry created for 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x8000,0x0)\HD(3,GPT,3378DD12-A788-428F-BD5E-ADB513525C2B,0x1BDEE568,0x135F20)\System\Library\CoreServices\boot.efi'

3:541 0:025 Loader entry created for 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x8000,0x0)\HD(3,GPT,3378DD12-A788-428F-BD5E-ADB513525C2B,0x1BDEE568,0x135F20)\com.apple.recovery.boot\boot.efi'

3:578 0:036 4: 'Whole Disc Boot' no file system

3:578 0:000 Custom legacy start

3:578 0:000 Custom legacy end

3:578 0:000 Scanning legacy ...

3:578 0:000 0: 'Whole Disc Boot' (legacy) not legacy

3:578 0:000 1: 'EFI' (clover) add legacy

3:584 0:006 added 'Boot Clover from EFI' OSType=3 Icon=clover

3:584 0:000 2: 'SSD' (<null string>) not legacy

3:584 0:000 3: 'Recovery HD' (<null string>) not legacy

3:584 0:000 4: 'Whole Disc Boot' (legacy) not legacy

3:584 0:000 Custom tool start

3:584 0:000 Custom tool end

3:591 0:006 found tool \EFI\CLOVER\tools\Shell64U.efi

3:591 0:000 Checking EFI partition Volume 1 for Clover

3:591 0:000 Found Clover

3:598 0:006 EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored

3:598 0:000 FindBootOptionForFile: DCD75E18, \EFI\CLOVER\CLOVERX64.EFI

3:598 0:000 BootOrder: EFI_NOT_FOUND

3:603 0:004 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent = Success, done

3:605 0:002 GetEfiBootDeviceFromNvram: efi-boot-device-data not found

3:605 0:000 EfiBootVolume not found

3:605 0:000 Searching for DefaultVolume 'SSD' ...

3:605 0:000 found entry 0. 'Boot Mac OS X from SSD', Volume 'SSD', DevicePath 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x8000,0x0)\HD(2,GPT,8134F2B2-1D1F-471F-8E75-9039B2B85D0A,0x64028,0x1BD8A540)\System\Library\CoreServices\boot.efi'

3:605 0:000 EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored

3:605 0:000 DefaultIndex=0 and MainMenu.EntryCount=10

4:359 0:754 MouseBirth: No mouse at ConIn, checking if any other device exists

4:359 0:000 No mouse!

4:361 0:001 MouseBirth: No mouse at ConIn, checking if any other device exists

4:361 0:000 No mouse!

4:361 0:000 GUI ready

4:932 0:570 MouseBirth: No mouse at ConIn, checking if any other device exists

4:932 0:000 No mouse!

4:932 0:000 StartLoader() start

4:932 0:000 Finally: Bus=104739kHz CPU=3456MHz

4:932 0:000 Kernel and Kext Patches:

4:932 0:000 Allowed: y

4:932 0:000 Debug: n

4:932 0:000 KernelCpu: n

4:932 0:000 Lapic: n

4:932 0:000 AICPUPM: y

4:932 0:000 AppleRTC: n

4:932 0:000 KernelPm: n

4:932 0:000 FakeCPUID: 0x0

4:932 0:000 ATIController: <null string>

4:932 0:000 ATIDataLength: 0

4:932 0:000 0 Kexts to load

4:932 0:000 1 Kexts to patch

4:932 0:000 KextPatch[0]: 8 bytes, AppleAHCIPort

4:932 0:000 Loading boot.efi

5:044 0:111 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent = Success, done

5:049 0:004 insert table 9 for dev 0:0

5:049 0:000 insert table 9 for dev 19:0

5:049 0:000 insert table 9 for dev 0:0

5:049 0:000 insert table 9 for dev 3:0

5:049 0:000 SMBIOS and SPD contain no modules in use

5:049 0:000 NumberOfMemoryDevices = 0

5:049 0:000 RSDT 0xDF7FD0AC

5:049 0:000 FADT from RSDT: 0xDF7FC000

5:049 0:000 XSDT 0xDF7FD120

5:049 0:000 FADT from XSDT: 0xDF7FC000

5:049 0:000 Xsdt reallocation done

5:049 0:000 old FADT length=F4

5:049 0:000 Found OperationRegion(PSYS, SystemMemory, DF7BEE18, ...)

5:049 0:000 Found OperationRegion(TPMM, SystemMemory, FED40000, ...)

5:049 0:000 Found OperationRegion(SRCR, SystemMemory, FED1C000, ...)

5:049 0:000 DSDT len = 0x386B new len = 0x3F78

5:049 0:000 Apply DsdtFixMask=0x84800000 new way

5:049 0:000 drop _DSM mask=0x0400

5:049 0:000 ========= Auto patch DSDT Starting ========

5:049 0:000 VideoCard devID=0x67581002

5:049 0:000 DisplayADR1[0] = 0x10000, DisplayADR2[0] = 0x0

5:050 0:000 USBADR[0] = 0x1A0000 and PCIe = 0xFFFE

5:061 0:011 USBADR[1] = 0x1C0001 and PCIe = 0x0

5:061 0:000 Found Airport BCM at 0x1C0006, 0x0

5:061 0:000 USBADR[2] = 0x1D0000 and PCIe = 0xFFFE

5:061 0:000 first CPU found at 2B offset 2E

5:061 0:000 score candidate at 27

5:061 0:000 score inserted in acpi_cpu_score _PR_

5:061 0:000 Found ACPI CPU: CPU0 And CPU1 And CPU2 And CPU3 And CPU4 And CPU5 And CPU6 And CPU7

within the score: _PR_

5:061 0:000 Start ADP1 fix

5:061 0:000 no device(AC) exists

5:061 0:000 ========= Auto patch DSDT Finished ========

5:061 0:000 Patch table: SSDT SSDT PM

5:061 0:000 SSDT len = 0x78CC

5:061 0:000 Drop tables from Xsdt, SIGN=XXXX TableID= Length=0

5:061 0:000 Xsdt has tables count=7

5:061 0:000 corrected XSDT length=92

5:062 0:000 CPUBase=0 and ApicCPUBase=0 ApicCPUNum=8

5:062 0:000 Maximum control=0x21

5:062 0:000 Turbo control=0x25

5:062 0:000 P-States: min 0x10, max 0x25

5:062 0:000 SSDT with CPU P-States generated successfully

5:062 0:000 SSDT with CPU C-States generated successfully

5:062 0:000 EdidDiscovered size=128

5:062 0:000 00 | 00 FF FF FF FF FF FF 00 5A 63 2C A7 01 01 01 01

5:062 0:000 16 | 04 17 01 03 80 34 1D 78 2E 2C C5 A4 56 50 A1 28

5:062 0:000 32 | 0F 50 54 BF EF 80 B3 00 A9 40 A9 C0 95 00 90 40

5:062 0:000 48 | 81 80 81 40 81 00 02 3A 80 18 71 38 2D 40 58 2C

5:062 0:000 64 | 45 00 09 25 21 00 00 1E 00 00 00 FF 00 54 44 4E

5:062 0:000 80 | 31 33 30 34 32 30 31 30 33 0A 00 00 00 FD 00 32

5:062 0:000 96 | 4B 18 52 11 00 0A 20 20 20 20 20 20 00 00 00 FC

5:062 0:000 112 | 00 56 47 32 34 33 37 20 53 45 52 49 45 53 00 6A

5:062 0:000 ATI injection not set

5:062 0:000 LAN Controller [8086:1503] :: PciRoot(0x0)\Pci(0x19,0x0)

5:062 0:000 USB Controller [8086:1C2D] :: PciRoot(0x0)\Pci(0x1A,0x0)

5:062 0:000 HDA Controller [8086:1C20] :: PciRoot(0x0)\Pci(0x1B,0x0) => codec not detected

5:073 0:010 USB Controller [1033:0194] :: PciRoot(0x0)\Pci(0x1C,0x1)\Pci(0x0,0x0)

5:073 0:000 USB Controller [8086:1C26] :: PciRoot(0x0)\Pci(0x1D,0x0)

5:073 0:000 stringlength = 2216

5:073 0:000 CurrentMode: Width=1280 Height=1024

5:073 0:000 FSInjection: using kexts path: 'EFI\CLOVER\kexts\10.10'

5:080 0:007 MSR 0x1B0 set to 00000000

5:080 0:000 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.10

5:087 0:006 Extra kext: EFI\CLOVER\kexts\10.10\realtekALC.kext

5:087 0:000 Extra kext: EFI\CLOVER\kexts\10.10\FakeSMC.kext

5:106 0:019 Extra PlugIn kext: EFI\CLOVER\kexts\10.10\FakeSMC.kext\Contents\PlugIns\ACPISensors.kext

5:113 0:006 Extra PlugIn kext: EFI\CLOVER\kexts\10.10\FakeSMC.kext\Contents\PlugIns\CPUSensors.kext

5:120 0:006 Extra PlugIn kext: EFI\CLOVER\kexts\10.10\FakeSMC.kext\Contents\PlugIns\GPUSensors.kext

5:133 0:013 Extra PlugIn kext: EFI\CLOVER\kexts\10.10\FakeSMC.kext\Contents\PlugIns\LPCSensors.kext

5:162 0:029 RemoveStartupDiskVolume:

5:162 0:000 * efi-boot-device = Not Found

5:162 0:000 * efi-boot-device-data = Not Found

5:162 0:000 * BootCampHD = Not Found

5:162 0:000 Custom boot is disabled

5:162 0:000 Failed to initialize custom boot screen: Aborted!

5:162 0:000 Closing log

Bootlog when Ram detection Works

0:100 0:100 MemLog inited, TSC freq: 3456417068

0:100 0:000

0:100 0:000 Now is 7.10.2014, 17:36:37 (GMT+2047)

0:100 0:000 Starting Clover rev 2939 on <null string> EFI

0:100 0:000 SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x8000,0x0)\HD(1,GPT,3A764DA9-F07F-48A0-BAD8-F55686962371,0x28,0x64000) @DCD75E18

0:100 0:000 SelfDirPath = \EFI\BOOT

0:116 0:016 UnicodeCollation Status=Success

0:116 0:000 Total Memory Slots Count = 4

0:116 0:000 Type 17 Index = 0

0:116 0:000 SmbiosTable.Type17->Speed = 1399

0:116 0:000 SmbiosTable.Type17->Size = 4096

0:116 0:000 Type 17 Index = 1

0:116 0:000 SmbiosTable.Type17->Speed = 1399

0:116 0:000 SmbiosTable.Type17->Size = 4096

0:116 0:000 Type 17 Index = 2

0:116 0:000 SmbiosTable.Type17->Speed = 1399

0:116 0:000 SmbiosTable.Type17->Size = 4096

0:116 0:000 Type 17 Index = 3

0:116 0:000 SmbiosTable.Type17->Speed = 1399

0:116 0:000 SmbiosTable.Type17->Size = 4096

0:116 0:000 Boot status=0

0:116 0:000 Clover revision: 2939 running on

0:116 0:000 ... with board DP67BG

0:116 0:000 Clover load options size = 0 bytes

0:147 0:030 Using OEM config.plist at path: EFI\CLOVER\config.plist

0:147 0:000 EFI\CLOVER\config.plist loaded: Success

0:153 0:006 Found theme applestyle

0:172 0:018 Found theme mlcamp

0:190 0:018 Found theme __MACOSX - no theme.plist

0:190 0:000 Loading early settings

0:190 0:000 timeout set to 5

0:190 0:000 Custom boot CUSTOM_BOOT_DISABLED (0x0)

0:190 0:000 KextsToPatch: 1 requested

0:190 0:000 KextToPatch 0: AppleAHCIPort (External icons patch) Kext bin patch, data len: 8

0:190 0:000 Default theme: applestyle

0:190 0:000 Hiding entries with string Windows

0:190 0:000 Hiding entries with string BOOTX64.EFI

0:190 0:000 LoadDrivers() start

0:190 0:000 Loading OsxAptioFixDrv-64.efi

0:197 0:006 Loading FSInject-64.efi

0:215 0:018 Loading OsxFatBinaryDrv-64.efi

0:221 0:006 Loading PartitionDxe-64.efi

0:227 0:006 - driver needs connecting

0:227 0:000 Loading HFSPlus.efi

0:228 0:000 - driver needs connecting

0:228 0:000 Loading EmuVariableUefi-64.efi

0:234 0:006 EmuVariableUefi Initialize: VariableCommonInitialize = Success, orig services stored, install gEmuVariableControlProtocolGuid = Success

0:235 0:001 2 drivers needs connecting ...

0:235 0:000 PlatformDriverOverrideProtocol not found. Installing ... Success

0:235 0:000 Partition driver loaded: CD disconnect Success

0:235 0:000 Searching for invalid DiskIo BY_DRIVER connects: not found, all ok

0:455 0:219 LoadDrivers() end

0:455 0:000 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent = Success, done

0:457 0:001 SetMaxResolution: found best mode 4: 1280x1024

1:926 1:468 Video mode change to mode #4: Success

1:926 0:000 - set

1:926 0:000 Console modes reported: 3, available modes:

1:926 0:000 Mode 1: 80x25

1:926 0:000 Mode 3: 100x31 (current mode)

1:926 0:000 SetScreenResolution: 1280x1024 - already set

2:157 0:231 reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x8000,0x0)\HD(1,GPT,3A764DA9-F07F-48A0-BAD8-F55686962371,0x28,0x64000)

2:157 0:000 new SelfHandle=DCD75E18

2:157 0:000 CPU Vendor = 756E6547 Model=206A7

2:157 0:000 The CPU supported turbo

2:157 0:000 BrandString = Intel® Core i5-2500 CPU @ 3.30GHz

2:157 0:000 MSR 0xE2 before patch 1E008403

2:157 0:000 MSR 0xE2 is locked, PM patches will be turned on

2:158 0:000 MSR 0xE4 00010414

2:158 0:000 MSR 0xCE 00001000_70012100

2:158 0:000 non-usable FLEX_RATIO = 92100

2:158 0:000 MSR 0x1B0 00000000

2:158 0:000 FSBFrequency=104MHz DMIvalue=105000kHz

2:158 0:000 Corrected FSBFrequency=105MHz

2:158 0:000 Vendor/Model/Stepping: 0x756E6547/0x2A/0x7

2:158 0:000 Family/ExtFamily: 0x6/0x0

2:158 0:000 MaxDiv/MinDiv: 33.0/16

2:158 0:000 Turbo: 34/35/36/37

2:158 0:000 Features: 0xBFEBFBFF

2:158 0:000 Threads: 4

2:158 0:000 Cores: 4

2:158 0:000 FSB: 105 MHz

2:158 0:000 CPU: 3458 MHz

2:158 0:000 TSC: 3458 MHz

2:158 0:000 PIS: 420 MHz

2:158 0:000 PCI (00|00:00.00) : 8086 0100 class=060000

2:158 0:000 PCI (00|00:01.00) : 8086 0101 class=060400

2:158 0:000 PCI (00|01:00.00) : 1002 6758 class=030000

2:158 0:000 Found Radeon model=AMD Radeon HD 6670 Series

2:158 0:000 PCI (00|01:00.01) : 1002 AA90 class=040300

2:158 0:000 PCI (00|00:16.00) : 8086 1C3A class=078000

2:158 0:000 PCI (00|00:19.00) : 8086 1503 class=020000

2:158 0:000 PCI (00|00:1A.00) : 8086 1C2D class=0C0320

2:158 0:000 PCI (00|00:1B.00) : 8086 1C20 class=040300

2:158 0:000 PCI (00|00:1C.00) : 8086 1C10 class=060400

2:158 0:000 PCI (00|00:1C.01) : 8086 1C12 class=060400

2:158 0:000 PCI (00|03:00.00) : 1033 0194 class=0C0330

2:158 0:000 PCI (00|00:1C.03) : 8086 1C16 class=060400

2:158 0:000 PCI (00|04:00.00) : 10E3 8113 class=060401

2:158 0:000 PCI (00|05:03.00) : 104C 8023 class=0C0010

2:158 0:000 PCI (00|00:1C.06) : 8086 1C1C class=060400

2:158 0:000 PCI (00|06:00.00) : 14E4 432B class=028000

2:158 0:000 PCI (00|00:1C.07) : 8086 1C1E class=060400

2:158 0:000 PCI (00|07:00.00) : 11AB 6121 class=01018F

2:158 0:000 PCI (00|00:1D.00) : 8086 1C26 class=0C0320

2:158 0:000 PCI (00|00:1F.00) : 8086 1C46 class=060100

2:158 0:000 PCI (00|00:1F.02) : 8086 1C02 class=010601

2:158 0:000 PCI (00|00:1F.03) : 8086 1C22 class=0C0500

2:158 0:000 PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF

2:158 0:000 ScanSPD() start

2:158 0:000 SMBus CmdReg: 0x3

2:158 0:000 Scanning SMBus [8086:1C22], mmio: 0xF0527004, ioport: 0x3000, hostc: 0x1

2:173 0:014 SPD[0]: Type 11 @0x50

2:182 0:008 DDR speed 1333MHz

2:182 0:000 Slot: 0 Type 24 4096MB 1333MHz Vendor=Kingston PartNo=99U5471-012.A00LF SerialNo=0400030E08020508

2:196 0:014 SPD[1]: Type 11 @0x51

2:205 0:008 DDR speed 1333MHz

2:205 0:000 Slot: 1 Type 24 4096MB 1333MHz Vendor=Kingston PartNo=99U5471-012.A00LF SerialNo=0403030E0C050B0E

2:220 0:014 SPD[2]: Type 11 @0x52

2:229 0:008 DDR speed 1333MHz

2:229 0:000 Slot: 2 Type 24 4096MB 1333MHz Vendor=Kingston PartNo=99U5471-012.A00LF SerialNo=0405030E0F05050E

2:243 0:014 SPD[3]: Type 11 @0x53

2:252 0:008 DDR speed 1333MHz

2:252 0:000 Slot: 3 Type 24 4096MB 1333MHz Vendor=Kingston PartNo=99U5471-012.A00LF SerialNo=0404030E010B050F

2:374 0:121 ScanSPD() end

2:374 0:000 Get Acpi Tables List from RSDT:

2:374 0:000 Found table: FACP BGP6710J len=244

2:374 0:000 Found table: APIC BGP6710J len=188

2:374 0:000 Found table: MCFG BGP6710J len=60

2:374 0:000 Found table: ASF! BGP6710J len=165

2:374 0:000 Found table: HPET BGP6710J len=56

2:374 0:000 Found table: SSDT SSDT PM len=30924

2:374 0:000 Found table: ASPT PerfTune len=52

2:374 0:000 Calibrated TSC frequency =3456417068 =3456MHz

2:374 0:000 Loading main settings

2:374 0:000 USB FixOwnership: true

2:374 0:000 Dropping 3 tables

2:374 0:000 Drop table 0 signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)

2:374 0:000 set table: 54445353, 74734930757043 to drop:

2:374 0:000 Drop table 1 signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)

2:374 0:000 set table: 54445353, 6D50757043 to drop:

2:374 0:000 Drop table 2 signature="DMAR" (52414D44)

2:374 0:000 set table: 52414D44, 0 to drop:

2:374 0:000 Config set Fixes will override FixMask mask!

2:374 0:000 final mask=84800000

2:374 0:000 Config set ResetAddr=0xCF9

2:374 0:000 Config calc ResetVal=0x6

2:374 0:000 Config set ResetVal=0x6

2:374 0:000 Config set ChassisType=0x6

2:374 0:000 Error in Second part of settings0: Not Found

2:374 0:000 Oem smbios.plist not found at path: EFI\CLOVER\smbios.plist

2:374 0:000 smbios.plist not found, not overriding config.plist

2:374 0:000 found 5 volumes with blockIO

2:374 0:000 0. Volume:

2:374 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x8000,0x0)

2:385 0:010 Result of bootcode detection: bootable <null string> (<null string>)

2:385 0:000 Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid>

2:385 0:000 1. Volume:

2:385 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x8000,0x0)\HD(1,GPT,3A764DA9-F07F-48A0-BAD8-F55686962371,0x28,0x64000)

2:391 0:006 Result of bootcode detection: bootable Clover (clover)

2:391 0:000 Volume 'EFI', LegacyOS 'Clover', LegacyIcon(s) 'clover', GUID = 3A764DA9-F07F-48A0-BAD8-F55686962371

2:391 0:000 This is SelfVolume !!

2:391 0:000 2. Volume:

2:391 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x8000,0x0)\HD(2,GPT,8134F2B2-1D1F-471F-8E75-9039B2B85D0A,0x64028,0x1BD8A540)

2:397 0:006 Result of bootcode detection: bootable <null string> (<null string>)

2:397 0:000 Volume 'SSD', LegacyOS '', LegacyIcon(s) '<null string>', GUID = 8134F2B2-1D1F-471F-8E75-9039B2B85D0A

2:397 0:000 3. Volume:

2:397 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x8000,0x0)\HD(3,GPT,3378DD12-A788-428F-BD5E-ADB513525C2B,0x1BDEE568,0x135F20)

2:403 0:006 Volume 'Recovery HD', LegacyOS '', LegacyIcon(s) '<null string>', GUID = 3378DD12-A788-428F-BD5E-ADB513525C2B

2:403 0:000 4. Volume:

2:403 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x8000,0x0)

2:403 0:000 found optical drive

2:403 0:000 Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid>

2:403 0:000 Searching volumes for latest nvram.plist ...

2:403 0:000 1. Volume 'EFI', GUID = 3A764DA9-F07F-48A0-BAD8-F55686962371 - no nvram.plist - skipping!

2:403 0:000 2. Volume 'SSD', GUID = 8134F2B2-1D1F-471F-8E75-9039B2B85D0A - no nvram.plist - skipping!

2:404 0:000 3. Volume 'Recovery HD', GUID = 3378DD12-A788-428F-BD5E-ADB513525C2B - no nvram.plist - skipping!

2:404 0:000 nvram.plist not found!

2:404 0:000 PutNvramPlistToRtVars: nvram.plist not found

2:404 0:000 Invalidating BuiltinIcons...

2:410 0:006 Using theme 'applestyle' (EFI\CLOVER\themes\applestyle)

2:434 0:024 font PTMono_10W.png loaded from themedir

2:434 0:000 Font loaded: ImageWidth=176 ImageHeight=288

2:434 0:000 Font 2 prepared WxH=11x18 CharWidth=10

2:434 0:000 Choosing theme applestyle

2:435 0:000 Custom entries start

2:435 0:000 Custom entries finish

2:435 0:000 Scanning loaders...

2:435 0:000 0: 'Whole Disc Boot' no file system

2:435 0:000 1: 'EFI'

2:552 0:117 hiding entry: \EFI\BOOT\BOOTX64.efi

2:552 0:000 2: 'SSD'

2:591 0:038 Check if volume Is Hibernated:

2:591 0:000 Check sleep image 'by signature':

2:634 0:043 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success

2:634 0:000 SleepImage name from pref: ImageVolume = 'SSD', ImageName = '\private\var\vm\sleepimage'

2:653 0:018 sleepimage not found -> Not Found

2:653 0:000 hibernated: no - sign

2:684 0:031 Loader entry created for 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x8000,0x0)\HD(2,GPT,8134F2B2-1D1F-471F-8E75-9039B2B85D0A,0x64028,0x1BD8A540)\System\Library\CoreServices\boot.efi'

3:502 0:818 3: 'Recovery HD'

3:534 0:031 Check if volume Is Hibernated:

3:534 0:000 Check sleep image 'by signature':

3:534 0:000 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Not Found

3:534 0:000 using default sleep image name = \private\var\vm\sleepimage

3:534 0:000 sleepimage not found -> Not Found

3:534 0:000 hibernated: no - sign

3:550 0:015 Loader entry created for 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x8000,0x0)\HD(3,GPT,3378DD12-A788-428F-BD5E-ADB513525C2B,0x1BDEE568,0x135F20)\System\Library\CoreServices\boot.efi'

3:575 0:025 Loader entry created for 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x8000,0x0)\HD(3,GPT,3378DD12-A788-428F-BD5E-ADB513525C2B,0x1BDEE568,0x135F20)\com.apple.recovery.boot\boot.efi'

3:612 0:036 4: 'Whole Disc Boot' no file system

3:612 0:000 Custom legacy start

3:612 0:000 Custom legacy end

3:612 0:000 Scanning legacy ...

3:612 0:000 0: 'Whole Disc Boot' (legacy) not legacy

3:612 0:000 1: 'EFI' (clover) add legacy

3:618 0:006 added 'Boot Clover from EFI' OSType=3 Icon=clover

3:618 0:000 2: 'SSD' (<null string>) not legacy

3:618 0:000 3: 'Recovery HD' (<null string>) not legacy

3:618 0:000 4: 'Whole Disc Boot' (legacy) not legacy

3:618 0:000 Custom tool start

3:618 0:000 Custom tool end

3:625 0:006 found tool \EFI\CLOVER\tools\Shell64U.efi

3:625 0:000 Checking EFI partition Volume 1 for Clover

3:625 0:000 Found Clover

3:632 0:006 EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored

3:632 0:000 FindBootOptionForFile: DCD75E18, \EFI\CLOVER\CLOVERX64.EFI

3:632 0:000 BootOrder: EFI_NOT_FOUND

3:637 0:005 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent = Success, done

3:639 0:002 GetEfiBootDeviceFromNvram: efi-boot-device-data not found

3:639 0:000 EfiBootVolume not found

3:639 0:000 Searching for DefaultVolume 'SSD' ...

3:639 0:000 found entry 0. 'Boot Mac OS X from SSD', Volume 'SSD', DevicePath 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x8000,0x0)\HD(2,GPT,8134F2B2-1D1F-471F-8E75-9039B2B85D0A,0x64028,0x1BD8A540)\System\Library\CoreServices\boot.efi'

3:639 0:000 EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored

3:639 0:000 DefaultIndex=0 and MainMenu.EntryCount=10

4:393 0:754 MouseBirth: No mouse at ConIn, checking if any other device exists

4:393 0:000 No mouse!

4:395 0:001 MouseBirth: No mouse at ConIn, checking if any other device exists

4:395 0:000 No mouse!

4:395 0:000 GUI ready

5:397 1:002 MouseBirth: No mouse at ConIn, checking if any other device exists

5:398 0:000 No mouse!

6:400 1:002 MouseBirth: No mouse at ConIn, checking if any other device exists

6:400 0:000 No mouse!

7:403 1:002 MouseBirth: No mouse at ConIn, checking if any other device exists

7:403 0:000 No mouse!

7:742 0:339 MouseBirth: No mouse at ConIn, checking if any other device exists

7:742 0:000 No mouse!

7:742 0:000 StartLoader() start

7:742 0:000 Finally: Bus=104739kHz CPU=3456MHz

7:742 0:000 Kernel and Kext Patches:

7:742 0:000 Allowed: y

7:742 0:000 Debug: n

7:742 0:000 KernelCpu: n

7:742 0:000 Lapic: n

7:742 0:000 AICPUPM: y

7:742 0:000 AppleRTC: n

7:742 0:000 KernelPm: n

7:742 0:000 FakeCPUID: 0x0

7:742 0:000 ATIController: <null string>

7:742 0:000 ATIDataLength: 0

7:742 0:000 0 Kexts to load

7:742 0:000 1 Kexts to patch

7:742 0:000 KextPatch[0]: 8 bytes, AppleAHCIPort

7:742 0:000 Loading boot.efi

7:853 0:111 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent = Success, done

7:859 0:005 insert table 9 for dev 0:0

7:859 0:000 insert table 9 for dev 19:0

7:859 0:000 insert table 9 for dev 0:0

7:859 0:000 insert table 9 for dev 3:0

7:859 0:000 Channels: 2

7:859 0:000 Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23

7:859 0:000 SMBIOS Type 17 Index = 0 => 0 0:

7:859 0:000 DIMM1 1333MHz 4096MB

7:859 0:000 mTotalSystemMemory = 4096

7:859 0:000 SMBIOS Type 17 Index = 1 => 2 2:

7:859 0:000 DIMM2 1333MHz 4096MB

7:859 0:000 mTotalSystemMemory = 8192

7:859 0:000 SMBIOS Type 17 Index = 2 => 1 1:

7:859 0:000 DIMM3 1333MHz 4096MB

7:859 0:000 mTotalSystemMemory = 12288

7:859 0:000 SMBIOS Type 17 Index = 3 => 3 3:

7:859 0:000 DIMM4 1333MHz 4096MB

7:859 0:000 mTotalSystemMemory = 16384

7:859 0:000 NumberOfMemoryDevices = 4

7:859 0:000 RSDT 0xDF7FD0AC

7:859 0:000 FADT from RSDT: 0xDF7FC000

7:859 0:000 XSDT 0xDF7FD120

7:859 0:000 FADT from XSDT: 0xDF7FC000

7:859 0:000 Xsdt reallocation done

7:859 0:000 old FADT length=F4

7:859 0:000 Found OperationRegion(PSYS, SystemMemory, DF7BEE18, ...)

7:859 0:000 Found OperationRegion(TPMM, SystemMemory, FED40000, ...)

7:859 0:000 Found OperationRegion(SRCR, SystemMemory, FED1C000, ...)

7:860 0:000 DSDT len = 0x386B new len = 0x3F78

7:860 0:000 Apply DsdtFixMask=0x84800000 new way

7:860 0:000 drop _DSM mask=0x0400

7:860 0:000 ========= Auto patch DSDT Starting ========

7:860 0:000 VideoCard devID=0x67581002

7:860 0:000 DisplayADR1[0] = 0x10000, DisplayADR2[0] = 0x0

7:860 0:000 USBADR[0] = 0x1A0000 and PCIe = 0xFFFE

7:870 0:010 USBADR[1] = 0x1C0001 and PCIe = 0x0

7:870 0:000 Found Airport BCM at 0x1C0006, 0x0

7:871 0:000 USBADR[2] = 0x1D0000 and PCIe = 0xFFFE

7:871 0:000 first CPU found at 2B offset 2E

7:871 0:000 score candidate at 27

7:871 0:000 score inserted in acpi_cpu_score _PR_

7:871 0:000 Found ACPI CPU: CPU0 And CPU1 And CPU2 And CPU3 And CPU4 And CPU5 And CPU6 And CPU7

within the score: _PR_

7:871 0:000 Start ADP1 fix

7:871 0:000 no device(AC) exists

7:871 0:000 ========= Auto patch DSDT Finished ========

7:871 0:000 Patch table: SSDT SSDT PM

7:871 0:000 SSDT len = 0x78CC

7:871 0:000 Drop tables from Xsdt, SIGN=XXXX TableID= Length=0

7:871 0:000 Xsdt has tables count=7

7:871 0:000 corrected XSDT length=92

7:871 0:000 CPUBase=0 and ApicCPUBase=0 ApicCPUNum=8

7:871 0:000 Maximum control=0x21

7:871 0:000 Turbo control=0x25

7:871 0:000 P-States: min 0x10, max 0x25

7:872 0:000 SSDT with CPU P-States generated successfully

7:872 0:000 SSDT with CPU C-States generated successfully

7:872 0:000 EdidDiscovered size=128

7:872 0:000 00 | 00 FF FF FF FF FF FF 00 5A 63 2C A7 01 01 01 01

7:872 0:000 16 | 04 17 01 03 80 34 1D 78 2E 2C C5 A4 56 50 A1 28

7:872 0:000 32 | 0F 50 54 BF EF 80 B3 00 A9 40 A9 C0 95 00 90 40

7:872 0:000 48 | 81 80 81 40 81 00 02 3A 80 18 71 38 2D 40 58 2C

7:872 0:000 64 | 45 00 09 25 21 00 00 1E 00 00 00 FF 00 54 44 4E

7:872 0:000 80 | 31 33 30 34 32 30 31 30 33 0A 00 00 00 FD 00 32

7:872 0:000 96 | 4B 18 52 11 00 0A 20 20 20 20 20 20 00 00 00 FC

7:872 0:000 112 | 00 56 47 32 34 33 37 20 53 45 52 49 45 53 00 6A

7:872 0:000 ATI injection not set

7:872 0:000 LAN Controller [8086:1503] :: PciRoot(0x0)\Pci(0x19,0x0)

7:872 0:000 USB Controller [8086:1C2D] :: PciRoot(0x0)\Pci(0x1A,0x0)

7:872 0:000 HDA Controller [8086:1C20] :: PciRoot(0x0)\Pci(0x1B,0x0) => codec not detected

7:882 0:010 USB Controller [1033:0194] :: PciRoot(0x0)\Pci(0x1C,0x1)\Pci(0x0,0x0)

7:883 0:000 USB Controller [8086:1C26] :: PciRoot(0x0)\Pci(0x1D,0x0)

7:883 0:000 stringlength = 2216

7:883 0:000 CurrentMode: Width=1280 Height=1024

7:883 0:000 FSInjection: using kexts path: 'EFI\CLOVER\kexts\10.10'

7:890 0:007 MSR 0x1B0 set to 00000000

7:890 0:000 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.10

7:896 0:006 Extra kext: EFI\CLOVER\kexts\10.10\realtekALC.kext

7:897 0:000 Extra kext: EFI\CLOVER\kexts\10.10\FakeSMC.kext

7:916 0:019 Extra PlugIn kext: EFI\CLOVER\kexts\10.10\FakeSMC.kext\Contents\PlugIns\ACPISensors.kext

7:923 0:006 Extra PlugIn kext: EFI\CLOVER\kexts\10.10\FakeSMC.kext\Contents\PlugIns\CPUSensors.kext

7:929 0:006 Extra PlugIn kext: EFI\CLOVER\kexts\10.10\FakeSMC.kext\Contents\PlugIns\GPUSensors.kext

7:943 0:013 Extra PlugIn kext: EFI\CLOVER\kexts\10.10\FakeSMC.kext\Contents\PlugIns\LPCSensors.kext

7:972 0:029 RemoveStartupDiskVolume:

7:972 0:000 * efi-boot-device = Not Found

7:972 0:000 * efi-boot-device-data = Not Found

7:972 0:000 * BootCampHD = Not Found

7:972 0:000 Custom boot is disabled

7:972 0:000 Failed to initialize custom boot screen: Aborted!

7:972 0:000 Closing log

zer0byte85 · October 7, 2014

i have something else to add

if i check the BIOS the bios report i dont have memory installed on the computer

so something is bothering with the bios of the computer

the question is what i can do?

Maniac10 · October 7, 2014

So it’s a bios thing… Try moving/swapping the memory modules and check the results. It might be a faulty module or maybe the bios needs a reset or update.

Clover Issues

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
