ASUS N53SM - INSTALL OS X USING CLOVER BOOT LOADER

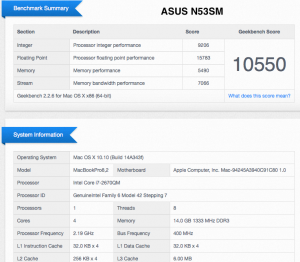

About this Mac.   :hysterical:

http://youtu.be/9oullsazOiU



i7 2670QM

IntelHD 3000 - Nvidia GT630M

Realtek ALC269VB  Vendor Id: 0x10ec0269    Subsystem Id: 0x10431063

The EFI folder contains:

  • DSDT
  • SSDT
  • Config.plist configured for: native audio, HDMI audio, EDID, native AppleIntelCpuPowerManagement.kext, iMessage.



Step by Step



Download Clover

 http://youtu.be/YbeUP7r3MNI



Prepare USB for clover and OS X installer

http://youtu.be/-35g4LK7qAs



Install Clover to USB

https://youtu.be/HHx20DPyOFY



Configure Clover

http://youtu.be/j-TMfaQw0ZE



Copy OS X to USB

http://youtu.be/YegSyqC7DdY



Configure BIOS

Enable UEFI boot option in your BIOS setup



Install OS X

http://youtu.be/HGnMJVltzyU



First boot

http://youtu.be/yvTPYmKamQo



Install Clover to HDD

http://youtu.be/MTWH6atPju4



Copy preconfigured EFI folder for ASUS N53SM

http://youtu.be/FNZzSpyVhFU





Required files:

  1. EFI Folder for Asus N53SM  https://drive.google.com/file/d/0B6jobf4PsIF6YWtldUI3a0dmc00/view?usp=sharing  UPDATED! 24/05/2015
  2. For audio i use AppleHda wizard with my audio config  https://drive.google.com/folderview?id=0B6jobf4PsIF6flZCMl9OU2FuYTl2c01WRWNIeThRZU5mYkQ0VVN2dk51dDloQXc5LVdmX3c&usp=sharing


Edited by anerik70

Share this post


Link to post
Share on other sites
Advertisement

Thank you so much for making this tutorial!



Somehow i can't manage to create a working Clover UEFI bootable USB. It seems that i'm missing the kexts you are using to create the USB drive with.

Could you please share these as well?


Also, i used the EFI Folder for Asus N53SM from step 1 of the required files on the EFI partition of the USB.

In my bootmenu it recognises the USB with its UEFI capable boot (i can see the UEFI boot mode in the menu) but if i select this, my windows 8.1 uefi install gets loaded instead of Clover.

Do you perhaps know what i'm doing wrong? or are you perhaps able to help me creating a working clover bootable usb?, since this is the only thing that isn't working for me.

In the past i have had OSX 10.7 with Chameleon as bootloader running on my Asus N53SM.



I hope to hear from you soon.



(BTW, are you running the triple UEFI boot from one harddrive/SSD? if so, how have you managed to do this? i want the same kind of setup as you have created with Windows 8.1 Pro, OS X Yosemite and a Linux distro)

Share this post


Link to post
Share on other sites

Hello,

Thanks to anerik70 for creating this install guide.



one thing to be noted though is that the youtube video for:

-Prepare USB for clover

and

-install clover to USB

have the same link. i did find the right video on ANERIK70 list of uploaded videos on youtube so maybe he can fix the the link.

otherwise here is the link for it:

-Install clover to USB

https://www.youtube.com/watch?v=HHx20DPyOFY



also, in the video:

-Configure Clover

there are several files used to setup clover on the USB install stick, however i cant find those files anywhere.



is there a chance that maybe you can post those files ?



Thanks again ANERIK70 for taking the time to create the guide and share it with us.

Share this post


Link to post
Share on other sites

Hello,

Thanks to anerik70 for creating this install guide.



one thing to be noted though is that the youtube video for:

-Prepare USB for clover

and

-install clover to USB

have the same link. i did find the right video on ANERIK70 list of uploaded videos on youtube so maybe he can fix the the link.

otherwise here is the link for it:

-Install clover to USB

https://www.youtube.com/watch?v=HHx20DPyOFY



also, in the video:

-Configure Clover

there are several files used to setup clover on the USB install stick, however i cant find those files anywhere.



is there a chance that maybe you can post those files ?



Thanks again ANERIK70 for taking the time to create the guide and share it with us.

This guide is for Asus n53sm.

Here is my EFI folder use with caution and remember to personalize for your hardware.

https://drive.google.com/folderview?id=0B6jobf4PsIF6fllQeGFneF9CaHpVUmRLMTlERFlXd2NiRVIzRHQxMFpScHlDZ0lRdG9RdTQ&usp=sharing

Share this post


Link to post
Share on other sites

Ok,

So after following this Guide (kinda) i have now been able to install Yosemite 10.10.2 and its running perfect on my machine.

(well the battery percentage always shows at 0, but I'll fix that later.)



here are the notes so that other people can use this guide. (thanks again to anerik70 for creating and posting the guide)



First:

This guide is for a N53SM model, however if you like me have a different model of the N53S series the guide still works but you need to make a change.

On the Video: Configure Clover you see him renaming a folder to N53SM. you need to rename that folder to same model as your machine. Mine is N53SV so that's the name i used to rename it. otherwise clover won't find your DSDT and you will have a Kernel Panic.



Second:

in the video of Configure Clover for the USB installer you can see there are 7 kext used.

these are not on the EFI folder he shared, but i have found them and i have attached them to this post for you to download.



Third:

if you have a 1080p screen or if you upgraded your 720p LCD panel to a 1080p like i did (very easy mod, just google it) then the machine will give you garbage on the screen when it boots up.

you need to patch the DSDT file.

i already done that for my machine and is also included on the files I'm sharing. replace the DSDT from his EFI folder and use the one i attached.



Fourth:

Copying his preconfigured EFI folder to my hard drive did not work for me. so i copied the one already created on the USB installer and that worked.



5th:

sound did not work for me. so i downloaded Voodoo kext installer (google it) and that worked. now i got sound.

ethernet and usb 3.0 did not work. download kext helper and install those kext.



and last,

the machine bios did not see the EFI partition to boot from the hard drive, so boot with usb installer select clover options and then choose "add boot options".

next time you reboot you will be able to select Clover as a EFI boot option.



... Just my two cents.







Clover and Kext files.zip

Share this post


Link to post
Share on other sites

Hi,



I am new to this forum and just tried 2 nights to get Yosemite running on my N53SM. Using this guide I can't get the notebook into clover bootloader. If I override the boot option in BIOS to "UEFI: My USB Stick" it just flickers and does nothing, which I'd say tells me it can't find the files to load it is looking for.



Booting a [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] Stick with MBR partitioning scheme works just fine but fails with initializing the graphics adapter and doesn't show anything but a black screen on the installer.



Do you have any hint on what I could try to make it work? Any files to provide to get help.



I am also curious what is shown on the BIOS screenshots that are not working anymore. I also don't have the boot device choose menu from the videos. BIOS Version is 205.



Thanks a lot in advance.



Greets

Share this post


Link to post
Share on other sites

Hi,



I am new to this forum and just tried 2 nights to get Yosemite running on my N53SM. Using this guide I can't get the notebook into clover bootloader. If I override the boot option in BIOS to "UEFI: My USB Stick" it just flickers and does nothing, which I'd say tells me it can't find the files to load it is looking for.



Booting a ##### Stick with MBR partitioning scheme works just fine but fails with initializing the graphics adapter and doesn't show anything but a black screen on the installer.



Do you have any hint on what I could try to make it work? Any files to provide to get help.



I am also curious what is shown on the BIOS screenshots that are not working anymore. I also don't have the boot device choose menu from the videos. BIOS Version is 205.



Thanks a lot in advance.



Greets

Follow these steps:



1. Put these files in the root of your *EFI partition https://drive.google.com/folderview?id=0B6jobf4PsIF6fllQeGFneF9CaHpVUmRLMTlERFlXd2NiRVIzRHQxMFpScHlDZ0lRdG9RdTQ&usp=sharing

​

2. Enable UEFI boot option in your BIOS setup

3. Restart your Asus and press esc key to select boot device then press f12 to reach the efi shell

4. In the shell type "fs0:" (without quotes) and press enter

5. type "cd efi" (without quotes) and press enter

6. type "cd clover" (without quotes) and press enter

7. type "cloverx64.efi" (without quotes) and press enter




* EFI partition has to be the EFI partition of the your device to boot

Share this post


Link to post
Share on other sites

Forgot to say in my first post: thanks for your work providing these guides :)



Got it working by myself, by copying cloverx64.efi to usb key root and renaming it to shellx64.efi. I also preformatted my EFI partition with FAT16 with newfs_msdos. Had to do the same with my SSD EFI Partition to make the BIOS Autoboot into clover.



Here are my additions to make things even smoother:



For correct Webcam support even in Skype get Asusg75's Patched AnyiSightCam from http://forum.osxlatitude.com/index.php?/topic/6182-asus-g75vw/



The AppleHDA kext from the guide didn't work and VoodooHDA gave me screeches and crackles. Used this special AppleHDA which seems to work just fine. (AppleHDA-272.18-ALC269_Asus_N53sm_.zip):

http://www.insanelymac.com/forum/topic/298663-applehda-for-yosemite/



For correct 2 Finger scroll and trackpad support I used Smart Touchpad Driver 4.2: http://forum.osxlatitude.com/index.php?/topic/1948-elan-and-focaltech-smart-touchpad-driver-mac-os-x/



Next is trying out USB3 support. Didn't work so far with the provided kexts :)

Share this post


Link to post
Share on other sites

USB3 works now, seemed to be a reboot issue. Ethernet is working fine as well, thanks a lot! :) Is there any way to turn off Bluetooth (my button is greyed out)?

Share this post


Link to post
Share on other sites

Thank you so much for making this tutorial!



Somehow i can't manage to create a working Clover UEFI bootable USB. It seems that i'm missing the kexts you are using to create the USB drive with.

Could you please share these as well?



Also, i used the EFI Folder for Asus N53SM from step 1 of the required files on the EFI partition of the USB.

In my bootmenu it recognises the USB with its UEFI capable boot (i can see the UEFI boot mode in the menu) but if i select this, my windows 8.1 uefi install gets loaded instead of Clover.

Do you perhaps know what i'm doing wrong? or are you perhaps able to help me creating a working clover bootable usb?, since this is the only thing that isn't working for me.

In the past i have had OSX 10.7 with Chameleon as bootloader running on my Asus N53SM.



I hope to hear from you soon.



(BTW, are you running the triple UEFI boot from one harddrive/SSD? if so, how have you managed to do this? i want the same kind of setup as you have created with Windows 8.1 Pro, OS X Yosemite and a Linux distro)

Follow these steps:



1. Put these files in the root of your *EFI partition https://drive.google...dTQ&usp=sharing

​

2. Enable UEFI boot option in your BIOS setup

3. Restart your Asus and press esc key to select boot device then press f12 to reach the efi shell

4. In the shell type "fs0:" (without quotes) and press enter

5. type "cd efi" (without quotes) and press enter

6. type "cd clover" (without quotes) and press enter

7. type "cloverx64.efi" (without quotes) and press enter

Then navigate add the entries to your UEFI boot





* EFI partition has to be the EFI partition of the your device to boot

Hello,

Thanks to anerik70 for creating this install guide.



one thing to be noted though is that the youtube video for:

-Prepare USB for clover

and

-install clover to USB

have the same link. i did find the right video on ANERIK70 list of uploaded videos on youtube so maybe he can fix the the link.

otherwise here is the link for it:

-Install clover to USB

https://www.youtube.com/watch?v=HHx20DPyOFY



also, in the video:

-Configure Clover

there are several files used to setup clover on the USB install stick, however i cant find those files anywhere.



is there a chance that maybe you can post those files ?



Thanks again ANERIK70 for taking the time to create the guide and share it with us.

Thank you.

I've Fixed all

Ok,

So after following this Guide (kinda) i have now been able to install Yosemite 10.10.2 and its running perfect on my machine.

(well the battery percentage always shows at 0, but I'll fix that later.)



here are the notes so that other people can use this guide. (thanks again to anerik70 for creating and posting the guide)



First:

This guide is for a N53SM model, however if you like me have a different model of the N53S series the guide still works but you need to make a change.

On the Video: Configure Clover you see him renaming a folder to N53SM. you need to rename that folder to same model as your machine. Mine is N53SV so that's the name i used to rename it. otherwise clover won't find your DSDT and you will have a Kernel Panic.



Second:

in the video of Configure Clover for the USB installer you can see there are 7 kext used.

these are not on the EFI folder he shared, but i have found them and i have attached them to this post for you to download.



Third:

if you have a 1080p screen or if you upgraded your 720p LCD panel to a 1080p like i did (very easy mod, just google it) then the machine will give you garbage on the screen when it boots up.

you need to patch the DSDT file.

i already done that for my machine and is also included on the files I'm sharing. replace the DSDT from his EFI folder and use the one i attached.



Fourth:

Copying his preconfigured EFI folder to my hard drive did not work for me. so i copied the one already created on the USB installer and that worked.



5th:

sound did not work for me. so i downloaded Voodoo kext installer (google it) and that worked. now i got sound.

ethernet and usb 3.0 did not work. download kext helper and install those kext.



and last,

the machine bios did not see the EFI partition to boot from the hard drive, so boot with usb installer select clover options and then choose "add boot options".

next time you reboot you will be able to select Clover as a EFI boot option.



... Just my two cents.

Here is my EFI folder Up to date

https://drive.google.com/folderview?id=0B6jobf4PsIF6fllQeGFneF9CaHpVUmRLMTlERFlXd2NiRVIzRHQxMFpScHlDZ0lRdG9RdTQ&usp=sharing

Forgot to say in my first post: thanks for your work providing these guides :)



Got it working by myself, by copying cloverx64.efi to usb key root and renaming it to shellx64.efi. I also preformatted my EFI partition with FAT16 with newfs_msdos. Had to do the same with my SSD EFI Partition to make the BIOS Autoboot into clover.



Here are my additions to make things even smoother:



For correct Webcam support even in Skype get Asusg75's Patched AnyiSightCam from http://forum.osxlatitude.com/index.php?/topic/6182-asus-g75vw/



The AppleHDA kext from the guide didn't work and VoodooHDA gave me screeches and crackles. Used this special AppleHDA which seems to work just fine. (AppleHDA-272.18-ALC269_Asus_N53sm_.zip):

http://www.insanelymac.com/forum/topic/298663-applehda-for-yosemite/



For correct 2 Finger scroll and trackpad support I used Smart Touchpad Driver 4.2: http://forum.osxlatitude.com/index.php?/topic/1948-elan-and-focaltech-smart-touchpad-driver-mac-os-x/



Next is trying out USB3 support. Didn't work so far with the provided kexts :)

That's a kext mirone make for me.  :yes:  but if you want to update your AppleHDA you can use HDA WIZARD like I do in this Video.

https://youtu.be/KqFa4esNK1M

Share this post


Link to post
Share on other sites

Hi, thanks for the post it was very useful for me, my bios version is old, 202, and in no way I can boot from my HDD I always have to boot from usb.

Have you got any suggestions?

Thanks again

Share this post


Link to post
Share on other sites

Hi! I'm trying to follow this guide to install Yosemite on my Asus N53SN, but I don't find some files in the folders that you have kindly provided: "config.plist", "SSDT.aml", and "HFSPlus-64.efi".

(The others are in the 5th post)



Is it possible to have them, please? Or where can I find them?



Thank you very much for the detailed guide!!

Share this post


Link to post
Share on other sites

Hi! I'm trying to follow this guide to install Yosemite on my Asus N53SN, but I don't find some files in the folders that you have kindly provided: "config.plist", "SSDT.aml", and "HFSPlus-64.efi".

(The others are in the 5th post)



Is it possible to have them, please? Or where can I find them?



Thank you very much for the detailed guide!!

https://drive.google.com/file/d/0B6jobf4PsIF6YWtldUI3a0dmc00/view?usp=sharing



There is a file called EFI. Download it. This is a folder download it and navigate to EFI/clover/oem/asus n53sm/UEFI/

Share this post


Link to post
Share on other sites

Hi! Thank you for your answer.

I'm sorry to bother you, but I only see the "efi" file as a unknown file of 1kb and I cannot navigate it...is this because I'm downloading from Windows?



Without those files I have been able to install OSX anyway, but with some problems, for instance I have wrong colours (green and pink-ish colours) in the desktop and some other problems like ethernet and wifi not working and touchpad navigation very strange (it takes a lot of "touching" to navigate the desktop, even if I increase the trackpad speed). Are those problems possibly related to the fact that I installed the system without the EFI files?

(I'm trying Yosemite 10.10 3)



Thank you very much!!

Share this post


Link to post
Share on other sites

Hi! Thank you for your answer.

I'm sorry to bother you, but I only see the "efi" file as a unknown file of 1kb and I cannot navigate it...is this because I'm downloading from Windows?



Without those files I have been able to install OSX anyway, but with some problems, for instance I have wrong colours (green and pink-ish colours) in the desktop and some other problems like ethernet and wifi not working and touchpad navigation very strange (it takes a lot of "touching" to navigate the desktop, even if I increase the trackpad speed). Are those problems possibly related to the fact that I installed the system without the EFI files?

(I'm trying Yosemite 10.10 3)



Thank you very much!!

I have updated the first link. Try

Share this post


Link to post
Share on other sites

Hi anerik70!

Thank you very much! Now I can download the folder!

Unfortunately I'm not even able to reach the installer with the usb installer that I've just created following your guide.

I'm using Yosemite 10.10.3. I built the usb installer from the same pc in which I installed Yosemite 10.10.3 with a usb installation already prepared found on the web. It has a lot of problems (wrong display colours, wifi not working...), but at least the system boots...

I'd like to reinstall the system with your clean installation, with correct drivers.

It's absurd that with correct drivers I cannot reach the installer..,using "-v" boot flag I can see that it keeps saying: "IOBluetoothHostControllerUSBTransport" error,like in this picture http://www.tonymacx86.com/attachments/yosemite-laptop-support/121151d1420780213-lenovo-g580-cannot-reach-installer-wp_20150109_005.jpg



Thank you very much!!

Share this post


Link to post
Share on other sites

Hi anerik70!

How are you!?

Eventually after all these months I managed to install OS X on my computer too. I'm on 10.11.2. Since our machines are quite similar I am here to bother you again with many questions :)





1)As you can see from my signature (half copied from yours :) ) I'm stuck mainly with Bluetooth, WiFi and Battery Management that aren't working. I'd like to know how you managed to make them working, or if you can upload an updated version of your kext, dsdt,ssdt and config.plist.



2)I have to admit that I'm still using your patched ssdt and dsdt from yosemite, without them I can't even boot...for these reasons I'd like to ask you if you remember which patches you applied (just for curiosity and to learn a bit from them). I tried to patch by myself my natively extracted dsdt and ssdt to have them clean, but I failed, so i'm still using yours. But I'd like to understand which are the patches to apply. For instance to enable the audio I read that I should use the "IRQ fix" but I don't know whether you had already patched it in yours or not...





Some other minor questions...

3)I managed to make alc269 working with Mirone's AppleHDAPatcher (after two days of work) and the audio seems working fine but I don't know whether it is normal that I can't see hdmi audio out and spdif, but only built-in speakers



4)Sometimes i have glitches of graphical errors of some kind, except for the fact that our intel hd3000 is native, did you set something in particular, like disable the nvidia card to avoid graphical problems?



5)Looking at your config.plist I saw that in the cpu section you checked the C2,C4,C6 checkbox...but how do you know the best settings? (I trust you blindly :) ) My config.plist is empty with respect to yours...



6)Why do you have many different ACPI folders with many different DSDT (sinbateria,sinfant,nvidia) in your Clover? you have it in Efi/Clover/Acpi/patched but also in Efi/Clover/Oem/N53SM/Uefi/Acpi/patched? (Unfortunately I wasn't able to install os x as uefi....)



7)Any other suggestions to make the system more stable?



Ahah sorry for all these questions, but I'm in constant fear of breaking the functionality of the system. For instance now I'll try to edit the dsdt to correct the glitch while setting the brightness....



Thank you very much!!!!

Share this post


Link to post
Share on other sites

Hi anerik70!

How are you!?

Eventually after all these months I managed to install OS X on my computer too. I'm on 10.11.2. Since our machines are quite similar I am here to bother you again with many questions :)





1)As you can see from my signature (half copied from yours :) ) I'm stuck mainly with Bluetooth, WiFi and Battery Management that aren't working. I'd like to know how you managed to make them working, or if you can upload an updated version of your kext, dsdt,ssdt and config.plist.



2)I have to admit that I'm still using your patched ssdt and dsdt from yosemite, without them I can't even boot...for these reasons I'd like to ask you if you remember which patches you applied (just for curiosity and to learn a bit from them). I tried to patch by myself my natively extracted dsdt and ssdt to have them clean, but I failed, so i'm still using yours. But I'd like to understand which are the patches to apply. For instance to enable the audio I read that I should use the "IRQ fix" but I don't know whether you had already patched it in yours or not...





Some other minor questions...

3)I managed to make alc269 working with Mirone's AppleHDAPatcher (after two days of work) and the audio seems working fine but I don't know whether it is normal that I can't see hdmi audio out and spdif, but only built-in speakers



4)Sometimes i have glitches of graphical errors of some kind, except for the fact that our intel hd3000 is native, did you set something in particular, like disable the nvidia card to avoid graphical problems?



5)Looking at your config.plist I saw that in the cpu section you checked the C2,C4,C6 checkbox...but how do you know the best settings? (I trust you blindly :) ) My config.plist is empty with respect to yours...



6)Why do you have many different ACPI folders with many different DSDT (sinbateria,sinfant,nvidia) in your Clover? you have it in Efi/Clover/Acpi/patched but also in Efi/Clover/Oem/N53SM/Uefi/Acpi/patched? (Unfortunately I wasn't able to install os x as uefi....)



7)Any other suggestions to make the system more stable?



Ahah sorry for all these questions, but I'm in constant fear of breaking the functionality of the system. For instance now I'll try to edit the dsdt to correct the glitch while setting the brightness....



Thank you very much!!!!

Hi.

My system isn't same as yours.

The only thing that not works is NVIDIA GT 630M.



My current configuration for EL CAPITAN 10.11.2 is here: https://drive.google.com/file/d/0B6jobf4PsIF6aDdKUUtTcHpiWjQ/view?usp=sharing

I use OEM folder inside clover with my asus's name. If you want to use my efi folder you have to rename N53SM to N53SN

Share this post


Link to post
Share on other sites

Hi Anerik70! Thank you very much!!

I'm sorry to bother you again...



I'm trying to install OSX without your patched files because I noticed that the SystemMemory addresses between my native DSDT and your patched DSDT are different, so as you say our machines are not the same, but probably they are similar.



So I'm trying to install without patching acpi files at all for now, but I cannot reach the installation screen because I'm stuck at a gray screen. I've finally managed to install the system with and external monitor connected via vga, so the problem is my display. But I don't understand how to solve this, even now that the system is installed it is stuck at a gray screen without external monitor. I was suggested this could be a backlight issue or edid issue...By any chance did you encountered this problem (if yes how did you solve it)? (I've the 1920x1080 display but maybe they are the same panel except for that...).





After having solved the first problem I'd like to patch my acpi files by myself (even to learn a bit), so by any chance do you remember which patches you applied to yours? Just to have a guideline because I cannot understand which patches are needed. I found a list:

"Fix _WAK Arg0 v2"
"HPET Fix"
"SMBUS Fix"
"IRQ Fix"
"RTC Fix"
"OS Check Fix"
"Fix Mutex with non-zero SyncLevel"
"Fix PNOT/PPNT"
"Add IMEI"

"6-series USB"



Do you remember whether you applied some of them?



Thank you very much!!!

Share this post


Link to post
Share on other sites

Hello guys,

happy new year!



Thanks for the guide! i have good old n53sn notebook. I am trying installing el capitan on my n53sm following this guide, but i have some problems here:

1) Audio still doesn't work using AppleHDA (N53SN-fullhd display).

2) keyboard and trackpad doesn't work

3) I am still having problem installing clover on the same hd (main internal hd0) and i have to boot using an external usb stick... perhaps it's related to clover itself not to n53.

thanks!

Share this post


Link to post
Share on other sites

Hello guys!

Guys, if I install to USB Flash not Clover but Yosemite - will it install hackintosh this way or I should use only Clover?

Share this post


Link to post
Share on other sites

Hello guys!



Guys, if I install to USB Flash not Clover but Yosemite - will it install hackintosh this way or I should use only Clover?

Hi.

To install OS X on a non-Apple PC you need to use one of the so-called "bootloaders", like Clover, Chameleon, Enoch, etc.... Nowadays I'd say that if you learn to use Clover is probably better because it seems to be the way to go in the future.

So the answer to your question is that you need both a bootloader like Clover AND the operative system (Mavericks/Yosemite/El Capitan....) to setup your hackintosh.

There are plenty of guides and tutorials on the internet that explain how to setup an USB pen drive with one or two partitions (it depends on the type of BIOS:legacy/UEFI) for bootloader and OSX.

Once you install the system you still need the bootloader to boot in it, so either you keep using the USB flash drive or you just install the bootloader in your internal hard disk.

I hope I've been enough clear.



Hello guys,

happy new year!



Thanks for the guide! i have good old n53sn notebook. I am trying installing el capitan on my n53sm following this guide, but i have some problems here:

1) Audio still doesn't work using AppleHDA (N53SN-fullhd display).

2) keyboard and trackpad doesn't work

3) I am still having problem installing clover on the same hd (main internal hd0) and i have to boot using an external usb stick... perhaps it's related to clover itself not to n53.

thanks!

Hi manmal!

1)I don't know on which system you are, but I am on El Capitan 10.11.3 with my Asus N53SN (full hd like yours). I tried to patch my appleHDA with Mirone's patch on https://github.com/Mirone/AppleHDAPatcherchoosing the patch that Anerik70 uses, so the " ALC269-AsusN53sm" one. I managed to make it work but it was unstable, sometimes it booted without audio working, sometime with the audio working. Then I tried Anerik70's "aDummyHDA" + injection of audio layout in my Clover's config.plist and now it is working without any problem! You can find it in the folder posted in post #19 between the kexts in the OEM folder.

2)I'm currently using without any problem the kexts in my signature to make keyboard and trackpad working, so they are Elan Touchpad (ApplePS2SmartTouchPad.kext) - FN Keys (AsusNBFnKeys.kext)[/size]. Probably you can find them between the kexts in the folder by Anerik70 posted in post #19. I use KextWizard to install them in S/L/E (system/library/extensions), and after the installation I rebuild kext caches and permissions always with KextWizard.

3)I'm using both windows and OSX in UEFI mode currently, so I chose not to install clover in my hdd, because I wanted Windows to keep its bootloader "clean" in the EFI partition of my HDD. However since I didn't want to use a usb pen drive to boot every time I manage to create a small partition on my internal HDD (being GPT I can create many partitions) around 300 MB formatted in fat32 and I just copied the content of the Clover partition of the USB pendrive onto this internal partition. Basically now I use this partition to boot into clover. The way I boot is a bit tricky if you want. Since our old laptop has a crappy bios, one of those which is both compatible with Legacy BIOS and UEFI (an early implementation of UEFI bios...) every time I want to boot OSX I enter the BIOS, go in UEFI shell, select the internal partition where clover is stored and manually browse in the "efi/boot" folder and run "bootx64.efi". That pops up clover and from there I can easily access OSX. Of course this is because my main system is Windows, otherwise I would have installed clover properly, but however trust me it doesn't take more than 15 second to boot into Clover once you are used to it!

Bye!



Hi.

My system isn't same as yours.

The only thing that not works is NVIDIA GT 630M.



My current configuration for EL CAPITAN 10.11.2 is here: https://drive.google.com/file/d/0B6jobf4PsIF6aDdKUUtTcHpiWjQ/view?usp=sharing

I use OEM folder inside clover with my asus's name. If you want to use my efi folder you have to rename N53SM to N53SN

Hi anerik70! I'm sorry to bother you again. I managed to make everything work, and for this I thank you again! But I'd like to ask you one last thing....I'm using your aDummyHDA.kext successfully, but I noticed that it has a version lower than the actual ones on El Capitan (the ones that the patcher produces). Even if it is working I'd like to understand how you managed to create a working aDummyHDA.

At first I used the patch by Mirone at https://github.com/Mirone/AppleHDAPatcher with the patch "ALC269-AsusN53sm" but it only creates the AppleHDA, not the aDummyHDA (moreover I was having problems).

Now I tried another patch always by Mirone at http://www.insanelymac.com/forum/files/file/496-applehda-patcher/but unfortunately it lacks the patch for " ALC269-AsusN53sm", so I tried all the possible variations of the version for ALC269 without success....

So how did you create your aDummyHDA??! You know just to understand and learn, even because in the future it could still be useful!

Thank you very much!!

Bye!

Share this post


Link to post
Share on other sites

Hi.

To install OS X on a non-Apple PC you need to use one of the so-called "bootloaders", like Clover, Chameleon, Enoch, etc.... Nowadays I'd say that if you learn to use Clover is probably better because it seems to be the way to go in the future.

So the answer to your question is that you need both a bootloader like Clover AND the operative system (Mavericks/Yosemite/El Capitan....) to setup your hackintosh.

There are plenty of guides and tutorials on the internet that explain how to setup an USB pen drive with one or two partitions (it depends on the type of BIOS:legacy/UEFI) for bootloader and OSX.

Once you install the system you still need the bootloader to boot in it, so either you keep using the USB flash drive or you just install the bootloader in your internal hard disk.

I hope I've been enough clear.



Yep, I understand it!

Yesturday I tried to load UEFI from flash on me Asus N53Sm as it was shown in this topic guide.

But I really couldn't do it - Clover loader wasn't loading). UEFI is enabled in my BIOS.

The only guess I have is broken loader.

After preparing my USB Flash I guess to check data on it and plug it into Mac - and when I prepare USB Flash Mac shows 2 volumes (with OSX and UEFI), but second time only OSX volume. At the end of all I ignored safely removing hardware. Maybe this steps broke loader, I don't know). Today I'll try to prepare Flesh USB once again and try to install Mac))

But maybe you have idea, why Asus didn't load loader?It seens so strange.



P.S.: boot priority was set to UEFI flash

Share this post


Link to post
Share on other sites

Yep, I understand it!

Yesturday I tried to load UEFI from flash on me Asus N53Sm as it was shown in this topic guide.

But I really couldn't do it - Clover loader wasn't loading). UEFI is enabled in my BIOS.

The only guess I have is broken loader.

After preparing my USB Flash I guess to check data on it and plug it into Mac - and when I prepare USB Flash Mac shows 2 volumes (with OSX and UEFI), but second time only OSX volume. At the end of all I ignored safely removing hardware. Maybe this steps broke loader, I don't know). Today I'll try to prepare Flesh USB once again and try to install Mac))

But maybe you have idea, why Asus didn't load loader?It seens so strange.



P.S.: boot priority was set to UEFI flash

Keep on mind that the EFI partition is not mounted in OSX by default, so it is normal that the first time you create the USB flash with clover it will show the EFI partition, but after that every time you want to "see" the EFI partition you have to mount it manually through terminal and disk utility or using tools like Clover Configurator (which I suggest since later you'll use it probably to tweak your config.plist). As soon as you start Clover Configurator it will ask to mount the EFI partition. Here you must be careful and mount the right one, maybe on your mac there is already its own EFi partition, but you want the one with Clover on the USB flash drive. So after having mounted the EFI partition you can see it in your desktop as "EFI".



The second thing is that you can choose whether to use clover "legacy" for legacy bios or clover UEFI. You have to choose it when you prepare the clover USB key, and later boot accordingly. Probably the UEFI one is more future proof. Keep in mind that our laptop has an early implementation of UEFI boot with some limitations. Basically it's ok if you have enabled "UEFI boot" in bios, but for instance, when you press "ESC" at boot you are shown the bootable entries, and usually you should see your usb drive in two different ways, the "legacy" way and the "UEFI" way (prefixed with "UEFI: "). Ok now at least for me in that situation if I chose the UEFI one (for clover UEFI) I wasn't able to boot in clover. On our laptops it's better to use the EFI shell to boot devices in UEFI mode manually. To do so put in the root of your EFI partition on the USB key the file attached in this post (decompressed). To do so you have to mount the EFI partition of your usb key as explained above (with Clover Configurator or manually), and copy the file "shellx64.efi" (not the zip, extract the file) in the root of the "EFI" partition. Where you also have the "EFI" folder (not inside!). Once you do that you reboot the Asus N53SM and enter the bios (pressing F2 or "ESC" and choosing "Enter Setup"). Once you're in the bios go in the last tab "Save and Exit" and choose the option at the bottom: "Launch EFI shell..........".



Here wait the few seconds for the console to appear (or press any button if you don't want to wait) and go in the "EFI" partition on the USB key that you prepared before.

Pay attention, you should "find" the name or your USB flash drive or do some trial/error to find the correct one. You can type "map" without quotes to show the list of devices. To go in your usb drive, for instance for me it was the fs4, you should type: "fs4:" and press enter (if not fs4 try fs0, fs1, fs2....). Pay attention, I don't know the layout of your keyboard but in the efi shell the layout of the keyboard is the US layout so you could have some different combination of buttons to type ":", look up for the US keyboard layout on Google if you need.



Once you are in the device you can type "dir" to show the folders. You can already check if you selected the correct drive, you should have all the folders of Clover, so you should find "EFI" folder and others. If you don't see the "EFI" folder probably you entered the wrong device so you have to change drive always typing "fsX:" where X=1,2,3....

Once you find the correct drive with the "EfI" folder you type: "cd \efi\boot" and press enter.

Once you did that type "bootx64.efi" and press enter.

Now Clover should boot properly in UEFI mode. (In your bios the UEFI boot must be Enabled of course).

shellx64.efi.zip

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By glasgood
      CLOVER DUAL BOOT MOJAVE & WINDOWS 10 GUIDE




      INCLUDES  MBR / LEGACY BIOS  TO  GPT / EFI CONVERSION
      USING MBR2GPT TOOL


      PREREQUISITE: Two physical discs ( SSD’s or HDD’s )





      STEP 1 - Clover dual boot configuration

      Open config.plist with Clover Configurator

      Boot
       Legacy = PBR Timeout = True ( will remove the Timeout countdown, from Clover boot menu)


      GUI
      Scan / Custom
       Entries = True  Tool = True  Legacy = False ( removes extra Windows 10 entries )
      Hide Volume
      - Preboot ( macOS Preboot )
      - Recovery ( macOS Recovery )



      So at boot you will have two options: boot macOS Mojave or Windows 10







      ————————————————————


      STEP 2 - Using a drive without Windows 10 installed

      Disconnect system drive that contains your macOS Mojave install from computer ( This is so that Windows does not overwrite existing macOS Mojave boot loader )

      Proceed with a Windows 10 UEFI install.
      After installation reconnect macOS Mojave Drive, the Windows installation should now be detected and usable in Clover.
      If Windows 10 is not detected or able to boot,  then verify you installed Windows 10 as UEFI and not MBR ---->  ( Read step 2 - For a drive with Windows 10 installed )


      OR



      STEP 2 - Using a drive with Windows 10 already installed

      Verify your Windows install is  GPT / UEFI or MBR / Legacy BIOS.
      If Windows install is GPT UEFI then Windows 10 install is ready to use at Clover boot menu, you should be able to boot into Windows directly from Clover boot screen.




      But if  Windows drive is detected at Clover boot screen, but when booting Windows you get a black screen with a cursor on the top left,
      then this is most likely because Windows drive is MBR ( Legacy BIOS ).  You can easily convert MBR to GPT using  Windows MBR2GPT tool ( this saves hours work having to reinstall Windows 10 and setting up all your applications again  )

      If Windows 10 install is MBR / Legacy BIOS  then simply convert to GPT / UEFI  following instructions below ( read video summary and view video )


      ** To use Windows 10  MBR2GPT tool  you must have Windows 10 version 1703 ( creators update  ) or later and less than 3 partitions on
      the Windows 10 drive **

      Video summary:

      Confirm Windows 10 drive is MBR Legacy BIOS ( in Windows Disk Management ) Reboot into Windows PE ( Advanced Startup ) Convert from MBR Legacy BIOS to GPT UEFI ( using commands below ) mbr2gpt /validate mbr2gpt /convert Restart Verify Windows 10 drive has changed to GPT UEFI ( in Windows Disk Management )



      After conversion Windows 10 is ready to use at the Clover boot menu



      STEP 3 - Stop Windows Boot manager from overriding Clover boot manager

      How to stop Windows boot manager from overriding your Hackintosh Clover boot manager when using dual booting between macOS and Windows






    • By MaLd0n
      ---INSTALLATION TUTORIAL---

      ---Original Post---
      https://olarila.com/forum/viewtopic.php?f=45&t=9172

      ---USB---
      https://pikeralpha.wordpress.com/2016/07/13/simple-skylake-usb-fix-no-kexts-required/

      ---CLOVER FOLDER---

      CLOVER.zip


      --MOBO
      GigaByte Z390 M Gaming



      --PROCESSOR
      Intel Core i9-9900K


      --COOLER
      CoolerMaster MasterLiquid ML120R RGB


      --MEMORY
      Corsair Dominator Platinum 16GB (2 x 8GB)


      --GPU
      Sapphiretech Radeon RX 590 8 GB GDDR5



      --SSD
      Samsung 970 EVO NVMe M2 Flash Drive


      --POWER SUPPLY
      EVGA 750 N1, 750W


      --WIRELESS
      TP-Link Archer T9E


      --BLUETOOTH
      Orico BTA-403


      --CASE
      Thermaltake View 21 Tempered Glass Edition


      --DSDT Patches--
      -FIX ERRORS AND WARNINGS -FIX ACPI ERRORS -REMOVE UNUSED SCOPES / DEVICES -HIGH PRECISION EVENT TIMER -SATA SERIE 10 ID -DMAC -REMOVE 22K LINES, PROBLEMATIC and UNUSED -FIX K.P in REBOOT -NVRAM / REAL TIME CLOCK -SLPB -DARWIN / WINDOWS 2015 -XHCI -PLUGIN TYPE -HDAS to HDEF -HDEF -REAL TIME CLOCK -ARTC -IRQs -SBUS -MIKEY -BUS1 -MCHC -ALS0 -SHUTDOWN -UAR1 -LAN -FWHD -USBX -PMCR -PPMC -XSPI -GMM -IMEI -EC -PNLF -ARPT -GFX0 -NVME -DTGP -ACQUIRE MUT0 0XFFFF -OPERATION REGION GPIO -MUTEX MUT0 0x00 -EXTERNAL REFERENCES -UNKNOWNOBJ -HDMI / HDAU -FULL RENAMED DEVICES
      --SCREENSHOTS--





























      --BruceX--

      --USB-C-- test with SanDisk Ultra USB-STICK 128gb



      -Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!
      Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad, Sampath007, onemanosx, erroruser, Jenny David, Olarila Facebook Community, Hackintosh Facebook Community and many others!
      We're all here to have fun and learn from each other!
    • By cvad
      Small tool to download, compile and build the latest Clover X64 package.




      The script inside is editable.


      Enjoy...

      Many thanks to the comrade SunKi for help with creating the script.





      Best thanks - click "Rate File".

    • By blxkspell
      Hey!
      As I have 3 Monitors connected, my RX 570 gets arround 50°C while ideling/ web browsing etc. The problem is, that this temp is apparently just the threshold, when the fans start to spin. So the fans start spinning for a minute then they stop for a while again... This is very annoying for me as the rest of my hackintosh is nearly quiet (SSD, 120mm low RPM cpu fan, nearly silent PSU,...), especially when Im using the pc to revise for school. Does somebody know wether its possible to "change" the threshold till the fans start spinning? Like it would probably not be a problem for the gpu at all, if the temp rises to 55°C but therefore be soundless....


×
