Upgrade i5 a i7. No me reconoce bien el procesador

[nama]

Estimados

Realice un upgrade de mi procesador, pasando de un I5 2520M a un I7 2670QM para obtener mayor performance. Sin embargo desde que hice la actualización no me reconoce aunque parece que me lo reconoce sin problema, en HWMONITOR no me refleja los 8 procesos que es capaz de ejecutar.



Tambien desde que hice la actualización no me reconoce la tarjeta 3g y el ratón BT no se sincroniza.



He actualizado el DSDT y el SMBIOS pero no he conseguido que funcione,



Adjunto el DSDT generado de nuevo desde AIDA64 y el DARWINDUMPER generado con el arranque desde CLOVER tal y como lo tengo configurado.



iFIRE, voy a probar lo que me has indicado y os cuento



Espero que alguien me pueda ayudar

DSDT+DarwinDumper.rar

[Allan]

Usa um SSDT.



E verifique seu SpeedStep: http://www.insanelymac.com/forum/topic/295587-power-management-for-sandyivy-bridgehaswell-cpus/?p=2003480

[nama]

Allan este es el resultado en el Terminal:





nachos-MacBook-Pro:~ nacho$ cat /var/log/system.log | grep "AICPUPMI:"
May 29 01:17:02 localhost kernel[0]: AICPUPMI: CPU P-States [ 8 22 ]
May 28 23:17:16 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 22 30 ]
May 28 23:17:18 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 22 28 30 ]
May 28 23:17:20 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 15 22 28 30 ]
May 28 23:17:20 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 22 28 30 ]
May 28 23:17:27 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 28 30 ]
May 29 01:25:37 localhost kernel[0]: AICPUPMI: CPU P-States [ 8 22 ]
May 28 23:25:13 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 22 28 ]
May 28 23:25:14 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 22 28 30 ]
May 28 23:25:15 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 22 28 30 ]
May 28 23:25:31 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 22 28 30 ]
May 28 23:25:39 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 28 30 ]
May 28 23:26:11 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 28 30 31 ]
May 28 23:27:12 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 26 28 30 31 ]
May 28 23:32:17 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 25 26 28 30 31 ]
May 28 23:41:47 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 25 26 28 29 30 31 ]
May 29 08:16:49 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 24 25 26 28 29 30 31 ]
May 29 09:14:35 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 24 25 26 27 28 29 30 31 ]
May 29 17:40:04 localhost kernel[0]: AICPUPMI: CPU P-States [ 8 22 ]
May 29 15:40:16 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 22 28 ]
May 29 15:40:18 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 15 22 28 ]
May 29 15:40:19 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 22 28 ]
May 29 15:40:26 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 22 28 29 ]
May 29 15:40:27 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 22 27 28 29 ]
May 29 15:40:55 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 22 27 28 29 30 ]
May 29 15:40:56 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 27 28 29 30 ]
May 29 15:45:00 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 26 27 28 29 30 ]
May 29 15:47:43 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 26 27 28 29 30 31 ]
May 29 23:13:25 localhost kernel[0]: AICPUPMI: CPU P-States [ 22 ]
May 29 23:13:25 localhost kernel[0]: AICPUPMI: CPU P-States [ 8 22 ]
May 29 21:13:23 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 22 28 ]
May 29 21:13:24 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 15 22 28 ]
May 29 21:13:27 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 15 22 28 30 ]
May 29 21:13:29 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 22 28 30 ]
May 29 21:13:36 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 28 30 ]
May 29 21:13:42 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 28 30 31 ]
May 29 21:16:07 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 26 28 30 31 ]
May 29 21:31:21 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 26 28 29 30 31 ]
May 29 21:39:03 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 25 26 28 29 30 31 ]
May 29 23:55:31 localhost kernel[0]: AICPUPMI: CPU P-States [ 22 ]
May 29 23:55:31 localhost kernel[0]: AICPUPMI: CPU P-States [ 8 22 ]
May 29 21:55:18 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 22 ]
May 29 21:55:19 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 22 28 ]
May 29 21:55:30 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 22 28 ]
May 29 21:55:37 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 28 ]
May 29 21:55:40 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 28 30 ]
May 29 21:58:15 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 28 29 30 ]
May 29 21:58:19 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 26 28 29 30 ]
May 29 21:58:28 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 26 28 29 30 31 ]
nachos-MacBook-Pro:~ nacho$


[Allan]

Os states estão corretos, agora, gera uma nova SSDT.



Você usa Chameleon ou Clover?

[nama]

Uso CLOVER,

como lo genero?

[Allan]

Você tem duas opções.

1 - Pode gerar um SSDT com o comando do Pike, veja mais aqui: Power management for Sandy/Ivy Bridge/Haswell CPUs

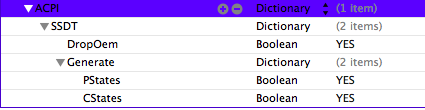

2 - Ou deixar que o Clover faça isso, deixe assim no config.plist.



Escolha apenas 1 ou outro. Não use os dois juntos.

[nama]

Ahora el resultado es este:

May 30 00:18:22 localhost kernel[0]: AICPUPMI: CPU P-States [ 22 ]
May 30 00:18:22 localhost kernel[0]: AICPUPMI: CPU P-States [ 8 22 ]
May 29 22:18:26 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 22 ]
May 29 22:18:28 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 22 28 ]
May 29 22:18:34 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 22 28 ]
May 29 22:19:07 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 22 28 30 ]
May 29 22:19:21 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 28 30 ]
May 29 22:24:45 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 26 28 30 ]
May 29 22:26:13 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 26 28 29 30 ]
May 29 22:32:48 localhost kernel[0]: AICPUPMI: CPU P-States [ 22 ]
May 29 22:32:48 localhost kernel[0]: AICPUPMI: CPU P-States [ 8 22 ]
May 29 20:32:17 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 22 ]
May 29 20:32:27 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 22 28 ]
May 29 20:32:29 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 22 28 ]
May 29 22:34:09 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 28 ]
May 30 00:59:24 localhost kernel[0]: AICPUPMI: CPU P-States [ 22 ]
May 30 00:59:24 localhost kernel[0]: AICPUPMI: CPU P-States [ 8 22 ]
May 29 22:59:19 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 22 ]
May 29 22:59:20 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 22 28 ]
May 29 22:59:23 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 22 28 ]
May 29 23:00:20 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 28 ]
May 29 23:00:30 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 28 30 ]
May 29 23:00:32 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 26 28 30 ]
May 30 01:09:47 localhost kernel[0]: AICPUPMI: CPU P-States [ 22 ]
May 30 01:09:47 localhost kernel[0]: AICPUPMI: CPU P-States [ 8 22 ]
May 29 23:10:22 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 22 28 ]
May 29 23:10:25 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 15 22 28 ]
May 29 23:10:41 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 22 28 ]
May 29 23:11:03 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 28 ]
May 29 23:11:07 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 28 31 ]
May 29 23:11:29 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 28 30 31 ]
May 29 23:12:28 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 26 28 30 31 ]
May 29 23:12:58 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 26 28 29 30 31 ]
May 30 01:35:11 localhost kernel[0]: AICPUPMI: CPU P-States [ 22 ]
May 30 01:35:11 localhost kernel[0]: AICPUPMI: CPU P-States [ 8 22 ]
May 29 23:35:22 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 22 28 ]
May 29 23:36:43 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 22 28 ]
May 29 23:36:46 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 22 28 30 ]
May 29 23:36:50 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 22 28 30 ]
May 29 23:37:14 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 28 30 ]
May 29 23:37:43 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 28 30 31 ]
May 30 01:38:36 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 23 28 30 31 ]
May 30 02:39:34 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 23 27 28 30 31 ]
May 30 03:40:32 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 23 24 27 28 30 31 ]
May 30 10:35:46 localhost kernel[0]: AICPUPMI: CPU P-States [ 22 ]
May 30 10:35:46 localhost kernel[0]: AICPUPMI: CPU P-States [ 8 22 ]
May 30 08:35:23 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 22 28 ]
May 30 08:35:24 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 22 28 ]
May 30 08:35:26 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 22 28 ]
May 30 08:35:38 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 22 27 28 ]
May 30 08:35:42 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 27 28 ]
May 30 08:35:49 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 27 28 30 ]
May 30 08:36:25 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 27 28 30 31 ]
May 30 12:16:29 localhost kernel[0]: AICPUPMI: CPU P-States [ 22 ]
May 30 12:16:29 localhost kernel[0]: AICPUPMI: CPU P-States [ 8 22 ]
May 30 10:16:13 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 22 ]
May 30 10:16:14 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 22 28 ]
May 30 10:16:25 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 22 28 ]
May 30 10:16:31 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 28 ]
May 30 10:17:30 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 27 28 ]
May 30 13:28:22 localhost kernel[0]: AICPUPMI: CPU P-States [ 22 ]
May 30 13:28:22 localhost kernel[0]: AICPUPMI: CPU P-States [ 8 22 ]
May 30 11:28:09 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 22 ]
May 30 11:28:10 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 22 28 ]
May 30 11:28:25 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 22 28 ]
May 30 11:28:36 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 22 26 28 ]
May 30 11:28:37 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 26 28 ]
May 30 11:28:46 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 26 27 28 ]
May 30 11:52:12 localhost kernel[0]: AICPUPMI: CPU P-States [ 22 ]
May 30 11:52:12 localhost kernel[0]: AICPUPMI: CPU P-States [ 8 22 ]
May 30 09:52:08 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 22 ]
May 30 09:52:13 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 19 22 ]
May 30 09:52:17 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 19 22 28 ]
May 30 09:52:23 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 28 ]
May 30 09:52:44 nachos-MacBook-Pro kernel[0]: AICPUPMI: CPU P-States [ 8 11 15 19 22 27 28 ]
nachos-MacBook-Pro:~ nacho$

[Allan]

Perfeito!!



Qual método usou? 1 ou 2?

[nama]

Usé el 2º, configurando el clover.



Ahora me gustaria corregir y parchear el DSDT desde CLOVER, alguien me puede indicar como



Adjunto los DSDT y demas ficheros generados desde CLOVER sin tocar





Gracias

origin.zip

[Allan]

Que bom que os states funcionaram.



Agora sobre usar um DSDT por conta do Clover, aconselho você a pedir ajuda aqui: Clover General discussion

[nama]

Muchas gracias Allan, me pasaré por el hilo que me dices

[Allan]

Por nada.
