Getting HD4600+nVidia780Ti Dual Monitor


raj47i
 Share

6 posts in this topic

Recommended Posts

Hello, My rig is:

  • i7 4770K + Asus Sabertooth Z87 + 32GB
  • Dell IPS Panel on Displayport of Motherboard (HD4600)
  • Benq LED Panel on HDMI of EVGA 780Ti SC
  • Clover UEFI upto date !
  • Mavericks Installed 10.9.0, upgraded to 10.9.3

HD4600 is working mostly okay (HDMI/DP Audio is not working), Intel Inject enabled with Clover. Its working superbly, except that my 780Ti is of no use.



My Questions:

  • Can I get 780Ti to run the 2nd display on Mavericks?
  • What fix/kexts do I need to install?
  • Do I need nVidia Web Drivers?
  • I have only tried the HDMI on the 780Ti (DVI / DP cables not with me atm), Is there any inject/patch required for the HDMI to work?

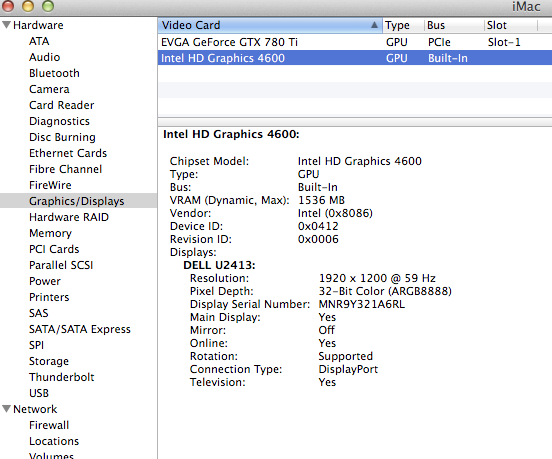

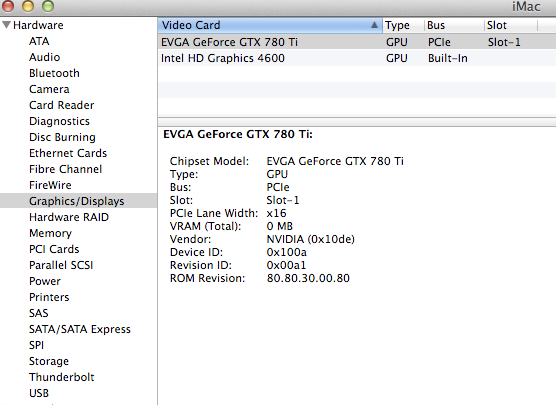

Attaching my clover config.plist & graphics info!



config.txt

Link to comment
Share on other sites

:-( No one can help me with this ?



Could anyone atleast confirm if EVGA 780Ti SC works with Hackintosh ?



I tried unplugging both monitors and plugged the DisplayPort cable to 780Ti, with Inject-Intel false and Inject-NVidia True, and it got stuck in the start up screen with apple logo.

On Verbose, message was:



GeForceSensors (pci1): chipset: GK110B (NVF1) bios: 80.80.30.00

GeForceSensors (pci1): started

Link to comment
Share on other sites

Basic requirements for Intel IGPU + Kepler and above Nvidia cards:



1. The IGPU must be set as primary display device in the BIOS and injected properly using whatever method that's most convenient to you. IGPU VGA output does not work on OS X.



2. This is what RD is hinting at: You must explicitly disable all injection for the Nvidia card. Kepler family cards and above don't need it, in fact having any nvidia injection enabled can prevent them from working.
