[GUIDE] – Dell 1558 – Mavericks 10.9.1

11 posts in this topic

Recommended Posts

Hi all,

this thread is about installing OS X on dell 1558 and how to enable most of the hardware.



My system:

  • Dell Studio 1558
  • Core i5 (430M) 2.26 GHz
  • 6GB DDR3 1333Mhz RAM
  • ATI Mobility HD 5470 1GB (1366x768)

What’s working (last update 21-01-2014):

  •     Audio (DSDT + modified AppleHDA.kext)
  •     Temperature Sensors (KEXT)
  •     Battery/AC Status (DSDT + KEXT)
  •     Brightness (DSDT)
  •     Touchpad + Keyboard (KEXT)
  •     ATI Radeon HD5470 1 GB QE/CI (KEXT)
  •     USB (OOB)
  •     Webcam (OOB)

What’s *not* working so far:

  • FN-Keys + Special Dell Keys (Brightness/Volume)
  • DVD-RW Drive
  • SLEEP
  • SLEEP on LID
  • WLAN (I replaced it with a BCM94321)

What's currently untested:

  • External VGA
  • Cardreader

Known issues:

  • After installing the "ATY_Init.kext" you will not see the login screen because your monitor is shown as an external VGA so you have to type your password and press enter blindly. Luckily mavericks lets you use the dock also on the external vga, so you can open the preference panel, go to monitor settings and duplicate it. You have to set your current monitor optimized as: "Monitor" and not "monitor VGA". Doing so you will have full QE/CI.
  • Sometimes the hackintosh never shutdown or reboot (I get a white screen with a cursor and it stays white forever).

Bootloader: chimera



If you have any queries or suggestions please do not hesitate to reply!



Attached is the dsdt file and the additional kext files needed for proper installation.



Dell 1558.zip

Share this post


Link to post
Share on other sites
Advertisement

Hi,

Do you have any suggestions on how to solve the problem of the external monitor? Or how to make the button of the brightness and audio volume work?


Thanks,
Ivan

Share this post


Link to post
Share on other sites

Ivan,



Thanks for your drivers. Very helpful.
Did you also manage to get audio through HDMI?



I have an external monitor (HDMI) and i got it working with adding this to my chameleon.boot.plist :



    <key>GraphicsEnabler</key>
        <string>Yes</string>
    <key>AtiConfig</key>
    <string>Bulrushes</string>



I hope this helps.



Thanks,

Renato

Share this post


Link to post
Share on other sites

Hi there Shedo



Thanks for taking the time to write up a guide. I followed it and most stuff works great.



My only snag is audio. I tried your AppleHDA.kext and HDAIDT.ket (installed using the Kext Utility supplied), but sadly... no audio.



Any ideas what I'm doing wrong?



Thanks again for your help. Very appreciated.



UPDATE

VoodooHDA 2.8.4 kext installed with Kext Utility worked for sound. Also got my Magic Mouse working using DellBluetoothHCI.1.2.pkg

Share this post


Link to post
Share on other sites

Hi all,

Attached here is a new pack version of kexts and boot files, now I use Chameleon as bootloader.



Dell 1558 v2.zip


If someone wants to improve the dsdt file, I've attached the source code and utilities for development.



If you will make any improvement, please let me know!



Thanks all,

shedo



Dev Dell 1558.zip

Share this post


Link to post
Share on other sites

Nice work on the updates Shedo.  :thumbsup_anim:



I've just found that 10.9.2 breaks the external monitor. I've tried replacing a few kexts that have been mentioned on other sites, but to no avail.

Has anyone found a good solution?

Share this post


Link to post
Share on other sites

Updated to 10.9.3 without issue, but still the external monitor (VGA port) won't work.



Worked perfectly in 10.9.1



Tried backdating AMD kexts, but it won't boot with the ones I replaced.

Share this post


Link to post
Share on other sites

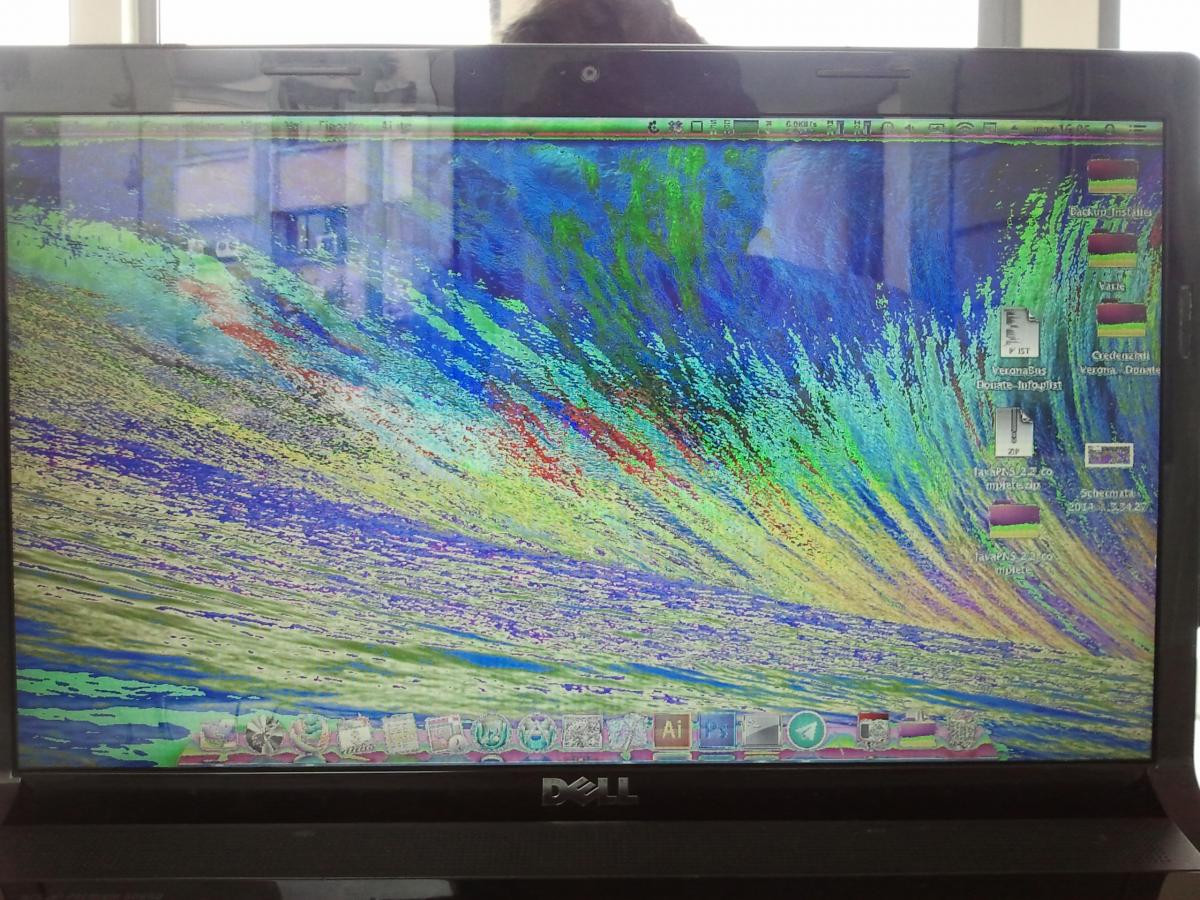

Sorry, but I have no idea how to fix the problem (you can try to change the chameleon configuration), ask into the forum if someone can help (use the Dev Dell 1558.zip if you'll need to edit dsdt). I have found another problem, if the monitor wake up from stop or when it is off, the result is attached (Do you have also this problem?).




Share this post


Link to post
Share on other sites

Yes, I have experienced that monitor wake problem. I cheated and just set 'Display Sleep' to never.



The problem with 10.9.2 and 10.9.3 appears to affect external monitors on a range of Macs.

Share this post


Link to post
Share on other sites

Hello, i just tried your files after a mavericks install on a dell studio 1558 but now can't boot !



I used niresh version of osx installer, after 1st boot it took some time to execute some tweaks and fix permission, than i installed chameleon from your zip and replaced extra folder with yours.

I used ikext to install kexts from zip.



Did i missed some things ?



There are some other stuff i didn't used from the v2 zip because i don't know how to lol (for example boot file)

Share this post


Link to post
