kartiksibal` Posted January 12, 2014 Share Posted January 12, 2014 PC Specs: Processor-Intel i5 4440. Motherboard- Intel DB85Fl RAM- Kingston 4Gb 1333mhZ Onboard Intel HD 4600 graphics. I have installed Mavericks using myHack and used ##### for post installation. Everything seems to work fine except the graphics. I still see 64mb of share vram instead of HD 4600 1024mb vram. Have tried Chameleon and clover but to no luck. Any solution or hint is appreciated. Thanks Link to comment https://www.insanelymac.com/forum/topic/295267-intel-hd-4600-graphics-not-getting-detected-on-mavericks/ Share on other sites More sharing options...
Laberlohe Posted January 12, 2014 Share Posted January 12, 2014 Hi, may I guess: you can only boot in safe mode (-x)? Try to boot via Chameleon with addional bootflags "GraphicsEnabler=Yes IntelAzulFB=X" (substitue X with value 1 to 11 until you found correct framebuffer) Good luck! Link to comment https://www.insanelymac.com/forum/topic/295267-intel-hd-4600-graphics-not-getting-detected-on-mavericks/#findComment-1984543 Share on other sites More sharing options...
carbo178 Posted January 12, 2014 Share Posted January 12, 2014 I have installed Mavericks using myHack and used [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] for post installation. Everything seems to work fine except the graphics. I still see 64mb of share vram instead of HD 4600 1024mb vram. Have tried Chameleon and clover but to no luck. Any solution or hint is appreciated. Hi, read rules about Tonymac and his tools... Change internal graphics memory in bios, set to 32 Mb and reboot with GraphicsEnabler=Yes Link to comment https://www.insanelymac.com/forum/topic/295267-intel-hd-4600-graphics-not-getting-detected-on-mavericks/#findComment-1984562 Share on other sites More sharing options...
kartiksibal` Posted January 12, 2014 Author Share Posted January 12, 2014 Hi, may I guess: you can only boot in safe mode (-x)? Try to boot via Chameleon with addional bootflags "GraphicsEnabler=Yes IntelAzulFB=X" (substitue X with value 1 to 11 until you found correct framebuffer) Good luck! I am pretty much able to boot normally. And have tried GraphicsEnabler=Yes IntelAzulFB=X, but that ends me up with a black screen. Any ideas with that? Thanks Hi, read rules about Tonymac and his tools... Change internal graphics memory in bios, set to 32 Mb and reboot with GraphicsEnabler=Yes I don't really have an option to change the internal graphics memory in my bios. Anything else you could suggest? Thanks Link to comment https://www.insanelymac.com/forum/topic/295267-intel-hd-4600-graphics-not-getting-detected-on-mavericks/#findComment-1984576 Share on other sites More sharing options...
Laberlohe Posted January 12, 2014 Share Posted January 12, 2014 I am pretty much able to boot normally. And have tried GraphicsEnabler=Yes IntelAzulFB=X, but that ends me up with a black screen. Any ideas with that? Erm, you shall enter a number instead of the X. One number will give screen - with the screens comes QE/CI and the video memory. (X = values 1 to 11) Link to comment https://www.insanelymac.com/forum/topic/295267-intel-hd-4600-graphics-not-getting-detected-on-mavericks/#findComment-1984584 Share on other sites More sharing options...
kartiksibal` Posted January 13, 2014 Author Share Posted January 13, 2014 Erm, you shall enter a number instead of the X. One number will give screen - with the screens comes QE/CI and the video memory. (X = values 1 to 11) Ah, Yeah i know! But none of the number seems to work. Anything else you could suggest? Thanks Link to comment https://www.insanelymac.com/forum/topic/295267-intel-hd-4600-graphics-not-getting-detected-on-mavericks/#findComment-1984672 Share on other sites More sharing options...
Laberlohe Posted January 13, 2014 Share Posted January 13, 2014 IGP is set as primary adapter? Assigned video memory is 64MB (memory size only affect boot, osx will handle it independently)? Argh! I was thinking of HD4000 and it's Capri-FB which has 11 values, but there are 15 vakues for Azul and HD4600, sorry. Link to comment https://www.insanelymac.com/forum/topic/295267-intel-hd-4600-graphics-not-getting-detected-on-mavericks/#findComment-1984687 Share on other sites More sharing options...

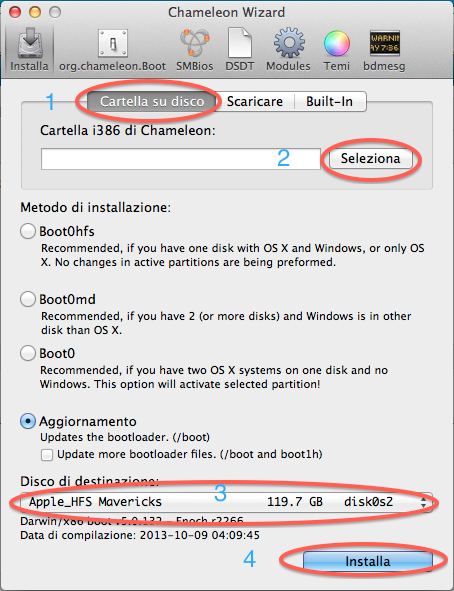

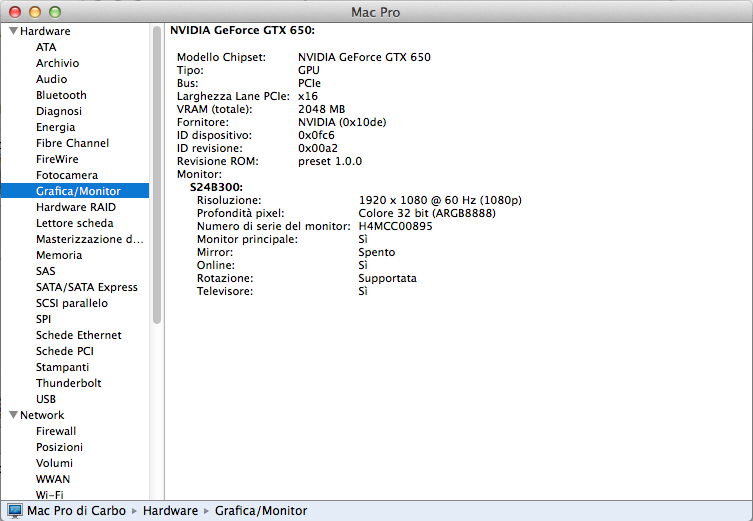

carbo178 Posted January 13, 2014 Share Posted January 13, 2014 Ah, Yeah i know! But none of the number seems to work. Anything else you could suggest? Thanks Update the boot loader, use Enoch binaries i386 folder (download section) and Chameleon Wizard (see picture) Reboot with GraphicsEnabler=Yes and post a picture of graphics-displays (About this Mac-More info-System Report) Link to comment https://www.insanelymac.com/forum/topic/295267-intel-hd-4600-graphics-not-getting-detected-on-mavericks/#findComment-1984697 Share on other sites More sharing options...
kartiksibal` Posted January 13, 2014 Author Share Posted January 13, 2014 Update the boot loader, use Enoch binaries i386 folder (download section) and Chameleon Wizard (see picture) Schermata 2014-01-04 alle 23.15.37.png Reboot with GraphicsEnabler=Yes and post a picture of graphics-displays (About this Mac-More info-System Report) Schermata 2014-01-13 alle 10.35.18.png No luck with the i386. System Report: Also, i tried "-v GraphicsEnabler=Yes PCIRootUID=0 IntelAzulFB=12". With FB=10 I end up with a black screen and with FB>10 I end up with this: Any idea what is actually happening? Thanks Link to comment https://www.insanelymac.com/forum/topic/295267-intel-hd-4600-graphics-not-getting-detected-on-mavericks/#findComment-1984704 Share on other sites More sharing options...
russelldbiru Posted February 24, 2014 Share Posted February 24, 2014 Any luck got this resolved? I have just exactly the same issue. With: i5-4440 GA-Z87N-wifi. I have: Type: GPU Bus: Built-In VRAM (Total): 64 MB of Shared System Memory Vendor: Intel (0x8086) Device ID: 0x0412 Revision ID: 0x0006 Kernel Extension Info: No Kext Loaded Link to comment https://www.insanelymac.com/forum/topic/295267-intel-hd-4600-graphics-not-getting-detected-on-mavericks/#findComment-1996966 Share on other sites More sharing options...
kartiksibal` Posted February 24, 2014 Author Share Posted February 24, 2014 The problem was with my display. What's the resolution of your display? Link to comment https://www.insanelymac.com/forum/topic/295267-intel-hd-4600-graphics-not-getting-detected-on-mavericks/#findComment-1997023 Share on other sites More sharing options...
russelldbiru Posted February 24, 2014 Share Posted February 24, 2014 The problem was with my display. What's the resolution of your display? 1080p, but it works fine. I can't make my GPU run appropriate kext. Was the initial issue fixed? Link to comment https://www.insanelymac.com/forum/topic/295267-intel-hd-4600-graphics-not-getting-detected-on-mavericks/#findComment-1997024 Share on other sites More sharing options...
kartiksibal` Posted February 24, 2014 Author Share Posted February 24, 2014 Which bootloader are you using? Link to comment https://www.insanelymac.com/forum/topic/295267-intel-hd-4600-graphics-not-getting-detected-on-mavericks/#findComment-1997029 Share on other sites More sharing options...
pokenguyen Posted February 24, 2014 Share Posted February 24, 2014 Try injecting your EDID by this: http://www.insanelymac.com/forum/topic/290130-fixedid-v19-application-to-generate-overrides-automatically-for-apple-displays/ Then boot again with "-v GraphicsEnabler=Yes PCIRootUID=0 IntelAzulFB=10" Link to comment https://www.insanelymac.com/forum/topic/295267-intel-hd-4600-graphics-not-getting-detected-on-mavericks/#findComment-1997039 Share on other sites More sharing options...
russelldbiru Posted February 25, 2014 Share Posted February 25, 2014 Which bootloader are you using? Chameleon 2371 Link to comment https://www.insanelymac.com/forum/topic/295267-intel-hd-4600-graphics-not-getting-detected-on-mavericks/#findComment-1997224 Share on other sites More sharing options...
kartiksibal` Posted February 25, 2014 Author Share Posted February 25, 2014 Have you tried this:-v GraphicsEnabler=Yes IntelAzulFB=10 If this doesn't work try changing Azul's value. It ranges from 1-15. Also try GraphicsEnabler=No with Azul. This should do it. 1 Link to comment https://www.insanelymac.com/forum/topic/295267-intel-hd-4600-graphics-not-getting-detected-on-mavericks/#findComment-1997229 Share on other sites More sharing options...
russelldbiru Posted February 25, 2014 Share Posted February 25, 2014 -v GraphicsEnabler=Yes IntelAzulFB=10 The one worked like a charm!!! Thank you! You made my day It's now Graphics Intel HD Graphics 4600 1024 MB Link to comment https://www.insanelymac.com/forum/topic/295267-intel-hd-4600-graphics-not-getting-detected-on-mavericks/#findComment-1997238 Share on other sites More sharing options...
kartiksibal` Posted February 25, 2014 Author Share Posted February 25, 2014 Not a problem man :-) Enjoy your mac! Link to comment https://www.insanelymac.com/forum/topic/295267-intel-hd-4600-graphics-not-getting-detected-on-mavericks/#findComment-1997239 Share on other sites More sharing options...
Paologas91 Posted October 7, 2015 Share Posted October 7, 2015 Not a problem man :-) Enjoy your mac! Ehi man! I have same problem but i am using Clover bootloader... .i am using Fake id IntelGFX 04128086 and ig-platform-id 0d220003 but still having 7mb as video memory...can u help me? Link to comment https://www.insanelymac.com/forum/topic/295267-intel-hd-4600-graphics-not-getting-detected-on-mavericks/#findComment-2174632 Share on other sites More sharing options...
