Hi all, new user here.
I followed the shilohh guide i7-4930k-asus-rampage-iv-extreme-32gb-ram-gtx-770-4gb-success(and some other guides fresh installing) and everything works great but my cpu is flat at 1.2Mhz.

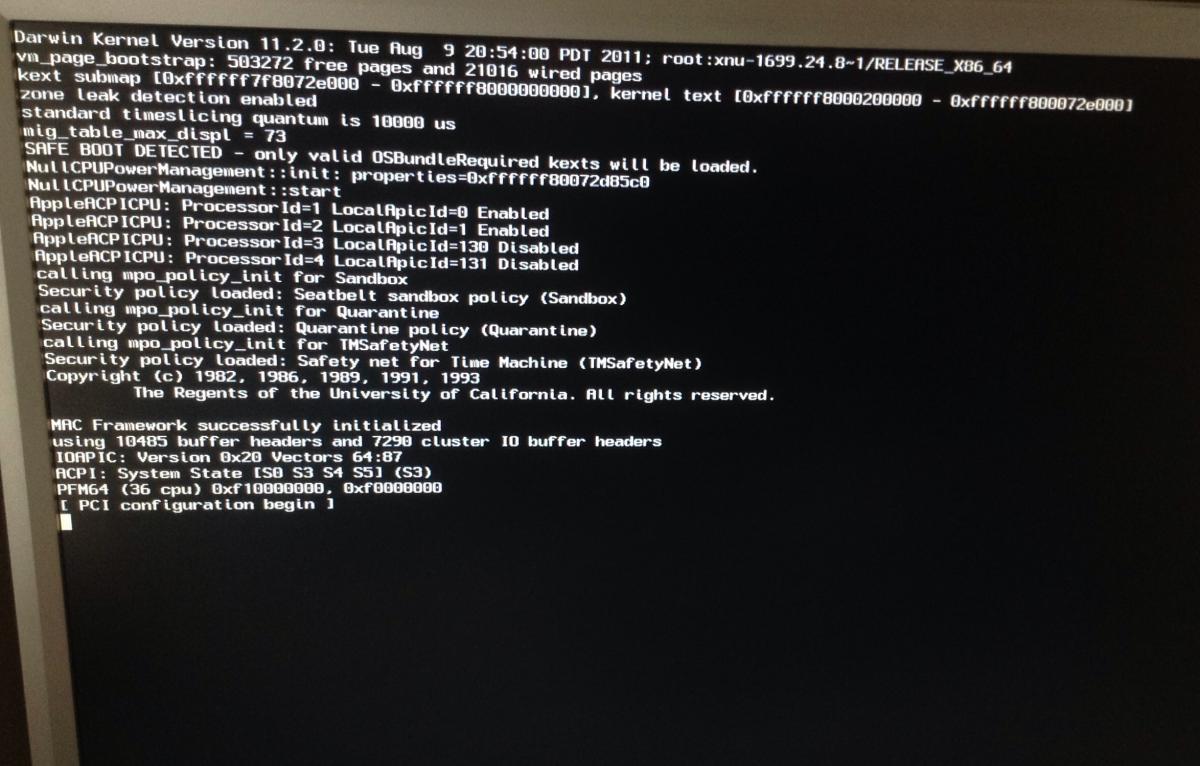

I tried every guide here, in olarila and in "others" but nothing works. Surely I'm doing something wrong but I cannot guess what it is. Also tried nullcpu etc..
My specs are:
Rampage IV Extreme
Mac OS X 10.12.6
I made my own SSDT too.
C1E is enabled.
I leave my Clover Folder here in case someone can shed some light because I'm starting to be desperate.
Thank you in advance
The H370 chipset powers 8th generation Intel Core-i CPUs. Even though the name H370 rings comparable to Z370, the H370 is based on newer silicon. This it also requires some new approaches compared to the Z370. An example would be on-die USB 3.1 and WiFi support.
Since this guide is not a "hold-your-hand-every-step" guide, I assume you know:
Clover installation and configuration How to create an install medium for MacOS Access and configure the BIOS Have heard of ACPI patching (I'm a newb at this myself)
Sleep (via DSDT edits and emulated NVRAM) On-board Audio (via CloverALC script) Native power management (without any kext or patch) All USB ports (and only those present are active) iGPU for both acceleration and display dGPU (I'm running an Nvidia GTX 1080)
NIC --> I'm using WiFi only
What doesn't work
Native NVRAM via AptioMemoryFix.efi DMVT Pre-alloc higher than 64MB (but not necessary)
Changes to the guide:
22.5.18: Added SSDT hot-patching to enable sleep, replacing DSDT static patching as an alternative.
23.5.18: Add iMac18,1 as alternative SMBIOS config for those relying on the iGPU for output
25.6.18: Added update info
28.8.18: Smalle changes for clarity, changed info for afps loading & updated USB patch for 13.6
This guide heavy inspired by the work of /u/corpnewt of /r/hackintosh and his (sorta) Vanilla guide
1.1 Create the install media for MacOS
Follow this, if you are using a Mac to start off with. If you are totally new to MacOS, then please check the basic guide Creation of an installer media in windows or linux
1.2 Install Clover on the install media
Using the Clover installer, ensure you are installing to the USB medium you are using for the installer.
Chose the following options, leaving the others on default:
UEFI driver: AptioMemoryFix UEFI driver: ApfsDriverLoader UEFI booting only Install to ESP
You have to get your hands on an apfs.efi. A google search can help, or extracting it from the Installer package. Make sure you procure a version matching the MacOS version you are about to install. Place the apfs.efi in drivers64UEFI.
1.2 Adjust the config.plist for the installer
You can use the config.plist attached as a guideline, but take a look at it before and at least adjust the SMBIOS - otherwise it won't boot.
Attention: The attached plist contains audio patches introduced by a post-install step. If you run into problems, you might remove those. It also contains a manual slide value, which should normally not be needed, but works fine for me. It is also tuned for usage with an Nvidia Pascal dGPU as main GPU.
The config you create now should serve you nicely for install and running the system.
Take care of adding the following basics:
SMBIOS: iMac18,3 - You can generate a serial number via Clover Configurator. The creation of a proper SMBIOS is covered in many guides to good extend Note: If you aim at using the iGPU for output, a user reported that iMac18,1 works better - since iMac18,3 produces sever flicker. Look at the graphics section and adjust the injection for Intel to your situation
Change 0x59120003 to 0x59120000 if you don't use a dGPU as your main display Driver and instead use the iGPU for output.
Also note. SMBIOS iMac18,1 has been reported to work better in this configuration. But 18,3 works fine for me.
Kernel and Kext patches
1.3 kexts and friends
Add the supplied SSDT-UAIC.aml to "patched" - it limits the injected USB Ports to the actual number and ports valid for this board.
Required kexts on "Other":
FakeSMC.kext IntelGraphicsFixup.kext Lilu.kext When having an Nvidia card: NvidiaGraphicsFixup.kext IntelMausiEthernet.kext in case you're running Ethernet USBInjectAll.kext with the HCI-300-series-injector.kext --> These two should be installed to /L/E after install
We are leaving sound out at the moment, this is something for post-install. Please note the absence of Shiki, I don't find it necessary. Video material I tried made use of the iGPU without shiki.
1.4 Check BIOS and install
You should be ready for install. But before you reboot, please take a look at your BIOS and set it up accordingly (copied from the aforementioned guide and adapted):
Load Optimized Defaults Disable VT-d setting If your system has Secure Boot Mode, disable it Set OS Type to Windows 8/10 or OtherOS - I have not seen a difference Turn off internal Serial and Parallel port Turn off Network stack for boot Turn off wake-on-lan (for now) Set XHCI Handoff to Enabled Don't enable decode over 4G Depending on your GPU, set priority for boot Set internal GPU to enable Set DMVT pre-alloc to 64MB Set USB legacy to enabled Activate XMP profile 1 f your Ram has it (mine doesn't and I added the timings manually) Set ERP to enable, disable platform power management (I need to do more research if this could be enabled)
I've attached my current BIOS config "hack2". You can place that on a fat32 drive (the EFI partition of your install USB drive might be an idea) and see if it loads. It's made for and with the F2 BIOS.
The install itself should be like other MacOS Hackintosh installs with it several reboots and ensuring to select the correct boot device in Clover.
2.1 Install clover on target
This is a no-brainer, but install a fresh copy of Clover on your target medium.
During install select again AptioMemoryFix but also additionally
EmuVariableUefi-64.efi Install RC scripts on target volume because otherwise NVRAM doesn't seem to work
After the install, copy
config.plist contents of "Other" content of "patched" apfs.efi from drivers64UEFI to your new clover install.
2.1 Edit ACPI for slumber
Choose one option, not both. The hot-patch is experimental, but for the moment it is stable.
2.1.1 Edit DSDT
This is necessary only once on initial install and every time, you edit or upgrade the BIOS. The DSDT.aml attached to this post might work for your system or give you a file to compare to. Don't expect it to work for you, though.
I won't go into the details of DSDT extraction and patching. There are better guides (the linked guide is a rip-off of rehabman's guide from a different forum). Please follow such a guide to extract your ACPI data.
Locate and disassemble the DSDT with the newest iasl binary you can put your hands on, then open it with MacIASL in its newest version you can find (Hint: Here is a good source) You can check if the version is new enough if MacIASL doesn't throw error upon compiling a freshly extracted DSDT.aml or DSDT.dst
Add rehabmans repo (as per linked guide) and apply the following patches:
Rename _DSM to _XDSM Fix _WAK Arg0 v2 USB3 _PRW 0x6D Skylake (instant wake) Find the CNVW device and remove the _PWR function there.
Compile the DSDT and place it in "patched".
2.1.2 Use SSDT hot-patching
Instead of having to re-extract and re-patch the DSDT on every BIOS change or update, Hardware change one can also use ACPI hot-patching.
It's a combination of config.plist patches and an SSDT, which is hot-patched into the ACPI (if I understand the process correctly)
You need to add this SSDT-GPRW.aml to your Clover folder in the designated position at Clover/ACPI/patched You need to add this patch to your config.plist. It goes into the DSDT patch section
Note: This works for me, but the patch removes the _PRW method from all devices in the DSDT. This could have side-effects. So far, I have seen none. At the moment I'm also not applying any other patch, compared with the additional edits I made to the DSDT method before.
2.2 Install kexts to system
As mentioned in the install section, it's better to follow rehabman's instruction and install USBinjectAll.kext to /L/E:
sudo cp -R Release/USBInjectAll.kext /Library/Extensions sudo touch /System/Library/Extensions && sudo kextcache -u / 2.3 Enable onboard Audio
This is where I'm not so happy currently, I'd like it to work without altering AppleHDA. But currently I find no other way.
2.3.1 Install FakePCIID & FakePCIID_Intel_HDMI_Audio
Rehabman tells us to use a kext installer to install it to /S/L/E. Chose the RELEASE folder
2.3.2 Run CloverALC command
Ensure your EFI partition is mounted before running this command
Get the newest version of CloverALC command (audio_cloverALC-xxx.sh) and run it. Our Audio codec is RTL887 and I'm running with layout ID 1
2.4 Optional steps
If you have a dGPU, now it's the time to install its drivers and adjust the config.plist for it.
This is out of scope of this guide. Yet, my supplied config.plist is ready to be used with Nvidia Pascal cards and using the Nvidia web driver.
Updating inside 10.3.x point updates doesn't require much attention:
Download the update from the AppStore as any Mac would do Allow the system to reboot Before booting MacOS with Clover, make sure to disable extra drivers for dGPUs which require non-native support. If using an Nvidia dGPU: Remove "nvda_drv=1" from your boot arguments and disable Nvidia injection If using a non natively supported AMD card, do the same for AMD (I'm not using AMD, thus I cannot be specific) Boot into the newly created Install MacOS partition Repeat this process until the Install partition is gone Boot MacOS again, still following 3., and potentially install updated drivers Your Audio might require re-patching
Move away from static DSDT patching to SSDT hotpatching --> requires my work Native NVRAM --> requires developer work Audio without AppleHDA patching --> requires developer work
5. Thanks to
@MaLd0nfor helping finding the right way with the DSDT
@RehabMan, for being a legend and helping me out patching
@toleda, for audio patches for the 300 series
/u/corpnewt, for his superb vanilla guide
@wmchris for his super XPS 9550 guide and introducing me to hot-patching
all the developers of clover and it's awesomeness
[Guide] Sierra / High Sierra / Mojave on mobos Serie 100 / 200 / 300 / SkyLake / KabyLake / CoffeeLake DSDTBy MaLd0n
Now have a Olarila Folders app, just download app and clover folder for your Chipset! Download Folders.app ***The topic is for Notebooks and Desktops*** Youtube MacOS Install Guide 2018 - Mojave - HighSierra - Sierra - ElCapitan -Mojave Full DSDT patch http://olarila.com/forum/viewtopic.php?f=59&t=6428 First... ***Update bios to last available version!*** If you need DSDT edits for SkyLake, KabyLake or CoffeeLake... -Extract tables with F4 key in Clover boot screen! -Run it and send me files! RunMe.app Look at my Clover folders and understand what we really need, this is the best way to learn 1-Installation --Create a bootable copy of macOS Sierra / High Sierra / Mojave https://github.com/chris1111/Create-Install-Media/releases --Install Clover in USB stick https://sourceforge.net/projects/cloverefiboot/files/Installer/ --Replace with my Clover folder https://olarila.com/files/Clover.Folder/CLOVER.SERIES.100.200.300.zip --Install Sierra/High Sierra and boot into system! 2-Post Installation --Install Clover in HDD/SSD and replace with my folder https://olarila.com/files/Clover.Folder/CLOVER.SERIES.100.200.300.zip --Reboot and activate video! 3-Video -Nvidia WebDriver Sierra http://www.insanelymac.com/forum/topic/312525-nvidia-web-driver-updates-for-macos-sierra-update-07212017/ -Nvidia WebDriver High Sierra http://www.insanelymac.com/forum/topic/324195-nvidia-web-driver-updates-for-macos-high-sierra-update-10162017/ -Cuda http://www.insanelymac.com/forum/topic/302795-cuda-90214-is-out-update-10162017/ -Check it, easy way nvidia-update.command.zip by Benjamin-Dobell 4-DSDT Patches -FIX ERRORS AND WARNINGS -HPET -SATA -DMAC -SLPB -DARWIN -LPC* -XHCI -PLUGIN TYPE -HDAS to HDEF -HDEF -RTC -IRQs -SBUS* -BLC0 -BUS1 -MCHC -ALS0 -SHUTDOWN -LAN -USBX -PMCR -IMEI -EC -PNLF(Nvidia/AMD) -HDMI ---To avoid problems use some patches in config.plist, don't forget!--- GLAN to GIGE 474c 414e 4749 4745 GFX0 to IGPU 47465830 49475055 HDAS to HDEF 48444153 48444546 HECI to IMEI 48454349 494d4549 SAT0 to SATA 53415430 53415441 5-SSDT Generate your SSDT for PM, use ssdtPRGen by Piker-Alpha https://github.com/Piker-Alpha ssdtPRGen.command.zip or just use "plugin-type"=0x01 in DSDT, SSDT or Clover config.plist for check Power, Frequency, Temperature and Utilization, use it Install Intel Power Gadget.pkg.zip 6-Brightness
Install .app, select the required permission and reboot. Work in F1 / F2 keys!
*in some cases .app don't work, check patches in config.plist inside Clover folder Post Install
-Clover https://sourceforge.net/projects/cloverefiboot/files/Installer/ -Lan driver by Mieze -Atheros http://www.insanelymac.com/forum/files/file/313-atherose2200ethernet/ -Intel http://www.insanelymac.com/forum/files/file/396-intelmausiethernet/ -Realtek http://www.insanelymac.com/forum/files/file/88-realtekrtl8111-binary/ -Links -FakeSmc https://bitbucket.org/RehabMan/os-x-fakesmc-kozlek -Audio https://github.com/vit9696/AppleALC http://www.insanelymac.com/forum/topic/293863-applehda-patch-requests/ -USB https://bitbucket.org/RehabMan/os-x-usb-inject-all/downloads if u like, Rate Topic It's time to Rock -Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders! Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad, badruzeus and many, many, many others! We're all here to have fun and learn from each other! ENJOY!
Now have a Olarila Folders app, just download app and clover folder for your Chipset! Download Folders.app Create a bootable copy of macOS Sierra Check out the link http://www.insanelymac.com/forum/files/file/559-flash-drive-maker/ --Install Clover UEFI in USB stick https://sourceforge.net/projects/cloverefiboot/files/Installer/ --Replace Folder CLOVER INSTALLATION.zip --Install Sierra and boot into system! --Install Clover UEFI and replace with my folder CLOVER POST INSTALLATION.zip --Reboot and activate video! Bingo! Now you need a fine tune! I prefer DSDT way, apply all patches in one file, many people prefer many SSDTs or Clover patches! If you need DSDT edit... Run it RunMe.app --DSDT My DSDT DSDT.ASUS H61M-A MaLd0n.zip Patches -FIX ERRORS AND WARNINGS -HPET -SATA -SLPB -DARWIN -EHCx -LPC -HDEF -RTC -IRQs -SBUS -BUS1 -MCHC -ALS0 -SHUTDOWN -LAN -PNLF Clear NVRAM, Purge and Kextcache
--FakeSMC http://www.hwsensors.com/releases --Audio https://github.com/vit9696/AppleALC --USB https://bitbucket.org/RehabMan/os-x-usb-inject-all/downloads --LAN http://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/ Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!
[Guide] Sierra / High Sierra / Mojave on Intel 5, 6, 7, 8, 9 Chipset Series / Nehalem, SandyBridge, IvyBridge, Haswell, BroadwellBy MaLd0n
Now have a Olarila Folders app, just download app and clover folder for your Chipset! Download Folders.app Nehalem, SandyBridge, IvyBridge, Haswell, Broadwell Skylake, Kabylake and Coffeelake is here http://www.insanelymac.com/forum/topic/321872-guide-sierra-on-gigabyte-mobos-serie-200-kabylake-dsdt/ Youtube MacOS Install Guide 2018 - Mojave - HighSierra - Sierra - ElCapitan Mojave Full DSDT patch http://olarila.com/forum/viewtopic.php?f=59&t=6428 First... ***Update bios to last available version!*** If you need a full patched DSDT... -Extract tables with F4 key in Clover boot screen! -Run it and send me files! RunMe.app Installation --Create a bootable copy of macOS Sierra / High Sierra / Mojave https://github.com/chris1111/Create-Install-Media/releases --Install Clover in USB stick https://sourceforge.net/projects/cloverefiboot/files/Installer/ --Replace with my Clover folder https://olarila.com/files/Clover.Folder/CLOVER.SERIES.CHIPSET.zip --Install Sierra/High Sierra and boot into system! Post Installation --Install Clover and replace with my folder https://olarila.com/files/Clover.Folder/CLOVER.SERIES.CHIPSET.zip --Reboot and activate video! Bingo! Now you need a fine tune! DSDT time! --DSDT Patches -FIX ERRORS AND WARNINGS -HPET -SATA -DMAC -SLPB -DARWIN -LPC -XHCI -PLUGIN TYPE -XXXX to HDEF -HDEF -RTC -IRQs -SBUS -BUS1 -MCHC -ALS0 -SHUTDOWN -LAN -USBX -PMCR -EC -PNLF -HDMI
- 1 Generation Intel Processors, use Generate P and C States in config.plist
- 2 and 3 Generations Intel Processors, Generate SSDT with Piker script and drop CpuPm and Cpu0Ist SSDTs
- 4 Generation+ Intel Processors, use PluginType=1 in DSDT, SSDT or Clover config.plist
for check Power, Frequency, Temperature and Utilization, use it
Install Intel Power Gadget.pkg.zip
Install .app, select the required permission and reboot. Work in F1 / F2 keys!
*in some cases .app don't work, check patches in config.plist inside Clover folder Post Install
Use DSDT + AppleAlc
--install Lan driver by Mieze
-Atheros http://www.insanelymac.com/forum/files/file/313-atherose2200ethernet/ -Intel http://www.insanelymac.com/forum/files/file/396-intelmausiethernet/ -Realtek http://www.insanelymac.com/forum/files/file/88-realtekrtl8111-binary/ --Links -FakeSMC https://bitbucket.org/RehabMan/os-x-fakesmc-kozlek -Audio https://github.com/vit9696/AppleALC http://www.insanelymac.com/forum/topic/314406-voodoohda-289/ -USB https://bitbucket.org/RehabMan/os-x-usb-inject-all/downloads It's time to Rock -Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders! Apple, Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad and many, many, many others! We're all here to have fun and learn from each other!
