Hello to All


Below is the list of h/w on which I'm trying to install Mavericks


Mobo - Gigabyte Z87M-D3H

Proc - Intel i5 4430 (3 ghz)

Ram - Corsair Vengeance 4gb (1600)

Onboard graphics (Intel4600)

160gb SATA HDD

Asus DVD drive


I've made a USB installer (500gb Seagate expansion drive) using Hackintosh install Guide - v4.1 - With Sreenshots.pdf on a 10.6.6 Snow leopard mac pro.



I have installed but am running into a wall everytime I try to boot normally. I can only boot in safe mode with -v -x flags, otherwise it halts.




Link to comment
Share on other sites

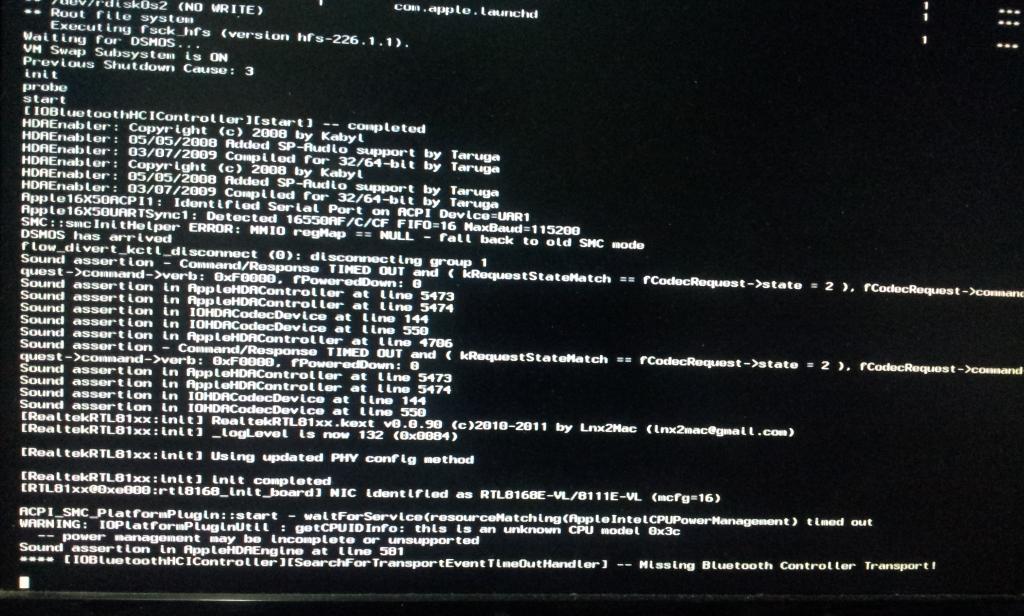

Based on the picture, it appears that your graphics HD 4600 is preventing you from getting to the Desktop.  iFIRE is pointing you to a DSDT edit that enables HD 4600.


I have read that the alternate bootloader, Chimera, recently was updated with HD 4600 injection.  You might look into trying the most recent release of that.
