In this topic I want to gain useful patches.

This method is good that patch are not made at drivers, this made at kernel-cash in RAM



Patch against any sound assertion for AppleHDA, the author is Alex Auditore





hex 536F756E6420617373657274696F6E20->00000000000000000000000000000000

http://www.insanelymac.com/forum/topic/292377-how-to-get-rid-of-any-sound-assertions-on-applehda/

			<dict>
				<key>Comment</key>
				<string>Patch_against_assertions</string>
				<key>Find</key>
				<data>
				U291bmQgYXNzZXJ0aW9uIA==
				</data>
				<key>Name</key>
				<string>AppleHDA</string>
				<key>Replace</key>
				<data>
				AAAAAAAAAAAAAAAAAAAAAA==
				</data>
			</dict>





The patch for Bluetooth controller which did not get the camand Wakeup, for ML 10.8.5 and Mavericks. For example, Artheros AR3011 is one of them. The author is Time Walker

****[IOBluetoothHostControllerUSBTransport][configurePM]-- ERROR -- waited 30 seconds and still did notget the commandWakeup() notification --this=0xffffff8013dd5800****





For Mountain Lion

hex 0000010f85de000000->0000010f84de000000

<dict>
                <key>Comment</key>
                <string>configurePM BT</string>
                <key>Name</key>
                <string>IOBluetoothHostControllerUSBTransport</string>
                <key>Find</key>
                <data>AAABD4XeAAAA</data>
                <key>Replace</key>
                <data>AAABD4TeAAAA</data>
            </dict>

For Mavericks

hex 0000000f8507010000->0000000f8407010000

		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>configurePM BT</string>
				<key>Find</key>
				<data>
				AAAAD4UHAQAA
				</data>
				<key>Name</key>
				<string>IOBluetoothHostControllerUSBTransport</string>
				<key>Replace</key>
				<data>
				AAAAD4QHAQAA
				</data>
			</dict>





The patch against an error  "fall back to old SMC mode" for ML 10.8.5, the author is TimeWalker





hex 4885C07510488D3D7D50->4885C0EB6E488D3D7D55

        <dict>
            <key>Comment</key>
            <string>fall back to old SMC mode</string>
            <key>Name</key>
            <string>AppleSMC</string>
            <key>Find</key>
            <data>SIXAdRBIjT19UA==</data>
            <key>Replace</key>
            <data>SIXA625IjT19VQ==</data>
        </dict>





The patch against this error in Console. "ATHR: unknown locate: 21" for Mavericks(That may not work, try to use the patch below), the author is Skvo





hex: 753b4885f6 -> e9bc000000

            <dict>
                <key>Comment</key>
                <string>Wi-Fi Region 10.9</string>
                <key>Name</key>
                <string>AirPortAtheros40</string>
                <key>Find</key>
                <data>dTtIhfY=</data>
                <key>Replace</key>
                <data>6bwAAAA=</data>
            </dict>





The patch against this error in Console. "ATHR: unknown locate: 21" for ML and Mavericks, the author is Skvo



hex: 0FB787DC040000 -> B8640000009090

            <dict>
                <key>Comment</key>
                <string>Wi-Fi Region 10.8.X</string>
                <key>Name</key>
                <string>AirPortAtheros40</string>
                <key>Find</key>
                <data>D7eH3AQAAA==</data>
                <key>Replace</key>
                <data>uGQAAACQkA==</data>
            </dict>





Fixing Orange disks, Vovhik





hex: 45787465726e616c -> 496e7465726e616c (ASCII: External -> Internal)

            <dict>
                <key>Comment</key>
                <string>Fix Orange Disk</string>
                <key>Name</key>
                <string>AppleAHCIPort</string>
                <key>Find</key>
                <data>RXh0ZXJuYWw=</data>
                <key>Replace</key>
                <data>SW50ZXJuYWw=</data>
            </dict>





Against reset of CMOS for ML 10.8.X the author is rayup





hex 753089d8 -> eb3089d8

            <dict>
                <key>Comment</key>
                <string> fix CMOS Reset for 10.8.x</string>
                <key>Name</key>
                <string>AppleRTC</string>
                <key>Find</key>
                <data>dTCJ2A==</data>
                <key>Replace</key>
                <data>6zCJ2A==</data>
            </dict>





Against reset of CMOS for Mavericks, the author is SunKI





hex: 752e0fb6 -> eb2e0fb6

          <dict>
                <key>Comment</key>
                <string>fix CMOS reset for 10.9</string>
                <key>Name</key>
                <string>AppleRTC</string>
                <key>Find</key>
                <data>dS4Ptg==</data>
                <key>Replace</key>
                <data>6y4Ptg==</data>
            </dict>





Patch for activation of TRIM for SSD, which are unsupported by apple. The author is Grand Pennell





hex: 4150504c4520535344 -> 000000000000000000

<dict>
                <key>Comment</key>
                <string>Orange Disk Fix</string>
                <key>Name</key>
                <string>AppleAHCIPort</string>
                <key>Find</key>
                <data>RXh0ZXJuYWw=</data>
                <key>Replace</key>
                <data>AAAAAAAAAAA=</data>
            </dict>





Patch for AppleHDA xml->zml, the author is abxite





hex: 786d6c2e7a6c -> 7a6d6c2e7a6c

<dict>
                <key>Comment</key>
                <string>Replace xml to zml</string>
                <key>Name</key>
                <string>AppleHDA</string>
                <key>Find</key>
                <data>eG1sLnps</data>
                <key>Replace</key>
                <data>em1sLnps</data>
            </dict>





Patch agains kernel panic called AppleIntelPowerManagement



hex: e20000000f30 -> e20000009090

<dict>
                <key>Comment</key>
                <string>AppleIntelCpuPM Kernel Panic fix</string>
                <key>Name</key>
                <string>AppleIntelCPUPowerManagement</string>
                <key>Find</key>
                <data>4gAAAA8w</data>
                <key>Replace</key>
                <data>4gAAAJCQ</data>
        </dict>





Patch agains Kernel Panic during using MacPro4.1-5.1





hex: 720a004d616350726f342c31004d616350726f352c310058 -> 720a00000000000000000000000000000000000000000058

<dict>
                <key>Comment</key>
                <string>No Panic on MacPro4,1 - 5,1</string>
                <key>Name</key>
                <string>AppleTyMCEDriver</string>
                <key>Find</key>
                <data>cgoATWFjUHJvNCwxAE1hY1BybzUsMQBY</data>
                <key>Replace</key>
                <data>cgoAAAAAAAAAAAAAAAAAAAAAAAAAAABY</data>
            </dict>





Multiple patch of AppleUSBXHCI(only for Mountain Lion) for supporting controller USB3.0 which are made which are made by other manufacturers(means not intel), The author Zetith432 http://www.insanelymac.com/forum/topic/285157-patched-appleusbxhci-from-os-1082/





            <dict>
                <key>Comment</key>
                <string>Patch_to_USB3.0_ML</string>
                <key>Find</key>
                <data>dSZIi7vo</data>
                <key>Name</key>
                <string>AppleUSBXHCI</string>
                <key>Replace</key>
                <data>6yZIi7vo</data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>Patch_to_USB3.0_ML</string>
                <key>Find</key>
                <data>dVtJiw==</data>
                <key>Name</key>
                <string>AppleUSBXHCI</string>
                <key>Replace</key>
                <data>61tJiw==</data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>Patch_to_USB3.0_ML</string>
                <key>Find</key>
                <data>PQABDw==</data>
                <key>Name</key>
                <string>AppleUSBXHCI</string>
                <key>Replace</key>
                <data>PQAADw==</data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>Patch_to_USB3.0_ML</string>
                <key>Find</key>
                <data>gUkIAABA</data>
                <key>Name</key>
                <string>AppleUSBXHCI</string>
                <key>Replace</key>
                <data>gUkIAAAA</data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>Patch_to_USB3.0_ML</string>
                <key>Find</key>
                <data>RCQIAABA</data>
                <key>Name</key>
                <string>AppleUSBXHCI</string>
                <key>Replace</key>
                <data>RCQIAAAA</data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>Patch_to_USB3.0_ML</string>
                <key>Find</key>
                <data>AEAAQYtG</data>
                <key>Name</key>
                <string>AppleUSBXHCI</string>
                <key>Replace</key>
                <data>AAAAQYtG</data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>Patch_to_USB3.0_ML</string>
                <key>Find</key>
                <data>AcaDfw==</data>
                <key>Name</key>
                <string>AppleUSBXHCI</string>
                <key>Replace</key>
                <data>AMaDfw==</data>
            </dict>





Multiple patch of AppleUSBXHCI(only for Mavericks) for supporting controller USB3.0 which are made which are made by other manufacturers(means not intel), The author shiecldk

http://www.insanelymac.com/forum/topic/285157-patched-appleusbxhci-from-os-1082/page-5?do=findComment&comment=1923014





            <dict>
                <key>Comment</key>
                <string>Patch_to_USB3.0_Mav</string>
                <key>Find</key>
                <data>dUtJiwc=</data>
                <key>Name</key>
                <string>AppleUSBXHCI</string>
                <key>Replace</key>
                <data>60tJiwc=</data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>Patch_to_USB3.0_Mav</string>
                <key>Find</key>
                <data>gUsIAABAAA==</data>
                <key>Name</key>
                <string>AppleUSBXHCI</string>
                <key>Replace</key>
                <data>gUsIAAAAAA==</data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>Patch_to_USB3.0_Mav</string>
                <key>Find</key>
                <data>QcdFCAAAQAA=</data>
                <key>Name</key>
                <string>AppleUSBXHCI</string>
                <key>Replace</key>
                <data>QcdFCAAAAAA=</data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>Patch_to_USB3.0_Mav</string>
                <key>Find</key>
                <data>QcdHCAAAQAA=</data>
                <key>Name</key>
                <string>AppleUSBXHCI</string>
                <key>Replace</key>
                <data>QcdHCAAAAAA=</data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>Patch_to_USB3.0_Mav</string>
                <key>Find</key>
                <data>xoDIAAAAAQ==</data>
                <key>Name</key>
                <string>AppleUSBXHCI</string>
                <key>Replace</key>
                <data>xoDIAAAAAA==</data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>Patch_to_USB3.0_Mav</string>
                <key>Find</key>
                <data>dU1Ii7voAQAA</data>
                <key>Name</key>
                <string>AppleUSBXHCI</string>
                <key>Replace</key>
                <data>601Ii7voAQAA</data>
            </dict>





Patch(IOAHCIBlockStorage) against cessation on "still waiting for root device", The auther is bcc9

http://www.insanelymac.com/forum/topic/280062-waiting-for-root-device-when-kernel-cache-used-only-with-some-disks-fix/





hex 1: EB4C0000EA03 -> EB4C0000E801

hex 2: 740E488D3DA5900000 -> BFC800000090909090

            <dict>
                <key>Name</key>
                <string>IOAHCIBlockStorage</string>
                <key>Find</key>
                <data>60wAAOoD</data>
                <key>Replace</key>
                <data>60wAAOgB</data>
            </dict>
            <dict>
                <key>Name</key>
                <string>IOAHCIBlockStorage</string>
                <key>Find</key>
                <data>dA5IjT2lkAAA</data>
                <key>Replace</key>
                <data>v8gAAACQkJCQ</data>
            </dict>





About patching of AppleHDA, see more here

http://www.insanelymac.com/forum/topic/290092-how-to-patch-applehda-with-the-help-of-bootloader/





Example 1

Patch for Clover(config.plist), for TRIM activation against orange hard disks.

    <key>KernelAndKextPatches</key>
    <dict>
        <key>KextsToPatch</key>
        <array>
            <dict>
                <key>Comment</key>
                <string>TRIM Enabler</string>
                <key>Name</key>
                <string>IOAHCIBlockStorage</string>
                <key>Find</key>
                <data>QVBQTEUgU1NE</data>
                <key>Replace</key>
                <data>AAAAAAAAAAAA</data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>Orange Disk Fix</string>
                <key>Name</key>
                <string>AppleAHCIPort</string>
                <key>Find</key>
                <data>RXh0ZXJuYWw=</data>
                <key>Replace</key>
                <data>AAAAAAAAAAA=</data>
            </dict>
        </array>
    </dict>

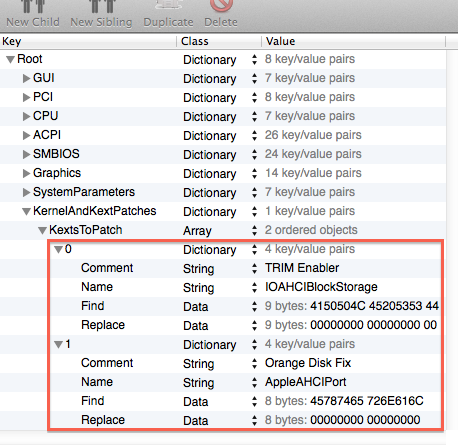

And  is should  look so  at PlistEdit Pro, for instance






Example 2 And so it looks at bareBoot

        <key>KextPatches</key>
        <array>
            <dict>
                <key>Comment</key>
                <string>TRIM Enabler</string>
                <key>Name</key>
                <string>IOAHCIBlockStorage</string>
                <key>Find</key>
                <data>QVBQTEUgU1NE</data>
                <key>Replace</key>
                <data>AAAAAAAAAAAA</data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>Orange Disk Fix</string>
                <key>Name</key>
                <string>AppleAHCIPort</string>
                <key>Find</key>
                <data>RXh0ZXJuYWw=</data>
                <key>Replace</key>
                <data>AAAAAAAAAAA=</data>
            </dict>
        </array>

Example 3. Some patches from XPC, just for example.(xpc_patcher.plist)

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
	<dict>

    <key>XpcPatcher</key>
    <dict>

	<key>MachOPatch0</key>
	<dict>
	<key>Apply</key>
	<integer>1</integer>
	<key>SystemVersion</key>
	<string>0x000</string>
	<key>Description</key>
	<string>Patch for ALC670</string>
	<key>FileName</key>
	<string>AppleHDA</string>
	<key>Search</key>
	<string>8408ec10</string>
	<key>Replace</key>
	<string>00000000</string>
	</dict>

	<key>MachOPatch1</key>
	<dict>
	<key>Apply</key>
	<integer>1</integer>
	<key>SystemVersion</key>
	<string>0x000</string>
	<key>Description</key>
	<string>Patch for ALC670</string>
	<key>FileName</key>
	<string>AppleHDA</string>
	<key>Search</key>
	<string>786d6c2e7a6c </string>
	<key>Replace</key>
	<string>7a6d6c2e7a6c</string>
	</dict>

	<key>MachOPatch2</key>
	<dict>
	<key>Apply</key>
	<integer>1</integer>
	<key>SystemVersion</key>
	<string>0x000</string>
	<key>Description</key>
	<string>Patch for ALC670</string>
	<key>FileName</key>
	<string>AppleHDA</string>
	<key>Search</key>
	<string>8419d411</string>
	<key>Replace</key>
	<string>7006ec10</string>
	</dict>

	<key>MachOPatch3</key>
	<dict>
	<key>Apply</key>
	<integer>1</integer>
	<key>SystemVersion</key>
	<string>0x000</string>
	<key>Description</key>
	<string>fix CMOS reset for 10.9</string>
	<key>FileName</key>
	<string>AppleRTC</string>
	<key>Search</key>
	<string>752e0fb6</string>
	<key>Replace</key>
	<string>eb2e0fb6</string>
	</dict>

	</dict>

  </dict>

</plist>





Edited by Alex Auditore

Share this post


Link to post
Share on other sites
Advertisement

thank you for your hard work. If any patch for xfx 6950 please help thank you.

Share this post


Link to post
Share on other sites

thank you for your hard work. If any patch for xfx 6950 please help thank you.

Hello. I remember you have two indetical two cards. I recomend you to try Clover it has powerful injection.

But in this case I think Graphics part of your DSDT should be restored to initial state. Otherwise DSDT with patched graphics will impede Clover.

Share this post


Link to post
Share on other sites

The patch against "ATHR: unknown locate:" for Mavericks didn't work for me, but this one does:

<dict>
<key>Comment</key>
<string>Wi-Fi Region Log Fix</string>
<key>Find</key>
<data>
D7eH3AQAAA==
</data>
<key>Name</key>
<string>AirPortAtheros40</string>
<key>Replace</key>
<data>
uGQAAACQkA==
</data>
</dict>

Or 0FB787DC040000 -> B8640000009090.



It injects FCC as region.

Share this post


Link to post
Share on other sites

The patch against "ATHR: unknown locate:" for Mavericks didn't work for me, but this one does:

<dict>
<key>Comment</key>
<string>Wi-Fi Region Log Fix</string>
<key>Find</key>
<data>
D7eH3AQAAA==
</data>
<key>Name</key>
<string>AirPortAtheros40</string>
<key>Replace</key>
<data>
uGQAAACQkA==
</data>
</dict>

Or 0FB787DC040000 -> B8640000009090.



It injects FCC as region.

Ok. Thanks, I've written a remark about it and make spoilers so as to get the top more readable.

Share this post


Link to post
Share on other sites

Is it possible to make a kext to patch on-the-fly instead of bootloader?

Im also having the same question can a kextpatcher.kext be made that it would be responsible to patch others kexts on boot like clover ?

I use ozmosis as a bootloader and having such a kext would be ideal  :)

Share this post


Link to post
Share on other sites

Here is a patch to speed up boot time. My Dell XPS 720 has a really slow boot time because of AppleNForceATA, this cuts it from 1:18 to 23 seconds. On my MacBookPro8,1 and my Z68 build this cuts about 20 seconds off the boot time.

            <dict>
                <key>Comment</key>
                <string>IOATAFamily Faster Boot</string>
                <key>Find</key>
                <data>
                gfscDA==
                </data>
                <key>Name</key>
                <string>IOATAFamily</string>
                <key>Replace</key>
                <data>
                gfsyAA==
                </data>
            </dict>

Share this post


Link to post
Share on other sites

Any Patch for AHCIPortInjector because if createmedia then this kext is not works :(

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By gengstapo
      @Hervé

      Im having similar issue with my HS setup, dell latitute 3480, i5-7200U
      Once the hdmi plugged in, the laptop display went blank, only could see the external tv
      But, when i put my laptop to sleep & wake up again, both screen got display (hdmi still connected)
      Even the hdmi could be plugged off & in (after sleep), the laptop display is fine

      What could be the culprit?
      Dell’s MacBook Pro IORegistry.zip
      config.plist.zip
    • By TomZanna
      Hi, I'm trying to install Mac Os Catalina on a HP 550-132NL.
      The system has:
      i7-6700
      RAM 12 GB
      GT 730
      LAN Realtek RTL8161
      ALC3863

      It passes the verbose phase but after the Apple logo goes away, it gets stuck on a grey screen and I can only move the pointer.
      Can I try to boot with the iGPU?

      origin.zip
      CLOVER_dGPU_USB_3.zip
    • By MaLd0n
      --Donations via PayPal--
      https://tinyurl.com/r2bvzm7

      --Original Topic--
      https://www.olarila.com/topic/6874-olarila-hackbook-lenovo-ideapad-s145-mojave-catalina-full-dsdt-patches/



      -Perfect HackBook, HDMI Audio/Video, Bluetooth, AirPlay, Sleep, Lid Sleep, Auto Sleep, Audio, etc!
      -Wifi card has been replaced with Dell DW1560!
      -I'm using a S145-15IWL Model with Intel Core i5 8265u / Intel UHD Graphics 620
      -Update bios/uefi to last version

      --Installation--
      https://www.olarila.com/topic/5794-guide-install-macos-with-olarila-image-step-by-step-install-and-post-install-windows-or-mac/

      --Clover Folder--
      Just paste EFI folder inside EFI partition
      https://www.olarila.com/files/Clover.Folder/Lenovo IdeaPad S145.zip
      Notebooks with ELAN trackpad use it with my folder above
      IdeaPad S145 ELAN.zip

      Bluetooth Broadcom
      Bluetooth Broadcom.zip

      CPUFriend for i5-8265U
      CPUFriend i5-8265U.zip

      --Full DSDT Patches--
      -My DSDT
      DSDT Lenovo IdeaPad S145.zip

      This DSDT work on S145-14IWL, S145-15IWL, V14-IWL, V15-IWL models
      -Patches
      -FIX ERRORS AND WARNINGS -REMOVE UNUSED SCOPES / DEVICES -HIGH PRECISION EVENT TIMER -SATA SERIE 11 ID -DMAC -REMOVE LINES, PROBLEMATIC and UNUSED -SLPB -DARWIN / WINDOWS 2015 -XHCI -PLUGIN TYPE -HDAS to HDEF -HDEF -REAL TIME CLOCK -ARTC -IRQs -SBUS -BUS1 -MCHC -ALS0 -SHUTDOWN -FWHD -USBX -PMCR -PPMC -XSPI -GMM -IMEI -EC -PRWs -_DSMs -PNLF -BRIGHTNESS KEYS -I2C -NATIVE USB -ARPT -GFX0 -DTGP -kUSBCompanionIndex -io-device-location -FULL RENAMED DEVICES   --IGPU Patch--
      Video solution with HDMI Audio and Video
      <key>PciRoot(0x0)/Pci(0x2,0x0)</key> <dict> <key>AAPL,GfxYTile</key> <data> AQAAAA== </data> <key>AAPL,ig-platform-id</key> <data> CQClPg== </data> <key>device-id</key> <data> pT4AAA== </data> <key>enable-hdmi20</key> <data> AQAAAA== </data> <key>framebuffer-con0-alldata</key> <data> AAAIAAIAAACYAAAA </data> <key>framebuffer-con0-enable</key> <integer>1</integer> <key>framebuffer-con1-alldata</key> <data> AQEJAAAIAADHAQAA </data> <key>framebuffer-con1-enable</key> <integer>1</integer> <key>framebuffer-con2-alldata</key> <data> AgYKAAAEAADHAQAA </data> <key>framebuffer-con2-enable</key> <integer>1</integer> <key>framebuffer-fbmem</key> <data> AACQAA== </data> <key>framebuffer-patch-enable</key> <data> AQAAAA== </data> <key>framebuffer-stolenmem</key> <data> AAAwAQ== </data> <key>framebuffer-unifiedmem</key> <data> AAAAgA== </data> <key>hda-gfx</key> <string>onboard-1</string> <key>model</key> <string>Intel Corporation, Cannon Point-LP Iris Plus Graphics 655</string> </dict>   --Native USB Fix for Notebooks - No Injector/Kext Required--
      https://www.olarila.com/topic/6878-guide-native-usb-fix-for-notebooks-no-injectorkext-required/
      https://www.olarila.com/topic/6181-guide-native-usb-fix-for-desktops-no-injectorkext-required-skylake/


      -ScreenShots

































      -Links


      Clover https://github.com/CloverHackyColor/CloverBootloader
      AirportBrcmFixup.kext https://github.com/acidanthera/AirportBrcmFixup
      AppleALC.kext https://github.com/acidanthera/AppleALC
      Brcm Bluetooth https://github.com/acidanthera/BrcmPatchRAM
      Lilu.kext https://github.com/acidanthera/Lilu
      SystemProfilerMemoryFixup.kext https://github.com/Goldfish64/SystemProfilerMemoryFixup
      VirtualSMC.kext https://github.com/acidanthera/VirtualSMC
      VoodooI2C.kext https://github.com/alexandred/VoodooI2C
      VoodooPS2Controller.kext https://github.com/acidanthera/VoodooPS2
      WhateverGreen.kext https://github.com/acidanthera/WhateverGreen
      MaciASL - https://github.com/acidanthera/MaciASL
      acpica - https://github.com/acpica/acpica
      AptioMemoryFix.efi https://github.com/acidanthera/AptioFixPkg
      ApfsDriverLoader.efi https://github.com/acidanthera/AppleSupportPkg
      HFSPlus.efi https://github.com/JrCs/CloverGrowerPro/blob/master/Files/HFSPlus/X64/HFSPlus.efi?raw=true
      Hackintool https://github.com/headkaze/Hackintool

      -Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!

      Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad, Sampath007, onemanosx, erroruser, Jenny David, Olarila Facebook Community, Hackintosh Facebook Community and many others!

      We're all here to have fun and learn from each other!
    • By MaLd0n
      ---TUTORIAL---
      https://www.olarila.com/topic/5794-guide-install-macos-with-olarila-image-step-by-step-install-and-post-install-windows-or-mac/

      --Original Post--
      https://www.olarila.com/topic/6531-olarila-hackbeast-z390-designare-thunderbolt-full-dsdt-patches-clover-opencore/

      --Bios/UEFI Settings--

      *Update bios/uefi to F7+*
      1- Go to M.I.T./Advanced Frequency Settings tab

      Extreme Memory Profile (X.M.P.) - Profile 1

      2- Go to BIOS tab

      CSM Support - Disabled

      3- Go to Peripherals/Thunderbolt(TM) Configuration tab

      Security Level - No Security
      Thunderbolt USB Support - Enabled
      GPIO3 Force Pwr - Enabled

      4- Go to Chipset tab

      Internal Graphics - Enable

      ---CLOVER FOLDER---
      https://olarila.com/files/Clover.Folder/EFI CLOVER Z390 DESIGNARE.zip
      *Use this folder with FULL DSDT PATCHED

      ---OPENCORE FOLDER---
      https://www.olarila.com/topic/6364-mojave-catalina-on-mobos-series-100200300-with-opencore-bootloader/
      *Use this folder with FULL DSDT PATCHED


      ---Extract one Full dump for DSDT edits, post files---

      RunMe.app



      ---HARDWARE---

      --MOBO

      GIGABYTE Z390 DESIGNARE
      -Link
      https://www.amazon.com/Z390-DESIGNARE-Gigabyte-Thunderbolt-Motherboard/dp/B07K8RJZRG/ref=sr_1_1?keywords=Z390+DESIGNARE&qid=1565492390&s=electronics&sr=1-1

      --PROCESSOR

      Intel Core i9-9900K
      -Link
      https://www.amazon.com/Intel-i9-9900K-Desktop-Processor-Unlocked/dp/B005404P9I/ref=sr_1_1_sspa?keywords=Intel+Core+i9-9900K&qid=1553358099&s=gateway&sr=8-1-spons&psc=1

      --COOLER

      CORSAIR H100i RGB PLATINUM AIO Liquid CPU Cooler
      -Link
      https://www.amazon.com/CORSAIR-H100i-PLATINUM-Liquid-Cooler/dp/B07JWB5BSN/ref=sr_1_4?keywords=WATER+COOLER+CPU&qid=1565492509&s=gateway&sr=8-4

      --MEMORY

      Corsair CMW32GX4M2C3200C16 Vengeance RGB PRO 32GB (2x16GB) DDR4 3200 (PC4-25600)
      -Link
      https://www.amazon.com/Corsair-CMW32GX4M2C3200C16-Vengeance-PC4-25600-Desktop/dp/B07GTG2T7L/ref=sr_1_15?keywords=memory+ddr4+32&qid=1553358238&s=gateway&sr=8-15

      --GPU

      MSI RX Vega 64 AIR Boost 8G OC
      -Link
      https://www.amazon.com/MSI-RX-64-AIR-8G/dp/B07DH7S1X1/ref=sr_1_2?keywords=vega+64+gigabyte&qid=1565492819&s=electronics&sr=1-2

      --SSD

      Samsung 970 EVO 1TB SSD (MZ-V7E1T0BW) NVMe M.2 V-NAND
      -Link
      https://www.amazon.com/Samsung-970-EVO-1TB-MZ-V7E1T0BW/dp/B07BN217QG/ref=sr_1_1?keywords=s+samsung+970+evo+1tb&qid=1565493002&s=electronics&sr=1-1

      --POWER SUPPLY

      EVGA Supernova 1000 P2 80+ Platinum, 1000W ECO Mode Fully Modular
      -Link
      https://www.amazon.com/EVGA-Supernova-Platinum-Crossfire-220-P2-1000-XR/dp/B00EKJQM5E/ref=sr_1_3?keywords=power+supply+1000w&qid=1565493196&s=gateway&sr=8-3

      --WIRELESS

      TP-Link Archer T9E
      -Link
      https://www.amazon.com/TP-Link-Archer-T9E-Beamforming-Technology/dp/B00TQEX7AQ/ref=sr_1_1?keywords=TP-Link+Archer+T9E&qid=1553358397&s=gateway&sr=8-1

      --CASE

      Thermaltake Core P5 Tempered Glass Black Edition ATX Open Frame Panoramic Viewing
      -Link
      https://www.amazon.com/Thermaltake-Tempered-Panoramic-Certified-CA-1E7-00M1WN-03/dp/B01N4IGVSC/ref=sr_1_2?keywords=Thermaltake+Core+P5&qid=1565493567&s=gateway&sr=8-2

      --DSDT Patches--
      -FIX ACPI ERRORS -FIX OEM SSDTs to AVOID ERRORS AND WARNINGS -REMOVE UNUSED SCOPES / DEVICES -HIGH PRECISION EVENT TIMER -SATA -DMAC -REMOVE PROBLEMATIC AND UNUSED DEVICES -FIX K.P in REBOOT -SLPB -DARWIN / WINDOWS 2015 -XHCI -PLUGIN TYPE -HDAS to HDEF -HDEF -REAL TIME CLOCK -ARTC -IRQs -SBUS -BUS1 -MCHC -ALS0 -SHUTDOWN -LAN -FWHD -USBX -PMCR -PPMC -XSPI -CNVW -GMM -IMEI -EC -PNLF -ARPT -GFX0 -NVME -DTGP -ACQUIRE MUT0 0XFFFF -MUTEX MUT0 0x00 -EXTERNAL REFERENCES -UNKNOWNOBJ -HDMI / HDAU -FULL RENAMED DEVICES ---SCREENSHOTs---




















      -Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!
      Thanks to KGP for SSDT Thunderbolt
      Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad, Sampath007, onemanosx, erroruser, Jenny David, Olarila Facebook Community, Hackintosh Facebook Community and many others!
      We're all here to have fun and learn from each other!
    • By MaLd0n
      ---INSTALLATION TUTORIAL---
      https://www.olarila.com/topic/5794-guide-install-macos-with-olarila-image-step-by-step-install-and-post-install-windows-or-mac/

      ---Original Post---
      https://www.olarila.com/topic/5938-olarila-hackbeast-z390-m-gaming-full-dsdt-patches/

      ---USB---
      https://pikeralpha.wordpress.com/2016/07/13/simple-skylake-usb-fix-no-kexts-required/

      ---CLOVER FOLDER---
      https://www.olarila.com/topic/5676-clover-folder-for-all-chipsets/


      --MOBO
      GigaByte Z390 M Gaming



      --PROCESSOR
      Intel Core i9-9900K


      --COOLER
      CoolerMaster MasterLiquid ML120R RGB


      --MEMORY
      Corsair Dominator Platinum 16GB (2 x 8GB)


      --GPU
      Sapphiretech Radeon RX 590 8 GB GDDR5



      --SSD
      Samsung 970 EVO NVMe M2 Flash Drive


      --POWER SUPPLY
      EVGA 750 N1, 750W


      --WIRELESS
      TP-Link Archer T9E


      --BLUETOOTH
      Orico BTA-403


      --CASE
      Thermaltake View 21 Tempered Glass Edition


      --DSDT Patches--
      -FIX ERRORS AND WARNINGS -FIX ACPI ERRORS -REMOVE UNUSED SCOPES / DEVICES -HIGH PRECISION EVENT TIMER -SATA SERIE 10 ID -DMAC -REMOVE 22K LINES, PROBLEMATIC and UNUSED -FIX K.P in REBOOT -NVRAM -REAL TIME CLOCK -SLPB -DARWIN / WINDOWS 2015 -XHCI -PLUGIN TYPE -HDAS to HDEF -HDEF -REAL TIME CLOCK -ARTC -IRQs -SBUS -MIKEY -BUS1 -MCHC -ALS0 -SHUTDOWN -UAR1 -LAN -FWHD -USBX -PMCR -PPMC -XSPI -GMM -IMEI -EC -PNLF -ARPT -GFX0 -NVME -DTGP -ACQUIRE MUT0 0XFFFF -OPERATION REGION GPIO -MUTEX MUT0 0x00 -EXTERNAL REFERENCES -UNKNOWNOBJ -HDMI / HDAU -FULL RENAMED DEVICES
      --SCREENSHOTS--





























      --BruceX--

      --USB-C-- test with SanDisk Ultra USB-STICK 128gb



      -Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!
      Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad, Sampath007, onemanosx, erroruser, Jenny David, Olarila Facebook Community, Hackintosh Facebook Community and many others!
      We're all here to have fun and learn from each other!
×
