(Problem)Ati 5430 No resolution & QE/CI 10.8 HP g72


Kasi99
 Share

55 posts in this topic

Recommended Posts

hello meknb...



my vga work :thumbsup_anim: only!



can you help me my force edid, editing?



mfg kasi



can me send raw data!



RAW Data:

0x10 00 13 01 03 80 26 15 78 0A A8 C0 9D 58 50 9A 26

0x20 1C 50 54 00 00 00 01 01 01 01 01 01 01 01 01 01

0x30 01 01 01 01 01 01 2F 26 40 B8 60 84 0C 30 30 30

0x40 23 00 7E D7 10 00 00 19 00 00 00 00 00 00 00 00

0x50 00 00 00 00 00 00 00 00 00 00 00 00 00 FE 00 00

0x60 00 00 4C 47 44 69 73 70 6C 61 79 0A 00 00 00 FE

0x70 00 4C 50 31 37 33 57 44 31 2D 54 4C 43 33 00 C2

0x00 00 FF FF FF FF FF FF 00 30 E4 7A 02 00 00 00 00

Link to comment
Share on other sites

my data!

DisplayProductID" = 0x717

DisplayVendorID" = 0x756e6b6e

DisplayProductID dec 1815

DisplayVendorID dec 1970170734





Edid

00FFFFFF FFFFFF00 00001707 00000000 0A0A0101 0C1E17BE E82DC9A0 57479827 12484C00 00000101 01010101 01010101 01010101 01010000 00FE0053 52584661 6B654544 49440A20 01010101 01010101 01010101 01010101 01010101 01010101 01010101 01010101 01010101 01010101 01010101 01010101 01010101 0101005A

my config





<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">

<plist version="1.0">

<dict>

<key>DisplayProductID</key>

<integer>1815</integer>

<key>DisplayProductName</key>

<string>Color LCD</string>

<key>DisplayVendorID</key>

<integer>1970170734</integer>

<key>IODisplayEDID</key>

<data>

AP///////wAAABcHAAAAAAoKAQEMHhe+6C3JoFdHmCcSSEwAAAABAQEBAQEBAQEBAQEB

AQEBAAAA/gBTUlhGYWtlRURJRAogAQEBAQEBAQEBAQEBAQEBAQEBAQEBAQEBAQEBAQEB

AQEBAQEBAQEBAQEBAQEBAQEBAQEBAQEBAFo=

</data>

</dict>

</plist>





not work....graphicsEnabler=yes Blackscreen of internal display:(

Link to comment
Share on other sites

hey guys, im a german and my english is not so good but i hope you understand me well !!



i've got a problem I cant fix since a couple of weeks. i hope really you can help me !!



my problem is the intern display of my HP G72. i just cant set it in a high resolution and i dont have a QE/CI !



i use ML 10.8 and a Ati 5430 !! i allready wrote my Device id from the Ati 5430 in the AMDRadeonAccelerator.kext under Cedar.



with the vga port by using a external monitor everything is allright ! high resolution and QE/CI

works well !!

only the intern display won't work!!



i've read out the Edid of the intern display with different programs! it also wont work with the fixed DisplayProductID-717 !



everytime when i use the GraphicsEnabler=Yes i get a blackscreen after the loadingscreen with the apple bootlogo



i use the bootloader Chimera 1.11.1 and Chameleon-2.1svn-r2059 but without any results ! everytime i get the blackscreen after the loadingscreen with the apple bootlogo.



in the chameleon bootplist i tryed different framebuffers like hoolock and Eulemur but without any results.



i really dont know what i am doing wrong !! i also copy the data in the Plist Editor Pro and than copy the Edid string und sychronised it. after that i copy all into the DisplayProductID-717 with a texteditor and finally i repaired the volume of the OSx partition with the harddisk service programm.



the result of everithing i do is just a blackscreen with the GraphicsEnabler=yes



maybe somebody can check my data !! i really be thankfull if somebody can help me !!! please i get sick of this !!!



i hope somebody of you understand my bad english and can help me soon!



thanks a lot ! nice hopefully greetings by kasi

DisplayProductID-717.rar

RAW EDID.rar

my lcd id´s.txt

Link to comment
Share on other sites

Hi Kasi99,



This is the same thing that happened to me after I successfully installed Lion & Mountain Lion.



with the vga port by using a external monitor everything is allright ! high resolution and QE/CI, it works well. only the intern display won't work!!



I saw that you posted the same details on this topic http://www.insanelymac.com/forum/topic/208410-fixing-scrambledstretched-or-wrong-resolution-laptop-display-problems/ and you are on the right track. Basically, you need to perform a Force EDID so the display will come out from the Internal LCD screen.



Read the details and you should be able to fix it.



Below is the screenshot of my hackintosh




Link to comment
Share on other sites

hello bochama !!



thank you verry much for your support!!

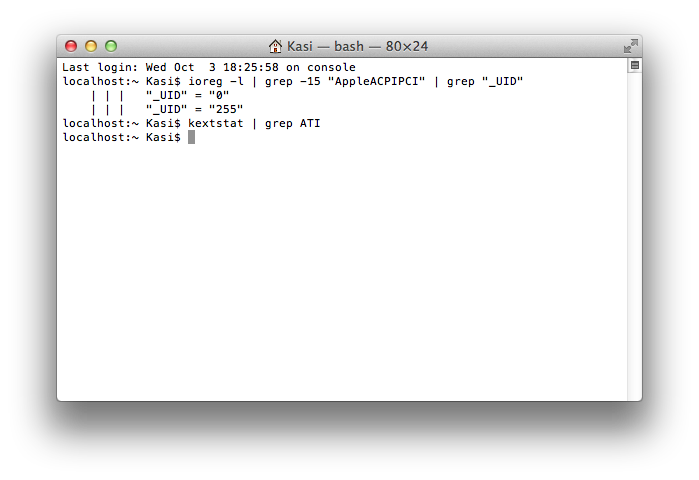

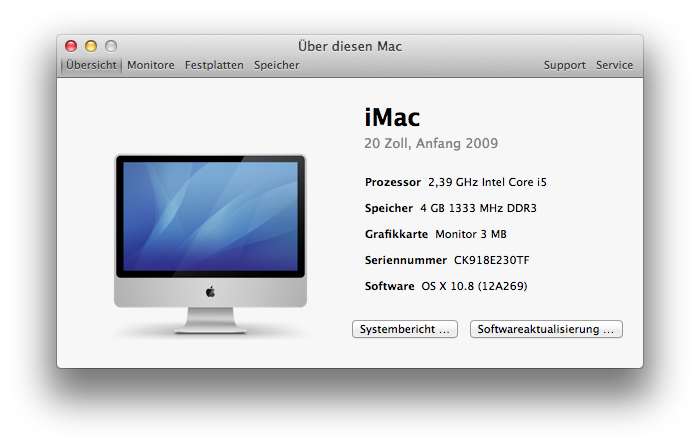

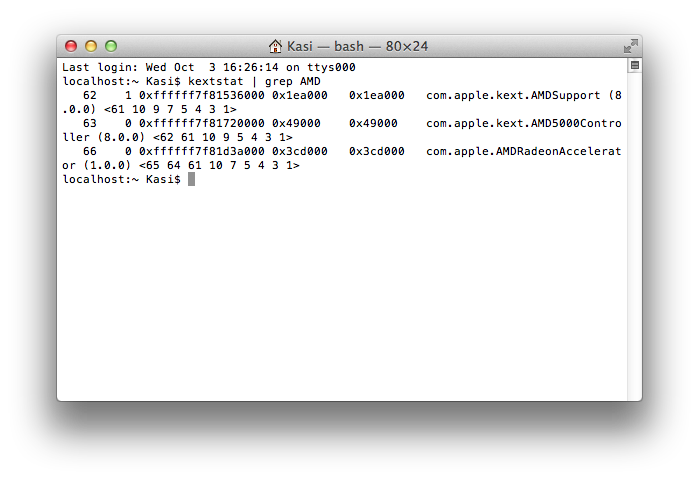

i have also done some screenshots and matched that with yours and what i`m seeing is, that on your screenshot is no ati kext loaded.!!



when i installed the atiradeonx3000 in the S/L/E than im getting a bootloop.



i integrated my Foce Edid in the DisplayProductID-717 and i read out my raw Data by using monilnfo under windows.



I´m confused now, cause another user means the problem is still an other way !! but anybody answered my questions as yet and you are my last chance now !!!!! maybe yu can help me from the beginning and then step by step !



wich ati/amd kext should i install and wich of them can i erase ??



These are all of my kext under S/L/E:







AMDRadeonAccelerator

AMDRadeonVADriver

AMDRadeonX3000GLDriver





ATI2400Controller

ATI2600Controller

ATI3800Controller

ATI4600Controller

ATI4800Controller

ATI5000Controller

ATI6000Controller

ATIFramebuffer

ATIRadeonX2000

ATIRadeonX2000GA

ATIRadeonX2000GLDriver

ATIRadeonX2000VADriver

ATISupport



my english is not soo well, i hope you are patient to me !!! thankful greetings from kasi !!




Link to comment
Share on other sites

Hi Kasi

The AtiSupport/Radeon ect are Used for Lion not Mountain lion.

Mountain Lion uses AMDSupport ect Your edid you uploaded looks right but it looks like your AMDFramebuffer isn't loading.

My kext's loaded are

76 2 0xffffff7f80d32000 0x1d8000 0x1d8000 com.apple.kext.AMDSupport (8.0.0)

77 0 0xffffff7f80f0a000 0x41000 0x41000 com.apple.kext.AMD5000Controller (8.0.0)

96 0 0xffffff7f81054000 0x3cd000 0x3cd000 com.apple.AMDRadeonAccelerator (1.0.0)

104 0 0xffffff7f81589000 0x13000 0x13000 com.apple.kext.AMDFramebuffer (8.0.0)

So it looks like your frameBuffer is the problem.Not sure why ?? Sorry i couldn't be more help.

Link to comment
Share on other sites

in your

"my boot flags in the plist:





<key>AtiConfig</key>

<string>Eulemur</string>

<key>GraphicsEnabler</key>

<string>Yes</string>

<key>PciRoot</key>

<string>1</string>

<key>RestartFix</key>

<string>No</string>

<key>UseAtiROM</key>

<string>Yes</string>

</dict>"

try deleting pciroot=1 entry(or change it to 0) and use graphicsenabler=no ..should load the ATY,ATYFramebuffer which is the default framebuffer :worried_anim:

Link to comment
Share on other sites

he name is ATIFramebuffer in S/L/E is but AMDFramebuffer!



open the infoplist of the ATIFramebuffer, in the infoplist is name AMDFramebuffer



hi roberx!



i have all bootflags tried...not work! ( with GraphicsEnabler and no) ati config Eulemur, hoolock etc.!



i have blackscreen with GraphicsEnabler! my Framebuffer is not loading!



more ideas please?

Link to comment
Share on other sites

Hi Meknb,



i have not ideas moreicon_crazy.gif!

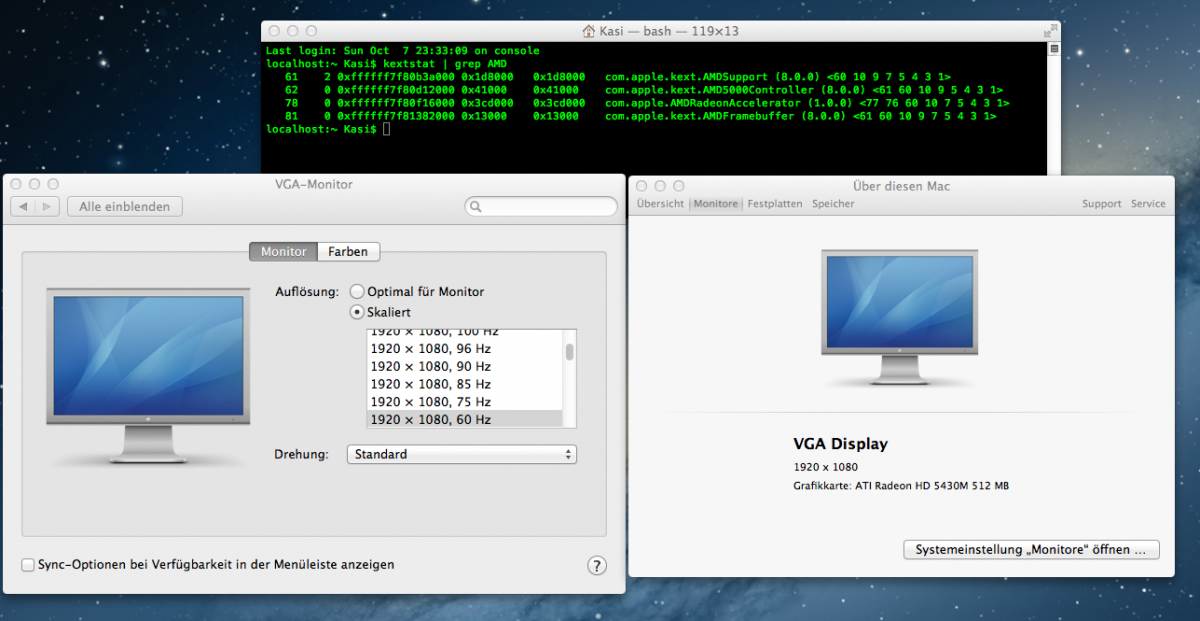

with VGA high resolution and QE/CI! GraphicsEnabler=Yes! (without Framebuffer Settings in the boot.plist) Work!!!



with Internal LCD of Notebook not works! with GraphicsEnabler=Yes Blackscreen! despite edid insert!



i have RegistryDump uploaded! possibly find someone the error!



look my screenshorts!

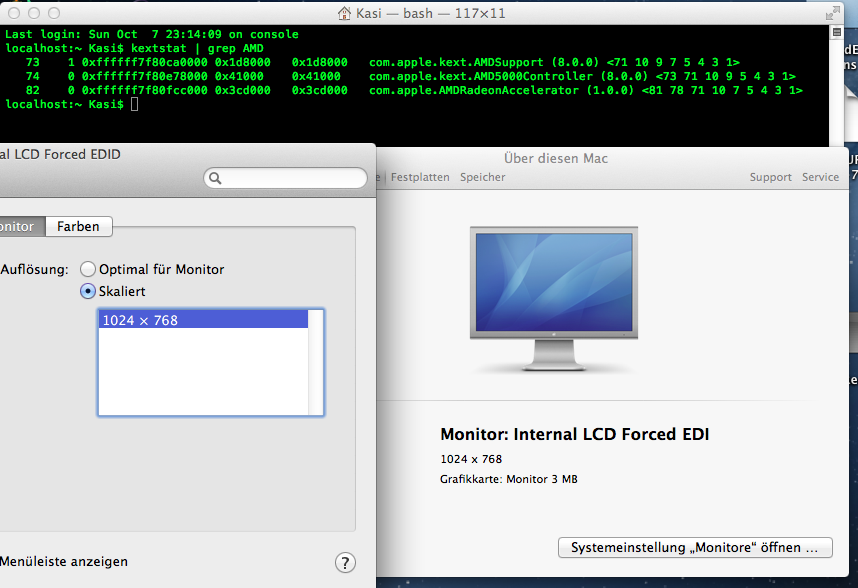

Internal LCD max resolution 1024!



greeting by Kasi



RegistryDump.rar

Link to comment
Share on other sites

I think you may have to hex edit your AMDFrameBuffer to boot with internal screen is it ldvs??

Your connector type's are your problem i think the ones showing in your ioreg are

0x4 dvi ??

0x10 vga

0x800 hdmi

Have a look here http://www.insanelymac.com/forum/topic/252061-mobility-radeon-hd-4650full-resolution-with-qe-ci-working-on-internal-lvds-screen/ to dump your rom and get your connected displays.

Also search around for redsock_bios_decoder.

Hope this helps, good luck.
