raziiq Posted June 22, 2012 Share Posted June 22, 2012 Hi there. I have been trying to make sound work for quite some time now but to no avail. Below is the screenshot of my SystemInfo. i have an Intel HD audio Controller, an HDMI (Intel HD3000 Graphics) and in verbose mode at start i can see Conexant (14f1 5069). None of it is working. Speaker on Menu bar is enabled after installing VoodooHDA-v2.7.4 but no sound at all. I tried changing the kext with my device iD as well but to no avail. Any suggestions in this regard will be highly appreciable. Thanks Sound.tiff Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/ Share on other sites More sharing options...
eep357 Posted June 22, 2012 Share Posted June 22, 2012 Try a different version of Voodoo audio, 2.7.3 or 2.7.2, They can all be a bit buggy so just try finding one that works for you. If you get sound that is distorted or crackling, adjust voodoo setting in system pref and turn the input/mic gain down. More info available here http://www.insanelymac.com/forum/index.php?showtopic=267905 Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1828508 Share on other sites More sharing options...
raziiq Posted June 22, 2012 Author Share Posted June 22, 2012 Thanks for the reply. Tried everything, gone through the link u provided quite a lot of times but nothing is working. I think sound devices are conflicting Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1828509 Share on other sites More sharing options...
eep357 Posted June 22, 2012 Share Posted June 22, 2012 check bios of audio options, that Conexant is supposed to be windows only I think. See if any options to pick HDEF instead Or maybe not...Try copying appleHDA.kext to desktop temporarily, delete version from S/L/E and see if Voodoo works if still problems, run in terminal: kextstat > ~/Desktop/kextstat.txt and upload resulting text file Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1828535 Share on other sites More sharing options...
raziiq Posted June 23, 2012 Author Share Posted June 23, 2012 check bios of audio options, that Conexant is supposed to be windows only I think. See if any options to pick HDEF instead Or maybe not...Try copying appleHDA.kext to desktop temporarily, delete version from S/L/E and see if Voodoo works if still problems, run in terminal: kextstat > ~/Desktop/kextstat.txt and upload resulting text file I ran that command in Terminal, below are the results , please have a look. Index Refs Address Size Wired Name (Version) <Linked Against> 1 59 0xffffff7f80746000 0x683c 0x683c com.apple.kpi.bsd (11.4.0) 2 6 0xffffff7f80732000 0x3d0 0x3d0 com.apple.kpi.dsep (11.4.0) 3 77 0xffffff7f80750000 0x1b9d8 0x1b9d8 com.apple.kpi.iokit (11.4.0) 4 82 0xffffff7f8073c000 0x9b54 0x9b54 com.apple.kpi.libkern (11.4.0) 5 71 0xffffff7f80733000 0x88c 0x88c com.apple.kpi.mach (11.4.0) 6 30 0xffffff7f80734000 0x4990 0x4990 com.apple.kpi.private (11.4.0) 7 49 0xffffff7f80739000 0x229c 0x229c com.apple.kpi.unsupported (11.4.0) 8 15 0xffffff7f80c86000 0x7000 0x7000 com.apple.iokit.IOACPIFamily (1.4) <7 6 4 3> 9 17 0xffffff7f8080e000 0x1e000 0x1e000 com.apple.iokit.IOPCIFamily (2.6.8) <7 6 5 4 3> 10 2 0xffffff7f8169a000 0x58000 0x58000 com.apple.driver.AppleACPIPlatform (1.5) <9 8 7 6 5 4 3 1> 11 0 0xffffff7f80f75000 0x2000 0x2000 es.osx86.driver.EvOreboot (1.0.3) <4 3> 12 0 0xffffff7f80971000 0x2000 0x2000 org.tgwbd.driver.NullCPUPowerManagement (1.0.0d2) <7 4 3> 13 1 0xffffff7f80a7c000 0xc000 0xc000 com.apple.driver.AppleKeyStore (28.18) <7 6 5 4 3 1> 14 10 0xffffff7f8076c000 0x25000 0x25000 com.apple.iokit.IOStorageFamily (1.7.1) <7 6 5 4 3 1> 15 0 0xffffff7f80d15000 0x19000 0x19000 com.apple.driver.DiskImages (331.6) <14 7 6 5 4 3 1> 16 0 0xffffff7f815b6000 0x28000 0x28000 com.apple.driver.AppleIntelCPUPowerManagement (193.0.0) <7 6 5 4 3 1> 17 0 0xffffff7f8074d000 0x3000 0x3000 com.apple.security.TMSafetyNet (7) <7 6 5 4 2 1> 18 2 0xffffff7f807d0000 0x4000 0x4000 com.apple.kext.AppleMatch (1.0.0d1) <4 1> 19 1 0xffffff7f807d4000 0x11000 0x11000 com.apple.security.sandbox (177.5) <18 7 6 5 4 3 2 1> 20 0 0xffffff7f80923000 0x5000 0x5000 com.apple.security.quarantine (1.3) <19 18 7 6 5 4 2 1> 21 0 0xffffff7f81701000 0x8000 0x8000 com.apple.nke.applicationfirewall (3.2.30) <7 6 5 4 3 1> 22 0 0xffffff7f81672000 0x3000 0x3000 com.apple.driver.AppleAPIC (1.5) <4 3> 23 0 0xffffff7f8138f000 0x4000 0x4000 com.apple.driver.AppleSMBIOS (1.8) <7 4 3> 24 1 0xffffff7f80c2b000 0x4000 0x4000 com.apple.iokit.IOSMBusFamily (1.1) <5 4 3> 25 0 0xffffff7f816f2000 0x7000 0x7000 com.apple.driver.AppleACPIEC (1.5) <24 10 8 5 4 3> 26 0 0xffffff7f815e6000 0x3000 0x3000 com.apple.driver.AppleHPET (1.6) <8 7 5 4 3> 27 0 0xffffff7f813b4000 0x8000 0x8000 com.apple.driver.AppleRTC (1.5) <8 5 4 3 1> 28 0 0xffffff7f81695000 0x3000 0x3000 com.yourcompany.driver.AppleACPIPS2Nub (1.0.0d1) <8 7 5 4 3 1> 29 4 0xffffff7f80a88000 0x6b000 0x6b000 com.apple.iokit.IOHIDFamily (1.7.1) <13 7 6 5 4 3 2 1> 30 0 0xffffff7f816fb000 0x4000 0x4000 com.apple.driver.AppleACPIButtons (1.5) <29 10 8 7 6 5 4 3 1> 31 0 0xffffff7f80f6b000 0xa000 0xa000 org.netkas.FakeSMC (4.2.0) <8 7 5 4 3> 32 1 0xffffff7f81653000 0x4000 0x4000 com.apple.driver.AppleEFIRuntime (1.5.0) <7 6 5 4 3> 33 2 0xffffff7f81401000 0xe000 0xe000 com.apple.driver.ApplePS2Controller (1.1.0) <7 5 4 3 1> 34 7 0xffffff7f8082c000 0x4f000 0x4f000 com.apple.iokit.IOUSBFamily (4.5.8) <9 7 5 4 3 1> 35 0 0xffffff7f80b4a000 0x17000 0x17000 com.apple.driver.AppleUSBEHCI (4.5.8) <34 9 7 5 4 3 1> 36 3 0xffffff7f80e6d000 0xc000 0xc000 com.apple.iokit.IOAHCIFamily (2.0.8) <5 4 3 1> 37 0 0xffffff7f81676000 0x18000 0x18000 com.apple.driver.AppleAHCIPort (2.3.0) <36 9 5 4 3 1> 38 0 0xffffff7f81657000 0x7000 0x7000 com.apple.driver.AppleEFINVRAM (1.5.0) <32 7 5 4 3> 39 3 0xffffff7f807e5000 0x29000 0x29000 com.apple.iokit.IONetworkingFamily (2.1) <7 6 5 4 3 1> 40 0 0xffffff7f81288000 0x6000 0x6000 com.insanelymac.AtherosL1cEthernet (1.0.2b2) <39 9 5 4 3 1> 41 0 0xffffff7f8141e000 0x4000 0x4000 com.apple.driver.ApplePS2Keyboard (1.2.0) <33 29 7 6 5 4 3 1> 42 0 0xffffff7f80a79000 0x3000 0x3000 com.apple.iokit.IOUSBUserClient (4.5.8) <34 7 5 4 3 1> 43 0 0xffffff7f80b35000 0x11000 0x11000 com.apple.driver.AppleUSBHub (4.5.0) <34 5 4 3 1> 44 0 0xffffff7f81015000 0x9000 0x9000 com.apple.BootCache (33) <7 6 5 4 3 1> 45 0 0xffffff7f81642000 0x5000 0x5000 com.apple.AppleFSCompression.AppleFSCompressionTypeZlib (1.0.0d1) <6 4 3 2 1> 46 0 0xffffff7f81649000 0x5000 0x5000 com.apple.AppleFSCompression.AppleFSCompressionTypeDataless (1.0.0d1) <7 6 4 3 2 1> 47 0 0xffffff7f80e85000 0x15000 0x15000 com.apple.iokit.IOAHCIBlockStorage (2.0.3) <36 14 5 4 3 1> 48 0 0xffffff7f81290000 0x3000 0x3000 com.apple.driver.XsanFilter (404) <14 5 4 3 1> 49 0 0xffffff7f80afb000 0x6000 0x6000 com.apple.driver.AppleUSBComposite (4.5.8) <34 4 3 1> 50 5 0xffffff7f80929000 0x2b000 0x2b000 com.apple.iokit.IOSCSIArchitectureModelFamily (3.2.0) <5 4 3 1> 51 0 0xffffff7f80a68000 0x11000 0x11000 com.apple.iokit.IOUSBMassStorageClass (3.0.1) <50 34 14 5 4 3 1> 52 0 0xffffff7f80e79000 0x9000 0x9000 com.apple.iokit.IOAHCISerialATAPI (2.0.3) <50 36 5 4 3 1> 53 0 0xffffff7f8087b000 0x94000 0x94000 com.Ralink.driver.RT2870USBWirelessDriver (4.1.8) <39 34 5 4 3 1> 54 0 0xffffff7f8099c000 0x15000 0x15000 com.apple.iokit.IOSCSIBlockCommandsDevice (3.2.0) <50 14 5 4 3 1> 55 0 0xffffff7f80c41000 0x7000 0x7000 com.apple.iokit.SCSITaskUserClient (3.2.0) <50 14 5 4 3 1> 56 3 0xffffff7f80c4a000 0xd000 0xd000 com.apple.iokit.IOCDStorageFamily (1.7) <14 5 4 3 1> 57 2 0xffffff7f80c57000 0xb000 0xb000 com.apple.iokit.IODVDStorageFamily (1.7) <56 14 5 4 3 1> 58 1 0xffffff7f80c62000 0xa000 0xa000 com.apple.iokit.IOBDStorageFamily (1.6) <57 56 14 5 4 3 1> 59 0 0xffffff7f80c6c000 0x1a000 0x1a000 com.apple.iokit.IOSCSIMultimediaCommandsDevice (3.2.0) <58 57 56 50 14 5 4 3 1> 61 8 0xffffff7f80ccb000 0x38000 0x38000 com.apple.iokit.IOGraphicsFamily (2.3.2) <9 7 5 4 3> 62 0 0xffffff7f81478000 0x3a000 0x3a000 com.apple.driver.AppleIntelSNBGraphicsFB (7.1.8) <61 9 8 7 6 5 4 3 1> 63 0 0xffffff7f8140f000 0x6000 0x6000 com.apple.driver.ApplePS2Trackpad (1.1.0) <33 29 7 6 5 4 3 1> 65 4 0xffffff7f80c8d000 0x7000 0x7000 com.apple.driver.IOPlatformPluginFamily (5.1.0d17) <8 7 6 5 4 3> 66 0 0xffffff7f8146b000 0x3000 0x3000 com.apple.driver.AppleLPC (1.5.8) <65 9 5 4 3> 67 1 0xffffff7f80c98000 0x12000 0x12000 com.apple.driver.IOPlatformPluginLegacy (5.0.0d0) <65 8 7 6 5 4 3> 68 2 0xffffff7f80caa000 0xd000 0xd000 com.apple.driver.AppleSMC (3.1.3d8) <8 7 5 4 3> 69 0 0xffffff7f80cb7000 0xf000 0xf000 com.apple.driver.ACPI_SMC_PlatformPlugin (5.0.0d0) <68 67 65 9 8 7 6 5 4 3> 71 4 0xffffff7f80d03000 0x12000 0x12000 com.apple.iokit.IONDRVSupport (2.3.2) <61 9 7 5 4 3> 72 1 0xffffff7f81630000 0x3000 0x3000 com.apple.driver.AppleGraphicsControl (3.0.16) <71 61 9 8 7 5 4 3 1> 73 0 0xffffff7f81633000 0xf000 0xf000 com.apple.driver.ApplePolicyControl (3.0.16) <72 71 61 9 8 7 5 4 3 1> 74 1 0xffffff7f8102f000 0x6000 0x6000 com.apple.kext.OSvKernDSPLib (1.3) <5 4> 75 1 0xffffff7f81035000 0x2d000 0x2d000 com.apple.iokit.IOAudioFamily (1.8.6fc17) <74 5 4 3 1> 76 0 0xffffff7f81062000 0x4000 0x4000 com.apple.driver.AudioIPCDriver (1.2.2) <75 5 4 3 1> 79 0 0xffffff7f80f79000 0x5000 0x5000 com.apple.Dont_Steal_Mac_OS_X (7.0.0) <68 7 4 3 1> 80 1 0xffffff7f80c33000 0xe000 0xe000 com.apple.iokit.IOSerialFamily (10.0.5) <7 6 5 4 3 1> 81 0 0xffffff7f80e13000 0xa000 0xa000 com.apple.iokit.IOBluetoothSerialManager (4.0.5f11) <80 7 5 4 3 1> 82 0 0xffffff7f80c19000 0x12000 0x12000 com.apple.iokit.IOSurface (80.0.2) <7 5 4 3 1> 83 0 0xffffff7f80c94000 0x3000 0x3000 com.apple.driver.AppleSMCPDRC (5.0.0d0) <65 9 6 4 3> 84 0 0xffffff7f80a5f000 0x6000 0x6000 com.apple.iokit.IOUserEthernet (1.0.0d1) <39 6 5 4 3 1> 85 2 0xffffff7f8101f000 0x5000 0x5000 com.apple.kext.triggers (1.0) <7 6 5 4 3 1> 86 0 0xffffff7f81024000 0x9000 0x9000 com.apple.filesystems.autofs (3.0) <85 7 6 5 4 3 1> 87 0 0xffffff7f80af3000 0x8000 0x8000 com.apple.iokit.IOUSBHIDDriver (4.4.5) <34 29 5 4 3 1> 88 0 0xffffff7f81621000 0xb000 0xb000 com.apple.driver.AGPM (100.12.42) <71 61 9 5 4 3> 89 0 0xffffff7f814b2000 0xe1000 0xe1000 com.apple.driver.AppleIntelHD3000Graphics (7.1.8) <71 61 9 7 5 4 3 1> 91 0 0xffffff7f8143c000 0xa000 0xa000 com.apple.driver.AppleMCCSControl (1.0.26) <61 9 7 5 4 3 1> 92 0 0xffffff7f812d8000 0x5000 0x5000 com.apple.driver.AppleUpstreamUserClient (3.5.9) <61 9 8 7 5 4 3 1> 94 0 0xffffff7f815df000 0x5000 0x5000 com.apple.driver.AppleHWSensor (1.9.5d0) <5 4 3> 95 0 0xffffff7f81716000 0x2a000 0x2a000 com.paragon-software.filesystems.ntfs (95) <7 5 4 1> 96 0 0xffffff7f80791000 0x35000 0x35000 com.apple.filesystems.smbfs (1.7.2) <85 7 6 5 4 3 1> Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1828730 Share on other sites More sharing options...
eep357 Posted June 24, 2012 Share Posted June 24, 2012 was than ran after removing appleHDA.kext or did you not remove it? Neither VoodooHDA.kext or AppleHDA.kext are loaded in the above kextstat. For VoodooHDA to work, appleHDA must be removed from System/Library/Extensions/ Just dragging it out of the folder will only make a copy of it and not delete the orig, so make a copy then RT click the orig and delete. It will ask for your password. Then maybe reinstall VoodooHDA for good measure. Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1829085 Share on other sites More sharing options...
raziiq Posted June 25, 2012 Author Share Posted June 25, 2012 As none of both AppleHDA and VoodooHDA were working so i removed both of them from /S/L/E. Still to find a good kext to make the audio work Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1829180 Share on other sites More sharing options...
eep357 Posted June 25, 2012 Share Posted June 25, 2012 after removing both, which was the right thing to do, then reinstall voodoo. Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1829190 Share on other sites More sharing options...
raziiq Posted June 26, 2012 Author Share Posted June 26, 2012 No its not working. I got the Speaker enabled with Output options (See screenshot) but no sound and had random kernel panics as well so deleted that kext too AudioSettings.tiff Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1829419 Share on other sites More sharing options...
eep357 Posted June 26, 2012 Share Posted June 26, 2012 Voodoo has never been the most stable thing in the world and can cause kernel panics as you had. Usually one of the available versions will work without any stability issues, finding out which one requires a little trial and error, but you now know at least one version that does not work If you've had the same result with 2.7.3, 2.7.2 and 2.7.1, then buy a usb audio adapter. I have a M-audio USB Transit one thats fairly old now, but works OTB and and sounds great. It has optical in and out as well as analog, 5.1 out using optical. Onboard audio works fine, but I prefer the m-audio and it allows volume sliders to work when using spdif vs. onboard digital audio Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1829567 Share on other sites More sharing options...
HUSABER Posted June 26, 2012 Share Posted June 26, 2012 This is work Delete old Voodoo first Copy HDA folder to Root/Library Copy App to/Aplication/Utilities Install kext to S/L/E Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1829585 Share on other sites More sharing options...
raziiq Posted June 27, 2012 Author Share Posted June 27, 2012 This is work Delete old Voodoo first Copy HDA folder to Root/Library Copy App to/Aplication/Utilities Install kext to S/L/E Thanks for the file but sound is still not working. I can see the output devices but cant hear any sound. Also my System Info is not showing any details about the Sound. What i think is that i have two sound devices, one my normal Sound device and other is Graphics HDMI sound. Because of these both having conflict as system gets confused which one to use, i am not getting any sound, well its a wild guess. Tried some patches, adding device ids and all in kexts but never worked. More suggestions are welcome Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1829678 Share on other sites More sharing options...
HUSABER Posted June 27, 2012 Share Posted June 27, 2012 System Info is not showing any details-with VoodooHDA never show details check here for more details: http://www.osx86.net/cat/8-audio.html Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1829679 Share on other sites More sharing options...
raziiq Posted June 27, 2012 Author Share Posted June 27, 2012 System Info is not showing any details-with VoodooHDA never show details check here for more details: http://www.osx86.net/cat/8-audio.html i tried a kext from here http://www.osx86.net...nt_cx20588.html Tried disabling HDMI as well but still no sound. My device is Conexant 14f1-5069. Here is the kext stat after installing VoodooHDA 2.7.3 Index Refs Address Size Wired Name (Version) <Linked Against> 1 59 0xffffff7f80746000 0x683c 0x683c com.apple.kpi.bsd (11.4.0) 2 6 0xffffff7f80732000 0x3d0 0x3d0 com.apple.kpi.dsep (11.4.0) 3 77 0xffffff7f80750000 0x1b9d8 0x1b9d8 com.apple.kpi.iokit (11.4.0) 4 82 0xffffff7f8073c000 0x9b54 0x9b54 com.apple.kpi.libkern (11.4.0) 5 71 0xffffff7f80733000 0x88c 0x88c com.apple.kpi.mach (11.4.0) 6 31 0xffffff7f80734000 0x4990 0x4990 com.apple.kpi.private (11.4.0) 7 49 0xffffff7f80739000 0x229c 0x229c com.apple.kpi.unsupported (11.4.0) 8 15 0xffffff7f80d22000 0x7000 0x7000 com.apple.iokit.IOACPIFamily (1.4) <7 6 4 3> 9 17 0xffffff7f8084e000 0x1e000 0x1e000 com.apple.iokit.IOPCIFamily (2.6.8) <7 6 5 4 3> 10 2 0xffffff7f81711000 0x58000 0x58000 com.apple.driver.AppleACPIPlatform (1.5) <9 8 7 6 5 4 3 1> 11 0 0xffffff7f81011000 0x2000 0x2000 es.osx86.driver.EvOreboot (1.0.3) <4 3> 12 0 0xffffff7f809b1000 0x2000 0x2000 org.tgwbd.driver.NullCPUPowerManagement (1.0.0d2) <7 4 3> 13 1 0xffffff7f80b18000 0xc000 0xc000 com.apple.driver.AppleKeyStore (28.18) <7 6 5 4 3 1> 14 10 0xffffff7f8076c000 0x25000 0x25000 com.apple.iokit.IOStorageFamily (1.7.1) <7 6 5 4 3 1> 15 0 0xffffff7f80db1000 0x19000 0x19000 com.apple.driver.DiskImages (331.6) <14 7 6 5 4 3 1> 16 0 0xffffff7f8164d000 0x28000 0x28000 com.apple.driver.AppleIntelCPUPowerManagement (193.0.0) <7 6 5 4 3 1> 17 0 0xffffff7f8074d000 0x3000 0x3000 com.apple.security.TMSafetyNet (7) <7 6 5 4 2 1> 18 2 0xffffff7f80810000 0x4000 0x4000 com.apple.kext.AppleMatch (1.0.0d1) <4 1> 19 1 0xffffff7f80814000 0x11000 0x11000 com.apple.security.sandbox (177.5) <18 7 6 5 4 3 2 1> 20 0 0xffffff7f80963000 0x5000 0x5000 com.apple.security.quarantine (1.3) <19 18 7 6 5 4 2 1> 21 0 0xffffff7f81778000 0x8000 0x8000 com.apple.nke.applicationfirewall (3.2.30) <7 6 5 4 3 1> 22 0 0xffffff7f816e9000 0x3000 0x3000 com.apple.driver.AppleAPIC (1.5) <4 3> 23 0 0xffffff7f81426000 0x4000 0x4000 com.apple.driver.AppleSMBIOS (1.8) <7 4 3> 24 1 0xffffff7f80cc7000 0x4000 0x4000 com.apple.iokit.IOSMBusFamily (1.1) <5 4 3> 25 0 0xffffff7f81769000 0x7000 0x7000 com.apple.driver.AppleACPIEC (1.5) <24 10 8 5 4 3> 26 0 0xffffff7f8167d000 0x3000 0x3000 com.apple.driver.AppleHPET (1.6) <8 7 5 4 3> 27 0 0xffffff7f8144b000 0x8000 0x8000 com.apple.driver.AppleRTC (1.5) <8 5 4 3 1> 28 0 0xffffff7f8170c000 0x3000 0x3000 com.yourcompany.driver.AppleACPIPS2Nub (1.0.0d1) <8 7 5 4 3 1> 29 4 0xffffff7f80b24000 0x6b000 0x6b000 com.apple.iokit.IOHIDFamily (1.7.1) <13 7 6 5 4 3 2 1> 30 0 0xffffff7f81772000 0x4000 0x4000 com.apple.driver.AppleACPIButtons (1.5) <29 10 8 7 6 5 4 3 1> 31 0 0xffffff7f81007000 0xa000 0xa000 org.netkas.FakeSMC (4.2.0) <8 7 5 4 3> 32 1 0xffffff7f816ca000 0x4000 0x4000 com.apple.driver.AppleEFIRuntime (1.5.0) <7 6 5 4 3> 33 2 0xffffff7f81498000 0xe000 0xe000 com.apple.driver.ApplePS2Controller (1.1.0) <7 5 4 3 1> 34 7 0xffffff7f8086c000 0x4f000 0x4f000 com.apple.iokit.IOUSBFamily (4.5.8) <9 7 5 4 3 1> 35 0 0xffffff7f80be6000 0x17000 0x17000 com.apple.driver.AppleUSBEHCI (4.5.8) <34 9 7 5 4 3 1> 36 3 0xffffff7f80f09000 0xc000 0xc000 com.apple.iokit.IOAHCIFamily (2.0.8) <5 4 3 1> 37 0 0xffffff7f816ed000 0x18000 0x18000 com.apple.driver.AppleAHCIPort (2.3.0) <36 9 5 4 3 1> 38 0 0xffffff7f816ce000 0x7000 0x7000 com.apple.driver.AppleEFINVRAM (1.5.0) <32 7 5 4 3> 39 3 0xffffff7f80825000 0x29000 0x29000 com.apple.iokit.IONetworkingFamily (2.1) <7 6 5 4 3 1> 40 0 0xffffff7f8131f000 0x6000 0x6000 com.insanelymac.AtherosL1cEthernet (1.0.2b2) <39 9 5 4 3 1> 41 0 0xffffff7f814b5000 0x4000 0x4000 com.apple.driver.ApplePS2Keyboard (1.2.0) <33 29 7 6 5 4 3 1> 42 0 0xffffff7f80b15000 0x3000 0x3000 com.apple.iokit.IOUSBUserClient (4.5.8) <34 7 5 4 3 1> 43 0 0xffffff7f80bd1000 0x11000 0x11000 com.apple.driver.AppleUSBHub (4.5.0) <34 5 4 3 1> 44 0 0xffffff7f810b1000 0x9000 0x9000 com.apple.BootCache (33) <7 6 5 4 3 1> 45 0 0xffffff7f816b9000 0x5000 0x5000 com.apple.AppleFSCompression.AppleFSCompressionTypeZlib (1.0.0d1) <6 4 3 2 1> 46 0 0xffffff7f816c0000 0x5000 0x5000 com.apple.AppleFSCompression.AppleFSCompressionTypeDataless (1.0.0d1) <7 6 4 3 2 1> 47 0 0xffffff7f80f21000 0x15000 0x15000 com.apple.iokit.IOAHCIBlockStorage (2.0.3) <36 14 5 4 3 1> 48 0 0xffffff7f81327000 0x3000 0x3000 com.apple.driver.XsanFilter (404) <14 5 4 3 1> 49 0 0xffffff7f80b97000 0x6000 0x6000 com.apple.driver.AppleUSBComposite (4.5.8) <34 4 3 1> 50 5 0xffffff7f80969000 0x2b000 0x2b000 com.apple.iokit.IOSCSIArchitectureModelFamily (3.2.0) <5 4 3 1> 51 0 0xffffff7f80b04000 0x11000 0x11000 com.apple.iokit.IOUSBMassStorageClass (3.0.1) <50 34 14 5 4 3 1> 52 0 0xffffff7f80f15000 0x9000 0x9000 com.apple.iokit.IOAHCISerialATAPI (2.0.3) <50 36 5 4 3 1> 53 0 0xffffff7f80a38000 0x15000 0x15000 com.apple.iokit.IOSCSIBlockCommandsDevice (3.2.0) <50 14 5 4 3 1> 54 0 0xffffff7f80cdd000 0x7000 0x7000 com.apple.iokit.SCSITaskUserClient (3.2.0) <50 14 5 4 3 1> 55 3 0xffffff7f80ce6000 0xd000 0xd000 com.apple.iokit.IOCDStorageFamily (1.7) <14 5 4 3 1> 56 2 0xffffff7f80cf3000 0xb000 0xb000 com.apple.iokit.IODVDStorageFamily (1.7) <55 14 5 4 3 1> 57 1 0xffffff7f80cfe000 0xa000 0xa000 com.apple.iokit.IOBDStorageFamily (1.6) <56 55 14 5 4 3 1> 58 0 0xffffff7f80d08000 0x1a000 0x1a000 com.apple.iokit.IOSCSIMultimediaCommandsDevice (3.2.0) <57 56 55 50 14 5 4 3 1> 59 0 0xffffff7f808bb000 0x94000 0x94000 com.Ralink.driver.RT2870USBWirelessDriver (4.1.8) <39 34 5 4 3 1> 61 2 0xffffff7f807d0000 0x5000 0x5000 com.apple.kext.triggers (1.0) <7 6 5 4 3 1> 62 0 0xffffff7f810bb000 0x9000 0x9000 com.apple.filesystems.autofs (3.0) <61 7 6 5 4 3 1> 63 8 0xffffff7f80d67000 0x38000 0x38000 com.apple.iokit.IOGraphicsFamily (2.3.2) <9 7 5 4 3> 64 0 0xffffff7f8150f000 0x3a000 0x3a000 com.apple.driver.AppleIntelSNBGraphicsFB (7.1.8) <63 9 8 7 6 5 4 3 1> 65 0 0xffffff7f814a6000 0x6000 0x6000 com.apple.driver.ApplePS2Trackpad (1.1.0) <33 29 7 6 5 4 3 1> 67 4 0xffffff7f80d29000 0x7000 0x7000 com.apple.driver.IOPlatformPluginFamily (5.1.0d17) <8 7 6 5 4 3> 68 0 0xffffff7f81502000 0x3000 0x3000 com.apple.driver.AppleLPC (1.5.8) <67 9 5 4 3> 69 0 0xffffff7f80b8f000 0x8000 0x8000 com.apple.iokit.IOUSBHIDDriver (4.4.5) <34 29 5 4 3 1> 71 1 0xffffff7f80d34000 0x12000 0x12000 com.apple.driver.IOPlatformPluginLegacy (5.0.0d0) <67 8 7 6 5 4 3> 72 2 0xffffff7f80d46000 0xd000 0xd000 com.apple.driver.AppleSMC (3.1.3d8) <8 7 5 4 3> 73 0 0xffffff7f80d53000 0xf000 0xf000 com.apple.driver.ACPI_SMC_PlatformPlugin (5.0.0d0) <72 71 67 9 8 7 6 5 4 3> 74 4 0xffffff7f80d9f000 0x12000 0x12000 com.apple.iokit.IONDRVSupport (2.3.2) <63 9 7 5 4 3> 75 1 0xffffff7f816a7000 0x3000 0x3000 com.apple.driver.AppleGraphicsControl (3.0.16) <74 63 9 8 7 5 4 3 1> 76 0 0xffffff7f816aa000 0xf000 0xf000 com.apple.driver.ApplePolicyControl (3.0.16) <75 74 63 9 8 7 5 4 3 1> 77 1 0xffffff7f810c6000 0x6000 0x6000 com.apple.kext.OSvKernDSPLib (1.3) <5 4> 78 1 0xffffff7f810cc000 0x2d000 0x2d000 com.apple.iokit.IOAudioFamily (1.8.6fc17) <77 5 4 3 1> 79 0 0xffffff7f810f9000 0x4000 0x4000 com.apple.driver.AudioIPCDriver (1.2.2) <78 5 4 3 1> 80 0 0xffffff7f81015000 0x5000 0x5000 com.apple.Dont_Steal_Mac_OS_X (7.0.0) <72 7 4 3 1> 81 1 0xffffff7f80ccf000 0xe000 0xe000 com.apple.iokit.IOSerialFamily (10.0.5) <7 6 5 4 3 1> 82 0 0xffffff7f80eaf000 0xa000 0xa000 com.apple.iokit.IOBluetoothSerialManager (4.0.5f11) <81 7 5 4 3 1> 83 0 0xffffff7f80cb5000 0x12000 0x12000 com.apple.iokit.IOSurface (80.0.2) <7 5 4 3 1> 84 0 0xffffff7f80afb000 0x6000 0x6000 com.apple.iokit.IOUserEthernet (1.0.0d1) <39 6 5 4 3 1> 85 0 0xffffff7f80d30000 0x3000 0x3000 com.apple.driver.AppleSMCPDRC (5.0.0d0) <67 9 6 4 3> 86 0 0xffffff7f81698000 0xb000 0xb000 com.apple.driver.AGPM (100.12.42) <74 63 9 5 4 3> 87 0 0xffffff7f81549000 0xe1000 0xe1000 com.apple.driver.AppleIntelHD3000Graphics (7.1.8) <74 63 9 7 5 4 3 1> 89 0 0xffffff7f814d3000 0xa000 0xa000 com.apple.driver.AppleMCCSControl (1.0.26) <63 9 7 5 4 3 1> 90 0 0xffffff7f8136f000 0x5000 0x5000 com.apple.driver.AppleUpstreamUserClient (3.5.9) <63 9 8 7 5 4 3 1> 92 3 0xffffff7f809b5000 0x57000 0x57000 com.apple.filesystems.ntfs (3.10.1) <7 6 5 4 1> 93 0 0xffffff7f81676000 0x5000 0x5000 com.apple.driver.AppleHWSensor (1.9.5d0) <5 4 3> 94 0 0xffffff7f807d5000 0x35000 0x35000 com.apple.filesystems.smbfs (1.7.2) <61 7 6 5 4 3 1> Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1829684 Share on other sites More sharing options...

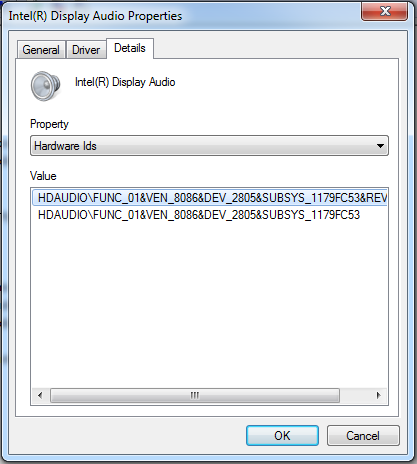

raziiq Posted August 1, 2012 Author Share Posted August 1, 2012 Well this is getting really confusing now. System Info in mac shows i have 1c20, however Device Manager in Windows says a different story. Device Manager says i have 2805. Screenshots attached! Please advise how to approach this, Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1839717 Share on other sites More sharing options...
HUSABER Posted August 1, 2012 Share Posted August 1, 2012 AIDA64 show?what?I dont believe Windows ............. Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1839738 Share on other sites More sharing options...
raziiq Posted August 1, 2012 Author Share Posted August 1, 2012 Ya this is really really confusing, and is driving me nuts. Tried System Info (Mac) suggested 1c20 but that didnt work either. Furthermore, Conexant device doesnt show up in System Info (mac), so dont know what to go with. Suggestions? Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1839751 Share on other sites More sharing options...

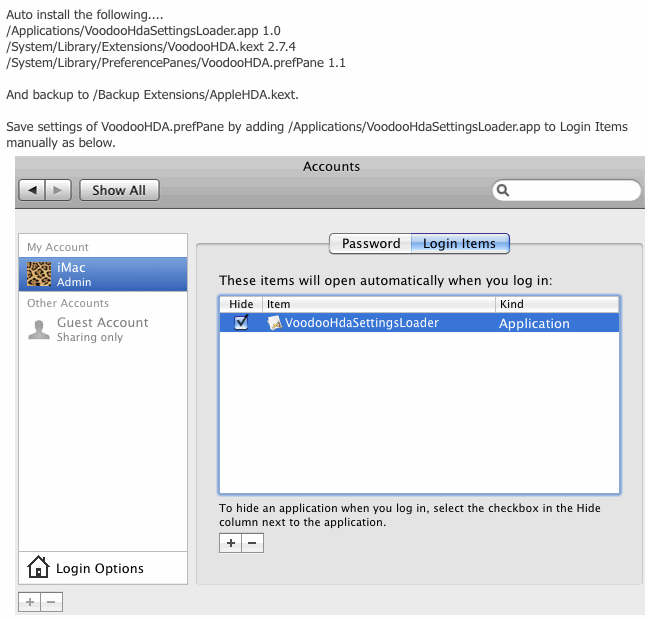

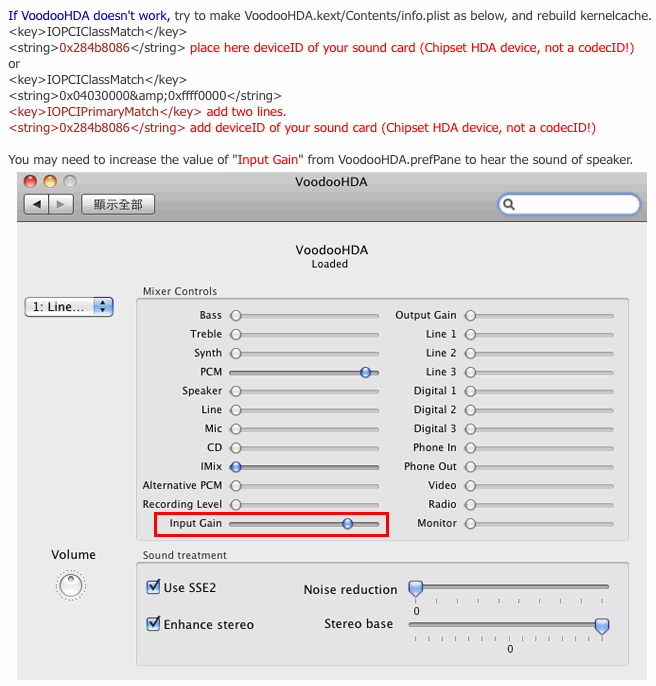

HUSABER Posted August 2, 2012 Share Posted August 2, 2012 Maybe this help you for Voodoo how to enable 2 or 3 devices,for me work..... Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1840162 Share on other sites More sharing options...
raziiq Posted August 4, 2012 Author Share Posted August 4, 2012 Did a lot, still not working. Here is the plist with voodooLoader 2.7.4, modified with my device ids <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>CFBundleDevelopmentRegion</key> <string>English</string> <key>CFBundleExecutable</key> <string>VoodooHDA</string> <key>CFBundleIdentifier</key> <string>org.voodoo.driver.VoodooHDA</string> <key>CFBundleInfoDictionaryVersion</key> <string>6.0</string> <key>CFBundleName</key> <string>VoodooHDA</string> <key>CFBundlePackageType</key> <string>KEXT</string> <key>CFBundleShortVersionString</key> <string>2.7.4</string> <key>CFBundleSignature</key> <string>????</string> <key>CFBundleVersion</key> <string>2.7.4</string> <key>IOKitPersonalities</key> <dict> <key>HDMI</key> <dict> <key>CFBundleIdentifier</key> <string>org.voodoo.driver.VoodooHDA</string> <key>IOClass</key> <string>VoodooHDADevice</string> <key>IOMatchCategory</key> <string>VoodooHDADevice</string> <key>IOPCIPrimaryMatch</key> <string>0x1c208086</string> <key>IOProviderClass</key> <string>IOPCIDevice</string> <key>IOUserClientClass</key> <string>VoodooHDAUserClient</string> <key>InhibitCache</key> <true/> <key>MixerValues</key> <dict> <key>PCM</key> <string>90</string> <key>Rec</key> <string>70</string> <key>iGain</key> <string>0</string> <key>iMix</key> <string>0</string> </dict> <key>NodesToPatch</key> <array> <dict> <key>Codec</key> <integer>0</integer> <key>Enable</key> <integer>0</integer> <key>Node</key> <integer>11</integer> </dict> </array> <key>Noise</key> <integer>0</integer> <key>Vectorize</key> <true/> <key>VoodooHDAEnableHalfMicVolumeFix</key> <false/> <key>VoodooHDAEnableHalfVolumeFix</key> <false/> <key>VoodooHDAEnableMuteFix</key> <false/> <key>VoodooHDAEnableVolumeChangeFix</key> <false/> <key>VoodooHDAVerboseLevel</key> <integer>0</integer> </dict> <key>SoundCard</key> <dict> <key>CFBundleIdentifier</key> <string>org.voodoo.driver.VoodooHDA</string> <key>IOClass</key> <string>VoodooHDADevice</string> <key>IOMatchCategory</key> <string>VoodooHDADevice</string> <key>IOPCIPrimaryMatch</key> <string>0x14f15069</string> <key>IOProviderClass</key> <string>IOPCIDevice</string> <key>IOUserClientClass</key> <string>VoodooHDAUserClient</string> <key>InhibitCache</key> <true/> <key>MixerValues</key> <dict> <key>PCM</key> <string>90</string> <key>Rec</key> <string>70</string> <key>iGain</key> <string>0</string> <key>iMix</key> <string>0</string> </dict> <key>NodesToPatch</key> <array> <dict> <key>Codec</key> <integer>0</integer> <key>Enable</key> <integer>0</integer> <key>Node</key> <integer>11</integer> </dict> </array> <key>Noise</key> <integer>0</integer> <key>Vectorize</key> <true/> <key>VoodooHDAEnableHalfMicVolumeFix</key> <false/> <key>VoodooHDAEnableHalfVolumeFix</key> <false/> <key>VoodooHDAEnableMuteFix</key> <false/> <key>VoodooHDAEnableVolumeChangeFix</key> <false/> <key>VoodooHDAVerboseLevel</key> <integer>0</integer> </dict> </dict> <key>OSBundleLibraries</key> <dict> <key>com.apple.iokit.IOAudioFamily</key> <string>1.1fc9</string> <key>com.apple.iokit.IOPCIFamily</key> <string>2.1</string> <key>com.apple.kpi.iokit</key> <string>9.0.0</string> <key>com.apple.kpi.libkern</key> <string>9.0.0</string> <key>com.apple.kpi.mach</key> <string>9.0.0</string> <key>com.apple.kpi.unsupported</key> <string>9.0.0</string> </dict> </dict> </plist> Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1841040 Share on other sites More sharing options...
raziiq Posted August 4, 2012 Author Share Posted August 4, 2012 <string>0x1c208086</string> not good , rename to <string>0x80861c20</string> Remember for next time- first is Vendor ID 8086,next is Device ID 1c20 Didnt Work. Here is the plist with Ven_ID first and Dev_ID later. <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>CFBundleDevelopmentRegion</key> <string>English</string> <key>CFBundleExecutable</key> <string>VoodooHDA</string> <key>CFBundleIdentifier</key> <string>org.voodoo.driver.VoodooHDA</string> <key>CFBundleInfoDictionaryVersion</key> <string>6.0</string> <key>CFBundleName</key> <string>VoodooHDA</string> <key>CFBundlePackageType</key> <string>KEXT</string> <key>CFBundleShortVersionString</key> <string>2.7.4</string> <key>CFBundleSignature</key> <string>????</string> <key>CFBundleVersion</key> <string>2.7.4</string> <key>IOKitPersonalities</key> <dict> <key>HDMI</key> <dict> <key>CFBundleIdentifier</key> <string>org.voodoo.driver.VoodooHDA</string> <key>IOClass</key> <string>VoodooHDADevice</string> <key>IOMatchCategory</key> <string>VoodooHDADevice</string> <key>IOPCIPrimaryMatch</key> <string>0x80861c20</string> <key>IOProviderClass</key> <string>IOPCIDevice</string> <key>IOUserClientClass</key> <string>VoodooHDAUserClient</string> <key>InhibitCache</key> <true/> <key>MixerValues</key> <dict> <key>PCM</key> <string>90</string> <key>Rec</key> <string>70</string> <key>iGain</key> <string>0</string> <key>iMix</key> <string>0</string> </dict> <key>NodesToPatch</key> <array> <dict> <key>Codec</key> <integer>0</integer> <key>Enable</key> <integer>0</integer> <key>Node</key> <integer>11</integer> </dict> </array> <key>Noise</key> <integer>0</integer> <key>Vectorize</key> <true/> <key>VoodooHDAEnableHalfMicVolumeFix</key> <false/> <key>VoodooHDAEnableHalfVolumeFix</key> <false/> <key>VoodooHDAEnableMuteFix</key> <false/> <key>VoodooHDAEnableVolumeChangeFix</key> <false/> <key>VoodooHDAVerboseLevel</key> <integer>0</integer> </dict> <key>SoundCard</key> <dict> <key>CFBundleIdentifier</key> <string>org.voodoo.driver.VoodooHDA</string> <key>IOClass</key> <string>VoodooHDADevice</string> <key>IOMatchCategory</key> <string>VoodooHDADevice</string> <key>IOPCIPrimaryMatch</key> <string>0x506914f1</string> <key>IOProviderClass</key> <string>IOPCIDevice</string> <key>IOUserClientClass</key> <string>VoodooHDAUserClient</string> <key>InhibitCache</key> <true/> <key>MixerValues</key> <dict> <key>PCM</key> <string>90</string> <key>Rec</key> <string>70</string> <key>iGain</key> <string>0</string> <key>iMix</key> <string>0</string> </dict> <key>NodesToPatch</key> <array> <dict> <key>Codec</key> <integer>0</integer> <key>Enable</key> <integer>0</integer> <key>Node</key> <integer>11</integer> </dict> </array> <key>Noise</key> <integer>0</integer> <key>Vectorize</key> <true/> <key>VoodooHDAEnableHalfMicVolumeFix</key> <false/> <key>VoodooHDAEnableHalfVolumeFix</key> <false/> <key>VoodooHDAEnableMuteFix</key> <false/> <key>VoodooHDAEnableVolumeChangeFix</key> <false/> <key>VoodooHDAVerboseLevel</key> <integer>0</integer> </dict> </dict> <key>OSBundleLibraries</key> <dict> <key>com.apple.iokit.IOAudioFamily</key> <string>1.1fc9</string> <key>com.apple.iokit.IOPCIFamily</key> <string>2.1</string> <key>com.apple.kpi.iokit</key> <string>9.0.0</string> <key>com.apple.kpi.libkern</key> <string>9.0.0</string> <key>com.apple.kpi.mach</key> <string>9.0.0</string> <key>com.apple.kpi.unsupported</key> <string>9.0.0</string> </dict> </dict> </plist> With this way, i cant even get a speaker icon on menu bar, and there are no output device in Settings>Sound. Furthermore i get a "Cant get registry blah blah" in Setting>VoodooHDA Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1841060 Share on other sites More sharing options...
raziiq Posted August 14, 2012 Author Share Posted August 14, 2012 Here is the PinConfig <01971C40 01971D40 01971E21 01971F04 01A71C30 01A71D90 01A71EA1 01A71F04 01B71CF0 01B71D01 01B71E00 01B71F40 01C71CF0 01C71D01 01C71E00 01C71F40 01D71CF0 01D71D01 01D71E00 01D71F40 01E71CF0 01E71D01 01E71E00 01E71F40 01F71C10 01F71D01 01F71E17 01F71F92 02071CF0 02071D01 02071E00 02071F40 02271CF0 02271D01 02271E00 02271F40 02371C50 02371D01 02371EA7 02371F95> Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1843914 Share on other sites More sharing options...
eep357 Posted August 14, 2012 Share Posted August 14, 2012 If you can find out what codec it uses, things will get much easier. It should be alcxxx. Unfortunately I don't know of an easy to find this out. This is from Realtek's own support page Q4: How do I determine which model of Realtek chip is on my board? A4: You will find this information from the user's manual, but if it is lost or not available, the simplest way is to remove the board and check the chip part number directly. Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1844012 Share on other sites More sharing options...
iFIRE Posted August 14, 2012 Share Posted August 14, 2012 try this app for info hardware: DPCIManager.app.zip Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1844025 Share on other sites More sharing options...
raziiq Posted August 14, 2012 Author Share Posted August 14, 2012 If you can find out what codec it uses, things will get much easier. It should be alcxxx. Unfortunately I don't know of an easy to find this out. This is from Realtek's own support page Q4: How do I determine which model of Realtek chip is on my board? A4: You will find this information from the user's manual, but if it is lost or not available, the simplest way is to remove the board and check the chip part number directly. Thats exactly what i am trying to do, but i cant find the codec and dont know the way of finding it as i am on a laptop Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1844026 Share on other sites More sharing options...
raziiq Posted August 15, 2012 Author Share Posted August 15, 2012 try this app for info hardware: DPCIManager.app.zip This app is not even showing my onBoard Audio Conexant 14f1. Its only showing HDMI Audio kext. Link to comment https://www.insanelymac.com/forum/topic/279978-do-i-have-3-sound-devices/#findComment-1844157 Share on other sites More sharing options...
