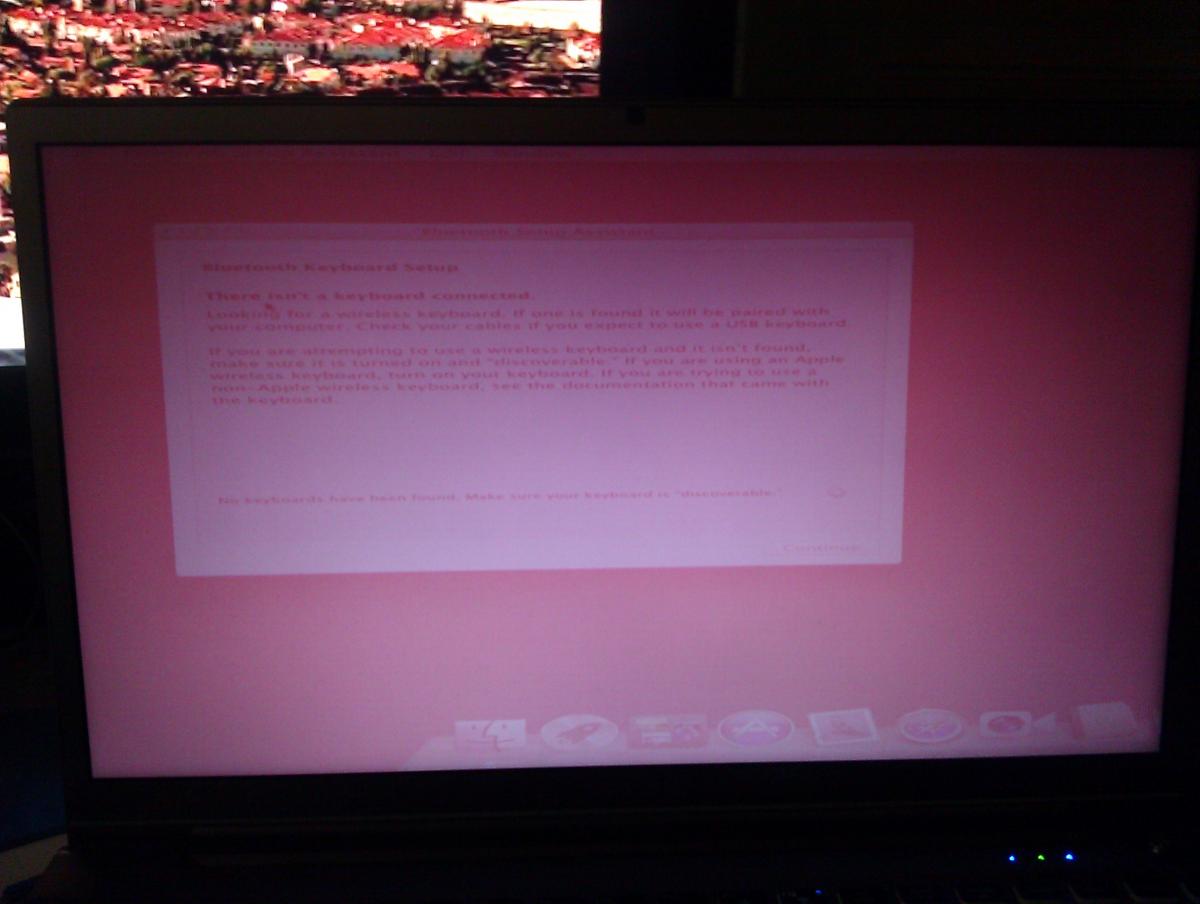

Jimbolaia Jones Posted December 9, 2011 Share Posted December 9, 2011 (edited) Specs for my PC: Intel Core i7 2.2GHz 8GB RAM Intel HD Graphics 3000 ATI Radeon HD 4750M All packed in a Samsung 700Z5A Chronos Before I had issues with AppleIntelSNBGraphicsFB.kext, which did not load at all. When I updated my SMBIOS to MacBookPro 8,1 (or 8,3, same issue), I get the current error. I see half the screen, tinted in red, sometimes blue or green, but most often red. Pic attached, shows the error. People at tony tried to help, but I got banned, I forgot they aren't to happy about prehacked versions of OS X, which I unfortunately used. EDIT: Did I mention I do have full resolution and QE/CI (afaik, no lag in Chess). This means the drivers are working, but I guess the framebuffer is doing this, as it controls the resolution and color? Also, it works perfectly on an external monitor. It is only on the laptop display I get the half screen tint error. Edited December 9, 2011 by Jimbolaia Jones Link to comment Share on other sites More sharing options...

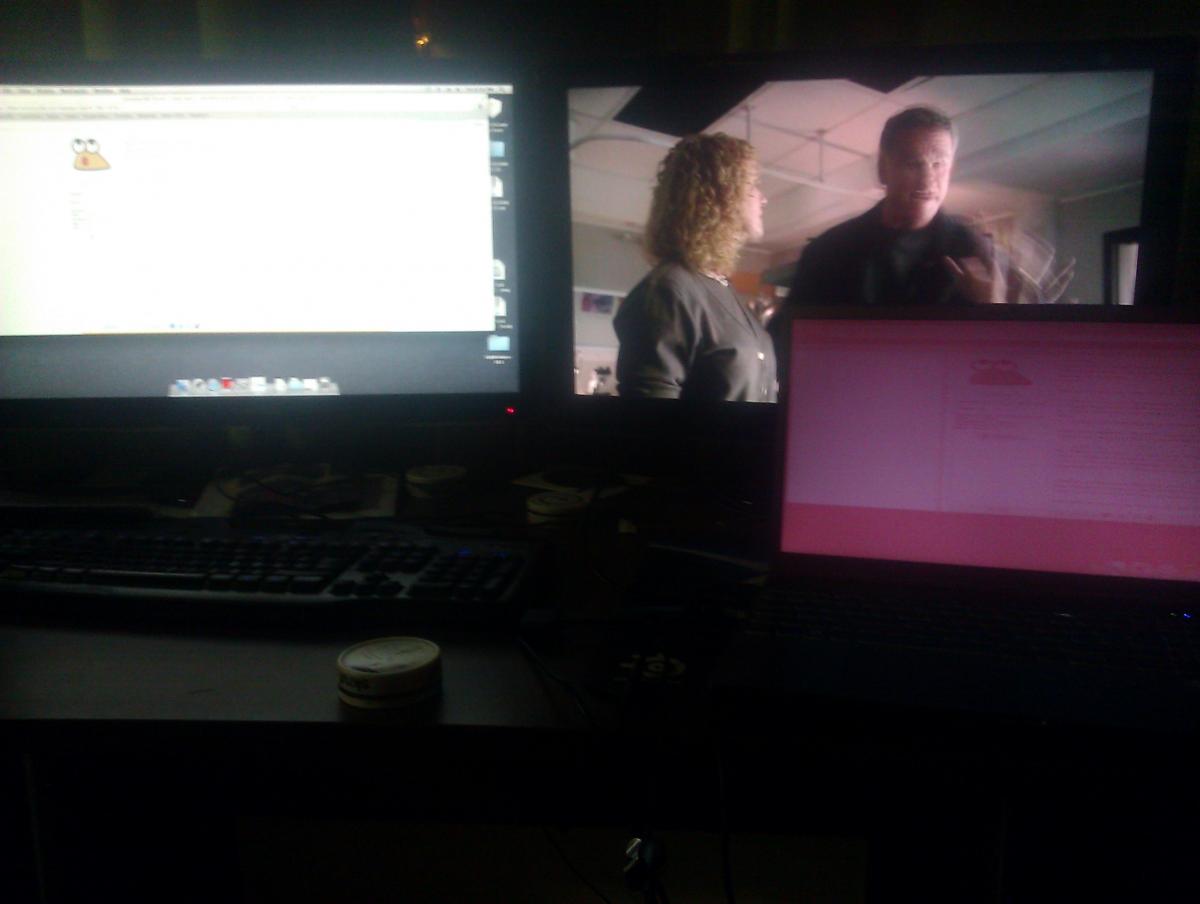

Jimbolaia Jones Posted December 9, 2011 Author Share Posted December 9, 2011 Bump! Here is a pic with a Samsung 27" connected via HDMI, that works as it should. Weird? I think so. The FB or the drivers got issues with the internal display. Saw some posts over at tonys, but no answers as I could see. Link to comment Share on other sites More sharing options...
oztiz Posted December 9, 2011 Share Posted December 9, 2011 Hi! Take a look at this http://www.insanelymac.com/forum/index.php?showtopic=259705 Link to comment Share on other sites More sharing options...
Jimbolaia Jones Posted December 9, 2011 Author Share Posted December 9, 2011 Read through it before, doesn't seem like my error at all? I got two connectors out, only one I am able to test atm, due to lack of VGA monitor (I have to be the first one NOT whining about no VGA out!). My HDMI works, as picture states, perfectly. Link to comment Share on other sites More sharing options...
oztiz Posted December 9, 2011 Share Posted December 9, 2011 Ok... I only guessing here.. Do you use some kind of Graphics Enabler? Link to comment Share on other sites More sharing options...
Jimbolaia Jones Posted December 9, 2011 Author Share Posted December 9, 2011 Tried Enabler on and off Smbios for Mac Pro, Macbook Pro 8.1, 8.2, 8.3, Mac Mini 5.1 Entering my DevID in other places in the kext (where an ID is present, i.e in this file, there is one id, one id, then 5 ids, mine is in the latter) Now I screwed up, the mac mini smbios screwed my system, can't boot. Anyone know how to mount my USB pen in -s? Link to comment Share on other sites More sharing options...
oztiz Posted December 9, 2011 Share Posted December 9, 2011 Boot up from your install usb and use the terminal. Your disk will be mounted under /Volumes Link to comment Share on other sites More sharing options...
Jimbolaia Jones Posted December 9, 2011 Author Share Posted December 9, 2011 Used install-dvd if that is a problem? Link to comment Share on other sites More sharing options...
oztiz Posted December 9, 2011 Share Posted December 9, 2011 I think your disk will be mounted just fine with dvd too Link to comment Share on other sites More sharing options...
Jimbolaia Jones Posted December 9, 2011 Author Share Posted December 9, 2011 Can't mount FAT from disc apparently. I have to write the file by myself. Doing it from the install disc, impossible, the controls are stupid! Have to do it from vim in -s. Will take 20min at least... Will give it a try. Up and running again. Getting panics on a PCI kext, will note the name if I see it again. Only in boot, never after. I deleted the HDGraphics kext, having only the GMA and SNB kexts, still had QE/CI. This means there is something else giving me QE/CI, maybe my ATI card, but as the SNB is used as framebuffer, I doubt it? However, I dont know, as the ATI cards I/O goes thru the Intel card. Quick addon: Only running the AppleIntelSNBGraphicsFB.kext of the Intel kexts. Guess what, still got full reso and QE/CI. That is just WACKED! Deleted the ATI and GeForce drivers too, still got full res and QE/CI. What the hell is causing that? The Framebuffer doesn't give QE/CI for sure! Sorry, just bull{censored}ting you, got NO QE/CI! I only got detection and full resi, still half screen tint bug... Broken Framebuffer, problems with display, or problems with switchable graphics? Link to comment Share on other sites More sharing options...
manmal Posted December 17, 2011 Share Posted December 17, 2011 exactly the same problem on internal display with fullhd resolution 15.6" 1920x1080 . no prob with ext display and hdmi, any solution to get full resolution and qe/ci in hd3000 with internal lcd display? mal Link to comment Share on other sites More sharing options...
oztiz Posted December 20, 2011 Share Posted December 20, 2011 I was thinking this might be a gfx power issue... Have you tried to edit AppleGraphicsPowerManagement.kext? And maybe try to insert "AAPL00,InverterFrequency" and "AAPL00,DualLink", if it is present on a real mac with this graphics card? Edit: And remember to restart with -f -v options Link to comment Share on other sites More sharing options...
manmal Posted December 23, 2011 Share Posted December 23, 2011 hi, sorry but i don't know where to put such strings... into dsdt? or into AppleGraphicsPowerManagement.kext 's Info.plist? In which sections? There are many sections inside (it's a VERY LONG kext..) Link to comment Share on other sites More sharing options...
sllappy Posted December 25, 2011 Share Posted December 25, 2011 I seem to have a simmilar issue with the Intel HD3000 in my Samsung QX311 (specs in my signature). But instead of a partial red tint, I have a full screen white tint. Connecting an external monitor to the VGA port doesn't seem to do anything for me, as the laptop doesn't recognize it and the monitor indicates "no signal". I have to say this issue started when I defined the system as a MacBook Pro 8,1. Before that, I had the standard resolution but no white tint. Now I have the full resolution I need (1336x768) but this annoying white tint. Link to comment Share on other sites More sharing options...
