[Guide] Asus AT5IONT-I / Deluxe

buoo

By buoo,
in OSx86 10.6 (Snow Leopard)

 Share
57 posts in this topic

Recommended Posts

Binny1010
Binny1010
Posted
Posted

Thanks for your input entelia, i will try this and report back. Buoo, as mentioned i have installed over seven times now and am still getting the same result- i am following your guide by the note and still no luck, thank you for your help so far.

Binny1010
Binny1010
Posted
Posted

Hi entelia, tried your suggestion with current install and it doesn`t seem to have made any difference. I am going to try a fresh install with these bios settings to see if i can get any further- and yes, you are correct, there are three CPU settings in bios. TY

Binny1010
Binny1010
Posted
Posted

Hello again entelia, just completed a fresh install to 10.6.8 with bios settings as you suggested. Still no luck-i am getting the same result. Installation to 10.6.3 successful and working fine but as soon as the combo update is applied i can no longer boot back into OSX to do final installation/maintenance work. I guess i am just out of luck with this board-it`s driving me crazy :wallbash: . If there is anybody reading this post that have some suggestions, please feel free to make them. The last resort for me is going back to Windows but if i can`t install SL on this board it looks as if i`ll have to. Buoo and entelia, thank you for all of the help you have given me- buoo, please sell me your board :angel_not:

musse1
musse1
Posted
Posted

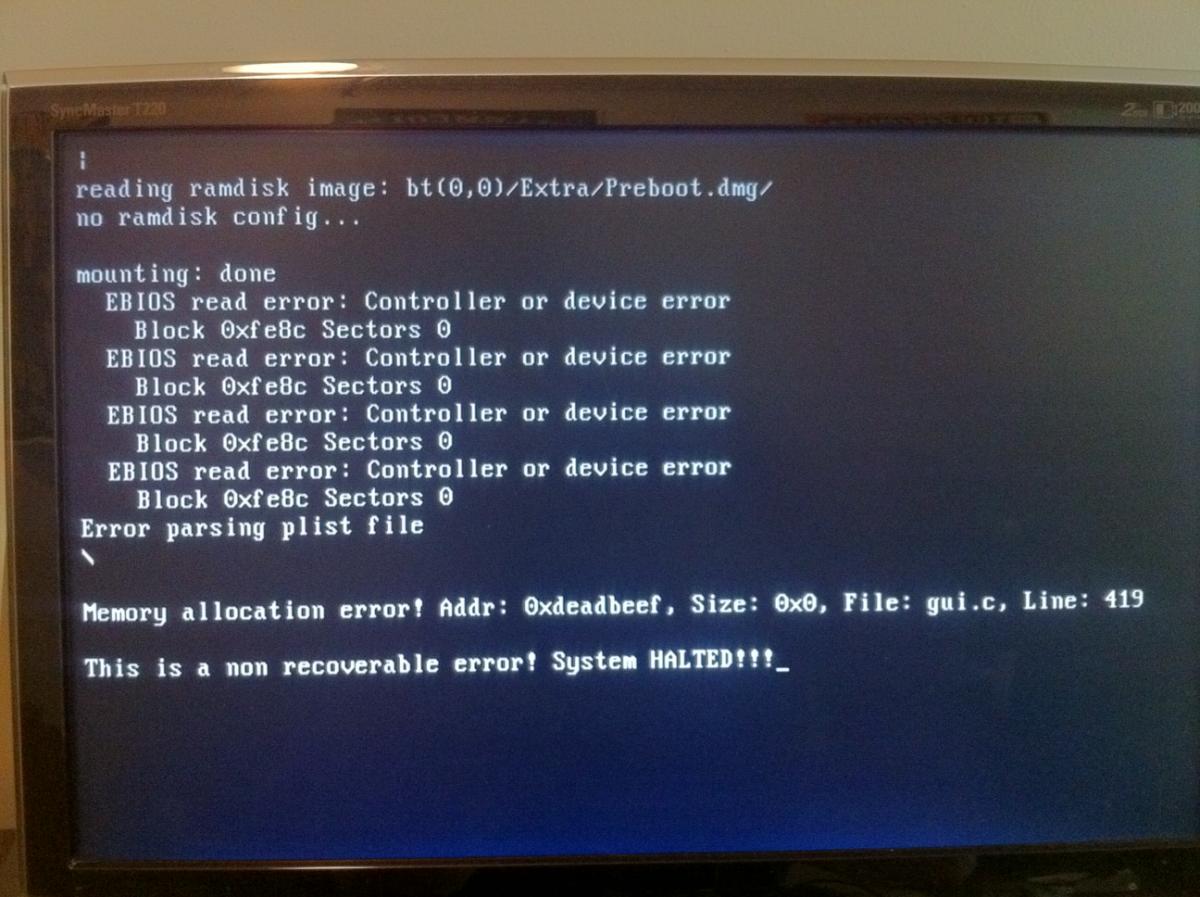

Im getting this error when trying to boot with AT5CDBoot: Memory allocation error! Addr=0xdeadbeef

I just burned the AT5CDBoot.iso on a DVD and booted it. After som loading t throws the error above. Any suggestions?



EDIT: I attached a screenshot of the error message

musse1
musse1
Posted
Posted

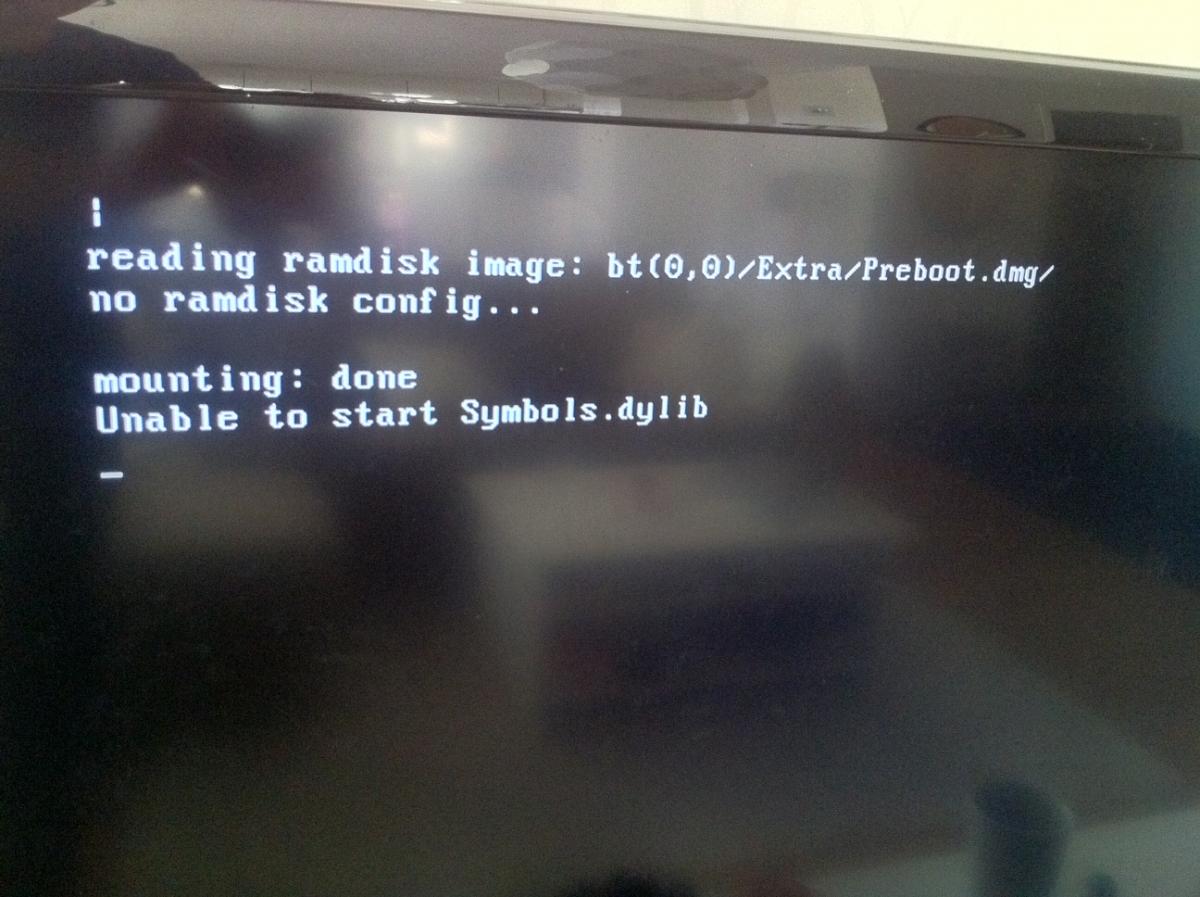

Did what you said and now I have this error message instead. It just freezes.



EDIT:

Restarted again and tried one more time. Now I have the same error message as before. Even though I've updated the BIOS to latest version.




EDIT 2: Made a new CD and now its working! Installing right now. Will be back if there's a problem.


musse1
musse1
Posted
Posted

I dont really grasp this part:

It will appear "dsdt.aml" on the Desktop, so open DSDT Auto-Patcher, select it and AT5IONT-I Deluxe.txt or AT5IONT-I.txt (you'll find in My package) and apply the patch. Name it DSDT.aml and put it in the Extra folder.



Copy mach_kernel_atom (10.6.8) in the Root "/" too.

  • Should dsdt.aml be in DSDT-field in the Auto-patcher? And the AT5IONT-I.txt in the patch-field?
  • What file should I name DSDT.aml?
  • And where is the Extra-folder?
  • By Root "/", do you mean the root of the system harddrive?

Binny1010
Binny1010
Posted
Posted

Het buoo- no joy with any of the linkes kernels. I want to make 100% sure i am doing this correctly. 1st - SATA to AHCI in Bios. 2nd - Boot from AT5 Boot Disc ( getting various Ebios read errors, error parsing plist and finally could not load background image.png) but able to swap discs, F5 and install 10.6.3 retail. 3rd - install AT5IONT-I.pkg ( this is the board i am using, the non deluxe version). 4th - Copying and pasting from a windows text file into terminal your terminal text, dsdt.aml is appearing on desktop. 5th - opening in your archive DSDT auto patcher, using DSDT parse (jar)- selecting dsdt.aml from desktop then selecting AT5IONT-I from DSDT Patch in your archive, applying and saving new file as DSDT.aml- putting this into the Extra folder. 6th - Copying mach_kernel_atom 10.6.8 into first level root of hard drive. 7th - install kexts into sys/lib/ext. 8th - Installing combo update via saves and downloaded methods ( this is the point where i can no longer reboot into OSX and install final kext and do maintenance work. Is this correct??? If so i am now at the point of taking this lovely looking Hack Mini into the road outside and running over it with my car LOL!

http://i40.tinypic.com/m9vg39.jpg



On a sidenote Chameleon isn`t doing its job either- i am having to use the AT5 boot cd to boot into 10.6.3 every time, is this usual??



Musse, root/ is the first level after clicking your hard drive and Extra folder should appear when you apply the AT5IONT-I/Deluxe.pkg

musse1
musse1
Posted
Posted

Hi I managed to get HDMI audio working... DSDT patch looks like this:



   Device (P0P6)
		{
			Name (_ADR, 0x001C0002)
			Name (_PRW, Package (0x02)
			{
				0x09,
				0x05
			})
			Device (GFX1)
			{
				Name (_ADR, Zero)
				Name (_SUN, One)
				Method (_DSM, 4, NotSerialized)
				{
					Store (Package (0x06)
						{
							"@0,connector-type",
							Buffer (0x04)
							{
								0x00, 0x08, 0x00, 0x00
							},
							"@1,connector-type",
							Buffer (0x04)
							{
								0x00, 0x08, 0x00, 0x00
							},
							"hda-gfx",
							Buffer (0x0A)
							{
								"onboard-1"
							}
						}, Local0)
					DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
					Return (Local0)
				}
			}
			Device (HDAU)
			{
				Name (_ADR, One)
				Method (_DSM, 4, NotSerialized)
				{
					Store (Package (0x02)
						{
							"hda-gfx",
							Buffer (0x0A)
							{
								"onboard-1"
							}
						}, Local0)
					DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
					Return (Local0)
				}
			}
			Method (_PRT, 0, NotSerialized)
			{
				If (PICM)
				{
					Return (AR06)
				}
				Return (PR06)
			}
		}





Then you also need to install included kexts. Back Panel audio doesnt work with this kext, only HDMI...



To binary patch AppleHDA i replaced 0A 00 DE 10 occurrence with 0B 00 DE 10 (according to tutorial from other forum)...



Enjoy,



NOTE: you cannot have VoodooHDA alongside with this, or you'll get a kernel panic.



Could you guys write a short tutorial on how to do this since i'm a total noob. Or do I just have to use Kext Wizard and install the files? Can I remove VoodooHDA with Kext Wizard as well? I would really like to get audio work with HDMI.



EDIT: Could I just do it this way?:

Binny1010
Binny1010
Posted
Posted

Buoo, installed 10.6.3 and did all updates individually. 10.6.5 - had to re install USB kexts, 10.6.7 also had to reinstall USB kexts. Installed 10.6.8 and still fails to boot even in safe and verbose ( 10.6.7 works perfectly by the way) i really need to get to 10.6.8 to hopefully get Lion installed, any ideas???

  • 1 month later...
AKAdem1c
AKAdem1c
Posted
Posted

Hi I managed to get HDMI audio working... DSDT patch looks like this:



   Device (P0P6)
		{
			Name (_ADR, 0x001C0002)
			Name (_PRW, Package (0x02)
			{
				0x09,
				0x05
			})
			Device (GFX1)
			{
				Name (_ADR, Zero)
				Name (_SUN, One)
				Method (_DSM, 4, NotSerialized)
				{
					Store (Package (0x06)
						{
							"@0,connector-type",
							Buffer (0x04)
							{
								0x00, 0x08, 0x00, 0x00
							},
							"@1,connector-type",
							Buffer (0x04)
							{
								0x00, 0x08, 0x00, 0x00
							},
							"hda-gfx",
							Buffer (0x0A)
							{
								"onboard-1"
							}
						}, Local0)
					DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
					Return (Local0)
				}
			}
			Device (HDAU)
			{
				Name (_ADR, One)
				Method (_DSM, 4, NotSerialized)
				{
					Store (Package (0x02)
						{
							"hda-gfx",
							Buffer (0x0A)
							{
								"onboard-1"
							}
						}, Local0)
					DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
					Return (Local0)
				}
			}
			Method (_PRT, 0, NotSerialized)
			{
				If (PICM)
				{
					Return (AR06)
				}
				Return (PR06)
			}
		}





Then you also need to install included kexts. Back Panel audio doesnt work with this kext, only HDMI...



To binary patch AppleHDA i replaced 0A 00 DE 10 occurrence with 0B 00 DE 10 (according to tutorial from other forum)...



Enjoy,



NOTE: you cannot have VoodooHDA alongside with this, or you'll get a kernel panic.



can you tell me how u patch this in DSDT, i'm trying but error apears(

  • 2 weeks later...
awireless
awireless
Posted
Posted

Did what you said and now I have this error message instead. It just freezes.



EDIT:

Restarted again and tried one more time. Now I have the same error message as before. Even though I've updated the BIOS to latest version.





EDIT 2: Made a new CD and now its working! Installing right now. Will be back if there's a problem.



I've made 5 different DVD's under ubuntu and windows and every different way get this error. Are there any other bios setting that you changed. I noted that you said that the time it worked you make a new CD instead of DVD. Did you really make a CD instead of DVD? Is there a key to interrupt the boot before beginning the OS load to set options? I am using the Non-Deluxe version of the board with the 502 version latest bios... Does anyone have a Non-Deluxe working? BTW I was able to boot the ######.iso from ###### forum... So I believe that there is something wrong with the image that downloads.



Followup: It was using a CD instead of a DVD... Now moving on with the rest of the process... Thanks...

  • 2 weeks later...
awireless
awireless
Posted
Posted

It works! :)

It works! :)





Buoo, Any chance you would post the steps you took to upgrade your AT5IONT-I to Lion? I've tried a number of different attempts using a number of different guides.... xmove and such with no luck. I got everything else you suggested working! TYVM! The only issue I have run into is when my system goes to sleep something changes the BIOS settings such that it hangs at blue screen....

  • Like 1
  • 1 month later...
  • 2 months later...
