[DSDT-Request, donation] ThinkPad W520

[gothic860]

Hi,



im from germany so sry for my (maybe) bad english. I get Lion 10.7.2 to work on my ThinkPad W520 i really hope someone can help me with my DSDT now.

I extracted the file from Windows with DSDT-Editor from insanelymac.com. If you need any information about my system just let me know.



I tried a lot of things to get it to work and it took me 2 Weeks to get Lion installed so i hope i get a working system at the end with the dsdt .



ThinkPad W520 NY424GE



- with 16GB Ram

- 120GB OCZ Vertex Turbo



My CPU- Performance (i7-2720) is the main problem. Under Windows i get around 5,2 in Cinebench and in OS X only 4,2. Maybe a problem with Speedstep or Turboboost? I tried diffrent Benchmarks but nothing changed. In my BIOS-Settings everything is enabled for my CPU.



If i get it to work i will donate for your hard work!

W520.rar

[gothic860]

I tried it myself with DSDT Editor and Patcher and added the Speedstep Patch but i get 2 Errors:



29 Error syntax error, unexpected PARSEOP_NAMESEG, expecting ',' or '}'



and



95 Error syntax error, unexpected PARSEOP_PROCESSOR, expecting $end



I really dont know what to do ... i hope you can help me

helpme.zip

[nerdkiller14]

I'm no programmer but it seems you are missing a "}" somewhere and a " $end"



These will usually be by what is having problems with it. Ex.



PARSEOP_NAMESEG, expecting ',' or '}' = line or argument PARSEOP_NAMESEG wants a comma or a "}" some where on its line



PARSEOP_PROCESSOR, expecting $end = Which means PARSEOP_PROCESSOR wants a $end.

[gothic860]

Thanks for your reply.



I tried it, but same errors...



I don't think its a big problem to solve and like i said i will donate for your help.

I hope someone can make me the dsdt.aml without errors.

[LatinMcG]

have you tried chameleon 2.?

EnablePStates=Yes and EnableCStates=Yes ? try it in boot .

http://www.insanelymac.com/forum/index.php?showtopic=231075

[gothic860]

I tried it with Chimera and added



<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">

<plist version="1.0">

<dict>

<key>Kernel</key>

<string>mach_kernel</string>

<key>Kernel Flags</key>

<string>arch=i386 npci=0x2000</string>

<key>GraphicsEnabler</key>

<string>Yes</string>

<key>Timeout</key>

<string>2</string>

<key>Legacy Logo</key>

<string>Yes</string>

<key>EthernetBuiltIn</key>

<string>Yes</string>

<key>GenerateCStates</key>

<string>Yes</string>

<key>GeneratePStates</key>

<string>Yes</string>

</dict>

</plist>



I also had to delete AppleTyMCEDriver.kext to boot or i get a KernelPanic.



in the org.chameleon.boot.plist but i still get very low CPU-Benchmarks ...



With Chameleon (your link) i get the Apple logo with the spinning circle and stuck :/

[gothic860]

I get Chameleon 2.1 r1618 to work but same results... any other ideas?

[LatinMcG]

AppleTyMCEDriver.kext usualy is related to using MacPro3,1 try MacPro4,1

[gothic860]

Tried with MacPro 3,1, 4,1 and 5,1 but no changes

[gothic860]

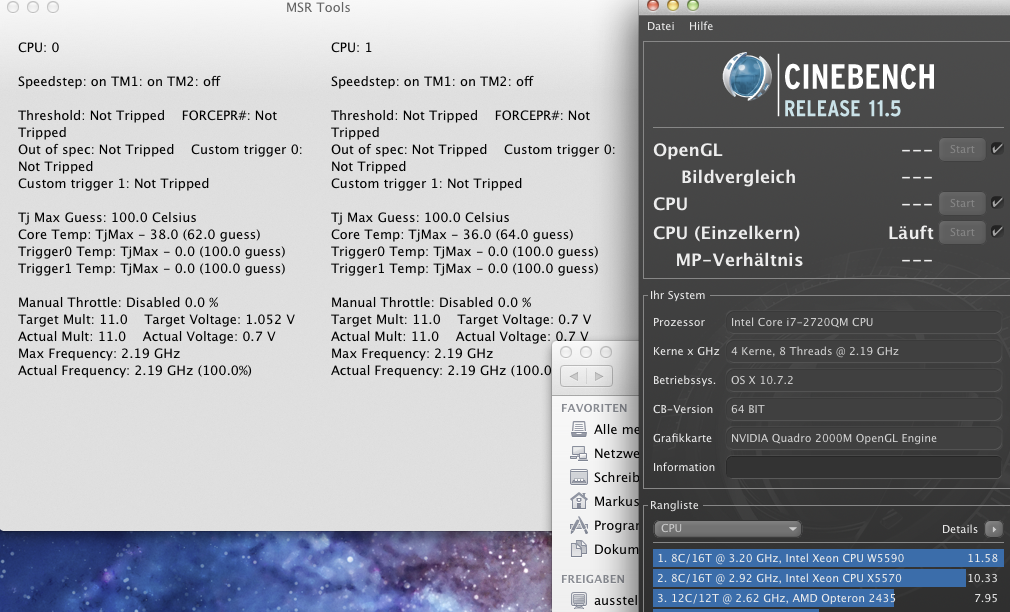

if MSR-Tools work correct my CPU don't use TurboBoost:



all the time with 2,2GHz instead over 3GHz with SingleCore Benchmark



MSRDumper: PStatesReached: 22



all the time

[gothic860]

thanksfor your help but after testing about 3 weeks with this problem i think i stick with windows 7 Thread can be closed.

[^GoJo^]

Have W520 with 2720QM too, please someone help^^
