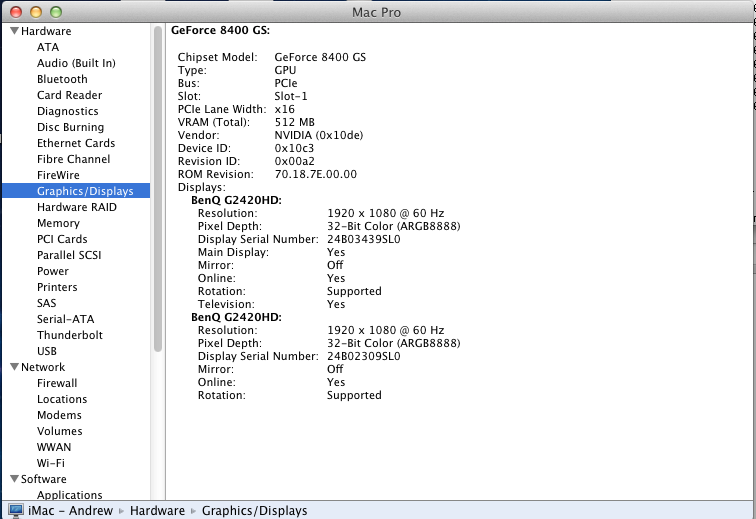

Unequipp Posted July 24, 2011 Share Posted July 24, 2011 This is a complete solution working for me for configuration: OS X Lion 10.7 M/B ASUS P8P67-M Rev3.0 (RTL) LGA1155 <P67> 2xPCI-E+GbLAN+1394 SATA RAID MicroATX (Realtek RTL8111E LAN controller & Realtek ALC 887-VD2 audio codec). CPU Intel Core i3-2120 512Mb <PCI-E> DDR-2 Gigabyte GV-N84S-512I (RTL) +DVI+HDMI <GeForce 8400GS> After successful installation of the system and the boot loader: 0) Download ASUS_P8P67_M.zip 1) Copy dsdt.aml file to your desktop. I took MaLd0n's DSDT from theme. Later, it was edited with the help of rafirafi's notes from here! 2) Run [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] and select "UserDSDT Install", AppleHDA Rollback (under Drivers&Bootloader -> Kexts&Enablers -> Audio -> Realtek) and Lnx2Mac's RealtekRTL81xx Ethernet! And we have to rebuild cache and repair permissions. Someone noted that System Utilities from [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] broke kextcache, so I decided to use Kext Utility or Kext Wizard! 3) Reboot! After this you will notice new Ethernet controller appears in preferences. My GeForce 8400GS is also recognised by system, but I can't still change resolution. 4) If you still cannot change resolution, it is necessary to edit NVDANV50Hal.kext (located under /S/L/E/). Move it from /S/L/E/ to e.g. Desktop. Open Info.plist file inside it and scroll to <key>IOPCIPrimaryMatch</key> section. Look, my vendor ID is 0x10de and Device ID is 0x10c3. So, we gotta combine this into 0x10c310de! Right after the last string: 0x0ca010de&0xffe0ffff in IOPCIPrimaryMatch we have to add: 0x10c310de&0xffe0ffff Save file. There is no need to edit NVDAResman.kext in Lion! This method was noted by a1k0n and oldnapalm! 5) Using KextHelper, add NVDANV50Hal.kext and dmazar's kext ALC887vdHDA_6Ch_RMic_SPDIF.kext Run Kext Utiluity or Kext Wizard! Reboot! 6) After the reboot you can change resolution, HDMI (or DVI) and D-Sub works. Sound is perfectly working! I tested SPDIF and Internal Speakers! It works flawlessly, without any cracks, glitches and kernel panics! I have to thank MaLd0n, rafirafi, dmazar, a1k0n, oldnapalm, [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url]! Thanks to all of you! Wouldn't be able to do this without your help! I didn't try to run USB 3.0 controller and FireWire controller. Still I got one problem left: I've got 2 FullHD monitors, but HDMI and DVI do not work together. And I have to connect the second monitor to D-Sub port, though it doesn't not provide enough quality. Link to comment https://www.insanelymac.com/forum/topic/263414-asus-p8p67-m-rev30-geforce-8400gs-installation/ Share on other sites More sharing options...
lemka Posted November 9, 2011 Share Posted November 9, 2011 Hi, I try your tutorial and doesnt work for me (AUDIO) can you help me plz ? Link to comment https://www.insanelymac.com/forum/topic/263414-asus-p8p67-m-rev30-geforce-8400gs-installation/#findComment-1769129 Share on other sites More sharing options...
LatinMcG Posted November 9, 2011 Share Posted November 9, 2011 im sure they need more info than "it didnt work for me" Link to comment https://www.insanelymac.com/forum/topic/263414-asus-p8p67-m-rev30-geforce-8400gs-installation/#findComment-1769138 Share on other sites More sharing options...
lemka Posted November 9, 2011 Share Posted November 9, 2011 Hello there, So: My setup: Asus p8p67-m (stepping b2), Geforce 560Ti, 16GB RAM, Realtek ALC 887-VD2 My steps on Instalation: 1)Clean Instalation Lion 10.7 with [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url], instalation OK with USB support (mouse, keyboard), GFX only 1024x768. 2) Install with [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] 4.0.1 [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] + AppleHDA Rollback (under Drivers&Bootloader -> Kexts&Enablers -> Audio -> Realtek) and Lnx2Mac's RealtekRTL81xx Ethernet! 3) restart -> Networks work Great, but no AUDIO 4) When I install dmazar's kext ALC887vdHDA_6Ch_RMic_SPDIF.kext => still no sound after restard When I try used DSDT from "Unequipp" post => kernel panic Link to comment https://www.insanelymac.com/forum/topic/263414-asus-p8p67-m-rev30-geforce-8400gs-installation/#findComment-1769161 Share on other sites More sharing options...
Gringo Vermelho Posted November 9, 2011 Share Posted November 9, 2011 ASUS P8P67-MCPU Intel Core i3-2120 GeForce 8400GS What you have done there is similar to putting a VW Beetle engine in a Lamborghini. 1 Link to comment https://www.insanelymac.com/forum/topic/263414-asus-p8p67-m-rev30-geforce-8400gs-installation/#findComment-1769172 Share on other sites More sharing options...
LatinMcG Posted November 9, 2011 Share Posted November 9, 2011 what is in /Extra/smbios.plist ? try booting with -v -x UseKernelCache=No one time. Link to comment https://www.insanelymac.com/forum/topic/263414-asus-p8p67-m-rev30-geforce-8400gs-installation/#findComment-1769252 Share on other sites More sharing options...
