linkous66 Posted November 30, 2010 Share Posted November 30, 2010 Hello everybody , I need your help .. I installed Mac OS X Snow Leopard with the tonyx86 tutorial ( retail installation , [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] + [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] ) I updated to 10.6.5 , and it works fine after i installed some kexts . But I have a problem with the USB transfers , it's SLOW as hell . Here's a screenshot of the usb panel configuration ( don't know how it is called ) : Do you have a solution ? Is there a kext to install ? THANKS in advance . Configuration : Mobo : ASUS P5LD2-x/1333 CPU : Intel Core2Duo 2,2Ghz 2 gb crucial 667MHZ DDR2 Gigabyte 8600GT 256mbDDR3 MAC OS X 10.6.5 By the way , I also have a 13" macbook pro 2010 and when i plug the usb drive , it says " jusqu'à 480 MB/s " at the line " speed " Quote Link to comment Share on other sites More sharing options...
adamj Posted November 30, 2010 Share Posted November 30, 2010 Any chance you could post that screen in english? Quote Link to comment Share on other sites More sharing options...
linkous66 Posted December 2, 2010 Author Share Posted December 2, 2010 Any chance you could post that screen in english? Okay it's done Quote Link to comment Share on other sites More sharing options...
flakmonkey Posted December 2, 2010 Share Posted December 2, 2010 Is USB set in bios to hi speed or full speed? You need to set it to hi speed to get 480mbps transfer rates. Quote Link to comment Share on other sites More sharing options...
linkous66 Posted December 2, 2010 Author Share Posted December 2, 2010 Is USB set in bios to hi speed or full speed? You need to set it to hi speed to get 480mbps transfer rates. I have just checked in the bios , and it was already set on Hi Speed... I also tried to set it on Full speed , but same problem . Quote Link to comment Share on other sites More sharing options...

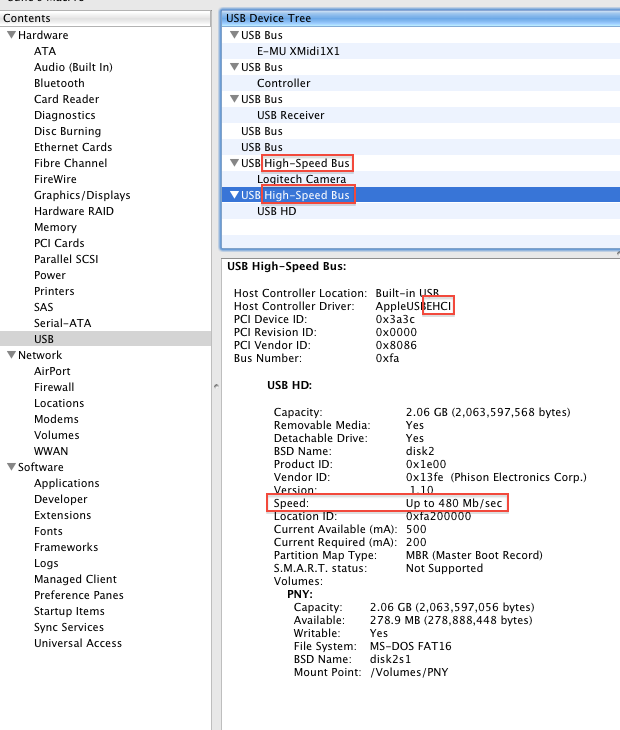

Gringo Vermelho Posted December 2, 2010 Share Posted December 2, 2010 OS X cannot talk to your USB 2.0 controller (USBEHCI) for some reason, your USB ports are working at USB 1.0 speeds. This is what it's supposed to look like: Download and install LSPCI, type LSPCI -nn in terminal and post the output here. Quote Link to comment Share on other sites More sharing options...
linkous66 Posted December 2, 2010 Author Share Posted December 2, 2010 OS X cannot talk to your USB 2.0 controller (USBEHCI) for some reason, your USB ports are working at USB 1.0 speeds. This is what it's supposed to look like: Download and install LSPCI, type LSPCI -nn in terminal and post the output here. Thank you for your reply . But where can i find " LSPCI " ? can't find that on the internet.. I'm a newbie .. Quote Link to comment Share on other sites More sharing options...
Gringo Vermelho Posted December 2, 2010 Share Posted December 2, 2010 http://www.osx86.es/?p=620 (don't worry, it's not in Spanish) Quote Link to comment Share on other sites More sharing options...
linkous66 Posted December 2, 2010 Author Share Posted December 2, 2010 iMac-de-linkous66:~ linkous66$ LSPCI -nn 00:00.0 Host bridge [0600]: Intel Corporation 82945G/GZ/P/PL Memory Controller Hub [8086:2770] (rev 02) 00:01.0 PCI bridge [0604]: Intel Corporation 82945G/GZ/P/PL PCI Express Root Port [8086:2771] (rev 02) 00:1b.0 Audio device [0403]: Intel Corporation 82801G (ICH7 Family) High Definition Audio Controller [8086:27d8] (rev 01) 00:1c.0 PCI bridge [0604]: Intel Corporation 82801G (ICH7 Family) PCI Express Port 1 [8086:27d0] (rev 01) 00:1c.1 PCI bridge [0604]: Intel Corporation 82801G (ICH7 Family) PCI Express Port 2 [8086:27d2] (rev 01) 00:1d.0 USB Controller [0c03]: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #1 [8086:27c8] (rev 01) 00:1d.1 USB Controller [0c03]: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #2 [8086:27c9] (rev 01) 00:1d.2 USB Controller [0c03]: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #3 [8086:27ca] (rev 01) 00:1d.3 USB Controller [0c03]: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #4 [8086:27cb] (rev 01) 00:1d.7 USB Controller [0c03]: Intel Corporation 82801G (ICH7 Family) USB2 EHCI Controller [8086:27cc] (rev 01) 00:1e.0 PCI bridge [0604]: Intel Corporation 82801 PCI Bridge [8086:244e] (rev e1) 00:1f.0 ISA bridge [0601]: Intel Corporation 82801GB/GR (ICH7 Family) LPC Interface Bridge [8086:27b8] (rev 01) 00:1f.1 IDE interface [0101]: Intel Corporation 82801G (ICH7 Family) IDE Controller [8086:27df] (rev 01) 00:1f.2 IDE interface [0101]: Intel Corporation 82801GB/GR/GH (ICH7 Family) SATA IDE Controller [8086:27c0] (rev 01) 00:1f.3 SMBus [0c05]: Intel Corporation 82801G (ICH7 Family) SMBus Controller [8086:27da] (rev 01) 02:00.0 Ethernet controller [0200]: Attansic Technology Corp. L2 100 Mbit Ethernet Adapter [1969:2048] (rev a0) 04:00.0 VGA compatible controller [0300]: nVidia Corporation G84 [GeForce 8600 GT] [10de:0402] (rev a1) iMac-de-linkous66:~ linkous66$ Quote Link to comment Share on other sites More sharing options...
Gringo Vermelho Posted December 3, 2010 Share Posted December 3, 2010 That's strange, ICH7 is fully supported in the Apple USB drivers. But system Profiler does not even see your EHCI controller. Tell me what USB settings you have in your BIOS. If you are using the Chameleon bootloader, try adding USBBusFix=y to your /extra/com.apple.Boot.plist. Quote Link to comment Share on other sites More sharing options...
linkous66 Posted December 3, 2010 Author Share Posted December 3, 2010 That's strange, ICH7 is fully supported in the Apple USB drivers. But system Profiler does not even see your EHCI controller. Tell me what USB settings you have in your BIOS. If you are using the Chameleon bootloader, try adding USBBusFix=y to your /extra/com.apple.Boot.plist. USB SETTINGS : USB FUNCTION : enabled Legacy USB Support : Auto USB 2.0 Controller : enabled USB 2.0 Controller Mode : HiSpeed BIOS EHCI Hand-Off : Disabled It's an American megatrend inc BIOS , and yes it's Chameleon. Quote Link to comment Share on other sites More sharing options...
Gringo Vermelho Posted December 3, 2010 Share Posted December 3, 2010 Try enabling EHCI handoff. Quote Link to comment Share on other sites More sharing options...
linkous66 Posted December 3, 2010 Author Share Posted December 3, 2010 Try enabling EHCI handoff. Same problem .... Quote Link to comment Share on other sites More sharing options...
Stefe Hobs Posted December 3, 2010 Share Posted December 3, 2010 rename the AppleHPET.kext (AppleHPET.kext.bak) in your /S/L/E/ dir and reboot . . . Quote Link to comment Share on other sites More sharing options...
linkous66 Posted December 3, 2010 Author Share Posted December 3, 2010 rename the AppleHPET.kext (AppleHPET.kext.bak) in your /S/L/E/ dir and reboot . . . What do you mean by /S/L/E/ ? And where can i find AppleHPET.kext ? Spotlight can't find it .. I don't get every technical terms , i'm a real beginner so please be kind with me : ) ( And forgive my english , i'm french ! ) Quote Link to comment Share on other sites More sharing options...
Stefe Hobs Posted December 3, 2010 Share Posted December 3, 2010 /System/Library/Extensions/ dude Quote Link to comment Share on other sites More sharing options...
Gringo Vermelho Posted December 3, 2010 Share Posted December 3, 2010 Deleting AppleHPET.kext will break native CPU power management. Here's another thread about the same subject: http://www.insanelymac.com/forum/index.php?showtopic=214905 Quote Link to comment Share on other sites More sharing options...
