Mighty Rearranger Posted January 20, 2010 Share Posted January 20, 2010 PLEASE, I NEED HELP!!! I'M DESPERATE!!! I'm modding a Powermac G4 (digital audio) and i'm almost done. The only problem i have is that i don't know how to adapt the power button panel to the mobo's own panel connector. The mobo's an ASUS P5KPL-AM. I got the mobo's diagram here. IF U DON'T HELP ME... well.. errr... i dunno... Link to comment Share on other sites More sharing options...
Mighty Rearranger Posted January 21, 2010 Author Share Posted January 21, 2010 Come on guys!! There are a lot of G4 modders around here!! I NEED UR KNOWNLEDGE!! I NEED UR BRAINZZZ!! Link to comment Share on other sites More sharing options...
Photograph Posted January 22, 2010 Share Posted January 22, 2010 Here's somewhere to start looking, I'm starting a G4 mod myself: http://www.outofspec.com/frankenmac/wire.shtml Link to comment Share on other sites More sharing options...

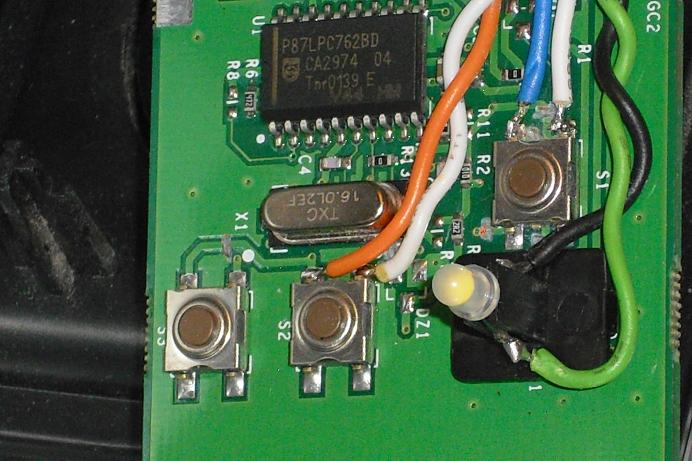

Roykjepolse Posted February 8, 2010 Share Posted February 8, 2010 PLEASE, I NEED HELP!!! I'M DESPERATE!!! I'm modding a Powermac G4 (digital audio) and i'm almost done. The only problem i have is that i don't know how to adapt the power button panel to the mobo's own panel connector. The mobo's an ASUS P5KPL-AM. I got the mobo's diagram here. IF U DON'T HELP ME... well.. errr... i dunno... The way i did it. I used the original PCB, omit the electronic by cut the original copper lines to the switches, and soldred wires directly to the switches and the LED for power on. This is working wery well, and i'm pleased. Link to comment Share on other sites More sharing options...
bonestonne Posted February 9, 2010 Share Posted February 9, 2010 also how i did it on my G3...I don't have the time, patience or means to get the pinout. it's also much simpler when you think about it...eliminates a ribbon cable, and gives you just what you need or want. Link to comment Share on other sites More sharing options...
pirloui Posted February 14, 2010 Share Posted February 14, 2010 I'm pretty sure there is some pinout hanging around here, just search. Link to comment Share on other sites More sharing options...
