Mendiaco Posted October 23, 2009 Share Posted October 23, 2009 I have a ATI 4870 with SL. Is it possible dual display with extended screen? I have mirrowin with 2 displays. Thanks. Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/ Share on other sites More sharing options...
qued Posted November 25, 2009 Share Posted November 25, 2009 same problem for me : PC EFI 10.5 + Chamelon 2.0 RC3 SnowLeopard 10.6.2 System dont detect second monitor... Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/#findComment-1341428 Share on other sites More sharing options...
pc84 Posted November 25, 2009 Share Posted November 25, 2009 me too, secondary display don't works Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/#findComment-1341882 Share on other sites More sharing options...
Kosmonator Posted November 26, 2009 Share Posted November 26, 2009 Ati 4870 is working for me in SL with 2 Displays. First is DVI and second is VGA with adapter. Try to change DVI 1 with DVI 2 and use EvOenabler in s/l/e. By the way look here: http://www.insanelymac.com/forum/index.php?showtopic=155477 wish you luck Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/#findComment-1343397 Share on other sites More sharing options...
aksolo Posted November 27, 2009 Share Posted November 27, 2009 For me worked right off the bat. Dual screens connected to DVI. I used the driver from Iatkos 10.5.7 ati hd. my card is the ati 4870 512 ddr5 dev id= 9440 Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/#findComment-1344205 Share on other sites More sharing options...
regnaD kciN Posted November 28, 2009 Share Posted November 28, 2009 I can't get my ep45 ds3l with ati 4870 1024 to install snow leopard...but it's working great on Leopard what kexts or dsdt are you using? Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/#findComment-1344988 Share on other sites More sharing options...
Federico Lang Posted November 28, 2009 Share Posted November 28, 2009 I'm having the same problem here... only mirrored displays and the system only detects one of them (the one plugged on DVI port) My specs: MSI Pro-E X58 i7 920 4 GBs RAM and the troublemaker: MSI R4870 1GB with one DVI, one VGA and one HDMI. Two monitors plugged, one via VGA, one via DVI (with DVI>VGA adapter) haven't tested HDMI since I just don't have anything to plug it to... Installed the card using "Simple guide to 48x0..." (http://www.insanelymac.com/forum/index.php?showtopic=155477) I get QE to work, but I can't get dual displays. I have tried several ways, but the only cards that seem t work are the ones with two DVI ports, mine is not like that... Any help, anyone?? I use a lot of Final Cut-AfterEffects-Color and i really need the dual display modes for all of those.. HEEEELLPPP!!!! and thanxs Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/#findComment-1345109 Share on other sites More sharing options...
Benjibobson Posted November 30, 2009 Share Posted November 30, 2009 For me worked right off the bat. Dual screens connected to DVI. I used the driver from Iatkos 10.5.7 ati hd. my card is the ati 4870 512 ddr5 dev id= 9440 Hi! Good to hear you got dual display working! I have an xfx 4870 1gb and think your sollution might work for me. Could you tell me where to get the iatkos driver and how to install it ? THANKS!! Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/#findComment-1346815 Share on other sites More sharing options...

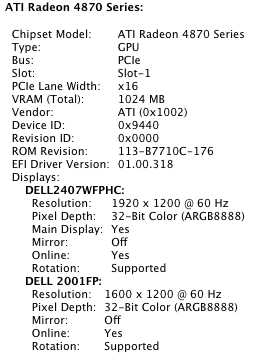

joeschmo Posted December 1, 2009 Share Posted December 1, 2009 I have a Sapphire Radeon 4870 1 GB dual DVI and it is working fine in 10.6.2 vanilla SL. Using Chameleon and PC EFI (EnableGraphics=yes), it auto detects the card. Here is the SS from Graphics / Displays: JS Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/#findComment-1347250 Share on other sites More sharing options...
Benjibobson Posted December 1, 2009 Share Posted December 1, 2009 I have a Sapphire Radeon 4870 1 GB dual DVI and it is working fine in 10.6.2 vanilla SL. Using Chameleon and PC EFI (EnableGraphics=yes), it auto detects the card. Here is the SS from Graphics / Displays: JS Nice. I'm getting that card aswell then ! how do you do the EnableGraphics=yes thing ? I'm quite a noob. Please explain how to do this. Thanks man ! Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/#findComment-1347584 Share on other sites More sharing options...
Benjibobson Posted December 1, 2009 Share Posted December 1, 2009 I just got a GTX260. Worked out of the box Thanks for all the great help! Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/#findComment-1348106 Share on other sites More sharing options...
Hack24 Posted December 20, 2009 Share Posted December 20, 2009 I have a Sapphire Radeon 4870 1 GB dual DVI and it is working fine in 10.6.2 vanilla SL. Using Chameleon and PC EFI (EnableGraphics=yes), it auto detects the card. Here is the SS from Graphics / Displays: JS I have this same card but I can't get it to work on 10.5.7 ideneb 5 could someone help me! I have the mirroring problem! Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/#findComment-1364869 Share on other sites More sharing options...
madzije Posted December 30, 2009 Share Posted December 30, 2009 I have the same problem. QE and CI DO work out of the box. Got Leopard 10.5.8 and 2 monitors, the first one (Samsung T200) plugged with DVI connector, the second -old- one, with the DVI2VGA adapter. When I plug in the second monitor, the first monitor blinks but after that the second monitor is still black. Any suggestion? Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/#findComment-1372439 Share on other sites More sharing options...
Hack24 Posted January 13, 2010 Share Posted January 13, 2010 I have the same problem. QE and CI DO work out of the box.Got Leopard 10.5.8 and 2 monitors, the first one (Samsung T200) plugged with DVI connector, the second -old- one, with the DVI2VGA adapter. When I plug in the second monitor, the first monitor blinks but after that the second monitor is still black. Any suggestion? I don't know what kext your using but my kext that has both monitors mirrored but stuck mirrored is ATY_INT or Ati HD I got one of those from iAtkos v7 and the other from iDeneb. But like I said I still have the mirroring problem! Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/#findComment-1384316 Share on other sites More sharing options...
bbchucks Posted January 17, 2010 Share Posted January 17, 2010 Hi all using 10.6.2 with evo kext i'm able to load up a Mirror display on DUAL monitors with the ATI 4870 1gb card, which has 1dvi, 1hdmi and 1vga. booting up from a vga connected and dvi2vga connected both displays come on but they are mirrior'ed. does anyone know how i can turn off mirror and have this expanded to use dual monitor support?? here is my card settings/info: ATI Radeon HD 4870: Chipset Model: ATI Radeon HD 4870 Type: GPU Bus: PCIe Slot: Slot-1 PCIe Lane Width: x16 VRAM (Total): 1024 MB Vendor: ATI (0x1002) Device ID: 0x9440 Revision ID: 0x0000 ROM Revision: 113-B7710C-176 EFI Driver Version: 01.00.318 Displays: DELL 2709W: Resolution: 1680 x 1050 @ 60 Hz Pixel Depth: 32-Bit Color (ARGB8888) Main Display: Yes Mirror: Off Online: Yes Rotation: Supported Display Connector: Status: No Display Connected Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/#findComment-1387245 Share on other sites More sharing options...
Formal Posted January 18, 2010 Share Posted January 18, 2010 I Have an official Apple 4870 but the system will not boot with it in, I am using PC EFI 10.5 with digital dreamer script for EX58 What is the procedure to add an ATI card? Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/#findComment-1388632 Share on other sites More sharing options...
SleepingPanda Posted March 27, 2010 Share Posted March 27, 2010 I'm also looking for a solution for this. My card was automatically recognized and working out of the box with SL and QE/CI. I even tried adding the hex to the boot.plist and even that doesn't seem to change anything. I've tried EVOenabler and that hex method above and even various kexts from previous versions of OS X. Nothing seems to change it from mirroring to extended display, but my card scores pretty decently in OGL Extensions Viewer tests. I'm out of ideas and on the verge of giving up. Card: XFX Radeon HD 4870 XXX 1GB with dual DVI out ports connected to 2 DVI to VGA adapters then 2 CRTs. Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/#findComment-1435294 Share on other sites More sharing options...
bbchucks Posted March 30, 2010 Share Posted March 30, 2010 using ati 4870 sapphire card with 1dvi, 1vga and 1hdmi i updated to 10.6.3 and now for display connector it is blank...i can only VNC into the PC.. does anyone know how i can get the following three kext files from 10.6.2 ? ATI4800Controller.kext ATISupport.kext ATIFramebuffer.kext anyone able to PM it? Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/#findComment-1437603 Share on other sites More sharing options...
T13 Posted June 18, 2010 Share Posted June 18, 2010 Same problem here. Im guessing it has something to do with using a converter to go from DVI to VGA. Maybe HDCP??? Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/#findComment-1492330 Share on other sites More sharing options...
Diederen Posted August 29, 2010 Share Posted August 29, 2010 Problem still not fixed? Got the same problem: HD4870 2xdvi with 2xdvi to vga adapter. 10.6 gives me a mirror, and when I update to 10.6.4 the right screen doesn't get a signal. Help needed. Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/#findComment-1539397 Share on other sites More sharing options...
haveblue Posted November 26, 2010 Share Posted November 26, 2010 Same issue with vanilla 10.6.3 and updated to 10.6.5. I have a ASUS EAH4870 which worked out of box with myhack 1.1. DVI monitor on one output and DVI2VGA adapter with VGA monitor on second. Showed mirrored screens during boot process but not upon loading desktop (VGA display would just power off). Swapped outputs on card and now both displays are recognized with extended (dual) desktop. Link to comment https://www.insanelymac.com/forum/topic/193671-dual-display-with-ati-4870/#findComment-1591405 Share on other sites More sharing options...
