[Mini Guida] Sbloccare la scrittura in NTFS da SL

Recommended Posts

Fate un BackUp del file modificato, per sicurezza non si sa mai :)



- Da Disk Utility prendere la UUID della partizione NTFS che si vuole abilitare (Per fare cio' aprite Utility Disco selezionate la partizione NTFS e cliccate su Informazioni e copiate l'Identificatore Universale)


- aprite il terminale

- scrivete

sudo nano /etc/fstab

- Al interno scrivete

UUID=incolla_il_uuid_qui none ntfs rw

- Ripetete per ogni partizione NTFS che si vuole abilitare

- Salvate (CTRL + O) con il nome "fstab" confermate con enter, poi chiudete (CTRL + X), riavviate il sistema (sudo reboot).



Dovrebbe funzionare a 32 e 64 bit e anche abbastanza benne.



Scrivete la vostra esperienza ;)

__________________________________________________________________

Metodi alternativi

1. Da un forum esterno...

Rename the original /sbin/mount_ntfs tool:



sudo mv /sbin/mount_ntfs /sbin/mount_ntfs.orig



Create a script like this:



#!/bin/sh

/sbin/mount_ntfs.orig -o rw "$@“



save the script to /sbin/mount_ntfs



sudo chown root:wheel /sbin/mount_ntfs

sudo chmod 755 /sbin/mount_ntfs



Enjoy R/W access to NTFS volumes...



In case you don't like it



sudo mv /sbin/mount_ntfs.orig /sbin/mount_ntfs



and everything is back to R/O.



2. E in un modo più semplice...

ntfsmounter (una applicazione che fa tutto ciò in maniera più semplice) Come segnala umago

Share this post


Link to post
Share on other sites
Advertisement
Fate un BeckUp del file modificato, per sicurezza non si sa mai :poster_oops:



- Da Disk Utility prendere la UUID della partizione NTFS che si vuole abilitare

- aprire il terminale

- scrivete

sudo nano /etc/fstab

- Al interno scrivete

UUID=incolla_il_uuid_qui none ntfs rw

- Ripetete per ogni partizione NTFS che si vuole abilitare

- Salvate (CTRL + O) con il nome "fstab" confermare con enter, poi chiudete (CTRL + X), riavviate il sistema (sudo reboot).



Dovrebbe funzionare a 32 e 64 bit e anche abbastanza benne.



Scrivete la vostra esperienza ;)

testero' quando usero' snow definitivamente...per ora grazie;)



quindi niente piu paragon?

Share this post


Link to post
Share on other sites
Fate un BackUp del file modificato, per sicurezza non si sa mai :(



- Da Disk Utility prendere la UUID della partizione NTFS che si vuole abilitare

- aprite il terminale

- scrivete

sudo nano /etc/fstab

- Al interno scrivete

UUID=incolla_il_uuid_qui none ntfs rw

- Ripetete per ogni partizione NTFS che si vuole abilitare

- Salvate (CTRL + O) con il nome "fstab" confermate con enter, poi chiudete (CTRL + X), riavviate il sistema (sudo reboot).



Dovrebbe funzionare a 32 e 64 bit e anche abbastanza benne.



Scrivete la vostra esperienza :wallbash:



Ciao e grazie per la guida,davvero utilissima,ho un problema dove lo trovo il codice UUID?

Grazie

Share this post


Link to post
Share on other sites
Ciao e grazie per la guida,davvero utilissima,ho un problema dove lo trovo il codice UUID?

Grazie

Ho modificato la guida, spero sia chiaro.



PS: BarboneNet ti ho rubato qualce parola e lo screen :(

Share this post


Link to post
Share on other sites
Ho modificato la guida, spero sia chiaro.



PS: BarboneNet ti ho rubato qualce parola e lo screen :P

emetto fattura? hhihi



P.S. anch'io cambio mobo...passo a p5q deluxe......sara l'ultimo upgrade prima dell'inevitabile cambio di socket! Il Q9550 non vuole rimanere a soli 3,4GHz :)

Share this post


Link to post
Share on other sites

Se ne parla anche sul forum internazionale, cmq questo è si il metodo migliore per scrivere su NTFS ma non è certo infallibile! In alcune situazioni sembra fare casotto! :\

Andrebbe attivato sulle partizioni dove risiedono i dati , mentre la partizione di windows io la lascerei stare :blush:

Share this post


Link to post
Share on other sites
funziona!



mi ricorda molto la procedura per l'automount dei dischi in linux



E' la procedura pe l'automunt dei dischi in Unix.



Sia Linux che Snow leopard sono dialetti Unix.



Giorgio

Share this post


Link to post
Share on other sites

io ho avuto qualche problema con questo metodo... nel senso che certe volte alcuni file o cartelle nelle partizioni ntfs Snow non me le vedeva come tali... e quindi illegibili... ho risolto installando la versione di macfuse beta scovata su qualche forum e compilata per snow leo in abbinamento all'ntfs-3g 4.4. mi dispiace solo che con macfuse ho perso la possibilità di far passare i file prima nel cestino... :(

Share this post


Link to post
Share on other sites

Procedura eseguita con successo su due HDD esterni USB:

- Western Digital 500GB 3,5";

- Seagate (o Maxtor, non so, e' dentro un Box della Iomega) 1TB 3,5";

Funzionanti a 32bit, non so ancora a 64bit ma non vedo controindicazioni secondo quanto detto anche dagli altri.



Ho invece un problema con un terzo HDD sempre esterno USB, stavolta e' un Samsung da 2,5" 160GB: DiskUtility non mi mostra infatti il suo UUID.

Il disco era vuoto e formattato da prima in FAT (inizializzato da Mac), poi ho provato a formattarlo in NTFS da Win ma ancora nulla.

L'UUID appare solo se lo inizializzo come MacOS Esteso (Journaled) ovviamente da Mac...ma non posso usare quell'UUID dato che ad ogni formattazione/inizializzazione cambia.

Ho provato anche a ripartizionarlo, sempre da Mac: prima aveva la tabella partizioni (sempre e comunque una sola partizione) in GUID, poi ho provato a partizionarlo in MBR ma non e' cambiato nulla.

Stessa cosa mi succede con una pennetta USB della Sony da 4GB, come mai? Qualche consiglio?

Grazie mille.



Vi posto gli screen di DiskUtility dopo ogni inizializzazione:

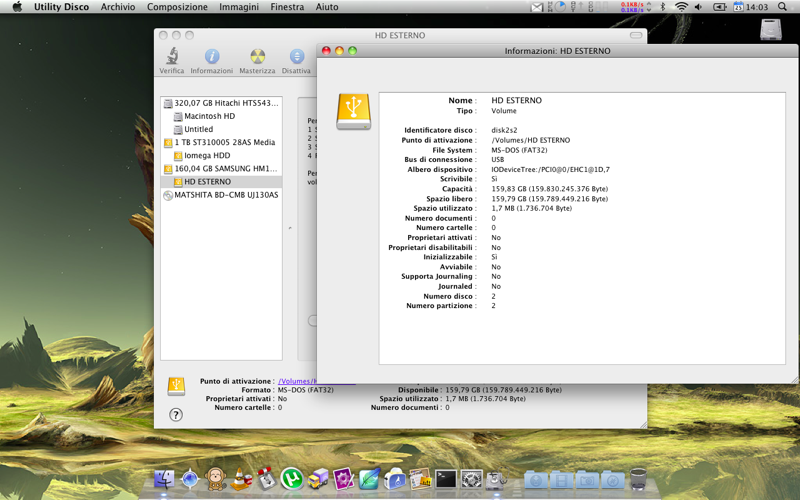

Dopo inizializzazione in FAT da Mac:

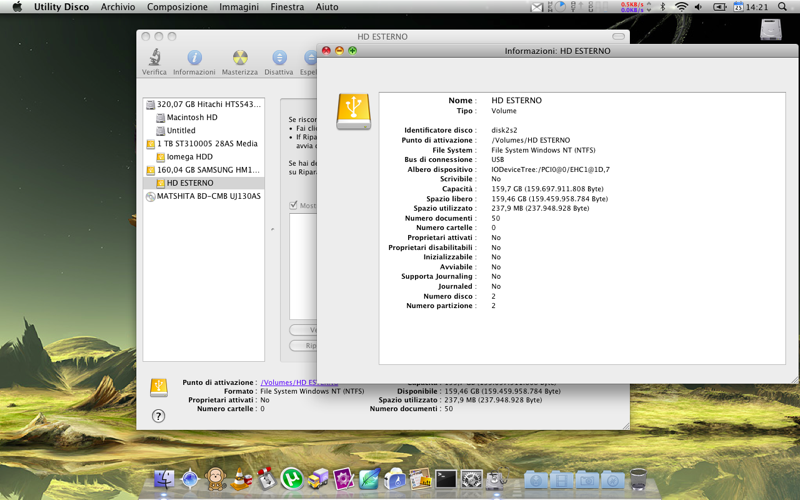

Dopo formattazione in NTFS da Win:

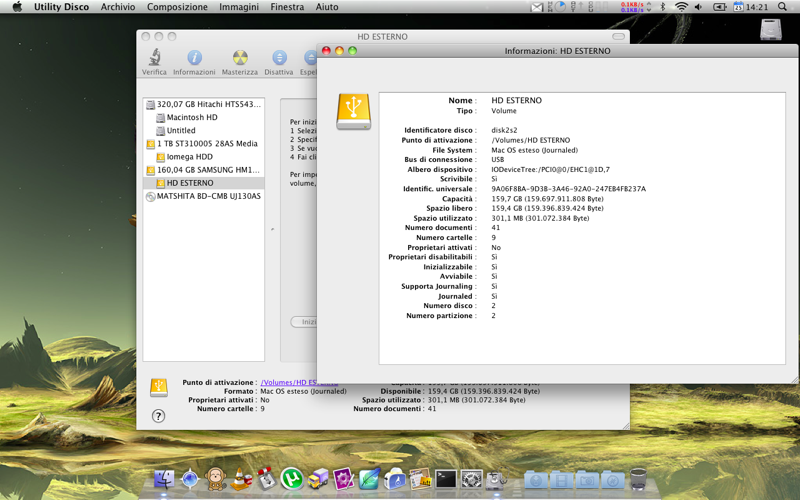

Dopo inizializzazione in MacOS Esteso (Journaled):


Share this post


Link to post
Share on other sites
Procedura eseguita con successo su due HDD esterni USB:

- Western Digital 500GB 3,5";

- Seagate (o Maxtor, non so, e' dentro un Box della Iomega) 1TB 3,5";

Funzionanti a 32bit, non so ancora a 64bit ma non vedo controindicazioni secondo quanto detto anche dagli altri.



Ho invece un problema con un terzo HDD sempre esterno USB, stavolta e' un Samsung da 2,5" 160GB: DiskUtility non mi mostra infatti il suo UUID.

Il disco era vuoto e formattato da prima in FAT (inizializzato da Mac), poi ho provato a formattarlo in NTFS da Win ma ancora nulla.

L'UUID appare solo se lo inizializzo come MacOS Esteso (Journaled) ovviamente da Mac...ma non posso usare quell'UUID dato che ad ogni formattazione/inizializzazione cambia.

Ho provato anche a ripartizionarlo, sempre da Mac: prima aveva la tabella partizioni (sempre e comunque una sola partizione) in GUID, poi ho provato a partizionarlo in MBR ma non e' cambiato nulla.

Stessa cosa mi succede con una pennetta USB della Sony da 4GB, come mai? Qualche consiglio?

Grazie mille.



Vi posto gli screen di DiskUtility dopo ogni inizializzazione:



Dopo inizializzazione in FAT da Mac:




Dopo formattazione in NTFS da Win:




Dopo inizializzazione in MacOS Esteso (Journaled):




anche io ho avuto uno stesso problema con un HD esterno da 2,5" della packard bell... non riuscivo trovare l'uuid....mah....icon9.gif

Share this post


Link to post
Share on other sites

provato adesso,grazie 1000 kpkp



partizione interna con xp tutto ok

disco esterno con dati invece non ne vuole sapere



bo?!



EDIT: mi sà che è perchè ad ogni riavvio mi cambia l identificatore universale

Share this post


Link to post
Share on other sites
Su internet ho trovato un sito dove spiega come far attivare sempre in lettura/scrittura le partizioni ntfs è molto semplice e non bisogna ogni volta aggiungere l'uuid.



E' una soluzione nativa di SL non bisogna installare nulla



http://www.insanelymac.com/forum/index.php...p;#entry1297003



Sono assolutamente d'accordo.

Proporrei addirittura di inserire il link del programma "NTFSMOUNTER" nel post #1

Share this post


Link to post
Share on other sites

vorrei segnalare che la scrittura su un disco NTFS condiviso in rete (server windows), avviene senza il minimo bisogno di installare nulla!



magari era scontato.....ma lo segnalo;)

Share this post


Link to post
Share on other sites
Sono assolutamente d'accordo.

Proporrei addirittura di inserire il link del programma "NTFSMOUNTER" nel post #1

L'ho provato proprio adesso il risultato 2 riavvii forzati e ho dovuto riparate il index del disco per potere leggere i dati... ;)

Share this post


Link to post
Share on other sites

Provato ntfsmounter e devo dire che fa il suo "sporco" lavoro



grazie!

Share this post


Link to post
Share on other sites
