ruguse Posted July 27, 2009 Share Posted July 27, 2009 Hello, I tried to get Quartz Extreme supported on my Point of View GeForce 8400GS 512, but I couldn't yet. Tried with: Natit: No QE, only low resolution NVinject 0.2.0: No QE NVinject 0.2.1: No QE NVinject 0.2.1 512MB VRAM: Black Screen NVKush: No QE NVdarwin 512 MB: QE supported, but the system crashes (kernel panic) in some apps. (chess, for example) EFI studio: No QE OSX86 tools: Error when i try to write the appleboot file Uinstaller: No QE 9f23installer: No QE My system: iPC 10.5.6 Processor: Athlon 64x2 3800+ Mboard: MSI K9VGM-V Need some help please. Link to comment https://www.insanelymac.com/forum/topic/176757-quartz-extreme-on-point-of-view-geforce-8400gs-512/ Share on other sites More sharing options...
Daveta Posted July 27, 2009 Share Posted July 27, 2009 try to post id's and search for it, i'll made the same Link to comment https://www.insanelymac.com/forum/topic/176757-quartz-extreme-on-point-of-view-geforce-8400gs-512/#findComment-1210169 Share on other sites More sharing options...
ruguse Posted July 27, 2009 Author Share Posted July 27, 2009 try to post id's and search for it, i'll made the same excuse my ignorance, what do you mean with "id's"? Link to comment https://www.insanelymac.com/forum/topic/176757-quartz-extreme-on-point-of-view-geforce-8400gs-512/#findComment-1210231 Share on other sites More sharing options...
Maniac10 Posted July 27, 2009 Share Posted July 27, 2009 This: Modelo de chipset: nVidia GeForce 8400 GS Tipo: Pantalla Bus: PCIe Anchura de canal PCIe: x16 VRAM (total): 256 MB Fabricante: NVIDIA (0x10de) ID del dispositivo: 0x06e4 ID de la revisión: 0x00a1 Revisión de la ROM: nVidia GeForce 8400 GS OpenGL Engine [EFI] Link to comment https://www.insanelymac.com/forum/topic/176757-quartz-extreme-on-point-of-view-geforce-8400gs-512/#findComment-1210587 Share on other sites More sharing options...

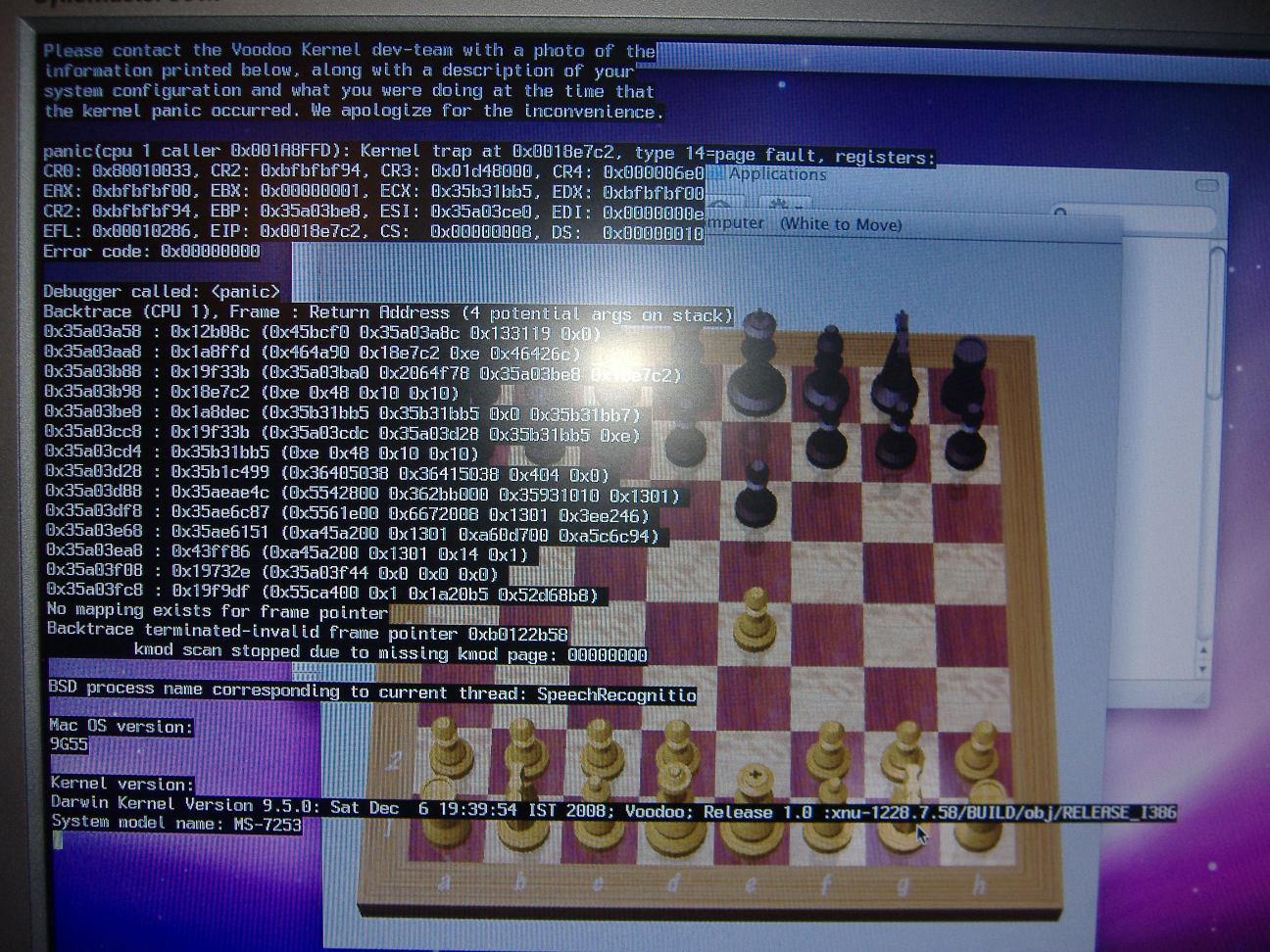

ruguse Posted July 28, 2009 Author Share Posted July 28, 2009 Here it is, with NVdarwin 1.2.5 512MB driver installed, qe is not supported because is in safe mode. NVIDIA GeForce 8400 GS: Chipset Model: NVIDIA GeForce 8400 GS Type: Display Bus: PCIe Slot: PCI Slot 0 PCIe Lane Width: x16 VRAM (Total): 512 MB Vendor: NVIDIA (0x10de) Device ID: 0x0422 Revision ID: 0x00a1 ROM Revision: NVdarwin 1.2.5 Displays: SyncMaster: Resolution: 1152 x 870 @ 75 Hz Depth: 32-bit Color Core Image: Software Main Display: Yes Mirror: Off Online: Yes Quartz Extreme: Not Supported Display Connector: Status: No display connected This is what happens when starting in no safe mode (see picture) Link to comment https://www.insanelymac.com/forum/topic/176757-quartz-extreme-on-point-of-view-geforce-8400gs-512/#findComment-1211110 Share on other sites More sharing options...
DamienValentine Posted July 28, 2009 Share Posted July 28, 2009 I have Athlon 64 3000+ on ASUS A8N5X mobo. Sure thing that I use Voodoo kernels from 9.2.0 to 9.7.0. I tried to get QE/CI on ASUS EN8400GS 256MB. And always fail with kernel panic either blue screen. Later I installed 10.5.2 with 9.2.0 kernel and get QE/CI working out of the box with NVinject kext that comes with DVD. But then my windows began to flickr when I move them. So I gived up and bought Intel Dual Core 2.0 GHz with ASUS P5KPL AM/SE, installed iATKOS 7 and got the same videocard working out of the box with vanilla kernel. So I guess you should try 10.5.2 Kalyway. Maybe you are going my way. By the way. I tried many combinations of: iDeneb 10.5.6, iDeneb 10.5.7, iPC 10.5.6, iATKOS 5/7, Kalyway 10.5.2, Voodoo 9.2.0-9.7.0, XNU 9.4.0, NVinject, NVkush, NVdarwin, NVenabler, changing id in NVDAResman.kext GeForce.kext and NVDANV50Hal.kext, both DVI and VGA outputs. Link to comment https://www.insanelymac.com/forum/topic/176757-quartz-extreme-on-point-of-view-geforce-8400gs-512/#findComment-1211160 Share on other sites More sharing options...
ruguse Posted July 28, 2009 Author Share Posted July 28, 2009 Maybe, i've to find the right string and forget about injectors, but EFI studio, OSX86 tools (error when i try to write the appleboot) and Uinstaller are not working for me. Is there any way to create your own string, i mean, find the right string for your system by other method?. Or modify the string of EFI studio to make it works? Thanks for your help I have Athlon 64 3000+ on ASUS A8N5X mobo. Sure thing that I use Voodoo kernels from 9.2.0 to 9.7.0. I tried to get QE/CI on ASUS EN8400GS 256MB. And always fail with kernel panic either blue screen. Later I installed 10.5.2 with 9.2.0 kernel and get QE/CI working out of the box with NVinject kext that comes with DVD. But then my windows began to flickr when I move them.So I gived up and bought Intel Dual Core 2.0 GHz with ASUS P5KPL AM/SE, installed iATKOS 7 and got the same videocard working out of the box with vanilla kernel. So I guess you should try 10.5.2 Kalyway. Maybe you are going my way. By the way. I tried many combinations of: iDeneb 10.5.6, iDeneb 10.5.7, iPC 10.5.6, iATKOS 5/7, Kalyway 10.5.2, Voodoo 9.2.0-9.7.0, XNU 9.4.0, NVinject, NVkush, NVdarwin, NVenabler, changing id in NVDAResman.kext GeForce.kext and NVDANV50Hal.kext, both DVI and VGA outputs. Link to comment https://www.insanelymac.com/forum/topic/176757-quartz-extreme-on-point-of-view-geforce-8400gs-512/#findComment-1211325 Share on other sites More sharing options...
DamienValentine Posted July 29, 2009 Share Posted July 29, 2009 You need to get GFXUtil. Then you have to find out where you videocard is physically placed. Do it with gfxutil -f display This will return something like DevicePath = PciRoot(0x0)/Pci(0x0,0x0)/Pci(0x0,0x0) You should place DevicePath to nVidia.plist and then execute gfxutil -i xml -o hex ./nVidia.plist ./nVidia.hex This will take modified nVidia.plist from root directory and will create hex-string also in root directory. Then you take the string and place it before </dict> in com.apple.Boot.plist (can be found in /Library/Preferences/SystemConfiguration/ but also can be stored in /Extra depending on distro) <key>device-properties</key> <string></string> Also, in injectors NVCAP is very important. It shows what outputs you have and where they are placed - like DVI/VGA if DVI is closer to motherboard or VGA/DVI otherwise. Anyways, I've tried many of them with no luck. And I still think you should try videocard with vanill kernel. Let me know about your progress. O_o I just notice that your Device ID is 0x0422 not 0x06e4. I do not see your posts here http://www.insanelymac.com/forum/index.php?showtopic=83944 but it seems that they have found a method! nVidia.plist.zip Link to comment https://www.insanelymac.com/forum/topic/176757-quartz-extreme-on-point-of-view-geforce-8400gs-512/#findComment-1211826 Share on other sites More sharing options...
ruguse Posted July 29, 2009 Author Share Posted July 29, 2009 Thank you very much for your help. Right now, i've got no time for testing with the strings. By the moment i think i've got a solution that works for me: KP is produced by Speech Recognition, so i've deactivated speech recognition in every app. No problem since that. Working well with qe: imovie, chess, etc. Hope it lasts. Link to comment https://www.insanelymac.com/forum/topic/176757-quartz-extreme-on-point-of-view-geforce-8400gs-512/#findComment-1211895 Share on other sites More sharing options...
DanielMor Posted August 2, 2010 Share Posted August 2, 2010 hello , I tell you that eh installed all welcome but the video shows me no acceleration but if I have multiple resolutions ... might my card is a Asus 512mb silent en8400gs hola , te cuento que eh instalado todo con satisfacción pero el video no me muestra aceleración aunque si me permite tener varias resoluciones... que podría hacer mi tarjeta es una Asus en8400gs silent 512mb video.tiff Link to comment https://www.insanelymac.com/forum/topic/176757-quartz-extreme-on-point-of-view-geforce-8400gs-512/#findComment-1523054 Share on other sites More sharing options...
YouDoMeIDoYou Posted September 18, 2010 Share Posted September 18, 2010 I made my Club 3D GeForce 8400GS (0x06e4 / 0x00a1) 256MB DVI/VGA (VGA seems not no work) run with QE by using netka's ATY_Init.kext.zip Simply put it into S/L/E (E/E didn't work for me) and enjoy Link to comment https://www.insanelymac.com/forum/topic/176757-quartz-extreme-on-point-of-view-geforce-8400gs-512/#findComment-1550374 Share on other sites More sharing options...
