Lambros Posted April 23, 2009 Author Share Posted April 23, 2009 Going to try it tomorrow, apparently I need a mac to do it. If you know another way please tell me. I'll report back with the results. Lambros. Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1140257 Share on other sites More sharing options...
verdant Posted April 23, 2009 Share Posted April 23, 2009 Going to try it tomorrow, apparently I need a mac to do it. If you know another way please tell me. I'll report back with the results. Lambros. OK here are my recommended BIOS settings: IOAPIC Function [Enabled] MPS Table Version [1.4] Execute Bit Support [Enabled] Set Limit CPUID MaxVal to 3 [Disabled] HPET [Enabled] On-Chip IDE Controller [Enabled] PCI IDE Busmaster [Disabled] AFAIK some claim that there is no real benefit to having this option enabled......that is using the MOBO chipset PCI/IDE bridge to do data transfer by DMA rather than PIO (i.e. programmed I/O).....it was only of real benefit to true DOS systems......speeding up the boot process......however, modern OS's do their own bus mastering by-passing BIOS bus mastering as soon as the OS drivers are loaded.....furthermore, it can cause problems when you only have an optical drive and no HDD on the IDE cable... On-Chip SATA Controller [Enabled] RAID Mode [?] What options do you have here other than IDE? Are any greyed out....? Do the available options change if you Enable PCI IDE Busmastering or not..... ACPI Function [Enabled] ACPI Standby State [s3] Intel EIST [Disabled] Hard Disk SMART [Disabled] Can be [Enabled] after installation.....if [Enabled] initially can sometimes can cause a SMART error when booting from Install DVD Primary Graphics Adapter Set [PCI-E] Spread Spectrum [Disabled] Disabling improves performance Guessing if this is what you have for USB parameters.... USB Legacy [Enabled] USB 2.0 or High Speed [Enabled] USB Keyboard/Mouse [Enabled] Your photos of your DVDRW IDE cable indicate it is a 80 wire cable and it is registering as an IDE Master.......so it is likely that your IDE DVDRW is jumpered as Master or Cable Select..... Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1140366 Share on other sites More sharing options...
Lambros Posted April 24, 2009 Author Share Posted April 24, 2009 I used those bios settings but still got the "waiting on" error in iDeneb 10.5.6 In iAtkos 10.5.2 i got the "use only one style" error. Any more ideas? Thanks for all the help so far! Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1140536 Share on other sites More sharing options...
verdant Posted April 24, 2009 Share Posted April 24, 2009 I used those bios settings but still got the "waiting on" error in iDeneb 10.5.6 In iAtkos 10.5.2 i got the "use only one style" error. Any more ideas? Thanks for all the help so far! I am interested in what affects the RAID setting options.......because you say IDE is the only option.....is there a RAID sub-menu showing individual channels for HDDs? My guess is that RAID is disabled......hence is this your MOBO spec: G31M3-F MSI Part No: MS-7528-010 CPU • Intel® Core 2 Quad, Core 2 Duo, Pentium and Celeron in the LGA775 package For latest information on CPU support list, please check http://www.msi.com/index.php?func=cpuform2 for more detail. Have you upgraded to latest BIOS.....? Chipset Intel® G31 Chipset • Supports FSB 800/1066/1333 MHz Or does your version support 1600 MHz FSB? • Support Dual channel DDR2 667/800 Intel® ICH7 Chipset • Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports • 4 SATA ports with transfer rate up to 3 Gb/s • PCI Master v2.3, I/O APIC • ACPI 2.0 compliant Main Memory • Supports 2 unbuffered DIMM of 1.8 Volt DDR2 SDRAM • Supports up to 4GB memory size • Support Dual Channel DDR2 memory architecture • Supports DDR2 667/800 memory interface Slots • 1 x PCI Express X16 slot (PCI Express Bus SPEC V1.0a compliant) • 1 x PCI Express X1 slot (PCI Express Bus SPEC V1.0a compliant) • 2 x PCI slots (support 3.3V/ 5V PCI bus interface) On-Board IDE/SATA One Ultra DMA 66/100 IDE controller integrated in ICH7 • Supports PIO, Bus Master operation modes • Can connect up to 2 Ultra ATA drives SATA controller integrated in ICH7 • Up to 3Gb/s transfer speed • Supports four SATA ports Audio • Chip integrated by Realtek® ALC888 - Flexible 7.1-channel audio with jack sensing - Compliant with Azalia 1.0 spec - Meet Microsoft Vista Premium SPEC LAN • Supports PCIE LAN 10/100/1000 Fast Ethernet by 8111C TPM ( Trusted Platform Module) • The Trusted Platform Module Solution On-Board Peripherals • 2 x USB 2.0 connector support additional 4 ports • 1 x Floppy disk drive connector • 4 x Serial ATA II connectors • 1 x ATA100 IDE connector • Clear CMOS jumper • 1 x Serial port connector • 1 x SPDIF-out header • 1 x TPM module header • 1 x PS/2 keyboard • 1 x PS/2 mouse • 1 x Parallel port • 1 x Serial port • 4 x USB 2.0 ports • 1 x RJ45 LAN jack • 1 x Graphic Card port I am not sure about iDeneb v1.4 10.5.6 DVD's suitability for your system....I am going to suggest that you now try Kalyway 10.5.2 with USB legacy disabled and enabled.....and booting DVD with -v cpus=1 maxmem=2048 platform=ACPI|86PC maxmem=2048 only needed if you have more than 2GB MOBO RAM Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1140538 Share on other sites More sharing options...
Lambros Posted April 24, 2009 Author Share Posted April 24, 2009 I select the box where it says "RAID Mode" but the only option is IDE. Nothing else appears, not even blacked out boxes. Also, do you know how I can put it onto a USB and make it bootable? Is there a noob guide? Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1140542 Share on other sites More sharing options...
verdant Posted April 24, 2009 Share Posted April 24, 2009 I select the box where it says "RAID Mode" but the only option is IDE. Nothing else appears, not even blacked out boxes. Also, do you know how I can put it onto a USB and make it bootable? Is there a noob guide? The reason I have not considered a USB HDD install route is that I believe you need a DSDT modded BIOS......either made using fassl's DSDT patcher (see link in my post #1) if you can install OS X but only run it using cpus=1 or get a modded bios from OriginalMACNUT.......I think a modded BIOS for your system may be available.....(MS)-7528v12 or more likely (MS)-7529 G31M3-F V2 or, if not, he could maybe mod the MSI BIOS from here that matches your system.... I say this because another poster here has only just installed OS X using XxX 10.5.6 (a very good distro sadly now discontinued by BlackCH) successfully but also only with disabled USB Legacy mode, cpus=1 -v....... Only being able to run with cpus=1 usually indicates the need for a modded DSDT BIOS or DSDT.aml file (see my post #1)...... Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1140553 Share on other sites More sharing options...
Lambros Posted April 24, 2009 Author Share Posted April 24, 2009 looks very complicated.... what do u think about this.... http://www.insanelymac.com/forum/index.php...p;showentry=507 Thanks! Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1140665 Share on other sites More sharing options...
Lambros Posted April 24, 2009 Author Share Posted April 24, 2009 I am interested in what affects the RAID setting options.......because you say IDE is the only option.....is there a RAID sub-menu showing individual channels for HDDs? My guess is that RAID is disabled......hence is this your MOBO spec: G31M3-F MSI Part No: MS-7528-010 I am not sure about iDeneb v1.4 10.5.6 DVD's suitability for your system....I am going to suggest that you now try Kalyway 10.5.2 with USB legacy disabled and enabled.....and booting DVD with -v cpus=1 maxmem=2048 platform=ACPI|86PC maxmem=2048 only needed if you have more than 2GB MOBO RAM Tried that and this was my error: Extension "rtl.r1000.nic.ext" has immediate dependencies on both com.apple.kernel and com.apple.kpi components; use only one style. Any ideas? Thanks! Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1140678 Share on other sites More sharing options...
verdant Posted April 24, 2009 Share Posted April 24, 2009 looks very complicated....what do u think about this.... http://www.insanelymac.com/forum/index.php...p;showentry=507 Thanks! I did not think it was too complicated when I was writing it.......I tried to explain it as simply as I could, step by step....... Also, as I said in my OSx86DeFacto blog entry......and in my comment in reply to your comment on my blog entry.....OSx86DeFacto is geared for nForce chipset plus Intel CPU MOBO systems only...... Tried that and this was my error: Extension "rtl.r1000.nic.ext" has immediate dependencies on both com.apple.kernel and com.apple.kpi components; use only one style. Any ideas? Thanks! Did the Install DVD stop spinning and the boot screen freeze at this point....? How long did you wait before rebooting? Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1141195 Share on other sites More sharing options...
Lambros Posted April 25, 2009 Author Share Posted April 25, 2009 I did not think it was too complicated when I was writing it.......I tried to explain it as simply as I could, step by step....... Also, as I said in my OSx86DeFacto blog entry......and in my comment in reply to your comment on my blog entry.....OSx86DeFacto is geared for nForce chipset plus Intel CPU MOBO systems only...... Did the Install DVD stop spinning and the boot screen freeze at this point....? How long did you wait before rebooting? To be honest, I didn't wait that long. How long should I wait? 30 mins? I'll leave it now for about 30 mins and I'll come back later. Thanks! PS: It just seemed link nothing was happening, I'll try again now. Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1141226 Share on other sites More sharing options...
Lambros Posted April 25, 2009 Author Share Posted April 25, 2009 Well, that didnt work, i cant get that same error again for some reason.... Anyway, i can boot up the image in vmware and create a virtual OS. Is there a way to install Mac to a real partition on my computer? Is there a way to make the Mac in VMWare "see" these partitions? Thanks! Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1141287 Share on other sites More sharing options...
Lambros Posted April 25, 2009 Author Share Posted April 25, 2009 When using a mac, I restored the files onto a USB from the Kalyway disk. I made the USB Mac-journaled format, and put the files onto a partition on the USB which was about 15gb (the whole USB size) Using the OSx86 tools, how can I make it bootable? Also, have I done everything correct so far? How can I make a USB bootable using a mac (the restore function in disk utility) and OSx86 tools? Thanks! Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1141308 Share on other sites More sharing options...
verdant Posted April 25, 2009 Share Posted April 25, 2009 When using a mac, I restored the files onto a USB from the Kalyway disk. I made the USB Mac-journaled format, and put the files onto a partition on the USB which was about 15gb (the whole USB size) Using the OSx86 tools, how can I make it bootable? Also, have I done everything correct so far? How can I make a USB bootable using a mac (the restore function in disk utility) and OSx86 tools? Thanks! Use OSx86Tools to install the Darwin non-EFI bootloader onto the USB stick by clicking on Install EFI/Run FDISK, choosing for Disk to Use: "OSx86DeFacto" and for EFI to Install: "No EFI (Darwin Bootloader)" and then clicking on Install EFI button......if successful it should say "Non-EFI Bootloader installed!". If No EFI (Darwin Bootloader) does not work for your MOBO, then try other bootloaders, e.g. PC_EFI v8, Chameleon 1.0.11 on OSx86Tools, or PC_EFI v9/Chameleon 1.0.12, Chameleon 2.0RC1....... Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1141323 Share on other sites More sharing options...
Lambros Posted April 25, 2009 Author Share Posted April 25, 2009 Use OSx86Tools to install the Darwin non-EFI bootloader onto the USB stick by clicking on Install EFI/Run FDISK, choosing for Disk to Use: "OSx86DeFacto" and for EFI to Install: "No EFI (Darwin Bootloader)" and then clicking on Install EFI button......if successful it should say "Non-EFI Bootloader installed!". If No EFI (Darwin Bootloader) does not work for your MOBO, then try other bootloaders, e.g. PC_EFI v8, Chameleon 1.0.11 on OSx86Tools, or PC_EFI v9/Chameleon 1.0.12, Chameleon 2.0RC1....... It comes with only 3 bootloaders, how can I add more? Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1141340 Share on other sites More sharing options...
verdant Posted April 25, 2009 Share Posted April 25, 2009 It comes with only 3 bootloaders, how can I add more? PC_EFI V9 can be got here and Chameleon 2.0RC1 got here.....as separate installer packages...... Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1141412 Share on other sites More sharing options...
Lambros Posted April 26, 2009 Author Share Posted April 26, 2009 PC_EFI V9 can be got here and Chameleon 2.0RC1 got here.....as separate installer packages...... Thank you very much verdant....I am going to test these two out now, as the other three that came with the package didn't work. Lambros. Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1141756 Share on other sites More sharing options...

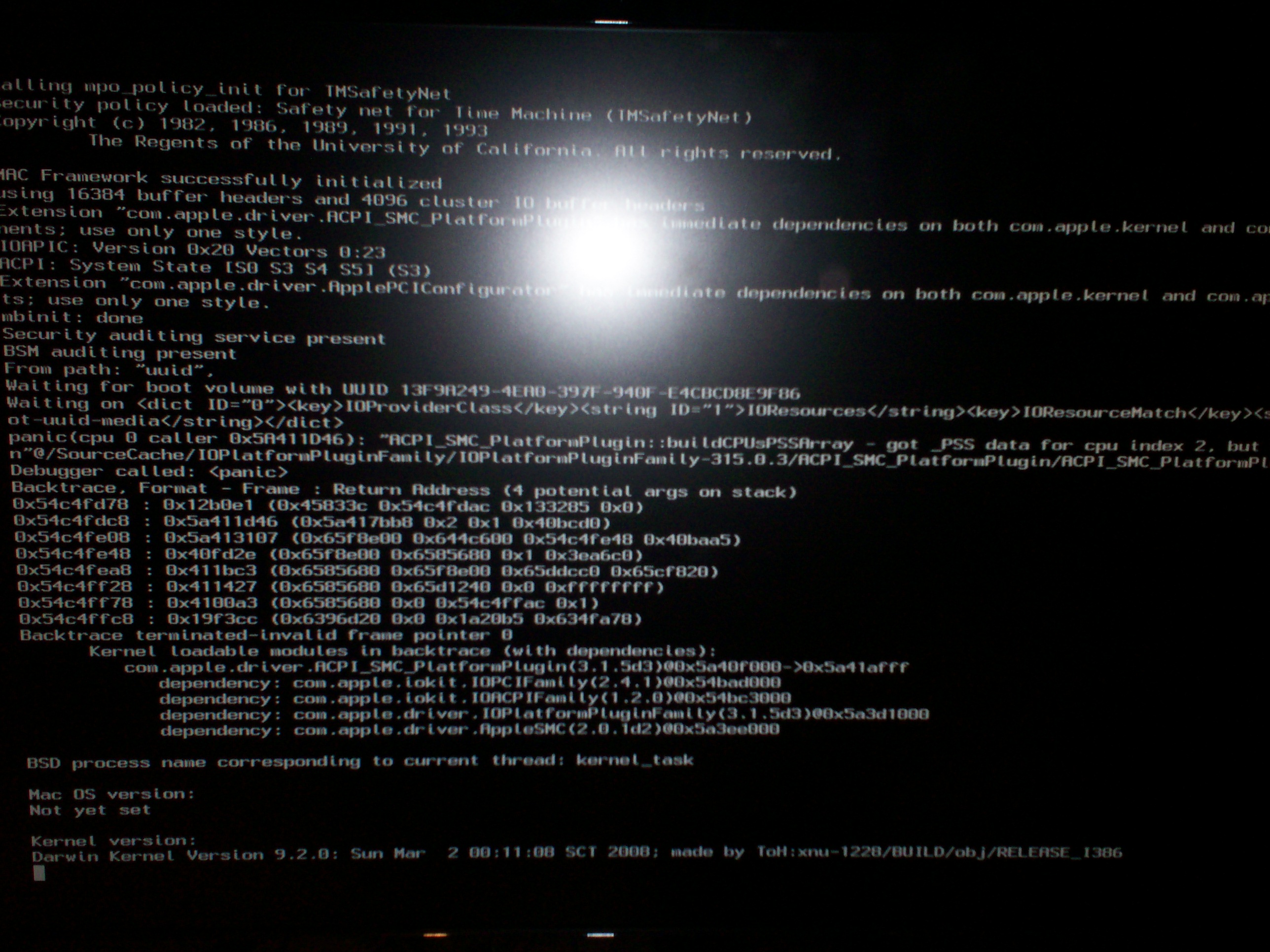

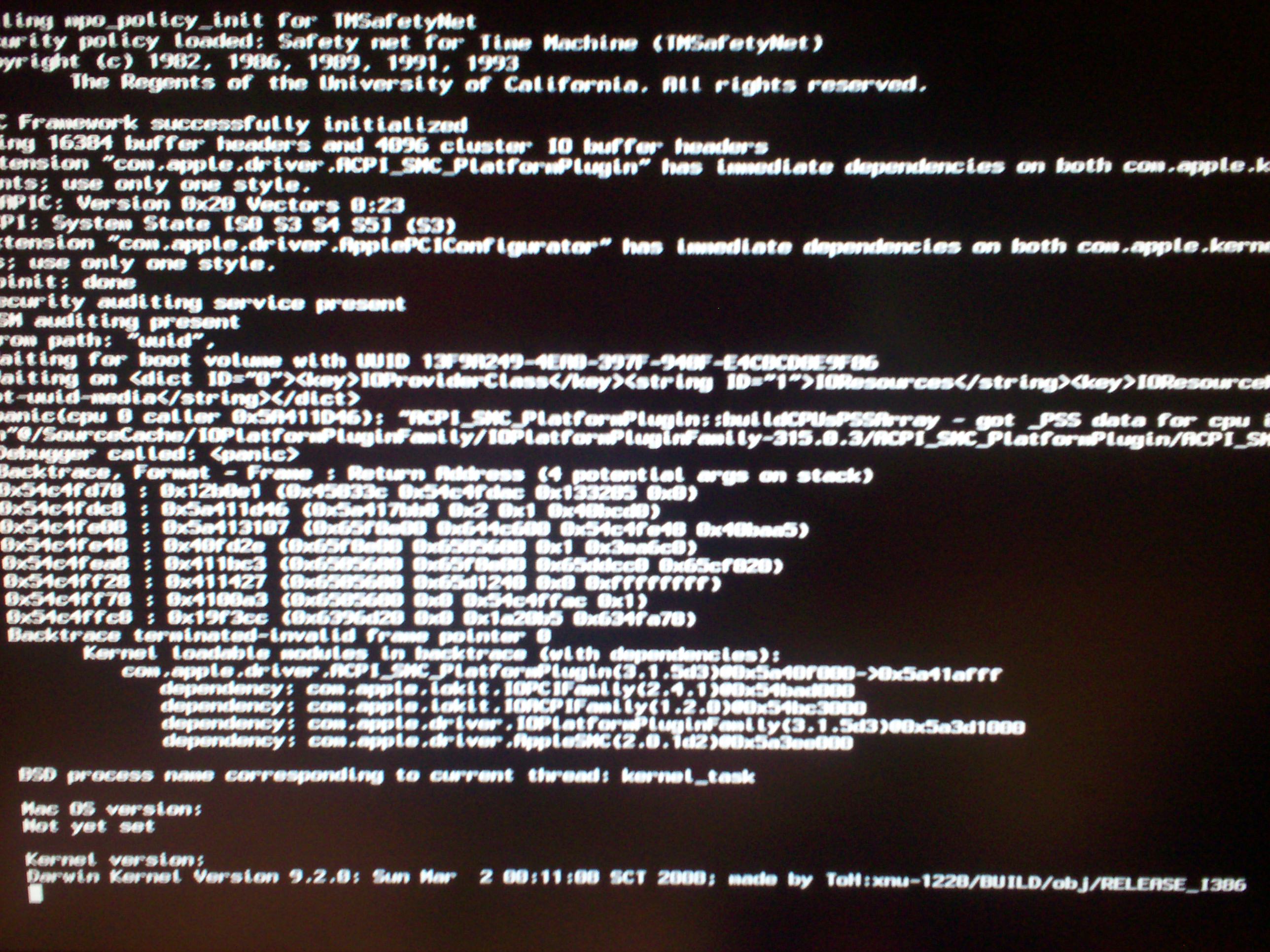

Lambros Posted April 26, 2009 Author Share Posted April 26, 2009 My bios finally decided that it liked Chameleon v2 RC1.... However, when I put in -v I get the error that is in the attached images.... Are we close to solving the problem now? Thanks! Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1141820 Share on other sites More sharing options...
verdant Posted April 26, 2009 Share Posted April 26, 2009 My bios finally decided that it liked Chameleon v2 RC1.... However, when I put in -v I get the error that is in the attached images.... Are we close to solving the problem now? Thanks! Let us see..... Enter single user mode using the -s flag while booting i.e. type -s at the "boot:" prompt and wait for the prompt ":/ root#" to appear, type each of the following lines at the prompt, followed by Enter and then waiting for ":/ root#" to re-appear. mount -uw rm -rf /System/Library/Extensions/AppleSMC.kext rm -rf /System/Library/Extensions.mkext rm -rf /System/Library/Caches/* exit Reboot with -v -f and report what happens...... Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1141837 Share on other sites More sharing options...
verdant Posted April 26, 2009 Share Posted April 26, 2009 @ Lambros See this post...... Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1142370 Share on other sites More sharing options...
Lambros Posted April 27, 2009 Author Share Posted April 27, 2009 @ Lambros See this post...... I got the same error as before.... I would prefer not to mod my bios....any other solutions? Thanks! Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1142488 Share on other sites More sharing options...
Lambros Posted April 27, 2009 Author Share Posted April 27, 2009 I booted with -s and got the same error..... Why is this? Thanks! Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1142530 Share on other sites More sharing options...
verdant Posted April 27, 2009 Share Posted April 27, 2009 I booted with -s and got the same error.....Why is this? Thanks! It shows that AppleSMC.kext alone is not the cause of your problems.......it appears that you are back to your "bad" BIOS issue (hence cpus=1 being required for successful booting)...... You can try using koalala's ACPI (DSDT) Patcher for BIOS and AML using another PC with Windows and .NET Framework installed to generate a DSDT.aml file that you then put in the /Extras folder of the Chameleon 2.0RC1 bootloader.... A DSDT-modded BIOS or a DSDT.aml file in /Extras are your ONLY two options.......if the latter does not work, then if you want to run OS X properly a modded BIOS is your only option..... Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1142735 Share on other sites More sharing options...
Lambros Posted May 15, 2009 Author Share Posted May 15, 2009 Ok ill do DSDT first, but i need to know some things.... do i risk ruining anything? Also, how do i do it? i got the ACPI patcher but dont know what to do. any info u can provide me with? Thanks very much! It shows that AppleSMC.kext alone is not the cause of your problems.......it appears that you are back to your "bad" BIOS issue (hence cpus=1 being required for successful booting)...... You can try using koalala's ACPI (DSDT) Patcher for BIOS and AML using another PC with Windows and .NET Framework installed to generate a DSDT.aml file that you then put in the /Extras folder of the Chameleon 2.0RC1 bootloader.... A DSDT-modded BIOS or a DSDT.aml file in /Extras are your ONLY two options.......if the latter does not work, then if you want to run OS X properly a modded BIOS is your only option..... btw, i cant even boot into the installer using cpus=1. i simply cant boot into anything. so what do i do? Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1157158 Share on other sites More sharing options...
verdant Posted May 15, 2009 Share Posted May 15, 2009 Ok ill do DSDT first, but i need to know some things.... do i risk ruining anything? Also, how do i do it? i got the ACPI patcher but dont know what to do. any info u can provide me with? Thanks very much! btw, i cant even boot into the installer using cpus=1. i simply cant boot into anything. so what do i do? If you cannot boot into OS X installer and install OS X on your system HDD using -v cpus=1 maxmem=2048 -v cpus=1 platform=ACPI|86PC maxmem=2048 -v cpus=1 platform=X86PC maxmem=2048 -v cpus=1 platform=X86PC -legacy maxmem=2048 you can also try these options with -x included......and -f in place of -x in case there is a problem with Extensions.mkext ... then you can try: Powering down your PC, disconnecting it from AC, and waiting for about 10 minutes, then removing your video card and your CMOS battery from the MOBO and waiting 30 minutes......then reinstall video card and then CMOS battery......and then reconnecting the PC to AC and rebooting.......then check that BIOS settings are reset to suit OS X operation.... or if that does not enable you to re-boot into OS X with -v cpus=1 etc. and so use fassl's DSDT Patcher, then read through koalala's DSDT thread to see how to generate a DSDT.aml file using Windows and .NET Framework...... Beyond that, you have flashing your BIOS as an option.... Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1157196 Share on other sites More sharing options...
Lambros Posted May 19, 2009 Author Share Posted May 19, 2009 If you cannot boot into OS X installer and install OS X on your system HDD using -v cpus=1 maxmem=2048 -v cpus=1 platform=ACPI|86PC maxmem=2048 -v cpus=1 platform=X86PC maxmem=2048 -v cpus=1 platform=X86PC -legacy maxmem=2048 you can also try these options with -x included......and -f in place of -x in case there is a problem with Extensions.mkext ... then you can try: Powering down your PC, disconnecting it from AC, and waiting for about 10 minutes, then removing your video card and your CMOS battery from the MOBO and waiting 30 minutes......then reinstall video card and then CMOS battery......and then reconnecting the PC to AC and rebooting.......then check that BIOS settings are reset to suit OS X operation.... or if that does not enable you to re-boot into OS X with -v cpus=1 etc. and so use fassl's DSDT Patcher, then read through koalala's DSDT thread to see how to generate a DSDT.aml file using Windows and .NET Framework...... Beyond that, you have flashing your BIOS as an option.... Ok, so i want to do this, but i still dont know what to do with the files i downloaded from koalala's DSDT thread. I would also like to know the risks involved. Thanks! Link to comment https://www.insanelymac.com/forum/topic/161056-cant-get-to-installation-screen/page/2/#findComment-1160250 Share on other sites More sharing options...
