Yinx Posted June 17, 2008 Share Posted June 17, 2008 Hey guys, intending to build a PC for OSX based on a RAID 0 array with XP Media Centre and OSX both installed on the same 1TB array, anyone know if this will work using a RAID controller card? Cheers guys. Link to comment Share on other sites More sharing options...
vlad1966 Posted June 17, 2008 Share Posted June 17, 2008 If you don't mind using SCSI, I've got an LSI21320-R RAID controller (PCI-X) that works no problem, however I have an LSI SATA controller that only works in JBOD mode (if I set it to RAID, the disks don't get recognized by Disk Utility). Link to comment Share on other sites More sharing options...
peach-os Posted June 18, 2008 Share Posted June 18, 2008 read my specs Link to comment Share on other sites More sharing options...
Yinx Posted June 19, 2008 Author Share Posted June 19, 2008 Hey peach-os, You couldn't let us know how you set up your array could you? Cheers. Link to comment Share on other sites More sharing options...
peach-os Posted June 19, 2008 Share Posted June 19, 2008 sorry- was too busy yesterday. first I installed os x on a single harddrive (with guid or mbr,efi.....doesn´t matter). second installed the sil3132 kext. copied the image to the raid with copycatx (copies also efi and bootloader - for that you need an other small leo installed with the sil kext). if you have a mbr partition you could use also acronis from a windows install with sil drivers installed. you could also put raid kexts on a thumbdrive and do a kextload during install. Link to comment Share on other sites More sharing options...
Yinx Posted June 19, 2008 Author Share Posted June 19, 2008 So if during my original install of leopard I used a FAT32 thumb drive to load the RAID kexts the installer will recognise my RAID controller set to RAID 0? Link to comment Share on other sites More sharing options...
peach-os Posted June 19, 2008 Share Posted June 19, 2008 So if during my original install of leopard I used a FAT32 thumb drive to load the RAID kexts the installer will recognise my RAID controller set to RAID 0? yes - after the kextload Link to comment Share on other sites More sharing options...
Yinx Posted June 30, 2008 Author Share Posted June 30, 2008 You couldn't tell me where to get that kext could you? And maybe give a step by step walkthrough of how to load the kext, supreme n00b here and I really need a hand. Cheers. Link to comment Share on other sites More sharing options...
peach-os Posted June 30, 2008 Share Posted June 30, 2008 here is the driver http://www.siliconimage.com/support/suppor...amp;osid=3& here are some instructions for the use of kextload in terminal http://developer.apple.com/documentation/D.../man/8/kextload the sil3132 kext should be on the USBHD boot from install dvd go to terminal cd /Volumes/USBHD press enter kextload sil3132.kext press enter now the raid disk should appear in disk utility - install os x on it and copy the sil3132.kext to the extensions folder and repair permissions Link to comment Share on other sites More sharing options...
kevin6879 Posted July 1, 2008 Share Posted July 1, 2008 i can't get the sil3132 kext from this website http://www.siliconimage.com/support/suppor...amp;osid=3& those drivers that i loaded are *.mpkg. i can't find kext form there. does anybody can help me. thank you very much! Link to comment Share on other sites More sharing options...
peach-os Posted July 1, 2008 Share Posted July 1, 2008 man......you already have it right click on the pkg > show pkg contents > there you will find the kext Link to comment Share on other sites More sharing options...

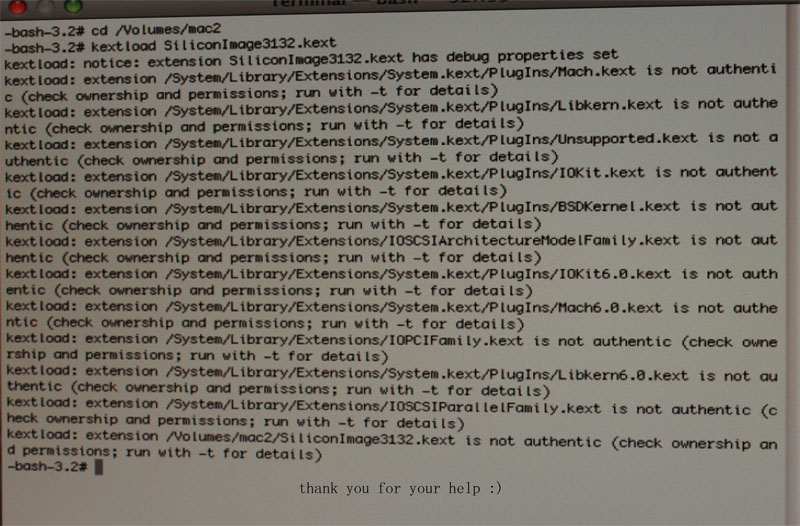

kevin6879 Posted July 1, 2008 Share Posted July 1, 2008 I'm really appreciated Peach-os' help.thank you so much. I'm tired to install os in these days,and I've tried many methods to make it work? when I found the kext, I try to do it right away.but......it doen's work. I feel very disappointed. I uploaded the picture, I holp someone can help me. thank you again Link to comment Share on other sites More sharing options...
peach-os Posted July 2, 2008 Share Posted July 2, 2008 it looks like you have to repair permissions after the kextload. I´m not sure because I tried this method only till the kextload to see if it works. suggestion: take any old drive install os x on it and the sil driver two possibilities for the next step: 1.install to your raid disk from this disk using terminal with the method that karakeeha described here perfectly http://forum.insanelymac.com/index.php?showtopic=76404 2. clone your installation with copycatx to the raid disk (no patching needed after with this tool...btwy you can find it also on kalyway 10.5.1) and resisize the disk. resizing from disk utility works only if you choose guid. very comfortable! for mbr partition you would need the gparted-live cd - this works only good with small changes. for this method you need two installations - one to clone and one to use the cloning software. you could also clone it with disk utility from the install dvd. after that you need to set the disk active and to patch efi. I would prefer method one Link to comment Share on other sites More sharing options...
Sarmu Posted July 2, 2008 Share Posted July 2, 2008 Is the SIL3132 true hardware raid or fakeraid? and also are you implementing the raid in hardware, software or fakeraid? Link to comment Share on other sites More sharing options...
kevin6879 Posted July 2, 2008 Share Posted July 2, 2008 Thank you so much for your help. I am trying.......thank you~~~~~~~~~~~~ Link to comment Share on other sites More sharing options...
peach-os Posted July 2, 2008 Share Posted July 2, 2008 it depends on the definition......... if you mean a raidcard with a driver: yes - it´s hardware if you mean a raid card that doesn´t need drivers: no Link to comment Share on other sites More sharing options...
Sarmu Posted July 2, 2008 Share Posted July 2, 2008 It's a raid card that need driver, but how did you create the array? during startup or with osx or it's automatically created when the driver is installed? Link to comment Share on other sites More sharing options...
peach-os Posted July 2, 2008 Share Posted July 2, 2008 for creating an array you have to use the bios of the raid controller. it appears during the boot process Link to comment Share on other sites More sharing options...
Sarmu Posted July 2, 2008 Share Posted July 2, 2008 In this case, I think this is exactlly what I wanted since I can dual boot this particular array in windows and osx For some reason, I was always under the impression that people successfully installed OSX on raid0 with the sil3132 card created the array with OSX, and not a bios level raid. which will be useless in my case since I still need the array to be reconised in windows. Now I get some interesting read with a clearer mindset Link to comment Share on other sites More sharing options...
peach-os Posted July 2, 2008 Share Posted July 2, 2008 of course it´s recognized by windows Link to comment Share on other sites More sharing options...
