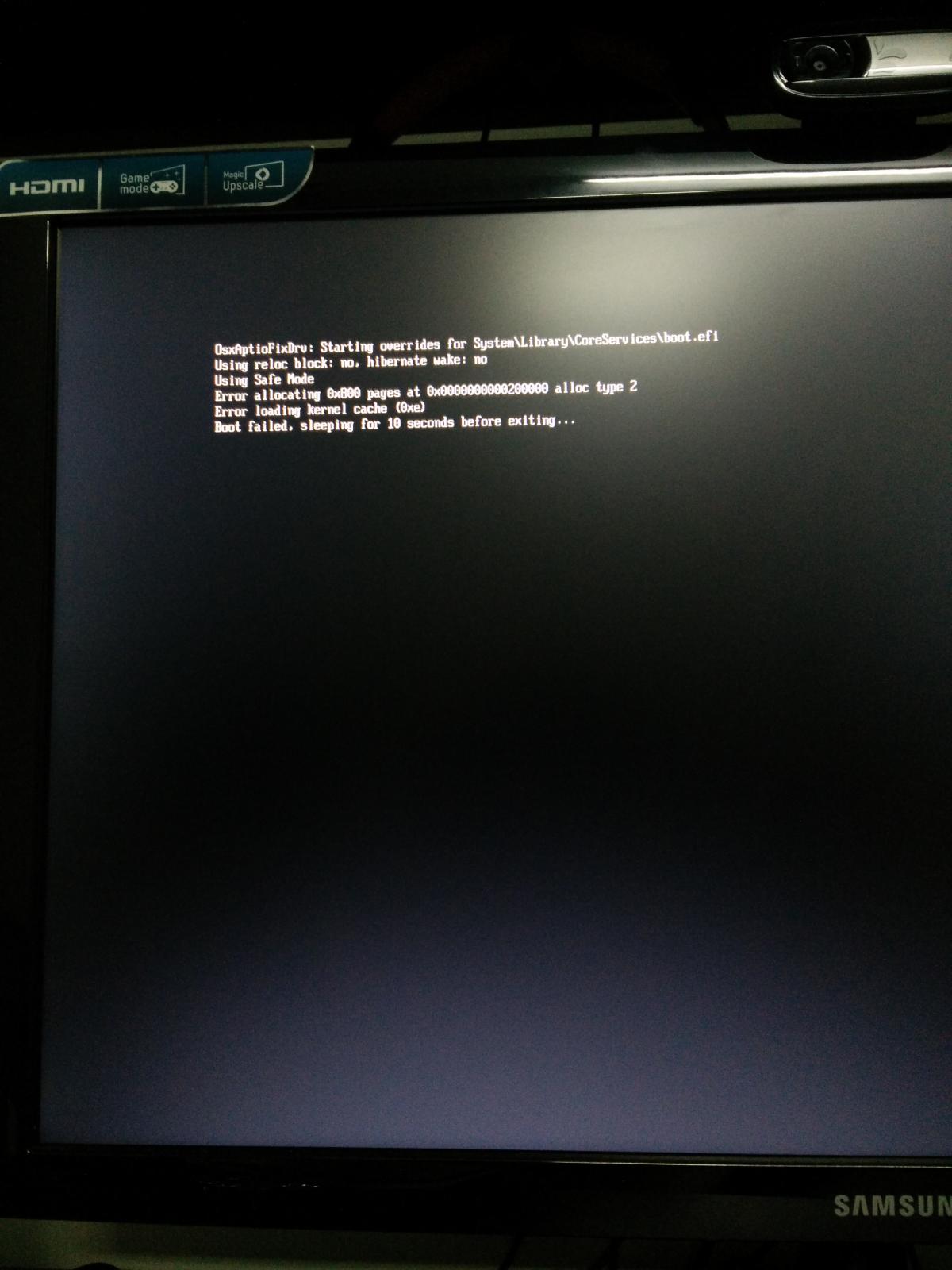

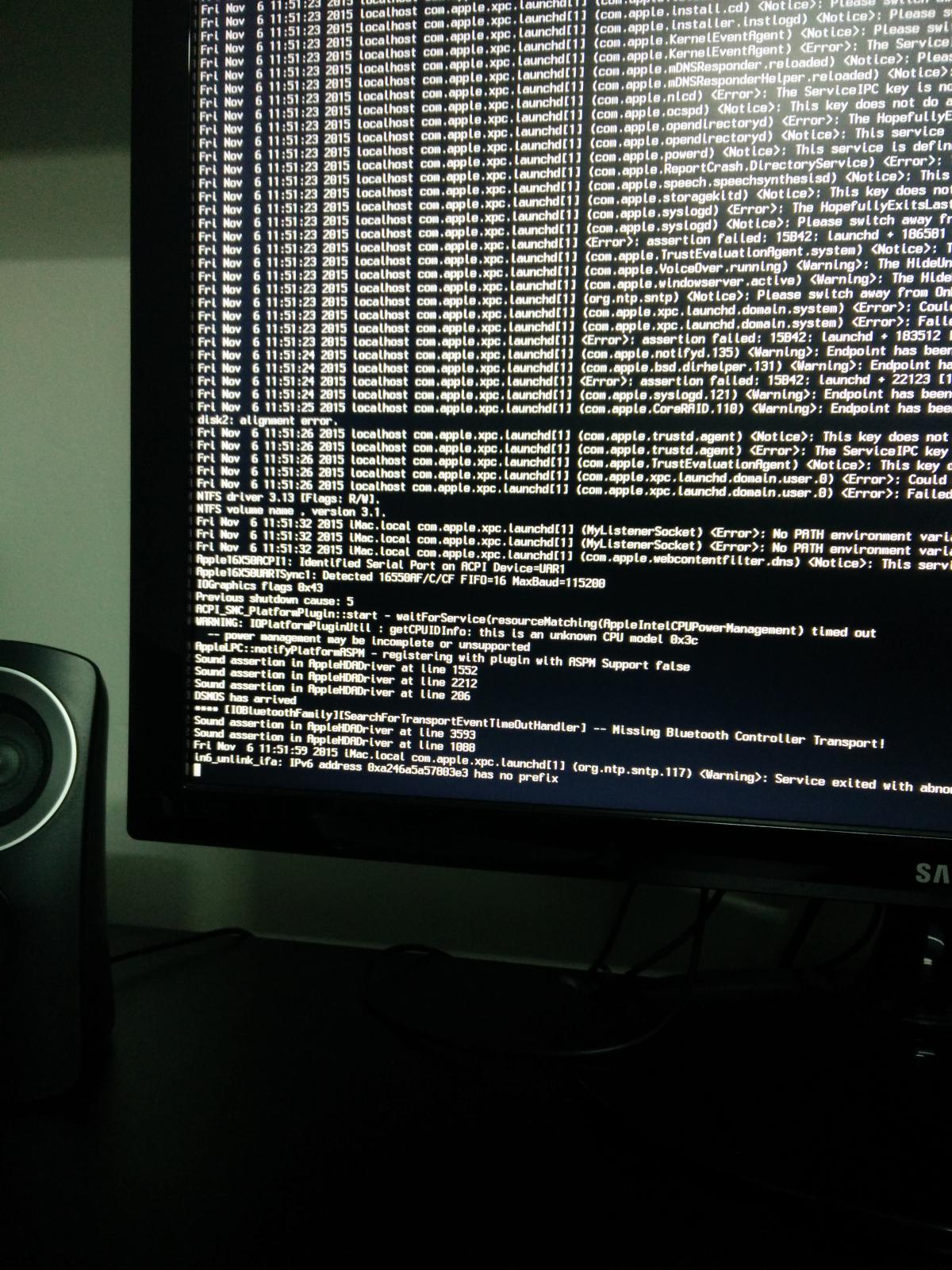

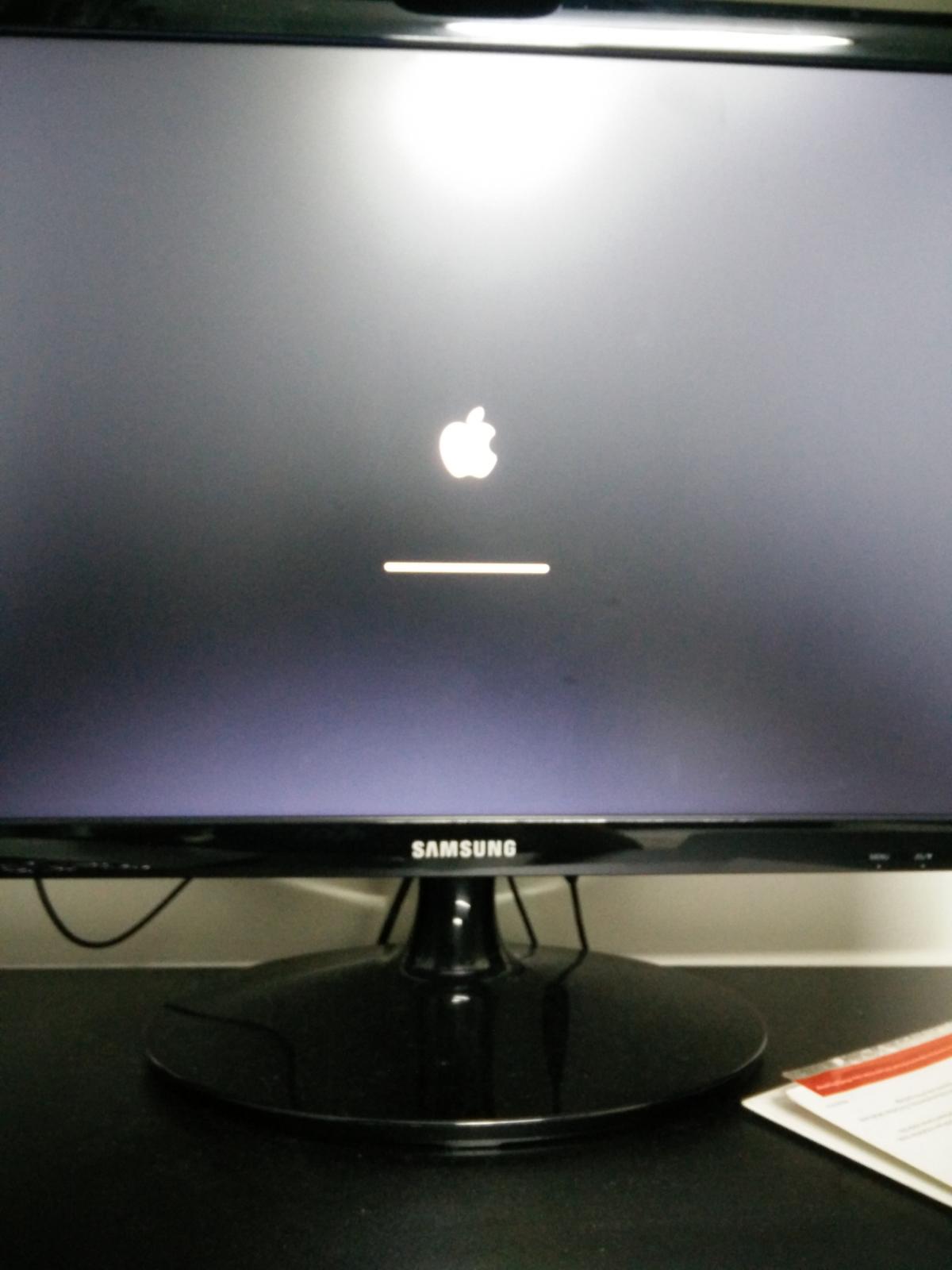

Leffan Posted November 7, 2015 Share Posted November 7, 2015 (edited) Hi, Im having some trouble installing El Capitan on my mackintosh. Every time i boot into mac using a 8gb usb drive(Motherboard usb 2.0 port), the progression bar will finish at the end of the bar but never proceed to the installation. Specs:Gigabyte z87-D3H motherboardIntel integrated graphicsi5-4460 CPU8gb RAMMy steps for installing el capitan:1)Install ########## (sorry but i have to use it, Chimera doesn't support El Capitan!) with UEFI boot mode2)Make sure i have the correct bios setting(adhi, no vt-d)3)boot from usb4)select "boot mac os from usb"5)get stuck at apple logo screenI've tried -v, -x(didn't work at all), graphicsEnabler, PCIRootUID. And none of them worked. Sorry I'm a big noob and this is my first time installing Mac OS x. Thanks a lot guys. without any boot flags. with -v with -x Edited November 7, 2015 by ErmaC Title edited Link to comment Share on other sites More sharing options...
owbp Posted November 7, 2015 Share Posted November 7, 2015 Chameleon doesn't support 10.11 yet, but Enoch does. Your install method is not supported on this forum, so you should either ask this question on other forum or use vanilla / open source install methods. http://www.insanelymac.com/forum/topic/305255-making-a-yosemite-usb-installer-w-clover-uefi-and-legacythe-correct-way/ http://www.insanelymac.com/forum/topic/307003-clover-os-x-el-capitan-usb/ http://www.insanelymac.com/forum/topic/306960-chameleon-os-x-el-capitan/page-11?do=findComment&comment=2173684 http://www.insanelymac.com/forum/topic/280756-guide-the-all-in-one-guide-to-vanilla-os-x-including-chameleon-dsdt-for-beginners-updated-for-yosemite/ P.S. Your hardware is fully supported. 1 Link to comment Share on other sites More sharing options...
bigben1 Posted November 8, 2015 Share Posted November 8, 2015 did you create your usb by uni....t method??? i would suggest remove bluetooth kexts from S/L/E from your usb drive. use boot flags GraphicsEnabler=no, if it does not work then remove all nvidia kexts from your usb S/L/E (keep a back up always) and boot again with -v flag. hope it works,post back. Link to comment Share on other sites More sharing options...
Leffan Posted November 8, 2015 Author Share Posted November 8, 2015 Chameleon doesn't support 10.11 yet, but Enoch does. Your install method is not supported on this forum, so you should either ask this question on other forum or use vanilla / open source install methods. http://www.insanelymac.com/forum/topic/305255-making-a-yosemite-usb-installer-w-clover-uefi-and-legacythe-correct-way/ http://www.insanelymac.com/forum/topic/307003-clover-os-x-el-capitan-usb/ http://www.insanelymac.com/forum/topic/306960-chameleon-os-x-el-capitan/page-11?do=findComment&comment=2173684 http://www.insanelymac.com/forum/topic/280756-guide-the-all-in-one-guide-to-vanilla-os-x-including-chameleon-dsdt-for-beginners-updated-for-yosemite/ P.S. Your hardware is fully supported. hi, for some reason it stuck at apple logo(-v -x) too, but this time with a spinning wheel. I'm trying it again with graphics enabler boot flag. And i'm using this method: http://www.insanelymac.com/forum/topic/307003-clover-os-x-el-capitan-usb/ Link to comment Share on other sites More sharing options...
Leffan Posted November 8, 2015 Author Share Posted November 8, 2015 did you create your usb by uni....t method??? i would suggest remove bluetooth kexts from S/L/E from your usb drive. use boot flags GraphicsEnabler=no, if it does not work then remove all nvidia kexts from your usb S/L/E (keep a back up always) and boot again with -v flag. hope it works,post back. how do i excess s/l/e from my usb drive. I tried using command+shift+G but it says "cannot be deleted, required by os x" Link to comment Share on other sites More sharing options...
bigben1 Posted November 8, 2015 Share Posted November 8, 2015 how did you make one?? another mackintosh or hackintosh??? you have to plug in the usb drive into another system , without booting and then try as i said in above post. your boot loader , is it clover or chameleon?? clover has files on efi partition, check there if you have all the required kexts and correct config.plist. Link to comment Share on other sites More sharing options...
Leffan Posted November 8, 2015 Author Share Posted November 8, 2015 how did you make one?? another mackintosh or hackintosh??? you have to plug in the usb drive into another system , without booting and then try as i said in above post. your boot loader , is it clover or chameleon?? clover has files on efi partition, check there if you have all the required kexts and correct config.plist. i'm using a macintosh, and the boot loader is clover. I have checked the efi partition /kexts folder, and there are no bluetooth but fakesmc kexts. Link to comment Share on other sites More sharing options...
bigben1 Posted November 8, 2015 Share Posted November 8, 2015 ok, plug your usb into your mac and remove bluetooth kexts, check your config.plist. again boot with your usb, if it does not work. next remove nvidia kexts from usb/S/L/E, try again. Link to comment Share on other sites More sharing options...
Leffan Posted November 8, 2015 Author Share Posted November 8, 2015 ok, plug your usb into your mac and remove bluetooth kexts, check your config.plist. again boot with your usb, if it does not work. next remove nvidia kexts from usb/S/L/E, try again. ern... i just told u that i couldn't find the bluetooth and nvidia kexts, where can i find it? thanks Link to comment Share on other sites More sharing options...
bigben1 Posted November 9, 2015 Share Posted November 9, 2015 plug in your usb into your mac ,once mounted,right click >>open>>sytem>>library>>extensions and look for your kexts IOBluetoothfamily,IOBluetoothhidDriver, kexts with names NVDA..... and NV ...... are all nvidia kexts. Link to comment Share on other sites More sharing options...
