AR9002WB-1NG wifi combo card(AR9285 + AR3011 (bluetooth))


  • Please log in to reply
2 replies to this topic

#1
cele_82

cele_82

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 164 posts
Hello all,
I have a AR9002WB-1NG wifi combo card(AR9285 + AR3011 (bluetooth))

From lsusb for BT

Bus 002 Device 005: ID 0cf3:3005 Atheros Communications, Inc. AR3011 Bluetooth


I got the wifi working just with a plist edit:

<key>IONameMatch</key>
<array>
<string>pci168c,2a</string>
<string>pci168c,2b</string>
</array>


for the bluetooth instead I'm confused… I've seen around two methods for this: Atheros Firmware Uploader or IOath3kfrmwr.kext

The first one (FW uploader) gives me a i5:ath3k-firmware-uploader tom$ ./ath3k-firmware-uploader
Atheros AR3011 not found error.

The second one is a bit cryptic.. I've added the device id in the plist converting it into decimal value.. but I don't get any kind of output in the Console or anywhere else.. is there a log somewhere to understand if this has been loaded or errors etc..?

This my edit for my device(ID 0cf3:3005):

<key>idProduct</key>
<integer>12293</integer>
<key>idVendor</key>
<integer>3315</integer>


PS Is there another method for BT? Suggestions? I'm running 10.8.2



Thanks

#2
LatinMcG

LatinMcG

    Insanely digesting DSDT

  • Members
  • PipPipPipPipPipPipPipPipPipPipPip
  • 2,509 posts
  • Gender:Male
  • Location:Tampa, Florida
i suspect a power on switch on pinouts of the combo card. . pin 21 is for wifi but on that i dont know.
it could also be the rev of the card.. not many have gotten it to work.. if any

as for the plsit edit. u can fake id 2A in dsdt and never have to edit the plist

#3
aikidoka25

aikidoka25

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 368 posts

UPDATE:

I managed to have it works by turning on bluetooth using blueutil. :)

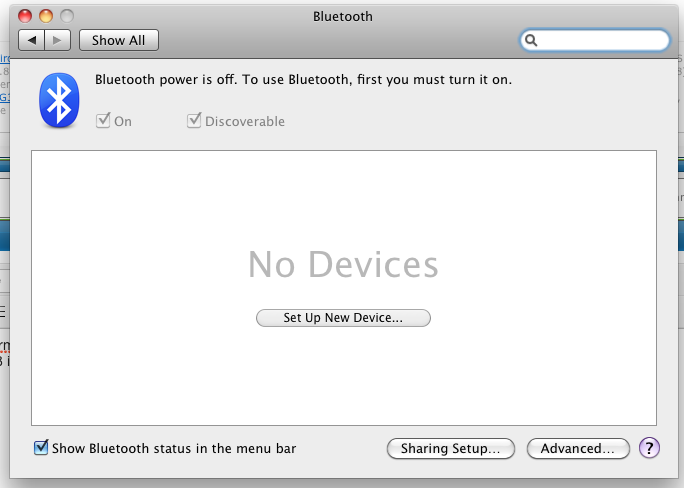

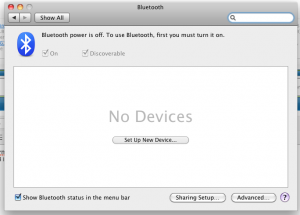

Attached File  Screen shot 2013-07-20 at 10.56.34 PM.png   54.42KB   44 downloads





I managed to compile IOath3kfrmwr.kext from github and it works on my 10.6.8 HDD (1).



However, I have another 10.6.8 setup on another HDD (2) which reports the bluetooth is off and it cannot detect or detected by any other devices.



HDD (1) was a copy of HDD (2), it is the image of HDD (1) at one point in time, but not used/updated.



I did a diff of the 2 drives S/L/E and couldn't find any differences.



Any idea why HDD (2) reports bluetooth is off?

How to resolve my issue beside restoring HDD(1) to HDD(2) ?

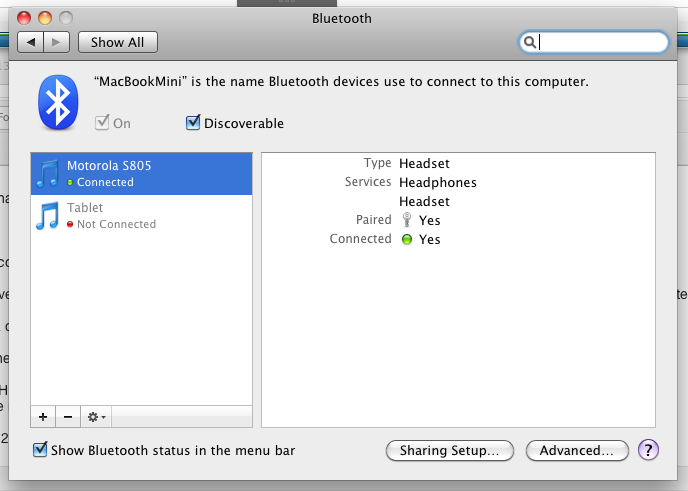

Attached File  Screen shot 2013-07-20 at 10.05.45 PM.png   44.95KB   13 downloads
