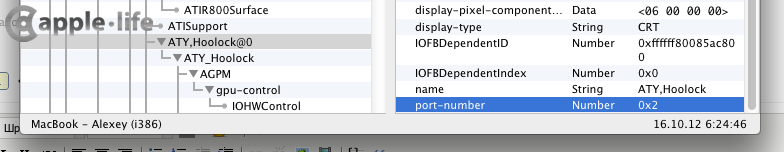

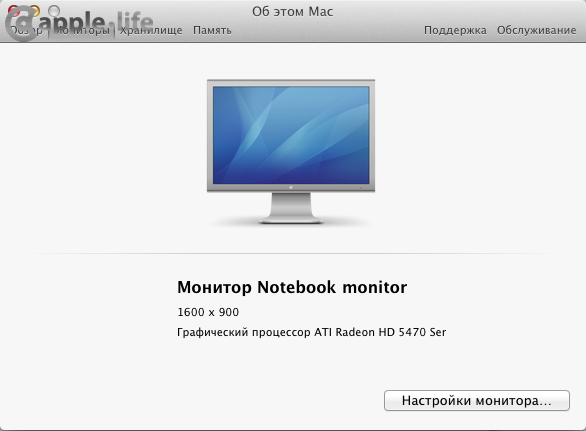

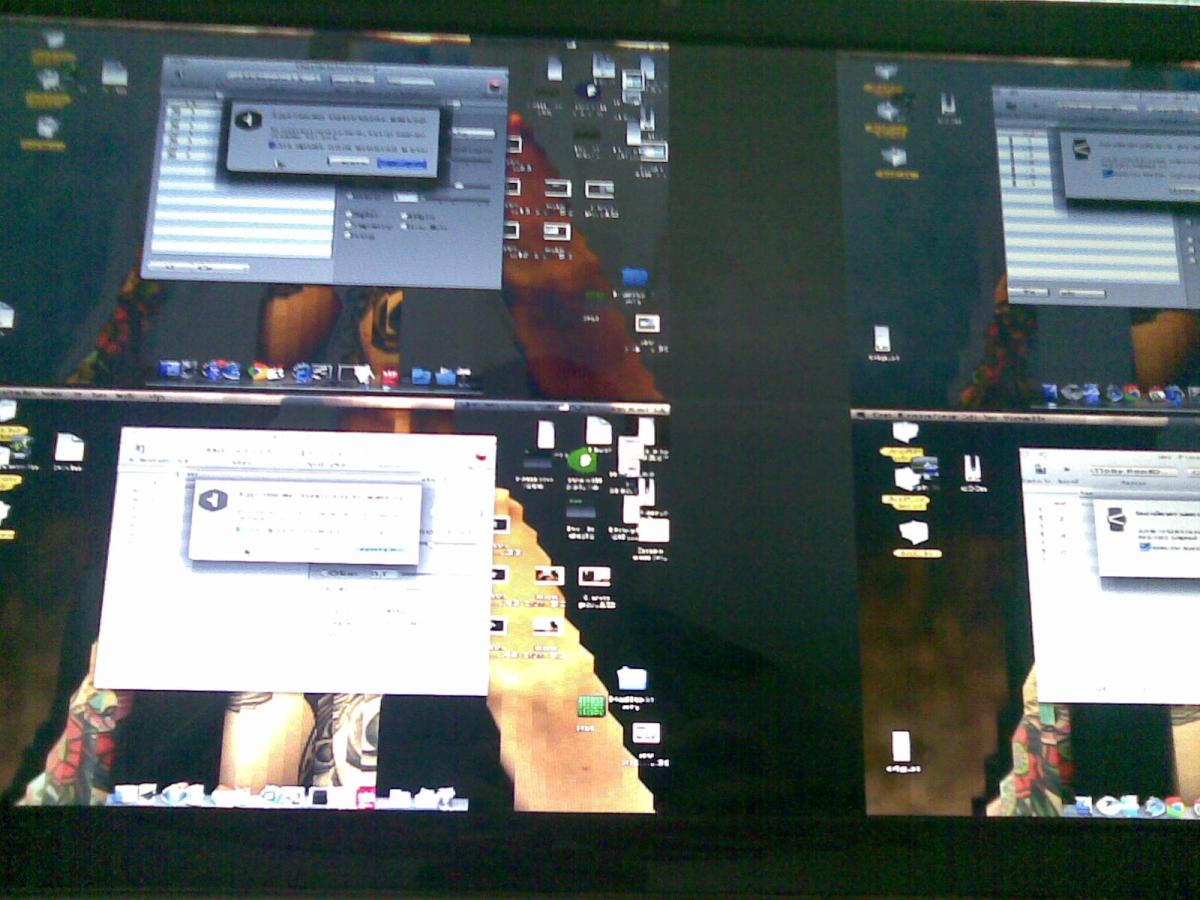

milk! Posted October 15, 2012 Share Posted October 15, 2012 hello everyone I have laptop with HD 5470M (yes, I understand that this is a worn out topic) Clover patches my Ati5000onnetors (replaces senseid) and after boot I see something like this thus accelerating work, tests show good results, but output to the screen is wrong image distortions like this: let our original image is 1234 1234 the monitor turns 13 24 13 24 13 24 13 24 I hope you will understand in addition, I have added my EDID, but it did not help my system is 10.7.5 help find solutions to this problem if necessary, Im ready to provide all the required data upd. when I was looking ioreg dump from system with injected graphics and broken image, I saw this line what does it mean? ATY,Hoolock@1 and ATY,Hoolock@2 have the values 0 and 1 judgint the radeon_bios_decode tool LVDS port must be 0 BIOS Rom: SubsystemVendorID: 0x1025 SubsystemID: 0x031c IOBaseAddress: 0x3000 Filename: BR35723.001 BIOS Bootup Message: Acer SJV70CP PARK XT DDR3 64Mx16 512MB PCI ID: 1002:68e0 Connector at index 0 Type [@offset 45302]: LVDS (7) Encoder [@offset 45306]: INTERNAL_UNIPHY (0x1e) i2cid [@offset 45376]: 0x96, OSX senseid: 0x7 Connector at index 1 Type [@offset 45312]: HDMI-A (11) Encoder [@offset 45316]: INTERNAL_UNIPHY1 (0x20) i2cid [@offset 45399]: 0x90, OSX senseid: 0x1 Connector at index 2 Type [@offset 45322]: VGA (1) Encoder [@offset 45326]: INTERNAL_KLDSCP_DAC1 (0x15) i2cid [@offset 45426]: 0x93, OSX senseid: 0x4 can a laptop monitor "sit" on wrong port? If this is true then it is clear why the monitor is determined as an external but how do I get it to work properly? pls help my guesses are wrong I try to describe all of I did step by step 1. Lion clean install and upgrade to 10.7.5 using Clover 2. dump vbios (again with Clover) and use decoder tool radeon_bios_decode ATOM BIOS Rom: SubsystemVendorID: 0x1025 SubsystemID: 0x031c IOBaseAddress: 0x3000 Filename: BR35723.001 BIOS Bootup Message: Acer SJV70CP PARK XT DDR3 64Mx16 512MB PCI ID: 1002:68e0 Connector at index 0 Type [@offset 45302]: LVDS (7) Encoder [@offset 45306]: INTERNAL_UNIPHY (0x1e) i2cid [@offset 45376]: 0x96, OSX senseid: 0x7 Connector at index 1 Type [@offset 45312]: HDMI-A (11) Encoder [@offset 45316]: INTERNAL_UNIPHY1 (0x20) i2cid [@offset 45399]: 0x90, OSX senseid: 0x1 Connector at index 2 Type [@offset 45322]: VGA (1) Encoder [@offset 45326]: INTERNAL_KLDSCP_DAC1 (0x15) i2cid [@offset 45426]: 0x93, OSX senseid: 0x4 redsock_bios_decoder BR35723.001 : Acer SJV70CP PARK XT DDR3 64Mx16 512MB Subsystem Vendor ID: 1025 Subsystem ID: 31c Object Header Structure Size: 199 Connector Object Table Offset: 34 Router Object Table Offset: 0 Encoder Object Table Offset: 99 Display Path Table Offset: 12 Connector Object Id [14] which is [LVDS] encoder obj id [0x1e] which is [iNTERNAL_UNIPHY (osx txmit 0x10 [duallink 0x0] enc 0x0)] linkb: false Connector Object Id [12] which is [HDMI_TYPE_A] encoder obj id [0x20] which is [iNTERNAL_UNIPHY1 (osx txmit 0x11 [duallink 0x1] enc 0x2)] linkb: false Connector Object Id [5] which is [VGA] encoder obj id [0x15] which is [iNTERNAL_KLDSCP_DAC1 (osx txmit 0x00 enc 0x10?)] linkb: false and tried to make your own frame buffer by instruction of Mucha get something like this 02000000400000000901000010000007 //LVDS 00080000000200000001000011000101 //HDMI 10000000100000000001000000000204 //VGA 3. in Clover config.plist put this section <key>FBName</key> <string>Hoolock</string> <key>GraphicsInjector</key> <string>Yes</string> <key>LoadVBios</key> <string>Yes</string> and use included kext patch for ati conroller like this <key>ATIConnectorsController</key> <string>5000</string> <key>ATIConnectorsData</key> <string>000400000406000000010000210305010004000004060000000100001102040204000000140200000001000002040103</string> <key>ATIConnectorsPatch</key> <string>020000004000000009010000100000070008000000020000000100001100010110000000100000000001000000000204</string> but after boot I got black screen without backlight then I tried replace only senseid and i get something like a picture at the beginning ioreg.zip Link to comment Share on other sites More sharing options...
giofrida Posted October 16, 2012 Share Posted October 16, 2012 Have you tried to boot with the AtiConfig=Hoolock or AtiConfig=Eulemur? Link to comment Share on other sites More sharing options...
milk! Posted October 16, 2012 Author Share Posted October 16, 2012 Have you tried to boot with the AtiConfig=Hoolock or AtiConfig=Eulemur? I no longer perceive chameleon as the good bootloader, using the development of my compatriot - clover Link to comment Share on other sites More sharing options...
artur_pt Posted October 16, 2012 Share Posted October 16, 2012 hello see this http://olarila.com/forum/viewtopic.php?f=18&t=736 and look my signature good hack Link to comment Share on other sites More sharing options...
milk! Posted October 16, 2012 Author Share Posted October 16, 2012 first post updated added some crazy guesses hello see this http://olarila.com/f....php?f=18&t=736 and look my signature good hack yep I saw this post many times, but I still cant get my monitor work and I cant update my system to ML, installer doesnt start - permanently reboot Link to comment Share on other sites More sharing options...
artur_pt Posted October 16, 2012 Share Posted October 16, 2012 hello sorry mine work without any problems good hack Link to comment Share on other sites More sharing options...
milk! Posted October 16, 2012 Author Share Posted October 16, 2012 hello sorry mine work without any problems good hack np I will look for a solution but anyway, can I see ur ioreg dump? Link to comment Share on other sites More sharing options...
artur_pt Posted October 16, 2012 Share Posted October 16, 2012 hello there it is MacBook Pro de artur_pt.zip good hack Link to comment Share on other sites More sharing options...
milk! Posted October 16, 2012 Author Share Posted October 16, 2012 hello there it is MacBook Pro de artur_pt.zip good hack thanks 1st post updated Link to comment Share on other sites More sharing options...
