[Solved] Mountain Lion on Sony Caio CPCF11M1E (console 1024x768 @ 0xe1000000)

sony vaio Mountain Lion laptop Graphics Card problem

  • Please log in to reply
18 replies to this topic

#1
christos312

christos312

    InsanelyMac Protégé

  • Members
  • Pip
  • 12 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:Programming, Guitar, Web Development, messing around with tech
Hello to everyone, and oh welcome me to this crazy world :angel_not:

I am trying to install for the first time Mountain Lion on my Sony Vaio Laptop, here are my specs

Sony Vaio CPCF11M1E
Platform: Intel® Core™ i5 processor; Chipset Intel PM55 Express Chipset
CPU: Intel Core i5-520M Processor 2.4Ghz; Instructions Supported: MMX, SSE(1, 2, 3, 3S, 4.1, 4.2), EM64T. VT-x, AES
RAM: 4Gb DDR3
GPU: NVIDIA GeForce GT 330M
HDD: 500GB

And here is my problem, at first I was getting the error PCI Configuration Begin and then restart. I managed to get pass the error by typing

pci=off


before booting, but now I get the following error

console 1024x768 @ 0xe1000000


I tried to boot with the following flags

"Graphics Mode"="1280x1024x16" -v -x pci=off


But no sir no luck at all :hammer:

Can anyone, any soul, any :weight_lift: (champion) help me out with my problem?

Thank you in advance for your time :help:

#2
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain
-f -v -x GraphicsEnabler=No npci=0x3000 PCIRootUID=1

-f -v -x GraphicsEnabler=Yes npci=0x2000 PCIRootUID=0 cpus=1

#3
christos312

christos312

    InsanelyMac Protégé

  • Members
  • Pip
  • 12 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:Programming, Guitar, Web Development, messing around with tech
Thanks for the quick reply, but :( i tried both and it stucks

PCI Configuration Begin


And then black screen

#4
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain
backup the graphics kext with this comand terminal: boot with -s


mount /
mkdir kext_backup
cd /System/Library/Extensions
mv AppleIntelHD* AppleIntelSNB* ATI* GeForce* NVDA* /kext_backup
sudo rm -rf /System/Library/Caches/*
shutdown -R now


Edit: post your Extra folder

#5
christos312

christos312

    InsanelyMac Protégé

  • Members
  • Pip
  • 12 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:Programming, Guitar, Web Development, messing around with tech
Update: I managed to get passed the error at last using these kexts: http://netkas.org/?p=1053

But now I get this error :s

ApplePS2ALPSGlidePoint: Dictionary Object: HIDDefaultParameters


Does anyone knows anything about it?

#6
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain
DELETE ApplePS2 and install this kexts with Kext Wizard/Repairpermissions/Rebuild caches/ reboot


Attached File  PS2.zip   55.55KB   86 downloads

#7
christos312

christos312

    InsanelyMac Protégé

  • Members
  • Pip
  • 12 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:Programming, Guitar, Web Development, messing around with tech

DELETE ApplePS2 and install this kexts with Kext Wizard/Repairpermissions/Rebuild caches/ reboot


Attached File  PS2.zip   55.55KB   86 downloads



Let me try this as well, I ill report back ASAP

#8
christos312

christos312

    InsanelyMac Protégé

  • Members
  • Pip
  • 12 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:Programming, Guitar, Web Development, messing around with tech
Whyyyyyyyyyyyyyyyyyyyyy, I am getting from one error to another.

I have succesfully installed the suggested kexts and repaired Permissions.... and now.... I get these error

using 64-bit bootcache playlist
BootCacheControl: Unable to open /var/db/BootCache.playlist: 2 No such file or directory
Waiting for DSMOS...


:| I feel so close on booting ML yet so far :worried_anim:

I found that the error Waiting for DSMOS has to do with the FakeSMC kext, what is the latest version of this kext and from where I can find it?

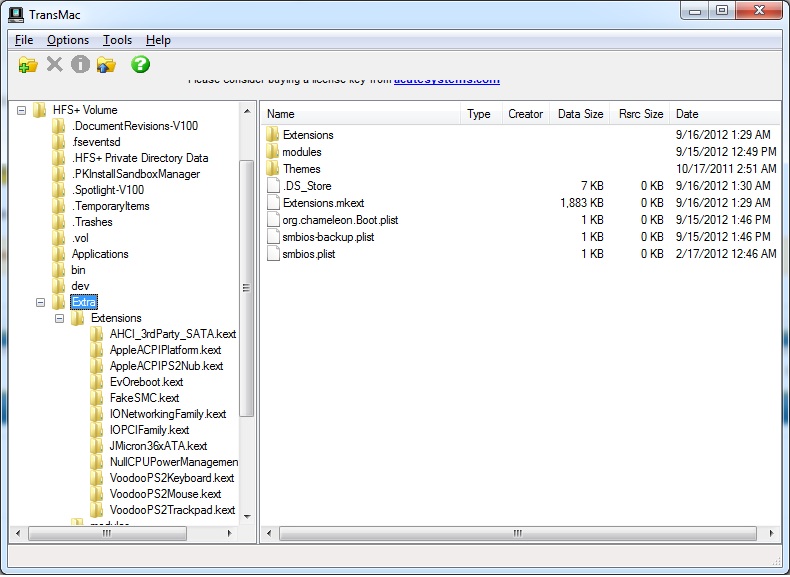

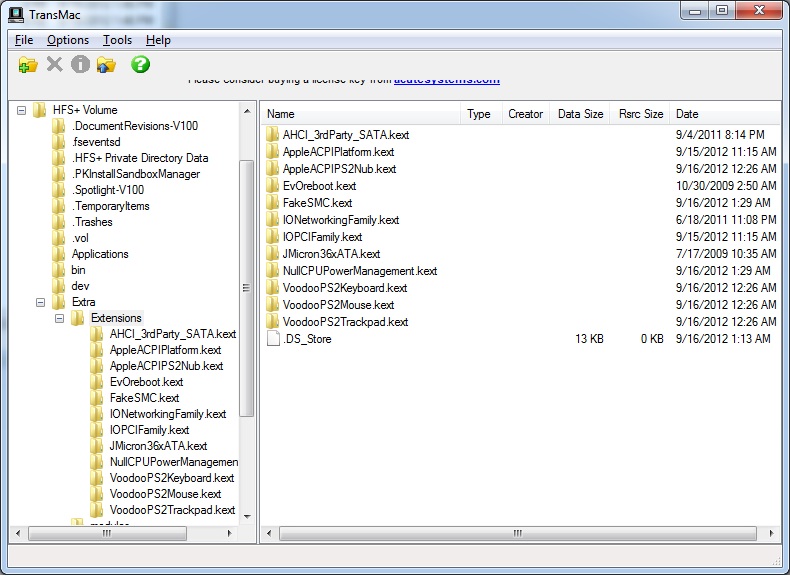

I posted my Extra Folder as well

Attached Files

  • Attached File  1.jpg   123.35KB   30 downloads
  • Attached File  2.jpg   143.32KB   31 downloads

Edited by christos312, 15 September 2012 - 11:26 PM.


#9
christos312

christos312

    InsanelyMac Protégé

  • Members
  • Pip
  • 12 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:Programming, Guitar, Web Development, messing around with tech
Well let me share my progress at least....

I decided to use iHack to create my bootable USB from the beggining. Everything when perfect....

I got an error about [PCI Configuration Begin] and solved it my installing these kexts http://netkas.org/?p=1053

Fix permissions and rebboted...

This is the first time I got pass DSMOS..... and i think I am one step before booting in to ML....

My last error is

[IOBlueToothHCIController][Start] -- completed

but then boom, black screen nothing happens....

Any solutions or extra kext i have to install????


#10
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain

backup the graphics kext with this comand terminal: boot with -s




mount /


mkdir kext_backup


cd /System/Library/Extensions


mv AppleIntelHD* AppleIntelSNB* ATI* GeForce* NVDA* /kext_backup


sudo rm -rf /System/Library/Caches/*


shutdown -R now



#11
christos312

christos312

    InsanelyMac Protégé

  • Members
  • Pip
  • 12 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:Programming, Guitar, Web Development, messing around with tech
Good new and bad news....

Firstly THANK YOU :wink2: iFIRE for everything and your help so far

Good News: I did boot in Mountain Lion and installed it on my HDD....

Bad News: When I try to boot from my HDD (Not USB) I get the error [PCI COnfiguration Begin] :help:

Looks like history is repeating itself :wallbash:

Any tips on that?

#12
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain
yes, use this boot flag: -x -v -f npci=0x3000 GraphicsEnabler=No

#13
christos312

christos312

    InsanelyMac Protégé

  • Members
  • Pip
  • 12 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:Programming, Guitar, Web Development, messing around with tech
Nop it doesn't work :(

Why I can boot from my USB but not from Hard disk???

Do I have to transfer any kexts to the Hard Disk?

#14
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain
copy the folder Extra from your USBINSTALLER for root of your disk and use this boot flag, and copy all kexts from Extra/Extensions of USB for S/L/E hard disk

#15
christos312

christos312

    InsanelyMac Protégé

  • Members
  • Pip
  • 12 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:Programming, Guitar, Web Development, messing around with tech
Yes I tried to do that...

I boot with my USB Open Disk Utilities

But I cannot copy-paste between my USB and HDD.... I can see all the files but when I right click I can only select "Quick lookup" (or something)

#16
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain
boot from USB and when you have interface gui chameleon set for boot your hard disk, and use the boot flag

#17
christos312

christos312

    InsanelyMac Protégé

  • Members
  • Pip
  • 12 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:Programming, Guitar, Web Development, messing around with tech
Sorry if I sound stupic but there is GUI in chameleon?

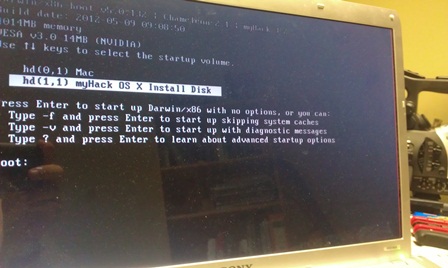

This is what I see Attached File  IMAG0159.jpg   49.72KB   28 downloads

If i choose Mac (HDD) and type the flags I get the error

If I choose myHack OS X Install Disk I boot into ML installation

#18
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain
yes, hd (0,1 ) Mac this is your disk, select it an put the boot flag and enter


-f -v -x GraphicsEnabler=No npci=0x2000

and if not work install the kexts from netkas in your Extra/USB installer


http://netkas.org/?p=1053


These of you who are stuck at [PCI Configuration begin/end] and npci=0×3000 doesnt help, you had to use 10.6.7 IOPCIFamily and AppleACPIPlatform

and cant try Mountain [s]Dew[/s] Lion. Well, no more.

NETKAS

ported IOPCIFamily-115 kext to work with new AppleACPIPlatform.

So, you can use it and no need to replace AppleACPIPlatform with old one, a bit better then having to replace both.

Here is a link to a kext and sources -

http://rghost.ru/36725147

Also, here is version for Mountain Lion, which allowed my lappy to boot 10.8 -

http://rghost.ru/36725213

(both versions include fixes for ethernet and wifi on laptops lacking iomap addresses)


#19
christos312

christos312

    InsanelyMac Protégé

  • Members
  • Pip
  • 12 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:Programming, Guitar, Web Development, messing around with tech
I tried, I get the same error

[PCI Configuration begin]

I have the kext in the USB installer and i can boot from USB

but i cannot boot from my Hard Disk.
