ATI Mobility Radeon 4650 Mountain Lion


  • Please log in to reply
17 replies to this topic

#1
Rampage Dev

Rampage Dev

    InsanelyMac Deity

  • Local Moderators
  • 2,021 posts
  • Gender:Male
I can not seem to get ATI Mobility Radeon 4650 working in Mountain Lion. Ideas?

Dell Inspiron N5010
ATI Mobility Radeon 4650

#2
plsh2me

plsh2me

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 179 posts
  • Gender:Male
  • Location:Bangladesh
I owned the same card, yet not tried for Mountain Lion. smartie77 have shared his kexts for GM and attached a pdf file of the process to make working on the post. so you may try this process. For details see the post - http://www.osx86.net...vds_tos_...html

Thank you.

#3
artur-pt

artur-pt

    InsanelyMacaholic

  • Local Moderators
  • 4,654 posts
  • Gender:Male
  • Location:Portugal
  • Interests:TechManiaco
hi

yes smartie77 have several post with working card in Toshiba laptop

good hack

#4
Rampage Dev

Rampage Dev

    InsanelyMac Deity

  • Local Moderators
  • 2,021 posts
  • Gender:Male
His lion kexts get get full resolution but using his mountain lion kext it gives me a black screen.

#5
plsh2me

plsh2me

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 179 posts
  • Gender:Male
  • Location:Bangladesh
If you wish, can give a try crazybirdy's method. Follow the thread - http://www.insanelym...ic=252061&st=19 .

#6
plsh2me

plsh2me

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 179 posts
  • Gender:Male
  • Location:Bangladesh
Ok guys, right now i am here - installed Mountain Lion 10.8.2 and activated my graphics successfully :D . Thanks crazybirdy for his new method. Graphics card is recognised as ATI Radeon HD 4600 with 1024MB vram. I am sharing my kexts here -
Attached File  ATI 1002_9480 osx 10.8.2 Peregrine.zip   4.64MB   404 downloads

#7
Rampage Dev

Rampage Dev

    InsanelyMac Deity

  • Local Moderators
  • 2,021 posts
  • Gender:Male
Post your DSDT and IOreg and I will inject your GPU into your DSDT and give you the AppleHDA I was using. This will give you HDMI audio out.

Also what wifi card are you using in your laptop? The native one will not work and I want to replace it.

#8
plsh2me

plsh2me

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 179 posts
  • Gender:Male
  • Location:Bangladesh
Ok I have attached my DSDT and ioreg for inject GPU and HDMI.
Attached File  ioreg n dsdt.zip   486.13KB   76 downloads

Thank you so much for your interest.

As you have the same one - N5010, you know this one comes with bcm4313. I replaced it with Atheros AR9285 from ebay. using this kexts -http://www.osx86.net/downloads.php?do=file&id=2311 .

I have added my HDMI on dsdt, pached AppleHDA works but no output :( . Don't know what's go wrong. So using voodoo HDA.
Please correct HDMI info, if anything wrong and send your AppleHDA.

#9
Rampage Dev

Rampage Dev

    InsanelyMac Deity

  • Local Moderators
  • 2,021 posts
  • Gender:Male
Attached is the DSDT and the AppleHDA.

Post IOreg after installing and make sure to remove VoodooHDA.kext from S/L/E

Attached Files



#10
plsh2me

plsh2me

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 179 posts
  • Gender:Male
  • Location:Bangladesh
I had replace AppleSmartBatteryManager.kext, its working. So haven't load voodoo battery. Installed AppleHDA, replaced dsdt. Sounds works , but no input :( .

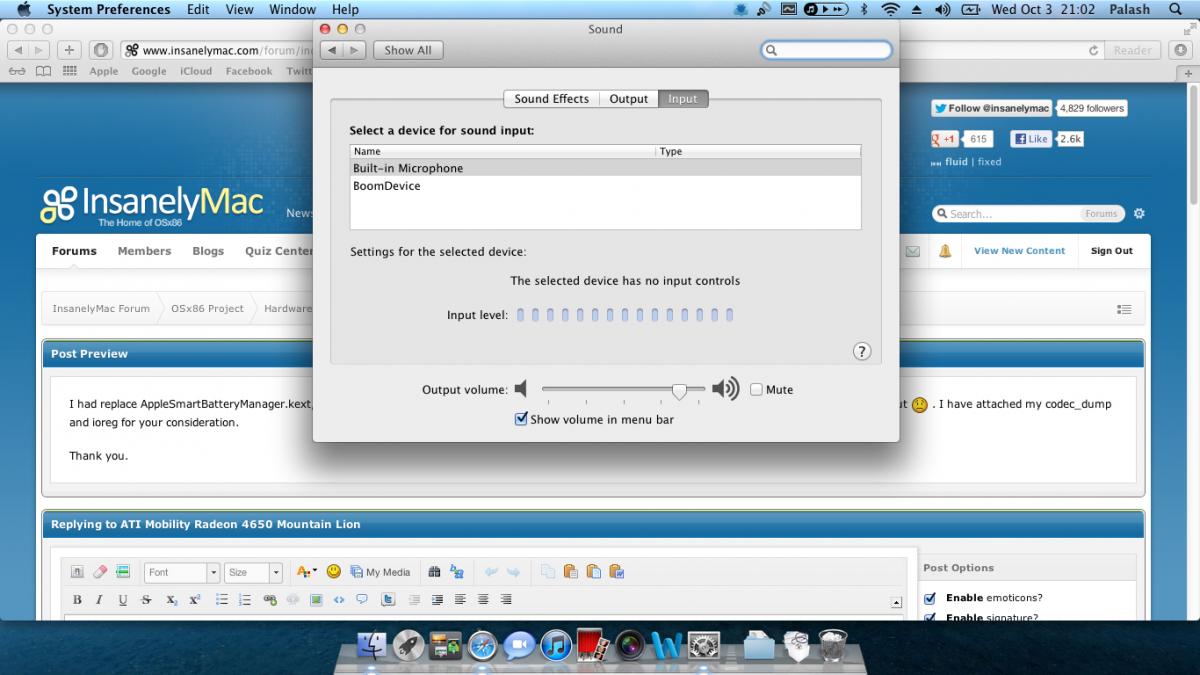

Attached File  display.jpg   103.72KB   69 downloads

I have attached my codec_dump and ioreg for your consideration.
Attached File  codec n ioreg.zip   447KB   26 downloads

Thank you.

#11
Rampage Dev

Rampage Dev

    InsanelyMac Deity

  • Local Moderators
  • 2,021 posts
  • Gender:Male
You are saying that you got the native battery kext working? Can you post how and what kexts you used.

Also I cleaned up a few things in this DSDT:

Attached File  DSDT.aml.zip   16.17KB   33 downloads

#12
plsh2me

plsh2me

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 179 posts
  • Gender:Male
  • Location:Bangladesh
Yes I confess. You have edited a few things.
Thanks man...
Here is the kext I am using.Attached File  power.zip   244.15KB   44 downloads

If you suggest me to load voodoo, please tell me.

Consider audio kext, I think something wrong with device id on DSDT, help me to correct audio.

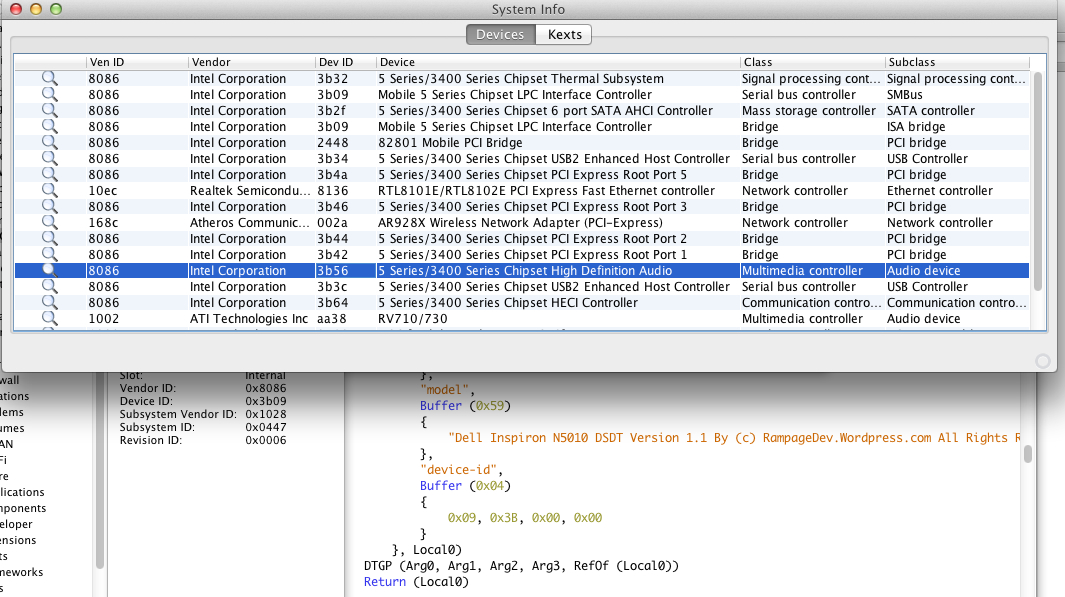

Attached File  device ID.jpg   509.79KB   73 downloads

#13
plsh2me

plsh2me

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 179 posts
  • Gender:Male
  • Location:Bangladesh
Ok, guys another update for ATI Mobility Radeon HD 550v/4650 (1002_9480), now it included VGA Display and HDMI.

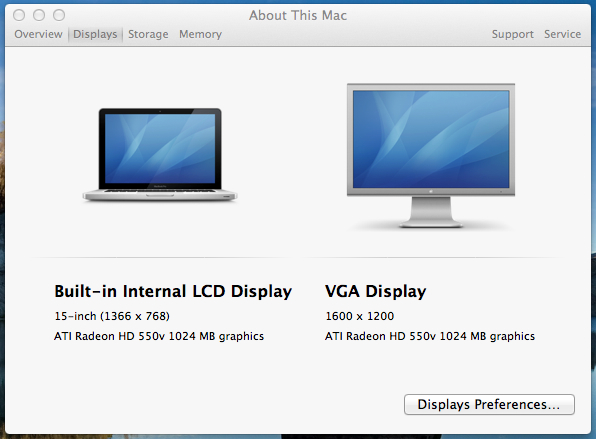

Attached File  display.jpg   140.4KB   116 downloads

I attached here if you need it.Attached File  ATI shrike 10.8.2.zip   4.66MB   253 downloads


Thanks bcc9 & crazybirdy.

#14
Rampage Dev

Rampage Dev

    InsanelyMac Deity

  • Local Moderators
  • 2,021 posts
  • Gender:Male
Sweet. Does HDMI audio work with my DSDT?

#15
codesn

codesn

    InsanelyMac Protégé

  • Members
  • Pip
  • 2 posts
When i setup ATY_INIT.kext for my graphics card driver, it worked. But it just worked on external monitor screen not laptops screen. I just saw black screen on laptop. After boot, the laptop screen still seems black. But the external monitor which i connected by VGA output is worked.

In the following link you can see the pictures which i took for clear understand. Are there any other ways to setup this graphic card ?
Link: pictures and kext files

Note: I tried to setup shrike and peregrine versions of ATY_INIT.kext but it failed. Both of the screens internal and external didn't worked. But when i setup motmot version it worked like which i told above.

Thanks for your helps and sorry for my bad english..

#16
Guest: minty_lite_*

Guest: minty_lite_*
  • Guests
Could I request also for AMD Radeon 6320 Graphics Card using ML?

I have
~ Sony Vaio Y - VPCYB4AJA
~ AMD Dual Core E-450 APU @ 1.65GHz
~ 2 GB Ram

Edited by fantomas1, 27 March 2013 - 07:55 AM.
hi minty_lite pls open another topic for your request :) cordially, staff


#17
Extended

Extended

    InsanelyMac Protégé

  • Members
  • Pip
  • 40 posts
  • Gender:Male
  • Location:Germany

Have you found a solution for the black screen?

I have the same issue



#18
shahmahmud

shahmahmud

    InsanelyMac Protégé

  • Members
  • Pip
  • 1 posts

Could you point me how to enable qe/ci of ati 530v on 10.8.5?I had it working on 10.7.
