Stezza88 Posted May 9 Author Share Posted May 9 Summary: V200 active — fb[+0x4A18] = 1 set in AppleIntelFramebufferinit so Apple's stack picks Y-tiled end-to-end V99R/V99f/V99F adapted — convert X-tiled (0x14 stride / bit 10) → Y-tiled (0x50 stride / bit 12); pass through Y-tiled (0x50 / bit 12) unchanged. Linear values pass through too (just logged) V99S adapted — hardware-side: force HW stride 0x50 and HW CTL bit 12 if currently wrong; skip if already Y-tiled. Single coherent target = Y-tiled-legacy throughout V99R[P] non-aperture redirect + V99G GGTT remap preserved for dp0 All other defenses preserved (Path B/C, V55, V97, V103, V195) Boot. Look in the log: V200[1..3]: fb[+0x4A18]=1 forced V99R[Sp1]: PLANE_STRIDE 0x50 passthrough ← Apple natively Y-tiled (good) V99R[Cp1]: PLANE_CTL 0x94001008 passthrough (tiling=4) V99R[S1]: PLANE_STRIDE 0x14 -> 0x50 (X->Y) ← only if some path emits X-tiled V99R[C1]: PLANE_CTL ... -> ... (X->Y) ← same defensive case V99S[1]: SURF arm ... pre-arm STRIDE=0x50 CTL=0x94001008 ← hardware coherent Visually: aiming for coherent login + HD cursor. If still corruption, the new log lines will show whether anything still emits non-Y-tiled values that are slipping past us. Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850091 Share on other sites More sharing options...
jalavoui Posted May 9 Share Posted May 9 (edited) i just remenbered the backlight. if your display shows as AppleBacklightDisplay u gonna have extra work so for now try get rid of it. disable ssdt or try my backlight panel hack i got this back from old git but maybe this is working for adl care as if this is wrong set apple code will force link training {"__ZN31AppleIntelFramebufferController38mapIOBitsPerColorToEncoderBitsPerColorEjPj",mapIOBitsPerColorToEncoderBitsPerColor, this->omapIOBitsPerColorToEncoderBitsPerColor}, { //TODO: filter for edp only + check other options //[drm:intel_edp_fixup_vbt_bpp [i915]] pipe has 24 bpp for eDP panel, overriding BIOS-provided max 18 bpp if (param_2 != (uint *)0x0) { param_1 = 2; } return FunctionCast(mapIOBitsPerColorToEncoderBitsPerColor, callback->omapIOBitsPerColorToEncoderBitsPerColor)(that,param_1,param_2);; }; send a xlog i think u have some power issue maybe this line AGDCC: Unauthorized client 'PerfPowerServices' blocked (IOService:/AppleACPIPlatformExpert/PC00/AppleACPIPCI/IGPU@2/AppleIntelFramebufferController/IntelFBClientControl) do a panic check here idk if patch is working const LookupPatchPlus patch {&kextAGDP, kAGDPBoardIDKeyOriginal, kAGDPBoardIDKeyPatched, 1}; PANIC_COND(!patch.apply(patcher, address, size), "NBlue", "Failed to apply AGDP board-id patch"); Edited May 9 by jalavoui Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850092 Share on other sites More sharing options...
Stezza88 Posted May 9 Author Share Posted May 9 (edited) 59 minutes ago, jalavoui said: i'm gonna just focus on code as all other questions are not why i'm on insanlymac. when u got time check nblue. the dam mtl bundle in /l/e is not chached so patches wont work fine for now as i only did a small patch that i moved to original info.plist. time will tell what direction we need togo. gonna check logs but i think u gonna get the frameb to work and if so its world first u are aware that if this work u can also fix icl ? very good options ahead I need to be aligned with u before go on, like u said Edited May 9 by Stezza88 Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850093 Share on other sites More sharing options...
jalavoui Posted May 9 Share Posted May 9 (edited) dont try nblue now u will have to change a lot. try some fixes 1st this is apple not helping u maybe this is your log 2026-05-09 20:03:10.619474+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:621 VendorEventHandler [IGPU:AppleIntelBaseController]: Port: 8418928.00000000 Event:ModesetCallback [c] 2026-05-09 20:03:10.619480+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:760 **************** kAGDCRegisterLinkModesetCallback #0 **************** 1:0:1 2026-05-09 20:03:10.619483+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:762 kAGDCRegisterLinkModesetCallback-ext: FB:0 -> 2560 x 1600, ext_blanking=0, 285600000 Hz 2026-05-09 20:03:10.662679+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:621 VendorEventHandler [IGPU:AppleIntelBaseController]: Port: 10401392.00000000 Event:ModesetCallback [c] 2026-05-09 20:03:10.662696+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:760 **************** kAGDCRegisterLinkModesetCallback #0 **************** 1:1:1 2026-05-09 20:03:10.662704+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:762 kAGDCRegisterLinkModesetCallback-ext: FB:0 -> 2560 x 1600, ext_blanking=0, 285600000 Hz 2026-05-09 20:03:10.683057+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:621 VendorEventHandler [IGPU:AppleIntelBaseController]: Port: 4060784.00000000 Event:ModesetCallback [c] 2026-05-09 20:03:10.683065+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:760 **************** kAGDCRegisterLinkModesetCallback #0 **************** 1:1:1 2026-05-09 20:03:10.683070+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:762 kAGDCRegisterLinkModesetCallback-ext: FB:0 -> 2560 x 1600, ext_blanking=0, 285600000 Hz 2026-05-09 20:03:10.970623+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:621 VendorEventHandler [IGPU:AppleIntelBaseController]: Port: 3044976.00000000 Event:ModesetCallback [c] 2026-05-09 20:03:10.970626+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:760 **************** kAGDCRegisterLinkModesetCallback #0 **************** 1:1:1 2026-05-09 20:03:10.970628+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:762 kAGDCRegisterLinkModesetCallback-ext: FB:0 -> 2560 x 1600, ext_blanking=0, 285600000 Hz look at my log. it validades 1 port and "bugs" other 2026-05-06 19:27:48.252727+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:621 **************** kAGDCRegisterLinkModesetCallback #0 **************** 1:0:1 2026-05-06 19:27:48.252729+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:623 kAGDCRegisterLinkModesetCallback-ext: FB:0 -> 1920 x 1080, ext_blanking=0, 142000000 Hz 2026-05-06 19:27:48.252731+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:624 kAGDCRegisterLinkModesetCallback-ext-2: pEnc=0x1, pBPC=0x2, pColometry=0x1, dRange=0x1 dscBPP=0 2026-05-06 19:27:48.252734+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: validateMode:166 Validating mode FB:0 -> 1920 x 1080, 142000000 Hz 2026-05-06 19:27:48.252736+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: validateMode:368 response accepted on:0 2026-05-06 19:27:48.335234+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:484 VendorEventHandler [IGPU:AppleIntelBaseController]: Port: 868005504.00000000 Event:ModesetCallback [c] 2026-05-06 19:27:48.335239+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:621 **************** kAGDCRegisterLinkModesetCallback #0 **************** 1:1:1 2026-05-06 19:27:48.335241+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:623 kAGDCRegisterLinkModesetCallback-ext: FB:0 -> 1920 x 1080, ext_blanking=0, 142000000 Hz 2026-05-06 19:27:48.335244+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:624 kAGDCRegisterLinkModesetCallback-ext-2: pEnc=0x1, pBPC=0x2, pColometry=0x1, dRange=0x1 dscBPP=0 2026-05-06 19:27:48.335246+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) Warning!! AGDP: vendor modeset callback invalid sequence or interleaving!! 2026-05-06 19:27:48.335248+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: validateMode:166 Validating mode FB:0 -> 1920 x 1080, 142000000 Hz 2026-05-06 19:27:48.335250+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: validateMode:368 response accepted on:0 2026-05-06 19:27:48.575254+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:484 VendorEventHandler [IGPU:AppleIntelBaseController]: Port: 867645056.00000000 Event:ModesetCallback [c] 2026-05-06 19:27:48.575262+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:621 **************** kAGDCRegisterLinkModesetCallback #0 **************** 1:1:1 2026-05-06 19:27:48.575266+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:623 kAGDCRegisterLinkModesetCallback-ext: FB:0 -> 1920 x 1080, ext_blanking=0, 142000000 Hz 2026-05-06 19:27:48.575271+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:624 kAGDCRegisterLinkModesetCallback-ext-2: pEnc=0x1, pBPC=0x2, pColometry=0x1, dRange=0x1 dscBPP=0 2026-05-06 19:27:48.575275+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) Warning!! AGDP: vendor modeset callback invalid sequence or interleaving!! 2026-05-06 19:27:48.575278+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: validateMode:166 Validating mode FB:0 -> 1920 x 1080, 142000000 Hz 2026-05-06 19:27:48.575282+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: validateMode:368 response accepted on:0 2026-05-06 19:27:48.774254+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:484 VendorEventHandler [IGPU:AppleIntelBaseController]: Port: 867284608.00000000 Event:ModesetCallback [c] 2026-05-06 19:27:48.774261+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:621 **************** kAGDCRegisterLinkModesetCallback #0 **************** 1:1:1 2026-05-06 19:27:48.774264+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:623 kAGDCRegisterLinkModesetCallback-ext: FB:0 -> 1920 x 1080, ext_blanking=0, 142000000 Hz 2026-05-06 19:27:48.774268+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:624 kAGDCRegisterLinkModesetCallback-ext-2: pEnc=0x1, pBPC=0x2, pColometry=0x1, dRange=0x1 dscBPP=0 2026-05-06 19:27:48.774271+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) Warning!! AGDP: vendor modeset callback invalid sequence or interleaving!! 2026-05-06 19:27:48.774273+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: validateMode:166 Validating mode FB:0 -> 1920 x 1080, 142000000 Hz 2026-05-06 19:27:48.774277+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: validateMode:368 response accepted on:0 2026-05-06 19:29:32.823508+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) Adding AGDP mode validate property conclusion: apple is hanging u your display is alive just find the 5% missing so it doesnt look broken Edited May 9 by jalavoui 1 Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850094 Share on other sites More sharing options...
Stezza88 Posted May 9 Author Share Posted May 9 1 minute ago, jalavoui said: dont try nblue now u will have to change a lot. try some fixes 1st I was needing only osinfo thy 4 minutes ago, jalavoui said: dont try nblue now u will have to change a lot. try some fixes 1st this is apple not helping u maybe this is your log 2026-05-09 20:03:10.619474+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:621 VendorEventHandler [IGPU:AppleIntelBaseController]: Port: 8418928.00000000 Event:ModesetCallback [c] 2026-05-09 20:03:10.619480+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:760 **************** kAGDCRegisterLinkModesetCallback #0 **************** 1:0:1 2026-05-09 20:03:10.619483+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:762 kAGDCRegisterLinkModesetCallback-ext: FB:0 -> 2560 x 1600, ext_blanking=0, 285600000 Hz 2026-05-09 20:03:10.662679+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:621 VendorEventHandler [IGPU:AppleIntelBaseController]: Port: 10401392.00000000 Event:ModesetCallback [c] 2026-05-09 20:03:10.662696+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:760 **************** kAGDCRegisterLinkModesetCallback #0 **************** 1:1:1 2026-05-09 20:03:10.662704+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:762 kAGDCRegisterLinkModesetCallback-ext: FB:0 -> 2560 x 1600, ext_blanking=0, 285600000 Hz 2026-05-09 20:03:10.683057+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:621 VendorEventHandler [IGPU:AppleIntelBaseController]: Port: 4060784.00000000 Event:ModesetCallback [c] 2026-05-09 20:03:10.683065+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:760 **************** kAGDCRegisterLinkModesetCallback #0 **************** 1:1:1 2026-05-09 20:03:10.683070+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:762 kAGDCRegisterLinkModesetCallback-ext: FB:0 -> 2560 x 1600, ext_blanking=0, 285600000 Hz 2026-05-09 20:03:10.970623+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:621 VendorEventHandler [IGPU:AppleIntelBaseController]: Port: 3044976.00000000 Event:ModesetCallback [c] 2026-05-09 20:03:10.970626+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:760 **************** kAGDCRegisterLinkModesetCallback #0 **************** 1:1:1 2026-05-09 20:03:10.970628+0200 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:762 kAGDCRegisterLinkModesetCallback-ext: FB:0 -> 2560 x 1600, ext_blanking=0, 285600000 Hz look at my log. it validades 1 port and "bugs" other 2026-05-06 19:27:48.252727+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:621 **************** kAGDCRegisterLinkModesetCallback #0 **************** 1:0:1 2026-05-06 19:27:48.252729+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:623 kAGDCRegisterLinkModesetCallback-ext: FB:0 -> 1920 x 1080, ext_blanking=0, 142000000 Hz 2026-05-06 19:27:48.252731+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:624 kAGDCRegisterLinkModesetCallback-ext-2: pEnc=0x1, pBPC=0x2, pColometry=0x1, dRange=0x1 dscBPP=0 2026-05-06 19:27:48.252734+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: validateMode:166 Validating mode FB:0 -> 1920 x 1080, 142000000 Hz 2026-05-06 19:27:48.252736+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: validateMode:368 response accepted on:0 2026-05-06 19:27:48.335234+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:484 VendorEventHandler [IGPU:AppleIntelBaseController]: Port: 868005504.00000000 Event:ModesetCallback [c] 2026-05-06 19:27:48.335239+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:621 **************** kAGDCRegisterLinkModesetCallback #0 **************** 1:1:1 2026-05-06 19:27:48.335241+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:623 kAGDCRegisterLinkModesetCallback-ext: FB:0 -> 1920 x 1080, ext_blanking=0, 142000000 Hz 2026-05-06 19:27:48.335244+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:624 kAGDCRegisterLinkModesetCallback-ext-2: pEnc=0x1, pBPC=0x2, pColometry=0x1, dRange=0x1 dscBPP=0 2026-05-06 19:27:48.335246+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) Warning!! AGDP: vendor modeset callback invalid sequence or interleaving!! 2026-05-06 19:27:48.335248+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: validateMode:166 Validating mode FB:0 -> 1920 x 1080, 142000000 Hz 2026-05-06 19:27:48.335250+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: validateMode:368 response accepted on:0 2026-05-06 19:27:48.575254+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:484 VendorEventHandler [IGPU:AppleIntelBaseController]: Port: 867645056.00000000 Event:ModesetCallback [c] 2026-05-06 19:27:48.575262+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:621 **************** kAGDCRegisterLinkModesetCallback #0 **************** 1:1:1 2026-05-06 19:27:48.575266+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:623 kAGDCRegisterLinkModesetCallback-ext: FB:0 -> 1920 x 1080, ext_blanking=0, 142000000 Hz 2026-05-06 19:27:48.575271+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:624 kAGDCRegisterLinkModesetCallback-ext-2: pEnc=0x1, pBPC=0x2, pColometry=0x1, dRange=0x1 dscBPP=0 2026-05-06 19:27:48.575275+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) Warning!! AGDP: vendor modeset callback invalid sequence or interleaving!! 2026-05-06 19:27:48.575278+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: validateMode:166 Validating mode FB:0 -> 1920 x 1080, 142000000 Hz 2026-05-06 19:27:48.575282+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: validateMode:368 response accepted on:0 2026-05-06 19:27:48.774254+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:484 VendorEventHandler [IGPU:AppleIntelBaseController]: Port: 867284608.00000000 Event:ModesetCallback [c] 2026-05-06 19:27:48.774261+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:621 **************** kAGDCRegisterLinkModesetCallback #0 **************** 1:1:1 2026-05-06 19:27:48.774264+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:623 kAGDCRegisterLinkModesetCallback-ext: FB:0 -> 1920 x 1080, ext_blanking=0, 142000000 Hz 2026-05-06 19:27:48.774268+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: VendorEventHandler:624 kAGDCRegisterLinkModesetCallback-ext-2: pEnc=0x1, pBPC=0x2, pColometry=0x1, dRange=0x1 dscBPP=0 2026-05-06 19:27:48.774271+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) Warning!! AGDP: vendor modeset callback invalid sequence or interleaving!! 2026-05-06 19:27:48.774273+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: validateMode:166 Validating mode FB:0 -> 1920 x 1080, 142000000 Hz 2026-05-06 19:27:48.774277+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) AGDP:: validateMode:368 response accepted on:0 2026-05-06 19:29:32.823508+0100 localhost kernel[0]: (AppleGraphicsDevicePolicy) Adding AGDP mode validate property conclusion: apple is hanging u I'm of a different opinion.. Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850095 Share on other sites More sharing options...
jalavoui Posted May 9 Share Posted May 9 (edited) from old code, this might be on your way use to disable {"__ZN21AppleIntelFramebuffer17prepareToExitWakeEv",dovoid}, {"__ZN21AppleIntelFramebuffer18prepareToExitSleepEv",dovoid}, {"__ZN21AppleIntelFramebuffer19prepareToEnterSleepEv",dovoid}, {"__ZN21AppleIntelFramebuffer18prepareToEnterWakeEv",dovoid} maybe this also as apple code use a lot. this disables {"__ZN24AppleIntelBaseController18hasExternalDisplayEv",hasExternalDispla},// external wrong detection this flag if setup like this will set powerwell always on. might help. u can check on ghidra were it is used getMember<volatile uint32_t>(that, 0xc58)=FB_FLAG_BOOST_PIXEL_FREQUENCY_LIMIT; gonna check ngreen on git. i bet its just small things gonna send u a ngreen "fixed" sec try if u get kp check where. it as some little bugs i removed ng.zip dam i forgot add the functions disablers. u can copy from this post Edited May 9 by jalavoui 1 Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850096 Share on other sites More sharing options...
Stezza88 Posted May 9 Author Share Posted May 9 I'm following a path, just wait, after I review it Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850097 Share on other sites More sharing options...
jalavoui Posted May 9 Share Posted May 9 dam i just updated a old release nvm u can check what changed small things 1 Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850098 Share on other sites More sharing options...
Stezza88 Posted May 10 Author Share Posted May 10 FRM=10126 → hardware frame counter at 10,126. Pipe IS ticking ~169s worth of vsyncs at 60Hz. The pipe is NOT hardware-stalled. The freeze is on the software side Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850100 Share on other sites More sharing options...
Stezza88 Posted May 10 Author Share Posted May 10 (edited) 8 hours ago, jalavoui said: dam i just updated a old release nvm u can check what changed small things Problem is deeper, I reviewed your small changes and applied some. Some of those I have trashed because hang on boot. Edited May 10 by Stezza88 Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850101 Share on other sites More sharing options...
Stezza88 Posted May 10 Author Share Posted May 10 (edited) . Edited May 10 by Stezza88 Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850103 Share on other sites More sharing options...
jalavoui Posted May 10 Share Posted May 10 (edited) if it complicates u need to follow linux log. e.g 2024-10-23T18:27:18.191869+02:00 sgiammoript-Predator-PT14-51 kernel: i915 0000:00:02.0: [drm:intel_psr_init_dpcd [i915]] Panel replay is not supported by panel 2024-10-23T18:27:18.192206+02:00 sgiammoript-Predator-PT14-51 kernel: i915 0000:00:02.0: [drm:intel_crtc_state_dump [i915]] psr: disabled, psr2: disabled, panel replay: disabled, selective fetch: disabled think u can train ai to use linux code from lib + match linux log with apple log ? otherwise ai will just try keep guessing worst part is do all by linux and apple code at some point undo the fix but no other options it must be done. dont trash code cause of hang on boot. hang means apple code failed at some stage. try fix is always better otherwise ai will just do bad hacks and hide the problem. i double apple code as linux if(display)>=13 logic Edited May 10 by jalavoui Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850104 Share on other sites More sharing options...
Stezza88 Posted May 10 Author Share Posted May 10 (edited) 1 hour ago, jalavoui said: if it complicates u need to follow linux log. e.g 2024-10-23T18:27:18.191869+02:00 sgiammoript-Predator-PT14-51 kernel: i915 0000:00:02.0: [drm:intel_psr_init_dpcd [i915]] Panel replay is not supported by panel 2024-10-23T18:27:18.192206+02:00 sgiammoript-Predator-PT14-51 kernel: i915 0000:00:02.0: [drm:intel_crtc_state_dump [i915]] psr: disabled, psr2: disabled, panel replay: disabled, selective fetch: disabled think u can train ai to use linux code from lib + match linux log with apple log ? otherwise ai will just try keep guessing worst part is do all by linux and apple code at some point undo the fix but no other options it must be done. dont trash code cause of hang on boot. hang means apple code failed at some stage. try fix is always better otherwise ai will just do bad hacks and hide the problem. i double apple code as linux if(display)>=13 logic I set a comment near //necessary if not... I repeat : if I reach a clean login I will check every point pf the library to improve it.. Edited May 10 by Stezza88 Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850107 Share on other sites More sharing options...
Stezza88 Posted May 10 Author Share Posted May 10 (edited) * Improved section "initPlatformWorkarounds" for display 13 . still to be committed got the full ADL-P workaround set from Linux i915: Register Addr Bits Linux name Reason PIPE_CHICKEN(A) 0x70038 bit 30 set UNDERRUN_RECOVERY_DISABLE_ADLP Underrun recovery must always be disabled on Display 13+ PIPE_CHICKEN(A) 0x70038 bit 7 set PER_PIXEL_ALPHA_BYPASS_EN Display WA #1153 PIPE_CHICKEN(A) 0x70038 bit 15 set PIXEL_ROUNDING_TRUNC_FB_PASSTHRU Display WA #1605353570 XELPD_DISPLAY_ERR_FATAL_MASK 0x4421C all = 1 — Mask all fatal errors on Display 13 GEN9_CLKGATE_DIS_5 0x46540 bit 17 set DPCE_GATING_DIS Wa_22011091694:adlp GEN8_CHICKEN_DCPR_1 0x46430 bit 7 cleared DDI_CLOCK_REG_ACCESS Bspec/49189 ADL-P init Apple's TGL kext doesn't apply any of these. Adding V212 to initPlatformWorkarounds (gated by !isRealTGL so real TGL isn't affected): V212: ADL-P Display 13+ workarounds applied — PIPE_CHICKEN(A)=... in the log — confirms it ran. Note the values: PIPE_CHICKEN bit 30/15/7 set, etc. Visual change — best case: less corruption / better frame stability since underrun-recovery loops and unmasked fatal errors can't keep firing No regression (no kernel panic) — these are documented Linux workarounds that your hardware specifically needs Edited May 10 by Stezza88 Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850108 Share on other sites More sharing options...
jalavoui Posted May 10 Share Posted May 10 (edited) i think i know what's making all not to work. 2 many ai hacks e.g. this are just hacks real problem not solved. u'll get better results with clean code. make nblue load and fix as need but not with this hacks. same as this fix in hwSetPowerWellStatePGE() ai just hide the problem now that u learn howto solve things just start with working code then u will get results check github use the kext installer i'm using we need tobe on same base or this will take forever Edited May 10 by jalavoui 1 Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850109 Share on other sites More sharing options...
Stezza88 Posted May 10 Author Share Posted May 10 You have absolutely reason. I start to improve. Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850110 Share on other sites More sharing options...
Stezza88 Posted May 10 Author Share Posted May 10 Recommended dismantle order (easiest → hardest): raWriteRegister32b (forwarder) — pure forwarder to raWriteRegister32. Removing it changes nothing observable; Apple's volatile-pointer WriteRegister32(volatile void*, ulong, uint) overload runs natively. Zero-risk first win raWriteRegister32 body — strip the band-aids one block at a time. Each block = one experiment: V99R[S/C/Cdp] PLANE_STRIDE × 8 / PLANE_CTL X→Y → drop entirely; if buffer-vs-scanout actually mismatches, fix at the allocator/renderer side (the real layer where layout is decided), not at the register write V72 EMR mask → likely redundant now that V212 writes XELPD_DISPLAY_ERR_FATAL_MASK = ~0 (the Linux-correct way to mask display errors on Display 13) V97 TRANS_DDI_FUNC_CTL bit16 clear → verify against Linux i915: bit 16 is TRANS_DDI_PORT_SYNC_MODE_MASTER_SELECT and Linux sets it conditionally on multi-stream MST. We blindly clear it always — wrong gate V103 DC_STATE_EN block → only needed if ngreen-dmc=adlp DMC blob isn't fully restoring power state. Verify with DMC blob loaded properly first V195 CTL1 preserve → ADL-P power-well handling differs from TGL; check Linux's intel_display_power.c and replace with the proper read-modify-write rather than rewriting on every cache write wrapICLReadAUX — keep V99 LINK_STATUS_UPDATED suppression (or better: find why it's getting set on this hardware in the first place), drop V97AUX/V98T diagnostic logging Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850111 Share on other sites More sharing options...
jalavoui Posted May 10 Share Posted May 10 (edited) i'm not saying this as "your doing a bad job" thing is you are on a old nblue base full of bugs and ofc it doesnt help u learned howto research, howto write some code just get a good base and refuse some ai hacks at some point u gonna move to production frame and icl nblue as all working just patch what is need keep what u doing when ready just switch base i know its anoying to start all over but i just got rid of old junk and all working better now when all this is sync we gonna laugh if find out all it takes are 3 or 4 good patches Edited May 10 by jalavoui Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850112 Share on other sites More sharing options...
Stezza88 Posted May 10 Author Share Posted May 10 2 minutes ago, jalavoui said: i'm not saying this as "your doing a bad job" thing is you are on a old nblue base full of bugs and ofc it doesnt help u learned howto research, howto write some code just get a good base and refuse some ai hacks at some point u gonna move to production frame and icl nblue as all working just patch what is need keep what u doing when ready just switch base i know its anoying to start all over but i just got rid of old junk and all working better now I never annoyed. Want to reach login with fb-only for starting point Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850113 Share on other sites More sharing options...
Stezza88 Posted May 10 Author Share Posted May 10 (edited) *Dismantle part 1 committed, Now it's time to lookup patches dismantle part 2 Edited May 10 by Stezza88 Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850114 Share on other sites More sharing options...
Stezza88 Posted May 10 Author Share Posted May 10 (edited) This is THE CORE but still bugged. wanna make me crazy // V99R[P] + V99G + linear CTL/STRIDE forces — CORE scanout coherence. // Applied unconditionally; confirmed empirically as the load-bearing path for // visible scanout in dp0, dp1, AND without any -ngreendp* boot arg. // // 1. SURF redirect: non-aperture writes (>=0x10000000) → 0, so the display engine // always scans from the same GGTT page range (GGTT[0..3999]) no matter where // Apple's setupScanoutMemory chose to migrate the surface. // 2. V99G: one-shot GGTT remap — copies the PTEs at the migrated surface pages // down to GGTT[0..3999] so SURF=0 fetches the same physical memory WS's CPU // compositor is writing into. // 3. Linear CTL/STRIDE forces (tiling→0, STRIDE=0xa0): required for visible // output. Removing them produces a black screen with no scanout activity, // confirmed empirically. Side effect: produces the fragmented/repeated // pattern when Apple's allocator stores buffer in non-linear physical layout // — that is a known cost of this path, not a removable hack. if (param_2 >= 0x10000000u) { static int v99PCount = 0; if (v99PCount < 8) SYSLOG("ngreen", "V99R[P%d]: SURF 0x%x->0 (dp0: non-aperture blocked, aperture kept)", ++v99PCount, (uint32_t)param_2); // V99G: one-shot GGTT remap — copy PTEs from the non-aperture surface pages // (GGTT[surfPage..surfPage+3999]) to GGTT[0..3999] so that SURF=0x0 scans // the SAME physical memory that WS's CPU compositor is writing into. static bool ggttRemapped = false; if (!ggttRemapped) { ggttRemapped = true; uint32_t srcPage = (uint32_t)param_2 >> 12; int remapped = 0, remapSkipped = 0; for (int i = 0; i < 4000; i++) { uint32_t lo = NGreen::callback->readReg32(GGTT_PTE_LO(srcPage + i)); uint32_t hi = NGreen::callback->readReg32(GGTT_PTE_HI(srcPage + i)); if (!(lo & 1)) { remapSkipped++; continue; } NGreen::callback->writeReg32(GGTT_PTE_LO(i), lo); NGreen::callback->writeReg32(GGTT_PTE_HI(i), hi); remapped++; } NGreen::callback->writeReg32(0x101008, 0x1); // flush GGTT TLB SYSLOG("ngreen", "V99G: GGTT[0..%d] <- GGTT[0x%x..] remapped=%d skip=%d", remapped - 1, srcPage, remapped, remapSkipped); } param_2 = 0; } // dp0: force CTL linear and STRIDE=0xa0 (CPU compositor writes linearly via BAR2). uint32_t hwTiling = (hwCtl >> 10) & 0x7; if (hwTiling != 0) NGreen::callback->writeReg32(0x70180, hwCtl & ~(0x7u << 10)); if (hwStride != 0xa0) NGreen::callback->writeReg32(0x70188, 0xa0); Edited May 10 by Stezza88 Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850116 Share on other sites More sharing options...
Stezza88 Posted May 10 Author Share Posted May 10 Hypothesis: WS is double/triple-buffering, V99G only remaps once. Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850117 Share on other sites More sharing options...

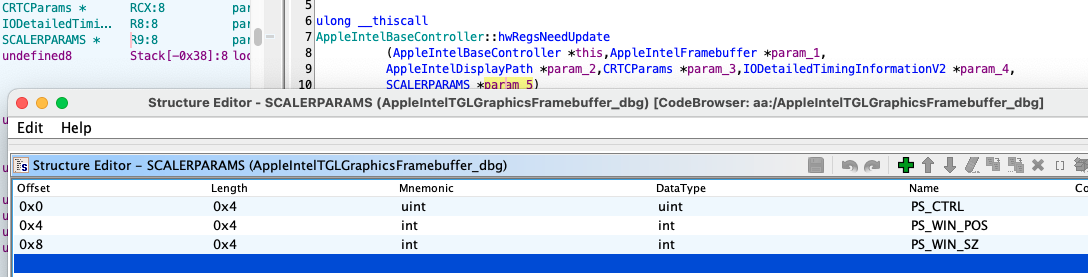

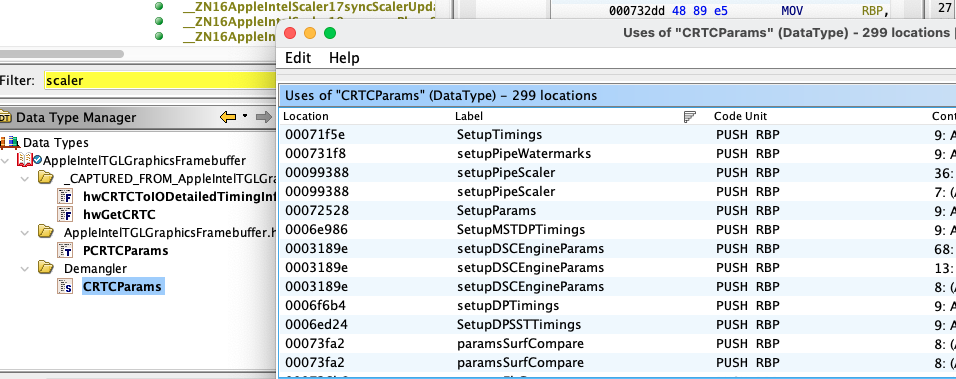

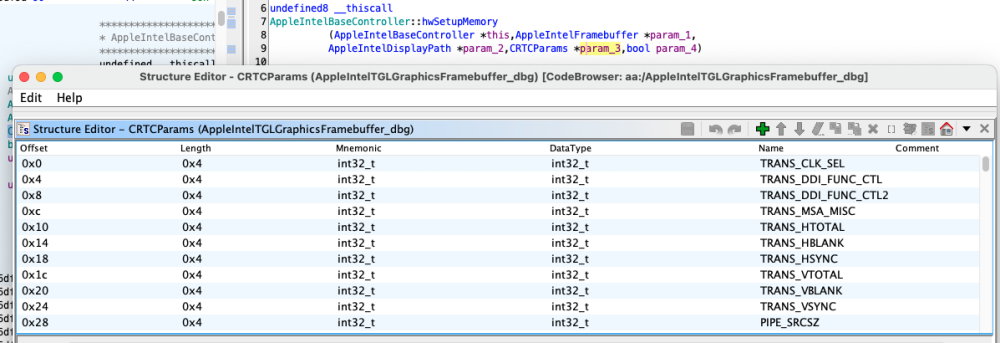

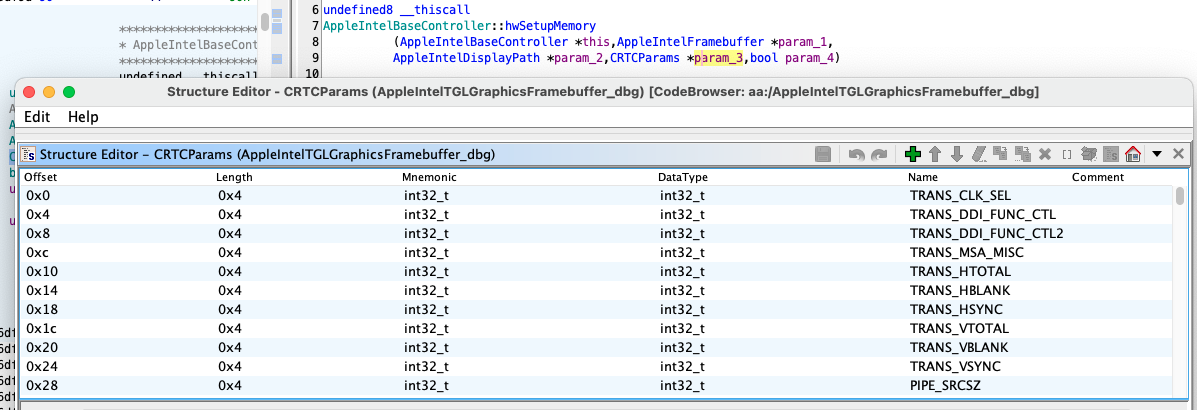

jalavoui Posted May 10 Share Posted May 10 (edited) u can look for some important structures in apple code. check u have this struct crtcparam defined like this in ghidra if not just add with github header if u do a search for this struct it is used a lot in apple code. i've removed this struct from code when exporting but it can be rebuild -> planeparams for scaler i got this. probably incomplete this are key points that may require fix for your display hacking regs only wont work leave ws alone -> problem is in apple tgl frame code if u can make ai check the relations of this search u probably will find something to fix Edited May 10 by jalavoui 1 Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850118 Share on other sites More sharing options...
Stezza88 Posted May 10 Author Share Posted May 10 I cleaned so much, now with FB-only I use, and this is your hint too : -v keepsyms=1 debug=0x100 IGLogLevel=8 -ngreentglfb -NGreenDebug -liludbg liludump=220 ngreen-dmc=adlp -ngreenv189 Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850119 Share on other sites More sharing options...
jalavoui Posted May 10 Share Posted May 10 (edited) u will end up finding a solution it's a matter of time. remenber that your display show signs of be alive try those params analysys maybe u find something tell ai stop alucinating with memory writes! that is not a fix. try fix origin not hack with mem writes linux seems dsc not enabled 2024-10-23T18:27:18.191617+02:00 sgiammoript-Predator-PT14-51 kernel: i915 0000:00:02.0: [drm:print_ddi_port [i915]] Port A VBT info: CRT:0 DVI:0 HDMI:0 DP:1 eDP:1 DSI:0 DP++:0 LSPCON:0 USB-Type-C:0 TBT:0 DSC:0 is ai reading linux log ? 2024-10-23T18:27:18.193666+02:00 sgiammoript-Predator-PT14-51 kernel: i915 display info: has_dsc: yes but not used in linux code. need confirmation inside nblue info.plist in firmware folder i set but at least for my display it is not available. this set come from icl settings time apple decides dsc in getDPCDInfo() verify if origin here as im not sure we just total forgot frameb base settings. there are the ones from info.plist and also others in a apple function this is a good example why global analysys matters. need to see what apple does everywere or risk bad hacks Edited May 10 by jalavoui 1 Link to comment https://www.insanelymac.com/forum/topic/362634-nootedgreenkext-is-on-air-its-a-long-long-road-to-complete/page/14/#findComment-2850120 Share on other sites More sharing options...
