USBMap only shows HS ports no SS ports. (Tahoe)

[pcace]

Hi there, i have issues getting USB working correctly on Tahoe, and a Z690M-ITX/ax board.



config is attached. config_removedcredentials.plist


i have no usb mapping kexts installed. when running USBMap, i get these results:



#####################################################
 #                Discover USB Ports                   #
#######################################################

    ----- XHCI@14 Controller -----
 1. HS01 | AppleUSB20XHCIPort |  1 (01000000) | 14100000 | Type 9
 2. HS02 | AppleUSB20XHCIPort |  2 (02000000) | 14200000 | Type 3
 3. HS03 | AppleUSB20XHCIPort |  3 (03000000) | 14300000 | Type 3
    - SSK USB3.2 SSD Flash Drive
 4. HS04 | AppleUSB20XHCIPort |  4 (04000000) | 14400000 | Type 0
 5. HS05 | AppleUSB20XHCIPort |  5 (05000000) | 14500000 | Type 3
 6. HS06 | AppleUSB20XHCIPort |  6 (06000000) | 14600000 | Type 9
 7. HS07 | AppleUSB20XHCIPort |  7 (07000000) | 14700000 | Type 3
 8. HS08 | AppleUSB20XHCIPort |  8 (08000000) | 14800000 | Type 0
 9. HS09 | AppleUSB20XHCIPort |  9 (09000000) | 14900000 | Type 3
10. HS10 | AppleUSB20XHCIPort | 10 (0a000000) | 14a00000 | Type 3
    - USB2.1 Hub
        - AppleUSB20Hub
            - USB Receiver
            - VXE NordicMouse 1K Dongle
11. HS11 | AppleUSB20XHCIPort | 11 (0b000000) | 14b00000 | Type 0
12. HS12 | AppleUSB20XHCIPort | 12 (0c000000) | 14c00000 | Type 0
13. HS13 | AppleUSB20XHCIPort | 13 (0d000000) | 14d00000 | Type 255
    - LED Controller
14. HS14 | AppleUSB20XHCIPort | 14 (0e000000) | 14e00000 | Type 255

Populated:
XHCI: 3

so all of them are HS ports. no SS ports appear. when i follow the tutorial, and generate a dummy kext, then reboot, i have no usb ports available whatsoever, so nothing works and nothing is found.

i guess its a trivial thing, but i just cannot find my way out of this! how can i make a correct USB map with SS ports?

Any help would be great!
Thanks a lot!!

[pcace]

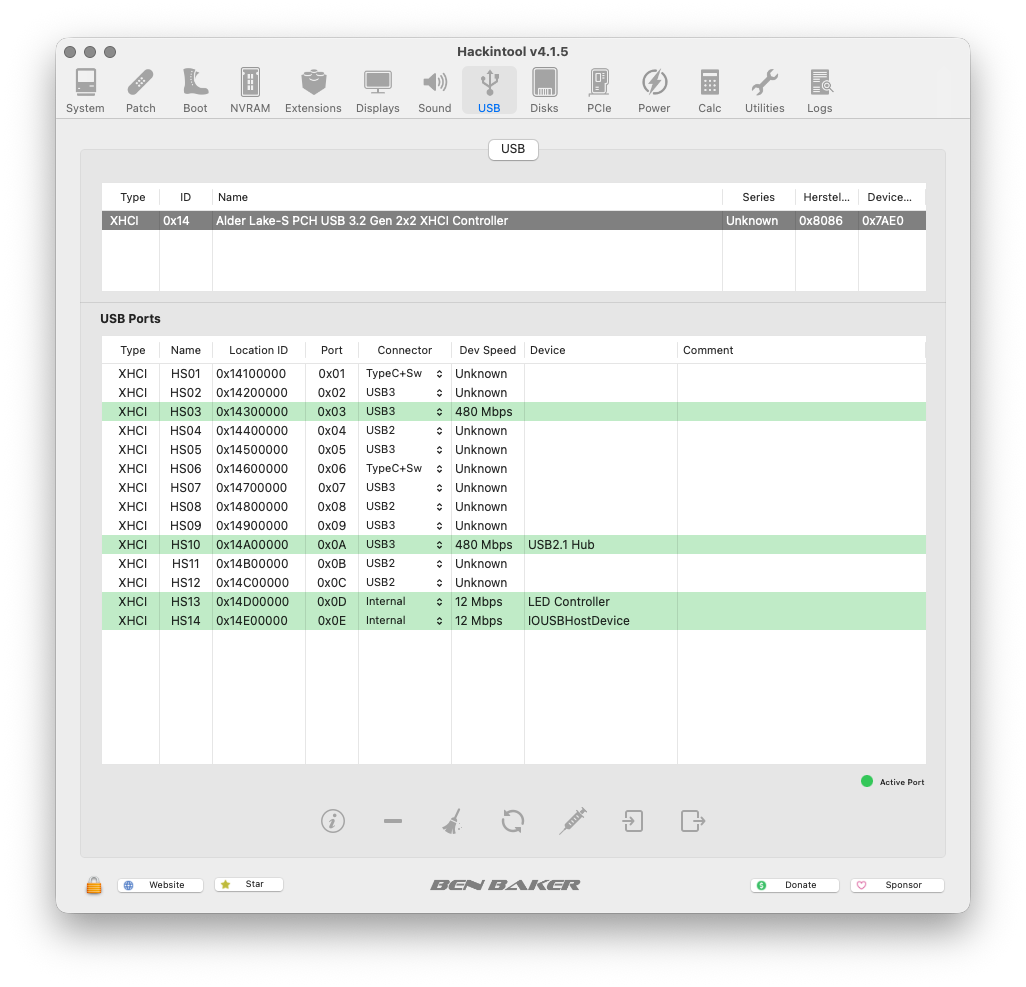

weirdly enough, Hackintool shows:


i tried again to make a dummy USBMap kext, this time without disabling or enabling anything and i also only get the 14 first HS entries. no SS visible anywhere.

[verdazil]

@pcace, don't rely on Hackintool readings without critical evaluation. Use recognized USB subsystem configuration tools, such as USBMap.

https://github.com/corpnewt/USBMap

[pcace]

18 minutes ago, verdazil said:

@pcace, don't rely on Hackintool readings without critical evaluation. Use recognized USB subsystem configuration tools, such as USBMap.

https://github.com/corpnewt/USBMap

Hi, like in my first post - i did use USBMap. I now have found a working USBMap.kext for this exact Motherboard (which i had to convert to Tahoe using USBMapInjectorEdit.command

now i do have working USB ports, also with USB-C with full speed. My issue is resolved, but the question still remains - how would i have done this by my self? (i do have some experience as a +10 Year Hackintosh user)
