SPYAM Posted July 20, 2024 Share Posted July 20, 2024 (edited) Hello Don't get tired right now, I'm telling all of you dear and elderly people♥ Sorry, the text is long I am back after a long time. Unfortunately, due to the problems I had, I sold my previous beautiful system with AMD RX 6800 XT graphics! And I had installed Mac Sonoma on it, it was great! I now have my previous laptop with the following specifications: ASUS X555LI == CPU : Intel core i5-5200u 2.20 GHz Hardware ID: ACPI\GenuineIntel_-_Intel64_Family_6_Model_61 == GPU : Intel(R) HD Graphics 5500 Hardware ID: PCI\VEN_8086&DEV_1616&SUBSYS_192D1043&REV_09 == GPU : AMD Radeon R5 M320 2GB Hardware ID: PCI\VEN_1002&DEV_6665&SUBSYS_192D1043&REV_83 == Mainboard : ASUSTeK COMPUTER INC. Model: X555LI Hardware ID: - BIOS Version: X555LI.508 == Memory : 8GB DDR3 798.1MHz Hardware ID: - == WiFi : Atheros/Qualcomm AR9565 Wireless Network Adapter Hardware ID: PCI\VEN_168C&DEV_0036&SUBSYS_213A1A3B&REV_01 == SSD : WDC WDS120G2G0A-00JH30 (128GB) Hardware ID: SCSI\Disk_WD_____WDS120G2G0A-00JHUE51 == HDD : WDC WD10SPZX-00Z10T0 (1TB) Hardware ID: SCSI\Disk_WD_____WD10SPZX-00Z10T001.0 == Network : RealTek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC Hardware ID: PCI\VEN_10EC&DEV_8168&SUBSYS_200F1043&REV_10 I want you to help me completely if possible so that we can install and run Hackintosh in the best way on this laptop. 1- I want to know if it will fully recognize my hardware? 2- Can I really run and use it as an operating system like Windows? 3- Which Mac version do you suggest I install so that the operating system has the best performance and runs smoothly? 4- Should I use Clover or Opencore? I just have a request, if possible, give me the EFI file of my laptop 5- Next, what information should I get from my laptop in Windows, for example: For example, should I put those cpu-related codes inside the EFI section!? And .. I hope you understand question 5. 6- I connect with Lan and Wi-Fi is not important. 7- I don't use the touchpad of my laptop and it doesn't matter, but it's good if there is. 8- Will both graphics work (Intel and AMD)? Does that mean I can run amd correctly? 9- After that, I separated a volume of 70 gigs from the 1tb hard drive and installed it using the Windows method so that if there was a problem, I could switch to Windows and solve the problem. I have a 32 GB flash drive For bootable, I had already downloaded these files. With this tool, I was able to bootable on flash without needing any Mac operating system, but I can't find the tutorial on YouTube. Does anyone have this tutorial, please: Edited July 20, 2024 by SPYAM 1 Quote Link to comment https://www.insanelymac.com/forum/topic/359711-mac-for-old-laptop/ Share on other sites More sharing options...
MaLd0n Posted July 20, 2024 Share Posted July 20, 2024 EFI Broadwell Laptop.zip -Delete old EFI folder and paste new. Don't use merge files -Don't use Drag and Drop into EFI partition. Use Copy/Paste instead -Reset NVRAM one time - with OpenCore use entry "Reset Nvram" / with Clover use F11 key on boot screen If you have problems on boot use -igfxvesa for easy installation. 1 1 Quote Link to comment https://www.insanelymac.com/forum/topic/359711-mac-for-old-laptop/#findComment-2823051 Share on other sites More sharing options...
SPYAM Posted July 20, 2024 Author Share Posted July 20, 2024 (edited) 56 minutes ago, MaLd0n said: EFI Broadwell Laptop.zip -Delete old EFI folder and paste new. Don't use merge files -Don't use Drag and Drop into EFI partition. Use Copy/Paste instead -Reset NVRAM one time - with OpenCore use entry "Reset Nvram" / with Clover use F11 key on boot screen If you have problems on boot use -igfxvesa for easy installation. Sir, thank you very much, I have not yet installed the Mac installation on the laptop. Next, which Mac version works smoothly in this laptop, please download it? Especially AMD R5 m320 graphics can be started with Intel HD 5500?? Edited: See, in general, my use of the operating system is as follows: Telegram, coding in VS Code and web browsing... Can I run these smoothly in Sonoma even with intel hd 5500 graphics?? Does this mean that the graphics are not reduced??? Because I researched, I think Amd r5 m320 cannot be installed on Hackintosh. Should I install Catalina or Sonoma, which one will be very smooth?? I don't know how powerful the intel hd 5500 is, whether it can run the Mac system smoothly first, then run Telegram, VS Code and browsers smoothly and quickly. can it????? Edited July 20, 2024 by SPYAM 1 Quote Link to comment https://www.insanelymac.com/forum/topic/359711-mac-for-old-laptop/#findComment-2823052 Share on other sites More sharing options...
SPYAM Posted July 21, 2024 Author Share Posted July 21, 2024 17 hours ago, MaLd0n said: EFI Broadwell Laptop.zip -Delete old EFI folder and paste new. Don't use merge files -Don't use Drag and Drop into EFI partition. Use Copy/Paste instead -Reset NVRAM one time - with OpenCore use entry "Reset Nvram" / with Clover use F11 key on boot screen If you have problems on boot use -igfxvesa for easy installation. I installed Mojave exactly with this EFI. It has problems such as not recognizing the LAN, not even in the network section. Another problem is that I installed VLC, I open it to watch a video, and when I want to fast forward the video, it freezes inside VLC and does not play. Another problem I have is that the headphone port is not recognized. Another problem I have is that the second monitor I connected to the monitor with VGA is black and has no image output. Quote Link to comment https://www.insanelymac.com/forum/topic/359711-mac-for-old-laptop/#findComment-2823077 Share on other sites More sharing options...
MaLd0n Posted July 21, 2024 Share Posted July 21, 2024 What Lan card? I think is that https://github.com/Mieze/RealtekRTL8100 Audio - Check what audio codec and change alcid=xx HDMI - https://github.com/acidanthera/WhateverGreen/blob/master/Manual/FAQ.IntelHD.en.md#intel-hd-graphics-5300-6300-broadwell-processors Enjoy! 1 Quote Link to comment https://www.insanelymac.com/forum/topic/359711-mac-for-old-laptop/#findComment-2823089 Share on other sites More sharing options...
SPYAM Posted July 21, 2024 Author Share Posted July 21, 2024 (edited) 1 hour ago, MaLd0n said: What Lan card? I think is that https://github.com/Mieze/RealtekRTL8100 Audio - Check what audio codec and change alcid=xx HDMI - https://github.com/acidanthera/WhateverGreen/blob/master/Manual/FAQ.IntelHD.en.md#intel-hd-graphics-5300-6300-broadwell-processors Enjoy! Thank you very much for always helping: 1- My lan is as follows: should I download the one you gave me and add it to kexts? Network: RealTek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC Hardware ID: PCI\VEN_10EC&DEV_8168&SUBSYS_200F1043&REV_10 2- The specifications of the sound card are for the following company. What should I enter in front of alcid? king@kings-MacBook-Pro ~ % kextstat | grep -E "AppleHDA|AppleALC|Lilu" 43 8 0xffffff7f8305d000 0x2f000 0x2f000 as.vit9696.Lilu (1.6.8) BF818074-A126-33A3-80F8-1DF4222EBB7E <8 6 5 3 2 1> 45 0 0xffffff7f83249000 0x1b5000 0x1b5000 as.vit9696.AppleALC (1.9.1) B91EA8E1-00D0-3D87-BE33-F431AC33A4F0 <43 13 8 6 5 3 1> 114 0 0xffffff7f81c1d000 0x1d000 0x1d000 com.apple.driver.AppleHDAController (283.15) 18E9D42A-B1F4-3332-9D50-EAF28AF632E6 <113 104 89 13 8 7 6 5 3 1> 3- Next, which one of these should I enter in the config: laptop: 0x16260006 (default) Should I enter this? Edited July 21, 2024 by SPYAM Quote Link to comment https://www.insanelymac.com/forum/topic/359711-mac-for-old-laptop/#findComment-2823093 Share on other sites More sharing options...
SPYAM Posted July 22, 2024 Author Share Posted July 22, 2024 16 hours ago, MaLd0n said: What Lan card? I think is that https://github.com/Mieze/RealtekRTL8100 Audio - Check what audio codec and change alcid=xx HDMI - https://github.com/acidanthera/WhateverGreen/blob/master/Manual/FAQ.IntelHD.en.md#intel-hd-graphics-5300-6300-broadwell-processors Enjoy! Updated: I installed Big Sur 1- The LAN problem is solved. 2- I couldn't solve the sound problem. I sent you the complete information above. Unfortunately, inside hackintool and the sound part, it didn't recognize the driver at all!!! I also installed applealc. I don't want anything special from my laptop, I just want it to work instead of headphones so that I can take the output with headphones. I mean, I don't want the speakers of the laptop. 3- My second monitor is connected with a VGA cable. Is there a way to get out of the black screen of the VGA monitor in Big Sur? Or should I buy a VGA to HDMI converter? Does this answer? The last thing, unfortunately, I can't see any video inside the Mac and the program hangs. Can you please tell me what to do for this? Quote Link to comment https://www.insanelymac.com/forum/topic/359711-mac-for-old-laptop/#findComment-2823110 Share on other sites More sharing options...
feartech Posted July 22, 2024 Share Posted July 22, 2024 9 hours ago, SPYAM said: Updated: I installed Big Sur 1- The LAN problem is solved. 2- I couldn't solve the sound problem. I sent you the complete information above. Unfortunately, inside hackintool and the sound part, it didn't recognize the driver at all!!! I also installed applealc. I don't want anything special from my laptop, I just want it to work instead of headphones so that I can take the output with headphones. I mean, I don't want the speakers of the laptop. 3- My second monitor is connected with a VGA cable. Is there a way to get out of the black screen of the VGA monitor in Big Sur? Or should I buy a VGA to HDMI converter? Does this answer? The last thing, unfortunately, I can't see any video inside the Mac and the program hangs. Can you please tell me what to do for this? VGA has not been supported for years, some adaptors may or may not work try all layout ids as per: https://github.com/acidanthera/AppleALC/wiki/Supported-codecs 1 Quote Link to comment https://www.insanelymac.com/forum/topic/359711-mac-for-old-laptop/#findComment-2823130 Share on other sites More sharing options...

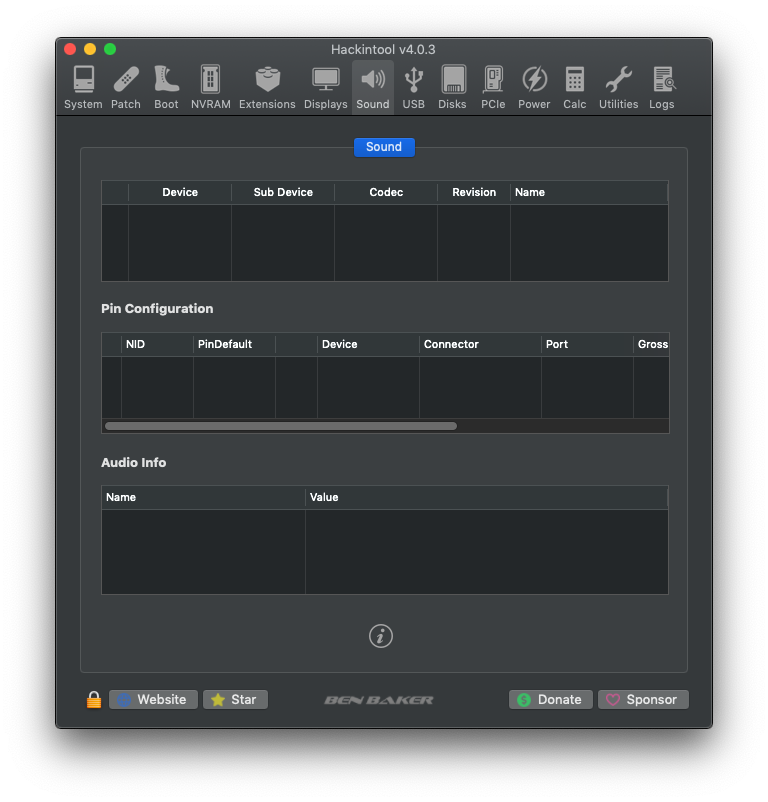

SPYAM Posted July 22, 2024 Author Share Posted July 22, 2024 5 minutes ago, feartech said: VGA has not been supported for years, some adaptors may or may not work try all layout ids as per: https://github.com/acidanthera/AppleALC/wiki/Supported-codecs Convert hdmi to vgi, do you think it works? My audio codec is: ALC233 Realtek ALC233/ALC3236 0x100003, layout 3, 4, 5, 13, 21, 27, 28, 29, 32, 33 13 (10.9) — The sound section is not displayed in the hackintool section at all: lilu and applealc are available in kexts and also available in config.plist. Even in the nvram part, I added to the boot-arg, but it doesn't work!!!!!! Quote Link to comment https://www.insanelymac.com/forum/topic/359711-mac-for-old-laptop/#findComment-2823131 Share on other sites More sharing options...
feartech Posted July 22, 2024 Share Posted July 22, 2024 10 minutes ago, SPYAM said: Convert hdmi to vgi, do you think it works? My audio codec is: ALC233 Realtek ALC233/ALC3236 0x100003, layout 3, 4, 5, 13, 21, 27, 28, 29, 32, 33 13 (10.9) — The sound section is not displayed in the hackintool section at all: lilu and applealc are available in kexts and also available in config.plist. Even in the nvram part, I added to the boot-arg, but it doesn't work!!!!!! as mentioned, some adaptors work, while some don't some layouts will work, while some don't don't forget to reset nvram when you test each one 1 Quote Link to comment https://www.insanelymac.com/forum/topic/359711-mac-for-old-laptop/#findComment-2823134 Share on other sites More sharing options...
SPYAM Posted July 22, 2024 Author Share Posted July 22, 2024 3 minutes ago, feartech said: as mentioned, some adaptors work, while some don't some layouts will work, while some don't don't forget to reset nvram when you test each one I mean, one by one, I should put all these into alcid= and restart it, and then reset nvram every time??? If yes, please confirm so that I can do it. Quote Link to comment https://www.insanelymac.com/forum/topic/359711-mac-for-old-laptop/#findComment-2823135 Share on other sites More sharing options...
feartech Posted July 22, 2024 Share Posted July 22, 2024 2 minutes ago, SPYAM said: I mean, one by one, I should put all these into alcid= and restart it, and then reset nvram every time??? If yes, please confirm so that I can do it. yes, ie alcid=3, then reboot, reset nvram, then test speaker/mic/headphones etc. then try alcid=4 and reboot and reset nvram and re test until you have tried them all 1 Quote Link to comment https://www.insanelymac.com/forum/topic/359711-mac-for-old-laptop/#findComment-2823137 Share on other sites More sharing options...
SPYAM Posted July 22, 2024 Author Share Posted July 22, 2024 18 minutes ago, feartech said: yes, ie alcid=3, then reboot, reset nvram, then test speaker/mic/headphones etc. then try alcid=4 and reboot and reset nvram and re test until you have tried them all I tested everything, but no sound driver was added to Mac's sound and hackintool program, what should I do? Quote Link to comment https://www.insanelymac.com/forum/topic/359711-mac-for-old-laptop/#findComment-2823142 Share on other sites More sharing options...
