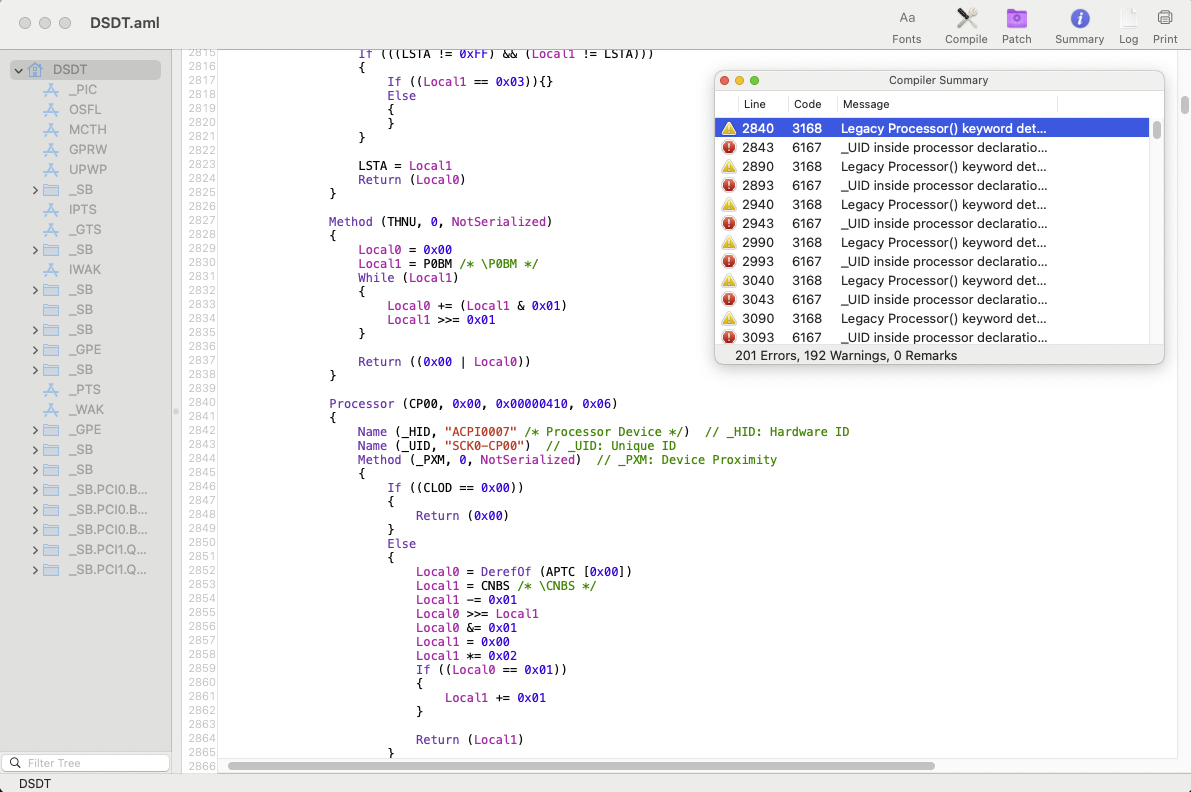

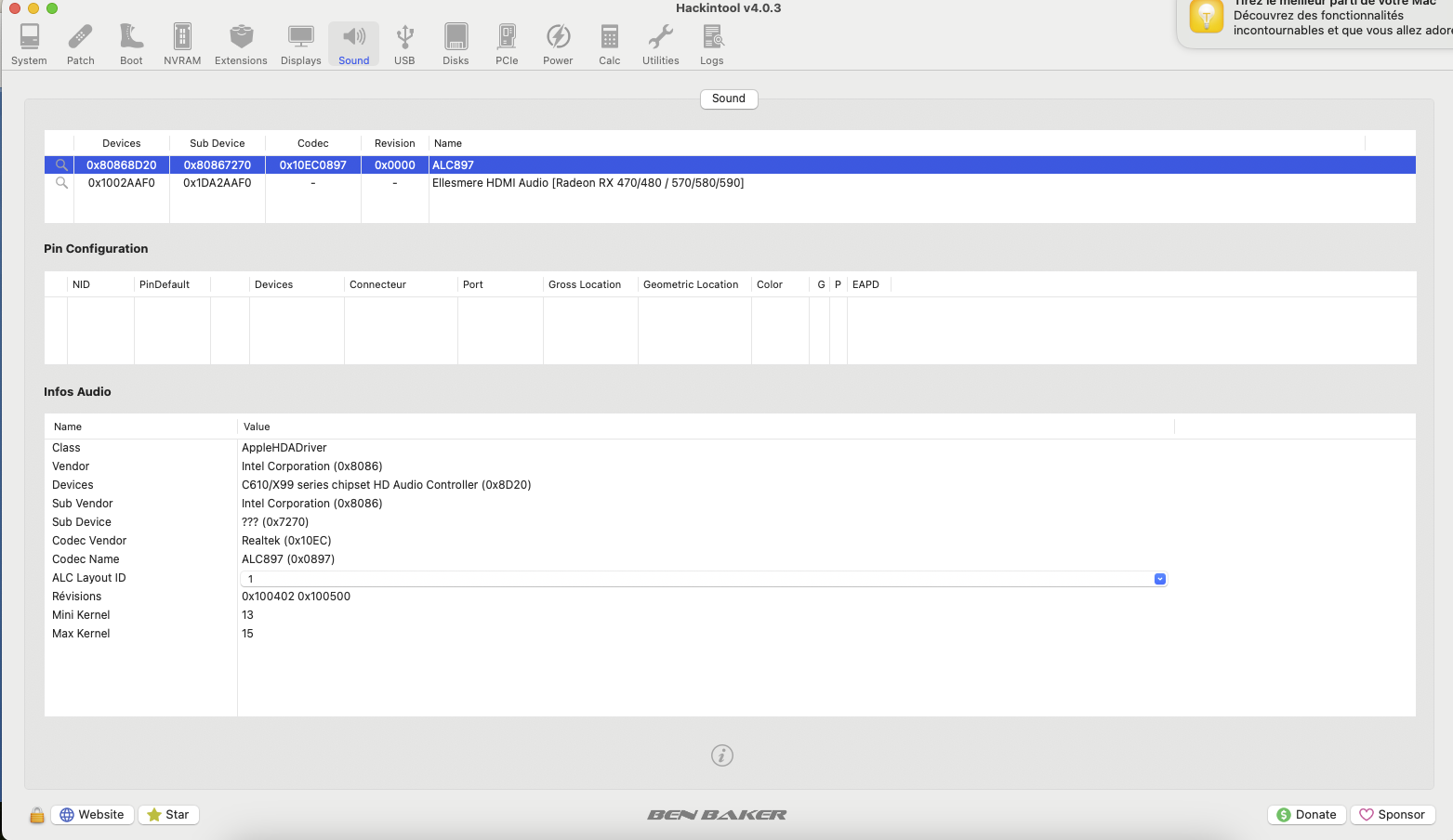

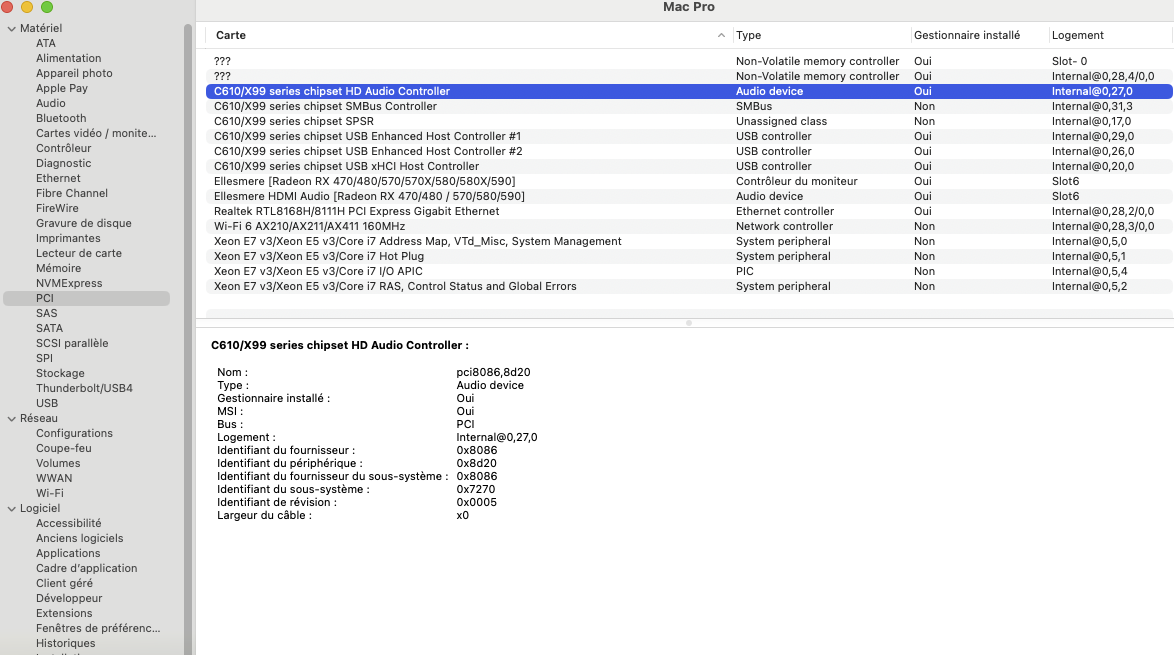

titoon Posted December 27, 2023 Share Posted December 27, 2023 Good morning, after installing Sonoma, I cannot get sound on this Huananzhi TF card. C610/x99 I tried all the layout ids and nothing works? there I am lost. I use AppleALC.kext I started installing Sonoma by placing the Maldon.aml dsdt in Opencore's ACPI. under windows I used Sddtime to have my table dsdt.aml and ssdt-hpet.aml and ssdt-plug.aml under Macsial , I have errors in my cpu that I can't solve because I don't know anything about it. I could use some help in understanding how to make it correct without errors. with hacktintools, I've extracted my list of Devices I would like to be able to carry out the complete installation of this card with its wifi/bluetooth and also to carry out a tutorial to let the others which would also need this information on this card to carry out their Hackintosh. My aim is to understand what needs to be done and not to copy and paste files that won't add anything to the understanding that will also be explained in the tutorial. tank's, Phil Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/ Share on other sites More sharing options...
pitrysha Posted December 27, 2023 Share Posted December 27, 2023 Show config.plist Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2814908 Share on other sites More sharing options...
LockDown Posted December 28, 2023 Share Posted December 28, 2023 Try voodoohda Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2814911 Share on other sites More sharing options...
titoon Posted December 28, 2023 Author Share Posted December 28, 2023 7 hours ago, LockDown said: Try voodoohda hello, I'm tested , it's not ok sound 16 hours ago, pitrysha said: Show config.plist I send my config.plist but please explain me for correction my errors . sorry for my English, I speaks French . config.plist Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2814922 Share on other sites More sharing options...
Slice Posted December 28, 2023 Share Posted December 28, 2023 Try to disable Above 4G decoding. It is my story of not working sound on X79 computer. Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2814933 Share on other sites More sharing options...
pitrysha Posted December 28, 2023 Share Posted December 28, 2023 5 hours ago, titoon said: hello, I'm tested , it's not ok sound I send my config.plist but please explain me for correction my errors . sorry for my English, I speaks French . config.plist 39.76 kB · 2 downloads Try using this instead of what you have now. Maybe something is wrong with your DSDT? Архив.zip Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2814936 Share on other sites More sharing options...
titoon Posted December 30, 2023 Author Share Posted December 30, 2023 On 12/28/2023 at 5:34 PM, Slice said: Try to disable Above 4G decoding. It is my story of not working sound on X79 computer. hello, it's no change On 12/28/2023 at 6:34 PM, pitrysha said: Try using this instead of what you have now. Maybe something is wrong with your DSDT? Архив.zip 11.44 kB · 3 downloads I used what you modified for me, but nothing has changed, still no sound, even when deactivating 4G in the bios? Thank you for your attention to this matter Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2814973 Share on other sites More sharing options...
titoon Posted December 30, 2023 Author Share Posted December 30, 2023 Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2814974 Share on other sites More sharing options...
pitrysha Posted December 30, 2023 Share Posted December 30, 2023 28 minutes ago, titoon said: Try it layout-id - 11 config.plist.zip Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2814975 Share on other sites More sharing options...
MaLd0n Posted December 30, 2023 Share Posted December 30, 2023 Boot with this efi folder EFI.zip if boot is fine extract one sendme with this app https://olarila.com/files/Utils/RunMe.app.zip Save one ioreg too https://olarila.com/files/Utils/IORegistryExplorer.app.zip -Delete old EFI folder and paste new. Don't use merge files -Don't use Drag and Drop into EFI partition. Use Copy/Paste instead -Reset NVRAM one time - with OpenCore use entry "Reset Nvram" / with Clover use F11 key on boot screen Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2814977 Share on other sites More sharing options...
pitrysha Posted December 30, 2023 Share Posted December 30, 2023 1 hour ago, titoon said: It will probably be more efficient this way config 2.plist.zip Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2814978 Share on other sites More sharing options...
Slice Posted December 30, 2023 Share Posted December 30, 2023 I have to claim again: VoodooHDA always works. Just follow good instructions. At your will. Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2814982 Share on other sites More sharing options...

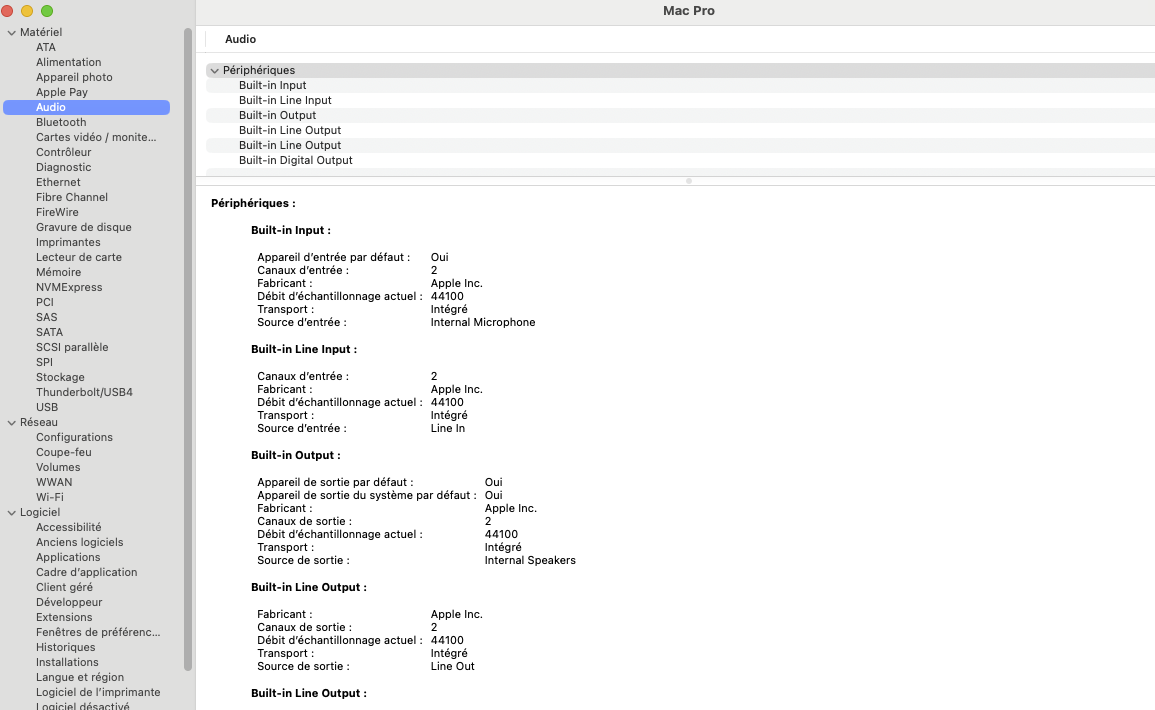

titoon Posted December 30, 2023 Author Share Posted December 30, 2023 2 hours ago, MaLd0n said: Boot with this efi folder EFI.zip if boot is fine extract one sendme with this app https://olarila.com/files/Utils/RunMe.app.zip Save one ioreg too https://olarila.com/files/Utils/IORegistryExplorer.app.zip -Delete old EFI folder and paste new. Don't use merge files -Don't use Drag and Drop into EFI partition. Use Copy/Paste instead -Reset NVRAM one time - with OpenCore use entry "Reset Nvram" / with Clover use F11 key on boot screen Hello Maldon, I tried your config, but no boot, stuck on smcsuperIO detected device nuvoton NCT67930. I tried to remove keyxts to have at least but nothing to do no boot, restarted on my key and there I looked at the file that you had placed in ACPI and it was 420KB excluding the one I use is 878 Ko, so I replaced with mine and presto it booted and I have the sound now. so I don't know how but there it works and I have all the inputs and outputs. I would like an explanation because I would like to create a tutorial for those who would also take this Huananzhi TF card. NOW , I have to figure out how to get my wifi/bluetooth with this card under sonoma. AX210 and try. to have airdrop 1 hour ago, Slice said: I have to claim again: VoodooHDA always works. Just follow good instructions. At your will. I shouldn't have tried VoodooHDA, I had already tested but without result, I think the problem comes from my ACPI? is that I have to rename the HDA entries to HDEF, I never realized this but I would like to understand. Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2814983 Share on other sites More sharing options...
MaLd0n Posted December 30, 2023 Share Posted December 30, 2023 Remove ACPI renames on acpi tab, reboot and extract sendme. V3 processors work good, the sound problem appear on v4. 1 Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2814984 Share on other sites More sharing options...
titoon Posted December 30, 2023 Author Share Posted December 30, 2023 Il y a 28 minutes, MaLd0n a dit : Remove ACPI renames on acpi tab, reboot and extract sendme. V3 processors work good, the sound problem appear on v4. I lost the sound, trying to place the wifi/bluetooth kexts, I unfortunately press a function of hackintools and I saw the reconstruction of the register I believe https://drive.google.com/drive/folders/1GpBg1RKAEih8t5mH8gElt49vAda66Z3u?usp=sharing It is the folder where I have my original efi that allowed me to install Sonoma from USB flash. EFI NOW: it’s the one on my NVME that is currently running. I placed my X99-ACPI files that I removed under Win11 with sdttimer to have my acpi files but I could not verify with Macsial the compilation because errors on the CPU and I do not know how to fix it Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2814987 Share on other sites More sharing options...
titoon Posted December 30, 2023 Author Share Posted December 30, 2023 Maldon, I did the same manipulation again as when I placed your files in the same order, but impossible to see the sound again never turned to time to have this failure phil Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2814989 Share on other sites More sharing options...
MaLd0n Posted December 31, 2023 Share Posted December 31, 2023 U need extract sendme.zip with RunMe.app with no ACPI renames and post file generated in ur desktop here. Select rebase regions on acpi tab Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2815017 Share on other sites More sharing options...
titoon Posted January 1 Author Share Posted January 1 Il y a 18 heures, MaLd0n a déclaré : Vous avez besoin d'extraire sendme.zip avec RunMe.app sans renomme ACPI et poster le fichier généré sur votre bureau ici. Sélectionnez les régions de rebase sur l'onglet acpi Hello Maldon, best wishes for this new year. so I just made the RunMe and this is the file. Thanks Phil Send me Mac-Pro.lan.zip Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2815046 Share on other sites More sharing options...
titoon Posted January 1 Author Share Posted January 1 hi Maldond my sound is return now , As I bought an original Apple airport card from aliexpress, I will wait to receive it to replace my AX210 and see if it also works with airdrop. I don’t want to touch anything anymore. Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2815048 Share on other sites More sharing options...
MaLd0n Posted January 1 Share Posted January 1 if u used sonoma stay with intel and avoid some "patchers" if u can. It's far from vanilla. It's best to only use it if you really need it. Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2815049 Share on other sites More sharing options...
titoon Posted January 5 Author Share Posted January 5 hello, for the moment I stay like this, the sound works, my RX580 is functional under sonoma, the acpi I use is the one I telecharged on the site , I do not use my ACPI files that I made with SSDTtime because there are errors in the compilation and I do not know what I have to do at the moment. my network is working. I am waiting to receive my new Wifi/bluetooth card from aliexpress. then do the mapping of the USB ports and finish the ACPI of this card and there I think it will be complete and thus be able to realize a tutorial on this installation Phil Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2815219 Share on other sites More sharing options...
titoon Posted January 10 Author Share Posted January 10 hello everyone, for the moment I have not touched anything since my config, I wait for my wifi/ bluetooth card apple to place it in order to replace my intel AX210. I still have the sound, no worries, on the other hand in the bootarg: I did not activate the verbose mode -v, but when starting it remains in verbose mode? there I do not understand anything, I am no longer entitled to the apple ( laugh ) if there is a trick, I would like to know it well Phil Link to comment https://www.insanelymac.com/forum/topic/358352-huananzhi-x99-tf/#findComment-2815374 Share on other sites More sharing options...
