[pre-release] macOS Sonoma 14.2

[aniuks27]

Updated to 14.2 Beta 2 successfully. Had to re-run OCLP for my combo Wifi after every update.





[Ludox]

Boot Clover

[jm26200]

cool.

Spoiler



[Wayang-NT]

...



[ANTIKO]

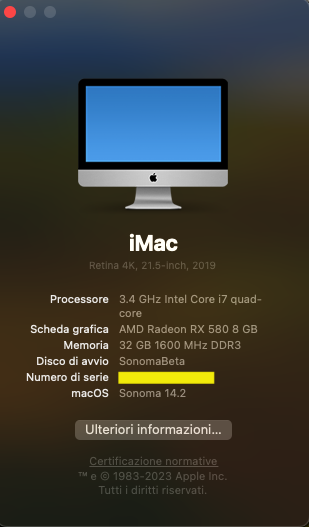

The flight is normal🙂

Spoiler



[hiphopboy]

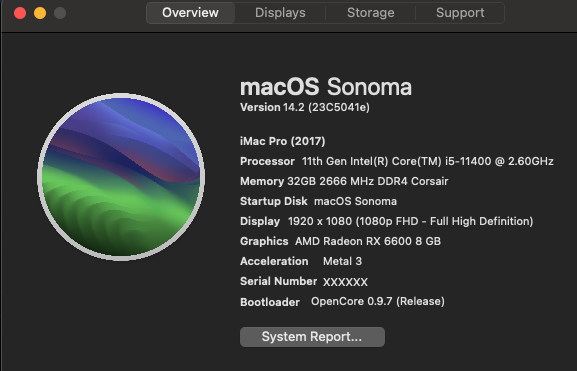

Done ;))

[Anto65]

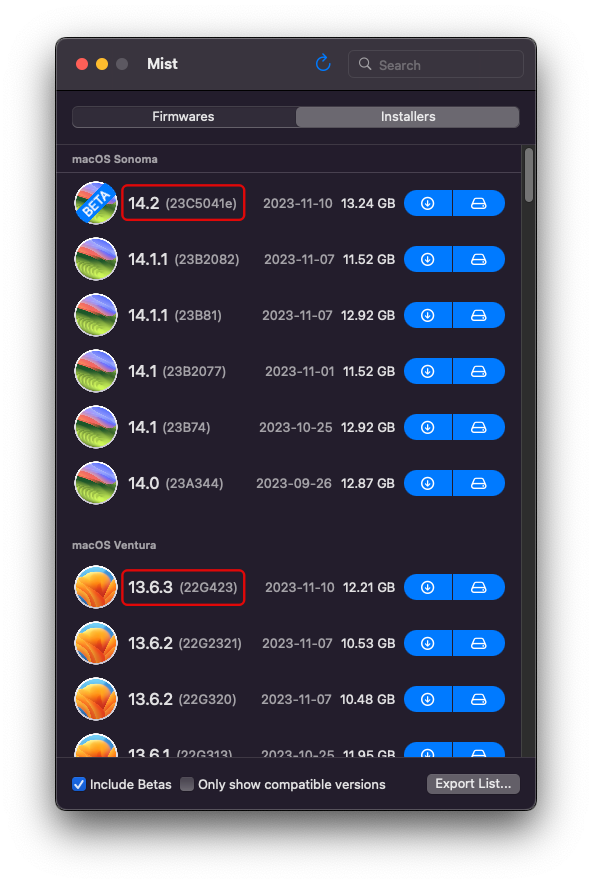

Full Installer available



Spoiler



[MorenoAv]

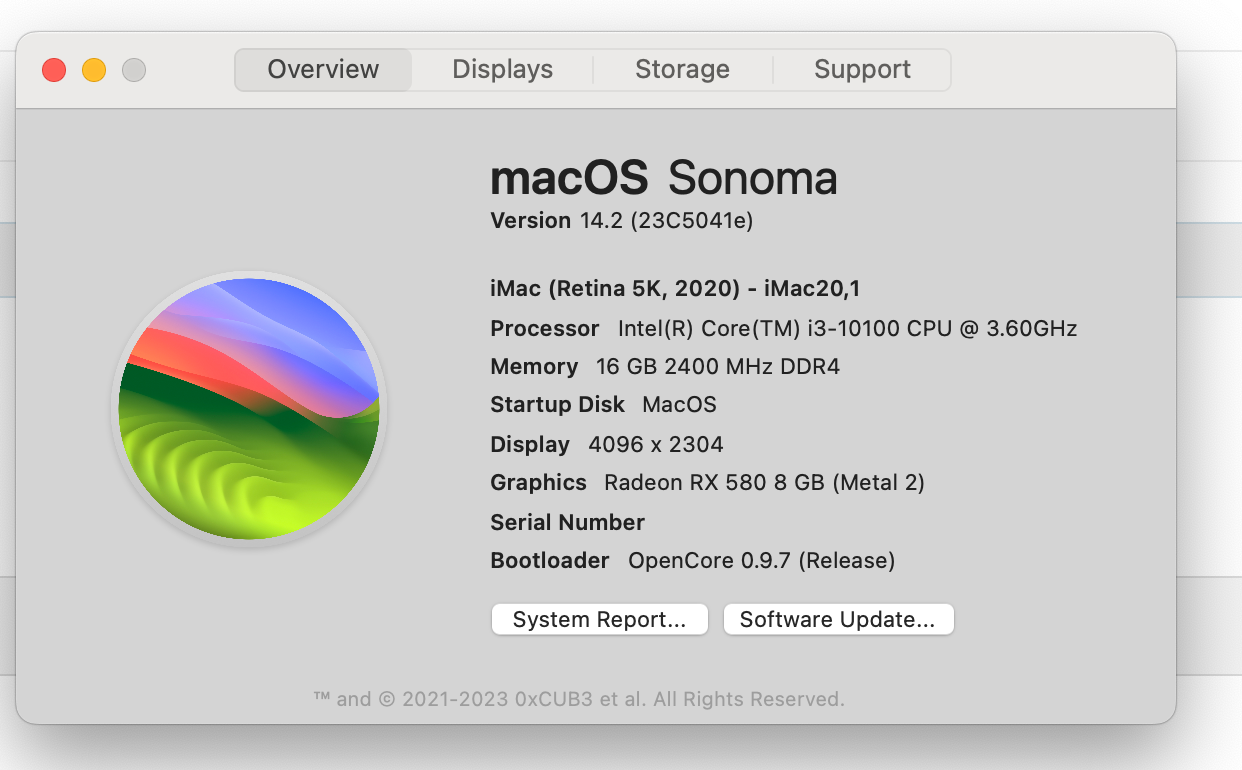

Update made, macOS Sonoma 14.2 ...

[deeveedee]

On 11/9/2023 at 2:15 PM, cankiulascmnfye said:



- Restrict Events does not support disabling sidecar. You need to add FeatureUnlock.kext for this boot-arg to work.

- Instead of "-no_compat_check" you can use specific booter patches for that in OpenCore: https://github.com/dortania/OpenCore-Legacy-Patcher/blob/main/payloads/Config/config.plist#L218-L267



Thanks.  In my latest post that you quoted, I mixed up my commas and parens.  See here.



EDIT: I edited the post you quoted to remove the incorrect paren.



EDIT2: I used OCLP 1.2.1 to generate the OC EFI for MBP6,2 (the SMBIOS for my OCLP-patched hack).  OCLP includes only the "Skip Board ID Check" Booter Patch (which I am using).

Spoiler



Even with this boot patch, I must use -no_compat_check to perform clean installations of macOS.  I appreciate the advice which might work for some, but for my HackBookPro6,2, I must still use -no_compat_check.

Edited November 11, 2023 by deeveedee

[cankiulascmnfye]

59 minutes ago, deeveedee said:

[…]



EDIT2: I used OCLP 1.2.1 to generate the OC EFI for MBP6,2 (the SMBIOS for my OCLP-patched hack).  OCLP includes only the "Skip Board ID Check" Booter Patch (which I am using).

  Hide contents



Even with this boot patch, I must use -no_compat_check to perform clean installations of macOS.  I appreciate the advice which might work for some, but for my HackBookPro6,2, I must still use -no_compat_check.



Well, thats because you used the config that OCLP generates for reference that only contains ONE patch. But for Wintel systems, you need 2 booter pacthes, which I referenced in my previous post. One for disabling the board-id check and one for rerouting the real board id to OpenCore, so RestricEvents can enable the board-vmm id:



https://github.com/dortania/OpenCore-Legacy-Patcher/blob/main/payloads/Config/config.plist#L218-L267  (check the highlighted text)

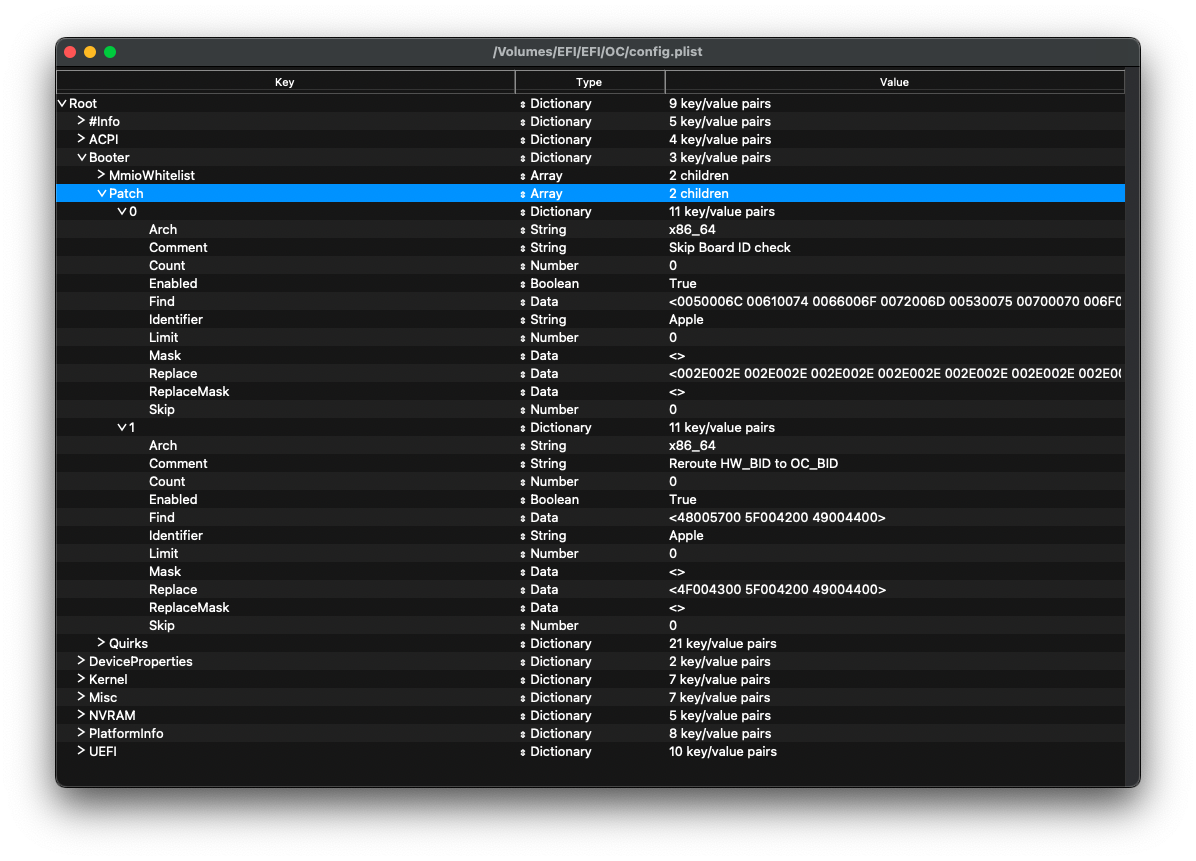

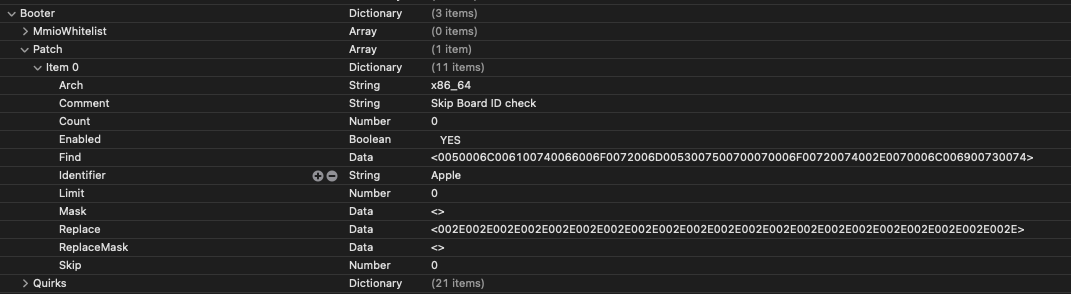

Screenshot:

Once you add the 2nd booter patch, you no longer need -no_compat_check







[deeveedee]

@cankiulascmnfye Thanks. OCLP used to include the HW_BID patch in the MBP6,2 OC EFI.  I will test it the next time I perform a clean macOS install.



EDIT: OCLP stopped including the HW_BID Booter Patch for MBP6,2 in the early OCLP 0.5.x development: See here.  Again, I'll test the HW_BID patch the next time I perform a clean macOS installation.

Edited November 11, 2023 by deeveedee

[cankiulascmnfye]

As I said: real Macs = 1 patch, Hackintoshes =2 Booter patches. Luckily the previously required Kernel patches for enabling the board-id vmm spoof have been removed in October since they are now included in RestrictEvents 1.1.3. So you can disable those, if they are still present  in your config. -no_compat_check is only needed in Clover since it canot apply booter patches.



Edited November 11, 2023 by cankiulascmnfye

[deeveedee]

1 hour ago, cankiulascmnfye said:

As I said: real Macs = 1 patch, Hackintoshes =2 Booter patches. Luckily the previously required Kernel patches for enabling the board-id vmm spoof have been removed in October since they are now included in RestrictEvents 1.1.3. So you can disable those, if they are still present  in your config. -no_compat_check is only needed in Clover since it canot apply booter patches.



If -no_compat_check is working, what is the advantage of using the HW_BID Booter patch?  I'll still test the HW_BID patch the next time I perform a clean install of macOS, but other than switching for the sake of switching, what is the advantage of using one method over the other?

Edited November 11, 2023 by deeveedee

[cankiulascmnfye]

By design, System Updates are disabled it -no_compat_check is active. So the only reason you are still receiving system updates is thanks to RestrictEvents. If that didn't exist, no updates for you.



-no_compat_check disables the compatibilty check which disables Software Updates



Booter Patches and the Kernel Patches (now handled by RE) skip and reoute the board-id:  "With hv_vmm_present returning True, both OSInstallerSetupInternal and SoftwareUpdateCore will set the VMM-x86_64 board ID while the rest of the OS will continue with the original ID.



https://github.com/dortania/OpenCore-Legacy-Patcher/issues/543



That's the difference.



Edited November 12, 2023 by cankiulascmnfye

[deeveedee]

@cankiulascmnfye Thanks.  Another example showing that there's more than one "right" way to implement a hack.  Thanks for the tutorial.



EDIT: Khronokernel says here the disadvantage of using -no_compat_check: "Usage of -no_compat_check is not ideal as Single User mode will ignore the argument"

Edited November 12, 2023 by deeveedee

[cankiulascmnfye]

@deeveedee I just tested booting Big Sur and Sonoma with MBP10,1 SMBIOS with only the first Booter Patch – and it works.



I think this is due to the recent changes in Restrict Events 1.1.3



Last time I checked, I needed both patches.

[deeveedee]

@cankiulascmnfye I only need the -no_compat_check boot arg for clean installs of macOS (so I assume the same would be true for the HW_BID patch, but I haven't tested).  Other than clean macOS installations, I don't need the -no_compat_check boot arg.

[cankiulascmnfye]

My guess is that the 2nd patch is no longer needed for installation as well:



Quote

v1.1.3

• Expanded sbvmm to support more environments:
  • macOS install applications (ex. Install macOS Sonoma.app)

[deeveedee]

@cankiulascmnfye Could be.  It's possible that I did not retest clean macOS install after upgrading to RE 1.1.3 (although I thought I did).  I haven't used the HW_BID booter patch for a long time and have been using -no_compat_check to perform clean macOS installs.  Maybe RE 1.1.3 fixed the macOS installer problem (that required -no_compat_check) and I didn't retest.



EDIT: @cankiulascmnfye I was able to install Sonoma 14.0 without -no_compat_check and with HW_BID Booter patch.  When I get time, I'll do another clean macOS install test without the HW_BID Booter patch.

Edited November 13, 2023 by deeveedee

[cankiulascmnfye]

14.2 Beta 2 doesn't let me logon the desktop after applying root patches. My guess is that it's an OCLP issue. Because it worked prior to applying the patches. That's new. Amd really annoying



After starting in safe mode, it seems th be that WindowsServer crashing is the unerlying issue:



-------------------------------------
Translated Report (Full Report Below)
-------------------------------------

Process:               WindowServer [675]
Path:                  /System/Library/PrivateFrameworks/SkyLight.framework/Versions/A/Resources/WindowServer
Identifier:            WindowServer
Version:               ???
Code Type:             X86-64 (Native)
Parent Process:        launchd [1]
User ID:               88

Date/Time:             2023-11-14 16:10:22.3661 +0100
OS Version:            macOS 14.2 (23C5041e)
Report Version:        12
Anonymous UUID:        5294F9D5-56D0-56DD-08F6-3E8A369E2777


Time Awake Since Boot: 45 seconds

System Integrity Protection: enabled

Crashed Thread:        0  ws_main_thread  Dispatch queue: com.apple.main-thread

Exception Type:        EXC_CRASH (SIGABRT)
Exception Codes:       0x0000000000000000, 0x0000000000000000

Termination Reason:    Namespace COREANIMATION, Code 4
spec=PBGRAXb_TimgBdrkXcn_IsrcCrdN3Oc3mtc4nl
Downgrade failed with error: Compiler encountered an internal error

Kernel Triage:
VM - (arg = 0x0) Returned success with no page
VM - (arg = 0x0) Returned success with no page
VM - (arg = 0x0) Returned success with no page
VM - (arg = 0x0) Returned success with no page
VM - (arg = 0x0) Returned success with no page


Thread 0 Crashed:: ws_main_thread Dispatch queue: com.apple.main-thread
0   libsystem_kernel.dylib        	    0x7ff81bab40e2 __abort_with_payload + 10
1   libsystem_kernel.dylib        	    0x7ff81bad28ca abort_with_payload_wrapper_internal + 82
2   libsystem_kernel.dylib        	    0x7ff81bad28fc abort_with_payload + 9
3   QuartzCore                    	    0x7ff8245aac87 CA::OGL::MetalContext::create_pipeline_state(CA::OGL::MetalContext::Pipeline::Spec const&, unsigned int*, std::__1::atomic<bool>*) + 6923
4   QuartzCore                    	    0x7ff8247752df CA::OGL::MetalContext::draw(MTLPrimitiveType, unsigned int, unsigned int, void const*, unsigned long, unsigned long, unsigned int, unsigned int, unsigned short const*, CA::OGL::ClipPlane const*, CA::OGL::MetalBufferPool::MetalBuffer const*) + 13541
5   QuartzCore                    	    0x7ff8245a6fa6 CA::OGL::MetalContext::draw_elements(CA::OGL::PrimitiveMode, unsigned int, unsigned short const*, CA::OGL::Vertex const*, unsigned int, unsigned int, CA::OGL::ClipPlane const*) + 110
6   QuartzCore                    	    0x7ff8245a6f01 CA::OGL::Context::array_flush() + 55
7   QuartzCore                    	    0x7ff8245bf7e4 CA::OGL::Context::ClippedArray::next_rect(CA::Bounds&) + 544
8   QuartzCore                    	    0x7ff8245fb6ab CA::OGL::emit_quad_indices(CA::OGL::Context&, CA::OGL::RectState const&, unsigned short const*, unsigned long, unsigned long, unsigned long) + 197
9   QuartzCore                    	    0x7ff8245c5ff0 CA::OGL::emit_one_part_rect(CA::OGL::Context&, CA::OGL::RectState const&, float const*, float const*, unsigned int) + 799
10  QuartzCore                    	    0x7ff8245c4716 CA::OGL::fill_rect_tex(CA::OGL::Context&, CA::OGL::RectState const&, float const*) + 192
11  QuartzCore                    	    0x7ff8247eb015 CA::OGL::fill_round_rect_tex(CA::OGL::Context&, CA::OGL::RectState const&, CA::Vec2<double>, float const*, unsigned int, unsigned int, CA::Rect const*) + 635
12  QuartzCore                    	    0x7ff8246050fc CA::OGL::render_subclass(CA::OGL::Renderer&, CA::OGL::Layer const*)::visitor::visit_subclass(CA::Render::GradientLayer const*) const + 1182
13  QuartzCore                    	    0x7ff8245f71f5 CA::OGL::render_background(CA::OGL::Renderer&, CA::OGL::Layer const*) + 1130
14  QuartzCore                    	    0x7ff8245f4cc0 CA::OGL::render_contents_background(CA::OGL::Renderer&, CA::OGL::Layer const*) + 1240
15  QuartzCore                    	    0x7ff8245f4324 CA::OGL::LayerNode::apply(float, CA::OGL::Surface**, float*) + 76
16  QuartzCore                    	    0x7ff8245f34ce CA::OGL::ImagingNode::render(CA::OGL::ImagingNode::RenderClosure*, unsigned int) + 916
17  QuartzCore                    	    0x7ff8245f2f19 CA::OGL::render_layers(CA::OGL::Renderer&, CA::OGL::Layer*) + 377
18  QuartzCore                    	    0x7ff8245f437c CA::OGL::LayerNode::apply(float, CA::OGL::Surface**, float*) + 164
19  QuartzCore                    	    0x7ff8245f34ce CA::OGL::ImagingNode::render(CA::OGL::ImagingNode::RenderClosure*, unsigned int) + 916
20  QuartzCore                    	    0x7ff8245f2f19 CA::OGL::render_layers(CA::OGL::Renderer&, CA::OGL::Layer*) + 377
21  QuartzCore                    	    0x7ff8245f437c CA::OGL::LayerNode::apply(float, CA::OGL::Surface**, float*) + 164
22  QuartzCore                    	    0x7ff8245f34ce CA::OGL::ImagingNode::render(CA::OGL::ImagingNode::RenderClosure*, unsigned int) + 916
23  QuartzCore                    	    0x7ff8245f2f19 CA::OGL::render_layers(CA::OGL::Renderer&, CA::OGL::Layer*) + 377
24  QuartzCore                    	    0x7ff8245f437c CA::OGL::LayerNode::apply(float, CA::OGL::Surface**, float*) + 164
25  QuartzCore                    	    0x7ff8245f34ce CA::OGL::ImagingNode::render(CA::OGL::ImagingNode::RenderClosure*, unsigned int) + 916
26  QuartzCore                    	    0x7ff8245f2f19 CA::OGL::render_layers(CA::OGL::Renderer&, CA::OGL::Layer*) + 377
27  QuartzCore                    	    0x7ff8245f437c CA::OGL::LayerNode::apply(float, CA::OGL::Surface**, float*) + 164
28  QuartzCore                    	    0x7ff8245f34ce CA::OGL::ImagingNode::render(CA::OGL::ImagingNode::RenderClosure*, unsigned int) + 916
29  QuartzCore                    	    0x7ff8245f2f19 CA::OGL::render_layers(CA::OGL::Renderer&, CA::OGL::Layer*) + 377
30  QuartzCore                    	    0x7ff8245f437c CA::OGL::LayerNode::apply(float, CA::OGL::Surface**, float*) + 164
31  QuartzCore                    	    0x7ff8245f34ce CA::OGL::ImagingNode::render(CA::OGL::ImagingNode::RenderClosure*, unsigned int) + 916
32  QuartzCore                    	    0x7ff8245f2f19 CA::OGL::render_layers(CA::OGL::Renderer&, CA::OGL::Layer*) + 377
33  QuartzCore                    	    0x7ff82467fc3f CA::OGL::render_prepared_layers(CA::OGL::Renderer&, CA::OGL::Layer&, CA::OGL::Layer*, CA::OGL::Gstate const&) + 637
34  QuartzCore                    	    0x7ff824651e42 CA::OGL::Renderer::render(CA::Render::Update const*, unsigned long) + 2372
35  QuartzCore                    	    0x7ff82465230f CA::OGL::render(CA::OGL::Renderer&, CA::Render::Update*, unsigned long) + 506
36  QuartzCore                    	    0x7ff82471338e CARenderOGLRenderDisplayWithOptions + 143
37  SkyLight                      	    0x7ff821126916 MetalCompositeCoreAnimation + 2873
38  SkyLight                      	    0x7ff8213e2ce0 MetalCompositeLayer + 637
39  SkyLight                      	    0x7ff8213e2a1c MetalCompositeLayers + 41
40  SkyLight                      	    0x7ff8213e24f3 CompositorMetal::composite(WSCompositeSourceLayer*, WSCompositeDestination*, bool, bool) + 415
41  SkyLight                      	    0x7ff8213dd1a2 CompositorMetal::CompositeLayersToDestination(WSCompositeSourceLayer*, WSCompositeDestination*, unsigned long long) + 244
42  SkyLight                      	    0x7ff82126b830 WS::Displays::CDDisplay::render_update(WS::Displays::Update&, Compositor*, unsigned int, WSCompositeSourceLayer*) + 872
43  SkyLight                      	    0x7ff8213269da WS::Updater::UpdateDisplays(CGXConnection*, bool, std::__1::vector<std::__1::shared_ptr<WS::Displays::Display>, std::__1::allocator<std::__1::shared_ptr<WS::Displays::Display>>>) + 20846
44  SkyLight                      	    0x7ff821321840 CGXUpdateDisplay + 60
45  SkyLight                      	    0x7ff8213157f2 update_display_callback(void*, double) + 1796
46  SkyLight                      	    0x7ff8213b311b run_timer_pass + 556
47  SkyLight                      	    0x7ff8213b320e non_coalesced_timer_handler + 16
48  SkyLight                      	    0x7ff8213f2000 post_port_data + 269
49  SkyLight                      	    0x7ff8213f1d4b CGXRunOneServicesPass + 1696
50  SkyLight                      	    0x7ff8213f26f2 server_loop + 98
51  SkyLight                      	    0x7ff8213f254c SLXServer + 1265
52  WindowServer                  	       0x1016e148c 0x1016de000 + 13452
53  dyld                          	    0x7ff81b760386 start + 1942

Thread 1:: com.apple.coreanimation.render-server
0   libsystem_kernel.dylib        	    0x7ff81baac5ae __psynch_cvwait + 10
1   libsystem_pthread.dylib       	    0x7ff81bae976b _pthread_cond_wait + 1211
2   QuartzCore                    	    0x7ff824852634 CA::Render::Fence::resolve_batches(double) + 1420
3   QuartzCore                    	    0x7ff824597983 CA::Render::Server::server_thread(void*) + 3089
4   QuartzCore                    	    0x7ff824596d65 thread_fun(void*) + 25
5   libsystem_pthread.dylib       	    0x7ff81bae9202 _pthread_start + 99
6   libsystem_pthread.dylib       	    0x7ff81bae4bab thread_start + 15

Thread 2::  Dispatch queue: com.apple.CoreDisplay.subsidiary.services.queue
0   libsystem_kernel.dylib        	    0x7ff81baa99a2 semaphore_timedwait_trap + 10
1   libdispatch.dylib             	    0x7ff81b941aeb _dispatch_sema4_timedwait + 73
2   libdispatch.dylib             	    0x7ff81b941f37 _dispatch_semaphore_wait_slow + 58
3   AmbientDisplay                	    0x7ff836d331a4 serviceSendMessageWithReplyAndTimeout + 303
4   AmbientDisplay                	    0x7ff836d48e2f AMBDapplyIntentionFromPreferencesForDisplayID + 1341
5   CoreDisplay                   	    0x7ff81d8e16fd invocation function for block in ColorSyncUtilsUpdateDisplayProfilesCallback(void*, double) + 47
6   libdispatch.dylib             	    0x7ff81b9402e6 _dispatch_call_block_and_release + 12
7   libdispatch.dylib             	    0x7ff81b94159a _dispatch_client_callout + 8
8   libdispatch.dylib             	    0x7ff81b947668 _dispatch_lane_serial_drain + 816
9   libdispatch.dylib             	    0x7ff81b948100 _dispatch_lane_invoke + 377
10  libdispatch.dylib             	    0x7ff81b951aee _dispatch_root_queue_drain_deferred_wlh + 271
11  libdispatch.dylib             	    0x7ff81b9513fd _dispatch_workloop_worker_thread + 451
12  libsystem_pthread.dylib       	    0x7ff81bae5c47 _pthread_wqthread + 327
13  libsystem_pthread.dylib       	    0x7ff81bae4b97 start_wqthread + 15

Thread 3:
0   libsystem_pthread.dylib       	    0x7ff81bae4b88 start_wqthread + 0

Thread 4:
0   libsystem_pthread.dylib       	    0x7ff81bae4b88 start_wqthread + 0

Thread 5:: IOHIDService - RunLoopCompatibilityThread
0   libsystem_kernel.dylib        	    0x7ff81baa9a0e mach_msg2_trap + 10
1   libsystem_kernel.dylib        	    0x7ff81bab7e1a mach_msg2_internal + 84
2   libsystem_kernel.dylib        	    0x7ff81bab0b42 mach_msg_overwrite + 653
3   libsystem_kernel.dylib        	    0x7ff81baa9cff mach_msg + 19
4   CoreFoundation                	    0x7ff81bbc4b19 __CFRunLoopServiceMachPort + 143
5   CoreFoundation                	    0x7ff81bbc358c __CFRunLoopRun + 1371
6   CoreFoundation                	    0x7ff81bbc2a69 CFRunLoopRunSpecific + 557
7   CoreFoundation                	    0x7ff81bc3d889 CFRunLoopRun + 40
8   IOKit                         	    0x7ff81f0238ae __IOHIDServiceRunLoopCompatibilityThread + 307
9   libsystem_pthread.dylib       	    0x7ff81bae9202 _pthread_start + 99
10  libsystem_pthread.dylib       	    0x7ff81bae4bab thread_start + 15

Thread 6::  Dispatch queue: com.apple.libtrace.state.block-list
0   libsystem_kernel.dylib        	    0x7ff81baab1c2 __ulock_wait + 10
1   libdispatch.dylib             	    0x7ff81b941db2 _dlock_wait + 46
2   libdispatch.dylib             	    0x7ff81b941c3a _dispatch_thread_event_wait_slow + 40
3   libdispatch.dylib             	    0x7ff81b94e6c3 __DISPATCH_WAIT_FOR_QUEUE__ + 307
4   libdispatch.dylib             	    0x7ff81b94e2ef _dispatch_sync_f_slow + 175
5   libsystem_trace.dylib         	    0x7ff81b84b209 ___os_state_request_for_self_block_invoke + 375
6   libdispatch.dylib             	    0x7ff81b9402e6 _dispatch_call_block_and_release + 12
7   libdispatch.dylib             	    0x7ff81b94159a _dispatch_client_callout + 8
8   libdispatch.dylib             	    0x7ff81b947668 _dispatch_lane_serial_drain + 816
9   libdispatch.dylib             	    0x7ff81b948100 _dispatch_lane_invoke + 377
10  libdispatch.dylib             	    0x7ff81b951aee _dispatch_root_queue_drain_deferred_wlh + 271
11  libdispatch.dylib             	    0x7ff81b9513fd _dispatch_workloop_worker_thread + 451
12  libsystem_pthread.dylib       	    0x7ff81bae5c47 _pthread_wqthread + 327
13  libsystem_pthread.dylib       	    0x7ff81bae4b97 start_wqthread + 15

Thread 7:
0   libsystem_pthread.dylib       	    0x7ff81bae4b88 start_wqthread + 0

Thread 8::  Dispatch queue: com.apple.VirtualDisplayListener
0   libsystem_kernel.dylib        	    0x7ff81baa9a0e mach_msg2_trap + 10
1   libsystem_kernel.dylib        	    0x7ff81bab7e1a mach_msg2_internal + 84
2   libsystem_kernel.dylib        	    0x7ff81bab0b42 mach_msg_overwrite + 653
3   libsystem_kernel.dylib        	    0x7ff81bab2b42 mach_msg_server_once + 266
4   CoreDisplay                   	    0x7ff81d874689 -[VirtualDisplayListener rx] + 77
5   libdispatch.dylib             	    0x7ff81b9402e6 _dispatch_call_block_and_release + 12
6   libdispatch.dylib             	    0x7ff81b94159a _dispatch_client_callout + 8
7   libdispatch.dylib             	    0x7ff81b947668 _dispatch_lane_serial_drain + 816
8   libdispatch.dylib             	    0x7ff81b948100 _dispatch_lane_invoke + 377
9   libdispatch.dylib             	    0x7ff81b951aee _dispatch_root_queue_drain_deferred_wlh + 271
10  libdispatch.dylib             	    0x7ff81b9513fd _dispatch_workloop_worker_thread + 451
11  libsystem_pthread.dylib       	    0x7ff81bae5c47 _pthread_wqthread + 327
12  libsystem_pthread.dylib       	    0x7ff81bae4b97 start_wqthread + 15

Thread 9:: com.apple.windowserver.root_queue
0   libsystem_kernel.dylib        	    0x7ff81baa99a2 semaphore_timedwait_trap + 10
1   libdispatch.dylib             	    0x7ff81b941aeb _dispatch_sema4_timedwait + 73
2   libdispatch.dylib             	    0x7ff81b941f37 _dispatch_semaphore_wait_slow + 58
3   libdispatch.dylib             	    0x7ff81b9505ad _dispatch_worker_thread + 321
4   libsystem_pthread.dylib       	    0x7ff81bae9202 _pthread_start + 99
5   libsystem_pthread.dylib       	    0x7ff81bae4bab thread_start + 15

Thread 10:
0   libsystem_kernel.dylib        	    0x7ff81baa9a0e mach_msg2_trap + 10
1   libsystem_kernel.dylib        	    0x7ff81bab7e1a mach_msg2_internal + 84
2   libsystem_kernel.dylib        	    0x7ff81bab0b42 mach_msg_overwrite + 653
3   libsystem_kernel.dylib        	    0x7ff81baa9cff mach_msg + 19
4   CoreDisplay                   	    0x7ff81d8926ca CoreDisplay::Mach::Message::Receive(unsigned int) + 80
5   CoreDisplay                   	    0x7ff81d94d9c7 CoreDisplay::Mach::Server::Start() + 105
6   CoreDisplay                   	    0x7ff81d94da90 void* std::__1::__thread_proxy[abi:v160006]<std::__1::tuple<std::__1::unique_ptr<std::__1::__thread_struct, std::__1::default_delete<std::__1::__thread_struct>>, void (CoreDisplay::Mach::Server::*)(), CoreDisplay::Mach::Server*>>(void*) + 79
7   libsystem_pthread.dylib       	    0x7ff81bae9202 _pthread_start + 99
8   libsystem_pthread.dylib       	    0x7ff81bae4bab thread_start + 15

Thread 11:: com.apple.windowserver.root_queue
0   libsystem_kernel.dylib        	    0x7ff81baa99a2 semaphore_timedwait_trap + 10
1   libdispatch.dylib             	    0x7ff81b941aeb _dispatch_sema4_timedwait + 73
2   libdispatch.dylib             	    0x7ff81b941f37 _dispatch_semaphore_wait_slow + 58
3   libdispatch.dylib             	    0x7ff81b9505ad _dispatch_worker_thread + 321
4   libsystem_pthread.dylib       	    0x7ff81bae9202 _pthread_start + 99
5   libsystem_pthread.dylib       	    0x7ff81bae4bab thread_start + 15

Thread 12:
0   libsystem_pthread.dylib       	    0x7ff81bae4b88 start_wqthread + 0

Thread 13:
0   libsystem_pthread.dylib       	    0x7ff81bae4b88 start_wqthread + 0

Thread 14:
0   libsystem_pthread.dylib       	    0x7ff81bae4b88 start_wqthread + 0

Thread 15:
0   libsystem_pthread.dylib       	    0x7ff81bae4b88 start_wqthread + 0

Thread 16::  Dispatch queue: compiler request queue
0   libsystem_kernel.dylib        	    0x7ff81baa9a0e mach_msg2_trap + 10
1   libsystem_kernel.dylib        	    0x7ff81bab7e1a mach_msg2_internal + 84
2   libsystem_kernel.dylib        	    0x7ff81bab0b42 mach_msg_overwrite + 653
3   libsystem_kernel.dylib        	    0x7ff81baa9cff mach_msg + 19
4   libdispatch.dylib             	    0x7ff81b958e27 _dispatch_mach_send_and_wait_for_reply + 521
5   libdispatch.dylib             	    0x7ff81b95922b dispatch_mach_send_with_result_and_wait_for_reply + 50
6   libxpc.dylib                  	    0x7ff81b806593 xpc_connection_send_message_with_reply_sync + 261
7   MetalOld.dylib                	       0x102182bf1 XPCCompilerConnection::BuildRequestInternal(MTLCompilerRequest*, char const*, NSObject<OS_dispatch_data>*, int, bool, void (unsigned int, void const*, unsigned long, char const*) block_pointer) + 1357
8   MetalOld.dylib                	       0x1021ffde7 invocation function for block in XPCCompilerConnection::BuildRequest(MTLCompilerRequest*, char const*, NSObject<OS_dispatch_data>*, int, bool, void (unsigned int, void const*, unsigned long, char const*) block_pointer) + 61
9   libdispatch.dylib             	    0x7ff81b94159a _dispatch_client_callout + 8
10  libdispatch.dylib             	    0x7ff81b94e447 _dispatch_lane_barrier_sync_invoke_and_complete + 60
11  MetalOld.dylib                	       0x102182644 XPCCompilerConnection::BuildRequest(MTLCompilerRequest*, char const*, NSObject<OS_dispatch_data>*, int, bool, void (unsigned int, void const*, unsigned long, char const*) block_pointer) + 116
12  MetalOld.dylib                	       0x1021824d5 MTLCompilerConnectionManagerPrivate::buildRequest(unsigned int, MTLCompilerRequest*, bool, void (MTLCompilerError, NSObject<OS_dispatch_data>*, char const*) block_pointer) + 329
13  MetalOld.dylib                	       0x102252122 -[MTLCompiler compileFunctionRequestInternal:frameworkLinking:linkDataSize:reflectionOnly:completionHandler:] + 7627
14  MetalOld.dylib                	       0x10225da0c -[MTLCompiler newRenderPipelineStateWithDescriptorInternal:options:reflection:destinationBinaryArchive:error:completionHandler:] + 2329
15  MetalOld.dylib                	       0x1021751d8 -[MTLCompiler newRenderPipelineStateWithDescriptor:options:reflection:error:completionHandler:] + 27
16  MetalOld.dylib                	       0x102174914 -[_MTLDevice newRenderPipelineStateWithDescriptor:error:] + 65
17  QuartzCore                    	    0x7ff8245aa73c CA::OGL::MetalContext::create_pipeline_state(CA::OGL::MetalContext::Pipeline::Spec const&, unsigned int*, std::__1::atomic<bool>*) + 5568
18  QuartzCore                    	    0x7ff82477650c invocation function for block in CA::OGL::MetalContext::dispatch_async_pipeline(CA::OGL::MetalContext::Pipeline::Spec const&, CA::OGL::MetalContext::Pipeline*, bool) + 117
19  libdispatch.dylib             	    0x7ff81b94e002 _dispatch_block_async_invoke2 + 85
20  libdispatch.dylib             	    0x7ff81b94159a _dispatch_client_callout + 8
21  libdispatch.dylib             	    0x7ff81b947668 _dispatch_lane_serial_drain + 816
22  libdispatch.dylib             	    0x7ff81b948100 _dispatch_lane_invoke + 377
23  libdispatch.dylib             	    0x7ff81b951aee _dispatch_root_queue_drain_deferred_wlh + 271
24  libdispatch.dylib             	    0x7ff81b9513fd _dispatch_workloop_worker_thread + 451
25  libsystem_pthread.dylib       	    0x7ff81bae5c47 _pthread_wqthread + 327
26  libsystem_pthread.dylib       	    0x7ff81bae4b97 start_wqthread + 15

Thread 17:: com.apple.windowserver.root_queue
0   libsystem_kernel.dylib        	    0x7ff81baa99a2 semaphore_timedwait_trap + 10
1   libdispatch.dylib             	    0x7ff81b941aeb _dispatch_sema4_timedwait + 73
2   libdispatch.dylib             	    0x7ff81b941f37 _dispatch_semaphore_wait_slow + 58
3   libdispatch.dylib             	    0x7ff81b9505ad _dispatch_worker_thread + 321
4   libsystem_pthread.dylib       	    0x7ff81bae9202 _pthread_start + 99
5   libsystem_pthread.dylib       	    0x7ff81bae4bab thread_start + 15

Thread 18:
0   libsystem_pthread.dylib       	    0x7ff81bae4b88 start_wqthread + 0


Thread 0 crashed with X86 Thread State (64-bit):
  rax: 0x0000000002000209  rbx: 0x0000000000000004  rcx: 0x00007ff7be80a9a8  rdx: 0x00007ff7be80aab0
  rdi: 0x000000000000000d  rsi: 0x0000000000000004  rbp: 0x00007ff7be80a9f0  rsp: 0x00007ff7be80a9a8
   r8: 0x00007ff8248bd8ac   r9: 0x0000000000000000  r10: 0x0000000000000070  r11: 0x0000000000000246
  r12: 0x0000000000000000  r13: 0x00007ff7be80aab0  r14: 0x000000000000000d  r15: 0x0000000000000070
  rip: 0x00007ff81bab40e2  rfl: 0x0000000000000246  cr2: 0x0000000000000000

Logical CPU:     0
Error Code:      0x02000209
Trap Number:     133


Binary Images:
       0x102081000 -        0x102095fff com.apple.AppleGVACoreFramework (113.44) <2be0a64d-e820-3401-9622-727dfa3c4784> /System/Library/PrivateFrameworks/AppleGVACore.framework/Versions/A/AppleGVACore
       0x102037000 -        0x10204afff TouchBarEvent.bundle (*) <f116682b-282c-3da8-bf3e-25aa853ce29b> /System/Library/CoreServices/TouchBarEvent.bundle
       0x101bdc000 -        0x101bdffff com.apple.driver.AppleIntelHD4000GraphicsMTLDriver (16.4.5) <9c54584e-dbe1-3829-bd41-2301b4489c2c> /System/Library/Extensions/AppleIntelHD4000GraphicsMTLDriver.bundle/Contents/MacOS/AppleIntelHD4000GraphicsMTLDriver
       0x101dc0000 -        0x101e43fff AppleIntelHD4000GraphicsMTLDriver_real (*) <f4c37124-74e1-3473-a8b1-9956c13c38b1> /System/Library/Extensions/AppleIntelHD4000GraphicsMTLDriver.bundle/Contents/MacOS/AppleIntelHD4000GraphicsMTLDriver_real
       0x101adf000 -        0x101ae2fff com.apple.driver.IOAccelerator2D (481.0.1) <3d9c4004-af50-3679-a963-776d1f8535c6> /System/Library/Extensions/IOAccelerator2D.plugin/Contents/MacOS/IOAccelerator2D
       0x101a40000 -        0x101a4bfff com.apple.iokit.hid.IOHIDPointerScrollFilter (1.0) <5e3db4f4-713f-3372-b4d9-5a4cdbf3ef97> /System/Library/HIDPlugins/IOHIDPointerScrollFilter.plugin/Contents/MacOS/IOHIDPointerScrollFilter
       0x101a73000 -        0x101a7afff com.apple.KeyboardTelemetryServiceFilter (1.0) <c73eb357-cb03-32b8-8036-954b11882d49> /System/Library/HIDPlugins/ServiceFilters/KeyboardTelemetryServiceFilter.plugin/Contents/MacOS/KeyboardTelemetryServiceFilter
       0x101a8d000 -        0x101a98fff com.apple.iokit.hid.IOHIDKeyboardFilter (1.0) <219325c7-8c45-32ce-bcb7-d7d208acb919> /System/Library/HIDPlugins/IOHIDKeyboardFilter.plugin/Contents/MacOS/IOHIDKeyboardFilter
       0x1018a7000 -        0x1018befff com.apple.GameController.HID.GenericGamepad (1.0) <fb581c70-0530-39e2-930d-4ef869a71b71> /System/Library/HIDPlugins/ServicePlugins/GenericGamepadHIDServicePlugin.plugin/Contents/MacOS/GenericGamepadHIDServicePlugin
       0x10193c000 -        0x1019f3fff com.apple.universalcontrol.servicefilter (1.0) <ca6fb671-ddfe-31f2-82c3-ed630e99606b> /System/Library/HIDPlugins/ServiceFilters/UniversalControlServiceFilter.plugin/Contents/MacOS/UniversalControlServiceFilter
       0x101928000 -        0x10192bfff com.apple.AppleHIDBluetoothFilter (1.0) <c045273d-4e1a-35a7-b0be-a5c749c54f50> /System/Library/HIDPlugins/ServiceFilters/AppleHIDBluetoothFilter.plugin/Contents/MacOS/AppleHIDBluetoothFilter
       0x1018e4000 -        0x1018ebfff com.apple.iokit.hid.IOHIDEventProcessorFilter (1.0) <69646f3c-b7f9-34a7-bd1d-7eebaca1cc9b> /System/Library/HIDPlugins/IOHIDEventProcessorFilter.plugin/Contents/MacOS/IOHIDEventProcessorFilter
       0x1018fc000 -        0x101913fff com.apple.hid.ColourSensorFilterPlugin (1.0) <84f61686-a342-3746-af96-40b8348a470b> /System/Library/HIDPlugins/ColourSensorFilterPlugin.plugin/Contents/MacOS/ColourSensorFilterPlugin
       0x101840000 -        0x101843fff com.apple.iokit.hid.IOHIDNXEventTranslatorServiceFilter (1.0) <937a9c18-317d-3f99-88f9-7f2a334945be> /System/Library/HIDPlugins/IOHIDNXEventTranslatorServiceFilter.plugin/Contents/MacOS/IOHIDNXEventTranslatorServiceFilter
       0x10182c000 -        0x10182ffff com.apple.iokit.IOHIDNXEventRouter (2.0.0) <95f65cba-2fc3-3569-a5f7-b74154c9f988> /System/Library/Extensions/IOHIDFamily.kext/Contents/PlugIns/IOHIDNXEventRouter.plugin/Contents/MacOS/IOHIDNXEventRouter
       0x101856000 -        0x101859fff com.apple.IOHIDEventServicePlugin (1.0) <5c851582-74aa-3323-a586-c3f756326d69> /System/Library/HIDPlugins/ServicePlugins/IOHIDEventServicePlugin.plugin/Contents/MacOS/IOHIDEventServicePlugin
       0x101818000 -        0x10181bfff com.apple.CoreRCPlugin (1.0) <7e4e7e58-dc81-3c50-80a1-5f2d5ffa7f4b> /System/Library/HIDPlugins/SessionFilters/CoreRCPlugin.plugin/Contents/MacOS/CoreRCPlugin
       0x101804000 -        0x101807fff com.apple.IOHIDRemoteSensorSessionFilter (1.0) <299c4211-1f34-3cca-93fe-4b95284f979f> /System/Library/HIDPlugins/SessionFilters/IOHIDRemoteSensorSessionFilter.plugin/Contents/MacOS/IOHIDRemoteSensorSessionFilter
       0x101873000 -        0x101882fff com.apple.IOAnalytics (1.0) <743e593f-9984-3e69-b6ca-b125ce11b039> /System/Library/HIDPlugins/SessionFilters/IOAnalytics.plugin/Contents/MacOS/IOAnalytics
       0x1017cc000 -        0x1017cffff com.apple.iokit.hid.IOHIDDFREventFilter (1.0) <dba25399-6cd1-3cb4-8c95-c6a9d239fdf9> /System/Library/HIDPlugins/IOHIDDFREventFilter.plugin/Contents/MacOS/IOHIDDFREventFilter
       0x1017e4000 -        0x1017effff com.apple.iokit.hid.IOHIDNXEventTranslatorSessionFilter (1.0) <ecef865e-2737-3a57-8852-e4e56075c2be> /System/Library/HIDPlugins/IOHIDNXEventTranslatorSessionFilter.plugin/Contents/MacOS/IOHIDNXEventTranslatorSessionFilter
       0x101791000 -        0x101794fff com.apple.IO80211 (1.0) <72fb270b-2d3a-39f4-82fd-1b8af408bd39> /System/Library/PrivateFrameworks/IO80211.framework/Versions/A/IO80211
       0x10cec3000 -        0x10cf16fff IO80211Old.dylib (*) <d5cf0007-ff51-3af6-9c8e-1e8c75f15238> /System/Library/PrivateFrameworks/IO80211.framework/Versions/A/IO80211Old.dylib
       0x104075000 -        0x1047a8fff CursorAsset (*) <9a00413f-d04a-3a3a-a228-9f163ec40160> /System/Library/PrivateFrameworks/SkyLight.framework/Versions/A/Resources/CursorAsset
       0x101b26000 -        0x101b31fff com.apple.Metal (341.31) <c94d56b7-ec06-33b8-b328-58da5ad1e5e9> /System/Library/Frameworks/Metal.framework/Versions/A/Metal
       0x102158000 -        0x102337fff MetalOld.dylib (*) <6581cd53-8583-38d1-b4b9-773f1dc3f551> /System/Library/Frameworks/Metal.framework/Versions/A/MetalOld.dylib
       0x102c22000 -        0x102fd5fff com.apple.CoreImage (18.0.0) <66ee7d8d-ed35-3650-8b54-9bede38b7ece> /System/Library/Frameworks/CoreImage.framework/Versions/A/CoreImage
       0x1016de000 -        0x1016e1fff WindowServer (*) <5c0f1655-7456-301f-a151-2e56403e46c8> /System/Library/PrivateFrameworks/SkyLight.framework/Versions/A/Resources/WindowServer
    0x7ff81baa8000 -     0x7ff81bae2ff7 libsystem_kernel.dylib (*) <15c57a9b-d395-38d4-bd11-3841926f02e9> /usr/lib/system/libsystem_kernel.dylib
    0x7ff82454e000 -     0x7ff8248f5ff1 com.apple.QuartzCore (1.11) <1417511b-e528-384f-8203-f5923133375a> /System/Library/Frameworks/QuartzCore.framework/Versions/A/QuartzCore
    0x7ff82108c000 -     0x7ff8214e2ff5 com.apple.SkyLight (1.600.0) <aa1072bb-b649-3a49-ba98-b74334e3dcbd> /System/Library/PrivateFrameworks/SkyLight.framework/Versions/A/SkyLight
    0x7ff81b75a000 -     0x7ff81b7f63c7 dyld (*) <1010846c-732a-3d0b-aeb3-3aab5874321e> /usr/lib/dyld
               0x0 - 0xffffffffffffffff ??? (*) <00000000-0000-0000-0000-000000000000> ???
    0x7ff81bae3000 -     0x7ff81baeefff libsystem_pthread.dylib (*) <b2678d9e-f1fa-381f-b0e4-7c5d84c4f428> /usr/lib/system/libsystem_pthread.dylib
    0x7ff81b93e000 -     0x7ff81b984ffd libdispatch.dylib (*) <b861bf4e-29d2-36ac-889f-cf9b03955982> /usr/lib/system/libdispatch.dylib
    0x7ff836d31000 -     0x7ff836d5cffb com.apple.AmbientDisplay (142) <4a03ffa1-0fd8-3434-9025-9e35975f4a4c> /System/Library/PrivateFrameworks/AmbientDisplay.framework/Versions/A/AmbientDisplay
    0x7ff81d863000 -     0x7ff81d98effb com.apple.CoreDisplay (283) <9293dd8d-38ca-3654-ba09-1257c92f1e64> /System/Library/Frameworks/CoreDisplay.framework/Versions/A/CoreDisplay
    0x7ff81bb49000 -     0x7ff81bfe1ffc com.apple.CoreFoundation (6.9) <e61f1187-a1ec-3a7e-b455-f4fc239ac2d0> /System/Library/Frameworks/CoreFoundation.framework/Versions/A/CoreFoundation
    0x7ff81efca000 -     0x7ff81f08cff7 com.apple.framework.IOKit (2.0.2) <93f186af-f1c0-3cda-b507-8c289de4b343> /System/Library/Frameworks/IOKit.framework/Versions/A/IOKit
    0x7ff81b83f000 -     0x7ff81b858ff6 libsystem_trace.dylib (*) <506eaed4-9946-3c2e-ab99-608096a13415> /usr/lib/system/libsystem_trace.dylib
    0x7ff81b7fb000 -     0x7ff81b83eff2 libxpc.dylib (*) <96f8a2fb-352b-3db9-b90b-dddcdd85adcd> /usr/lib/system/libxpc.dylib

External Modification Summary:
  Calls made by other processes targeting this process:
    task_for_pid: 0
    thread_create: 0
    thread_set_state: 0
  Calls made by this process:
    task_for_pid: 0
    thread_create: 0
    thread_set_state: 0
  Calls made by all processes on this machine:
    task_for_pid: 0
    thread_create: 0
    thread_set_state: 0

VM Region Summary:
ReadOnly portion of Libraries: Total=462.4M resident=0K(0%) swapped_out_or_unallocated=462.4M(100%)
Writable regions: Total=4.3G written=0K(0%) resident=0K(0%) swapped_out=0K(0%) unallocated=4.3G(100%)

                                VIRTUAL   REGION
REGION TYPE                        SIZE    COUNT (non-coalesced)
===========                     =======  =======
Activity Tracing                   256K        1
CG backing stores                   12K        3
CG framebuffers                    1.3G       11
CG framebuffers (reserved)       603.1M       10         reserved VM address space (unallocated)
ColorSync                          180K       27
CoreAnimation                     31.9M       28
CoreGraphics                         4K        1
Kernel Alloc Once                    8K        1
MALLOC                           666.4M       73
MALLOC guard page                   32K        8
Mach message                        60K        3
Mach message (reserved)              4K        1         reserved VM address space (unallocated)
STACK GUARD                       56.1M       19
Stack                             17.6M       19
VM_ALLOCATE                       13.0M       18
VM_ALLOCATE (reserved)             1.8G        4         reserved VM address space (unallocated)
__CGSERVER                          16K        1
__DATA                            19.3M      370
__DATA_CONST                      16.3M      241
__DATA_DIRTY                       656K      113
__FONT_DATA                        2352        1
__LINKEDIT                       182.7M       30
__OBJC_RO                         71.0M        1
__OBJC_RW                         2166K        2
__SLSERVER                          16K        1
__TEXT                           279.7M      392
dyld private memory                260K        2
mapped file                       33.7M        7
shared memory                     1272K       34
===========                     =======  =======
TOTAL                              5.0G     1422
TOTAL, minus reserved VM space     2.6G     1422



-----------
Full Report
-----------

{"app_name":"WindowServer","timestamp":"2023-11-14 16:10:23.00 +0100","app_version":"","slice_uuid":"5c0f1655-7456-301f-a151-2e56403e46c8","build_version":"","platform":1,"share_with_app_devs":0,"is_first_party":1,"bug_type":"309","os_version":"macOS 14.2 (23C5041e)","roots_installed":0,"incident_id":"32BB34CC-DF48-4CD0-AD26-7E8A2814E396","name":"WindowServer"}
{
  "uptime" : 45,
  "procRole" : "Graphics",
  "version" : 2,
  "userID" : 88,
  "deployVersion" : 210,
  "modelCode" : "MacBookPro10,1",
  "coalitionID" : 139,
  "osVersion" : {
    "train" : "macOS 14.2",
    "build" : "23C5041e",
    "releaseType" : "User"
  },
  "captureTime" : "2023-11-14 16:10:22.3661 +0100",
  "codeSigningMonitor" : 0,
  "incident" : "32BB34CC-DF48-4CD0-AD26-7E8A2814E396",
  "pid" : 675,
  "cpuType" : "X86-64",
  "roots_installed" : 0,
  "bug_type" : "309",
  "procLaunch" : "2023-11-14 16:10:16.3174 +0100",
  "procStartAbsTime" : 39165845569,
  "procExitAbsTime" : 45203345098,
  "procName" : "WindowServer",
  "procPath" : "\/System\/Library\/PrivateFrameworks\/SkyLight.framework\/Versions\/A\/Resources\/WindowServer",
  "parentProc" : "launchd",
  "parentPid" : 1,
  "coalitionName" : "com.apple.WindowServer",
  "crashReporterKey" : "5294F9D5-56D0-56DD-08F6-3E8A369E2777",
  "consecutiveCrashCount" : 2,
  "throttleTimeout" : 10,
  "codeSigningID" : "com.apple.WindowServer",
  "codeSigningTeamID" : "",
  "codeSigningFlags" : 570518017,
  "codeSigningValidationCategory" : 1,
  "codeSigningTrustLevel" : 4294967295,
  "sip" : "enabled",
  "exception" : {"codes":"0x0000000000000000, 0x0000000000000000","rawCodes":[0,0],"type":"EXC_CRASH","signal":"SIGABRT"},
  "termination" : {"flags":518,"code":4,"namespace":"COREANIMATION","details":["spec=PBGRAXb_TimgBdrkXcn_IsrcCrdN3Oc3mtc4nl","Downgrade failed with error: Compiler encountered an internal error"]},
  "ktriageinfo" : "VM - (arg = 0x0) Returned success with no page\nVM - (arg = 0x0) Returned success with no page\nVM - (arg = 0x0) Returned success with no page\nVM - (arg = 0x0) Returned success with no page\nVM - (arg = 0x0) Returned success with no page\n",
  "extMods" : {"caller":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"system":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"targeted":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"warnings":0},
  "faultingThread" : 0,
  "threads" : [{"threadState":{"r13":{"value":140702029753008},"rax":{"value":33554953},"rflags":{"value":582},"cpu":{"value":0},"r14":{"value":13},"rsi":{"value":4},"r8":{"value":140703741761708},"cr2":{"value":0},"rdx":{"value":140702029753008},"r10":{"value":112},"r9":{"value":0},"r15":{"value":112},"rbx":{"value":4},"trap":{"value":133},"err":{"value":33554953},"r11":{"value":582},"rip":{"value":140703592825058,"matchesCrashFrame":1},"rbp":{"value":140702029752816},"rsp":{"value":140702029752744},"r12":{"value":0},"rcx":{"value":140702029752744},"flavor":"x86_THREAD_STATE","rdi":{"value":13}},"id":4739,"triggered":true,"name":"ws_main_thread","queue":"com.apple.main-thread","frames":[{"imageOffset":49378,"symbol":"__abort_with_payload","symbolLocation":10,"imageIndex":28},{"imageOffset":174282,"symbol":"abort_with_payload_wrapper_internal","symbolLocation":82,"imageIndex":28},{"imageOffset":174332,"symbol":"abort_with_payload","symbolLocation":9,"imageIndex":28},{"imageOffset":380039,"symbol":"CA::OGL::MetalContext::create_pipeline_state(CA::OGL::MetalContext::Pipeline::Spec const&, unsigned int*, std::__1::atomic<bool>*)","symbolLocation":6923,"imageIndex":29},{"imageOffset":2257631,"symbol":"CA::OGL::MetalContext::draw(MTLPrimitiveType, unsigned int, unsigned int, void const*, unsigned long, unsigned long, unsigned int, unsigned int, unsigned short const*, CA::OGL::ClipPlane const*, CA::OGL::MetalBufferPool::MetalBuffer const*)","symbolLocation":13541,"imageIndex":29},{"imageOffset":364454,"symbol":"CA::OGL::MetalContext::draw_elements(CA::OGL::PrimitiveMode, unsigned int, unsigned short const*, CA::OGL::Vertex const*, unsigned int, unsigned int, CA::OGL::ClipPlane const*)","symbolLocation":110,"imageIndex":29},{"imageOffset":364289,"symbol":"CA::OGL::Context::array_flush()","symbolLocation":55,"imageIndex":29},{"imageOffset":464868,"symbol":"CA::OGL::Context::ClippedArray::next_rect(CA::Bounds&)","symbolLocation":544,"imageIndex":29},{"imageOffset":710315,"symbol":"CA::OGL::emit_quad_indices(CA::OGL::Context&, CA::OGL::RectState const&, unsigned short const*, unsigned long, unsigned long, unsigned long)","symbolLocation":197,"imageIndex":29},{"imageOffset":491504,"symbol":"CA::OGL::emit_one_part_rect(CA::OGL::Context&, CA::OGL::RectState const&, float const*, float const*, unsigned int)","symbolLocation":799,"imageIndex":29},{"imageOffset":485142,"symbol":"CA::OGL::fill_rect_tex(CA::OGL::Context&, CA::OGL::RectState const&, float const*)","symbolLocation":192,"imageIndex":29},{"imageOffset":2740245,"symbol":"CA::OGL::fill_round_rect_tex(CA::OGL::Context&, CA::OGL::RectState const&, CA::Vec2<double>, float const*, unsigned int, unsigned int, CA::Rect const*)","symbolLocation":635,"imageIndex":29},{"imageOffset":749820,"symbol":"CA::OGL::render_subclass(CA::OGL::Renderer&, CA::OGL::Layer const*)::visitor::visit_subclass(CA::Render::GradientLayer const*) const","symbolLocation":1182,"imageIndex":29},{"imageOffset":692725,"symbol":"CA::OGL::render_background(CA::OGL::Renderer&, CA::OGL::Layer const*)","symbolLocation":1130,"imageIndex":29},{"imageOffset":683200,"symbol":"CA::OGL::render_contents_background(CA::OGL::Renderer&, CA::OGL::Layer const*)","symbolLocation":1240,"imageIndex":29},{"imageOffset":680740,"symbol":"CA::OGL::LayerNode::apply(float, CA::OGL::Surface**, float*)","symbolLocation":76,"imageIndex":29},{"imageOffset":677070,"symbol":"CA::OGL::ImagingNode::render(CA::OGL::ImagingNode::RenderClosure*, unsigned int)","symbolLocation":916,"imageIndex":29},{"imageOffset":675609,"symbol":"CA::OGL::render_layers(CA::OGL::Renderer&, CA::OGL::Layer*)","symbolLocation":377,"imageIndex":29},{"imageOffset":680828,"symbol":"CA::OGL::LayerNode::apply(float, CA::OGL::Surface**, float*)","symbolLocation":164,"imageIndex":29},{"imageOffset":677070,"symbol":"CA::OGL::ImagingNode::render(CA::OGL::ImagingNode::RenderClosure*, unsigned int)","symbolLocation":916,"imageIndex":29},{"imageOffset":675609,"symbol":"CA::OGL::render_layers(CA::OGL::Renderer&, CA::OGL::Layer*)","symbolLocation":377,"imageIndex":29},{"imageOffset":680828,"symbol":"CA::OGL::LayerNode::apply(float, CA::OGL::Surface**, float*)","symbolLocation":164,"imageIndex":29},{"imageOffset":677070,"symbol":"CA::OGL::ImagingNode::render(CA::OGL::ImagingNode::RenderClosure*, unsigned int)","symbolLocation":916,"imageIndex":29},{"imageOffset":675609,"symbol":"CA::OGL::render_layers(CA::OGL::Renderer&, CA::OGL::Layer*)","symbolLocation":377,"imageIndex":29},{"imageOffset":680828,"symbol":"CA::OGL::LayerNode::apply(float, CA::OGL::Surface**, float*)","symbolLocation":164,"imageIndex":29},{"imageOffset":677070,"symbol":"CA::OGL::ImagingNode::render(CA::OGL::ImagingNode::RenderClosure*, unsigned int)","symbolLocation":916,"imageIndex":29},{"imageOffset":675609,"symbol":"CA::OGL::render_layers(CA::OGL::Renderer&, CA::OGL::Layer*)","symbolLocation":377,"imageIndex":29},{"imageOffset":680828,"symbol":"CA::OGL::LayerNode::apply(float, CA::OGL::Surface**, float*)","symbolLocation":164,"imageIndex":29},{"imageOffset":677070,"symbol":"CA::OGL::ImagingNode::render(CA::OGL::ImagingNode::RenderClosure*, unsigned int)","symbolLocation":916,"imageIndex":29},{"imageOffset":675609,"symbol":"CA::OGL::render_layers(CA::OGL::Renderer&, CA::OGL::Layer*)","symbolLocation":377,"imageIndex":29},{"imageOffset":680828,"symbol":"CA::OGL::LayerNode::apply(float, CA::OGL::Surface**, float*)","symbolLocation":164,"imageIndex":29},{"imageOffset":677070,"symbol":"CA::OGL::ImagingNode::render(CA::OGL::ImagingNode::RenderClosure*, unsigned int)","symbolLocation":916,"imageIndex":29},{"imageOffset":675609,"symbol":"CA::OGL::render_layers(CA::OGL::Renderer&, CA::OGL::Layer*)","symbolLocation":377,"imageIndex":29},{"imageOffset":1252415,"symbol":"CA::OGL::render_prepared_layers(CA::OGL::Renderer&, CA::OGL::Layer&, CA::OGL::Layer*, CA::OGL::Gstate const&)","symbolLocation":637,"imageIndex":29},{"imageOffset":1064514,"symbol":"CA::OGL::Renderer::render(CA::Render::Update const*, unsigned long)","symbolLocation":2372,"imageIndex":29},{"imageOffset":1065743,"symbol":"CA::OGL::render(CA::OGL::Renderer&, CA::Render::Update*, unsigned long)","symbolLocation":506,"imageIndex":29},{"imageOffset":1856398,"symbol":"CARenderOGLRenderDisplayWithOptions","symbolLocation":143,"imageIndex":29},{"imageOffset":633110,"symbol":"MetalCompositeCoreAnimation","symbolLocation":2873,"imageIndex":30},{"imageOffset":3501280,"symbol":"MetalCompositeLayer","symbolLocation":637,"imageIndex":30},{"imageOffset":3500572,"symbol":"MetalCompositeLayers","symbolLocation":41,"imageIndex":30},{"imageOffset":3499251,"symbol":"CompositorMetal::composite(WSCompositeSourceLayer*, WSCompositeDestination*, bool, bool)","symbolLocation":415,"imageIndex":30},{"imageOffset":3477922,"symbol":"CompositorMetal::CompositeLayersToDestination(WSCompositeSourceLayer*, WSCompositeDestination*, unsigned long long)","symbolLocation":244,"imageIndex":30},{"imageOffset":1964080,"symbol":"WS::Displays::CDDisplay::render_update(WS::Displays::Update&, Compositor*, unsigned int, WSCompositeSourceLayer*)","symbolLocation":872,"imageIndex":30},{"imageOffset":2730458,"symbol":"WS::Updater::UpdateDisplays(CGXConnection*, bool, std::__1::vector<std::__1::shared_ptr<WS::Displays::Display>, std::__1::allocator<std::__1::shared_ptr<WS::Displays::Display>>>)","symbolLocation":20846,"imageIndex":30},{"imageOffset":2709568,"symbol":"CGXUpdateDisplay","symbolLocation":60,"imageIndex":30},{"imageOffset":2660338,"symbol":"update_display_callback(void*, double)","symbolLocation":1796,"imageIndex":30},{"imageOffset":3305755,"symbol":"run_timer_pass","symbolLocation":556,"imageIndex":30},{"imageOffset":3305998,"symbol":"non_coalesced_timer_handler","symbolLocation":16,"imageIndex":30},{"imageOffset":3563520,"symbol":"post_port_data","symbolLocation":269,"imageIndex":30},{"imageOffset":3562827,"symbol":"CGXRunOneServicesPass","symbolLocation":1696,"imageIndex":30},{"imageOffset":3565298,"symbol":"server_loop","symbolLocation":98,"imageIndex":30},{"imageOffset":3564876,"symbol":"SLXServer","symbolLocation":1265,"imageIndex":30},{"imageOffset":13452,"imageIndex":27},{"imageOffset":25478,"symbol":"start","symbolLocation":1942,"imageIndex":31}]},{"id":4916,"name":"com.apple.coreanimation.render-server","threadState":{"r13":{"value":4294967552},"rax":{"value":260},"rflags":{"value":583},"cpu":{"value":0},"r14":{"value":123145396674560},"rsi":{"value":4294967552},"r8":{"value":0},"cr2":{"value":0},"rdx":{"value":0},"r10":{"value":0},"r9":{"value":160},"r15":{"value":0},"rbx":{"value":22},"trap":{"value":133},"err":{"value":33554737},"r11":{"value":582},"rip":{"value":140703592793518},"rbp":{"value":123145396656736},"rsp":{"value":123145396656584},"r12":{"value":0},"rcx":{"value":123145396656584},"flavor":"x86_THREAD_STATE","rdi":{"value":140704693891096,"symbolLocation":0,"symbol":"CA::Render::Fence::_bwait_cond_writer"}},"frames":[{"imageOffset":17838,"symbol":"__psynch_cvwait","symbolLocation":10,"imageIndex":28},{"imageOffset":26475,"symbol":"_pthread_cond_wait","symbolLocation":1211,"imageIndex":33},{"imageOffset":3163700,"symbol":"CA::Render::Fence::resolve_batches(double)","symbolLocation":1420,"imageIndex":29},{"imageOffset":301443,"symbol":"CA::Render::Server::server_thread(void*)","symbolLocation":3089,"imageIndex":29},{"imageOffset":298341,"symbol":"thread_fun(void*)","symbolLocation":25,"imageIndex":29},{"imageOffset":25090,"symbol":"_pthread_start","symbolLocation":99,"imageIndex":33},{"imageOffset":7083,"symbol":"thread_start","symbolLocation":15,"imageIndex":33}]},{"id":4917,"threadState":{"r13":{"value":123145397208920},"rax":{"value":14},"rflags":{"value":518},"cpu":{"value":0},"r14":{"value":105553116367664},"rsi":{"value":4294964925178052612},"r8":{"value":1},"cr2":{"value":0},"rdx":{"value":999999448},"r10":{"value":4294964925178052608},"r9":{"value":18446743833191383039},"r15":{"value":19342813113834067},"rbx":{"value":50011771980},"trap":{"value":133},"err":{"value":16777254},"r11":{"value":518},"rip":{"value":140703592782242},"rbp":{"value":123145397208768},"rsp":{"value":123145397208728},"r12":{"value":123145397208832},"rcx":{"value":123145397208728},"flavor":"x86_THREAD_STATE","rdi":{"value":12803}},"queue":"com.apple.CoreDisplay.subsidiary.services.queue","frames":[{"imageOffset":6562,"symbol":"semaphore_timedwait_trap","symbolLocation":10,"imageIndex":28},{"imageOffset":15083,"symbol":"_dispatch_sema4_timedwait","symbolLocation":73,"imageIndex":34},{"imageOffset":16183,"symbol":"_dispatch_semaphore_wait_slow","symbolLocation":58,"imageIndex":34},{"imageOffset":8612,"symbol":"serviceSendMessageWithReplyAndTimeout","symbolLocation":303,"imageIndex":35},{"imageOffset":97839,"symbol":"AMBDapplyIntentionFromPreferencesForDisplayID","symbolLocation":1341,"imageIndex":35},{"imageOffset":517885,"symbol":"invocation function for block in ColorSyncUtilsUpdateDisplayProfilesCallback(void*, double)","symbolLocation":47,"imageIndex":36},{"imageOffset":8934,"symbol":"_dispatch_call_block_and_release","symbolLocation":12,"imageIndex":34},{"imageOffset":13722,"symbol":"_dispatch_client_callout","symbolLocation":8,"imageIndex":34},{"imageOffset":38504,"symbol":"_dispatch_lane_serial_drain","symbolLocation":816,"imageIndex":34},{"imageOffset":41216,"symbol":"_dispatch_lane_invoke","symbolLocation":377,"imageIndex":34},{"imageOffset":80622,"symbol":"_dispatch_root_queue_drain_deferred_wlh","symbolLocation":271,"imageIndex":34},{"imageOffset":78845,"symbol":"_dispatch_workloop_worker_thread","symbolLocation":451,"imageIndex":34},{"imageOffset":11335,"symbol":"_pthread_wqthread","symbolLocation":327,"imageIndex":33},{"imageOffset":7063,"symbol":"start_wqthread","symbolLocation":15,"imageIndex":33}]},{"id":4918,"frames":[{"imageOffset":7048,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":33}],"threadState":{"r13":{"value":0},"rax":{"value":33554800},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":1},"rsi":{"value":15363},"r8":{"value":409604},"cr2":{"value":0},"rdx":{"value":123145397223424},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":123145397746552},"rbx":{"value":123145397747712},"trap":{"value":133},"err":{"value":33554800},"r11":{"value":582},"rip":{"value":140703593024392},"rbp":{"value":0},"rsp":{"value":123145397747712},"r12":{"value":5193732},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145397747712}}},{"id":4922,"frames":[{"imageOffset":7048,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":33}],"threadState":{"r13":{"value":0},"rax":{"value":33554800},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":0},"rsi":{"value":19971},"r8":{"value":409604},"cr2":{"value":0},"rdx":{"value":123145397760000},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":0},"rbx":{"value":123145398284288},"trap":{"value":133},"err":{"value":33554800},"r11":{"value":582},"rip":{"value":140703593024392},"rbp":{"value":0},"rsp":{"value":123145398284288},"r12":{"value":0},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145398284288}}},{"id":4925,"name":"IOHIDService - RunLoopCompatibilityThread","threadState":{"r13":{"value":21592279046},"rax":{"value":268451845},"rflags":{"value":518},"cpu":{"value":0},"r14":{"value":2},"rsi":{"value":21592279046},"r8":{"value":0},"cr2":{"value":0},"rdx":{"value":8589934592},"r10":{"value":76978698846208},"r9":{"value":76978698846208},"r15":{"value":76978698846208},"rbx":{"value":123145398816720},"trap":{"value":133},"err":{"value":16777263},"r11":{"value":518},"rip":{"value":140703592782350},"rbp":{"value":123145398816560},"rsp":{"value":123145398816456},"r12":{"value":4294967295},"rcx":{"value":123145398816456},"flavor":"x86_THREAD_STATE","rdi":{"value":123145398816720}},"frames":[{"imageOffset":6670,"symbol":"mach_msg2_trap","symbolLocation":10,"imageIndex":28},{"imageOffset":65050,"symbol":"mach_msg2_internal","symbolLocation":84,"imageIndex":28},{"imageOffset":35650,"symbol":"mach_msg_overwrite","symbolLocation":653,"imageIndex":28},{"imageOffset":7423,"symbol":"mach_msg","symbolLocation":19,"imageIndex":28},{"imageOffset":506649,"symbol":"__CFRunLoopServiceMachPort","symbolLocation":143,"imageIndex":37},{"imageOffset":501132,"symbol":"__CFRunLoopRun","symbolLocation":1371,"imageIndex":37},{"imageOffset":498281,"symbol":"CFRunLoopRunSpecific","symbolLocation":557,"imageIndex":37},{"imageOffset":1001609,"symbol":"CFRunLoopRun","symbolLocation":40,"imageIndex":37},{"imageOffset":366766,"symbol":"__IOHIDServiceRunLoopCompatibilityThread","symbolLocation":307,"imageIndex":38},{"imageOffset":25090,"symbol":"_pthread_start","symbolLocation":99,"imageIndex":33},{"imageOffset":7083,"symbol":"thread_start","symbolLocation":15,"imageIndex":33}]},{"id":4930,"threadState":{"r13":{"value":123145399355168},"rax":{"value":18446744073709551612},"rflags":{"value":514},"cpu":{"value":0},"r14":{"value":16777217},"rsi":{"value":123145399355264},"r8":{"value":335007449088},"cr2":{"value":0},"rdx":{"value":0},"r10":{"value":0},"r9":{"value":0},"r15":{"value":0},"rbx":{"value":4294967295},"trap":{"value":133},"err":{"value":33554947},"r11":{"value":514},"rip":{"value":140703592788418},"rbp":{"value":123145399355072},"rsp":{"value":123145399355032},"r12":{"value":123145399355264},"rcx":{"value":123145399355032},"flavor":"x86_THREAD_STATE","rdi":{"value":16777217}},"queue":"com.apple.libtrace.state.block-list","frames":[{"imageOffset":12738,"symbol":"__ulock_wait","symbolLocation":10,"imageIndex":28},{"imageOffset":15794,"symbol":"_dlock_wait","symbolLocation":46,"imageIndex":34},{"imageOffset":15418,"symbol":"_dispatch_thread_event_wait_slow","symbolLocation":40,"imageIndex":34},{"imageOffset":67267,"symbol":"__DISPATCH_WAIT_FOR_QUEUE__","symbolLocation":307,"imageIndex":34},{"imageOffset":66287,"symbol":"_dispatch_sync_f_slow","symbolLocation":175,"imageIndex":34},{"imageOffset":49673,"symbol":"___os_state_request_for_self_block_invoke","symbolLocation":375,"imageIndex":39},{"imageOffset":8934,"symbol":"_dispatch_call_block_and_release","symbolLocation":12,"imageIndex":34},{"imageOffset":13722,"symbol":"_dispatch_client_callout","symbolLocation":8,"imageIndex":34},{"imageOffset":38504,"symbol":"_dispatch_lane_serial_drain","symbolLocation":816,"imageIndex":34},{"imageOffset":41216,"symbol":"_dispatch_lane_invoke","symbolLocation":377,"imageIndex":34},{"imageOffset":80622,"symbol":"_dispatch_root_queue_drain_deferred_wlh","symbolLocation":271,"imageIndex":34},{"imageOffset":78845,"symbol":"_dispatch_workloop_worker_thread","symbolLocation":451,"imageIndex":34},{"imageOffset":11335,"symbol":"_pthread_wqthread","symbolLocation":327,"imageIndex":33},{"imageOffset":7063,"symbol":"start_wqthread","symbolLocation":15,"imageIndex":33}]},{"id":4933,"frames":[{"imageOffset":7048,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":33}],"threadState":{"r13":{"value":0},"rax":{"value":33554800},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":0},"rsi":{"value":43011},"r8":{"value":409604},"cr2":{"value":0},"rdx":{"value":123145399369728},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":0},"rbx":{"value":123145399894016},"trap":{"value":133},"err":{"value":33554800},"r11":{"value":582},"rip":{"value":140703593024392},"rbp":{"value":0},"rsp":{"value":123145399894016},"r12":{"value":0},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145399894016}}},{"id":4934,"threadState":{"r13":{"value":21525170178},"rax":{"value":268451845},"rflags":{"value":514},"cpu":{"value":0},"r14":{"value":2},"rsi":{"value":21525170178},"r8":{"value":0},"cr2":{"value":0},"rdx":{"value":8589934592},"r10":{"value":0},"r9":{"value":336463443001344},"r15":{"value":336463443001344},"rbx":{"value":123145400428352},"trap":{"value":133},"err":{"value":16777263},"r11":{"value":514},"rip":{"value":140703592782350},"rbp":{"value":123145400428192},"rsp":{"value":123145400428088},"r12":{"value":0},"rcx":{"value":123145400428088},"flavor":"x86_THREAD_STATE","rdi":{"value":123145400428352}},"queue":"com.apple.VirtualDisplayListener","frames":[{"imageOffset":6670,"symbol":"mach_msg2_trap","symbolLocation":10,"imageIndex":28},{"imageOffset":65050,"symbol":"mach_msg2_internal","symbolLocation":84,"imageIndex":28},{"imageOffset":35650,"symbol":"mach_msg_overwrite","symbolLocation":653,"imageIndex":28},{"imageOffset":43842,"symbol":"mach_msg_server_once","symbolLocation":266,"imageIndex":28},{"imageOffset":71305,"symbol":"-[VirtualDisplayListener rx]","symbolLocation":77,"imageIndex":36},{"imageOffset":8934,"symbol":"_dispatch_call_block_and_release","symbolLocation":12,"imageIndex":34},{"imageOffset":13722,"symbol":"_dispatch_client_callout","symbolLocation":8,"imageIndex":34},{"imageOffset":38504,"symbol":"_dispatch_lane_serial_drain","symbolLocation":816,"imageIndex":34},{"imageOffset":41216,"symbol":"_dispatch_lane_invoke","symbolLocation":377,"imageIndex":34},{"imageOffset":80622,"symbol":"_dispatch_root_queue_drain_deferred_wlh","symbolLocation":271,"imageIndex":34},{"imageOffset":78845,"symbol":"_dispatch_workloop_worker_thread","symbolLocation":451,"imageIndex":34},{"imageOffset":11335,"symbol":"_pthread_wqthread","symbolLocation":327,"imageIndex":33},{"imageOffset":7063,"symbol":"start_wqthread","symbolLocation":15,"imageIndex":33}]},{"id":5033,"name":"com.apple.windowserver.root_queue","threadState":{"r13":{"value":18446744071427850239},"rax":{"value":14},"rflags":{"value":518},"cpu":{"value":0},"r14":{"value":140471737270656},"rsi":{"value":4294966273797783556},"r8":{"value":1},"cr2":{"value":0},"rdx":{"value":999999762},"r10":{"value":4294966273797783552},"r9":{"value":3355834393},"r15":{"value":19342813113834067},"rbx":{"value":50189910666},"trap":{"value":133},"err":{"value":16777254},"r11":{"value":518},"rip":{"value":140703592782242},"rbp":{"value":123145400966976},"rsp":{"value":123145400966936},"r12":{"value":0},"rcx":{"value":123145400966936},"flavor":"x86_THREAD_STATE","rdi":{"value":5635}},"frames":[{"imageOffset":6562,"symbol":"semaphore_timedwait_trap","symbolLocation":10,"imageIndex":28},{"imageOffset":15083,"symbol":"_dispatch_sema4_timedwait","symbolLocation":73,"imageIndex":34},{"imageOffset":16183,"symbol":"_dispatch_semaphore_wait_slow","symbolLocation":58,"imageIndex":34},{"imageOffset":75181,"symbol":"_dispatch_worker_thread","symbolLocation":321,"imageIndex":34},{"imageOffset":25090,"symbol":"_pthread_start","symbolLocation":99,"imageIndex":33},{"imageOffset":7083,"symbol":"thread_start","symbolLocation":15,"imageIndex":33}]},{"id":5040,"frames":[{"imageOffset":6670,"symbol":"mach_msg2_trap","symbolLocation":10,"imageIndex":28},{"imageOffset":65050,"symbol":"mach_msg2_internal","symbolLocation":84,"imageIndex":28},{"imageOffset":35650,"symbol":"mach_msg_overwrite","symbolLocation":653,"imageIndex":28},{"imageOffset":7423,"symbol":"mach_msg","symbolLocation":19,"imageIndex":28},{"imageOffset":194250,"symbol":"CoreDisplay::Mach::Message::Receive(unsigned int)","symbolLocation":80,"imageIndex":36},{"imageOffset":960967,"symbol":"CoreDisplay::Mach::Server::Start()","symbolLocation":105,"imageIndex":36},{"imageOffset":961168,"symbol":"void* std::__1::__thread_proxy[abi:v160006]<std::__1::tuple<std::__1::unique_ptr<std::__1::__thread_struct, std::__1::default_delete<std::__1::__thread_struct>>, void (CoreDisplay::Mach::Server::*)(), CoreDisplay::Mach::Server*>>(void*)","symbolLocation":79,"imageIndex":36},{"imageOffset":25090,"symbol":"_pthread_start","symbolLocation":99,"imageIndex":33},{"imageOffset":7083,"symbol":"thread_start","symbolLocation":15,"imageIndex":33}],"threadState":{"r13":{"value":21525170182},"rax":{"value":268451845},"rflags":{"value":518},"cpu":{"value":0},"r14":{"value":2},"rsi":{"value":21525170182},"r8":{"value":0},"cr2":{"value":0},"rdx":{"value":8589934592},"r10":{"value":0},"r9":{"value":337940911751168},"r15":{"value":337940911751168},"rbx":{"value":123145401503088},"trap":{"value":133},"err":{"value":16777263},"r11":{"value":518},"rip":{"value":140703592782350},"rbp":{"value":123145401502928},"rsp":{"value":123145401502824},"r12":{"value":0},"rcx":{"value":123145401502824},"flavor":"x86_THREAD_STATE","rdi":{"value":123145401503088}}},{"id":5110,"name":"com.apple.windowserver.root_queue","threadState":{"r13":{"value":18446744071427850239},"rax":{"value":14},"rflags":{"value":518},"cpu":{"value":0},"r14":{"value":140471737270656},"rsi":{"value":4294965504998637572},"r8":{"value":1},"cr2":{"value":0},"rdx":{"value":999999583},"r10":{"value":4294965504998637568},"r9":{"value":3064303744},"r15":{"value":19342813113834067},"rbx":{"value":48505058430},"trap":{"value":133},"err":{"value":16777254},"r11":{"value":518},"rip":{"value":140703592782242},"rbp":{"value":123145402040128},"rsp":{"value":123145402040088},"r12":{"value":0},"rcx":{"value":123145402040088},"flavor":"x86_THREAD_STATE","rdi":{"value":5635}},"frames":[{"imageOffset":6562,"symbol":"semaphore_timedwait_trap","symbolLocation":10,"imageIndex":28},{"imageOffset":15083,"symbol":"_dispatch_sema4_timedwait","symbolLocation":73,"imageIndex":34},{"imageOffset":16183,"symbol":"_dispatch_semaphore_wait_slow","symbolLocation":58,"imageIndex":34},{"imageOffset":75181,"symbol":"_dispatch_worker_thread","symbolLocation":321,"imageIndex":34},{"imageOffset":25090,"symbol":"_pthread_start","symbolLocation":99,"imageIndex":33},{"imageOffset":7083,"symbol":"thread_start","symbolLocation":15,"imageIndex":33}]},{"id":5111,"frames":[{"imageOffset":7048,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":33}],"threadState":{"r13":{"value":0},"rax":{"value":33554800},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":0},"rsi":{"value":93963},"r8":{"value":409604},"cr2":{"value":0},"rdx":{"value":123145402052608},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":0},"rbx":{"value":123145402576896},"trap":{"value":133},"err":{"value":33554800},"r11":{"value":582},"rip":{"value":140703593024392},"rbp":{"value":0},"rsp":{"value":123145402576896},"r12":{"value":0},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145402576896}}},{"id":5112,"frames":[{"imageOffset":7048,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":33}],"threadState":{"r13":{"value":0},"rax":{"value":33554800},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":0},"rsi":{"value":124931},"r8":{"value":409604},"cr2":{"value":0},"rdx":{"value":123145402589184},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":0},"rbx":{"value":123145403113472},"trap":{"value":133},"err":{"value":33554800},"r11":{"value":582},"rip":{"value":140703593024392},"rbp":{"value":0},"rsp":{"value":123145403113472},"r12":{"value":0},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145403113472}}},{"id":5113,"frames":[{"imageOffset":7048,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":33}],"threadState":{"r13":{"value":0},"rax":{"value":33554800},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":0},"rsi":{"value":124675},"r8":{"value":409604},"cr2":{"value":0},"rdx":{"value":123145403125760},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":0},"rbx":{"value":123145403650048},"trap":{"value":133},"err":{"value":33554800},"r11":{"value":582},"rip":{"value":140703593024392},"rbp":{"value":0},"rsp":{"value":123145403650048},"r12":{"value":0},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145403650048}}},{"id":5114,"frames":[{"imageOffset":7048,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":33}],"threadState":{"r13":{"value":0},"rax":{"value":33554800},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":1},"rsi":{"value":124419},"r8":{"value":409604},"cr2":{"value":0},"rdx":{"value":123145403662336},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":123145404185464},"rbx":{"value":123145404186624},"trap":{"value":133},"err":{"value":33554800},"r11":{"value":582},"rip":{"value":140703593024392},"rbp":{"value":0},"rsp":{"value":123145404186624},"r12":{"value":5193732},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145404186624}}},{"id":5117,"threadState":{"r13":{"value":17297326606},"rax":{"value":268451845},"rflags":{"value":514},"cpu":{"value":0},"r14":{"value":16384},"rsi":{"value":17297326606},"r8":{"value":0},"cr2":{"value":0},"rdx":{"value":0},"r10":{"value":7778185874723},"r9":{"value":416830871044096},"r15":{"value":416830871044096},"rbx":{"value":123145404698352},"trap":{"value":133},"err":{"value":16777263},"r11":{"value":514},"rip":{"value":140703592782350},"rbp":{"value":123145404697984},"rsp":{"value":123145404697880},"r12":{"value":0},"rcx":{"value":123145404697880},"flavor":"x86_THREAD_STATE","rdi":{"value":123145404698352}},"queue":"compiler request queue","frames":[{"imageOffset":6670,"symbol":"mach_msg2_trap","symbolLocation":10,"imageIndex":28},{"imageOffset":65050,"symbol":"mach_msg2_internal","symbolLocation":84,"imageIndex":28},{"imageOffset":35650,"symbol":"mach_msg_overwrite","symbolLocation":653,"imageIndex":28},{"imageOffset":7423,"symbol":"mach_msg","symbolLocation":19,"imageIndex":28},{"imageOffset":110119,"symbol":"_dispatch_mach_send_and_wait_for_reply","symbolLocation":521,"imageIndex":34},{"imageOffset":111147,"symbol":"dispatch_mach_send_with_result_and_wait_for_reply","symbolLocation":50,"imageIndex":34},{"imageOffset":46483,"symbol":"xpc_connection_send_message_with_reply_sync","symbolLocation":261,"imageIndex":40},{"imageOffset":175089,"symbol":"XPCCompilerConnection::BuildRequestInternal(MTLCompilerRequest*, char const*, NSObject<OS_dispatch_data>*, int, bool, void (unsigned int, void const*, unsigned long, char const*) block_pointer)","symbolLocation":1357,"imageIndex":25},{"imageOffset":687591,"symbol":"invocation function for block in XPCCompilerConnection::BuildRequest(MTLCompilerRequest*, char const*, NSObject<OS_dispatch_data>*, int, bool, void (unsigned int, void const*, unsigned long, char const*) block_pointer)","symbolLocation":61,"imageIndex":25},{"imageOffset":13722,"symbol":"_dispatch_client_callout","symbolLocation":8,"imageIndex":34},{"imageOffset":66631,"symbol":"_dispatch_lane_barrier_sync_invoke_and_complete","symbolLocation":60,"imageIndex":34},{"imageOffset":173636,"symbol":"XPCCompilerConnection::BuildRequest(MTLCompilerRequest*, char const*, NSObject<OS_dispatch_data>*, int, bool, void (unsigned int, void const*, unsigned long, char const*) block_pointer)","symbolLocation":116,"imageIndex":25},{"imageOffset":173269,"symbol":"MTLCompilerConnectionManagerPrivate::buildRequest(unsigned int, MTLCompilerRequest*, bool, void (MTLCompilerError, NSObject<OS_dispatch_data>*, char const*) block_pointer)","symbolLocation":329,"imageIndex":25},{"imageOffset":1024290,"symbol":"-[MTLCompiler compileFunctionRequestInternal:frameworkLinking:linkDataSize:reflectionOnly:completionHandler:]","symbolLocation":7627,"imageIndex":25},{"imageOffset":1071628,"symbol":"-[MTLCompiler newRenderPipelineStateWithDescriptorInternal:options:reflection:destinationBinaryArchive:error:completionHandler:]","symbolLocation":2329,"imageIndex":25},{"imageOffset":119256,"symbol":"-[MTLCompiler newRenderPipelineStateWithDescriptor:options:reflection:error:completionHandler:]","symbolLocation":27,"imageIndex":25},{"imageOffset":117012,"symbol":"-[_MTLDevice newRenderPipelineStateWithDescriptor:error:]","symbolLocation":65,"imageIndex":25},{"imageOffset":378684,"symbol":"CA::OGL::MetalContext::create_pipeline_state(CA::OGL::MetalContext::Pipeline::Spec const&, unsigned int*, std::__1::atomic<bool>*)","symbolLocation":5568,"imageIndex":29},{"imageOffset":2262284,"symbol":"invocation function for block in CA::OGL::MetalContext::dispatch_async_pipeline(CA::OGL::MetalContext::Pipeline::Spec const&, CA::OGL::MetalContext::Pipeline*, bool)","symbolLocation":117,"imageIndex":29},{"imageOffset":65538,"symbol":"_dispatch_block_async_invoke2","symbolLocation":85,"imageIndex":34},{"imageOffset":13722,"symbol":"_dispatch_client_callout","symbolLocation":8,"imageIndex":34},{"imageOffset":38504,"symbol":"_dispatch_lane_serial_drain","symbolLocation":816,"imageIndex":34},{"imageOffset":41216,"symbol":"_dispatch_lane_invoke","symbolLocation":377,"imageIndex":34},{"imageOffset":80622,"symbol":"_dispatch_root_queue_drain_deferred_wlh","symbolLocation":271,"imageIndex":34},{"imageOffset":78845,"symbol":"_dispatch_workloop_worker_thread","symbolLocation":451,"imageIndex":34},{"imageOffset":11335,"symbol":"_pthread_wqthread","symbolLocation":327,"imageIndex":33},{"imageOffset":7063,"symbol":"start_wqthread","symbolLocation":15,"imageIndex":33}]},{"id":5198,"name":"com.apple.windowserver.root_queue","threadState":{"r13":{"value":18446744071427850239},"rax":{"value":14},"rflags":{"value":518},"cpu":{"value":0},"r14":{"value":140471737270656},"rsi":{"value":4294966475661246468},"r8":{"value":1},"cr2":{"value":0},"rdx":{"value":999999809},"r10":{"value":4294966475661246464},"r9":{"value":3712231483},"r15":{"value":19342813113834067},"rbx":{"value":50189911124},"trap":{"value":133},"err":{"value":16777254},"r11":{"value":518},"rip":{"value":140703592782242},"rbp":{"value":123145405259584},"rsp":{"value":123145405259544},"r12":{"value":0},"rcx":{"value":123145405259544},"flavor":"x86_THREAD_STATE","rdi":{"value":5635}},"frames":[{"imageOffset":6562,"symbol":"semaphore_timedwait_trap","symbolLocation":10,"imageIndex":28},{"imageOffset":15083,"symbol":"_dispatch_sema4_timedwait","symbolLocation":73,"imageIndex":34},{"imageOffset":16183,"symbol":"_dispatch_semaphore_wait_slow","symbolLocation":58,"imageIndex":34},{"imageOffset":75181,"symbol":"_dispatch_worker_thread","symbolLocation":321,"imageIndex":34},{"imageOffset":25090,"symbol":"_pthread_start","symbolLocation":99,"imageIndex":33},{"imageOffset":7083,"symbol":"thread_start","symbolLocation":15,"imageIndex":33}]},{"id":5247,"frames":[{"imageOffset":7048,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":33}],"threadState":{"r13":{"value":0},"rax":{"value":33554800},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":1},"rsi":{"value":119311},"r8":{"value":409604},"cr2":{"value":0},"rdx":{"value":123145405272064},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":123145405795200},"rbx":{"value":123145405796352},"trap":{"value":133},"err":{"value":33554800},"r11":{"value":582},"rip":{"value":140703593024392},"rbp":{"value":0},"rsp":{"value":123145405796352},"r12":{"value":3948552},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145405796352}}}],
  "usedImages" : [
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4329050112,
    "CFBundleShortVersionString" : "113.44",
    "CFBundleIdentifier" : "com.apple.AppleGVACoreFramework",
    "size" : 86016,
    "uuid" : "2be0a64d-e820-3401-9622-727dfa3c4784",
    "path" : "\/System\/Library\/PrivateFrameworks\/AppleGVACore.framework\/Versions\/A\/AppleGVACore",
    "name" : "AppleGVACore",
    "CFBundleVersion" : "113.44"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4328747008,
    "size" : 81920,
    "uuid" : "f116682b-282c-3da8-bf3e-25aa853ce29b",
    "path" : "\/System\/Library\/CoreServices\/TouchBarEvent.bundle",
    "name" : "TouchBarEvent.bundle"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4324179968,
    "CFBundleShortVersionString" : "16.4.5",
    "CFBundleIdentifier" : "com.apple.driver.AppleIntelHD4000GraphicsMTLDriver",
    "size" : 16384,
    "uuid" : "9c54584e-dbe1-3829-bd41-2301b4489c2c",
    "path" : "\/System\/Library\/Extensions\/AppleIntelHD4000GraphicsMTLDriver.bundle\/Contents\/MacOS\/AppleIntelHD4000GraphicsMTLDriver",
    "name" : "AppleIntelHD4000GraphicsMTLDriver",
    "CFBundleVersion" : "16.0.4"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4326162432,
    "size" : 540672,
    "uuid" : "f4c37124-74e1-3473-a8b1-9956c13c38b1",
    "path" : "\/System\/Library\/Extensions\/AppleIntelHD4000GraphicsMTLDriver.bundle\/Contents\/MacOS\/AppleIntelHD4000GraphicsMTLDriver_real",
    "name" : "AppleIntelHD4000GraphicsMTLDriver_real"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4323143680,
    "CFBundleShortVersionString" : "481.0.1",
    "CFBundleIdentifier" : "com.apple.driver.IOAccelerator2D",
    "size" : 16384,
    "uuid" : "3d9c4004-af50-3679-a963-776d1f8535c6",
    "path" : "\/System\/Library\/Extensions\/IOAccelerator2D.plugin\/Contents\/MacOS\/IOAccelerator2D",
    "name" : "IOAccelerator2D",
    "CFBundleVersion" : "481.0.1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4322492416,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.iokit.hid.IOHIDPointerScrollFilter",
    "size" : 49152,
    "uuid" : "5e3db4f4-713f-3372-b4d9-5a4cdbf3ef97",
    "path" : "\/System\/Library\/HIDPlugins\/IOHIDPointerScrollFilter.plugin\/Contents\/MacOS\/IOHIDPointerScrollFilter",
    "name" : "IOHIDPointerScrollFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4322701312,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.KeyboardTelemetryServiceFilter",
    "size" : 32768,
    "uuid" : "c73eb357-cb03-32b8-8036-954b11882d49",
    "path" : "\/System\/Library\/HIDPlugins\/ServiceFilters\/KeyboardTelemetryServiceFilter.plugin\/Contents\/MacOS\/KeyboardTelemetryServiceFilter",
    "name" : "KeyboardTelemetryServiceFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4322807808,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.iokit.hid.IOHIDKeyboardFilter",
    "size" : 49152,
    "uuid" : "219325c7-8c45-32ce-bcb7-d7d208acb919",
    "path" : "\/System\/Library\/HIDPlugins\/IOHIDKeyboardFilter.plugin\/Contents\/MacOS\/IOHIDKeyboardFilter",
    "name" : "IOHIDKeyboardFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4320817152,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.GameController.HID.GenericGamepad",
    "size" : 98304,
    "uuid" : "fb581c70-0530-39e2-930d-4ef869a71b71",
    "path" : "\/System\/Library\/HIDPlugins\/ServicePlugins\/GenericGamepadHIDServicePlugin.plugin\/Contents\/MacOS\/GenericGamepadHIDServicePlugin",
    "name" : "GenericGamepadHIDServicePlugin",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4321427456,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.universalcontrol.servicefilter",
    "size" : 753664,
    "uuid" : "ca6fb671-ddfe-31f2-82c3-ed630e99606b",
    "path" : "\/System\/Library\/HIDPlugins\/ServiceFilters\/UniversalControlServiceFilter.plugin\/Contents\/MacOS\/UniversalControlServiceFilter",
    "name" : "UniversalControlServiceFilter",
    "CFBundleVersion" : "140.2.1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4321345536,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.AppleHIDBluetoothFilter",
    "size" : 16384,
    "uuid" : "c045273d-4e1a-35a7-b0be-a5c749c54f50",
    "path" : "\/System\/Library\/HIDPlugins\/ServiceFilters\/AppleHIDBluetoothFilter.plugin\/Contents\/MacOS\/AppleHIDBluetoothFilter",
    "name" : "AppleHIDBluetoothFilter",
    "CFBundleVersion" : "7400.26"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4321067008,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.iokit.hid.IOHIDEventProcessorFilter",
    "size" : 32768,
    "uuid" : "69646f3c-b7f9-34a7-bd1d-7eebaca1cc9b",
    "path" : "\/System\/Library\/HIDPlugins\/IOHIDEventProcessorFilter.plugin\/Contents\/MacOS\/IOHIDEventProcessorFilter",
    "name" : "IOHIDEventProcessorFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4321165312,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.hid.ColourSensorFilterPlugin",
    "size" : 98304,
    "uuid" : "84f61686-a342-3746-af96-40b8348a470b",
    "path" : "\/System\/Library\/HIDPlugins\/ColourSensorFilterPlugin.plugin\/Contents\/MacOS\/ColourSensorFilterPlugin",
    "name" : "ColourSensorFilterPlugin",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4320395264,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.iokit.hid.IOHIDNXEventTranslatorServiceFilter",
    "size" : 16384,
    "uuid" : "937a9c18-317d-3f99-88f9-7f2a334945be",
    "path" : "\/System\/Library\/HIDPlugins\/IOHIDNXEventTranslatorServiceFilter.plugin\/Contents\/MacOS\/IOHIDNXEventTranslatorServiceFilter",
    "name" : "IOHIDNXEventTranslatorServiceFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4320313344,
    "CFBundleShortVersionString" : "2.0.0",
    "CFBundleIdentifier" : "com.apple.iokit.IOHIDNXEventRouter",
    "size" : 16384,
    "uuid" : "95f65cba-2fc3-3569-a5f7-b74154c9f988",
    "path" : "\/System\/Library\/Extensions\/IOHIDFamily.kext\/Contents\/PlugIns\/IOHIDNXEventRouter.plugin\/Contents\/MacOS\/IOHIDNXEventRouter",
    "name" : "IOHIDNXEventRouter",
    "CFBundleVersion" : "2.0.0"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4320485376,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.IOHIDEventServicePlugin",
    "size" : 16384,
    "uuid" : "5c851582-74aa-3323-a586-c3f756326d69",
    "path" : "\/System\/Library\/HIDPlugins\/ServicePlugins\/IOHIDEventServicePlugin.plugin\/Contents\/MacOS\/IOHIDEventServicePlugin",
    "name" : "IOHIDEventServicePlugin",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4320231424,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.CoreRCPlugin",
    "size" : 16384,
    "uuid" : "7e4e7e58-dc81-3c50-80a1-5f2d5ffa7f4b",
    "path" : "\/System\/Library\/HIDPlugins\/SessionFilters\/CoreRCPlugin.plugin\/Contents\/MacOS\/CoreRCPlugin",
    "name" : "CoreRCPlugin",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4320149504,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.IOHIDRemoteSensorSessionFilter",
    "size" : 16384,
    "uuid" : "299c4211-1f34-3cca-93fe-4b95284f979f",
    "path" : "\/System\/Library\/HIDPlugins\/SessionFilters\/IOHIDRemoteSensorSessionFilter.plugin\/Contents\/MacOS\/IOHIDRemoteSensorSessionFilter",
    "name" : "IOHIDRemoteSensorSessionFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4320604160,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.IOAnalytics",
    "size" : 65536,
    "uuid" : "743e593f-9984-3e69-b6ca-b125ce11b039",
    "path" : "\/System\/Library\/HIDPlugins\/SessionFilters\/IOAnalytics.plugin\/Contents\/MacOS\/IOAnalytics",
    "name" : "IOAnalytics",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4319920128,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.iokit.hid.IOHIDDFREventFilter",
    "size" : 16384,
    "uuid" : "dba25399-6cd1-3cb4-8c95-c6a9d239fdf9",
    "path" : "\/System\/Library\/HIDPlugins\/IOHIDDFREventFilter.plugin\/Contents\/MacOS\/IOHIDDFREventFilter",
    "name" : "IOHIDDFREventFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4320018432,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.iokit.hid.IOHIDNXEventTranslatorSessionFilter",
    "size" : 49152,
    "uuid" : "ecef865e-2737-3a57-8852-e4e56075c2be",
    "path" : "\/System\/Library\/HIDPlugins\/IOHIDNXEventTranslatorSessionFilter.plugin\/Contents\/MacOS\/IOHIDNXEventTranslatorSessionFilter",
    "name" : "IOHIDNXEventTranslatorSessionFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4319678464,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.IO80211",
    "size" : 16384,
    "uuid" : "72fb270b-2d3a-39f4-82fd-1b8af408bd39",
    "path" : "\/System\/Library\/PrivateFrameworks\/IO80211.framework\/Versions\/A\/IO80211",
    "name" : "IO80211",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4511772672,
    "size" : 344064,
    "uuid" : "d5cf0007-ff51-3af6-9c8e-1e8c75f15238",
    "path" : "\/System\/Library\/PrivateFrameworks\/IO80211.framework\/Versions\/A\/IO80211Old.dylib",
    "name" : "IO80211Old.dylib"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4362555392,
    "size" : 7553024,
    "uuid" : "9a00413f-d04a-3a3a-a228-9f163ec40160",
    "path" : "\/System\/Library\/PrivateFrameworks\/SkyLight.framework\/Versions\/A\/Resources\/CursorAsset",
    "name" : "CursorAsset"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4323434496,
    "CFBundleShortVersionString" : "341.31",
    "CFBundleIdentifier" : "com.apple.Metal",
    "size" : 49152,
    "uuid" : "c94d56b7-ec06-33b8-b328-58da5ad1e5e9",
    "path" : "\/System\/Library\/Frameworks\/Metal.framework\/Versions\/A\/Metal",
    "name" : "Metal",
    "CFBundleVersion" : "341.31"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4329930752,
    "size" : 1966080,
    "uuid" : "6581cd53-8583-38d1-b4b9-773f1dc3f551",
    "path" : "\/System\/Library\/Frameworks\/Metal.framework\/Versions\/A\/MetalOld.dylib",
    "name" : "MetalOld.dylib"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4341243904,
    "CFBundleShortVersionString" : "18.0.0",
    "CFBundleIdentifier" : "com.apple.CoreImage",
    "size" : 3883008,
    "uuid" : "66ee7d8d-ed35-3650-8b54-9bede38b7ece",
    "path" : "\/System\/Library\/Frameworks\/CoreImage.framework\/Versions\/A\/CoreImage",
    "name" : "CoreImage",
    "CFBundleVersion" : "1420.3"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4318945280,
    "size" : 16384,
    "uuid" : "5c0f1655-7456-301f-a151-2e56403e46c8",
    "path" : "\/System\/Library\/PrivateFrameworks\/SkyLight.framework\/Versions\/A\/Resources\/WindowServer",
    "name" : "WindowServer"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703592775680,
    "size" : 241656,
    "uuid" : "15c57a9b-d395-38d4-bd11-3841926f02e9",
    "path" : "\/usr\/lib\/system\/libsystem_kernel.dylib",
    "name" : "libsystem_kernel.dylib"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703738159104,
    "CFBundleShortVersionString" : "1.11",
    "CFBundleIdentifier" : "com.apple.QuartzCore",
    "size" : 3833842,
    "uuid" : "1417511b-e528-384f-8203-f5923133375a",
    "path" : "\/System\/Library\/Frameworks\/QuartzCore.framework\/Versions\/A\/QuartzCore",
    "name" : "QuartzCore",
    "CFBundleVersion" : "1110.3.1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703682838528,
    "CFBundleShortVersionString" : "1.600.0",
    "CFBundleIdentifier" : "com.apple.SkyLight",
    "size" : 4550646,
    "uuid" : "aa1072bb-b649-3a49-ba98-b74334e3dcbd",
    "path" : "\/System\/Library\/PrivateFrameworks\/SkyLight.framework\/Versions\/A\/SkyLight",
    "name" : "SkyLight"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703589310464,
    "size" : 639944,
    "uuid" : "1010846c-732a-3d0b-aeb3-3aab5874321e",
    "path" : "\/usr\/lib\/dyld",
    "name" : "dyld"
  },
  {
    "size" : 0,
    "source" : "A",
    "base" : 0,
    "uuid" : "00000000-0000-0000-0000-000000000000"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703593017344,
    "size" : 49152,
    "uuid" : "b2678d9e-f1fa-381f-b0e4-7c5d84c4f428",
    "path" : "\/usr\/lib\/system\/libsystem_pthread.dylib",
    "name" : "libsystem_pthread.dylib"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703591292928,
    "size" : 290814,
    "uuid" : "b861bf4e-29d2-36ac-889f-cf9b03955982",
    "path" : "\/usr\/lib\/system\/libdispatch.dylib",
    "name" : "libdispatch.dylib"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140704048418816,
    "CFBundleShortVersionString" : "142",
    "CFBundleIdentifier" : "com.apple.AmbientDisplay",
    "size" : 180220,
    "uuid" : "4a03ffa1-0fd8-3434-9025-9e35975f4a4c",
    "path" : "\/System\/Library\/PrivateFrameworks\/AmbientDisplay.framework\/Versions\/A\/AmbientDisplay",
    "name" : "AmbientDisplay",
    "CFBundleVersion" : "142"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703623950336,
    "CFBundleShortVersionString" : "283",
    "CFBundleIdentifier" : "com.apple.CoreDisplay",
    "size" : 1228796,
    "uuid" : "9293dd8d-38ca-3654-ba09-1257c92f1e64",
    "path" : "\/System\/Library\/Frameworks\/CoreDisplay.framework\/Versions\/A\/CoreDisplay",
    "name" : "CoreDisplay",
    "CFBundleVersion" : "283"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703593435136,
    "CFBundleShortVersionString" : "6.9",
    "CFBundleIdentifier" : "com.apple.CoreFoundation",
    "size" : 4820989,
    "uuid" : "e61f1187-a1ec-3a7e-b455-f4fc239ac2d0",
    "path" : "\/System\/Library\/Frameworks\/CoreFoundation.framework\/Versions\/A\/CoreFoundation",
    "name" : "CoreFoundation",
    "CFBundleVersion" : "2201"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703648489472,
    "CFBundleShortVersionString" : "2.0.2",
    "CFBundleIdentifier" : "com.apple.framework.IOKit",
    "size" : 798712,
    "uuid" : "93f186af-f1c0-3cda-b507-8c289de4b343",
    "path" : "\/System\/Library\/Frameworks\/IOKit.framework\/Versions\/A\/IOKit",
    "name" : "IOKit"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703590248448,
    "size" : 106487,
    "uuid" : "506eaed4-9946-3c2e-ab99-608096a13415",
    "path" : "\/usr\/lib\/system\/libsystem_trace.dylib",
    "name" : "libsystem_trace.dylib"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703589969920,
    "size" : 278515,
    "uuid" : "96f8a2fb-352b-3db9-b90b-dddcdd85adcd",
    "path" : "\/usr\/lib\/system\/libxpc.dylib",
    "name" : "libxpc.dylib"
  }
],
  "sharedCache" : {
  "base" : 140703588614144,
  "size" : 21474836480,
  "uuid" : "b7381897-8f32-3fbb-b272-170f431f97c3"
},
  "vmSummary" : "ReadOnly portion of Libraries: Total=462.4M resident=0K(0%) swapped_out_or_unallocated=462.4M(100%)\nWritable regions: Total=4.3G written=0K(0%) resident=0K(0%) swapped_out=0K(0%) unallocated=4.3G(100%)\n\n                                VIRTUAL   REGION \nREGION TYPE                        SIZE    COUNT (non-coalesced) \n===========                     =======  ======= \nActivity Tracing                   256K        1 \nCG backing stores                   12K        3 \nCG framebuffers                    1.3G       11 \nCG framebuffers (reserved)       603.1M       10         reserved VM address space (unallocated)\nColorSync                          180K       27 \nCoreAnimation                     31.9M       28 \nCoreGraphics                         4K        1 \nKernel Alloc Once                    8K        1 \nMALLOC                           666.4M       73 \nMALLOC guard page                   32K        8 \nMach message                        60K        3 \nMach message (reserved)              4K        1         reserved VM address space (unallocated)\nSTACK GUARD                       56.1M       19 \nStack                             17.6M       19 \nVM_ALLOCATE                       13.0M       18 \nVM_ALLOCATE (reserved)             1.8G        4         reserved VM address space (unallocated)\n__CGSERVER                          16K        1 \n__DATA                            19.3M      370 \n__DATA_CONST                      16.3M      241 \n__DATA_DIRTY                       656K      113 \n__FONT_DATA                        2352        1 \n__LINKEDIT                       182.7M       30 \n__OBJC_RO                         71.0M        1 \n__OBJC_RW                         2166K        2 \n__SLSERVER                          16K        1 \n__TEXT                           279.7M      392 \ndyld private memory                260K        2 \nmapped file                       33.7M        7 \nshared memory                     1272K       34 \n===========                     =======  ======= \nTOTAL                              5.0G     1422 \nTOTAL, minus reserved VM space     2.6G     1422 \n",
  "legacyInfo" : {
  "threadTriggered" : {
    "name" : "ws_main_thread",
    "queue" : "com.apple.main-thread"
  }
},
  "logWritingSignature" : "599e85156552aa291d861eae3bd6653b125a8c32"
}

Model: MacBookPro10,1, BootROM 429.0.0.0.0, 4 processors, Quad-Core Intel Core i7, 2,4 GHz, 16 GB, SMC 2.3f36
Graphics: Intel HD Graphics 4000, Intel HD Graphics 4000, Built-In, 5 MB
Display: Unknown Display, 1600 x 900, Main, MirrorOff, Online
Memory Module: BANK 0/ChannelA-DIMM0, 8 GB, DDR3, 1600 MHz, Samsung, M471B1G73EB0-YK0
Memory Module: BANK 2/ChannelB-DIMM0, 8 GB, DDR3, 1600 MHz, Samsung, M471B1G73EB0-YK0
AirPort: spairport_wireless_card_type_wifi (0x14E4, 0x17), Broadcom BCM43xx 1.0 (7.77.111.1 AirPortDriverBrcmNIC-1772.1)
AirPort:
Bluetooth: Version (null), 0 services, 0 devices, 0 incoming serial ports
Network Service: Wi-Fi, AirPort, en1
PCI Card: Intel HD Graphics 4000, VGA-Compatible Controller, built-in
PCI Card: Realtek ALC269VC Rev.3, Audio Device, Internal@0,27,0
Serial ATA Device: Samsung SSD 840 EVO 250GB, 250,06 GB
Serial ATA Device: MAT{censored}ADVD-RAM UJ8C0
USB Device: USB20Bus
USB Device: hub_device
USB Device: BCM20702A0
USB Device: USB20Bus
USB Device: hub_device
USB Device: USB30Bus
Thunderbolt Bus:



Edited November 14, 2023 by cankiulascmnfye

[Anto65]





Spoiler



Edited November 14, 2023 by antuneddu

[jm26200]

done.

Spoiler



[aniuks27]

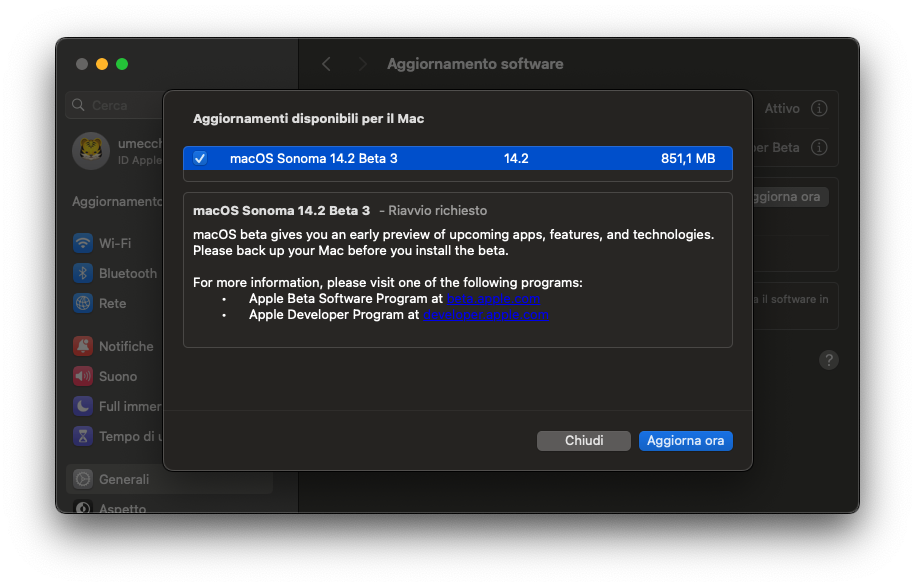

MacOS 14.2 Beta 3 . All good

[Wayang-NT]

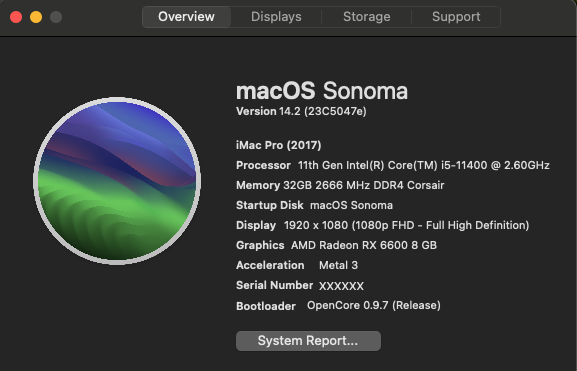

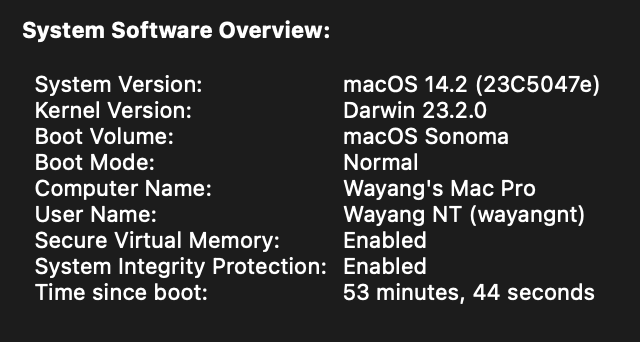

beta 3 ...



[hiphopboy]

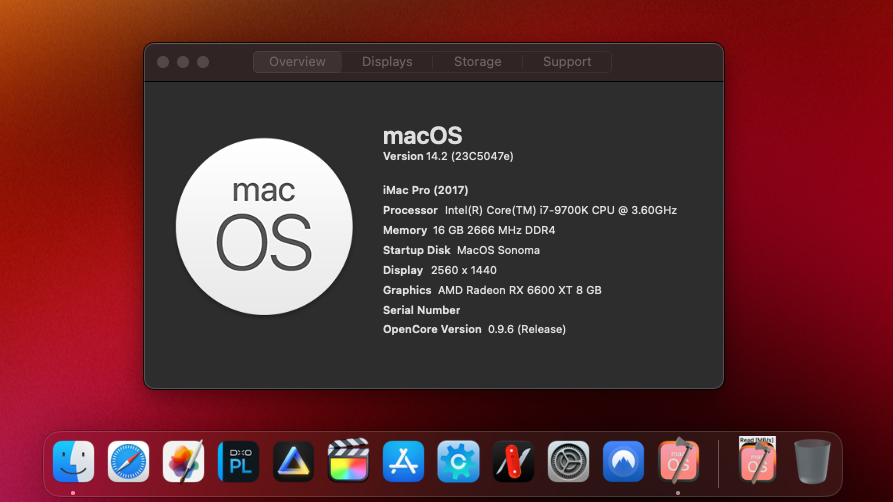

Done beta 3
