[NOT SOLVED BUT I GAVE UP] Lenovo T470S - Battery Patch Help

[hoaug]

Hello everyone. i just hackedintosh on my Lenovo T470S. Everything works perfectly except my Battery. it doesn't work.



Lenovo Thinkpad T470s
Processor and Chipset: Intel Core i5 6300u / Intel Skylake 100 series chipset
Graphics: Intel HD 520
Storage: SN530
RAM: 12 GB DDR4
1 x Synaptics SMBUS Trackpad + Trackpoint
1 x PS/2 Keyboard
1 x USB 3.0 card reader
3 x USB 3.0 type a ports
1 x TB3/USB C port
1 x HDMI port
1 x 3.5mm mic/headphone jack





I have researched and learned that my Laptop has 2 batteries and I have learned a bit of ACPI code and patched SSDT-BATC. I use SSDT-BATC included with ECEnabler.kext and Battery works



I thought everything was fine but no. I realized that my battery is only taking half its capacity. My battery as far as I know it has ~4k4 mAh but the macos side only receives ~2k mAh. I have searched and patched a lot but the number still only stops at ~2kmAh (sometimes down to 1k7). With such a battery capacity, I cannot use it without a charger. help me please. Thank you very much



Here are the SSDTs I use.



DSDT.amlSSDT-BATC.amlSSDT-BATT.amlSSDT-BATS.aml



And here are my EFI:

https://drive.google.com/file/d/1kGc-jP1iGVGp8WX4TIJWuX80VHp4e-BV/view?usp=sharing





Edited August 14, 2023 by kinhhoang161
update information

[Slice]

You can use it without charger. Just don't trust what hackintosh reported.

[hoaug]

27 minutes ago, Slice said:

You can use it without charger. Just don't trust what hackintosh reported.

thank you. but my device when using battery drain at a terrible speed.

[Slice]

5 hours ago, kinhhoang161 said:

thank you. but my device when using battery drain at a terrible speed.

Look to your speedstep. Is it working or CPU frequency stay at maximum?

Test with

HWMonitorSMC2

[hoaug]

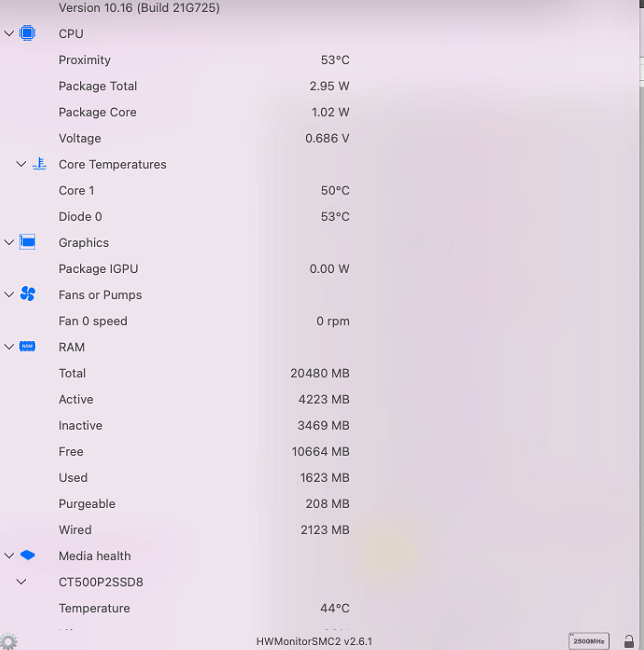

My hwmonitorsmc2 show that. does its OK?

my HW

[hoaug]

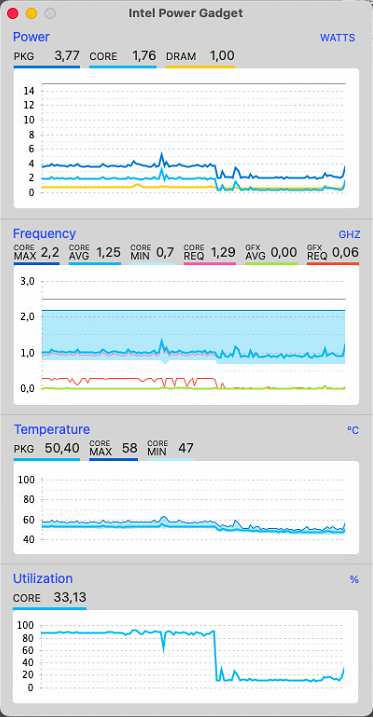

@Slice  I have checked the frequency of the CPU, it works normally (not high) but I watch youtube for only 30 minutes and the battery runs out. this is definitely due to my dualbattery...but i cant patch it..don't know where is wrong..

[Slice]

Battery is not controlled by macOS at least on Hackintosh. It is just a source of energy.

Can you watch youtube in WIndows more then 30 minute?



I may propose to use my set on sensors including CPU sensor and the battery sensors. My version controls two batteries.

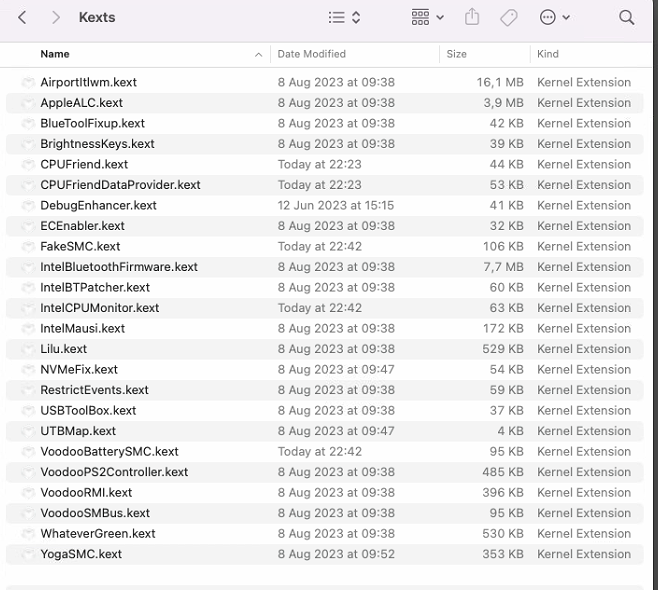

The link is in my signature. Remove VirtualSMC with all plugins and install my FakeSMC with IntelCpuMonitor, SMIMonitor (it si intended for Dell specifically), VoodooBatterySMC.

[hoaug]

1 hour ago, Slice said:

Battery is not controlled by macOS at least on Hackintosh. It is just a source of energy.

Can you watch youtube in WIndows more then 30 minute?



I may propose to use my set on sensors including CPU sensor and the battery sensors. My version controls two batteries.

The link is in my signature. Remove VirtualSMC with all plugins and install my FakeSMC with IntelCpuMonitor, SMIMonitor (it si intended for Dell specifically), VoodooBatterySMC.

I can't watch youtube (1920x1080) more than 30p, only about ~30p my laptop is out of battery.... i also used kext CPUFriend + CPUFriendFriend (with 800mhz ) but still the same... i will try remove VirtualSMC and use yourr kext

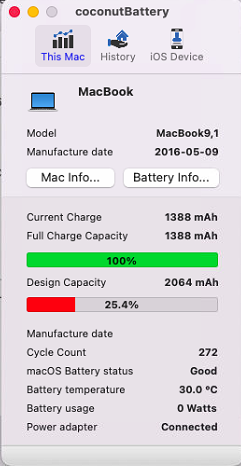

MY BATTERY INFORMATION:

Edited August 11, 2023 by kinhhoang161

[hoaug]

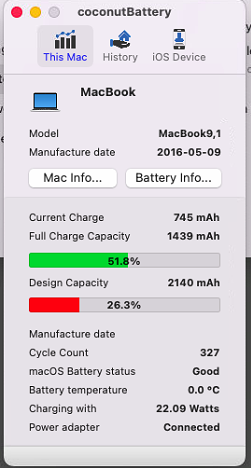

@Slice so sad. with your kext FakeSMC + IntelCpuMonitor + VoodooBatterySMC my battery reduce a little capacity than past.....

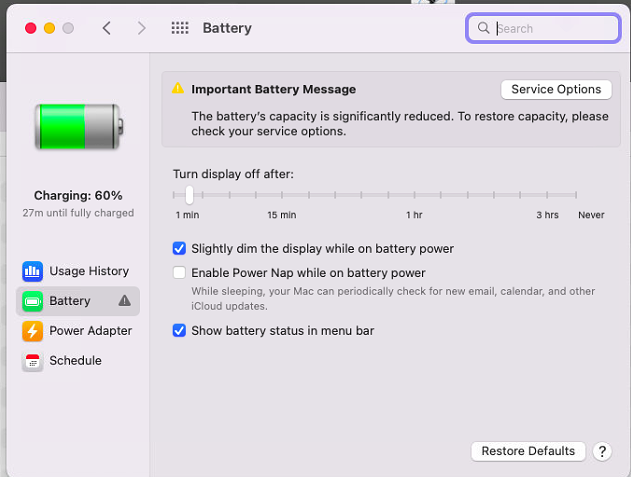

and now it also have a battery messages in battery setting

[chris1111]

Try this



SSDT-BATC.aml.zip



Dont use SSDT-BAT or SSD-BATS

[hoaug]

@chris1111 Thank you very much. do i need any patch rename like BAT0,1 to BATC or patch rename something like that. besides, i also need to use kext ECEnabler right ?

Edited August 12, 2023 by kinhhoang161

[hoaug]

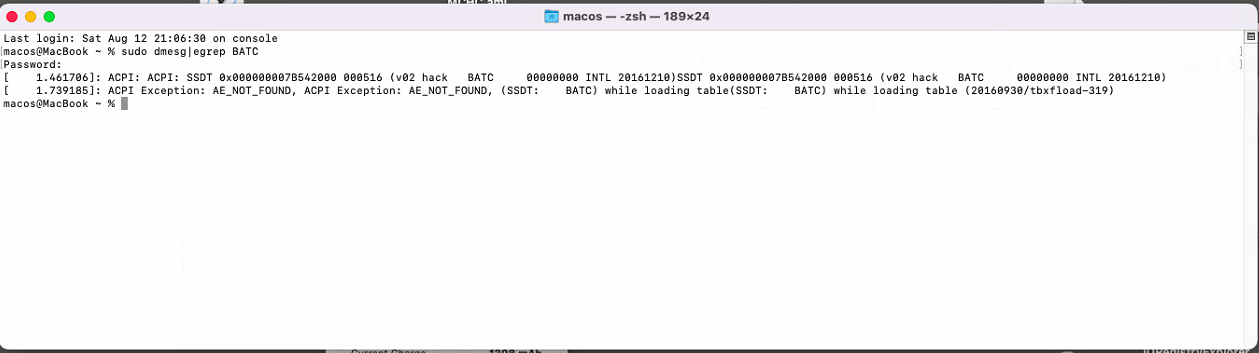

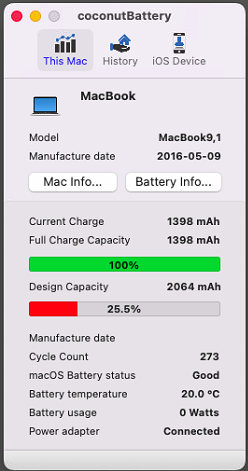

@chris1111 i tried your SSDT with kext ECEnabler but my Battery still not working...




[Slice]

It looks like your battery is really bad. Call to service.

[hoaug]

6 minutes ago, Slice said:

It looks like your battery is really bad. Call to service.



i still dont think so, in window ( i dualboot ). it have full capacity...

[Slice]

4 hours ago, kinhhoang161 said:



i still dont think so, in window ( i dualboot ). it have full capacity...

Show screenshot from Windows.

[chris1111]

20 hours ago, kinhhoang161 said:

@chris1111 Thank you very much. do i need any patch rename like BAT0,1 to BATC or patch rename something like that. besides, i also need to use kext ECEnabler right ?

Not need to use ECEnabler

[hoaug]

7 hours ago, chris1111 said:

Not need to use ECEnabler



without ECEnabler. my battery was hidden and not show anything

15 hours ago, Slice said:

Show screenshot from Windows.



i just removed window disk to make a complete macos install. maybe ill show you later but 100% my battery in window is OK

Edited August 13, 2023 by kinhhoang161

[Slice]

Battery works without any intervention. macOS or Windows.

[hoaug]

19 hours ago, Slice said:

Battery works without any intervention. macOS or Windows.

idk why my battery not work. i will give up and back to window. thanks guys for support me.
