309bubub Posted July 28, 2023 Share Posted July 28, 2023 (edited) I have a z690 ud bios f7 12700k titan ridge last slot on mother board i desperately need hot swap to work previous build i had z390 pro giagbyte titan ridge hot swap .daisy chained apollo x8 x3 no issues Im trying to upload my efi but an error saying file exceed 10mb Edited July 28, 2023 by 309bubub Quote Link to comment https://www.insanelymac.com/forum/topic/357330-z690-ud-titan-ridge-hot-swap-please-help/ Share on other sites More sharing options...
MaLd0n Posted July 29, 2023 Share Posted July 29, 2023 https://hackindrom.zapto.org/ Quote Link to comment https://www.insanelymac.com/forum/topic/357330-z690-ud-titan-ridge-hot-swap-please-help/#findComment-2809144 Share on other sites More sharing options...
309bubub Posted August 5, 2023 Author Share Posted August 5, 2023 I tried this before posting here I cannot get it to work was reaching out for help Quote Link to comment https://www.insanelymac.com/forum/topic/357330-z690-ud-titan-ridge-hot-swap-please-help/#findComment-2809681 Share on other sites More sharing options...
Slice Posted August 6, 2023 Share Posted August 6, 2023 On 7/28/2023 at 5:08 PM, 309bubub said: I have a z690 ud bios f7 12700k titan ridge last slot on mother board i desperately need hot swap to work previous build i had z390 pro giagbyte titan ridge hot swap .daisy chained apollo x8 x3 no issues Im trying to upload my efi but an error saying file exceed 10mb I am sorry but I see no what you do and what is the problem so I don't know how to help you. Quote Link to comment https://www.insanelymac.com/forum/topic/357330-z690-ud-titan-ridge-hot-swap-please-help/#findComment-2809722 Share on other sites More sharing options...
309bubub Posted August 6, 2023 Author Share Posted August 6, 2023 (edited) this site wont let me upload my full efi folder I need hot swap to work or my uad x8 (3 of them daisy chained )won't work correctly( won't connect all the time or drop connections)---with z390 hot swap the UAD worked fine before hot swap a disaster I have z690 GA UD using titan ridge in last slot of the motherboard if you can please help I been trying to follow the guide at hackinrom but I cannot get it to work I'm using open core running Monterey SSDT-TB3HP_RP09.aml config.plist Edited August 6, 2023 by 309bubub Quote Link to comment https://www.insanelymac.com/forum/topic/357330-z690-ud-titan-ridge-hot-swap-please-help/#findComment-2809726 Share on other sites More sharing options...
MaLd0n Posted August 6, 2023 Share Posted August 6, 2023 Check ioreg for correct tbh device Quote Link to comment https://www.insanelymac.com/forum/topic/357330-z690-ud-titan-ridge-hot-swap-please-help/#findComment-2809728 Share on other sites More sharing options...
309bubub Posted August 6, 2023 Author Share Posted August 6, 2023 (edited) this is my IOReg and it is renamed the RP05 to RP09. before posting 1959653991_iMacProioreg.ioreg Edited August 6, 2023 by 309bubub Quote Link to comment https://www.insanelymac.com/forum/topic/357330-z690-ud-titan-ridge-hot-swap-please-help/#findComment-2809729 Share on other sites More sharing options...
MaLd0n Posted August 6, 2023 Share Posted August 6, 2023 SSDT-TB3.aml.zip 2 Quote Link to comment https://www.insanelymac.com/forum/topic/357330-z690-ud-titan-ridge-hot-swap-please-help/#findComment-2809730 Share on other sites More sharing options...

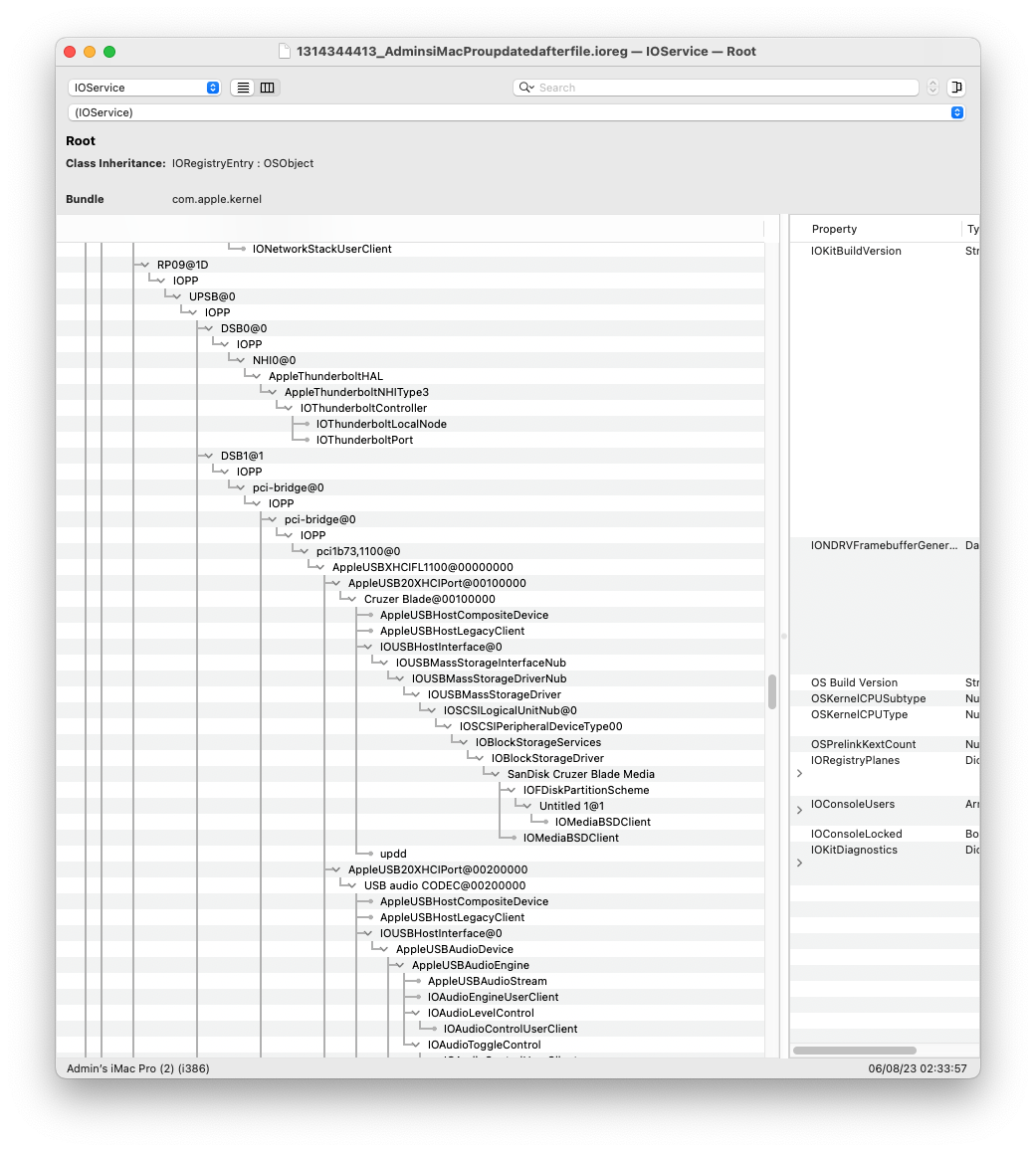

309bubub Posted August 6, 2023 Author Share Posted August 6, 2023 (edited) I tried yours, thunderbolt only work in Mac after boot into windows ( and no hot swap is there something I'm doing wrong ? 1. I removed old thunderbolt .aml file, placed yours into ACPI folder ... 2.cut old and added yours into OpenCore configurator 3 saved OC configurator restart computer 4. reset nvram this is up dated IOReg after insert your file 1314344413_AdminsiMacProupdatedafterfile.ioreg Edited August 6, 2023 by 309bubub Quote Link to comment https://www.insanelymac.com/forum/topic/357330-z690-ud-titan-ridge-hot-swap-please-help/#findComment-2809732 Share on other sites More sharing options...
309bubub Posted August 6, 2023 Author Share Posted August 6, 2023 (edited) . Edited August 6, 2023 by 309bubub 1 Quote Link to comment https://www.insanelymac.com/forum/topic/357330-z690-ud-titan-ridge-hot-swap-please-help/#findComment-2809736 Share on other sites More sharing options...
MaLd0n Posted August 6, 2023 Share Posted August 6, 2023 last ssdt for tbh is correct Quote Link to comment https://www.insanelymac.com/forum/topic/357330-z690-ud-titan-ridge-hot-swap-please-help/#findComment-2809737 Share on other sites More sharing options...
309bubub Posted August 6, 2023 Author Share Posted August 6, 2023 Then what could I be doing wrong? hot swap still not working Quote Link to comment https://www.insanelymac.com/forum/topic/357330-z690-ud-titan-ridge-hot-swap-please-help/#findComment-2809738 Share on other sites More sharing options...
Slice Posted August 7, 2023 Share Posted August 7, 2023 AFAIK hot swap on TB never worked in macOS because macOS in not plug&play system. If I am wrong tell me why. Quote Link to comment https://www.insanelymac.com/forum/topic/357330-z690-ud-titan-ridge-hot-swap-please-help/#findComment-2809757 Share on other sites More sharing options...
