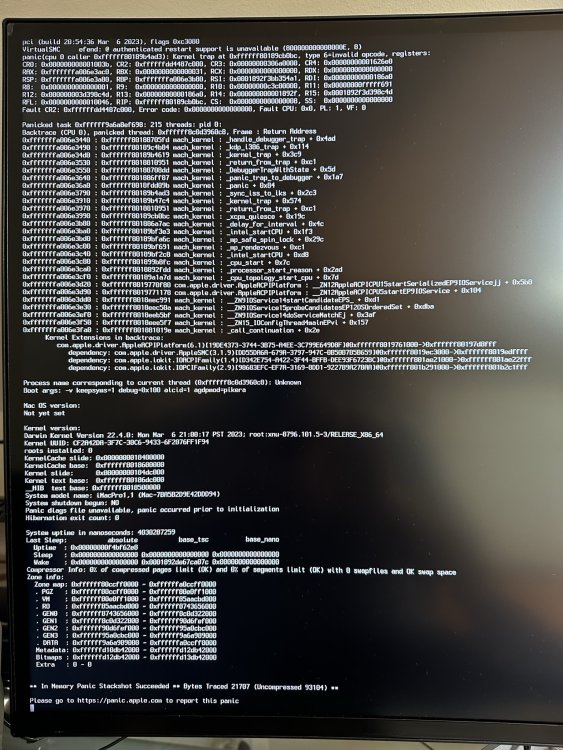

Jener Posted May 3, 2023 Share Posted May 3, 2023 Hello Everyone, I'm trying to get Ventura installed on my PC via Opencore but can't figure out how to solve a Panic issue. I've followed the Dortania guide at https://dortania.github.io/OpenCore-Install-Guide/config-HEDT/haswell-e.html for my Haswell-EP CPU. My config is: Motherboard: ASUS Z10PE-D8 WS CPU1: Intel Xeon E5-2697 v3 CPU2: Intel Xeon E5-2697 v3 Audio: Internal Realtek ALC1150 LAN: Internal Intel I210 I'm attaching the OpenCore EFI and Log as well as a screen shot of the boot panic. Appreciate any help. opencore-2023-05-03-111737.txt EFI.zip Link to comment https://www.insanelymac.com/forum/topic/356590-opencore-091-on-asus-z10pe-d8-ws-ventura-install/ Share on other sites More sharing options...
Jener Posted May 3, 2023 Author Share Posted May 3, 2023 Thank you for your reply. Unfortunately, your EFI produced the same panic. Still unable to install MacOS. Link to comment https://www.insanelymac.com/forum/topic/356590-opencore-091-on-asus-z10pe-d8-ws-ventura-install/#findComment-2804265 Share on other sites More sharing options...
Jener Posted May 3, 2023 Author Share Posted May 3, 2023 Thanks again. But same behavior, it still panic Link to comment https://www.insanelymac.com/forum/topic/356590-opencore-091-on-asus-z10pe-d8-ws-ventura-install/#findComment-2804267 Share on other sites More sharing options...
Ellybz Posted May 3, 2023 Share Posted May 3, 2023 (edited) A few questions / pointers… - Did you mod your Bios to unlock MSR/CFG, enable Speedstep, NVMe, etc..? - Did you successfully install another OS on this platform prior to Ventura ? - The I210 is problematic since Monterey, Try Installing OSX without a cable plugged in. Edited May 3, 2023 by Ellybz 1 Link to comment https://www.insanelymac.com/forum/topic/356590-opencore-091-on-asus-z10pe-d8-ws-ventura-install/#findComment-2804269 Share on other sites More sharing options...

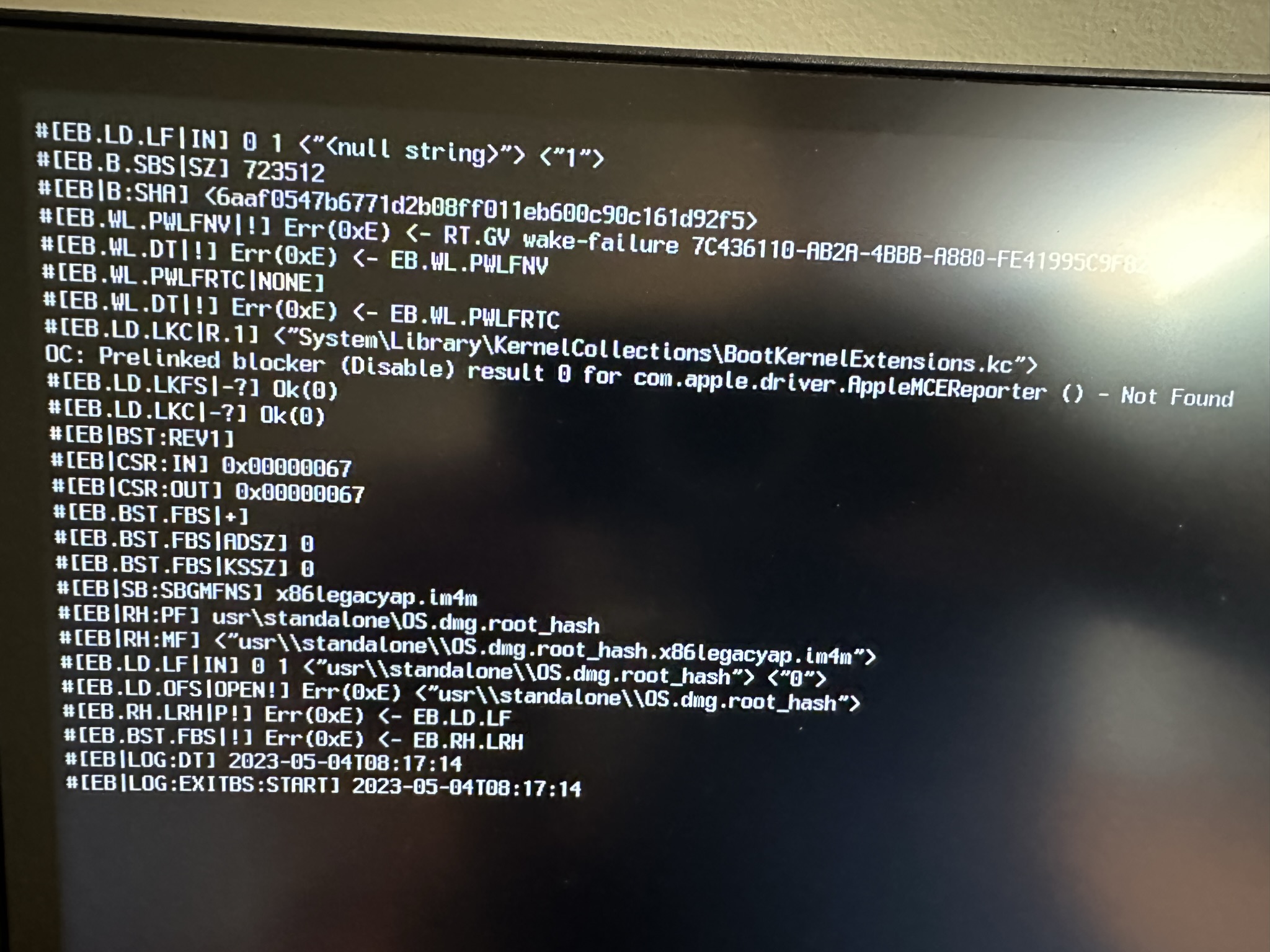

Jener Posted May 4, 2023 Author Share Posted May 4, 2023 eSaF, Your last EFI did not work at all, OpenCore freezes. 😢 Ellybz, I did change some settings in the Bios, however it does not have Speedstep or MSR/CFG options. Here is the Bios manual for my motherboard: https://www.manualowl.com/m/Asus/Z10PE-D8-WS/Manual/466430?page=77#manual Link to comment https://www.insanelymac.com/forum/topic/356590-opencore-091-on-asus-z10pe-d8-ws-ventura-install/#findComment-2804294 Share on other sites More sharing options...
Jener Posted May 4, 2023 Author Share Posted May 4, 2023 Thank you. I appreciated your efforts. Link to comment https://www.insanelymac.com/forum/topic/356590-opencore-091-on-asus-z10pe-d8-ws-ventura-install/#findComment-2804301 Share on other sites More sharing options...
Ellybz Posted May 4, 2023 Share Posted May 4, 2023 (edited) @MaLd0n is a God in this Forum that could probably help you if you ask him kindly. I believe He made a EFI in the past for the ASUS Z10PE-D16. PS : You should probably fill your specs on your profile page so others can assist you better. Edited May 4, 2023 by Ellybz Link to comment https://www.insanelymac.com/forum/topic/356590-opencore-091-on-asus-z10pe-d8-ws-ventura-install/#findComment-2804315 Share on other sites More sharing options...
Slice Posted May 5, 2023 Share Posted May 5, 2023 @Jener I also had problems with Xeon CPU on my comp#3. Three things you should do 1. Edit DSDT to correct number of CPU cores. Usually it contains much more than macOS can eat. 2. Use VoodooTscSync.kext 3. Choose right set of Quirks. One of them is TscSyncTimeout. Link to comment https://www.insanelymac.com/forum/topic/356590-opencore-091-on-asus-z10pe-d8-ws-ventura-install/#findComment-2804322 Share on other sites More sharing options...
etorix Posted May 5, 2023 Share Posted May 5, 2023 On 5/3/2023 at 7:46 PM, Jener said: I'm trying to get Ventura installed on my PC via Opencore but can't figure out how to solve a Panic issue. I've followed the Dortania guide at https://dortania.github.io/OpenCore-Install-Guide/config-HEDT/haswell-e.html for my Haswell-EP CPU. You have a USB map with more than 15 ports and custom SSDTs, including one which disables the EC device but does not provide a fake one for macOS. How have you generated these? Do you have a dump of the ACPI tables? 1 Link to comment https://www.insanelymac.com/forum/topic/356590-opencore-091-on-asus-z10pe-d8-ws-ventura-install/#findComment-2804336 Share on other sites More sharing options...
