Dual unsupported cards possible ?

[jalavoui]

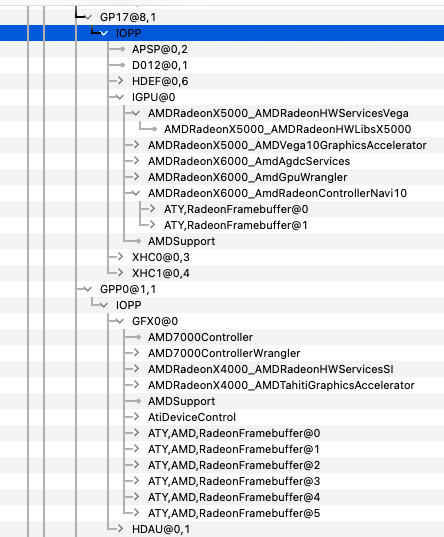

Can we use an unsupported IGPU and GFX0 ?



IGPU = 0x15d8

GFX0 = 0x6611



Credits to https://github.com/NootInc/WhateverRed



Tks



Some minor bugs :

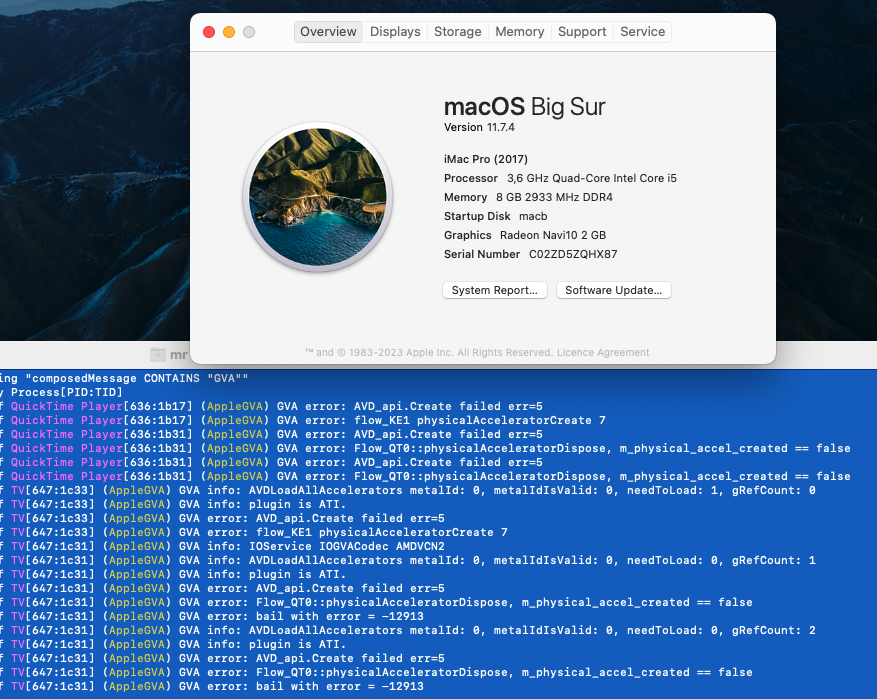

rip GVA

Edited March 6, 2023 by jalavoui

[jalavoui]

This text editor crashes the graphics

https://www.sublimetext.com

guess dual graphic card issue ?



fix is add this setting to ST

"hardware_acceleration": "none"

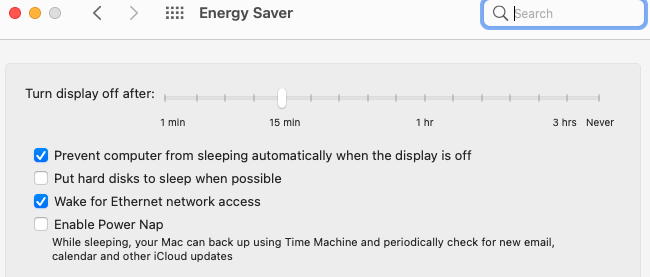

This fix power sleep issues:

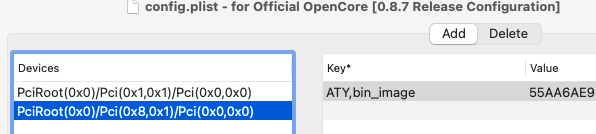

In order to fix boot I used the linux bios dump and injected it on opencore



Edited March 6, 2023 by jalavoui

[jalavoui]

The vega10 igpu crash in opencl, opengl and metal still is not fixed



this patch allows smooth return in case of a metal crash (dyld_shared_cache_x86_64)



//coredisplay
static const uint8_t kBigOriginal3[] = {
0x55, 0x48, 0x89, 0xe5, 0x8f, 0xc5, 0x41, 0x56, 0x41, 0x55, 0x41, 0x54, 0x53, 0x48, 0x81, 0xec, 0x88, 0x04, 0x00, 0x00, 0x48, 0x8b, 0x05, 0x79, 0xf6, 0xb0, 0x65, 0x48, 0x8b, 0x00, 0x48, 0x89, 0x45, 0xd0,
};
static const uint8_t kBigPatched3[] = {
0x55, 0x48, 0x89, 0xe5, 0x8f, 0xc5, 0xc3, 0x90, 0x41, 0x55, 0x41, 0x54, 0x53, 0x48, 0x81, 0xec, 0x88, 0x04, 0x00, 0x00, 0x48, 0x8b, 0x05, 0x79, 0xf6, 0xb0, 0x65, 0x48, 0x8b, 0x00, 0x48, 0x89, 0x45, 0xd0,
};



[jalavoui]

if i plug gfx0 i got no crashes in opengl/metal



plug igpu - some apps use gfx0 metal api and crash, others use correct igpu metal api and load fine.



disabling gfx0 in dsdt doesnt fix it



anyone tested https://github.com/NootInc/NootedRed on a desktop pc and care to comment?



tracked the metal crash to here

-[GFX9_MtlCmdBuffer renderCommandEncoderWithDescriptor:] + 57 (AMDRadeonX5000MTLDriver + 1120713) [0x11af5e9c9]
-[GFX9_MtlRenderCmdEncoder initWithCommandBuffer:descriptor:] + 3951 (AMDRadeonX5000MTLDriver + 1353940) [0x11af978d4]
amdMtl_GFX9_WriteAllRegisters(unsigned int*, GFX9_RenderCmdEncoderMembersRec const*, GFX9_DeviceMembersRec const*) + 153 (AMDRadeonX5000MTLDriver + 1361214) [0x11af9953e]
amdMtl_GFX9_WriteRenderEncoderHwCtxRegs(GFX9_RenderEncoderHwCtxRegsRec const*, unsigned int*, unsigned int, unsigned int) + 92 (AMDRadeonX5000MTLDriver + 697906) [0x11aef7632]



Edited March 24, 2023 by jalavoui

[jalavoui]

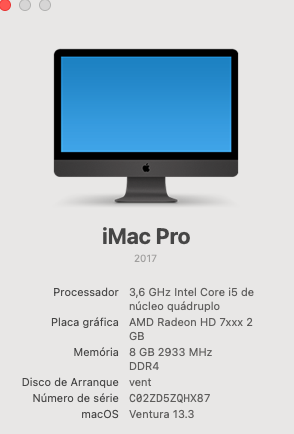

both cards might work in ventura 13.3



using OCLP the gfx0 works



the IGPU as a funny bug:

(AMDRadeonX5000HWLibs) [8:0:0] AMD Error:
(AMDRadeonX5000HWLibs) Unable to find matching firmware device type for device ID: 0x15D8

this is very good news

\

the update i used on  OCLP installed monterey 12.5 kexts (without 6000 kexts)

Edited March 31, 2023 by jalavoui

[jalavoui]

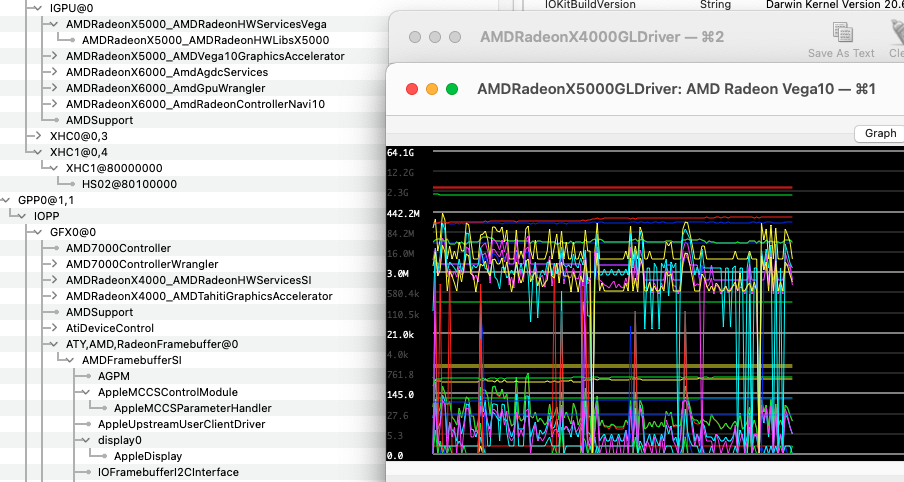

Crossfire on hackintosh ? lol



this kext allows booting with external gpu (GFX0) and use the accelerator provided by internal gpu (IGPU)



it disables the 4000 kext accelerator



What I'm doing here is booting with the external gpu and using  the faster IGPU for metal/opengl



btw for devs code is this

void WRed::wrapSetupAndInitializeHWCapabilities(void *that) {
    FunctionCast(wrapSetupAndInitializeHWCapabilities, callbackWRed->orgSetupAndInitializeHWCapabilities)(that);
    getMember<uint32_t>(that, 0x98) = 0;
}

this is applied to the booting card, i.e., the card u physical plug your screen

only ofc if you have a working "offcard" that loads the accelerator driver



this wont work with Nootedred or any kext that patches this function

maybe this helps for older macs?



WhateverRedo2.kext.zip

Edited April 3, 2023 by jalavoui
