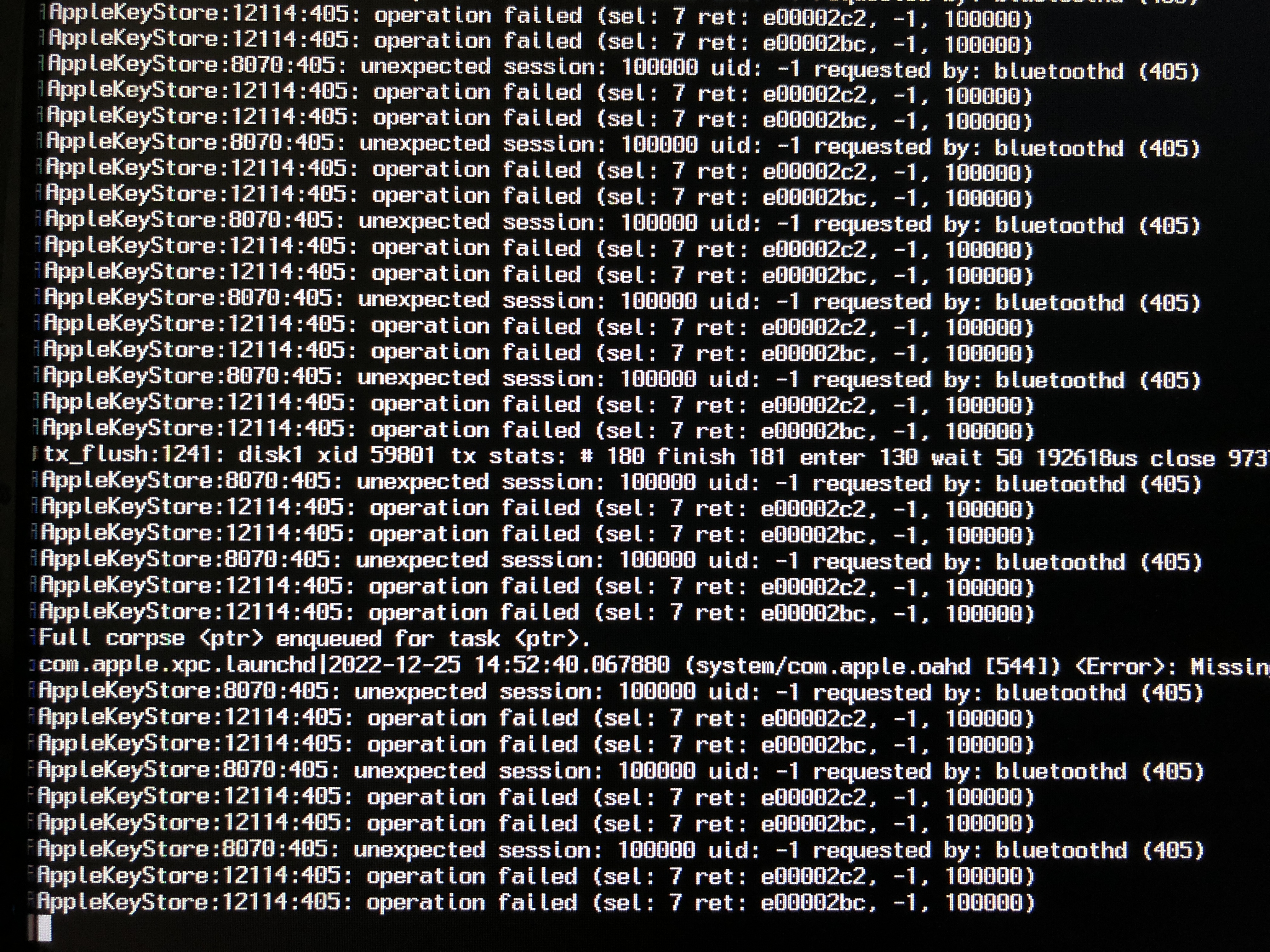

HurricaneX Posted December 19, 2022 Share Posted December 19, 2022 (edited) Hey,guys!!I hv 4 disks,Each disk is successfully installed with Big Sur,Monterey,Ventura,Win11 with bootloader Clover.Every OS is working just fine except Ventura,the problem is that The Fans R Still Working Even When Hackintosh Is Shut down.I tried to tick the Fixshutdown in Clover ACPI,but it seems that it didnt work to solve this issue at all!So could anyone help me to modify the DSDT or SSDT to fix this problem?Also I tried to switch from Clover to OC!But it seems that there r still some Bugs in my OC EFI.Could anyone help me to create or share a working OC EFI for my Specs below?I am not quite sure that I got stuck whether it is because my Kepler GPU doesn't support native UEFI to boot via OC!Check the panic photo as attached!Any suggestions?Thanks very much in advance!!😀 What's working booting with Clover: Audio(Front & Rear) Network(Ethernet & WiFi) Bluetooth Graphics(Need manual Patch) USB FCPX/Adobe iMessage Sleep(Not tested yet) Specs: OS(Clover): Windows 11 22H2 Pro for Workstation + macOS 11.7.2/macOS 12.6.2/macOS 13.1Processor: Intel Core i9-7900X @3.30 GHzMotherboard: Asus TUF X299 MARK 2 (BIOS Ver. 2002)GPU: NVIDIA GeForce GTX TITAN 6G (Patched by Kepler Patcher or OCLP after macOS 11)SSD:Samsung 980 PRO NVME / Samsung SATA 3.0 870 QVO 1T / Samsung SATA 3.0 870 EVO 500GRAM: 80 GB 3200 MHz DDR4Audio: Realtek ALCS 1220A 8-Channel Audio CODECNetwork/WiFi+Bluebooth: Intel I219V + BCM943602CS Clover EFI:https://drive.google.com/file/d/11azRg8OeKKb_jlKAvg8PYjl8klER3CvT/view?usp=share_link OC EFI(Not working):https://drive.google.com/file/d/1VfWvKhDSMKCreQFB1KpdeRMnYos1y4c0/view?usp=share_link Edited December 27, 2022 by HurricaneX 1 Link to comment Share on other sites More sharing options...

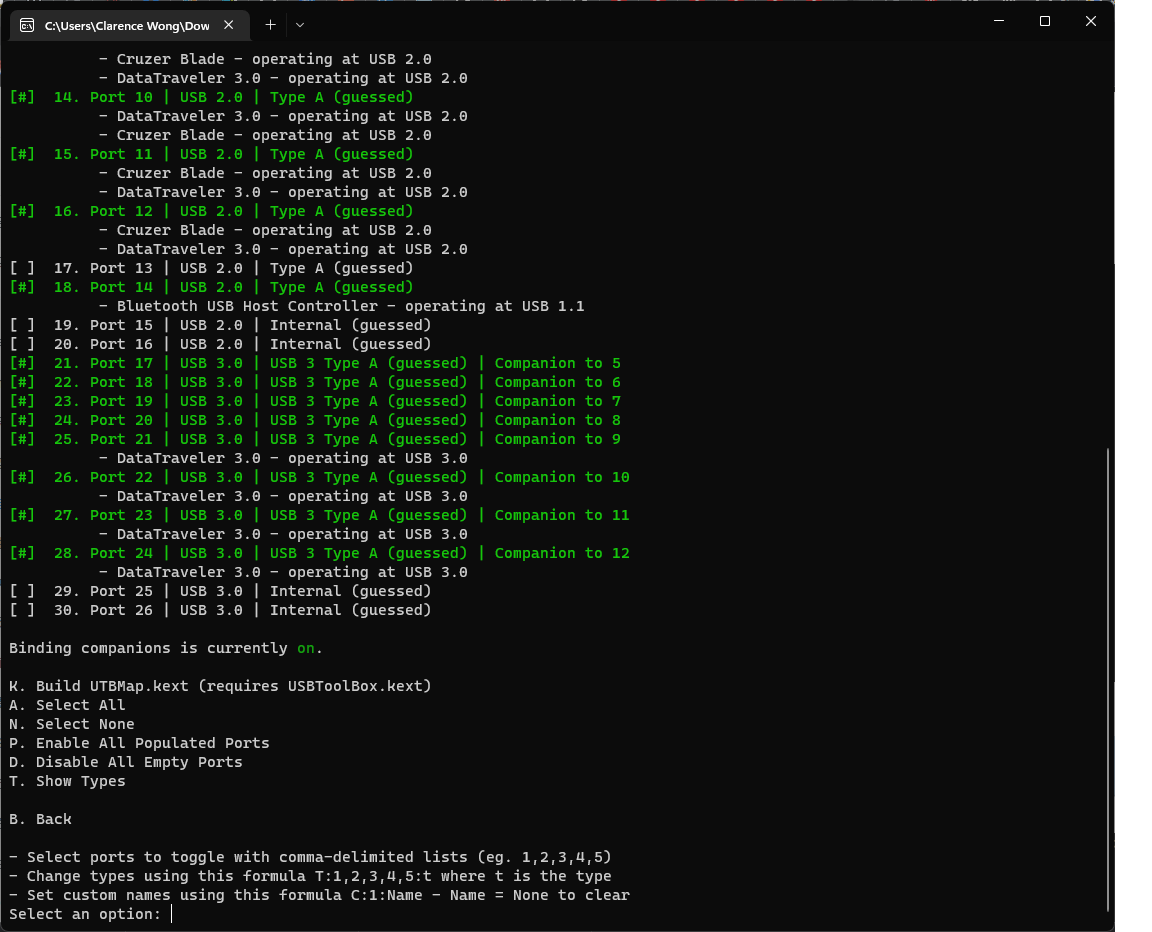

J Lamp Posted December 23, 2022 Share Posted December 23, 2022 So it's not shutting down properly, I've got a pretty similar build, maybe this will help you out. I had a quick look at your kexts folder on Google. First thing I would do is ditch either TSCAdjustReset or CpuTscSync. They both do the same thing, that may solve the problem right off. You don't need SMCLightSensor or SMCSuperIO and likely not AppleMCEReporterDisabler. They're likely not the cause of the problem, but it's always best to clean it up as much as possible (eliminates other potential problems to troubleshoot) Lastly, USBInjectAll is a work around till you create a proper USB map kext. There are lots of great "tutorials" out there on how to do that (it's not hard) Improperly configured USB can cause all sorts of glitches. I've attached my EFI folder so you can compare them. Mine's pretty generic. The only custom kext is my USB map kext, which I also have injecting some other info (like what you are getting from AHCI_3rdParty_SATA) Last thing, if you are going to use online updates for Ventura then you will need to use an SMBIOS for a Mac that doesn't use a T2 chip, iMac19,1 works. I normally run with an SMBIOS of iMac1,1, but when I want to update the OS I have to boot with a config.plist iMac19,1. It seems this is a Clover issue with Secure Boot. I had not had this problem till Ventura. You can pick which plist file you want to use from the bootloader screen. EFI.zip 1 Link to comment Share on other sites More sharing options...
HurricaneX Posted December 25, 2022 Author Share Posted December 25, 2022 (edited) On 12/24/2022 at 5:41 AM, J Lamp said: So it's not shutting down properly, I've got a pretty similar build, maybe this will help you out. I had a quick look at your kexts folder on Google. First thing I would do is ditch either TSCAdjustReset or CpuTscSync. They both do the same thing, that may solve the problem right off. You don't need SMCLightSensor or SMCSuperIO and likely not AppleMCEReporterDisabler. They're likely not the cause of the problem, but it's always best to clean it up as much as possible (eliminates other potential problems to troubleshoot) Lastly, USBInjectAll is a work around till you create a proper USB map kext. There are lots of great "tutorials" out there on how to do that (it's not hard) Improperly configured USB can cause all sorts of glitches. I've attached my EFI folder so you can compare them. Mine's pretty generic. The only custom kext is my USB map kext, which I also have injecting some other info (like what you are getting from AHCI_3rdParty_SATA) Last thing, if you are going to use online updates for Ventura then you will need to use an SMBIOS for a Mac that doesn't use a T2 chip, iMac19,1 works. I normally run with an SMBIOS of iMac1,1, but when I want to update the OS I have to boot with a config.plist iMac19,1. It seems this is a Clover issue with Secure Boot. I had not had this problem till Ventura. You can pick which plist file you want to use from the bootloader screen. EFI.zip 7.46 MB · 3 downloads Merry Christmas!!Really appreciated all ur suggestions!!😃 Definitely It shuts down properly after I delete the one of TSCSync.kext as well as other kexts that my hackintosh doesn't need indeed. And I created the custom USB map kext: UTBMap.kext that needs the USBToolBox.kext to work with. Actually I can not get the online updates with Clover even the SIP is on!I just used the full installer to make it update normally via VM.But of course will follow ur suggestions to upgrade Ventura online next time! By the way,may i hv some suggestions of the OC EFI?I just got stuck at AppleKeyStore every time when I tried to boot in macOS(Check the panic photo as attached) Thanks very much again for ur help!! OC EFI:https://drive.google.com/file/d/1Bw626Y0pOekdNUDEq-Bl2kixHrnjgaaZ/view?usp=share_link Edited December 25, 2022 by HurricaneX Link to comment Share on other sites More sharing options...
Slice Posted December 26, 2022 Share Posted December 26, 2022 @HurricaneX Set SMBIOS as iMac19,1 and you will get incremental updates in Ventura. 1 Link to comment Share on other sites More sharing options...
J Lamp Posted December 26, 2022 Share Posted December 26, 2022 On 12/25/2022 at 6:57 AM, HurricaneX said: By the way,may i hv some suggestions of the OC EFI?I just got stuck at AppleKeyStore every time when I tried to boot in macOS(Check the panic photo as attached) Thanks very much again for ur help!! I've always had better luck on my x79 and x299 rigs with Clover, on everything else I use OC, but it always seems glitchy on the x-series stuff. I'm afraid I can't help you with the error you are getting. I'm glad the other stuff was helpful! Link to comment Share on other sites More sharing options...
HurricaneX Posted December 27, 2022 Author Share Posted December 27, 2022 11 hours ago, Slice said: @HurricaneX Set SMBIOS as iMac19,1 and you will get incremental updates in Ventura. Got it!Thanks!! Link to comment Share on other sites More sharing options...
HurricaneX Posted December 27, 2022 Author Share Posted December 27, 2022 5 hours ago, J Lamp said: I've always had better luck on my x79 and x299 rigs with Clover, on everything else I use OC, but it always seems glitchy on the x-series stuff. I'm afraid I can't help you with the error you are getting. I'm glad the other stuff was helpful! Same with me!!Just found that Clover is much compatible with x299 platform!Also I would be happy to share the working OC EFI with u if I work it out someday!!Thanks a lot again!Happy Hackintosh!😁 Link to comment Share on other sites More sharing options...
HurricaneX Posted June 29, 2023 Author Share Posted June 29, 2023 On 12/27/2022 at 4:31 AM, J Lamp said: I've always had better luck on my x79 and x299 rigs with Clover, on everything else I use OC, but it always seems glitchy on the x-series stuff. I'm afraid I can't help you with the error you are getting. I'm glad the other stuff was helpful! Hi,this is the working OC EFI iam using for my x299 hackintosh now!!Also it can detect OTA update with iMac Pro SMBIOS!!Actually i found it is working much better than Clover!U may try this if u see this post!!Nice day! 1042020114_OCEFI2023.6.27.zip 1 Link to comment Share on other sites More sharing options...
