Lenovo X201 Catalina - cant even install

Lukasz Bak

By Lukasz Bak,
in New Users Lounge

 Share
4 posts in this topic

Recommended Posts

Lukasz Bak
Lukasz Bak
Posted
Posted (edited)

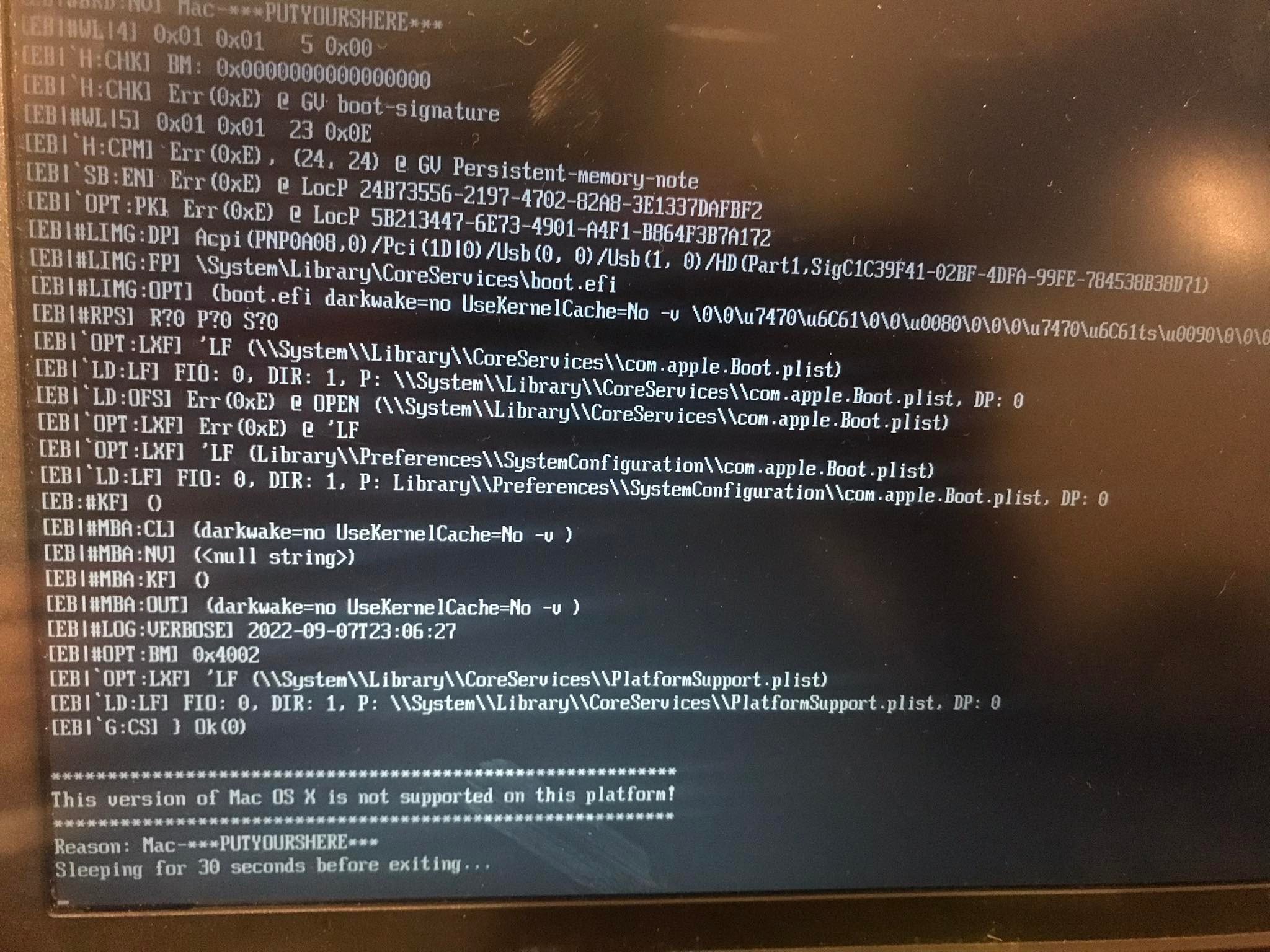

Im trying install Catalina on my old X201 - i7-620M but every time installer stuck on ************* and reboot. So i cant even install Catalina :(

Can somebody tell me what i make wrong ?

If im add -no_compat_check, it direct reboot after ******** appear.



Im use tutrial and file from https://github.com/jamesfawcett/Thinkpad-X201-Hackintosh-Catalina

My USB stick work proper, because i can boot to Clover and i see Windows partition and i can boot windows.



<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<true/>
			<key>Generate</key>
			<dict>
				<key>CStates</key>
				<true/>
				<key>PStates</key>
				<true/>
			</dict>
		</dict>
		<key>FixMCFG</key>
		<true/>
		<key>DSDT</key>
		<dict>
			<key>Patches</key>
			<array>
				<dict>
					<key>Find</key>
					<data>R0ZYMA==</data>
					<key>Replace</key>
					<data>SUdQVQ==</data>
					<key>Disabled</key>
					<true/>
					<key>Comment</key>
					<string>Rename GFX0 to IGPU</string>
				</dict>
			</array>
			<key>Fixes</key>
			<dict>
				<key>FixLAN</key>
				<true/>
				<key>FixSBUS</key>
				<true/>
				<key>FixDisplay</key>
				<false/>
				<key>FixAirport</key>
				<true/>
				<key>FixShutdown</key>
				<true/>
			</dict>
			<key>Name</key>
			<string>DSDT.aml</string>
			<key>DropOEM_DSM</key>
			<false/>
			<key>Debug</key>
			<false/>
			<key>ReuseFFFF</key>
			<false/>
		</dict>
		<key>HaltEnabler</key>
		<true/>
		<key>DropTables</key>
		<array>
			<dict>
				<key>TableId</key>
				<string>CpuPm</string>
				<key>Signature</key>
				<string>SSDT</string>
			</dict>
			<dict>
				<key>TableId</key>
				<string>Cpu0Ist</string>
				<key>Signature</key>
				<string>SSDT</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>DMAR</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>MATS</string>
			</dict>
		</array>
		<key>FixHeaders</key>
		<true/>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Legacy</key>
		<string>PBR</string>
		<key>CustomLogo</key>
		<false/>
		<key>Secure</key>
		<false/>
		<key>Debug</key>
		<true/>
		<key>Arguments</key>
		<string>darkwake=no UseKernelCache=No -v</string>
		<key>XMPDetection</key>
		<false/>
		<key>Timeout</key>
		<integer>5</integer>
		<key>DefaultVolume</key>
		<string>LastBootedVolume</string>
	</dict>
	<key>GUI</key>
	<dict>
		<key>Theme</key>
		<string>Thinkpad</string>
		<key>Mouse</key>
		<dict>
			<key>Mirror</key>
			<false/>
			<key>Speed</key>
			<integer>8</integer>
			<key>DoubleClick</key>
			<integer>500</integer>
			<key>Enabled</key>
			<true/>
		</dict>
		<key>Hide</key>
		<array>
			<string>\EFI\BOOT\BOOTX64.EFI</string>
			<string>Preboot</string>
			<string>Recovery</string>
		</array>
		<key>Language</key>
		<string>en:0</string>
		<key>Scan</key>
		<dict>
			<key>Tool</key>
			<true/>
			<key>Entries</key>
			<true/>
			<key>Legacy</key>
			<false/>
			<key>Linux</key>
			<false/>
		</dict>
		<key>ScreenResolution</key>
		<string>1280x800</string>
	</dict>
	<key>CPU</key>
	<dict>
		<key>UseARTFrequency</key>
		<false/>
		<key>C4</key>
		<false/>
		<key>C6</key>
		<false/>
		<key>C2</key>
		<false/>
	</dict>
	<key>Devices</key>
	<dict>
		<key>USB</key>
		<dict>
			<key>HighCurrent</key>
			<true/>
			<key>FixOwnership</key>
			<true/>
			<key>AddClockID</key>
			<true/>
		</dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<integer>3</integer>
		</dict>
		<key>FakeID</key>
		<dict>
			<key>WIFI</key>
			<string>0x43a014E4</string>
			<key>IntelGfx</key>
			<string>0x12345678</string>
		</dict>
		<key>Properties</key>
		<dict>
			<key>PciRoot(0x0)/Pci(0x2,0x0)</key>
			<dict>
				<key>framebuffer-fbccontrol-allzero</key>
				<data>AQAAAA==</data>
				<key>framebuffer-featurecontrol-allzero</key>
				<data>AQAAAA==</data>
				<key>framebuffer-linkwidth</key>
				<data>AQAAAA==</data>
				<key>framebuffer-patch-enable</key>
				<data>AQAAAA==</data>
				<key>framebuffer-singlelink</key>
				<data>AQAAAA==</data>
			</dict>
		</dict>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>Nothing</string>
	</array>
	<key>Graphics</key>
	<dict>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<false/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>NvidiaSingle</key>
		<false/>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<true/>
		<key>KernelPm</key>
		<true/>
		<key>KernelLapic</key>
		<true/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Find</key>
				<data>QVBQTEUgU1NEAA==</data>
				<key>Name</key>
				<string>IOAHCIBlockStorage</string>
				<key>Replace</key>
				<data>AAAAAAAAAAAAAA==</data>
				<key>Disabled</key>
				<false/>
				<key>Comment</key>
				<string>Trim SSD</string>
				<key>InfoPlistPatch</key>
				<false/>
			</dict>
			<dict>
				<key>Find</key>
				<data>SIX/dEdIiwc=</data>
				<key>Name</key>
				<string>IOBluetoothFamily</string>
				<key>Replace</key>
				<data>Qb4PAAAA60Q=</data>
				<key>Disabled</key>
				<false/>
				<key>Comment</key>
				<string>10.11+-BT4LE-Handoff-Hotspot-lisai9093</string>
				<key>InfoPlistPatch</key>
				<false/>
			</dict>
			<dict>
				<key>Find</key>
				<data>QYP8/3QsSA==</data>
				<key>Name</key>
				<string>AirPortBrcm4360</string>
				<key>Replace</key>
				<data>ZscGVVPrKw==</data>
				<key>Disabled</key>
				<true/>
				<key>Comment</key>
				<string>10.11+-BCM94352-5GHz-US-FCC-darkvoid</string>
				<key>InfoPlistPatch</key>
				<false/>
			</dict>
			<dict>
				<key>Find</key>
				<data>PHN0cmluZz5wY2kxNGU0LDQzYmE8L3N0cmluZz4=</data>
				<key>Name</key>
				<string>AirPortBrcm4360</string>
				<key>Replace</key>
				<data>PHN0cmluZz5wY2kxNGU0LDQzYjE8L3N0cmluZz4=</data>
				<key>Disabled</key>
				<true/>
				<key>Comment</key>
				<string>10.12-BCM94352-0x43b114e4-Info.plist-bpresles</string>
				<key>InfoPlistPatch</key>
				<true/>
			</dict>
			<dict>
				<key>Find</key>
				<data>AVhU</data>
				<key>Name</key>
				<string>AirPortBrcm4360</string>
				<key>Replace</key>
				<data>AVhY</data>
				<key>Disabled</key>
				<true/>
				<key>Comment</key>
				<string>10.9-BCM94352-5 GHz</string>
				<key>InfoPlistPatch</key>
				<false/>
			</dict>
			<dict>
				<key>Find</key>
				<data>TWFjLUM2RUZBNjM5NjJGQzZFQTA=</data>
				<key>Name</key>
				<string>AirPortBrcm4360</string>
				<key>Replace</key>
				<data>TWFjLTI3QURCQjdCNENFRThFNjE=</data>
				<key>Disabled</key>
				<true/>
				<key>Comment</key>
				<string>10.11+-BCM94352-Whitelest-0x4331-iMac14,3-skvo</string>
				<key>InfoPlistPatch</key>
				<false/>
			</dict>
			<dict>
				<key>Find</key>
				<data>TWFjLUM2RUZBNjM5NjJGQzZFQTA=</data>
				<key>Name</key>
				<string>AirPortBrcm4360</string>
				<key>Replace</key>
				<data>TWFjLTI3QURCQjdCNENFRThFNjE=</data>
				<key>Disabled</key>
				<true/>
				<key>Comment</key>
				<string>10.11+-BCM94352-Whitelest-0x4353-MacBoolAir5,2-skvo</string>
				<key>InfoPlistPatch</key>
				<false/>
			</dict>
			<dict>
				<key>Find</key>
				<data>QYP8/3QsSA==</data>
				<key>Name</key>
				<string>AirPortBrcm4360</string>
				<key>Replace</key>
				<data>ZscGI2HrKw==</data>
				<key>Disabled</key>
				<true/>
				<key>Comment</key>
				<string>10.11-BCM94352-CC=#a-Ramalama</string>
				<key>InfoPlistPatch</key>
				<false/>
			</dict>
			<dict>
				<key>Find</key>
				<data>axAAAHUN</data>
				<key>Name</key>
				<string>AirPortBrcm4360</string>
				<key>Replace</key>
				<data>axAAAJCQ</data>
				<key>Disabled</key>
				<true/>
				<key>Comment</key>
				<string>10.11+-BCM94352-Airport-Extreme-skvo</string>
				<key>InfoPlistPatch</key>
				<false/>
			</dict>
			<dict>
				<key>Find</key>
				<data>QYP8/3QsSA==</data>
				<key>Name</key>
				<string>AirPortBrcm4360</string>
				<key>Replace</key>
				<data>ZscGVVPrKw==</data>
				<key>Disabled</key>
				<true/>
				<key>Comment</key>
				<string>10.10-BCM94352-5GHz-US-FCC-dv</string>
				<key>InfoPlistPatch</key>
				<false/>
			</dict>
			<dict>
				<key>Find</key>
				<data>gflSqgAAdSk=</data>
				<key>Name</key>
				<string>AirPortBrcm4360</string>
				<key>Replace</key>
				<data>gflSqgAAZpA=</data>
				<key>Disabled</key>
				<true/>
				<key>Comment</key>
				<string>10.12-BCM94352-fvco-darkvoid</string>
				<key>InfoPlistPatch</key>
				<false/>
			</dict>
			<dict>
				<key>Find</key>
				<data>hQjsEA==</data>
				<key>Name</key>
				<string>AppleHDA</string>
				<key>Replace</key>
				<data>AAAAAA==</data>
				<key>Disabled</key>
				<false/>
				<key>Comment</key>
				<string>Zeroing 10ec0885 codec (patched by AppleHDA Patcher.app)</string>
				<key>InfoPlistPatch</key>
				<false/>
			</dict>
			<dict>
				<key>Find</key>
				<data>hBnUEQ==</data>
				<key>Name</key>
				<string>AppleHDA</string>
				<key>Replace</key>
				<data>aQLsEA==</data>
				<key>Disabled</key>
				<false/>
				<key>Comment</key>
				<string>Patching 11d41984 with 10ec0269 codec (patched by AppleHDA Patcher.app)</string>
				<key>InfoPlistPatch</key>
				<false/>
			</dict>
			<dict>
				<key>Find</key>
				<data>RiV1VCUwNHgA</data>
				<key>Name</key>
				<string>com.apple.driver.AppleBacklight</string>
				<key>Replace</key>
				<data>RiV1VHh4eHgA</data>
				<key>Disabled</key>
				<true/>
				<key>Comment</key>
				<string>change F%uT%04x to F%uTxxxx for AppleBacklightInjector.kext (credit RehabMan)</string>
				<key>InfoPlistPatch</key>
				<false/>
			</dict>
			<dict>
				<key>Find</key>
				<data>AQAAdRc=</data>
				<key>Name</key>
				<string>IOGraphicsFamily</string>
				<key>Replace</key>
				<data>AQAA6xc=</data>
				<key>Disabled</key>
				<false/>
				<key>Comment</key>
				<string>Boot graphics glitch</string>
				<key>InfoPlistPatch</key>
				<false/>
			</dict>
			<dict>
				<key>Find</key>
				<data>RiV1VCUwNHgA</data>
				<key>Name</key>
				<string>com.apple.driver.AppleBacklight</string>
				<key>Replace</key>
				<data>RiV1VHh4eHgA</data>
				<key>Disabled</key>
				<true/>
				<key>Comment</key>
				<string>change F%uT%04x to F%uTxxxx in AppleBacklightInjector.kext (credit RehabMan)</string>
				<key>InfoPlistPatch</key>
				<false/>
			</dict>
		</array>
		<key>KernelXCPM</key>
		<false/>
		<key>Debug</key>
		<false/>
		<key>DellSMBIOSPatch</key>
		<false/>
		<key>AppleIntelCPUPM</key>
		<true/>
		<key>KernelCpu</key>
		<false/>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>CsrActiveConfig</key>
		<string>0x3E7</string>
		<key>MLB</key>
		<string>C02J50E5DTY3</string>
		<key>ROM</key>
		<data>gFLsLvsk</data>
		<key>BooterConfig</key>
		<string>0x28</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>FirmwareFeatures</key>
		<string>0xC00DE137</string>
		<key>Board-ID</key>
		<string>Mac-00BE6ED71E35EB86</string>
		<key>FirmwareFeaturesMask</key>
		<string>0xFF1FFF3F</string>
		<key>BoardVersion</key>
		<string>1.0</string>
		<key>Manufacturer</key>
		<string>Apple Inc.</string>
		<key>ChassisType</key>
		<string>0x0A</string>
		<key>BiosVersion</key>
		<string>MBP91.88Z.F000.B00.2004121621</string>
		<key>BoardManufacturer</key>
		<string>Apple Inc.</string>
		<key>ChassisAssetTag</key>
		<string>MacBook-Aluminum</string>
		<key>PlatformFeature</key>
		<string>0xFFFF</string>
		<key>Family</key>
		<string>MacBook Pro</string>
		<key>ChassisManufacturer</key>
		<string>Apple Inc.</string>
		<key>BoardSerialNumber</key>
		<string>C02231102J9F1YJ1H</string>
		<key>BiosVendor</key>
		<string>Apple Inc.</string>
		<key>ProductName</key>
		<string>MacBookPro9,2</string>
		<key>SmUUID</key>
		<string>E785B5E7-D216-4C1A-8783-C63DA553E667</string>
		<key>Mobile</key>
		<true/>
		<key>BoardType</key>
		<integer>10</integer>
		<key>EfiVersion</key>
		<string>232.0.0.0.0</string>
		<key>SerialNumber</key>
		<string>C02J50E5DTY3</string>
		<key>LocationInChassis</key>
		<string>Part Component</string>
		<key>BiosReleaseDate</key>
		<string>04/12/2020</string>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectSystemID</key>
		<true/>
		<key>CustomUUID</key>
		<string>E785B5E7-D216-4C1A-8783-C63DA553E667</string>
		<key>InjectKexts</key>
		<string>Yes</string>
	</dict>
	<key>ConfigName</key>
	<string>Install</string>
	<key>#DisableDrivers</key>
	<array>
		<string>_NOT_SHOWN_</string>
	</array>
</dict>
</plist>




Edited by Lukasz Bak
Slice
Slice
Posted
Posted

😂

What is PUTYOURSHERE?

This is the reason why the Mac OS is not supported on your platform!

You must correct your config.plist as

       <key>SMBIOS</key>
        <dict>
            <key>Board-ID</key>
            <string>Mac-42FD25EABCABB274</string>



Lukasz Bak
Lukasz Bak
Posted
  • Author
Posted (edited)
3 hours ago, Slice said:

😂

What is PUTYOURSHERE?

This is the reason why the Mac OS is not supported on your platform!

You must correct your config.plist as

       <key>SMBIOS</key>
        <dict>
            <key>Board-ID</key>
            <string>Mac-42FD25EABCABB274</string>



Even with that wont boot :(

And if u see i add that in my config:


		<key>Board-ID</key>
		<string>Mac-00BE6ED71E35EB86</string>





Edited by Lukasz Bak

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Unfortunately, your content contains terms that we do not allow. Please edit your content to remove the highlighted words below.
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

×
 Share
Go to topic listing
×
×
  • Create New...
