Could someone be so kind and look at my EFI Folder AMD RX6600 no display (SOLVED)by miliuco with a (P

[BALDY_MAN]

hi all

I would be grateful if someone could help me get a Sapphire Pulse rx6600 gpu working in my Gigabyte Z97 hack.

I'm using Venture 13.0 Beta (22A5331f)

everything works with a rx580 pulse card but it was only a loan.. so I bought a Sapphire pulse rx6600

and I get no signal to the monitor from any of the ports I have tried adding the ATY,Henbury String to my config plist.

and  agdpmod=pikera to boot arg

and updated WEG Kext and Lieu Kext

with the latest open core 0.8.4 boot load

so im a unsure what to do next

                                                              Best regards

                                                                                     Baldy





Edited September 7, 2022 by BALDY_MAN

[MaLd0n]

try

reset nvram on first boot

EFI.zip

[BALDY_MAN]

@Mald0n. thank you my friend. give me a minute to swop the cards

[BALDY_MAN]

@Mald0n. thanks for your help my friend.

I have tried the EFI File I see the boot screen and vibes script scrolling  then a black screen. and  the monitor  says no  video signal.

I have tried in  all the ports. DP PORTS /HDMI and cleared v ram each time

[miliuco]

@BALDY_MAN

You have agdmod=pikera instead of agdpmod=pikera in boot args.



SMBIOS model?

Edited September 7, 2022 by miliuco

[BALDY_MAN]

29 minutes ago, miliuco said:

@BALDY_MAN

You have agdmod=pikera instead of agdpmod=pikera in boot args.



SMBIOS model?

@miliuco Thanks my friend I will change it and try.(I'm tired)

and try it in a hour thanks again

[BALDY_MAN]

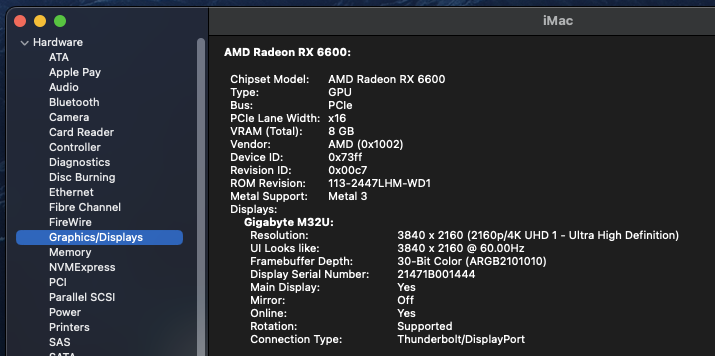

@miliuco Thank you very much you fixed it for me thank you.

IT was the P that fixed it

(I will all way make sure I have a P now

Edited September 7, 2022 by BALDY_MAN
