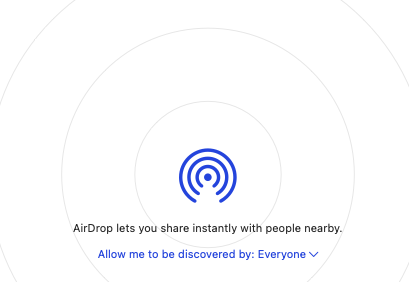

oronfel2911 Posted March 20, 2022 Share Posted March 20, 2022 (edited) Hello I managed to get Lenovo yoga c740-15iml hackintosh Monterey Intel Core i5-10210U Intel Graphics UHD 630 12Gb Ram I have some issues - Sleep Issue Just Have some issue, Sleep doesn't work, when the laptop goes to sleep it doesn't turn on, Just black Screen I have to force shut down and turn it on again. - Touch screen Issue Touch scree not work even with the VoodooI2C.kext and VoodooI2CHID.kext. - AirDrop Screen link working but I can't see any derives. EFI: https://we.tl/t-Jy3KvTGl9q Please help Thank You Edited March 20, 2022 by oronfel2911 Link to comment https://www.insanelymac.com/forum/topic/351147-lenovo-sleep-touch-screen-and-airdrop-issues/ Share on other sites More sharing options...
Baio77 Posted March 20, 2022 Share Posted March 20, 2022 post ioreg please Link to comment https://www.insanelymac.com/forum/topic/351147-lenovo-sleep-touch-screen-and-airdrop-issues/#findComment-2778657 Share on other sites More sharing options...
oronfel2911 Posted March 20, 2022 Author Share Posted March 20, 2022 Thank you Sir Hany’s MacBook Pro.ioreg I attached the file Link to comment https://www.insanelymac.com/forum/topic/351147-lenovo-sleep-touch-screen-and-airdrop-issues/#findComment-2778658 Share on other sites More sharing options...
Baio77 Posted March 20, 2022 Share Posted March 20, 2022 test this EFIEFI.zip in USB if start new ioreg Link to comment https://www.insanelymac.com/forum/topic/351147-lenovo-sleep-touch-screen-and-airdrop-issues/#findComment-2778664 Share on other sites More sharing options...
oronfel2911 Posted March 21, 2022 Author Share Posted March 21, 2022 (edited) thank you sir. still have airdrop and touchscreen issues. thank you Please helpHany’s MacBook Pro 2.ioreg Edited March 21, 2022 by oronfel2911 Link to comment https://www.insanelymac.com/forum/topic/351147-lenovo-sleep-touch-screen-and-airdrop-issues/#findComment-2778674 Share on other sites More sharing options...
Baio77 Posted March 21, 2022 Share Posted March 21, 2022 This last one is NOT ioreg of my EFI, you still booted with your EFI Link to comment https://www.insanelymac.com/forum/topic/351147-lenovo-sleep-touch-screen-and-airdrop-issues/#findComment-2778693 Share on other sites More sharing options...
oronfel2911 Posted March 21, 2022 Author Share Posted March 21, 2022 (edited) Hello Sir, i replaced your EFI and reset RMVB more than 3 times and your new EFI fixed the sleep issue but the touchscreen not. Airdrop can see my iPhone deceives or any other devices. Attached new IORegistry again. let me know if I did anything wrong. Also i found this about my model of Touchscreen, but i don't know how to do it. https://www.notion.so/Using-VoodooI2C-on-comet-lake-cpu-e-g-i5-10210u-142930887087445eaa533120455da5dc Please Help advice Hany’s MacBook Pro 2v.zip Edited March 21, 2022 by oronfel2911 Link to comment https://www.insanelymac.com/forum/topic/351147-lenovo-sleep-touch-screen-and-airdrop-issues/#findComment-2778725 Share on other sites More sharing options...
Baio77 Posted March 21, 2022 Share Posted March 21, 2022 EFI.zipTest this EFI , if start ioreg , last ioreg posted by you is NOT from my EFI, I have entered many SSDTs, I immediately recognize if ioreg is from my EFI. Link to comment https://www.insanelymac.com/forum/topic/351147-lenovo-sleep-touch-screen-and-airdrop-issues/#findComment-2778728 Share on other sites More sharing options...
oronfel2911 Posted March 21, 2022 Author Share Posted March 21, 2022 I replace the EFI Folder and Reset RMVB and still no touch. I don't know if this one is helping https://www.notion.so/Using-VoodooI2C-on-comet-lake-cpu-e-g-i5-10210u-142930887087445eaa533120455da5dc also I saved new IOReg. I hope its the right one. I can share my computer with teamviewer if you want. Thanks Hany’s MacBook Pro V3.zip Link to comment https://www.insanelymac.com/forum/topic/351147-lenovo-sleep-touch-screen-and-airdrop-issues/#findComment-2778740 Share on other sites More sharing options...
Baio77 Posted March 21, 2022 Share Posted March 21, 2022 yes this is from my EFI, it still doesn't work ?? Link to comment https://www.insanelymac.com/forum/topic/351147-lenovo-sleep-touch-screen-and-airdrop-issues/#findComment-2778748 Share on other sites More sharing options...
oronfel2911 Posted March 21, 2022 Author Share Posted March 21, 2022 Yes Sir, touchscreen works once after sleep then stooped working again. Any advice! Link to comment https://www.insanelymac.com/forum/topic/351147-lenovo-sleep-touch-screen-and-airdrop-issues/#findComment-2778750 Share on other sites More sharing options...
oronfel2911 Posted March 22, 2022 Author Share Posted March 22, 2022 Hello @Baio77 I give-up about touchscreen but i replaced my Wifi card to Broadcom BCM94352Z to get AirDrop, Bluetooth and wifi work. but Wifi and doesn't work, please help get Broadcom BCM94352Z to work. EFI.zip IORegistryExplorer-2.1.dmg Link to comment https://www.insanelymac.com/forum/topic/351147-lenovo-sleep-touch-screen-and-airdrop-issues/#findComment-2778783 Share on other sites More sharing options...

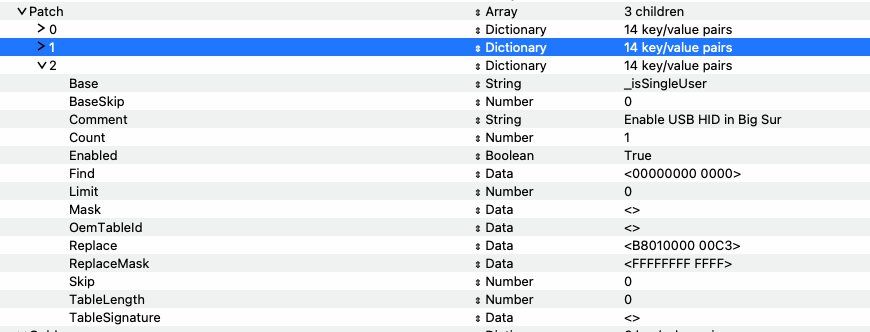

oronfel2911 Posted March 22, 2022 Author Share Posted March 22, 2022 Hello @Hervé I added the patch using ProperTree and still not working. do i need to add any Kext to OC folder? Link to comment https://www.insanelymac.com/forum/topic/351147-lenovo-sleep-touch-screen-and-airdrop-issues/#findComment-2778810 Share on other sites More sharing options...
oronfel2911 Posted March 23, 2022 Author Share Posted March 23, 2022 Any Update, @Hervé @Baio77 ? Link to comment https://www.insanelymac.com/forum/topic/351147-lenovo-sleep-touch-screen-and-airdrop-issues/#findComment-2778857 Share on other sites More sharing options...
oronfel2911 Posted March 24, 2022 Author Share Posted March 24, 2022 Thanks you I will try to do usb mapping again, but my touchscreen only work after sleep, when I close the led and open the laptop after a while, the laptop woke up and touch screen work. Link to comment https://www.insanelymac.com/forum/topic/351147-lenovo-sleep-touch-screen-and-airdrop-issues/#findComment-2778887 Share on other sites More sharing options...
oronfel2911 Posted March 24, 2022 Author Share Posted March 24, 2022 Thank you, i will check today, but i'm just wondering if the patch i added is right or wrong patch? Link to comment https://www.insanelymac.com/forum/topic/351147-lenovo-sleep-touch-screen-and-airdrop-issues/#findComment-2778897 Share on other sites More sharing options...
Guest 5T33Z0 Posted March 25, 2022 Share Posted March 25, 2022 (edited) @oronfel2911 About the Blackscreen issue after wake: it can occur on Coffe Lake and Comet Lake on-board Graphics. I fixed it by adding the following key to the Framebuffer patch in Device Properties for PciRoot(0x0)/Pci(0x2,0x0): Altermatively, you can use the equivalent boot-arg igfxonln=1 Restart after adding the device property/boot-arg and test it. Edited March 25, 2022 by 5T33Z0 Link to comment https://www.insanelymac.com/forum/topic/351147-lenovo-sleep-touch-screen-and-airdrop-issues/#findComment-2778909 Share on other sites More sharing options...
